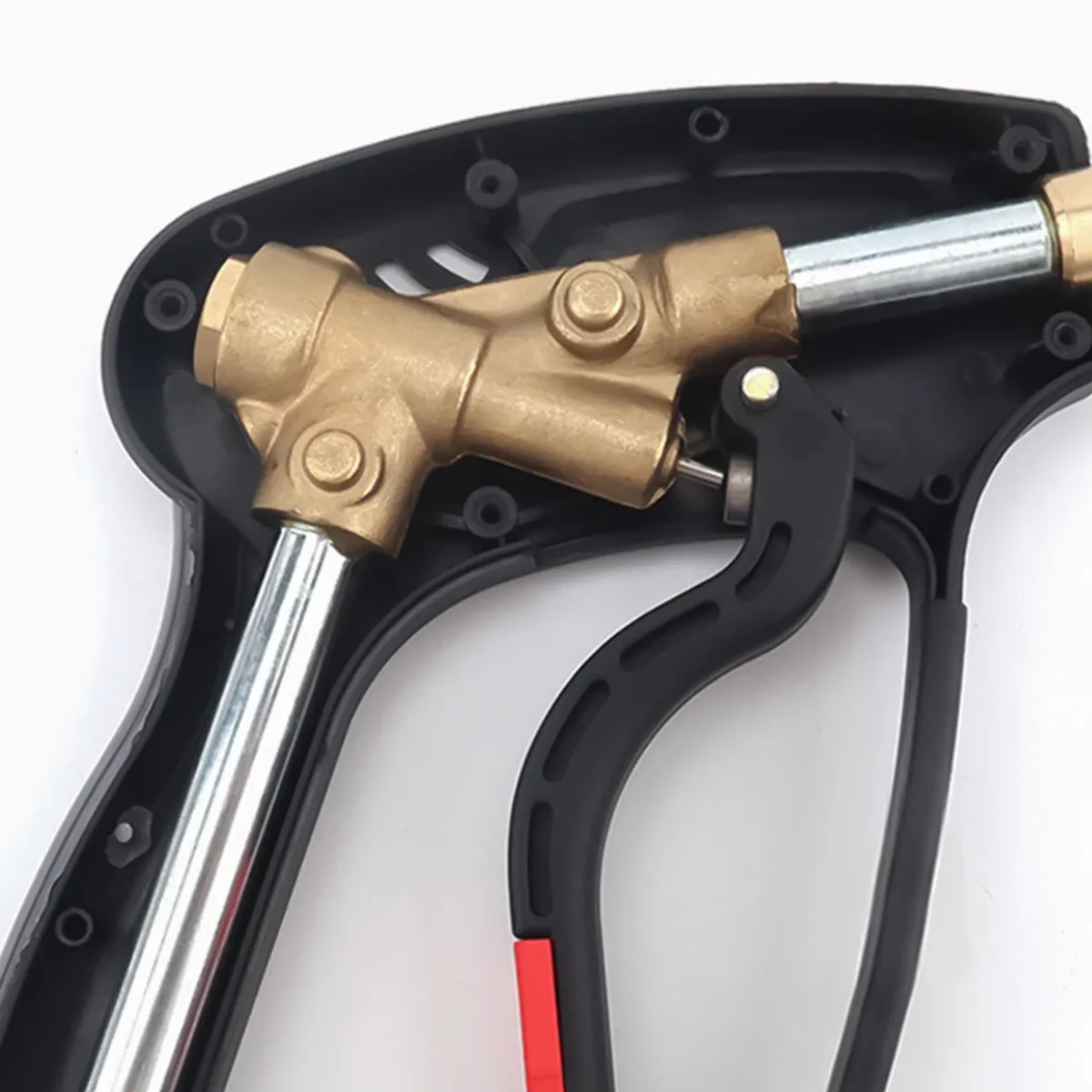

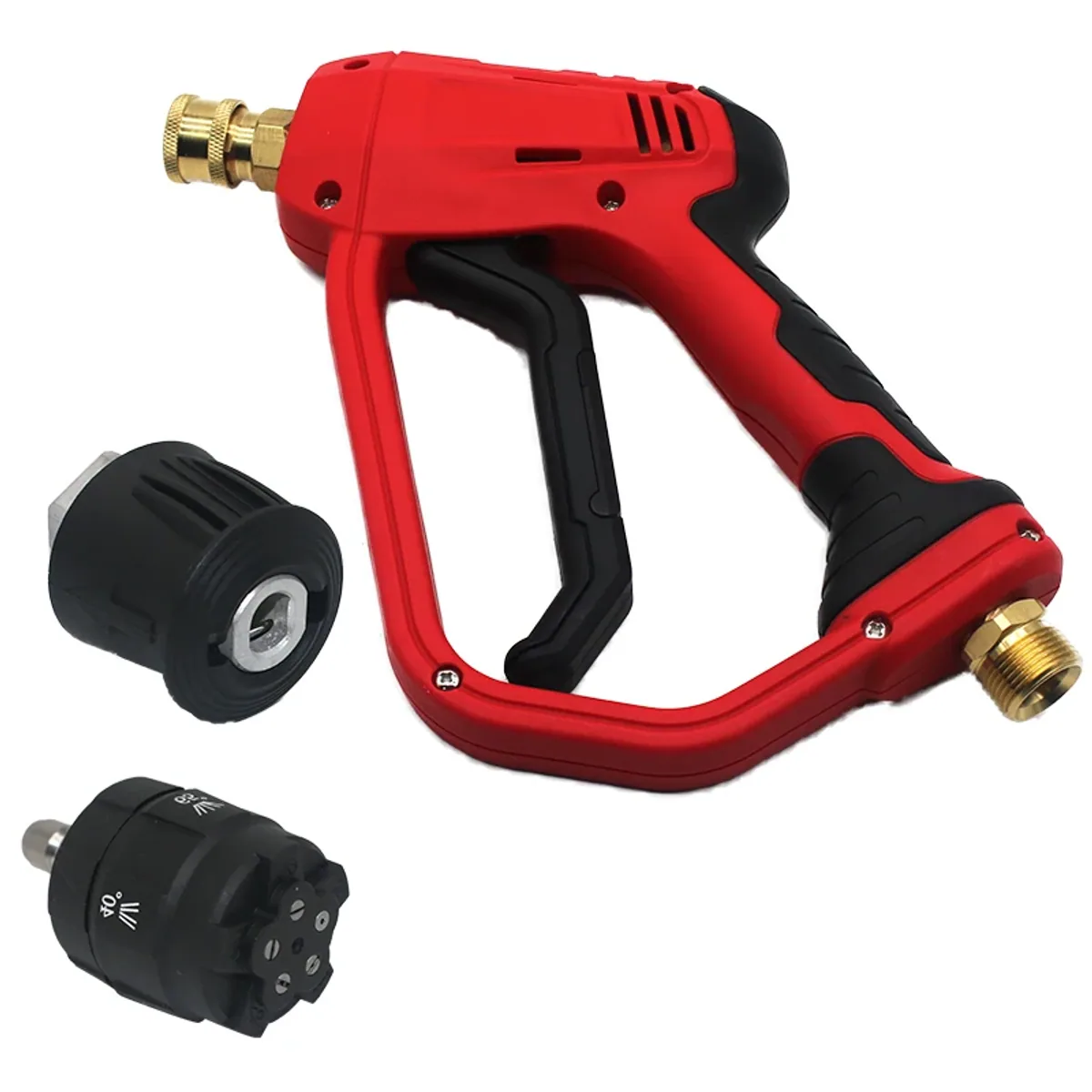

This high pressure trigger spray gun is the gun half of a pressure washer lance and gun set-up, controlling the water flow to your lance with a headline rating of 280 bar (4000 psi). The inlet is an M22 male thread for the hose and the outlet is a G1/4 female thread for the lance, so it slots between a compatible hose and lance on the washer.
Features and benefits:

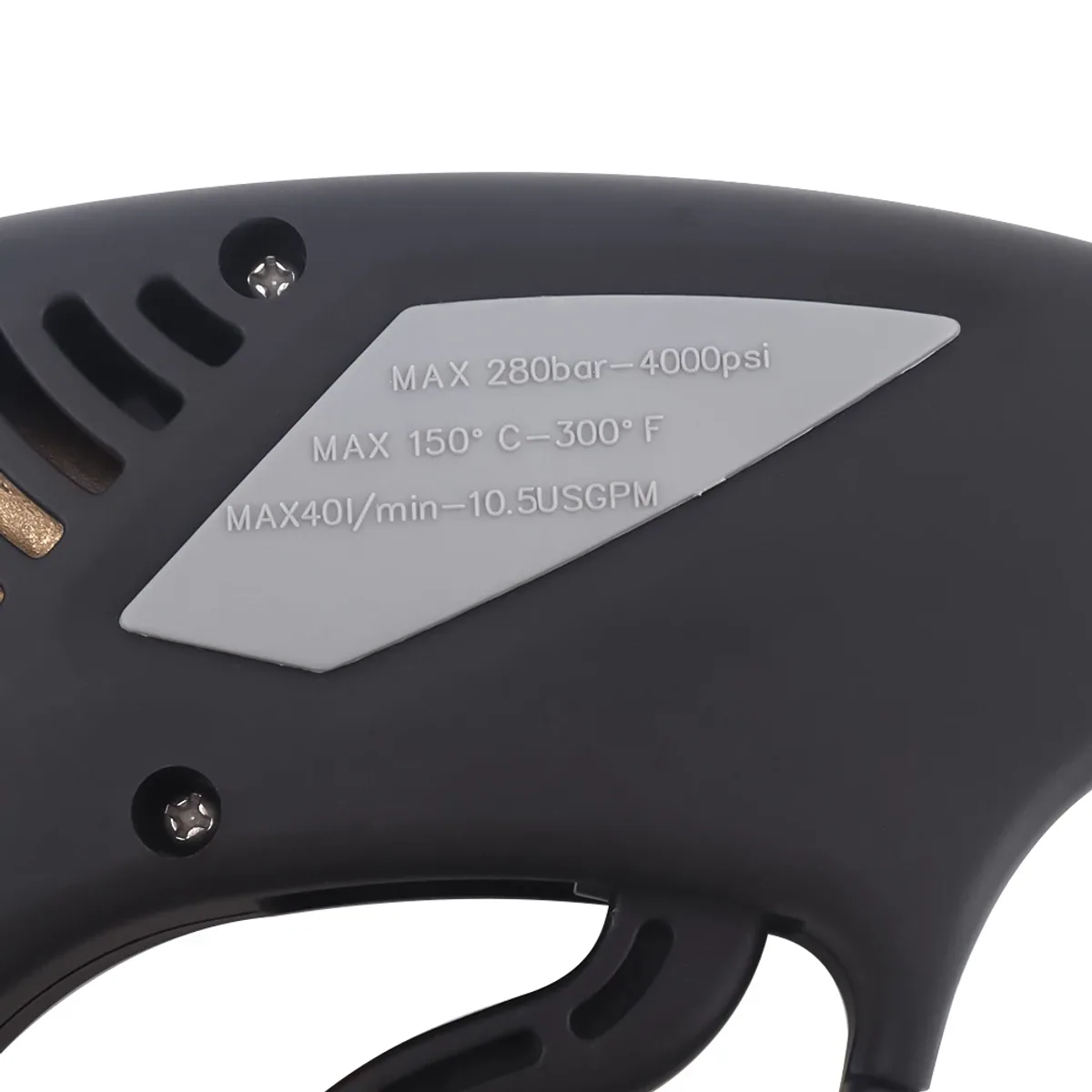

- Rated to 280 bar (4000 psi) maximum pressure, with a 40 l/min maximum flow rate
- Maximum temperature of 150°C (300°F)

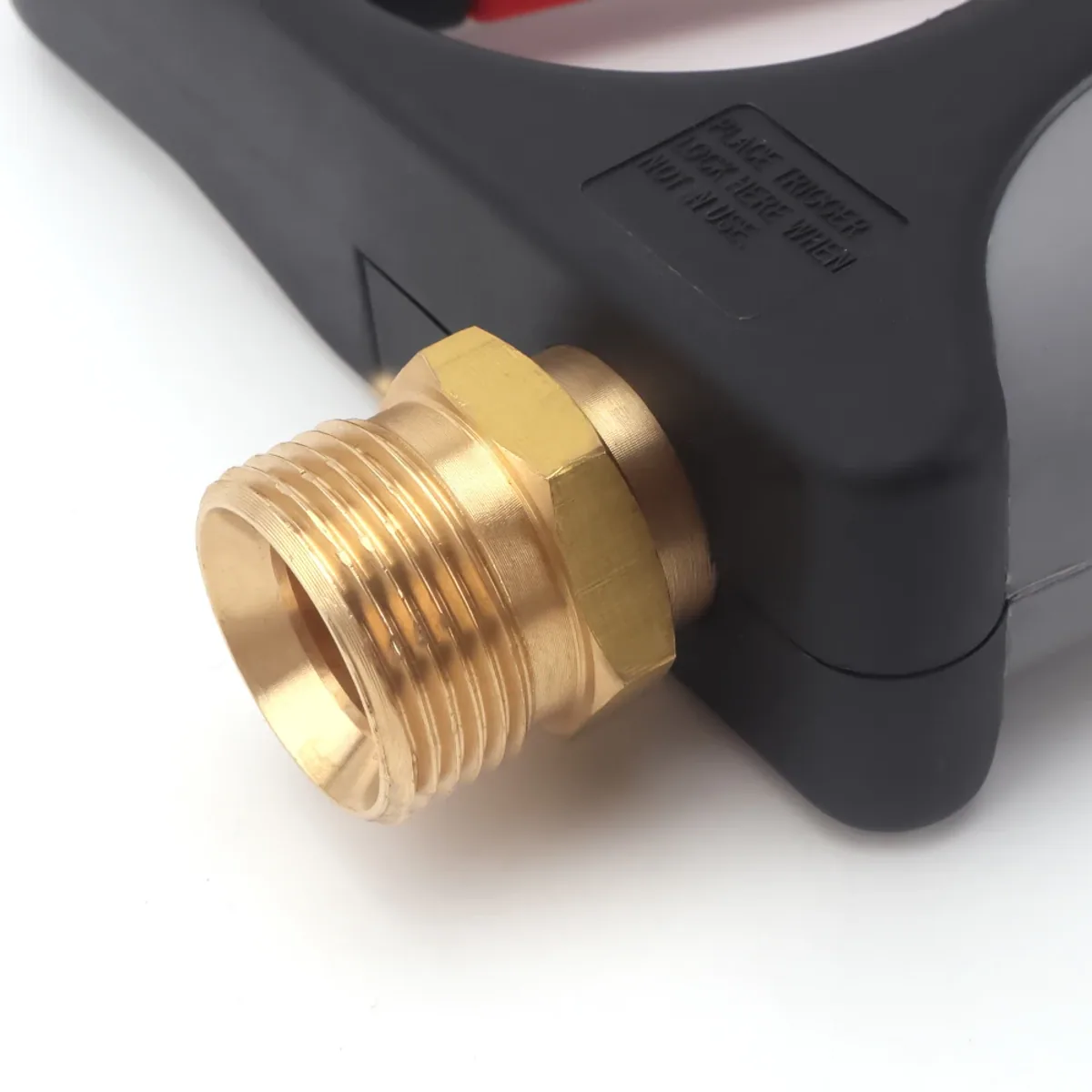

- M22 male inlet (M22x1.5 thread, 14mm inner diameter) for the hose connection
- G1/4 female outlet for the lance
- Copper interface and copper nozzle, with an engineering plastic body
- Finger type handle with a trigger safety lock, to be engaged whenever the gun is not in use
- Fan water spray type
Applications:
- Fitting to pressure washers that use the M22 male and G1/4 female connections
- Replacing a worn or leaking trigger gun on a compatible washer
- Workshop, yard and site cleaning with a compatible pressure washer
In the box:
- 1 x high pressure trigger spray gun (no hose or lance supplied)
Note: Check that your hose and lance threads match M22 male and G1/4 female before fitting, and stay within the 280 bar, 150°C and 40 l/min limits. Engage the trigger lock when the gun is not in use and never point the jet at people or animals.
Product type: High pressure trigger spray gun. Maximum pressure: 280 bar (4000 psi). Maximum temperature: 150°C (300°F). Maximum flow rate: 40 l/min (10.5 USGPM). Inlet connection: M22 male thread (M22x1.5). Inlet hose inner diameter: 14mm. Outlet connection: G1/4 female thread. Water spray type: Fan. Handle type: Finger type. Body material: Engineering plastic. Interface material: Copper. Nozzle material: Copper. Trigger safety lock: Yes, engage when not in use. Suitable for: Professional and commercial high pressure washers. Supplied with water pipes: No. Battery: Not applicable, no battery included. Pack quantity: 1 gun. Trigger lock marking: PLACE TRIGGER LOCK HERE WHEN NOT IN USE. Q: What is a pressure washer lance and gun? A: The gun is the trigger handle that starts and stops the water jet, and the lance is the tube that connects to its outlet. This gun has an M22 male inlet for the hose and a G1/4 female outlet for the lance.. Q: What threads does this pressure washer gun have? A: The inlet is an M22 male thread (M22x1.5) for a hose with 14mm inner diameter. The outlet is a G1/4 female thread for the lance.. Q: What is the maximum pressure of this trigger gun? A: It is rated to 280 bar (4000 psi) maximum, with a maximum temperature of 150°C (300°F) and a maximum flow of 40 l/min.. Q: Does it come with a lance or hose? A: No, it is supplied as the gun only, with no water pipes. You will need a hose and a lance that match the M22 male inlet and G1/4 female outlet.. Q: Does the gun have a safety lock? A: Yes, the trigger has a safety lock that should be engaged whenever the gun is not in use..
