This 10m pressure washer hose replacement is a braided thermoplastic hose with a 1/4 inch (6.0mm) bore, rated for a maximum working pressure of 160 bar (2320psi). It is made for electric pressure washers with compatible connections and is sold in four end-fitting versions, so you can match the fittings on your own machine.
Features and benefits:
- 10m (32ft) length with a 6.0mm inner diameter - enough reach to move around a car or yard without repositioning the washer

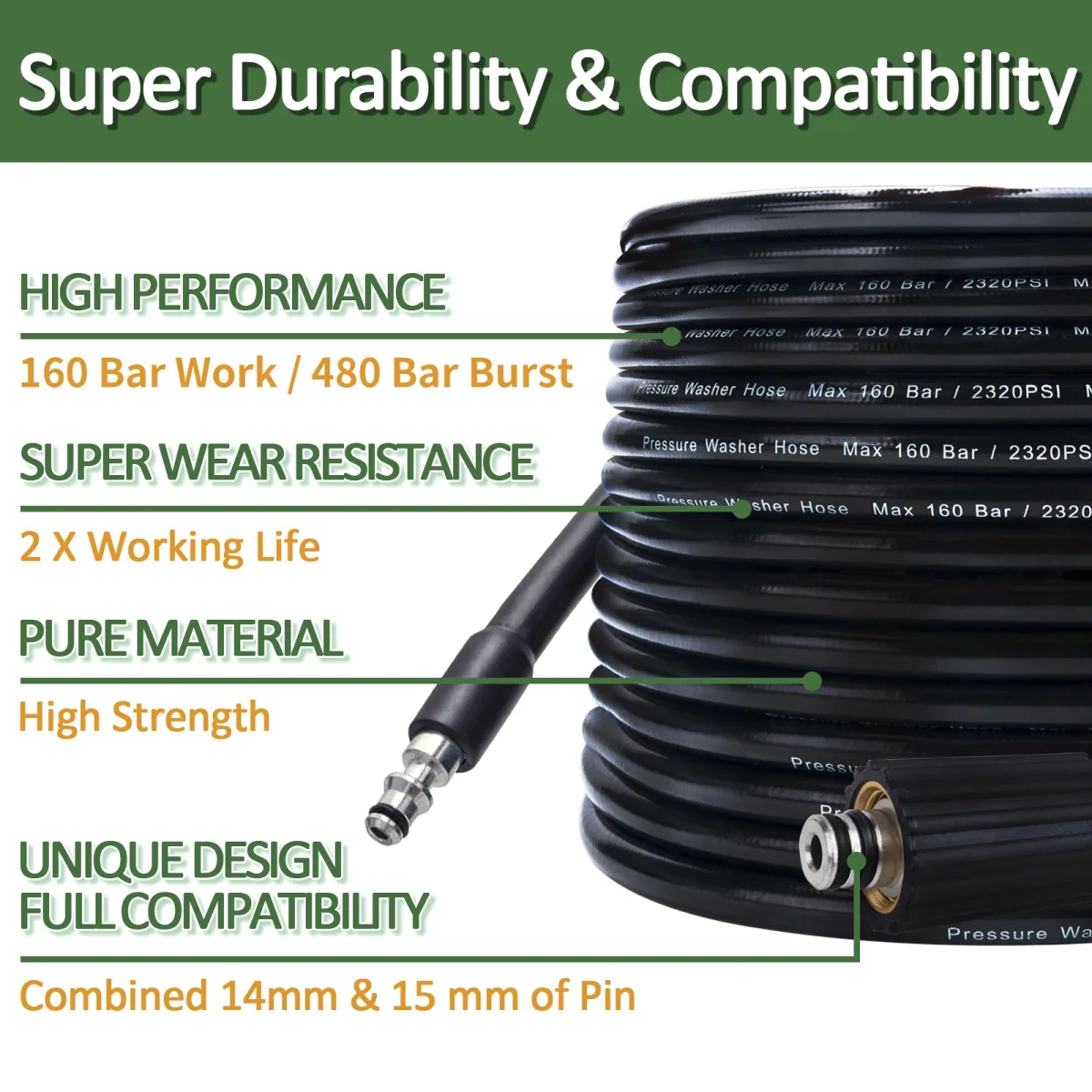

- 160 bar (2320psi) working pressure and 480 bar (6960psi) burst pressure - the burst figure is 3 times the working rating

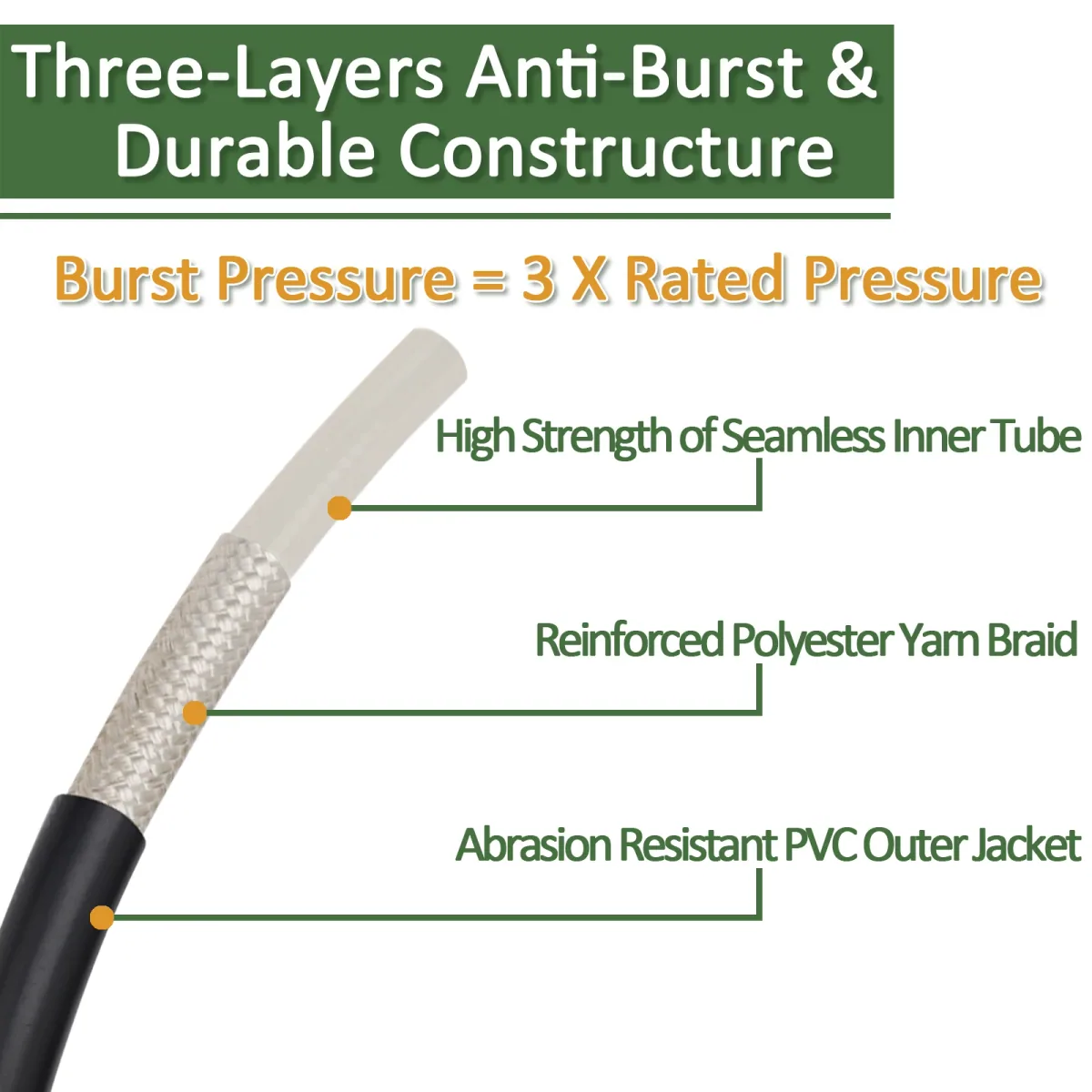

- Three-layer build: a joint-free inner tube, textile braid reinforcement and a smooth abrasion resistant PVC cover - built to cope with dragging and coiling

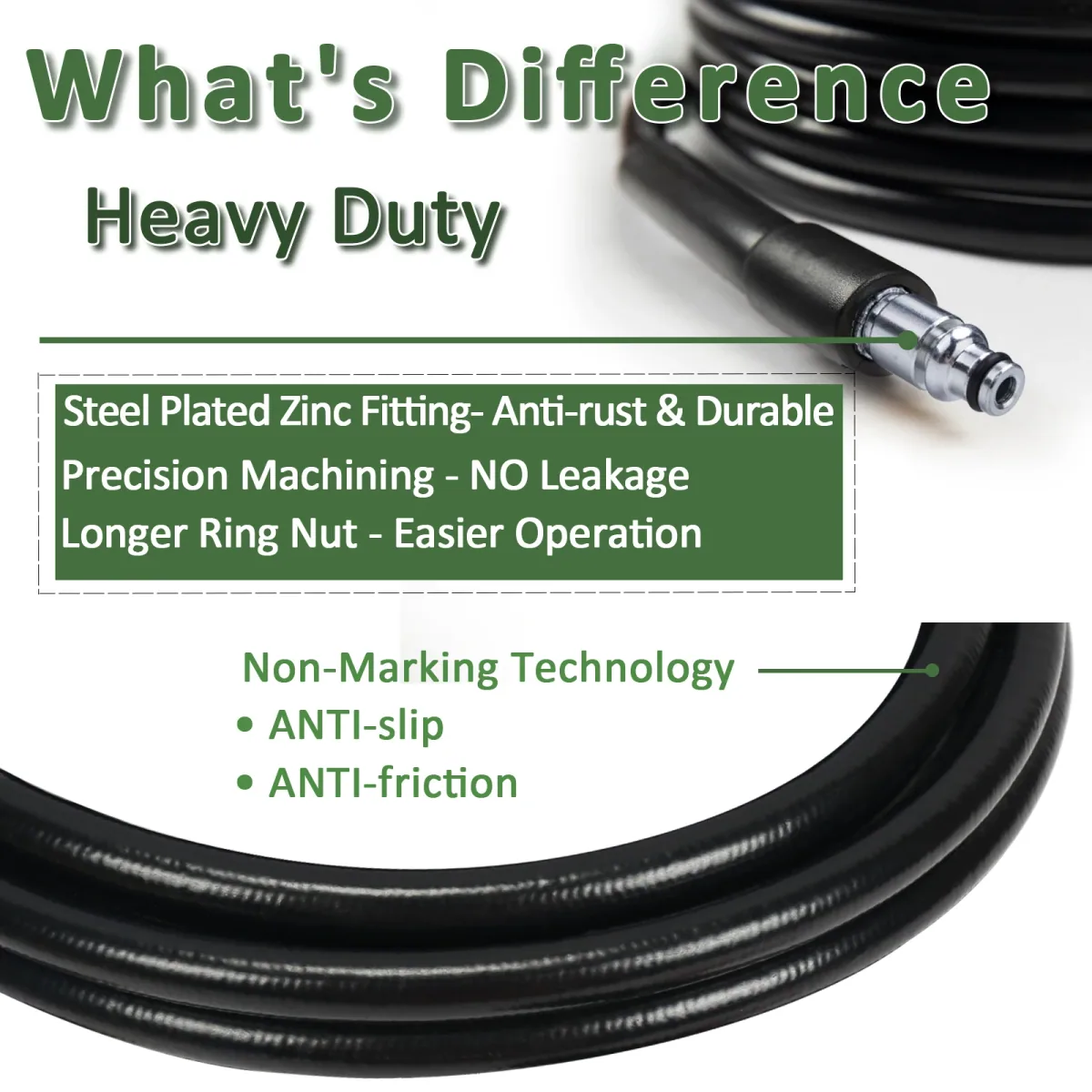

- Non-marking cover with anti-slip and anti-friction properties - kinder to paintwork and patios

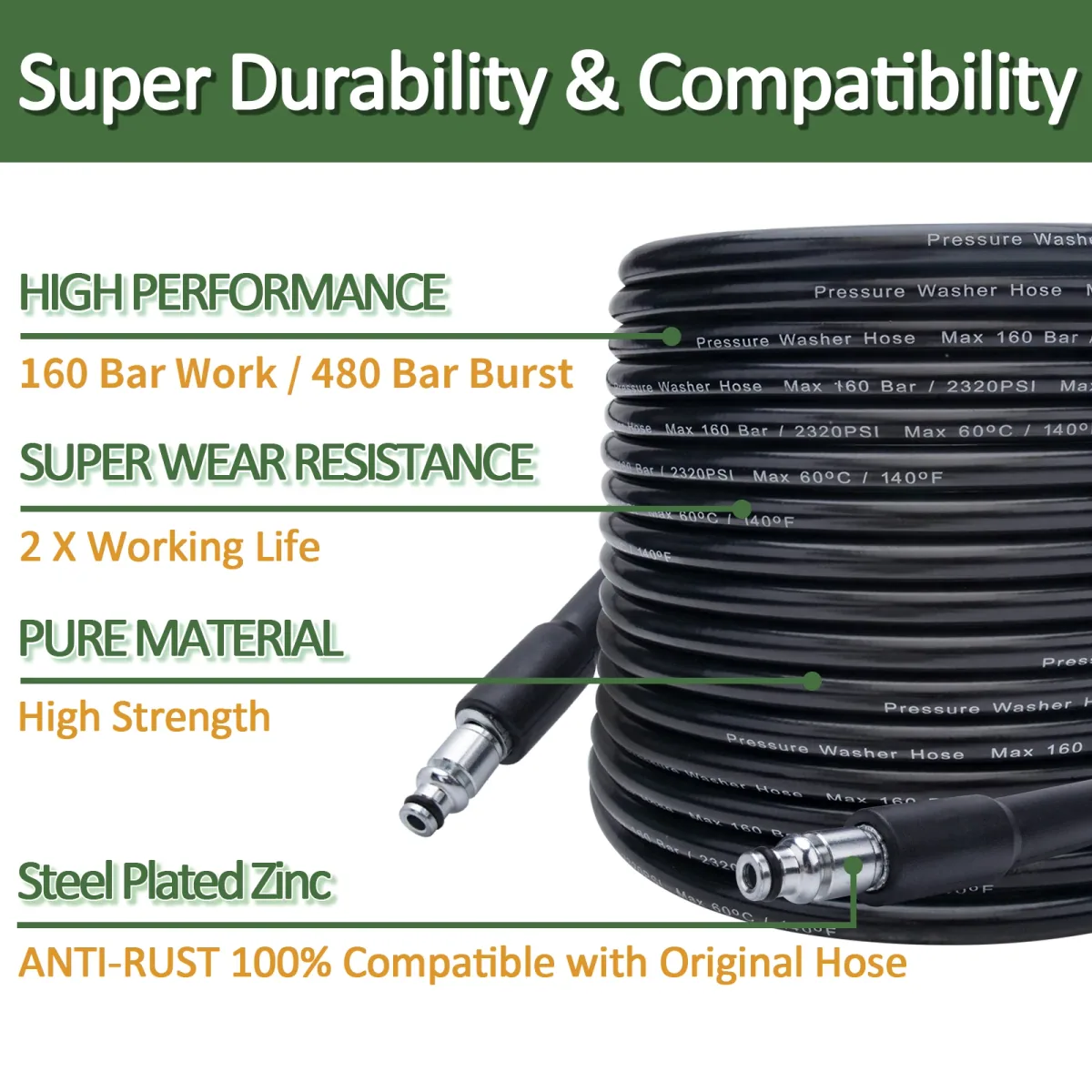

- Zinc plated steel fittings with a longer ring nut - rust resistant and easier to grip and tighten
- Usable up to 60°C (140°F) - suits the cold water duty of electric washers
- Four fitting versions in the options, including an M22 extension hose - pick the one that matches your gun and machine
Applications:
- Replacing a worn or split hose on a light duty electric pressure washer
- Car and van washing
- Patio, drive and fence cleaning at home
- Light commercial washing jobs
In the box:
The hose is supplied with an adapter for use as an extension on the fitting types the seller marks for that purpose. Check the option you choose against the fitting sizes in the pictures.
Note: Check the fitting size at both ends of your existing hose before ordering, as pressure washer connectors vary between machines. Do not exceed the 160 bar working pressure or 60°C water temperature, and replace any hose that is cut, bulging or leaking.

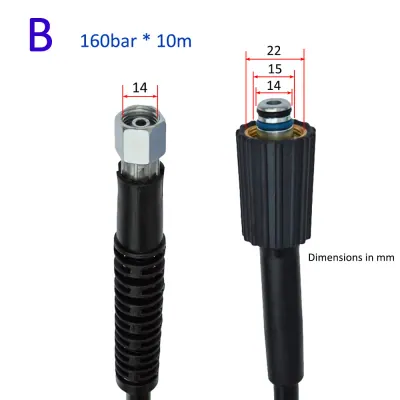

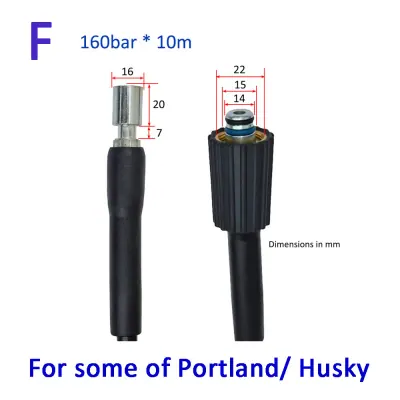

Length: 10m (32ft). Inner diameter: 1/4 inch (6.0mm). Maximum working pressure: 160 bar (2320psi). Burst pressure: 480 bar (6960psi), 3 times working pressure. Maximum temperature: 60°C (140°F). Minimum temperature: 0°C (15°F). Inner tube: Joint-free. Reinforcement: Textile braid (polyester yarn). Outer cover: Smooth abrasion resistant PVC, non-marking. Fitting material: Zinc plated steel (listing also states alloy interface). Fitting versions: Version 1, Version 2, Extension Hose M22, Version 4 (choose in options). Intended washers: Electric pressure washers up to 160 bar with compatible connections. Extension use: Selected fitting types work as an extension with the included adapter. Hose length: 10m. Bore: 6.0mm. Connector dimensions: Shown in mm on the option pictures, including 12, 14, 15, 22 and 25.5mm values. Pin fitting sizes: Combined 14mm and 15mm pin fitting shown on one version. Ring nut: Longer ring nut for easier tightening. Cover: Non-marking, anti-slip and anti-friction. Water type: Cold water, 0°C to 60°C. Power: Not applicable, no electrical parts. Q: How do I connect a hose to a pressure washer? A: Push the hose end onto the outlet or gun fitting and tighten the ring nut by hand until it is snug. The fitting must match your machine, so compare the connector sizes in the option pictures with your old hose first.. Q: What pressure is this pressure washer hose rated for? A: It has a maximum working pressure of 160 bar (2320psi) and a burst pressure of 480 bar (6960psi). Use it on electric pressure washers within that rating.. Q: Can this hose be used as an extension hose? A: The seller states that some of the fitting types can be used as an extension with the adapter that is included. There is also a dedicated Extension Hose M22 option.. Q: Can I use it with hot water? A: The maximum temperature is 60°C (140°F). It is not suited to steam or hotter water.. Q: How do I know which fitting version to choose? A: Look at both ends of your current hose and the gun and outlet connectors, then match them to the dimension drawings on the option pictures. If the fittings do not match your machine, the hose will not seal..
