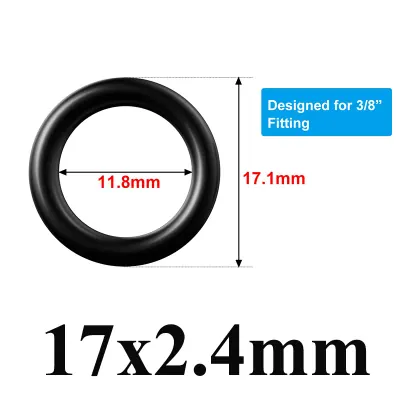

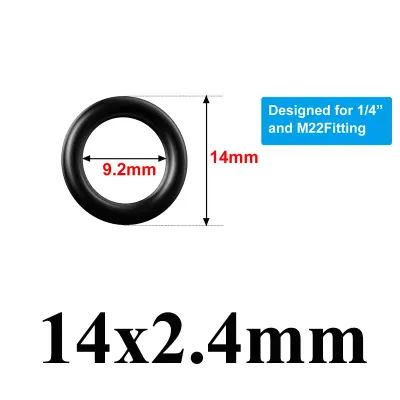

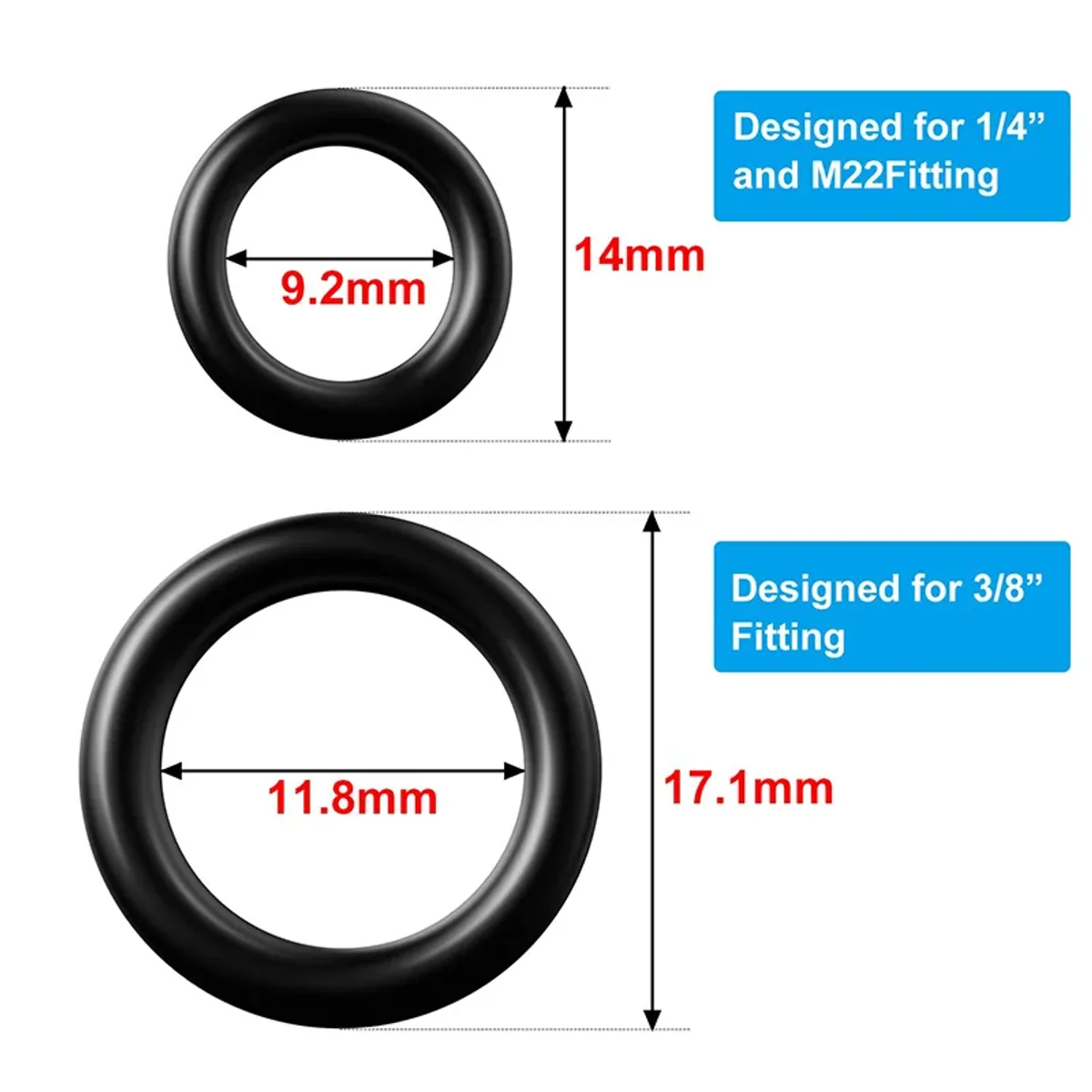

This pressure washer O-ring seal kit is one of the pressure washer accessories that keeps quick connect couplers sealed: NBR rubber replacement rings sold as 100 pieces in two sizes (50 of each), or in smaller and single-size packs chosen in the options. The small ring measures 14.0mm outside diameter, 9.2mm inside diameter and 2.4mm depth and is made for 1/4 inch and M22 quick connect fittings. The large ring measures 17.1mm outside diameter, 11.8mm inside diameter and 2.65mm depth and is made for 3/8 inch quick connect fittings.
Features and benefits:

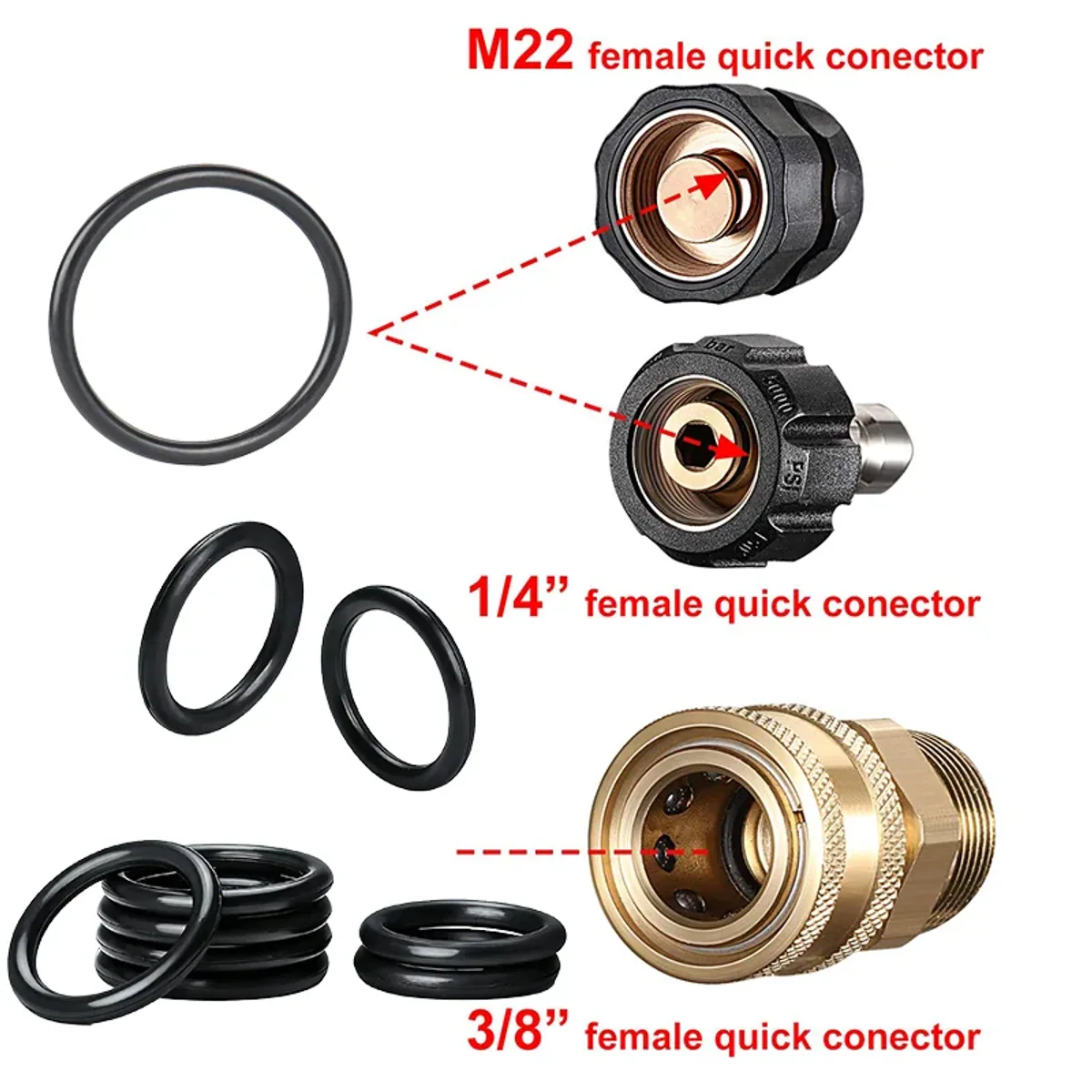

- Two ring sizes in one kit - covers 1/4 inch, 3/8 inch and M22 quick connect couplers without ordering separate spares
- NBR rubber construction - the seller describes it as tear and abrasion resistant, for repeated coupling and uncoupling
- Working temperature -40°C to 120°C - suits cold and hot water pressure washer use
- Pack choice - 100 pieces in total, or 50 or 100 pieces of a single size, so you can match what the workshop actually uses
- Fresh rings to stop leaks - replacing a worn ring at the coupler is a quick way to cut dripping and spray at the connection
- Black rubber, plain finish - easy to see against yellow or brass connectors during a change
Applications:

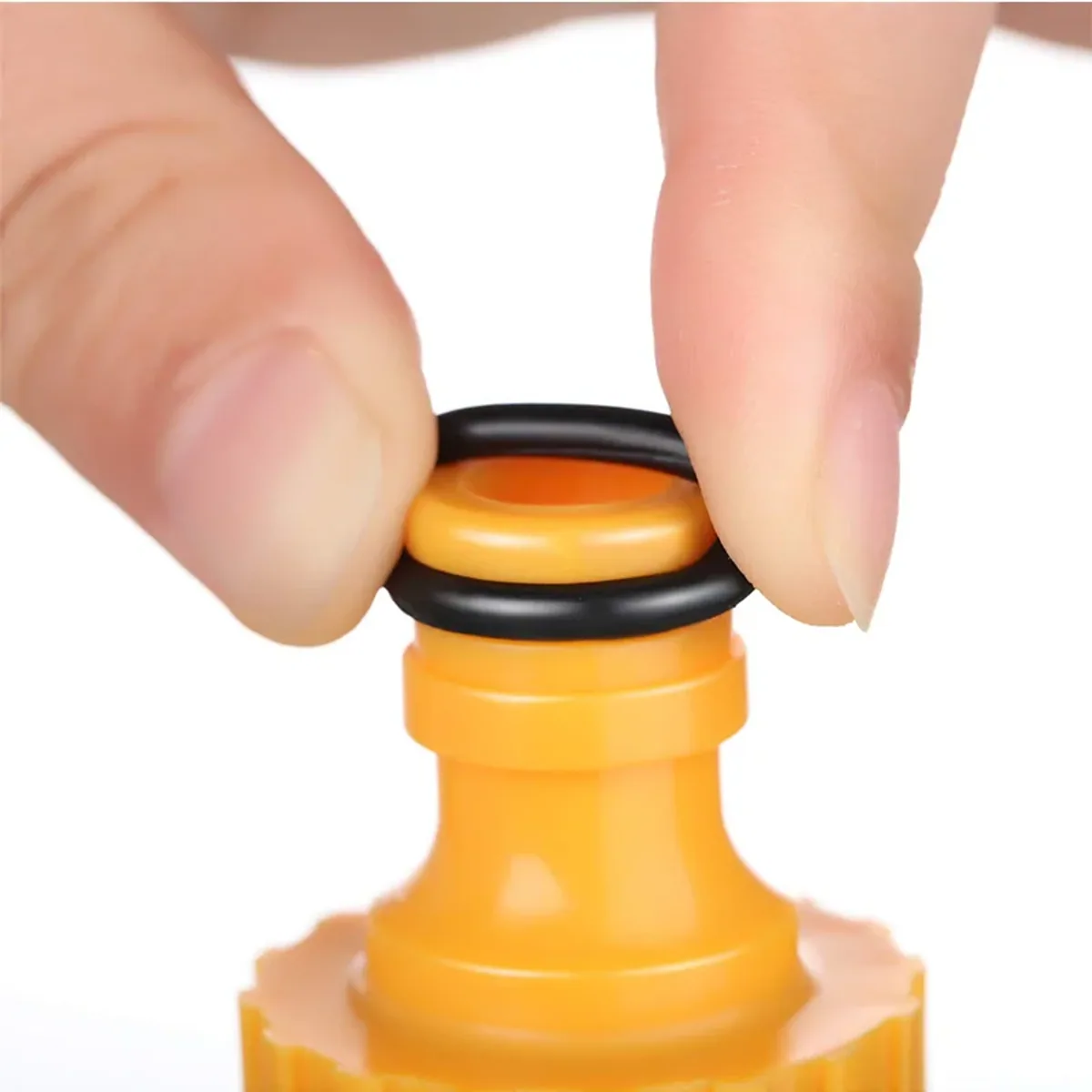

- Replacing worn O-rings in pressure washer wands, hoses and quick connectors
- Leak repairs on water pipes, faucets and shower fittings
- Hose joints, pressure pipeline repairs and air or gas connections
- Stocking a maintenance van or workshop drawer with common coupler spares
In the box:
Seller listing shows 100 pieces in total, 50 of the 14mm size and 50 of the 17.1mm size. Smaller and single-size packs are available through the options. The quick connectors shown in the pictures are for scale and are not part of the kit unless stated.
Note: Measure your existing O-ring before ordering, as coupler sizes differ between makes. Release pressure and switch the machine off before opening a coupler.
Product type: O-ring seal kit for quick connect couplers. Material: NBR rubber. Colour: Black. Pack size: 100 pieces in total (50 small + 50 large); other pack sizes in options. Small ring outside diameter: 14.0mm. Small ring inside diameter: 9.2mm. Small ring depth: 2.4mm. Small ring fits: 1/4 inch and M22 quick connect. Large ring outside diameter: 17.1mm. Large ring inside diameter: 11.8mm. Large ring depth: 2.65mm. Large ring fits: 3/8 inch quick connect. Working temperature: -40°C to 120°C. Shape: Ring gasket. Standard: Standard sizes. Rubber type: NBR. Resistance: Tear and abrasion resistant (seller description). Water temperature: Cold and hot water pressure washers. Cross-section stated on listing: 2.4mm small ring, 2.65mm large ring. Imperial sizing shown on listing: 0.58in OD / 3/8in ID and 0.7in OD / 1/2in ID. Use areas: Pressure washers, water pipes, faucets, shower fittings, hose joints, air or gas connections. Package: O-rings only; the couplers in the photos show the fittings they suit. Q: What size O-ring fits an M22 quick connect coupler? A: The 14.0mm outside diameter, 9.2mm inside diameter ring with 2.4mm depth is the one made for 1/4 inch and M22 quick connect fittings. Check your old ring against these figures before ordering.. Q: Which O-ring is for a 3/8 inch pressure washer coupler? A: The larger ring at 17.1mm outside diameter, 11.8mm inside diameter and 2.65mm depth is designed for 3/8 inch quick connect fittings.. Q: Why is my pressure washer quick coupler leaking? A: A worn, flattened or cracked O-ring inside the coupler is a common cause of dripping or spray at the joint. Swapping in a new ring of the right size often stops it.. Q: Can these O-rings be used with a hot water pressure washer? A: The seller states a working temperature of -40°C to 120°C and says they suit cold and hot water pressure washers.. Q: What is NBR rubber? A: NBR is nitrile rubber, a common material for seals and O-rings. The seller describes this grade as tear and abrasion resistant..
