This 1500W 2000W 3000W Laser Welding Machine delivers professional-grade power in a versatile 4-in-1 handheld system. Choose from three laser power outputs for precise control, achieving welding depths up to 5mm in steel and cutting capabilities up to 10mm. The integrated water-cooling ensures stable, continuous operation for demanding industrial and workshop tasks. Features and Benefits
- 4-in-1 Multi-Function Design (Welding, Cutting, Cleaning, Quenching) - One tool replaces multiple machines, saving significant cost and workshop space while handling diverse metal fabrication jobs.
- Adjustable 1500W/2000W/3000W Laser Power - Select the optimal power for material thickness and application, from delicate jewelry repair to heavy-duty structural welding, maximizing efficiency and finish quality.
- Handheld Water-Cooled Fiber Laser Source - The compact, air-cooled handheld gun offers exceptional maneuverability, while the separate water-cooling unit maintains optimal laser temperature for consistent, reliable long-duration use.
- High-Precision Welding & Cutting - Achieves a fine welding seam as narrow as 0.1mm with minimal heat-affected zone, reducing post-processing work and material distortion for cleaner, stronger joints.

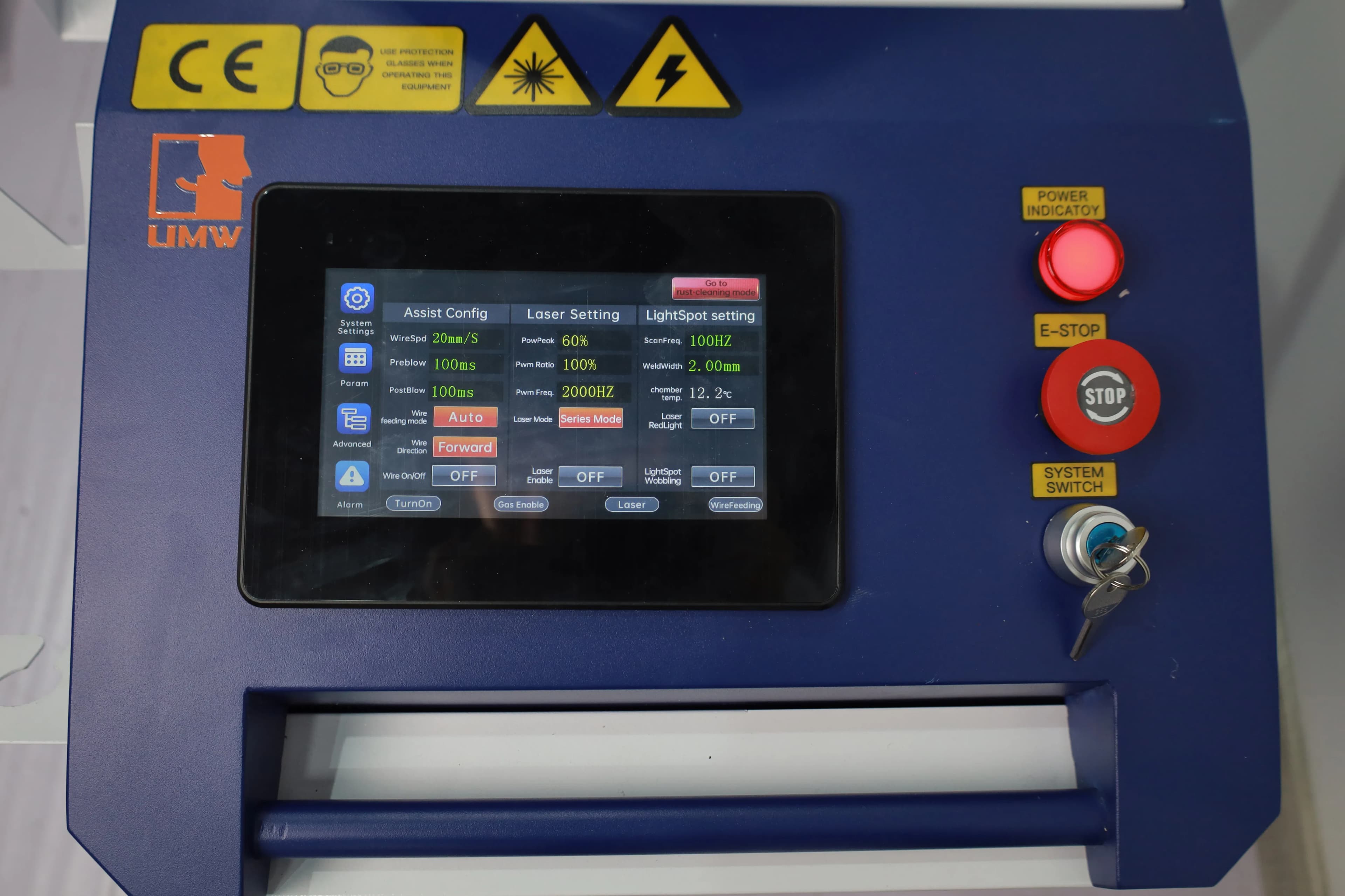

- User-Friendly Digital Control Interface - Intuitive panel allows for easy adjustment of power, frequency, and pulse width, making professional-grade laser results accessible to both experienced and new operators. Applications
- Metal Fabrication and Repair Shops - Perfect for welding stainless steel, carbon steel, aluminum, and copper in automotive panels, machinery, tool & die repair, and custom fabrication with superior finish.
- Jewelry Making and Precision Engineering - The low heat input and pinpoint accuracy make it ideal for delicate work on rings, chains, watch components, and small electronic enclosures without damaging sensitive parts.
- Maintenance and On-Site Service - The portable, handheld design allows for efficient cleaning of molds, removal of coatings, and performing quenching or hardening treatments directly in the field or on large assemblies. Note
This is an excellent choice for DIY enthusiasts and professionals seeking reliable, industrial-capable performance at an accessible price point. Always use appropriate laser safety goggles (not included) and ensure proper ventilation during operation.
Laser Head Weight: 1.5-2.5 kg. Chiller Cooling Capacity: 6000 W. Chiller Reservoir Capacity: 25 L. Laser Power: 1500W / 2000W / 3000W (Selectable). Power Stability: ±2%. Maximum Power Consumption: 6 kVA. Chiller Power: 1.5 kW. Operating Voltage: 220V AC / 380V AC. Beam Quality (M²): <1.2. Chiller Flow Rate: 25 L/min. Cleaning Width: 20-80 mm. Control Interface: Touchscreen. Cooling Method: Water-cooled. Cutting Thickness (Steel): 0.1-6 mm. Fiber Core Diameter: 50-200 µm (Typical). Fiber Length: 10 m. Functions: Welding, Cutting, Cleaning. Laser Type: Fiber Laser. Operating Frequency: 50/60 Hz. Operation Mode: Handheld. Protection Class: IP54 (Laser Head). Wavelength: 1060-1080 nm. Welding Depth (Steel): 0.1-4 mm. Cutting Thickness (Steel): Up to 3 mm (for 1500W), Up to 5 mm (for 2000W), Up to 8 mm (for 3000W). Fiber Core Diameter: 50-100 µm (Typical). Laser Wavelength: 1060-1080 nm. Pulse Width Range: 0.1-20 ms. Laser Source Power: 1500W / 2000W / 3000W (Configurable). Operating Voltage: 220V AC ±10% / 380V AC ±10%. Pulse Frequency Range: 1-1000 Hz. Control Interface: Touchscreen LCD Panel. Relative Humidity: <80% (Non-condensing). Working Environment Temperature: 10°C to 40°C. Operating Frequency: 50/60 Hz. Beam Quality (M²): <1.2. Cooling System: Water-cooled. Functionality: 4-in-1 (Welding, Cutting, Cleaning, Engraving). Laser Safety Class: Class 4 (Requires appropriate safety enclosures/PPE). Laser Type: Fiber Laser. Operation Mode: Handheld. Protection Class: IP54 (Typical for handheld laser equipment). Welding Depth (Steel): Up to 4 mm (for 1500W), Up to 6 mm (for 2000W), Up to 8 mm (for 3000W). Q: What are the key specifications and dimensions of this 4-in-1 laser welding machine? A: This machine offers three power options: 1500W, 2000W, and 3000W. It is a handheld, water-cooled fiber laser system that integrates welding, cutting, cleaning, and engraving functions into one versatile unit.. Q: How durable is this handheld fiber laser welding machine for professional workshop use? A: Built for demanding environments, it features a robust handheld gun and a stable water-cooling system to ensure consistent performance and longevity. The industrial-grade components are designed to withstand regular use in fabrication and repair shops.. Q: Can this laser welding machine be used for automotive body repair and stainless steel fabrication? A: Yes, the 4-in-1 laser welding and cleaning functions are ideal for automotive panel repair, exhaust work, and stainless steel welding. Its precision makes it suitable for thin materials without significant heat distortion.. Q: What is the warranty coverage for this water-cooled fiber laser welder? A: The machine typically comes with a standard warranty covering manufacturing defects. We recommend confirming the specific warranty duration and terms with the seller at the time of purchase for full details.. Q: Is this 4-in-1 laser welding machine a good value compared to separate dedicated tools? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable performance for regular use by combining four essential metalworking functions into one cost-effective system..
