Achieve precise, high-strength welds on stainless steel, aluminum, and other metals with the 4-in-1 Raycus Handheld Fiber Laser Welding Machine. This versatile 1500W/2000W peak power unit delivers deep penetration with minimal heat distortion, making it ideal for demanding fabrication and repair tasks. Features and Benefits

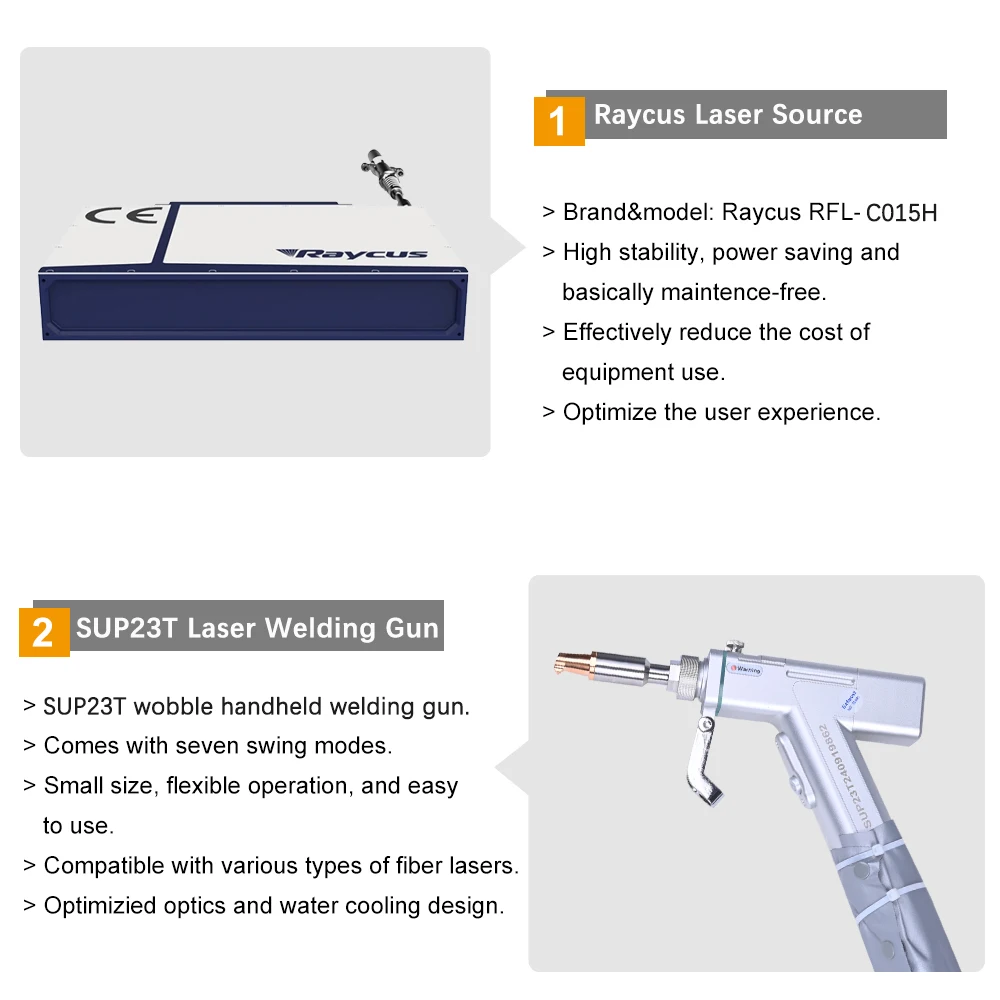

- 1500W/2000W Peak Power with Raycus Source - Provides robust, stable energy for deep weld penetration and the ability to handle thicker materials efficiently.

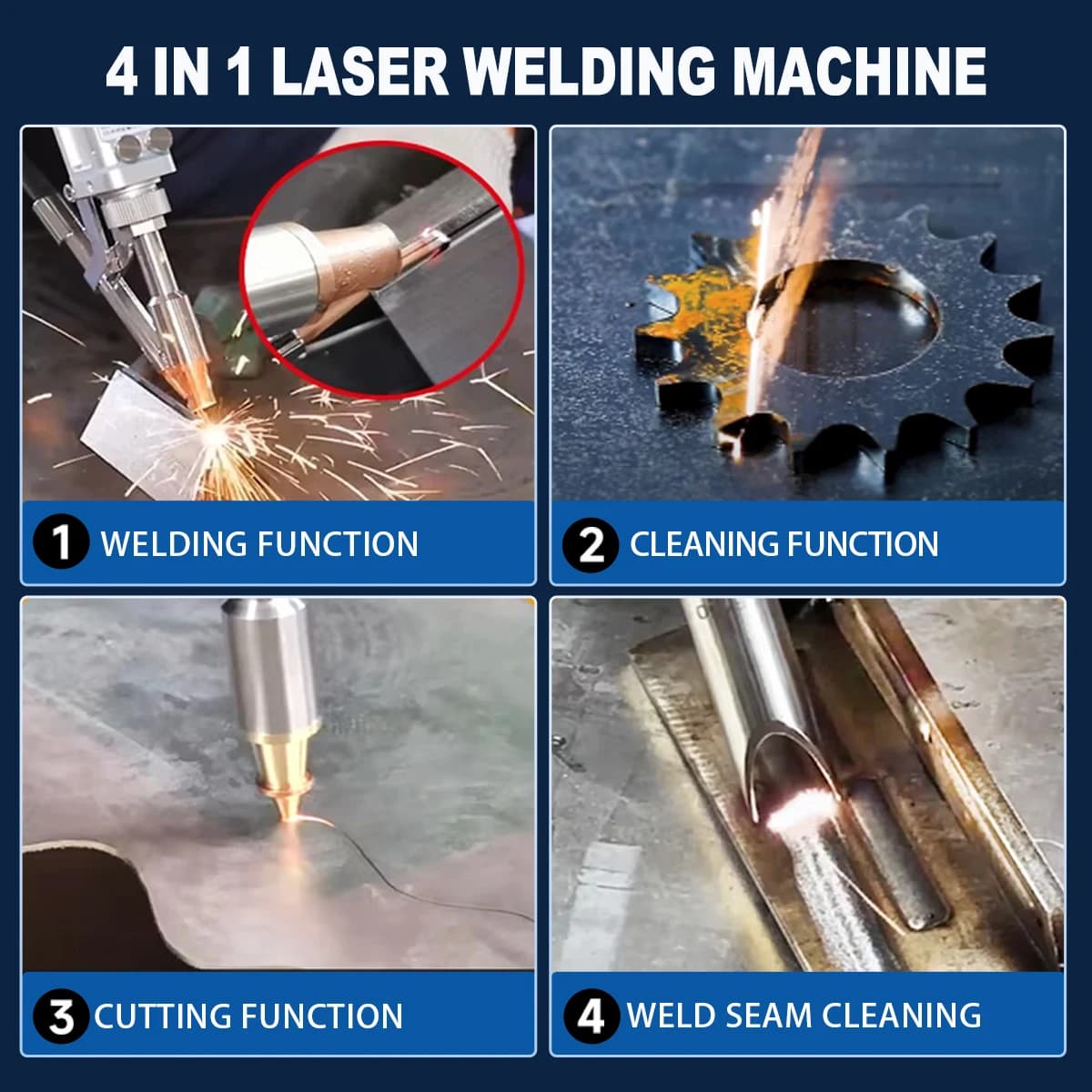

- 4-in-1 Integrated Design (Welding, Cleaning, Quenching, Tempering) - One professional-grade tool replaces multiple machines, saving workspace and capital investment.
- Handheld Fiber Laser Welding Head - Offers exceptional maneuverability for welding in tight spaces, on complex shapes, or large assemblies that cannot be moved.
- High Brightness Industrial Viewing Screen - Ensures clear visibility of the weld seam and work area for unmatched accuracy and control during operation.
- Air-Cooled System - Eliminates the need for external water chillers, simplifying setup and increasing portability for on-site jobs. Applications
- Metal Fabrication and Repair - Perfect for welding stainless steel kitchen equipment, aluminum automotive parts, or repairing tools and machinery with minimal post-processing.
- DIY and Prototype Development - An excellent choice for makers, artisans, and small workshops needing professional-grade results on custom projects and one-off pieces.
- Industrial Maintenance - Ideal for in-situ repairs in manufacturing plants, shipyards, or construction sites where disassembly is impractical or costly. Note
This machine is designed for users with prior welding experience and knowledge of laser safety protocols. Always use appropriate personal protective equipment (PPE) including laser safety glasses.
Dimensions (Main Unit): 800 x 600 x 1000 mm. Dimensions (Handheld Gun): 400 x 150 x 100 mm. Weight (Main Unit): 120 kg. Weight (Handheld Gun): 1.5 kg. Compatible Materials: Metal, Stainless Steel, Aluminum. Peak Laser Power: 1500W / 2000W. Input Power: ≤8 kVA. Operating Voltage: 220V ±10% / 380V ±10%. Storage Temperature: -10-60 °C. Configuration: Handheld. Cooling Method: Water Cooling. Fiber Core Diameter: 100 µm / 200 µm (selectable). Fiber Length: 10 m. Laser Source Brand: Raycus. Laser Type: Fiber Laser. Operating Frequency: 50Hz / 60Hz. Operating Humidity: ≤80%. Operating Temperature: 10-40 °C. Protection Class: IP54. Pulse Frequency: 1-100 Hz. Pulse Width: 0.1-20 ms. Spot Diameter: 0.2-2.0 mm. Wavelength: 1080 nm. Welding Capability: 4-in-1 (Laser Welding, Cleaning, Cutting, Hardening). Welding Depth: ≤3.0 mm. Welding Speed: 0-30 mm/s. Laser Output Fiber Core Diameter: 100 µm / 200 µm (Selectable). Laser Source Dimensions (Approx.): 600 x 500 x 300 mm. Operating Wavelength: 1080 nm. Pulse Width Range: 0.1-20 ms. Handheld Welding Gun Weight: ≤ 1.5 kg. Welding Material Compatibility: Stainless Steel, Aluminum, Carbon Steel, Alloy Steel. Input Power Requirement: ≤ 6 kVA. Operating Voltage: 220V AC ±10%, 50/60 Hz. Peak Laser Power: 1500W / 2000W (Dual Power Model). Pulse Frequency Range: 1-1000 Hz. Welding Speed: Up to 60 mm/s (dependent on material and thickness). Control Interface: Digital Touchscreen Panel. Operating Ambient Temperature: 10°C to 40°C. Relative Humidity: ≤80% (non-condensing). Storage Temperature: -10°C to 60°C. Cooling System: Closed-Loop Water Cooling. Laser Safety Class: Class 4 (Requires appropriate safety enclosures/PPE). Laser Source Type: Raycus Fiber Laser. Maximum Welding Depth (Steel): Approximately 3-4 mm (for 1500W), 4-5 mm (for 2000W). Product Type: Handheld Fiber Laser Welding Machine. Protection Class (Laser Source): IP54. Q: What are the key specifications of the 4 In1 Raycus handheld fiber laser welding machine? A: This machine features a peak power of 1500W or 2000W, operates at a 1080nm wavelength, and uses a water cooling system for optimal performance and heat management. The 4-in-1 functionality provides versatile welding capabilities in a single unit.. Q: How durable and reliable is this handheld fiber laser welder for professional use? A: Built for demanding environments, this machine is designed with a robust handheld unit and a stable water cooling system to ensure consistent operation and longevity. It offers reliable performance for regular professional and workshop use.. Q: Can this laser welding machine weld aluminum and stainless steel effectively? A: Yes, the Raycus 1500W/2000W fiber laser is specifically designed to weld metals like stainless steel and aluminum with high precision. The adjustable power settings and 1080nm wavelength allow for clean, strong welds on these materials.. Q: What is the warranty or guarantee for this fiber laser welding machine? A: The product comes with a standard manufacturer's warranty covering parts and workmanship. For specific warranty duration and terms, please check the detailed product listing or contact the seller directly for the most accurate and current information.. Q: Is this 4 In1 handheld fiber laser welder a good value for its price? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable performance for regular use, combining high power, versatility for multiple metals, and a portable design in one system..
