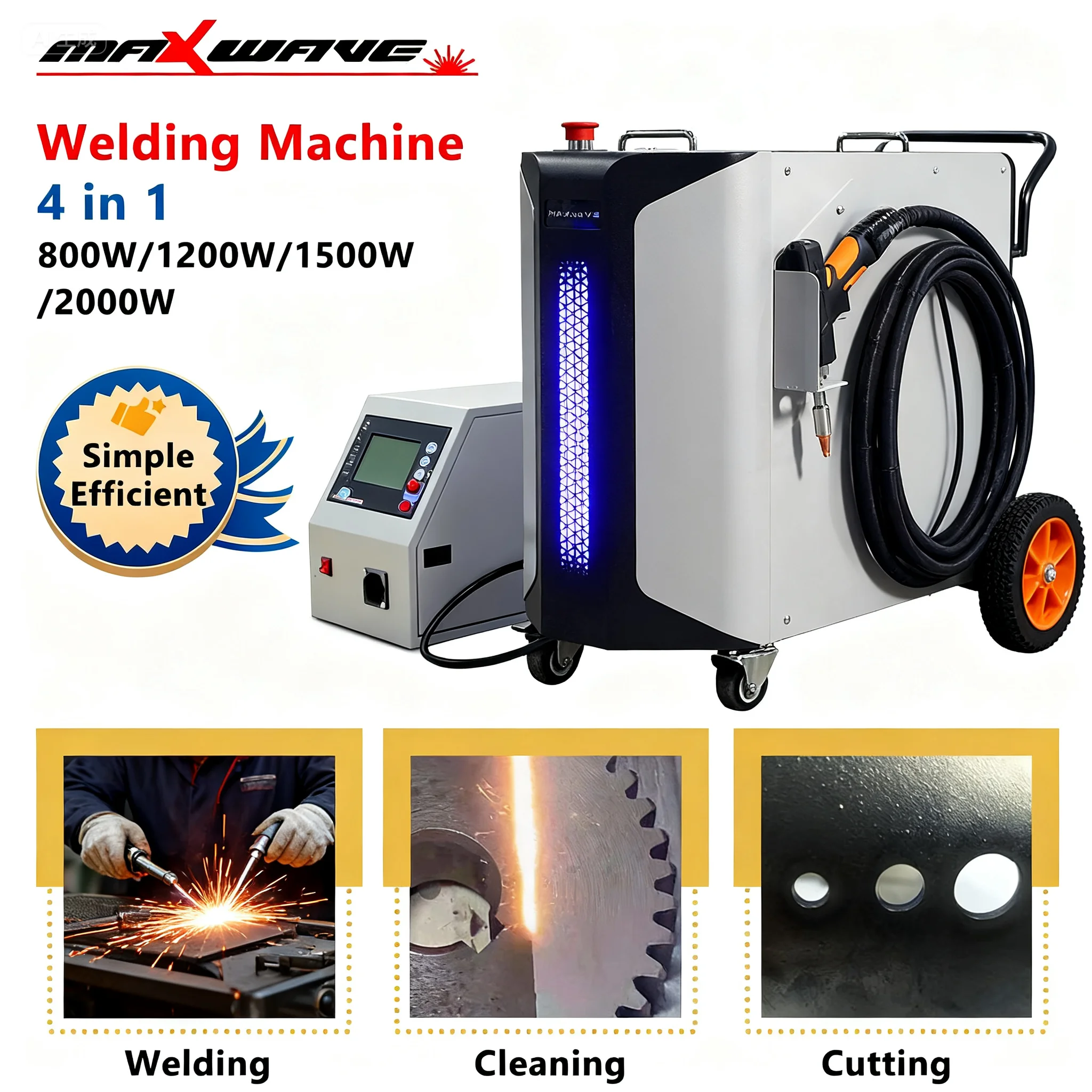

This handheld fiber air-cooled welding machine delivers 4-in-1 functionality for welding, cleaning, cutting, and engraving on metal surfaces. It offers fast processing speeds and precise control, powered by a robust fiber laser source for consistent, high-quality results on steel, stainless steel, aluminum, and copper. Features and Benefits
- 4-in-1 Multi-Function Capability - Perform welding, surface cleaning, precision cutting, and detailed engraving with a single, compact tool, maximizing workshop versatility.
- Air-Cooled Fiber Laser System - Eliminates the need for bulky external water chillers, simplifying setup and allowing for greater portability and ease of use.
- Fast Processing Speed - Achieve higher throughput on production lines or complete DIY projects quicker with optimized laser pulse control for efficient material interaction.
- Handheld Ergonomic Design - Provides superior maneuverability for working on large, fixed, or complex-shaped pieces that cannot be easily moved to a stationary machine.
- User-Friendly Interface - Intuitive controls and adjustable power settings allow operators of varying skill levels to achieve professional-grade results with minimal training. Applications
- Metal Fabrication and Repair - Ideal for welding seams, cleaning rust or oxidation, and cutting thin-gauge sheets in automotive, artistic metalwork, or general maintenance.
- Industrial Part Marking and Engraving - Permanently mark serial numbers, logos, or barcodes onto tools, machinery, and manufactured components for traceability.
- Restoration and Surface Preparation - Effectively remove paint, coatings, and corrosion from metal surfaces without damaging the underlying material, perfect for restoration projects.
- Hobbyist and DIY Projects - A versatile tool for creators working on custom modifications, model building, or home repairs involving various metals.
Dimensions (Main Unit): 600 x 300 x 200 mm. Dimensions (Handheld Unit): 350 x 150 x 100 mm. Weight (Main Unit): 25 kg. Weight (Handheld Unit): 1.5 kg. Maximum Laser Power: 2000 W. Input Power: 3.5 kVA. Operating Voltage: 220 VAC ±10%. Storage Temperature: -10°C to 60°C. Software Compatibility: Standard G-code. Beam Quality (M²): <1.2. Cleaning Width: 20 - 80 mm. Control Interface: 7-inch Touchscreen. Cooling Method: Air. Cutting Thickness (Steel): 0.1 - 2.0 mm. Fiber Cable Length: 5 m. Fiber Core Diameter: 50 µm. Functions: Welding, Cleaning, Cutting, Engraving. Laser Source Wavelength: 1064 nm. Laser Spot Diameter: 0.1 - 2.0 mm. Laser Type: Air-Cooled Fiber Laser. Operating Frequency: 50/60 Hz. Operating Humidity: <80% RH. Operating Temperature: 5°C to 40°C. Product Type: Handheld Fiber Laser System. Protection Class: IP54. Pulse Frequency: 1 - 2000 Hz. Pulse Width: 0.1 - 20 ms. Welding Depth: 0.1 - 3.0 mm. Dimensions (Main Unit): Approx. 400 x 300 x 200 mm (estimated). Focal Length: 100 mm - 200 mm (adjustable, typical for handheld). Laser Source Wavelength: 1064 nm (typical for metal fiber lasers). Laser Spot Diameter: 0.1 mm - 0.3 mm (adjustable). Maximum Cutting Thickness: 2.0 mm (typical for handheld fiber laser). Weight: 15 kg - 25 kg (estimated for handheld laser with power supply). Work Material Compatibility: Carbon Steel, Stainless Steel, Aluminum, Copper, Alloy Steel. Laser Power: 1000W - 1500W (inferred from "Fast Speed" and 4-in-1 capability). Operating Voltage: AC 220V ± 10% / 50-60Hz (standard for industrial equipment). Cleaning Efficiency: ≥ 1 m²/h (inferred for rust/paint removal). Operating Temperature Range: 5°C to 40°C. Pulse Frequency Range: 1 Hz - 1000 Hz. Storage Temperature Range: -10°C to 60°C. Processing Functions: Welding, Cleaning, Cutting, Engraving (implied by 4-in-1). Control Interface: LCD Touch Screen. Relative Humidity: ≤ 80% (non-condensing). Beam Delivery: Flexible Fiber Optic Cable. Cooling Method: Forced Air Cooling. Laser Type: Air-Cooled Fiber Laser. Maximum Welding Depth: 3.0 mm (typical for handheld fiber laser). Product Type: Handheld Fiber Laser System. Protection Class: IP54 (typical for handheld industrial tools). Q: What are the key specifications and dimensions of this handheld fiber laser welding machine? A: This 4-in-1 handheld fiber air-cooled welding machine is designed for portability and multi-function use. While specific dimensions are not provided, it is a compact, handheld unit that integrates welding, cleaning, cutting, and fast-speed laser functions for metal.. Q: How durable and reliable is this handheld fiber laser welder for regular use? A: This machine is built with a robust, air-cooled design to ensure stable operation and longevity. It is engineered to deliver reliable performance for both DIY projects and professional applications requiring consistent use.. Q: Can this 4-in-1 fiber laser machine be used for cleaning and cutting as well as welding? A: Yes, this is a versatile 4-in-1 unit specifically designed for welding, cleaning, cutting, and fast-speed operations on metal. It is an ideal all-in-one solution for various metal fabrication and maintenance tasks.. Q: Does this handheld fiber laser welding machine come with a warranty or guarantee? A: Yes, this product includes a standard manufacturer's warranty to protect your investment. Please check the product listing or contact the seller for the specific warranty period and coverage details.. Q: Is this handheld fiber laser welder a good value compared to separate tools? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable performance for regular use by combining four essential metalworking functions into one cost-effective, portable machine..
