This hand fuel pump gives you a safe way to siphon gas without putting your mouth on a hose. Built as an all-in-one car fuel siphon pump, it handles diesel, gasoline, and light oils. The hand fuel pump for gasoline transfers liquids cleanly between containers using simple suction. Features and Benefits
- Directional flow indicator stamped on the body - Shows fluid direction at a glance so you hook up the intake and discharge correctly.
- Gas-resistant synthetic rubber bulb - Resists breakdown from unleaded fuel and diesel to give you a long service life.
- Two-meter clear siphon hose - Gives you enough length to reach from elevated containers down to ground-level tanks easily.
- Anti-static hose construction - Lowers static charge risks during manual gas transfer pump operations in your workshop. Applications
- Emptying lawn mower, generator, and tiller tanks with this manual fuel pump to drain gas tank assemblies.
- Transferring fuel into off-road vehicles in remote areas where electric transfer pumps have no power source.
- Using this hand siphon pump for car fuel tank work to pull excess gas before dropping a fuel tank for repairs.
What It Is

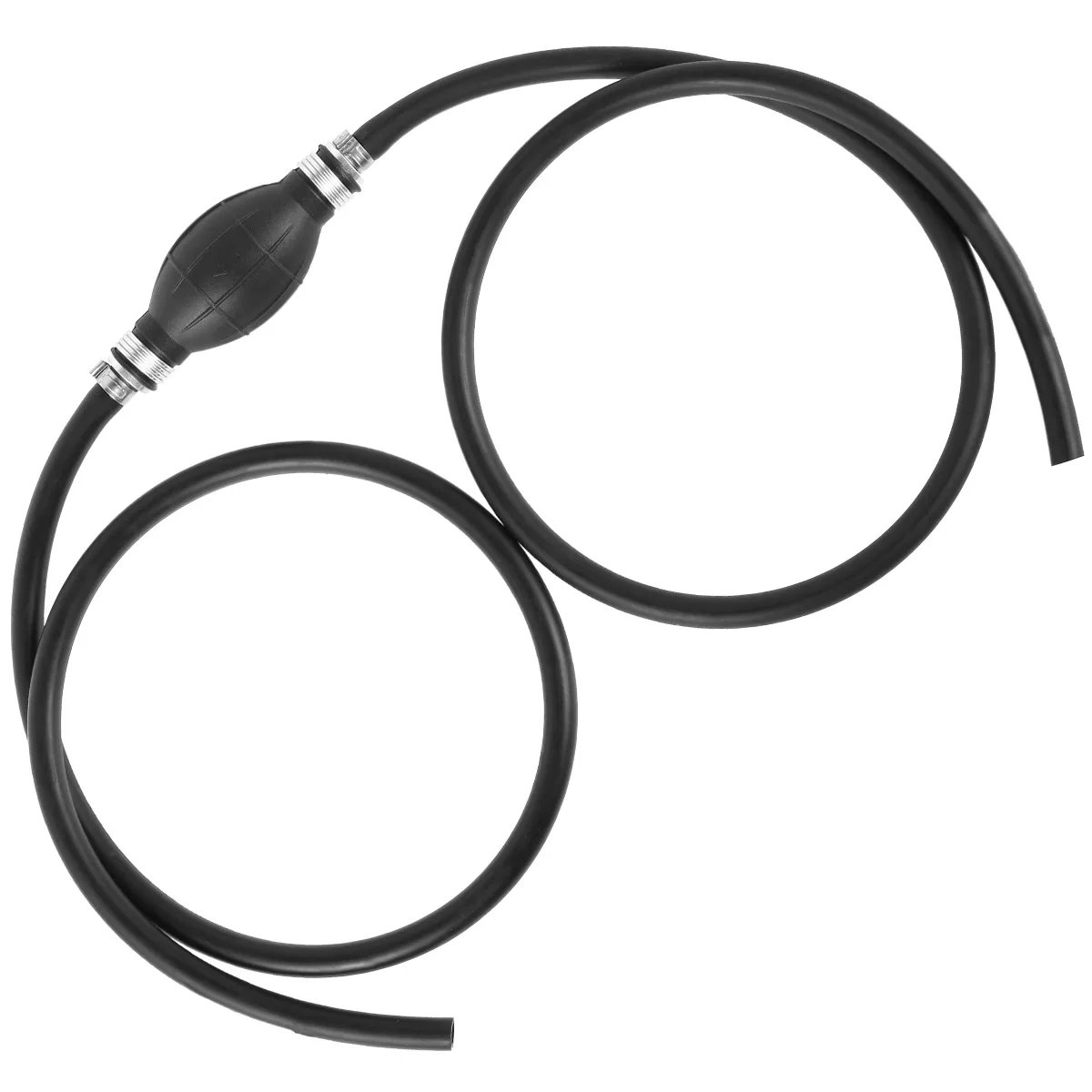

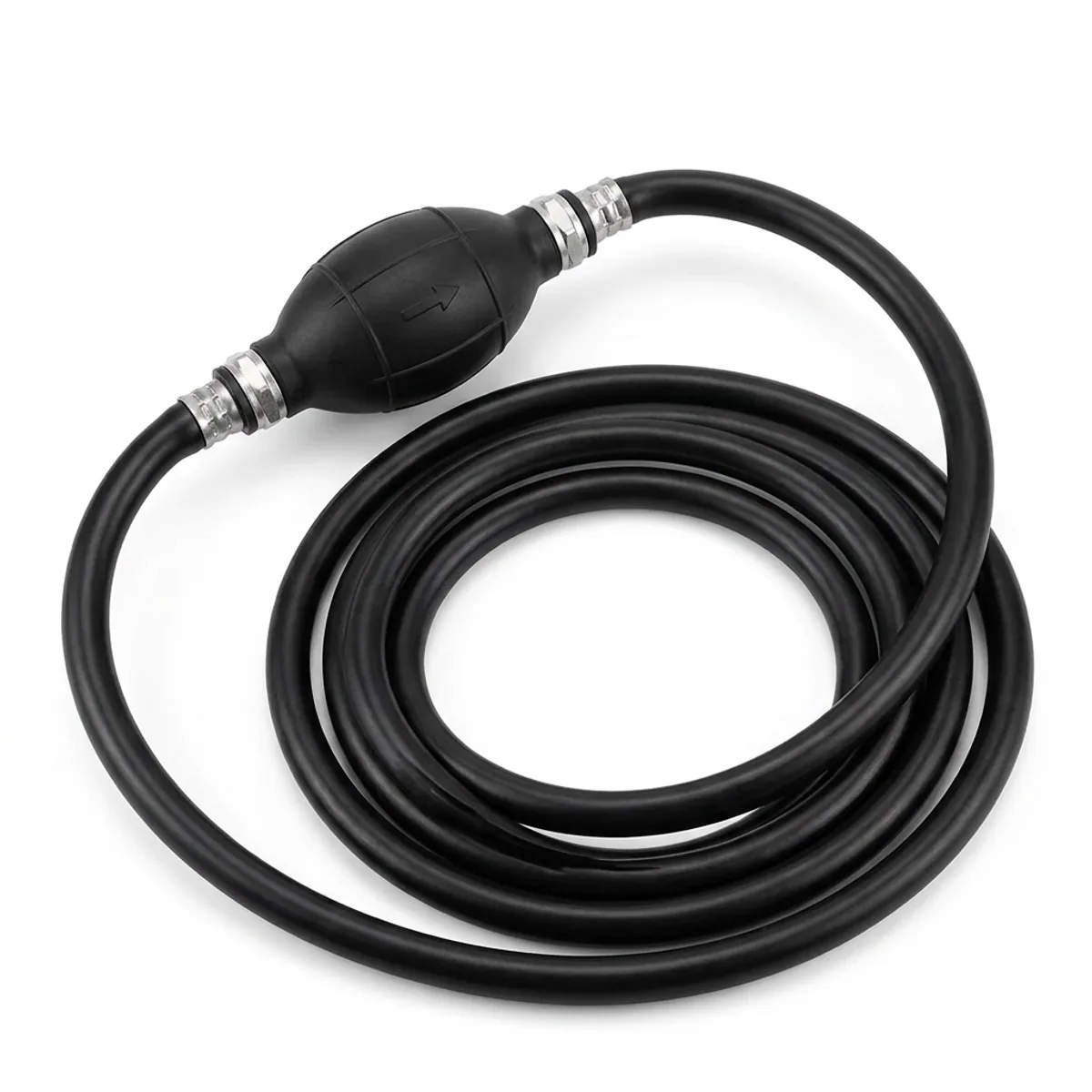

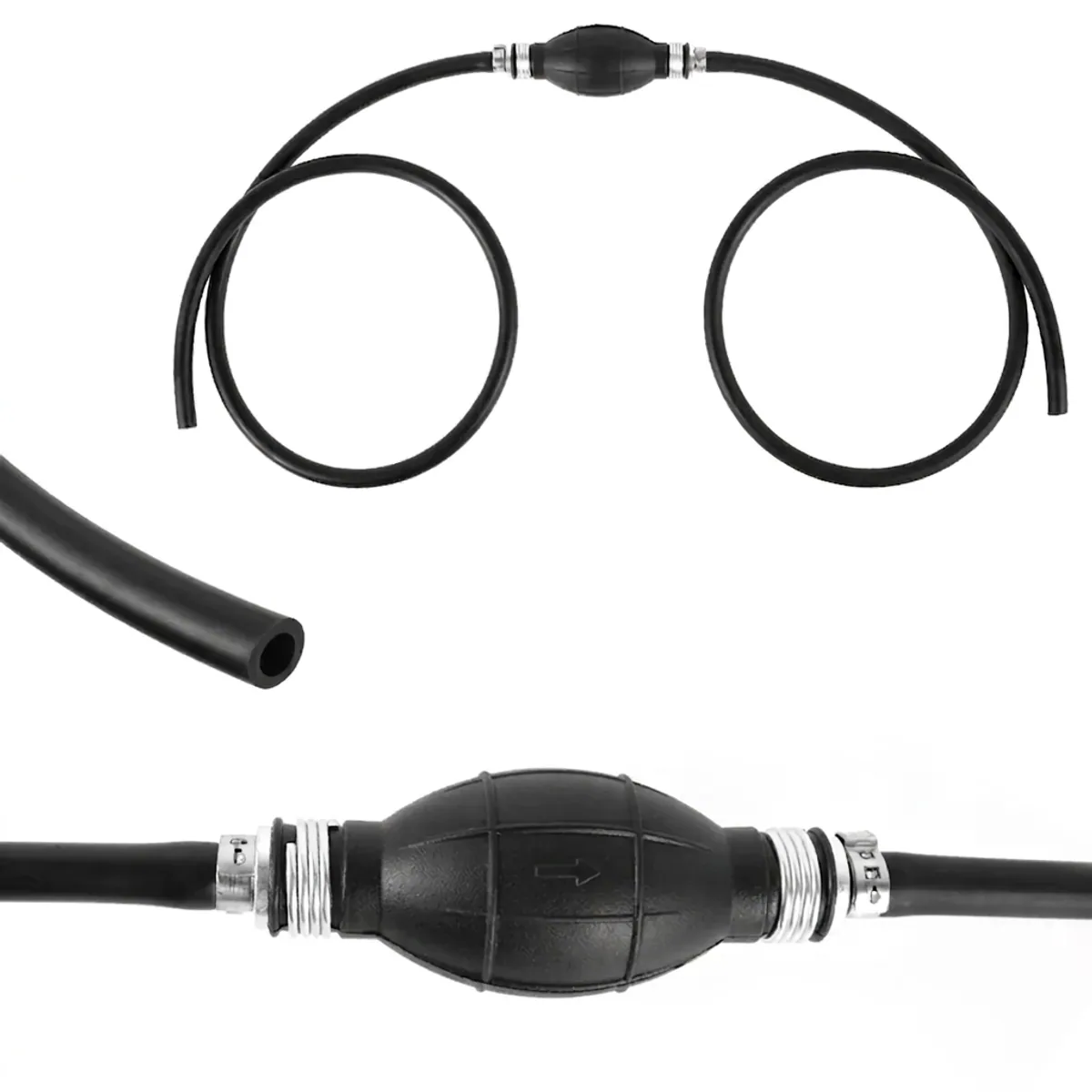

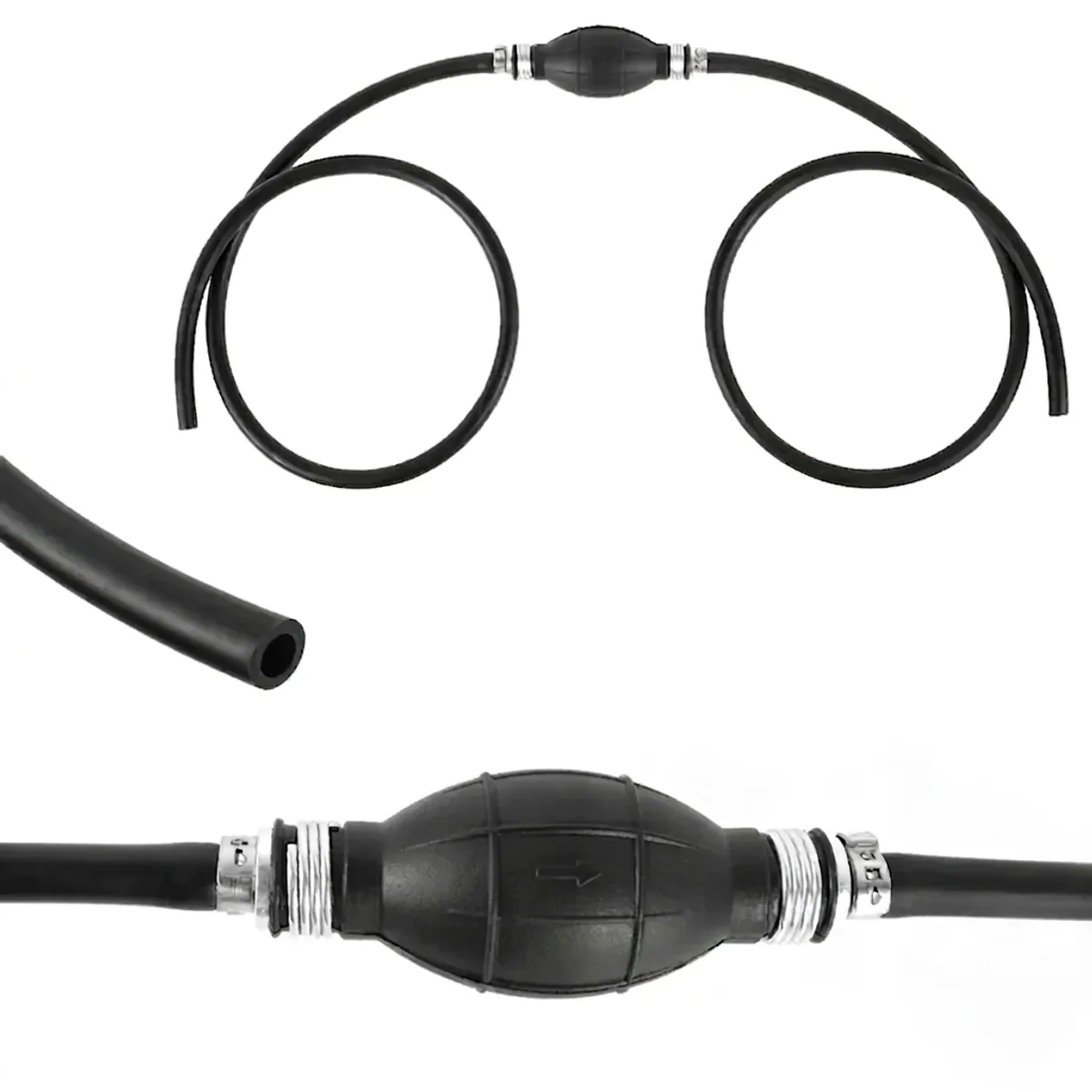

This is a manual hand fuel pump designed for transferring liquids without mains power. Built with rubber, PVC, and aluminium alloy components, it functions as a heavy-duty siphon sucker. The unit comes fitted with a 2 m flexible hose featuring an 8 mm inner diameter and a 10 mm outer diameter. Operating entirely by hand, it delivers a transfer flow rate of up to 5 L/min. It provides a simple, mechanical method for drawing fluids out of tanks, drums, and reservoirs safely, avoiding the hazard of manual oral siphoning on site or in the workshop.
Key Uses & Applications
This tool is designed for draining and fluid transfer across automotive, plant, and domestic maintenance tasks.
- Decanting petrol and diesel directly from vehicle tanks, jerry cans, and fuel cells
- Removing excess engine oil or transferring lubricants during servicing
- Siphoning water out of trapped spaces, small sumps, or plumbing lines
- Transferring fuel into groundskeeping machinery, generators, and site plant safely
The petrol, diesel, oil, and water fluid compatibility ensures clean liquid movement between containers without requiring electrical hookups or compressed air lines in the workspace.
How to Choose
When selecting a transfer pump, match the fluid type, hose clearance, and delivery volume to the job. This model delivers 5 L/min through an 8 mm inner diameter hose, making it best suited for precise, low-volume transfers rather than bulk commercial emptying. If you wonder how to siphon gas with a hand pump, simply place the intake hose into the source liquid and keep the discharge hose lower down in the receiving vessel. Squeeze the manual rubber bulb to prime the flow, allowing gravity and the siphon action to pull the fuel through continuously until the task is complete.
Material: Rubber, PVC, Aluminum Alloy. Compatible Fluids: Petrol, Diesel, Oil, Water. Flow Rate: 5 L/min. Hose Inner Diameter: 8 mm. Hose Length: 2 m. Hose Outer Diameter: 10 mm. Operation Mode: Manual. Product Type: Hand Fuel Pump. Bulb Diameter: 45 mm. Bulb Length: 130 mm. Connector Barb Size: 8 mm External Diameter. Bulb Material: Oil-Resistant Nitrile Butadiene Rubber. Working Pressure Range: 0.2 to 6 bar. Fluid Compatibility: Gasoline, Petrol, Diesel, Light Bio-fuels, Water. Check Valve System: Integrated Stainless Steel Ball Check Valve. Compatible Tubing ID: 8 mm to 10 mm. Device Type: Manual Siphon Hand Fuel Pump. Displacement per Stroke: 45 mL. Flow Direction Indicator: Embossed Directional Arrow on Bulb Body. Pumping Mechanism: Hand Compression Squeeze Bulb. Retaining Clamp Type: Stainless Steel Hose Clamps (x2). Q: What flow rate should I expect from this manual siphon setup? A: Once primed with three or four squeezes, gravity moves about 4 to 5 liters per minute through the 10mm tubing. The internal check valve keeps the fluid flowing in one direction automatically.. Q: What materials are used to construct the pump body and hose? A: The squeeze bulb is molded from petrol-resistant rubber, fitted with internal metal check valves. The flexible siphon line uses clear, reinforced PVC that lets you monitor the fluid flow.. Q: What kinds of liquids can this hand fuel pump move safely? A: You can use this hand fuel pump for diesel, petrol, kerosene, engine oil, and non-potable water. Do not use it with drinking water, strong acids, or corrosive chemical solvents.. Q: What does the warranty cover if the pump stops priming? A: A six-month warranty protects against stuck valves, cracked rubber bulbs, or loose metal fittings out of the box. Contact customer service with your order details for a fast replacement.. Q: What makes this manual liquid transfer tool worth keeping in a garage? A: It handles quick emergency fuel transfers without making a mess or needing electrical outlets. The simple mechanical design means it sits in your trunk ready to work whenever you need it..
