4x 2.5G Firewall Appliance Mini PC | DDR5 NVMe | Proxmox ESXi Virtual Server

Name: 4x 2.5G Firewall Appliance Mini PC | DDR5 NVMe | Proxmox ESXi Virtual Server
Brand: Compel Group
SKU: SING-00294
Price: 604.99 GBP
Availability: InStock

Stock Nr:

SKU:

4x 2.5G Firewall Appliance Mini PC | DDR5 NVMe | Proxmox ESXi Virtual Server - Image 1

1 / 4

£604.99inc VAT

ColorSelect an option

BundleIntel N100

Quantity

4x 2.5G Firewall Appliance Mini PC | DDR5 NVMe | Proxmox ESXi Virtual Server

£604.99

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

Are the Intel i226-V 2.5GbE ports supported by Proxmox and firewall software?: Yes, the Intel i226-V 2.5GbE controllers work out of the box with current Linux kernels in Proxmox VE, as well as modern releases of OPNsense and pfSense. They negotiate link speeds at 100Mbps, 1Gbps, and 2.5Gbps over standard Cat6 copper cable. This makes them practical for multi-gigabit broadband connections and high-speed local switches.

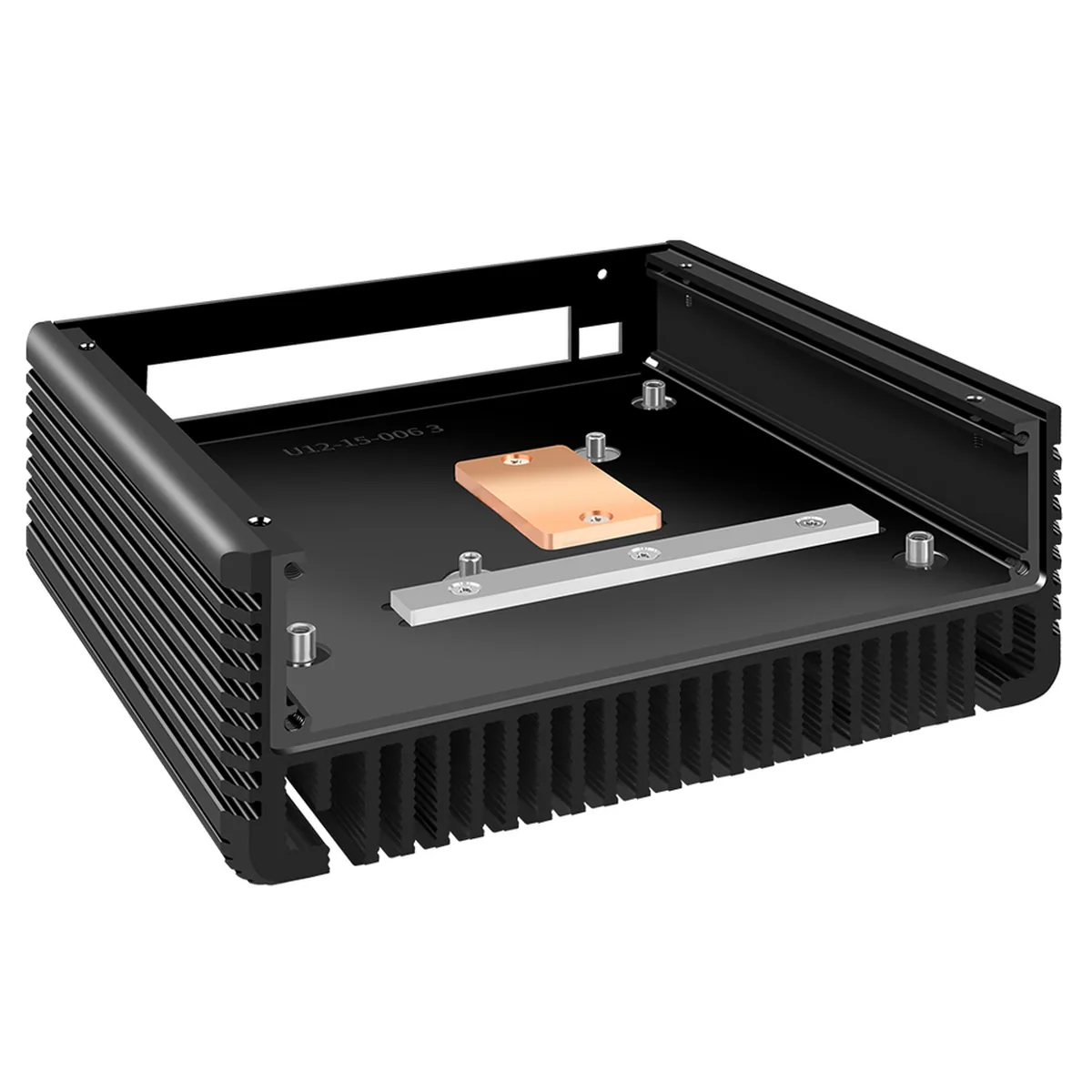

Does this fanless unit overheat under heavy routing loads?: The ribbed aluminium chassis acts as a passive heatsink to pull heat away from the 6W N100 or 15W N305 processor. It runs silent and stays within safe operating temperatures during sustained network transfers, provided you leave clear airflow around the fins. Avoid stacking other warm network kit directly on top of the case.
Does this barebones unit come with memory and an SSD installed?: No, this configuration ships without RAM, storage, or an operating system. You will need to fit your own DDR5 SODIMM memory stick and one or two M.2 NVMe solid-state drives before use. The chassis opens with four screws on the bottom plate for direct access to the board slots.

Computers & Tablets spec sheet (PDF)

Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.

Not sure which one?

Compare with similar products

The same kind of product, in stock, in a similar price range.

This product: £604.99

This product

Rear view of 4x 2.5G Firewall Appliance Mini PC with four LAN ports, USB, HDMI, DisplayPort, and DC input.

4x 2.5G Firewall Appliance Mini PC | DDR5 NVMe | Proxmox ESXi Virtual Server

Price: £604.99
Rating: Not rated
Sold: -
Stock: In stock

You're viewing this

Alternative

Rear panel of a Firewall Appliance Mini PC with LAN, HDMI, USB ports, and antenna mounts.

Firewall Appliance Mini PC | Ryzen 7 Dual LAN | Dual HDMI Home Lab Host

Price: £513.99
Rating: 5.0(3)
Sold: 12+
Stock: In stock

View

Alternative

Front and side perspective of a black 1U Firewall Appliance showing network ports and cooling vents.

1U Firewall Appliance | Intel N97/N150 | 4x 2.5GbE LAN

Price: £718.99
Rating: 5.0(2)
Sold: 3+
Stock: In stock

View

Alternative

1U Firewall Appliance | Intel N150 4x 2.5GbE | 10G SFP+ Options

Price: £861.99
Rating: 4.7(3)
Sold: 17+
Stock: In stock

View

Alternative

1U Firewall Appliance | Intel Core i5/i7 | 6x 2.5GbE & Up to 4x 10G SFP+

Price: £1,222.99
Rating: Not rated
Sold: 3+
Stock: In stock

View

Alternative

Front panel of a Firewall Appliance showing various USB, display, Type-C, and network card ports.

Firewall Appliance | 6x 2.5GbE & Optional SFP | Intel Core Ultra

Price: £1,211.99
Rating: 5.0(4)
Sold: 27+
Stock: In stock

View

Alternative

Firewall Appliance Mini PC | Intel N150 | Up to 10G SFP+ & 8x 2.5G

Price: £604.99
Rating: 5.0(7)
Sold: 71+
Stock: In stock

View

Alternative

Rear panel of Firewall Appliance Mini PC featuring multiple Ethernet ports, console port, and power input.

Firewall Appliance Mini PC | 2x 10G SFP+ & 4x 2.5GbE or 8x 2.5GbE | DDR5

Price: £787.99
Rating: Not rated
Sold: 2+
Stock: In stock

View

Alternative

1U Firewall Appliance | Up to 10 LAN Ports | Rackmount Network Server

Price: £379.99
Rating: Not rated
Sold: 8+
Stock: In stock

View

Compare options

More Computers & Tablets

All Computers & Tablets

Explore the range

Popular in Electronics & Components

Browse Electronics & Components

Heat Shrink Tubing Kit | 2:1 Shrink Ratio | 164-328 Pieces, 5 Colors, 8 Sizes

4.9

£25.99

Double-Sided Prototype PCB | 5x7cm Universal Board | DIY Electronics

4.9

£31.99

Hard Drive for PS4 & Xbox | 1TB USB 3.0 Storage | 2.5-Inch HDD

4.9(4.2K)

£89.99

Cat8 Ethernet Cable | SFTP 40Gbps 2000MHz | Router Modem Patch Lead

4.9(2.0K)

£31.99

Heat Shrink Tubing | PVC Flat Battery Wrap for 18650 Cells | 100-Piece Assortment

4.9

£27.99

RCBO Circuit Breaker | 230V 1P+N | Overcurrent & Leakage Protection

4.9

£52.99

M.2 NVMe SSD to PCIe Adapter | 16Gbps PCIe 4.0 x1 Expansion Card

4.9(2.1K)

£36.99

Flash Drive | 64GB Wooden Bamboo Memory Stick | Custom Logo Wedding Gift

4.9(353)

£38.99

SATA III Cable | 50cm SATA 3.0 6Gbps | SSD & HDD Desktop PC Build

4.9(1.3K)

£30.99

12V 5A AC/DC Power Adapter | Universal Regulated Switching Power Supply for LED & CCTV Systems

4.9

£47.99

Micro SD Card 256GB | UHS-1 Class 10 Speed | For Smartphone & PC

4.8(9.9K)

£91.99

2.5-inch USB 3.0 HDD/SSD Enclosure | 5Gbps SATA Drive Case

4.8(6.4K)

£52.99

Complete the set

Accessories & add-ons

SATA Cable 8-Pack | 6Gbps Right-Angle | 0.5M for RAID & Bitcoin Rigs

5.0(81)

£35.99

Professional-Grade Cable Management Kit | 500-Piece Nylon Zip Ties | Heavy-Duty Self-Locking Straps

5.0

£37.99

Push-In Wire Connectors | 5-Pack | Fast, Secure Electrical Splicing Terminal Blocks

4.9

£24.99

M.2 SSD Hard Drive Caddy Heatsink | NVMe 2280 Aluminum Cooler | For PS5 & PC

4.9(1.6K)

£33.99

90-Degree SATA Cable | Locking Latch Connectors | SATA III 6.0 Gbps 12-Pack

4.9(555)

£45.99

Drive Caddy | 2.5 to 3.5 inch SSD Mounting Bracket | For Desktop PC Bay

4.9(292)

£30.99

Professional-Grade Solder Wire | 40g Rosin Core | 183°C Melting Point for Precision Electronics Work

4.9

£25.99

Drive Caddy | 2.5 to 3.5 Inch Bay Adapter | For SSD & HDD Mounting

4.9(311)

£41.99

JST SM 2-Pin Connector Kit | 10-Pair Set for LED Strip & Tape Lighting

4.9

£30.99

2.8mm Electrical Connector Kit | 2-9 Pin Automotive Terminals | Waterproof Wire Harness Plug Set

4.9

£25.99

Dell Hard Drive Caddy | 2.5-inch SAS/SATA Tray | For PowerEdge R730 R630

4.9(63)

£43.99

SATA Cable with Locking Latch | 6Gbps SATA III Data | For Secure HDD SSD Builds

4.9(239)

£52.99

This compact firewall appliance mini pc features Intel processors up to the 8-core N305, pairing quick DDR5 memory with dual NVMe storage slots. Four 2.5GbE interfaces give you fast network throughput. The fanless design cools silently, making it a capable micro server for Proxmox VE and network firewalls. Features and Benefits - Intel 12th Gen processors with DDR5 - Delivers fast instruction processing and low memory latency for real-time traffic inspection - Dual M.2 NVMe SSD bays - Lets you create mirrored fast storage pools for system images and virtual machines - Four 2.5GbE RJ45 Ethernet ports - Provides plenty of physical interfaces for separate WAN, LAN, DMZ, and management networks - Cast aluminum heat dissipation body - Transfers processor heat outward through external fins without making any fan noise Applications - High-speed software firewalls handling multi-gigabit routing, intrusion prevention, and deep packet inspection - Home lab hypervisors running Proxmox VE with separate virtual machines for TrueNAS, firewalling, and Docker - Low-power network appliances providing localized DNS, DHCP, WireGuard connections, and central network logging

Processor: Intel Core i3 / N305 / N200 / N100. RAM Type: DDR5. Storage Interface: 2 x M.2 NVMe PCIe SSD. Operating System Compatibility: Proxmox VE, VMware ESXi, pfSense, OPNsense, Linux. Cooling: Fanless. Device Type: Firewall Appliance Mini PC. Ethernet Ports: 4 x 2.5GbE RJ45. Form Factor: Mini PC. Dimensions: 145 x 135 x 54 mm. Power Input: DC 12V-19V / 4A-5A. Video Output: 1x HDMI 2.0, 1x DisplayPort 1.4 (4K @ 60Hz). Expansion Interface: 1x M.2 Key-E (for Wi-Fi/Bluetooth module). Hypervisor Compatibility: Proxmox VE, VMware ESXi 7.0/8.0, Unraid. Device Type: Multi-Port Firewall Appliance Mini PC / Server. Memory Architecture: 1x DDR5 SO-DIMM (Up to 4800MHz / 5200MHz, Max 32GB). Network Controller: 4x Intel i226-V 2.5GbE RJ45 Ports. Network Throughput: Up to 2.5 Gbps per interface (Full Duplex). Processor Options: Intel Core i3-N305 / N355 / N200 / N150 / N100. Storage Expansion: 2x M.2 2280 NVMe PCIe 3.0 x2 / x4 Slots. Thermal Design: Fanless Solid Aluminum Alloy Heat Sink. Q: What hardware specs power this firewall appliance mini pc? A: It runs Intel Alder Lake-N chips like the N100, N200, N305, or i3-N355 paired with DDR5 memory. For connections and storage, you get four 2.5-Gigabit Intel i226-V ports and two M.2 NVMe SSD slots.. Q: How does the thermal assembly manage heat under heavy transfers? A: The thick aluminum shell uses broad external ridges to double the heat-dissipation surface area. Internal copper blocks make direct contact with the CPU and SSDs to keep them running cool without noise.. Q: Can I use this unit as a hypervisor host for virtualization? A: Yes, the processors support Intel VT-x and VT-d, making the unit ready for Proxmox VE, ESXi, and Unraid. You can spin up a router virtual machine alongside separate Linux containers with no trouble.. Q: How long is the warranty, and what does it cover? A: The hardware includes full repair or replacement coverage for one year from your purchase date. That covers the internal mainboard, network transceivers, and the included 12V DC power brick.. Q: What makes this box a sensible purchase for home lab users? A: It consolidates a 2.5G router, local DNS server, and small storage host into one 6x5-inch enclosure. You save the cost and desk space of running three separate pieces of network hardware..
