1U Firewall Appliance | Dual 10G SFP+ Core i5 | 2.5G LAN NAS Server

Name: 1U Firewall Appliance | Dual 10G SFP+ Core i5 | 2.5G LAN NAS Server
Brand: Compel Group
SKU: SING-00344
Price: 718.99 GBP
Availability: InStock

Stock Nr:

SKU:

1U Firewall Appliance | Dual 10G SFP+ Core i5 | 2.5G LAN NAS Server - Image 1

1 / 4

£718.99inc VAT

ColorSelect an option

BundleSelect an option

Quantity

1U Firewall Appliance | Dual 10G SFP+ Core i5 | 2.5G LAN NAS Server

£718.99

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

What are the main specifications of Topton 1U Rack Firewall Intel Core I5-4300M 2x10G SFP+ 8/6x 2.5G LAN M.2 SATA MSATA 2xSATA Mini PC Home NAS Server VPN Gateway?: Key figures: Processor Main Frequency: Depends on CPU; Use: Commercial; Memory Capacity: ≤ 128MB; Hard Drive Capacity: ≤ 40 GB. Check the Specs tab for the complete list.
What is Topton 1U Rack Firewall Intel Core I5-4300M 2x10G SFP+ 8/6x 2.5G LAN M.2 SATA MSATA 2xSATA Mini PC Home NAS Server VPN Gateway best used for?: It's built for Electronics & Components > Single Board Computers & Modules work. The description above covers the typical jobs it handles.
Does Topton 1U Rack Firewall Intel Core I5-4300M 2x10G SFP+ 8/6x 2.5G LAN M.2 SATA MSATA 2xSATA Mini PC Home NAS Server VPN Gateway come ready to use?: Yes — it ships as listed. Anything included (fittings, accessories, pack counts) is stated in the specification table.

Computers & Tablets spec sheet (PDF)

Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.

Not sure which one?

Compare with similar products

The same kind of product, in stock, in a similar price range.

This product: £718.99

This product

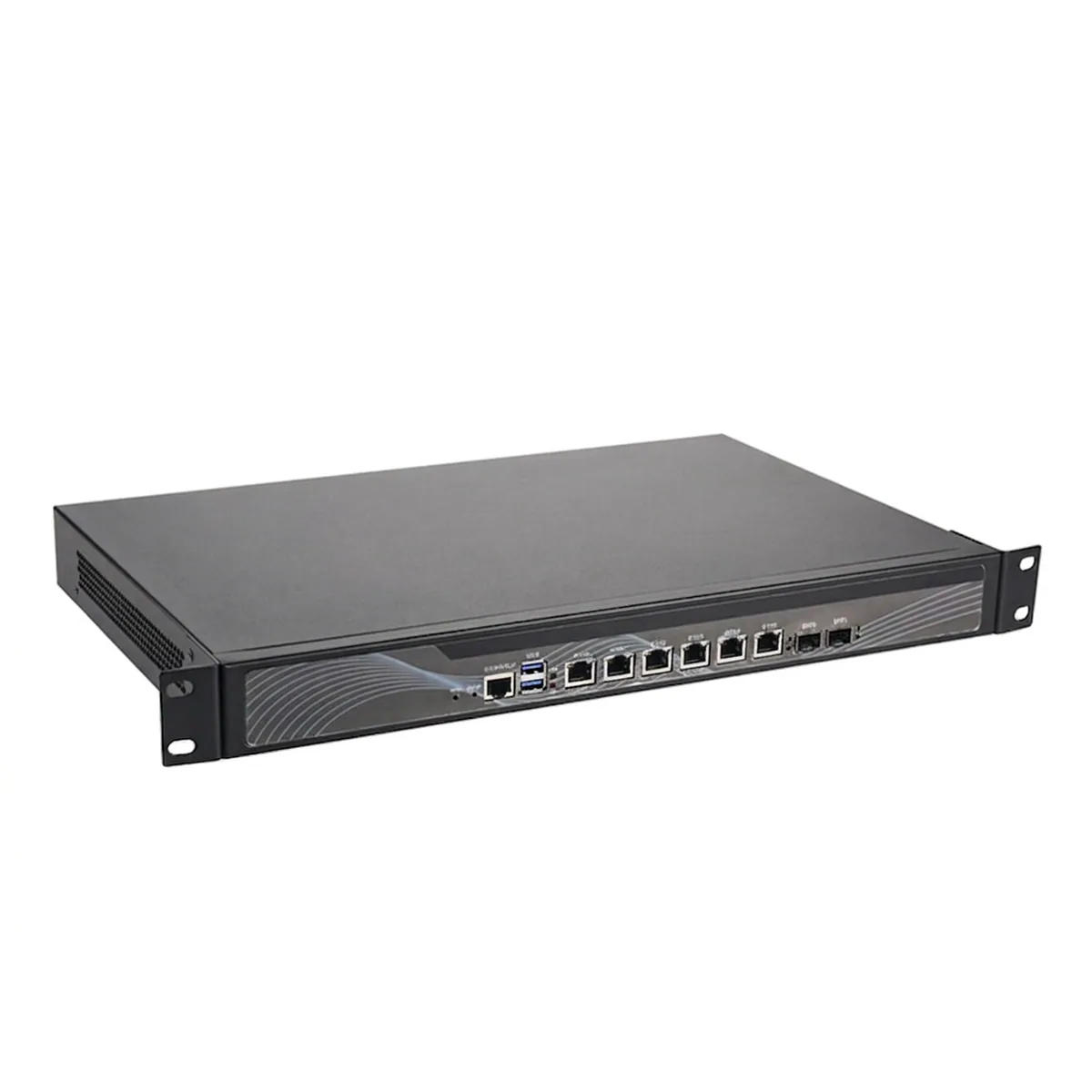

Front view of a 1U Firewall Appliance showing console, USB, six Ethernet, and two SFP ports.

1U Firewall Appliance | Dual 10G SFP+ Core i5 | 2.5G LAN NAS Server

Price: £718.99
Rating: Not rated
Sold: 7+
Stock: In stock

You're viewing this

Alternative

Front and side perspective of a black 1U Firewall Appliance showing network ports and cooling vents.

1U Firewall Appliance | Intel N97/N150 | 4x 2.5GbE LAN

Price: £718.99
Rating: 5.0(2)
Sold: 3+
Stock: In stock

View

Alternative

1U Firewall Appliance | Intel N150 4x 2.5GbE | 10G SFP+ Options

Price: £861.99
Rating: 4.7(3)
Sold: 17+
Stock: In stock

View

Alternative

1U Firewall Appliance | Multi-Port Intel LAN | 1U Rackmount Server

Price: £379.99
Rating: 4.0(5)
Sold: 33+
Stock: In stock

View

Alternative

Front and rear panels of a Firewall Appliance Mini PC with Ethernet, USB, and power ports.

Firewall Appliance Mini PC | Dual 10G AQC113 4x 2.5GbE | 1U Rack Router

Price: £516.99
Rating: Not rated
Sold: -
Stock: In stock

View

Alternative

1U Firewall Appliance | Intel Core i5/i7 | 6x 2.5GbE & Up to 4x 10G SFP+

Price: £1,222.99
Rating: Not rated
Sold: 3+
Stock: In stock

View

Alternative

1U Firewall Appliance Mini PC | Intel Core & Celeron | 1U Rackmount Server

Price: £435.99
Rating: 1.0(1)
Sold: 4+
Stock: In stock

View

Alternative

1U Firewall Appliance | Up to 10 LAN Ports | Rackmount Network Server

Price: £379.99
Rating: Not rated
Sold: 8+
Stock: In stock

View

Alternative

1U Firewall Appliance | Intel N150 Mini Server | 6-Port Gigabit VPN

Price: £373.99
Rating: Not rated
Sold: -
Stock: In stock

View

Compare options

More Computers & Tablets

All Computers & Tablets

Explore the range

Popular in Electronics & Components

Browse Electronics & Components

Heat Shrink Tubing Kit | 2:1 Shrink Ratio | 164-328 Pieces, 5 Colors, 8 Sizes

4.9

£25.99

Double-Sided Prototype PCB | 5x7cm Universal Board | DIY Electronics

4.9

£31.99

Hard Drive for PS4 & Xbox | 1TB USB 3.0 Storage | 2.5-Inch HDD

4.9(4.2K)

£89.99

Cat8 Ethernet Cable | SFTP 40Gbps 2000MHz | Router Modem Patch Lead

4.9(2.0K)

£31.99

Heat Shrink Tubing | PVC Flat Battery Wrap for 18650 Cells | 100-Piece Assortment

4.9

£27.99

RCBO Circuit Breaker | 230V 1P+N | Overcurrent & Leakage Protection

4.9

£52.99

M.2 NVMe SSD to PCIe Adapter | 16Gbps PCIe 4.0 x1 Expansion Card

4.9(2.1K)

£36.99

Flash Drive | 64GB Wooden Bamboo Memory Stick | Custom Logo Wedding Gift

4.9(353)

£38.99

SATA III Cable | 50cm SATA 3.0 6Gbps | SSD & HDD Desktop PC Build

4.9(1.3K)

£30.99

12V 5A AC/DC Power Adapter | Universal Regulated Switching Power Supply for LED & CCTV Systems

4.9

£47.99

Micro SD Card 256GB | UHS-1 Class 10 Speed | For Smartphone & PC

4.8(9.9K)

£91.99

2.5-inch USB 3.0 HDD/SSD Enclosure | 5Gbps SATA Drive Case

4.8(6.4K)

£52.99

Complete the set

Accessories & add-ons

SATA Cable 8-Pack | 6Gbps Right-Angle | 0.5M for RAID & Bitcoin Rigs

5.0(81)

£35.99

Professional-Grade Cable Management Kit | 500-Piece Nylon Zip Ties | Heavy-Duty Self-Locking Straps

5.0

£37.99

Push-In Wire Connectors | 5-Pack | Fast, Secure Electrical Splicing Terminal Blocks

4.9

£24.99

M.2 SSD Hard Drive Caddy Heatsink | NVMe 2280 Aluminum Cooler | For PS5 & PC

4.9(1.6K)

£33.99

90-Degree SATA Cable | Locking Latch Connectors | SATA III 6.0 Gbps 12-Pack

4.9(555)

£45.99

Drive Caddy | 2.5 to 3.5 inch SSD Mounting Bracket | For Desktop PC Bay

4.9(292)

£30.99

Professional-Grade Solder Wire | 40g Rosin Core | 183°C Melting Point for Precision Electronics Work

4.9

£25.99

Drive Caddy | 2.5 to 3.5 Inch Bay Adapter | For SSD & HDD Mounting

4.9(311)

£41.99

JST SM 2-Pin Connector Kit | 10-Pair Set for LED Strip & Tape Lighting

4.9

£30.99

2.8mm Electrical Connector Kit | 2-9 Pin Automotive Terminals | Waterproof Wire Harness Plug Set

4.9

£25.99

Dell Hard Drive Caddy | 2.5-inch SAS/SATA Tray | For PowerEdge R730 R630

4.9(63)

£43.99

SATA Cable with Locking Latch | 6Gbps SATA III Data | For Secure HDD SSD Builds

4.9(239)

£52.99

This rackmount firewall mini PC fits in a standard 1U slot and runs on an Intel Core i5 processor. It pairs two 10G SFP+ cages with multi-gigabit Ethernet ports, giving you clean throughput for pfSense, OPNsense, or Proxmox setups without bogging down your local network. Features and Benefits - Dual 10G SFP+ ports - Connects directly to fiber switches to move data at full 10-gigabit speeds. - Intel 2.5G network controllers - Feeds fast wired lines to desktop switches, workstations, and wireless access points. - Multiple SATA and M.2 storage slots - Houses internal drives so the unit can run as a dedicated local storage server. - Intel Core i5 dual-core chip - Powers packet filtering, VPN tunneling, and lightweight virtual machines under steady load. Applications - Hardware perimeter firewall for small office networks running pfSense or OPNsense across separated subnets. - Home lab rack server running virtualized routing alongside network-attached storage pools. - Hardware VPN gateway to link remote branches with fast encrypted data transfers.

Processor: Intel Core i5-4300M. Processor Base Frequency: 2.60 GHz. Storage Interfaces: 1 x M.2 SATA, 1 x mSATA, 2 x SATA. Network Interfaces: 2 x 10G SFP+, 6 to 8 x 2.5GbE RJ45. Form Factor: 1U Rackmount Mini PC. Intended Use: Network Firewall, VPN Gateway, NAS Server. Product Type: Firewall Appliance Mini PC. Chassis Dimensions: 440 x 250 x 44.5 mm. Chassis Material: Heavy-duty Electrogalvanized Cold-rolled Steel (SECC). Power Supply Unit: Internal 100-240V AC 50/60Hz, 150W Industrial PSU. High-Speed SFP+ Interfaces: 2x 10GbE SFP+ Ports. Memory Slots & Max Capacity: 2x DDR3L SO-DIMM slots, up to 16GB 1600MHz. Ethernet LAN Interfaces: 6x or 8x 2.5GbE RJ45 Ports (Intel i226-V / i225-V). I/O Interfaces: 2x USB 3.0, 2x USB 2.0, 1x RJ45 Console Port, 1x HDMI. Legacy SSD Interface: 1x Full-size mSATA slot. Operating System Compatibility: pfSense, OPNsense, OpenWrt, Proxmox VE, Linux, Windows Server. Cooling System: Active Dual High-Speed Ball-Bearing Exhaust Fans. Device Type: 1U Rackmount Firewall Appliance Mini PC. Form Factor: Standard 19-inch 1U Rackmount. M.2 Storage Support: 1x M.2 NVMe/SATA SSD slot (Key M 2280). Processor: Intel Core i5-4300M (2 Cores, 4 Threads, 2.60 GHz base up to 3.30 GHz Turbo). SATA Expansion: 2x SATA 3.0 (6Gbps) ports for 2.5-inch / 3.5-inch HDDs. Q: What network interfaces and processing power does this unit include? A: The system runs on an Intel Core i5-4300M processor with two cores and four threads reaching up to 3.3 GHz. For networking, it features two 10G SFP+ optical cages alongside up to eight 2.5GbE RJ45 ethernet ports. You also get internal slots for M.2, mSATA, and standard SATA drives.. Q: How is the chassis built to handle continuous rack operation? A: It uses a standard 1U metal server chassis that mounts directly into any typical 19-inch equipment rack. The internal layout includes cooling fans and dedicated heatsinks to keep the dual 10G chips and CPU cool during continuous use. Its rigid steel frame protects the internal motherboard from flexing when racked.. Q: Which operating systems can you run on this firewall appliance mini pc? A: This firewall appliance mini pc runs standard x86 software without needing proprietary drivers. It boots open-source routing platforms like pfSense, OPNsense, and OpenWrt right out of the box. You can also install hypervisors such as Proxmox VE or TrueNAS to combine routing with local storage.. Q: What warranty protection and hardware support come with this unit? A: The device includes a one-year hardware warranty covering manufacturer defects on the mainboard, CPU, and power supply. If an internal component fails under normal operation, you can get replacement parts or service support. Keep your invoice or order number handy to speed up any repair claims.. Q: Why choose this machine instead of separate routing and storage boxes? A: It combines two 10-gigabit SFP+ ports, multiple 2.5G ports, and room for multiple drives in a single enclosure. That setup lets you handle line-rate routing, VPN tunnels, and local backups on one machine. Consolidating those jobs saves space in your rack and draws less power than multiple devices..
