Is this PLC compatible with Delta software and the DVP series?

Yes, it's built to match the Delta DVP-ES2 / ES200 series and programs through Delta's ISPSoft or WPLSoft tools. It carries RS-232 and RS-485 ports for communication. Confirm your exact model suffix so the I/O and output type line up with your project.

How many I/O points and how much program memory does it have?

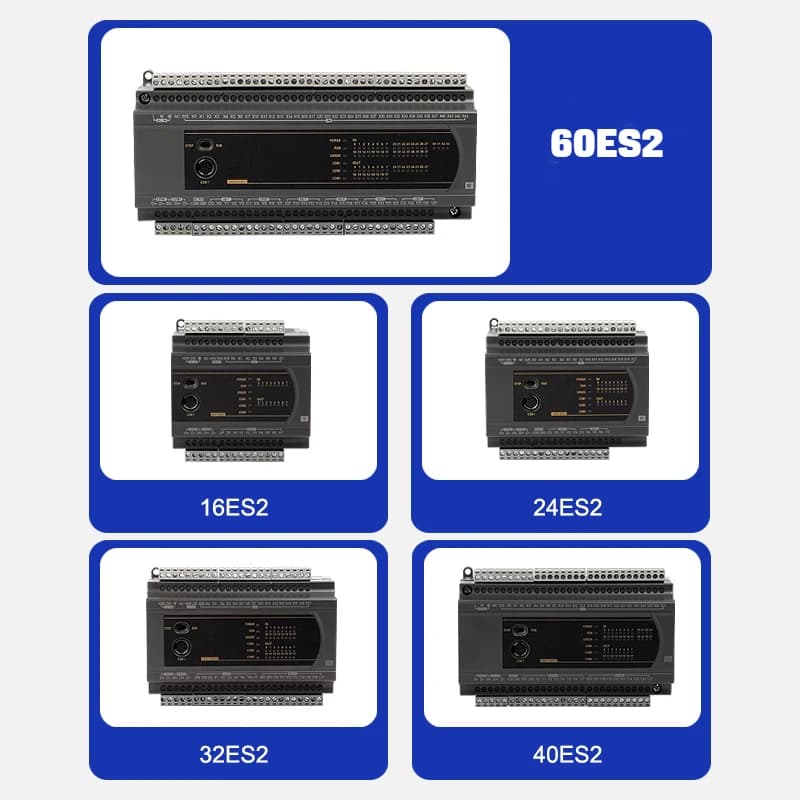

Models come in 16, 24, 32, or 40 point configurations, split between digital inputs and outputs. It holds 16k steps of program memory and 10k words of data memory. There are also 2 analog input channels and 1 analog output channel for basic process control.

Should I get the relay (R) or transistor (T) output version?

Choose the R relay version for switching AC loads or simple on/off control, rated 2A at 250V AC. Pick the T transistor version for fast pulse output and high-speed positioning, rated 0.5A at 5 to 30V DC. The T models suit stepper and servo pulse control up to 100kHz.

Delta-Compatible PLC Controller | DVP-ES200 Series | Industrial Automation Module

Name: Delta-Compatible PLC Controller | DVP-ES200 Series | Industrial Automation Module
Brand: Compel
SKU: AUTO-00020
Price: 53.99 USD
Availability: InStock

Stock #:TBS-01289

SKU:AUTO-00020

Delta-Compatible PLC Controller | DVP-ES200 Series | Industrial Automation Module - Image 1

1 / 6

$53.99

Ships to United States · standard est. 10-20 business days

Free standard shipping on orders over $59 (under 2kg). Express available at checkout.

Premium ES2 PLC DVP16ES200R DVP16ES200T DVP24ES200R DVP24ES200T DVP32ES200R DVP32ES200T DVP40ES200R DVP40ES200T Compatible with Delta. Quality construction with reliable performance for professional a...

Color16 optionsSelect an option

LengthSelect an option

Quantity

Delta-Compatible PLC Controller | DVP-ES200 Series | Industrial Automation Module

$53.99

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

Is this PLC compatible with Delta software and the DVP series?: Yes, it's built to match the Delta DVP-ES2 / ES200 series and programs through Delta's ISPSoft or WPLSoft tools. It carries RS-232 and RS-485 ports for communication. Confirm your exact model suffix so the I/O and output type line up with your project.
How many I/O points and how much program memory does it have?: Models come in 16, 24, 32, or 40 point configurations, split between digital inputs and outputs. It holds 16k steps of program memory and 10k words of data memory. There are also 2 analog input channels and 1 analog output channel for basic process control.
Should I get the relay (R) or transistor (T) output version?: Choose the R relay version for switching AC loads or simple on/off control, rated 2A at 250V AC. Pick the T transistor version for fast pulse output and high-speed positioning, rated 0.5A at 5 to 30V DC. The T models suit stepper and servo pulse control up to 100kHz.

Automation & Sensors spec sheet (PDF)

Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.

Compare options

More Automation & Sensors

All Automation & Sensors

Wire Position Sensor | Waterproof Transducer | Motion Control

5.0

$112.99

-33%

S-Type Load Cell Sensor | High-Precision Tension & Compression Measurement | Stainless Steel

5.0

$21.95$32.62

Digital Pressure Switch | High-Precision ISE30A Series | Pneumatic Control System

5.0

$22.95

Nine-Axis IMU Sensor Module | BNO085 for Automation & Robotics

4.9(79)

$53.95

Panasonic-Compatible Servo Motor Encoder Cable | High-Flex Industrial Grade for Automation

5.0

$91.99

Industrial-Grade Servo Motor Encoder Cable | High-Flex Durable Power & Signal Wire for Mitsubishi J3/J4/JE

5.0

$128.99

-65%

Industrial-Grade Servo Motor Encoder Cable | High-Flex Durable Power Supply Wire for Automation Systems

5.0

$64.99$187.53

7-in-1 Soil Sensor | Agricultural Automation & Monitoring

4.8(25)

$26.95

Digital Pressure Gauge | 400/600 Bar for Air, Liquid, Fuel, Oil, Water | Industrial Manometer

4.7

$117.99

Pressure Gauge | Digital LCD Display | 0-60MPa Gas, Water, Air, Fuel G1/4 Thread

4.7

$102.99

-24%

CNC Edge Finder | C16/C20/C32 Sensor | LED & Audible Alignment Tool

1.0

$57.99$76.43

PLC Controller | DVP Series Programmable Logic Unit | Compact Automation Solution

$66.99

Explore the range

Popular in Industrial & Machinery

Browse Industrial & Machinery

-28%

Electric Fabric Cutter | Round-Knife Cloth Slitting Machine | YJ-110C Hand-Push Design

5.0

$189.99$264.96

Push-to-Connect Air & Water Fittings | 4mm-12mm OD | Quick-Release Hose Couplings

4.9

$5.95

Complete the set

Accessories & add-ons

Sensor Protection Sleeve | Stainless Steel Blind Tube | 6mm

5.0(11)

$39.95

Motion Sensor Bracket | Automatic IR Lamp Holder | 110-240V AC

4.8(196)

$16.99

Soil Moisture NPK Sensor | 7-in-1 Agricultural Probe Accessory

4.8(25)

$26.95

Arduino Raspberry Pi Sensor Kit (45pc) | Modules for UNO R3 MEGA2560

4.7(58)

$47.95

Reflector Plate | Photoelectric Sensor Accessory | TD Series

4.7(23)

$12.99

Load Cell ADC Module | 24-Bit HX711 Sensor Accessory

4.4(21)

$1.49

Bending Strain Gauge Amplifier Module | Sensor Accessories UK

$5.95

Power Supply: 100-240V AC. Input Voltage Range: 85-264V AC. Program Memory: 16 k steps. Data Memory: 10 k words. Storage Temperature: -25°C to 70°C. Analog Input: 2 channels (0-10V DC, 0-20mA). Analog Output: 1 channel (0-10V DC, 0-20mA). Communication Ports: 1 x RS-232, 1 x RS-485. Compatible Brand: Delta. Dielectric Strength: 1500V AC for 1 minute (between all terminals and ground). Digital Input Count: 16, 24, 32, or 40 (depending on model). Digital Output Count: 16, 24, 32, or 40 (depending on model). Expansion Modules: Up to 8 modules. Frequency: 50/60 Hz. High-Speed Counter: 4 channels (single-phase 200 kHz, AB-phase 100 kHz). Instruction Execution Speed: 0.5 µs (basic instruction). Isolation: Photocoupler isolation for I/O. Model Variants: DVP16ES200R, DVP16ES200T, DVP24ES200R, DVP24ES200T, DVP32ES200R, DVP32ES200T, DVP40ES200R, DVP40ES200T. Noise Immunity: 1000V (by noise simulator with 1 µs pulse width). Operating Temperature: 0°C to 55°C. Output Type: Relay (R) or Transistor (T) (depending on model). Product Family: DVP-ES2. Product Series: ES2. Protection Class: IP20. Pulse Output: 2 channels (200 kHz). Relative Humidity: 5% to 95% (non-condensing). Shock Resistance: 147 m/s², 3 times each direction (X, Y, Z). Vibration Resistance: 10 to 57 Hz, 0.075 mm amplitude; 57 to 150 Hz, 9.8 m/s² acceleration. Digital Input Voltage: 24V DC. Power Supply: 100-240V AC, 50/60Hz. Digital Output Current (Relay): 2A @ 250V AC / 30V DC. Digital Output Current (Transistor): 0.5A @ 5-30V DC. Digital Output Type: Relay (R suffix models), Transistor (T suffix models). High-Speed Counter: 4 channels (Single-phase 100kHz, AB-phase 50kHz). I/O Configuration Range: 16 to 40 points. Instruction Execution Speed: 0.5 µs (Basic instructions). Program Memory Capacity: 16k steps. Pulse Output: 2 channels (100kHz). Communication Ports: RS-232, RS-485. Compatibility: Delta PLC DVP Series. Operating Temperature: 0°C to 55°C. Relative Humidity: 5% to 95% (non-condensing). Storage Temperature: -25°C to 70°C. Digital Input Type: Sink (R suffix models), Source (T suffix models). Model Variants: DVP16ES200R, DVP16ES200T, DVP24ES200R, DVP24ES200T, DVP32ES200R, DVP32ES200T, DVP40ES200R, DVP40ES200T. Product Family: DVP-ES2. Product Series: ES2. Programming Software: Delta ISPSoft or WPLSoft. Protection Class: IP20. Shock Resistance: 147 m/s², 3 times each direction (X, Y, Z axes). Vibration Resistance: 10 to 57 Hz, 0.075mm amplitude; 57 to 150 Hz, 9.8 m/s² acceleration. Q: What are the key specifications and dimensions for the DVP-ES2 series PLC models? A: The DVP-ES2 series includes models with 16, 24, 32, and 40 digital I/O points, available in both relay (R) and transistor (T) output types. These compact PLCs are designed for standard DIN rail mounting, making them suitable for space-constrained control panels in various automation applications.. Q: How durable and reliable is the ES2 PLC for industrial environments? A: The ES2 PLC is built with industrial-grade components for reliable operation in typical factory conditions. It features robust construction to withstand electrical noise and vibration, ensuring stable performance for machine control and automation tasks.. Q: Is the DVP-ES2 PLC fully compatible with Delta programming software and hardware? A: Yes, the DVP-ES2 PLC is fully compatible with Delta's ISPSoft and WPLSoft programming software. It is designed as a direct replacement and upgrade for existing Delta PLC systems, ensuring seamless integration with Delta HMIs, drives, and other automation components.. Q: Does this ES2 PLC come with a warranty or guarantee? A: This product typically includes a standard manufacturer's warranty, which covers defects in materials and workmanship. For specific warranty duration and terms, please verify the details provided with your purchase or contact the seller directly.. Q: Is the DVP-ES2 PLC a good value compared to other brands? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable performance for regular use, providing Delta-compatible functionality at a competitive price point for small to medium automation projects..
