Automation & Sensors

Choosing Between Inductive, Hall Effect, and Mechanical Detection

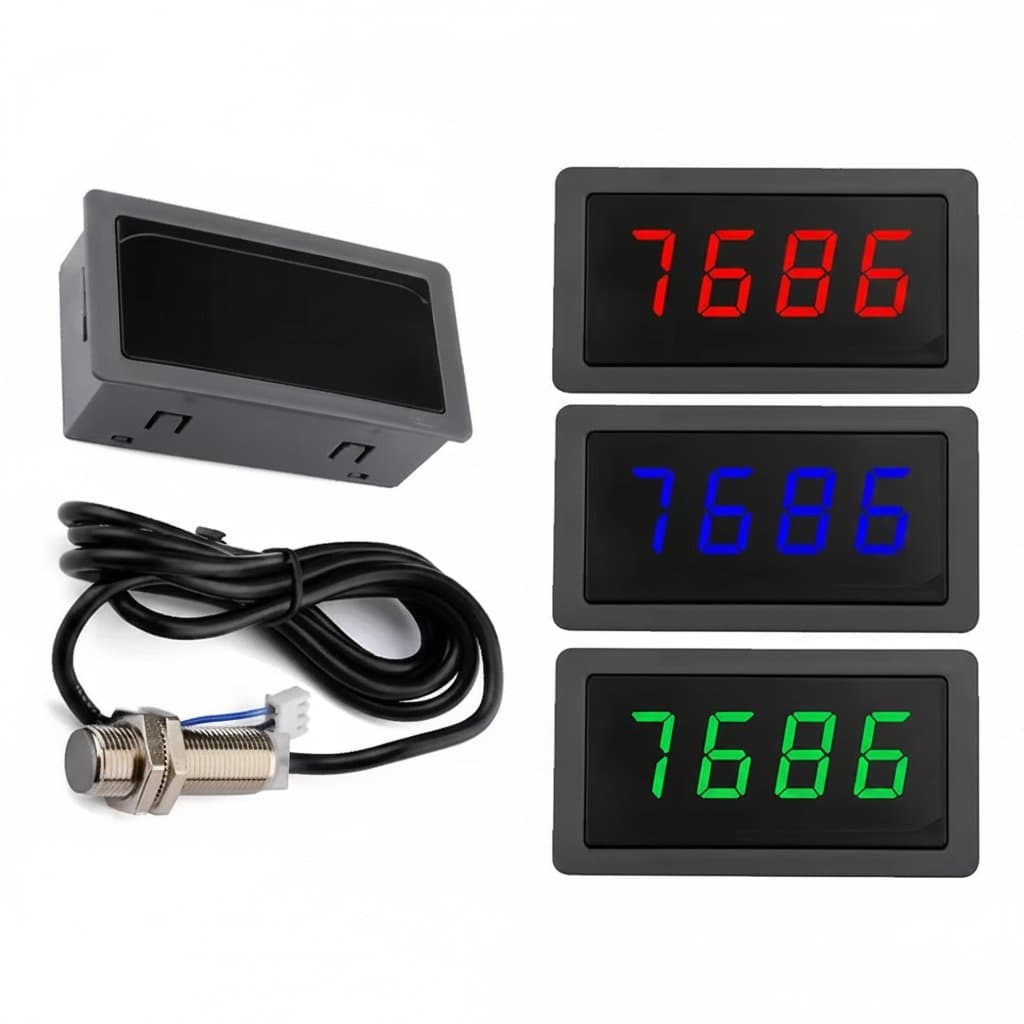

Your choice of sensing technology depends directly on the target material and environmental conditions. Inductive proximity sensors detect ferrous metals without physical contact, making them ideal for high-speed counting or position limit sensing where dust or oil would clog optical systems. For rotational speed measurement, combining a digital tachometer with a magnetic Hall proximity sensor provides clean, non-contact RPM readings.

When physical contact is necessary or preferred, micro limit switches offer a reliable, low-cost solution. These SPDT snap-action switches provide positive mechanical feedback and can handle higher voltages, such as 1A at 125V AC, without auxiliary control circuits. For precise tool setting on CNC routers or laser engravers, a conductive metal touch probe offers automated Z-axis calibration.

• Inductive Sensors: Non-contact metal detection, M3 to M6 threads, IP65 rated for wet environments.
• Hall Effect Sensors: Ideal for high-speed RPM tracking when paired with digital tachometers.
• Micro Limit Switches: High-reliability SPDT contacts for physical travel limits on machinery axes.
• Touch Probes: Conductive metal plates operating at 12-24 VDC for tool height calibration.

Selecting Pressure Gauges for High-Pressure Industrial Media

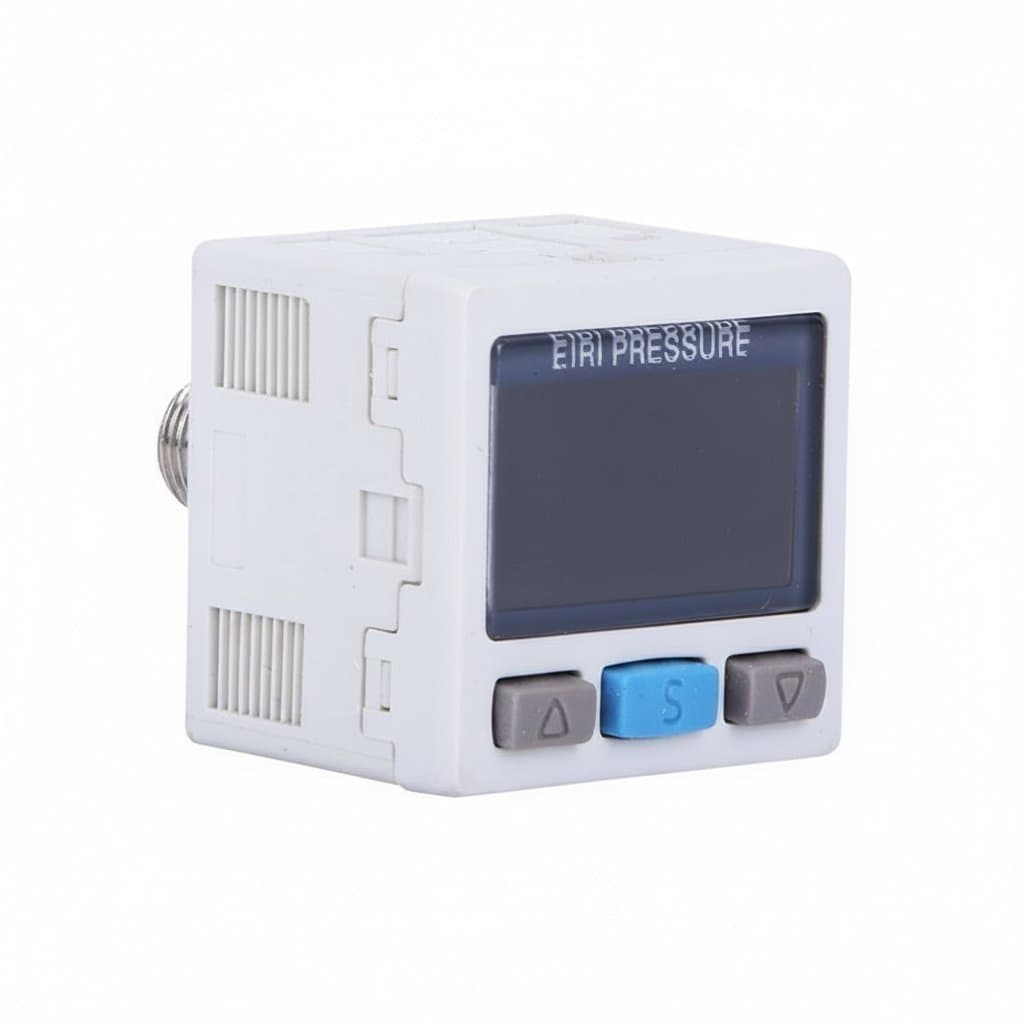

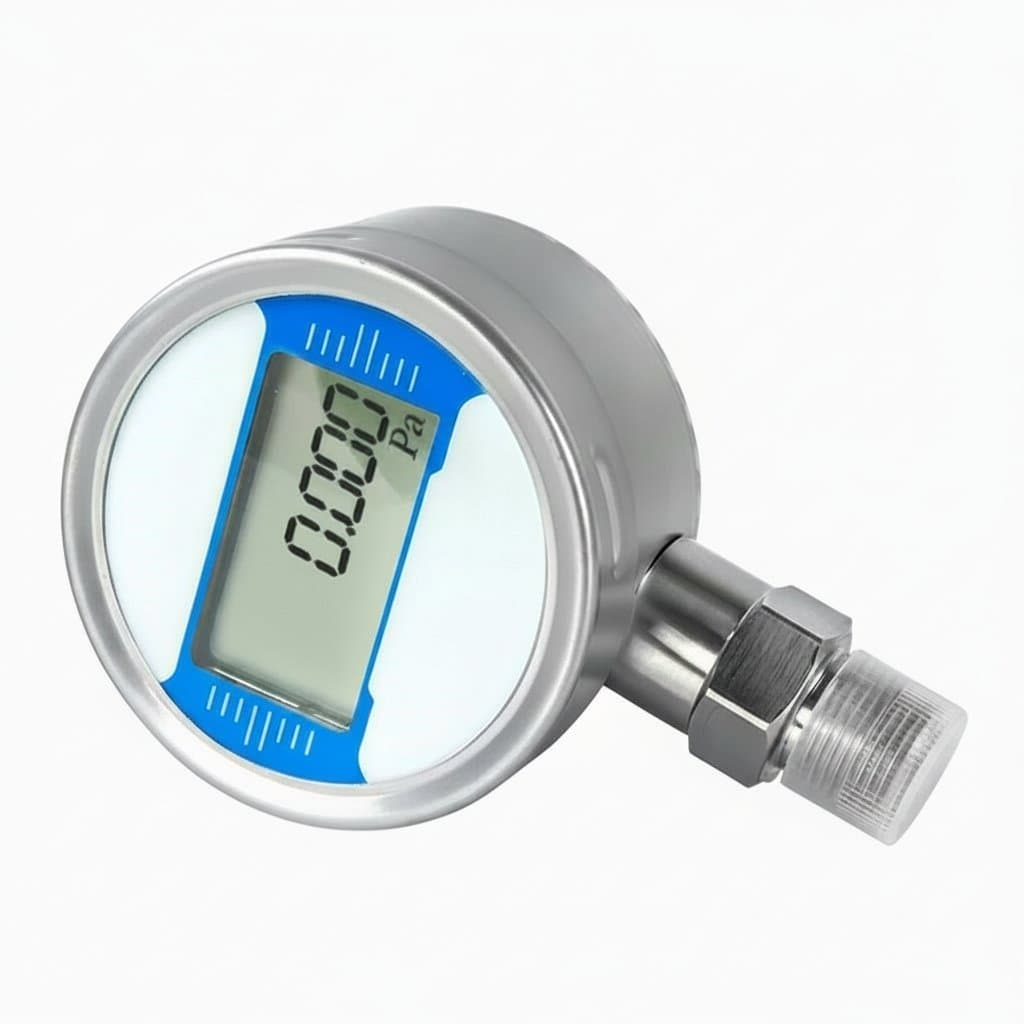

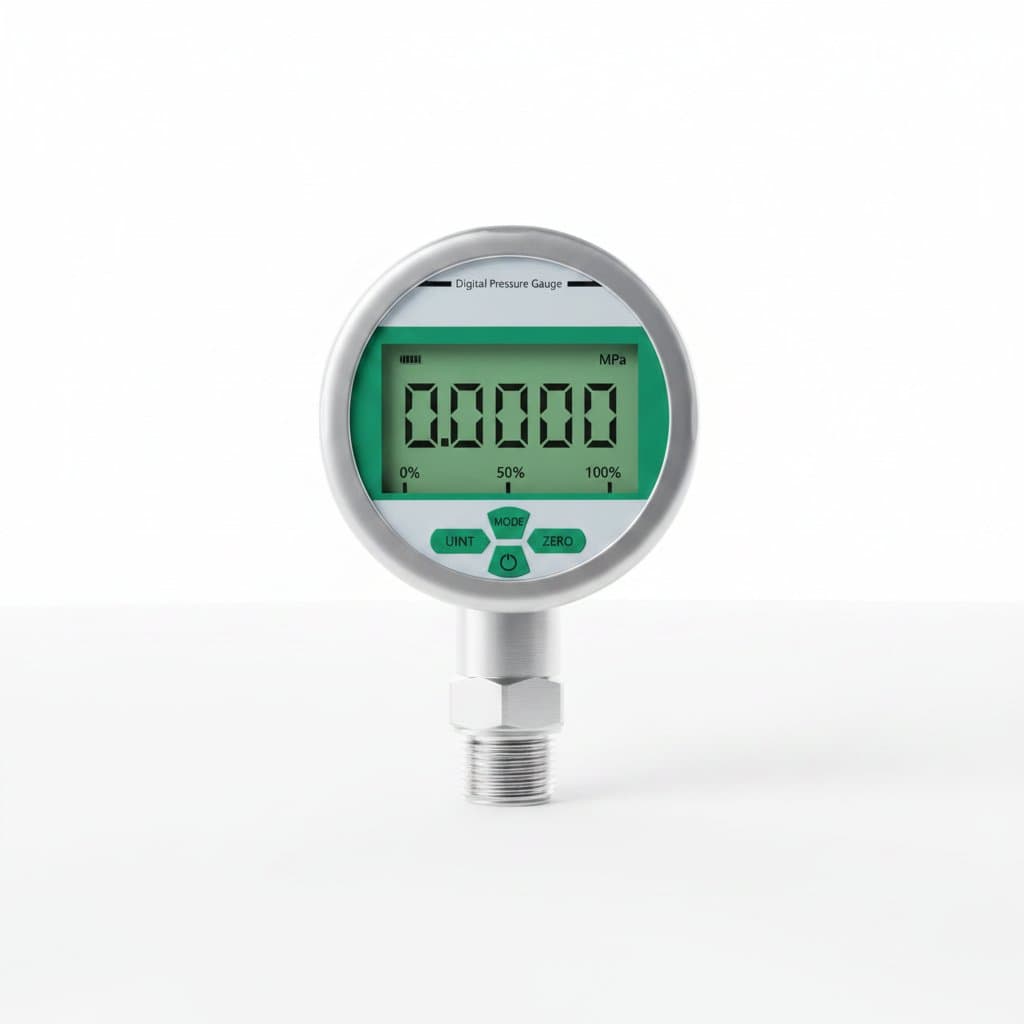

Monitoring pneumatic and hydraulic loops requires selecting a pressure sensor rated for both your maximum system pressure and the specific fluid media. Standard industrial applications use digital pressure gauges to monitor air, liquid, fuel, oil, and water. Ensure your gauge housing, such as 304 stainless steel, can withstand the environmental conditions of the installation site.

Always match the thread specification to your existing manifold or pipework. A G1/4 thread is standard for many European and international systems. For heavy-duty hydraulic lines, ensure the gauge has a sufficient measurement range, such as 0-400 bar, 0-600 bar, or up to 60 MPa.

• Pressure Ranges: Standard options up to 400 bar, 600 bar, or 60 MPa for high-pressure hydraulics.
• Media Compatibility: Ensure the sensor handles air, water, fuel, and oil safely.
• Thread Sizes: G1/4 thread connections are standard for direct manifold mounting.

Managing Signal Integrity with Thermocouple and Position Sensor Wiring

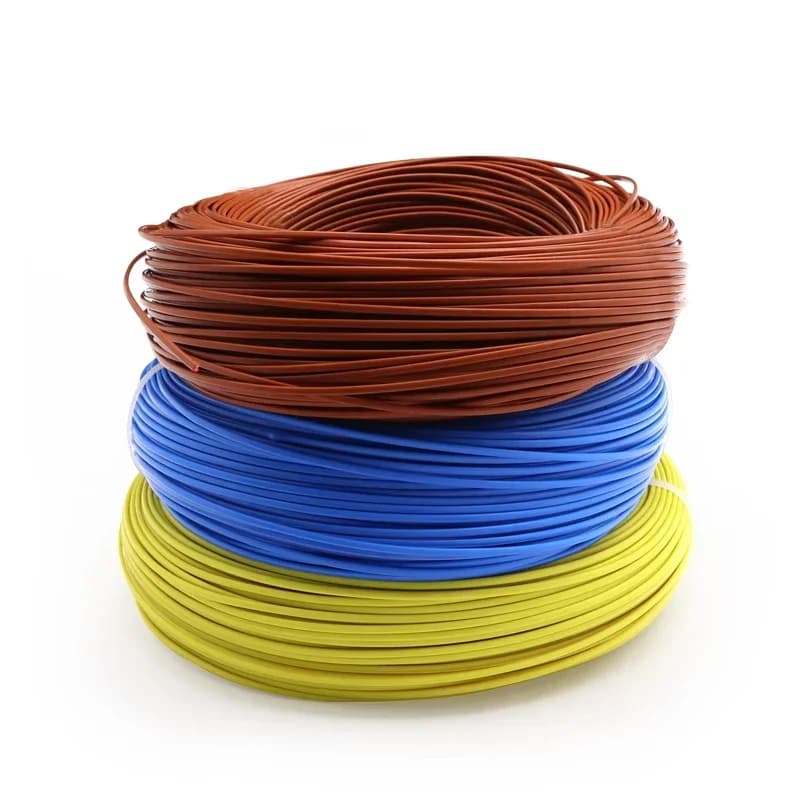

Signal degradation can cause erratic machine behavior. When routing sensor signals through high-temperature zones, standard PVC insulation fails. Using professional-grade K, J, or T thermocouple wire with PTFE insulation ensures stable thermal readings and resists chemical exposure.

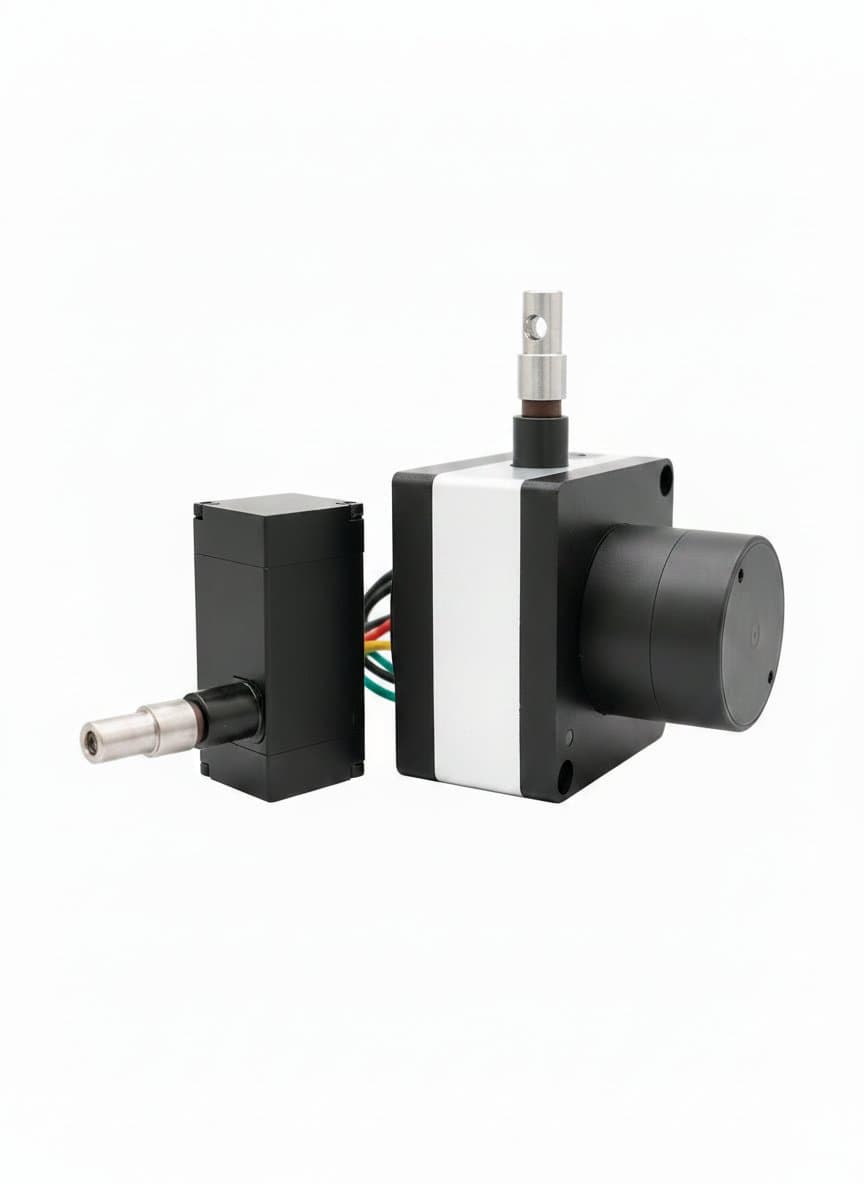

For linear motion tracking, wire position sensors (draw-wire transducers) require stable power supplies, typically 10-30V DC. Look for units featuring high linearity, such as +/-0.1% full scale, to maintain accuracy over travel distances up to 5000 mm. Ensure the housing material, like aluminum alloy, matches the mechanical stress of the machine frame.
