What do the numbers like MGMN200 and MGMN300 mean?

The number tells you the width of the cutting edge in tenths of a millimetre. An MGMN200 has a 2.0mm wide tip for a 2mm groove, an MGMN300 is 3.0mm, and so on.

Will these fit the tool holder I already have?

These inserts are made for tool holders with a matching MGMN profile. You'll need to check your holder is marked for the same size, for example, using an MGMN300 insert in an MGEHR-300 holder.

What materials are these CVD coated inserts best for cutting?

These are tungsten carbide inserts with a CVD coating, making them well-suited for grooving and parting off in steels and cast irons. The coating provides good wear resistance at higher cutting speeds.

Carbide Insert | Grooving & Parting Blade | For CNC Metal Lathe

Name: Carbide Insert | Grooving & Parting Blade | For CNC Metal Lathe
Brand: Compel
SKU: TURN-00001
Price: 20.95 USD
Availability: InStock
Rating: 4.9 (275 reviews)

Stock #:CMP-04525

SKU:TURN-00001

Carbide Insert | Grooving & Parting Blade | For CNC Metal Lathe - Image 1

1 / 6

$20.95

Ships to United States · standard est. 10-20 business days

Free standard shipping on orders over $59 (under 2kg). Express available at checkout.

Shank DiameterSelect an option

Angle12 optionsSelect an option

Quantity

Carbide Insert | Grooving & Parting Blade | For CNC Metal Lathe

$20.95

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

What do the numbers like MGMN200 and MGMN300 mean?: The number tells you the width of the cutting edge in tenths of a millimetre. An MGMN200 has a 2.0mm wide tip for a 2mm groove, an MGMN300 is 3.0mm, and so on.
Will these fit the tool holder I already have?: These inserts are made for tool holders with a matching MGMN profile. You'll need to check your holder is marked for the same size, for example, using an MGMN300 insert in an MGEHR-300 holder.
What materials are these CVD coated inserts best for cutting?: These are tungsten carbide inserts with a CVD coating, making them well-suited for grooving and parting off in steels and cast irons. The coating provides good wear resistance at higher cutting speeds.

Turning Inserts spec sheet (PDF)

Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.

Not sure which one?

Compare turning inserts

This product

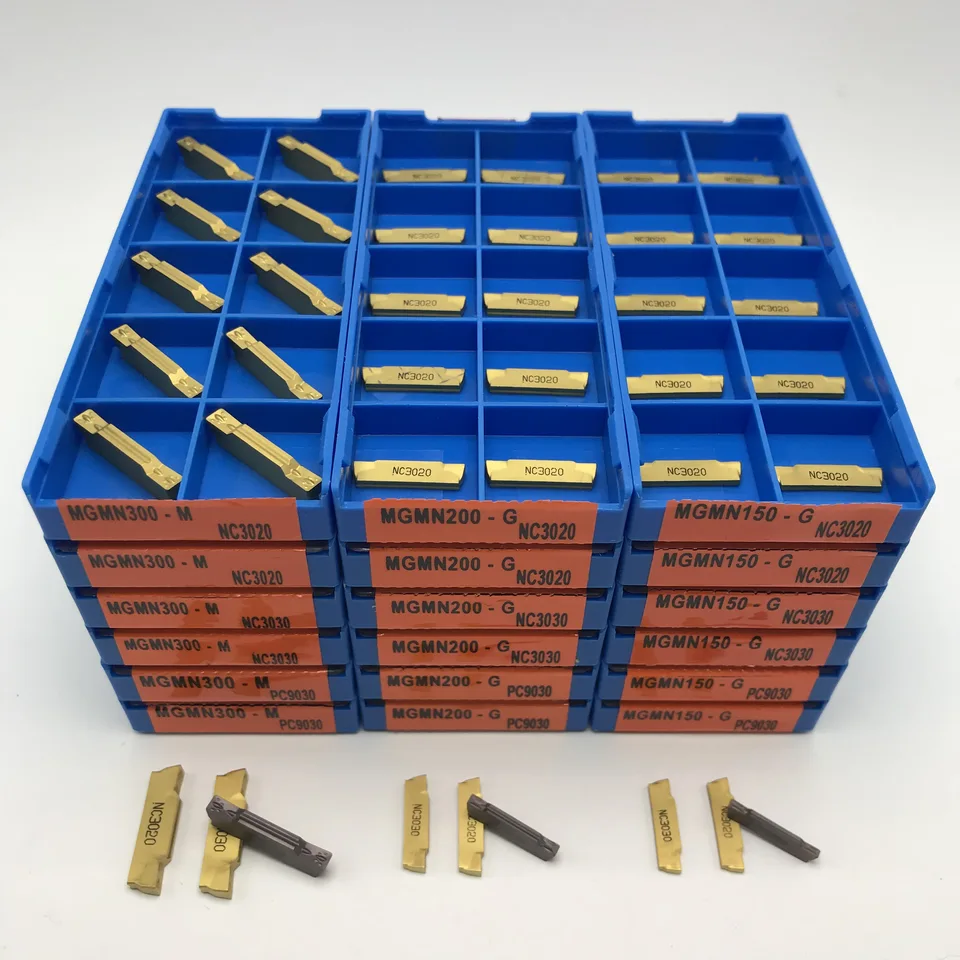

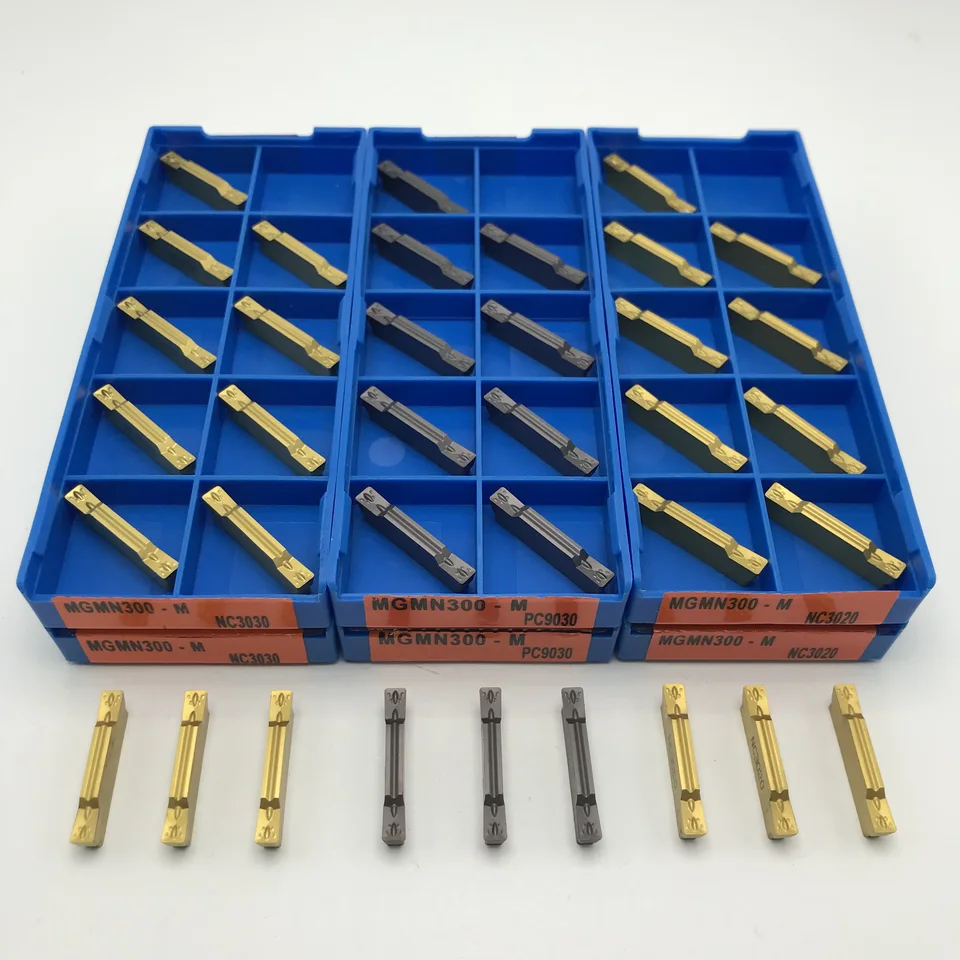

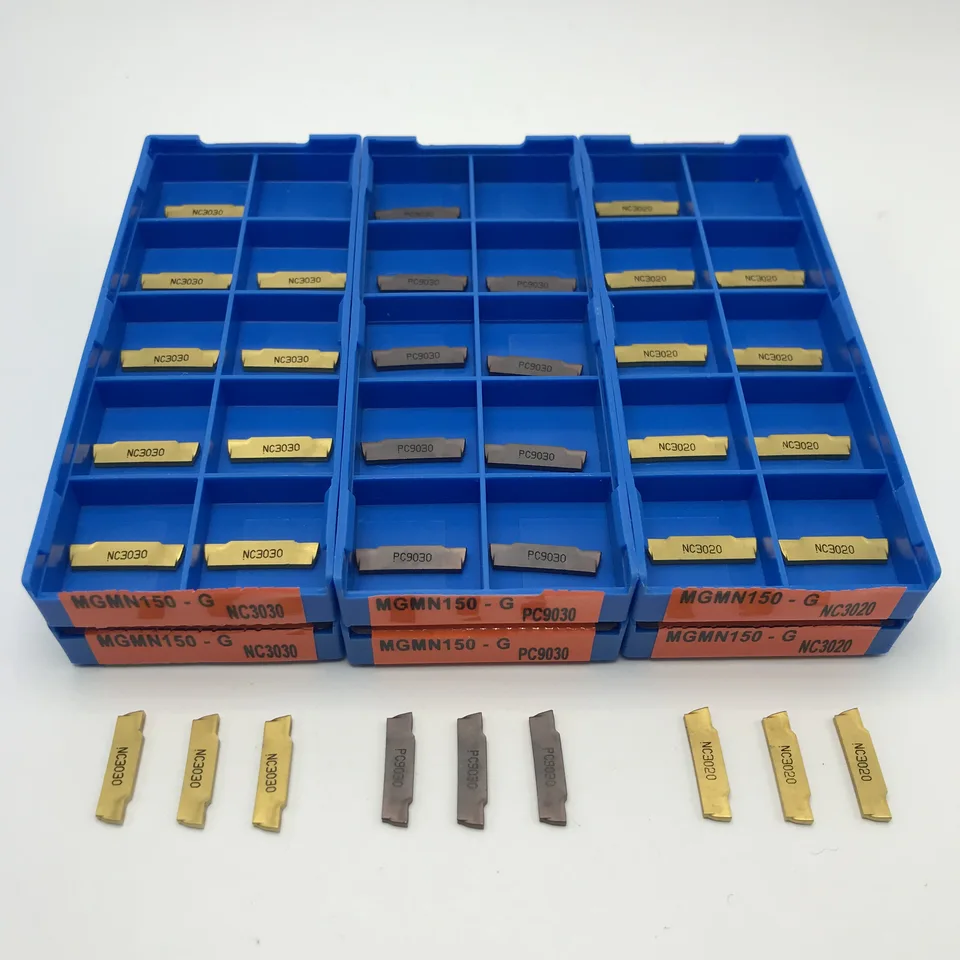

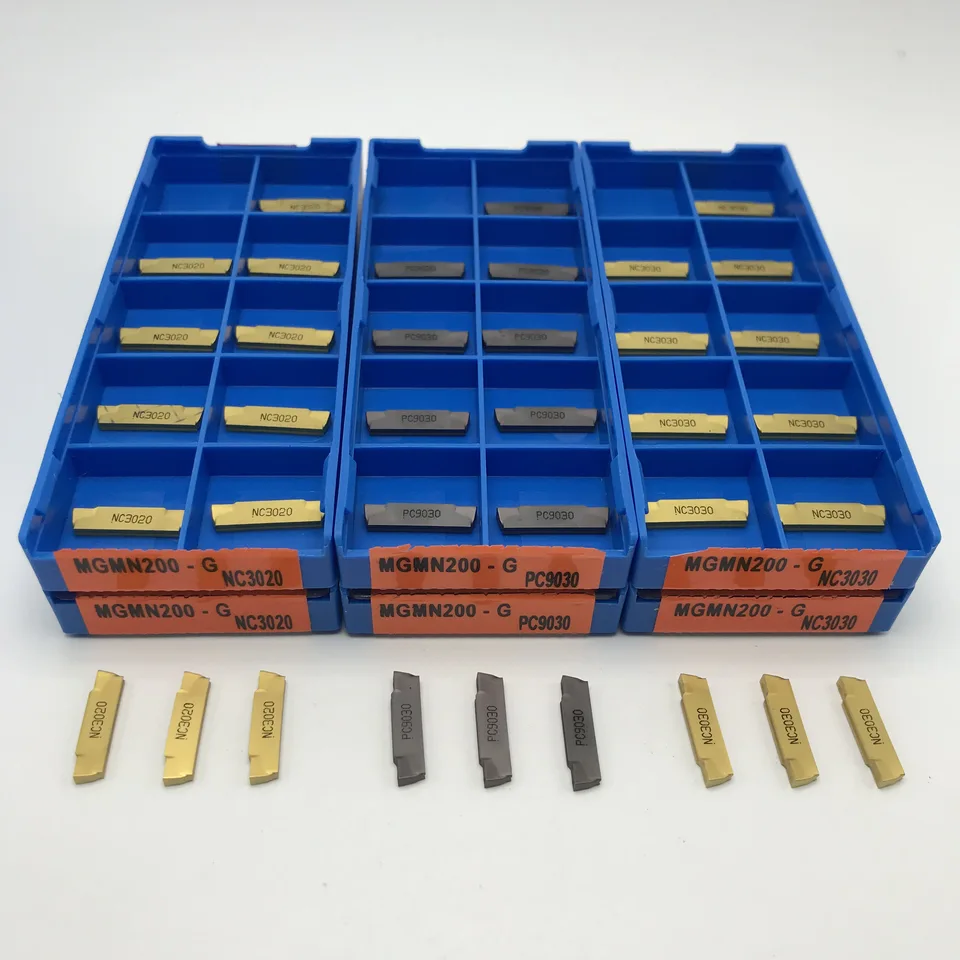

A selection of MGMN carbide insert blades for slotted cutting, suitable for lathe tools and CNC machining.

Carbide Insert | Grooving & Parting Blade | For CNC Metal Lathe

Price$20.95

Rating4.9(275)

Sold2,000+

Stock In stock

You're viewing this

Alternative

Various SP200, SP300, SP400 slotted carbide insert types for parting and grooving metal.

Carbide Insert | PC9030 Coated | For Metal Lathe Parting & Grooving

Price$25.95

Rating4.9(245)

Sold3,000+

Stock In stock

View

Alternative

CCMT060204 carbide insert for internal turning, high-quality lathe tool for CNC steel processing.

Carbide Insert | For Steel CNC Turning | CCMT060204 & CCMT09T304 Pack

Price$24.95

Rating4.9(210)

Sold2,000+

Stock In stock

View

Explore the range

Popular in Industrial & Machinery

Browse Industrial & Machinery

-28%

Electric Fabric Cutter | Round-Knife Cloth Slitting Machine | YJ-110C Hand-Push Design

5.0

$189.99$264.96

Push-to-Connect Air & Water Fittings | 4mm-12mm OD | Quick-Release Hose Couplings

4.9

$5.95

Complete the set

Accessories & add-ons

Sensor Protection Sleeve | Stainless Steel Blind Tube | 6mm

5.0(11)

$39.95

Motion Sensor Bracket | Automatic IR Lamp Holder | 110-240V AC

4.8(196)

$16.99

Soil Moisture NPK Sensor | 7-in-1 Agricultural Probe Accessory

4.8(25)

$26.95

Arduino Raspberry Pi Sensor Kit (45pc) | Modules for UNO R3 MEGA2560

4.7(58)

$47.95

Reflector Plate | Photoelectric Sensor Accessory | TD Series

4.7(23)

$12.99

Load Cell ADC Module | 24-Bit HX711 Sensor Accessory

4.4(21)

$1.49

Bending Strain Gauge Amplifier Module | Sensor Accessories UK

$5.95

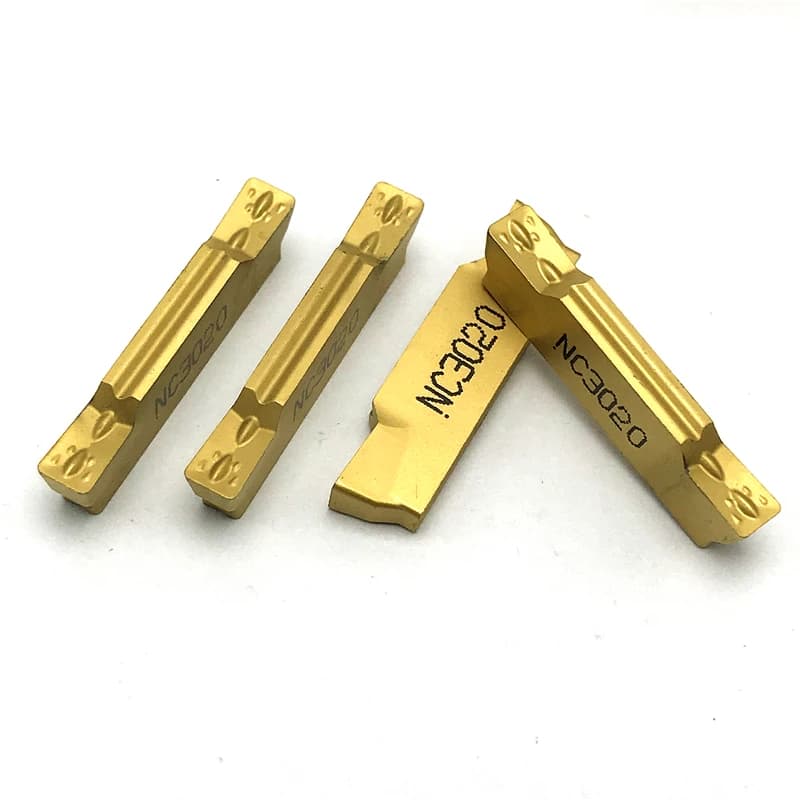

This MGMN-series carbide insert is for making grooves and cutting off parts on CNC lathes. Each insert is ground to exact sizes. This helps you get consistent slot widths and clean cuts. It works well for making grooves from 1.5mm to 4.0mm wide in metal. Features and Benefits - Tungsten carbide material - Handles heat and wear well, making the insert last longer. - Ground cutting edge - Helps create a smooth surface and reduces cutting force on the machine. - Specific width options - Available in 1.5mm, 2.0mm, 3.0mm, and 4.0mm to match your job. - Chipbreaker shape - Manages metal chips, stopping tangles and making cutting smoother. Applications - Machining grooves for O-rings or retaining clips on round parts. - Cutting finished pieces from metal bar stock. - Making accurate, narrow slots in custom machine parts.

Material: Carbide. Application: CNC Cutting and Slotting Lathe Tool. Coating: PVD. Hardness: 95 HRA. Insert Type: Grooving. Model Numbers: MGMN150, MGMN200, MGMN300, MGMN400. Product Name: Slotted Cutting Carbide Insert. Insert Thickness: 1.5mm (MGMN150), 2.0mm (MGMN200), 3.0mm (MGMN300), 4.0mm (MGMN400). Material: Tungsten Carbide. Recommended Cutting Speed: 80 - 250 m/min. Application: Lathe Tool, CNC Cutting, Slotting. Chip Breaker Design: Optimized for various materials. Coating: PVD/CVD (specific coating varies by grade). Cutting Edge Geometry: Single-sided, precision ground. Hardness: 95 HRA. Model Numbers: MGMN150, MGMN200, MGMN300, MGMN400. Product Type: Slotted Cutting Carbide Blade. Recommended Feed Rate: 0.05 - 0.25 mm/rev. Thermal Stability: Excellent at high temperatures. Tolerance: ISO M-class. Wear Resistance: High. Q: What do the different numbers like MGMN200 and MGMN300 mean? A: Those numbers tell you the width of the cutting edge in millimeters. An MGMN200 insert will cut a 2.0mm wide slot, and an MGMN300 will cut a 3.0mm slot.. Q: What do the different numbers like MGMN200 and MGMN300 mean? A: Those numbers tell you the width of the cutting edge in millimeters. An MGMN200 insert will cut a 2.0mm wide slot, and an MGMN300 will cut a 3.0mm slot.. Q: What do the different numbers like MGMN200 and MGMN300 mean? A: Those numbers tell you the width of the cutting edge in millimeters. An MGMN200 insert will cut a 2.0mm wide slot, and an MGMN300 will cut a 3.0mm slot.. Q: What are these inserts made of and are they coated? A: These are made from a general-purpose grade of tungsten carbide that balances toughness and hardness. They have a PVD coating that reduces friction and helps the edge last longer, especially at higher cutting speeds.. Q: What are these inserts made of and are they coated? A: These are made from a general-purpose grade of tungsten carbide that balances toughness and hardness. They have a PVD coating that reduces friction and helps the edge last longer, especially at higher cutting speeds.. Q: What are these inserts made of and are they coated? A: These are made from a general-purpose grade of tungsten carbide that balances toughness and hardness. They have a PVD coating that reduces friction and helps the edge last longer, especially at higher cutting speeds.. Q: Do I need a special tool holder to use this carbide insert? A: Yes, you need a holder that is specifically designed for MGMN-style inserts. The holder size must also match the insert; for example, you'd use a 2mm holder for an MGMN200 insert to ensure it's seated correctly.. Q: Do I need a special tool holder to use this carbide insert? A: Yes, you need a holder that is specifically designed for MGMN-style inserts. The holder size must also match the insert; for example, you'd use a 2mm holder for an MGMN200 insert to ensure it's seated correctly.. Q: Do I need a special tool holder to use this carbide insert? A: Yes, you need a holder that is specifically designed for MGMN-style inserts. The holder size must also match the insert; for example, you'd use a 2mm holder for an MGMN200 insert to ensure it's seated correctly.. Q: How many inserts are in one box? A: These are sold in plastic cases containing 10 inserts. This is a standard pack size for this type of lathe tooling.. Q: How many inserts are in one box? A: These are sold in plastic cases containing 10 inserts. This is a standard pack size for this type of lathe tooling.. Q: How many inserts are in one box? A: These are sold in plastic cases containing 10 inserts. This is a standard pack size for this type of lathe tooling.. Q: What happens if I receive an insert that's already chipped or broken? A: That's very rare, but if you open the box and find an insert with a factory defect, just contact us. We'll send you a replacement for the defective piece right away.. Q: What happens if I receive an insert that's already chipped or broken? A: That's very rare, but if you open the box and find an insert with a factory defect, just contact us. We'll send you a replacement for the defective piece right away.. Q: What happens if I receive an insert that's already chipped or broken? A: That's very rare, but if you open the box and find an insert with a factory defect, just contact us. We'll send you a replacement for the defective piece right away..
