What sort of jobs are these CCMT inserts best for?

These are designed specifically for internal turning jobs on a lathe, like boring out a hole. The CVD+PVD coating makes them suitable for processing steel. They are a general-purpose choice for finishing and semi-finishing work.

How do I know which size insert (060204, 09T304, etc.) I need for my tool holder?

The model number corresponds to the size of the insert, so you'll need to match it to your specific internal turning tool holder. For example, a CCMT06 insert has a 6mm inscribed circle and is for smaller boring bars. Always check the specifications stamped on your tool holder to ensure a correct fit.

What are these inserts made of and how hard are they?

These are made from a hard alloy, which is a type of cemented carbide with a hardness rating of 95 HRA. This provides good wear resistance when machining steel. The dual CVD+PVD coating also helps to extend the tool's life and improve surface finish.

Carbide Insert | For Steel CNC Turning | CCMT060204 & CCMT09T304 Pack

Name: Carbide Insert | For Steel CNC Turning | CCMT060204 & CCMT09T304 Pack
Brand: Compel
SKU: TURN-00002
Price: 24.95 USD
Availability: InStock
Rating: 4.9 (210 reviews)

Stock #:CMP-04529

SKU:TURN-00002

Carbide Insert | For Steel CNC Turning | CCMT060204 & CCMT09T304 Pack - Image 1

1 / 5

$24.95

Ships to United States · standard est. 10-20 business days

Free standard shipping on orders over $59 (under 2kg). Express available at checkout.

Insert Width(mm)Select an option

Shank Diameter10 optionsSelect an option

Quantity

Carbide Insert | For Steel CNC Turning | CCMT060204 & CCMT09T304 Pack

$24.95

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

What sort of jobs are these CCMT inserts best for?: These are designed specifically for internal turning jobs on a lathe, like boring out a hole. The CVD+PVD coating makes them suitable for processing steel. They are a general-purpose choice for finishing and semi-finishing work.
How do I know which size insert (060204, 09T304, etc.) I need for my tool holder?: The model number corresponds to the size of the insert, so you'll need to match it to your specific internal turning tool holder. For example, a CCMT06 insert has a 6mm inscribed circle and is for smaller boring bars. Always check the specifications stamped on your tool holder to ensure a correct fit.
What are these inserts made of and how hard are they?: These are made from a hard alloy, which is a type of cemented carbide with a hardness rating of 95 HRA. This provides good wear resistance when machining steel. The dual CVD+PVD coating also helps to extend the tool's life and improve surface finish.

Turning Inserts spec sheet (PDF)

Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.

Not sure which one?

Compare turning inserts

This product

CCMT060204 carbide insert for internal turning, high-quality lathe tool for CNC steel processing.

Carbide Insert | For Steel CNC Turning | CCMT060204 & CCMT09T304 Pack

Price$24.95

Rating4.9(210)

Sold2,000+

Stock In stock

You're viewing this

Alternative

Various SP200, SP300, SP400 slotted carbide insert types for parting and grooving metal.

Carbide Insert | PC9030 Coated | For Metal Lathe Parting & Grooving

Price$25.95

Rating4.9(245)

Sold3,000+

Stock In stock

View

Alternative

A selection of MGMN carbide insert blades for slotted cutting, suitable for lathe tools and CNC machining.

Carbide Insert | Grooving & Parting Blade | For CNC Metal Lathe

Price$20.95

Rating4.9(275)

Sold2,000+

Stock In stock

View

Explore the range

Popular in Industrial & Machinery

Browse Industrial & Machinery

-28%

Electric Fabric Cutter | Round-Knife Cloth Slitting Machine | YJ-110C Hand-Push Design

5.0

$189.99$264.96

Push-to-Connect Air & Water Fittings | 4mm-12mm OD | Quick-Release Hose Couplings

4.9

$5.95

Complete the set

Accessories & add-ons

Sensor Protection Sleeve | Stainless Steel Blind Tube | 6mm

5.0(11)

$39.95

Motion Sensor Bracket | Automatic IR Lamp Holder | 110-240V AC

4.8(196)

$16.99

Soil Moisture NPK Sensor | 7-in-1 Agricultural Probe Accessory

4.8(25)

$26.95

Arduino Raspberry Pi Sensor Kit (45pc) | Modules for UNO R3 MEGA2560

4.7(58)

$47.95

Reflector Plate | Photoelectric Sensor Accessory | TD Series

4.7(23)

$12.99

Load Cell ADC Module | 24-Bit HX711 Sensor Accessory

4.4(21)

$1.49

Bending Strain Gauge Amplifier Module | Sensor Accessories UK

$5.95

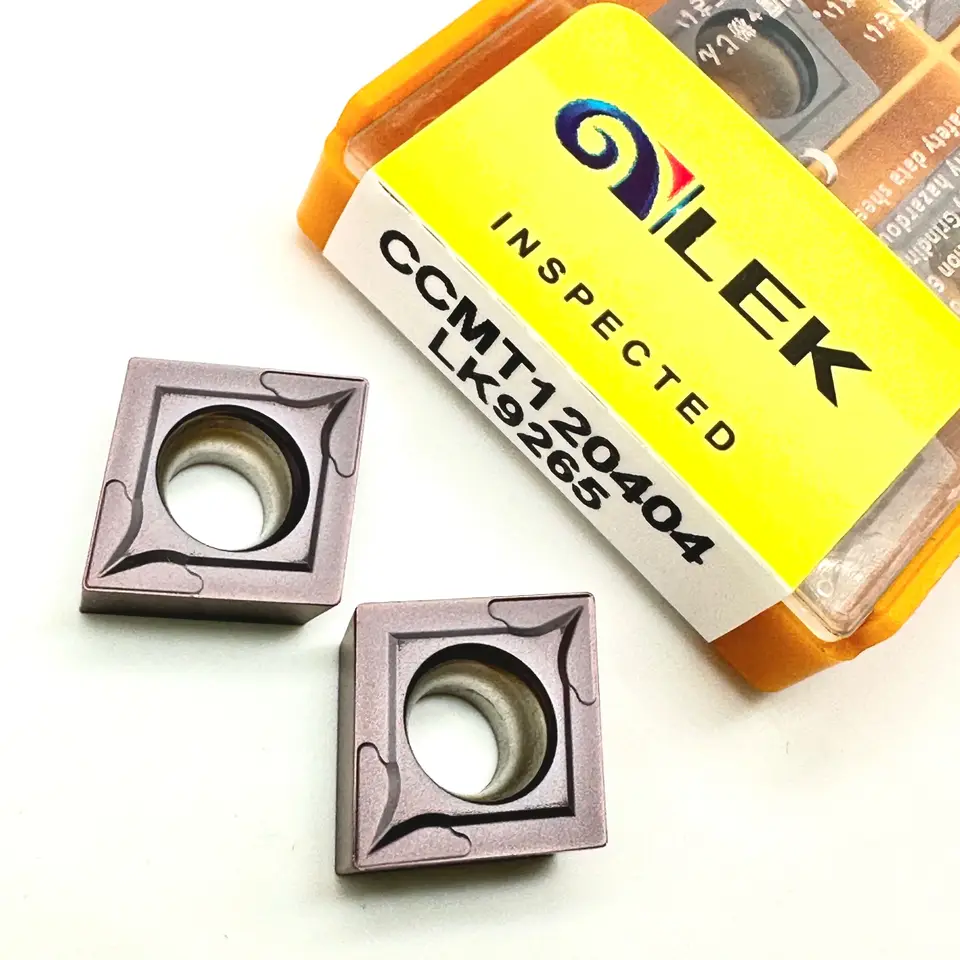

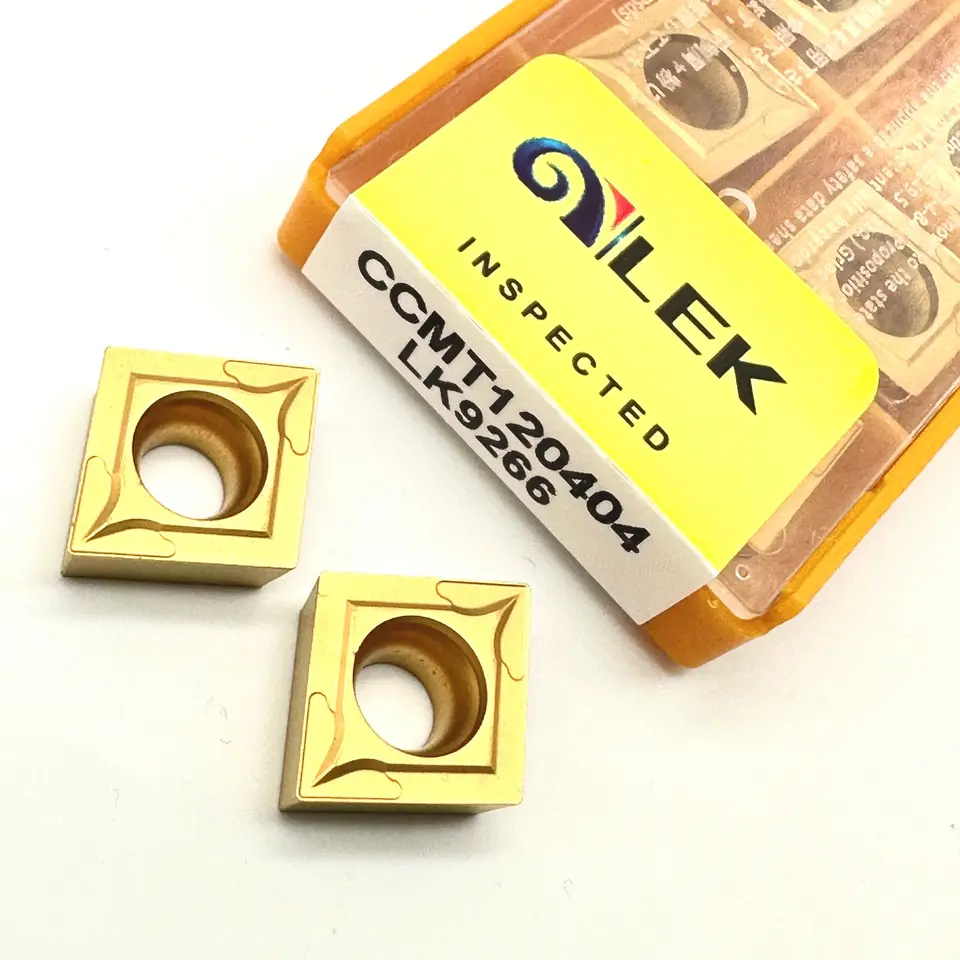

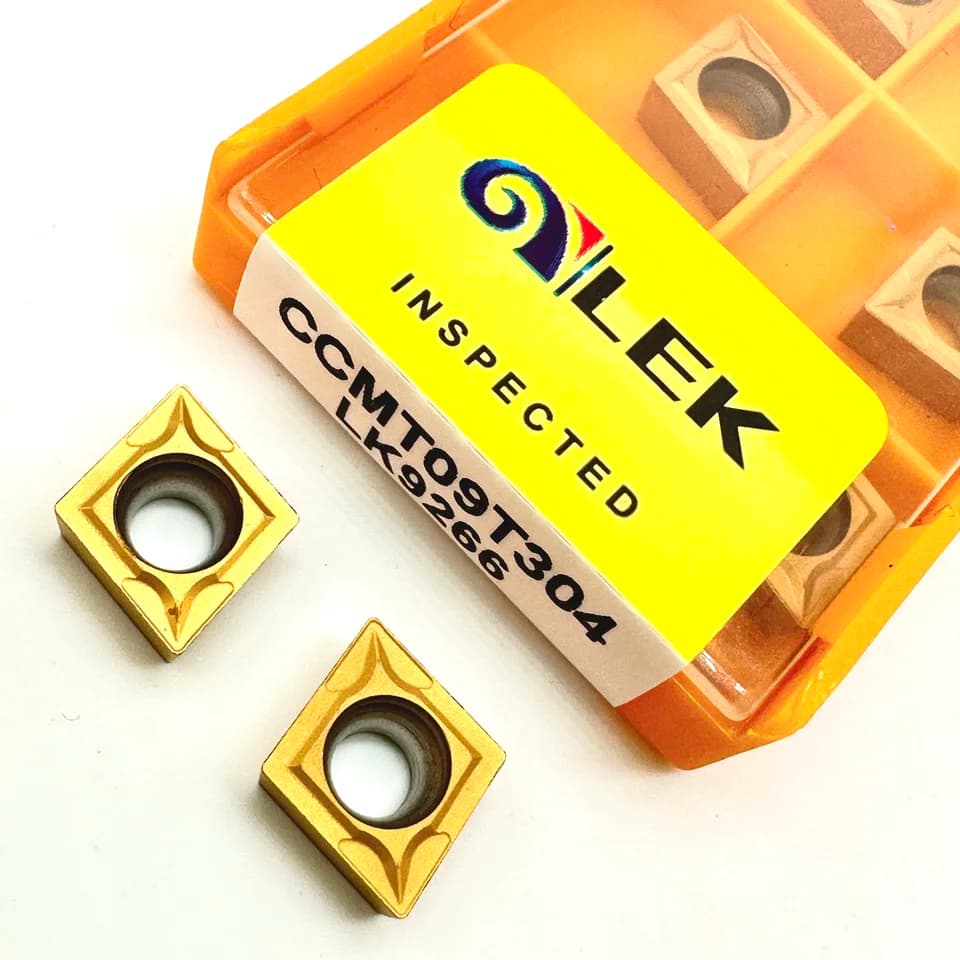

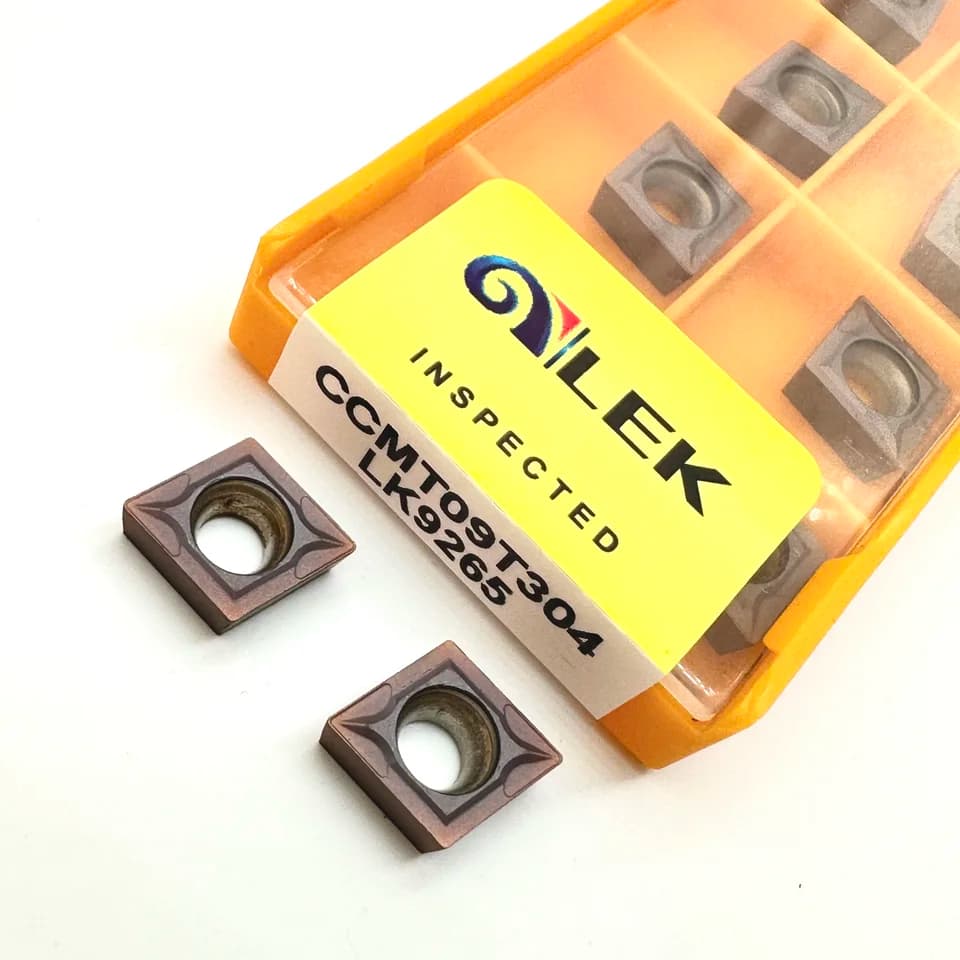

This CCMT carbide insert works for internal turning and boring on a CNC lathe. Its 80-degree diamond shape and positive rake geometry help you make clean, precise cuts in steel, stainless steel, and other alloys. It's a dependable tool for many machining jobs. Features and Benefits - PVD Coating - This coating resists wear well, making the tool last longer when you cut tough materials like stainless steel or high-temperature alloys. - Positive Rake Geometry - It reduces cutting forces on the workpiece. This helps stop chatter and gives you a better surface finish. - Integrated Chipbreaker - This part manages swarf effectively. It keeps chips from tangling around the tool, making the cutting area cleaner and operation smoother. - Multiple Grades and Sizes - You can get these as CCMT060204, CCMT09T304, and CCMT120404 inserts. This lets you pick the right tool for anything from rough cutting to fine finishing. Applications - Internal boring operations to create or enlarge a hole with an exact diameter. - Finishing passes on internal surfaces where you need a smooth, accurate finish. - General-purpose CNC steel processing for facing and profiling inside a workpiece.

Material: Carbide. Processing Material: Steel. Application: Internal Turning. Hardness: 95 HRC. Insert Type: CCMT060204, CCMT09T304, CCMT120404. Cutting Edge Length (CCMT060204): 6.35 mm. Cutting Edge Length (CCMT09T304): 9.525 mm. Cutting Edge Length (CCMT120404): 12.7 mm. Insert Thickness (CCMT060204): 2.38 mm. Insert Thickness (CCMT09T304): 3.97 mm. Insert Thickness (CCMT120404): 4.76 mm. Material: Carbide. Application: Internal Turning, CNC Steel Processing. Coating: Unspecified (High Quality). Corner Radius (CCMT060204): 0.4 mm. Corner Radius (CCMT09T304): 0.4 mm. Corner Radius (CCMT120404): 0.4 mm. Hardness: 95 HRC. Insert Type: CCMT060204, CCMT09T304, CCMT120404. Product Type: Carbide Insert. Q: What materials are these inserts designed to cut? A: These turning inserts are specifically made for processing steel. Their carbide composition is formulated to handle the heat and pressure that comes from cutting various steel alloys on a lathe.. Q: What materials are these inserts designed to cut? A: These turning inserts are specifically made for processing steel. Their carbide composition is formulated to handle the heat and pressure that comes from cutting various steel alloys on a lathe.. Q: What materials are these inserts designed to cut? A: These turning inserts are specifically made for processing steel. Their carbide composition is formulated to handle the heat and pressure that comes from cutting various steel alloys on a lathe.. Q: What do the different model numbers like CCMT060204 and CCMT09T304 mean? A: Those numbers define the insert's geometry, including its shape, clearance angle, and size. For example, the '06', '09', and '12' refer to the length of the cutting edge, so you can choose the right size for your tool holder and project.. Q: What do the different model numbers like CCMT060204 and CCMT09T304 mean? A: Those numbers define the insert's geometry, including its shape, clearance angle, and size. For example, the '06', '09', and '12' refer to the length of the cutting edge, so you can choose the right size for your tool holder and project.. Q: What do the different model numbers like CCMT060204 and CCMT09T304 mean? A: Those numbers define the insert's geometry, including its shape, clearance angle, and size. For example, the '06', '09', and '12' refer to the length of the cutting edge, so you can choose the right size for your tool holder and project.. Q: Is there a coating on this carbide insert? A: Yes, they have a coating that improves their performance when machining steel. This layer reduces friction and increases wear resistance, helping the insert last longer before it needs to be rotated or replaced.. Q: Is there a coating on this carbide insert? A: Yes, they have a coating that improves their performance when machining steel. This layer reduces friction and increases wear resistance, helping the insert last longer before it needs to be rotated or replaced.. Q: Is there a coating on this carbide insert? A: Yes, they have a coating that improves their performance when machining steel. This layer reduces friction and increases wear resistance, helping the insert last longer before it needs to be rotated or replaced.. Q: Are these inserts compatible with any brand of lathe tool holder? A: They are designed to fit standard tool holders that accept CCMT-style inserts. Just make sure the size you choose, like CCMT120404, matches the pocket size of your specific turning tool.. Q: Are these inserts compatible with any brand of lathe tool holder? A: They are designed to fit standard tool holders that accept CCMT-style inserts. Just make sure the size you choose, like CCMT120404, matches the pocket size of your specific turning tool.. Q: Are these inserts compatible with any brand of lathe tool holder? A: They are designed to fit standard tool holders that accept CCMT-style inserts. Just make sure the size you choose, like CCMT120404, matches the pocket size of your specific turning tool.. Q: What happens if an insert arrives with a chip or defect? A: We check our tools before they ship, but if you receive a damaged one, just contact us. We'll be happy to send you a replacement at no charge.. Q: What happens if an insert arrives with a chip or defect? A: We check our tools before they ship, but if you receive a damaged one, just contact us. We'll be happy to send you a replacement at no charge.. Q: What happens if an insert arrives with a chip or defect? A: We check our tools before they ship, but if you receive a damaged one, just contact us. We'll be happy to send you a replacement at no charge..
