Air Compressor Unloading Valve | 2 Way Solenoid | Normally Closed | Female Port

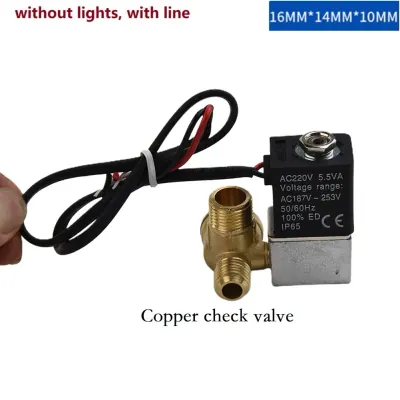

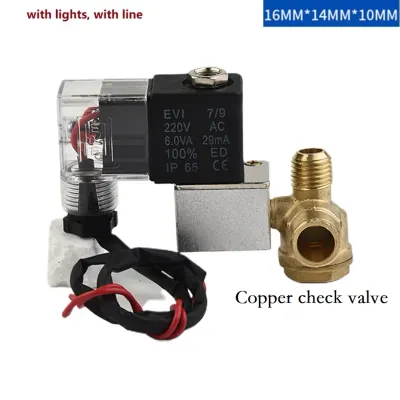

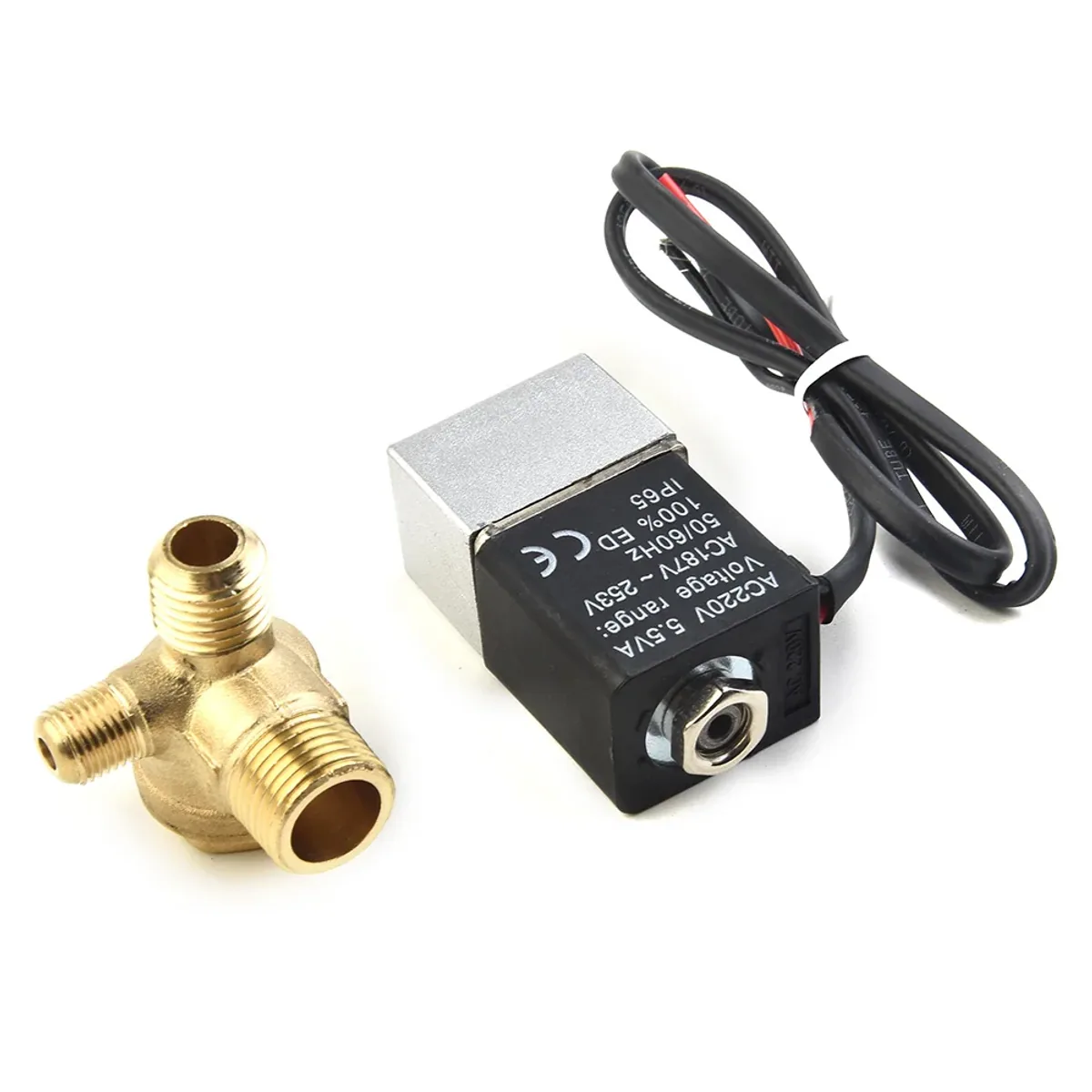

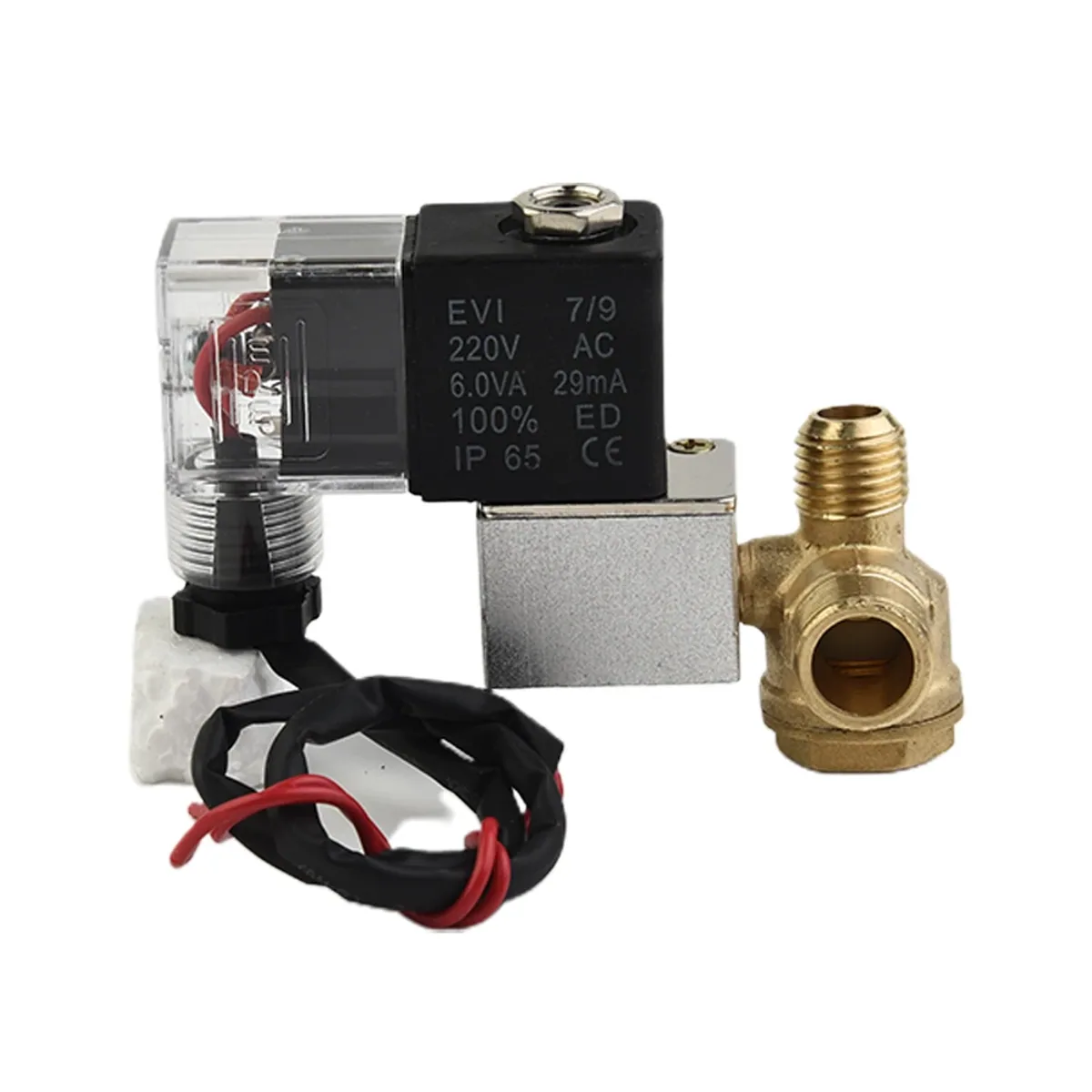

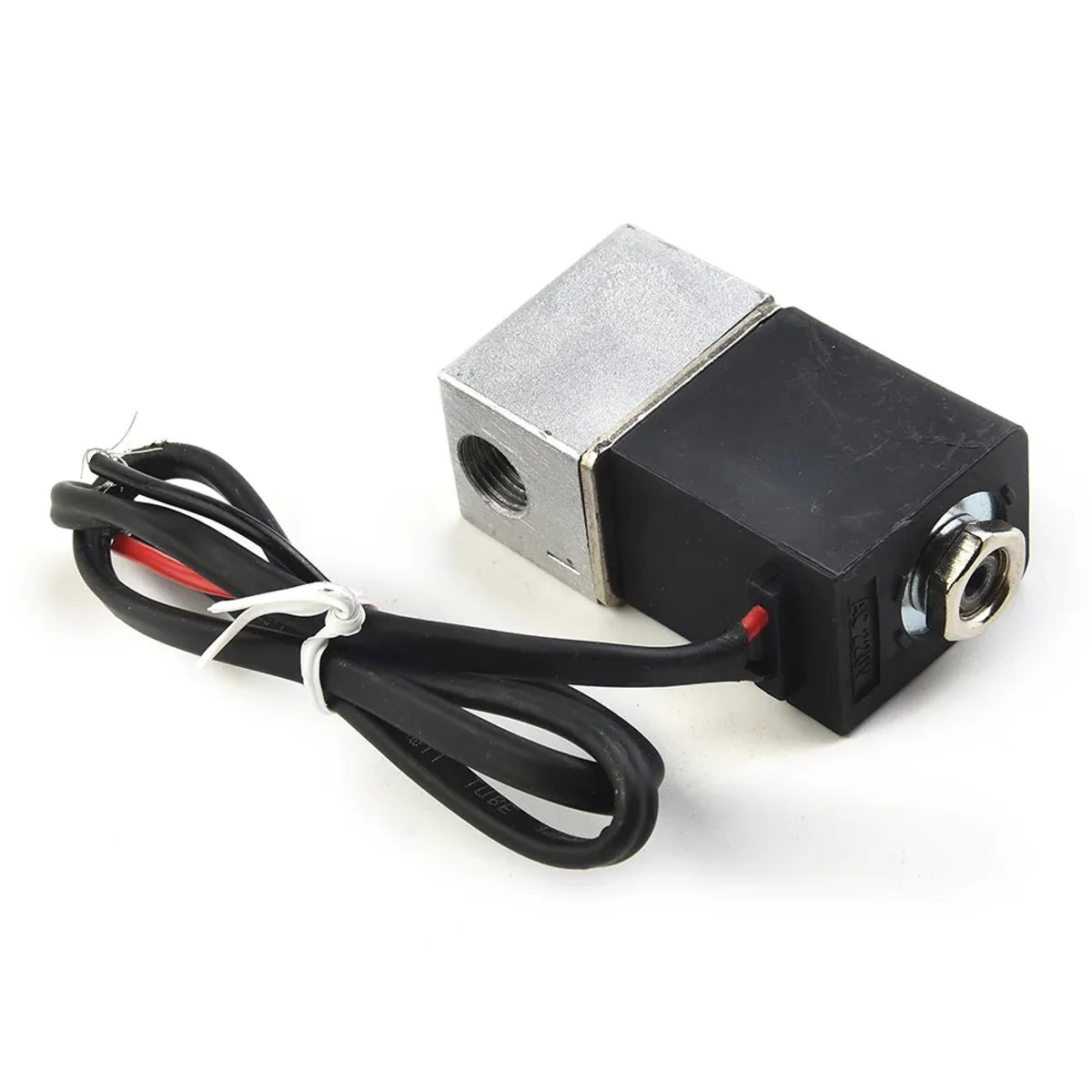

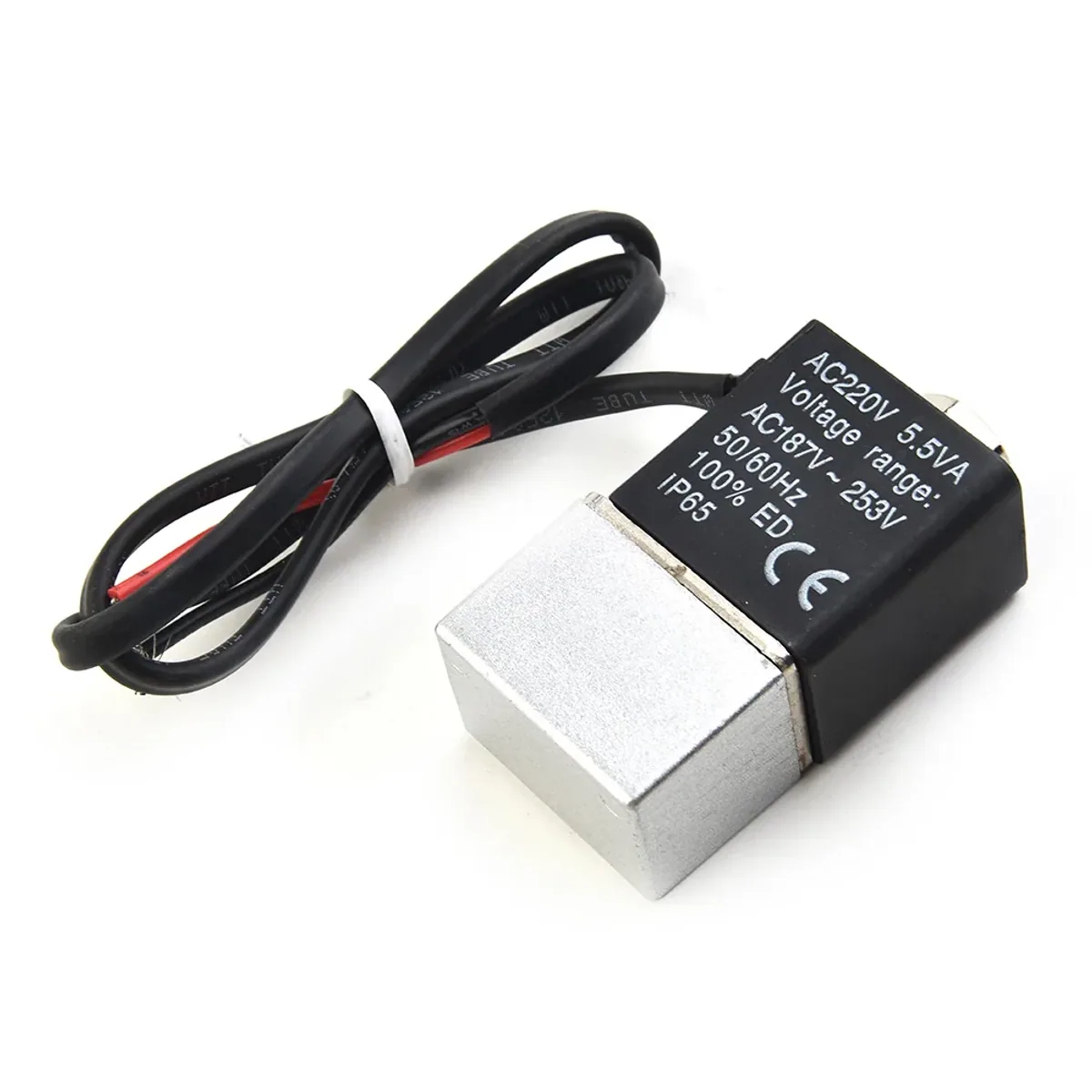

This 2-way normally closed solenoid valve is listed for use as an air compressor unloading valve and bleed valve: it opens when the coil is energised and has a G1/4 female port and an operating pressure of 1.2MPa. The seller's text gives the body material as aluminium, with NBR (Buna N), a brass armature tube and a stainless steel plunger and spring. The photos show a brass or copper coloured valve body, so check the body on the version you receive. Features and benefits: - 2-way normally closed design: the valve opens with the coil energised and shuts when power is removed. - G1/4 female port with a threaded connection. - Coil listed as 12V DC 4W in the specification; the photos also show a 220V AC coil, so check the label on the version you receive. - Response time of less than 50 ms: the valve switches quickly when the coil is switched. - Rated to 1.2MPa and can be operated at 0 PSI (vacuum). - Service media listed as air, gas, liquid and water. - Operating temperature -10 to 80 °C. - Listed as wire lead type, LED light type, or wire lead type with LED light. Applications: - Unloading or bleeding an air compressor or air pump - Pneumatic cut-off lines - Compressor and air pump repair and spare parts In the box: 1 x solenoid valve and 1 x way valve (as listed by the seller). Note: Check the coil voltage against your supply before wiring. The listing shows more than one coil rating, so match the version you receive to its label. Isolate power and release pressure from the line before fitting or removing the valve.
