How do I know which length to order? Should I measure the inside or outside?

The length listed, for example 'A35', refers to the belt's internal circumference in inches. The easiest way to find your size is to check the number printed on your old belt. If the number is worn off, you can measure the inner loop of the old belt to get the correct length.

What does 'Type A' mean and will it fit my pulleys?

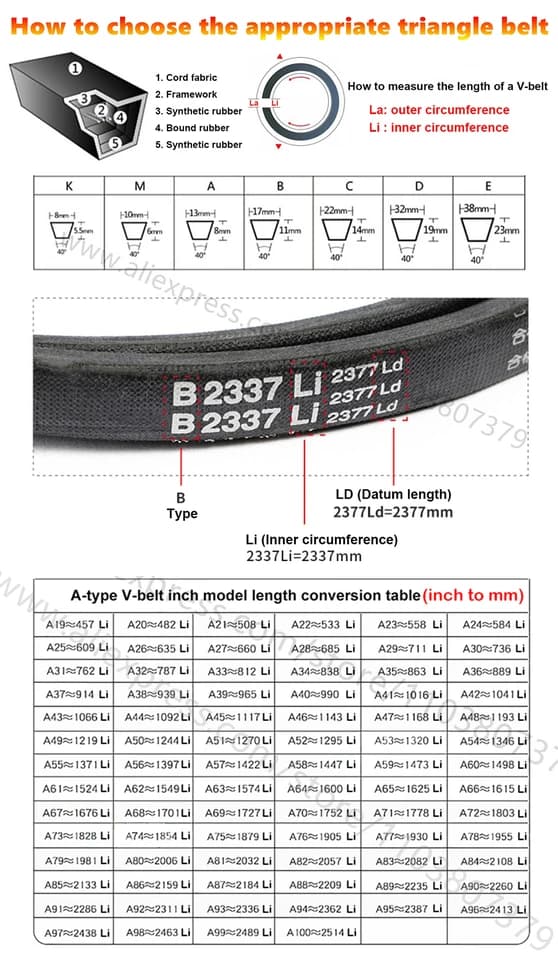

'Type A' is a standard profile for classical V-belts, meaning it has a top width of about 13mm (1/2") and a depth of 8mm (5/16"). If your machine's pulleys are designed for a Type A belt, this will be the correct fit. Check your equipment's manual or the old belt to confirm the type.

What sort of jobs are these rubber belts suitable for?

These are standard rubber belts designed for general-purpose power transmission. They are commonly used in workshop machinery like pillar drills, band saws, and lathes, as well as some agricultural and automotive applications that specify a Type A belt.

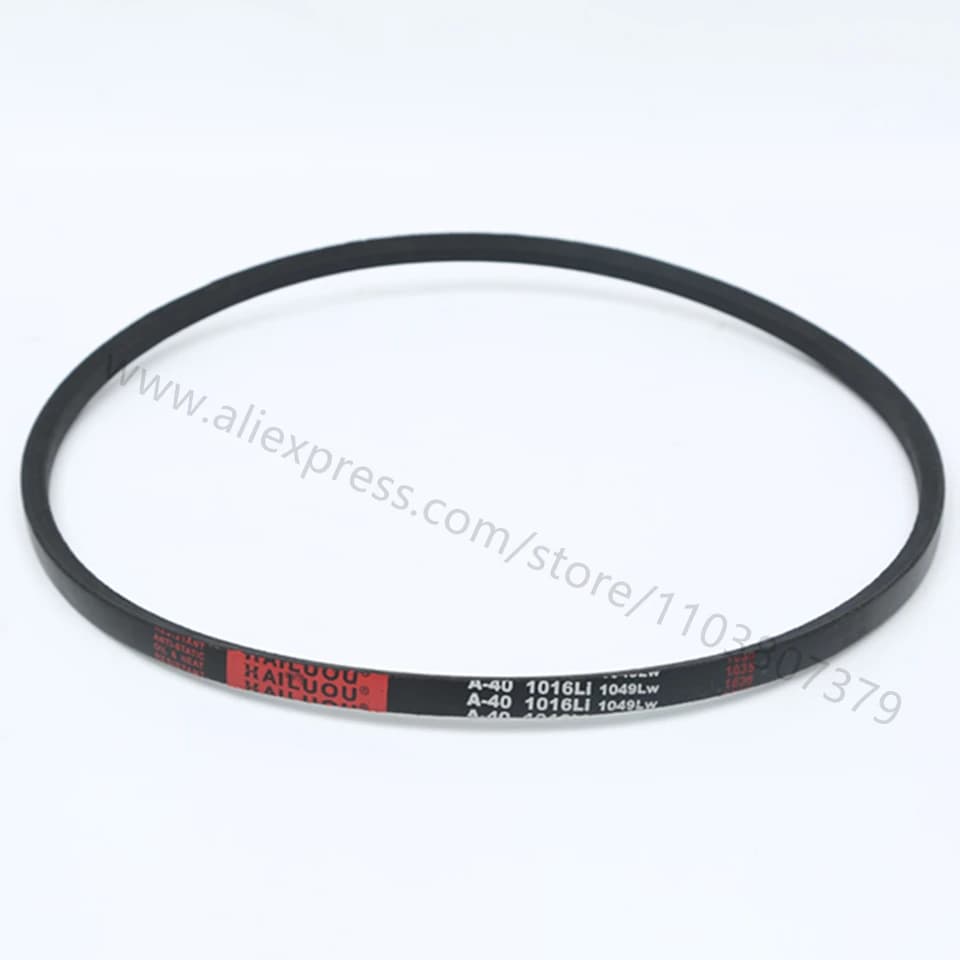

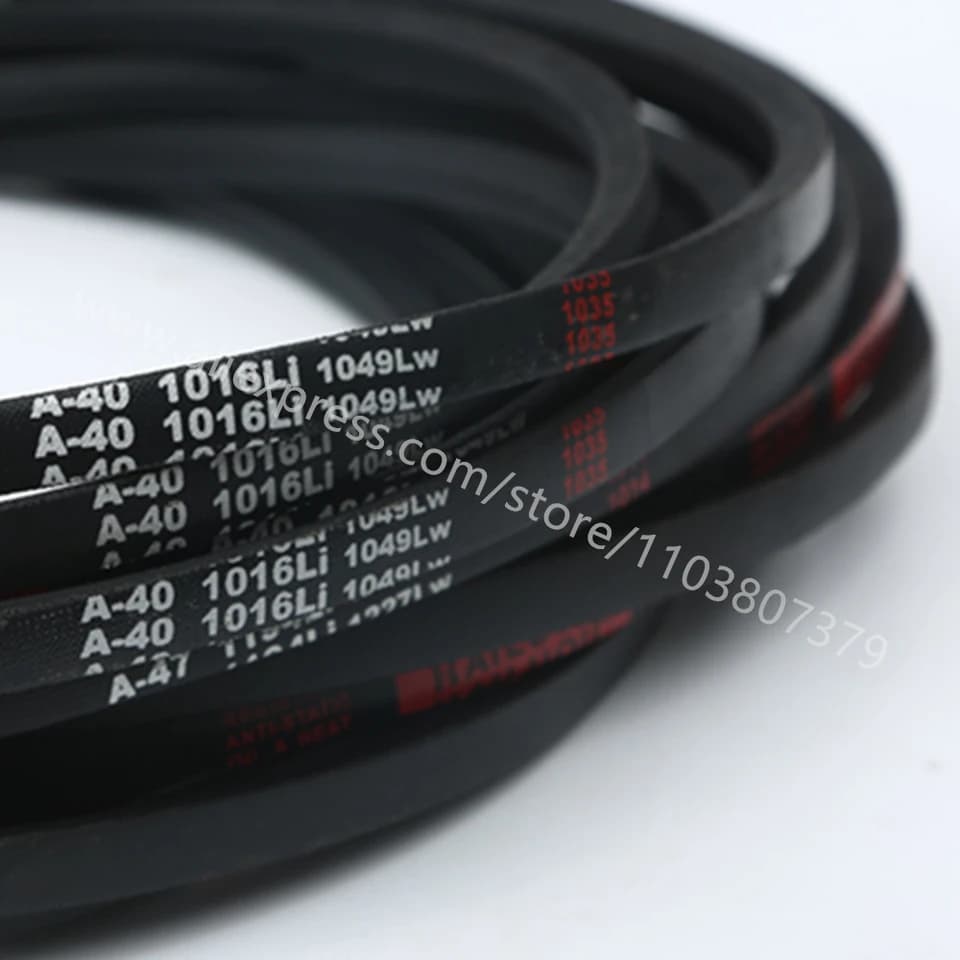

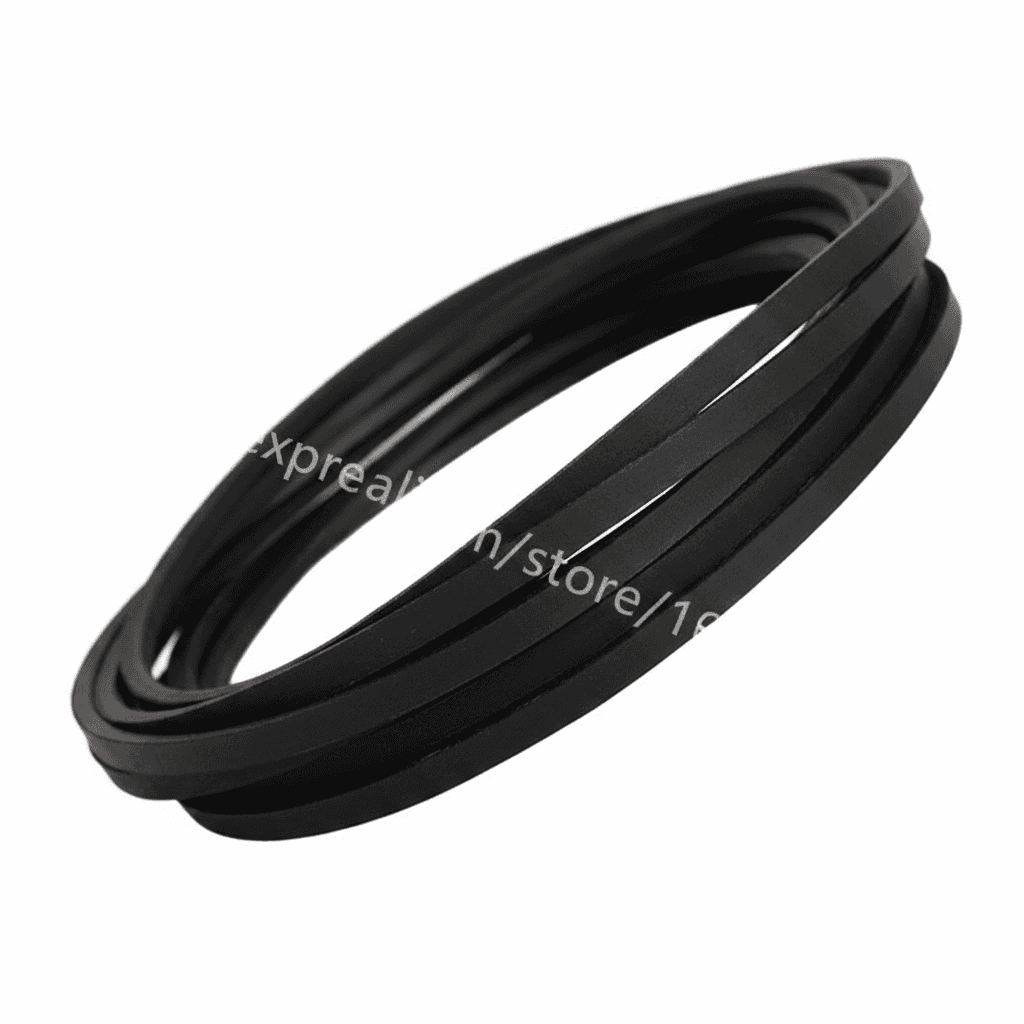

A V Belt | Black Rubber Transmission Strap | 16 to 66 Inch Lengths

Name: A V Belt | Black Rubber Transmission Strap | 16 to 66 Inch Lengths
Brand: Compel
SKU: VBEL-00002
Price: 5.95 USD
Availability: InStock
Rating: 4.8 (42 reviews)

Stock #:CMP-04576

SKU:VBEL-00002

A V Belt | Black Rubber Transmission Strap | 16 to 66 Inch Lengths - Image 1

1 / 6

$5.95

Ships to United States · standard est. 10-20 business days

Free standard shipping on orders over $59 (under 2kg). Express available at checkout.

WidthSelect an option

Length51 optionsSelect an option

Number of PcsSelect an option

Quantity

A V Belt | Black Rubber Transmission Strap | 16 to 66 Inch Lengths

$5.95

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

How do I know which length to order? Should I measure the inside or outside?: The length listed, for example 'A35', refers to the belt's internal circumference in inches. The easiest way to find your size is to check the number printed on your old belt. If the number is worn off, you can measure the inner loop of the old belt to get the correct length.
What does 'Type A' mean and will it fit my pulleys?: 'Type A' is a standard profile for classical V-belts, meaning it has a top width of about 13mm (1/2") and a depth of 8mm (5/16"). If your machine's pulleys are designed for a Type A belt, this will be the correct fit. Check your equipment's manual or the old belt to confirm the type.
What sort of jobs are these rubber belts suitable for?: These are standard rubber belts designed for general-purpose power transmission. They are commonly used in workshop machinery like pillar drills, band saws, and lathes, as well as some agricultural and automotive applications that specify a Type A belt.

V-Belts spec sheet (PDF)

Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.

Explore the range

Popular in Industrial & Machinery

Browse Industrial & Machinery

-28%

Electric Fabric Cutter | Round-Knife Cloth Slitting Machine | YJ-110C Hand-Push Design

5.0

$189.99$264.96

Push-to-Connect Air & Water Fittings | 4mm-12mm OD | Quick-Release Hose Couplings

4.9

$5.95

Complete the set

Accessories & add-ons

Sensor Protection Sleeve | Stainless Steel Blind Tube | 6mm

5.0(11)

$39.95

Motion Sensor Bracket | Automatic IR Lamp Holder | 110-240V AC

4.8(196)

$16.99

Soil Moisture NPK Sensor | 7-in-1 Agricultural Probe Accessory

4.8(25)

$26.95

Arduino Raspberry Pi Sensor Kit (45pc) | Modules for UNO R3 MEGA2560

4.7(58)

$47.95

Reflector Plate | Photoelectric Sensor Accessory | TD Series

4.7(23)

$12.99

Load Cell ADC Module | 24-Bit HX711 Sensor Accessory

4.4(21)

$1.49

Bending Strain Gauge Amplifier Module | Sensor Accessories UK

$5.95

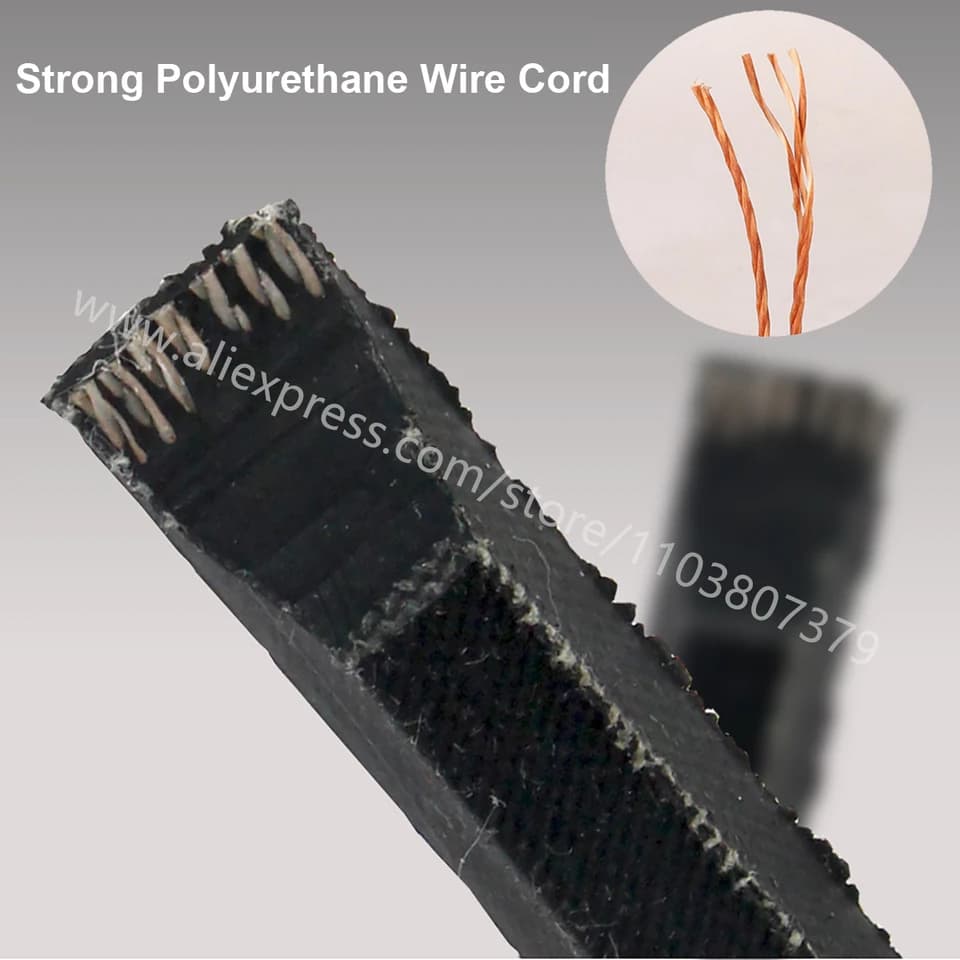

This standard rubber V belt works well for transferring power in different machines. Its trapezoid shape, called Type A, fits into pulley grooves for a firm hold. This industrial V-belt is made from a neoprene rubber mix for steady use and a long life. Features and Benefits - Neoprene Rubber Build - Resists damage from oil, heat, and weather, which helps the drive belt last longer. - Polyester Cord Inside - Gives it high pulling strength to stop the belt from stretching under heavy loads. - Classic Type A Shape - Makes for good V-belt power transfer by creating a strong wedging action for less slipping. - Many Sizes Available - You can get them in lengths from 16 to 66 inches, so you can find the correct size for your machine. Applications - Industrial Machines - Powers equipment like drill presses, table saws, and conveyors that need a strong power transfer belt. - HVAC Systems - Runs blowers and fans in heating and air conditioning units well. - Farm Equipment - Fits well for water pumps, augers, and other machines used on the farm.

Material: Rubber. Customization: Yes. Length: 16-66". Model Number: Type A. Type: V-Belt. Length Options (inches): 16, 19, 20, 23, 25, 28, 30, 32, 35, 40, 42, 45, 46, 48, 50, 52, 56, 58, 59, 60, 61, 62, 63, 64, 65, 66. Length Range (inches): 16 to 66 inches. Material: Rubber. Operating Temperature Range: -30°C to 80°C. Standard Compliance: Standard or N (Not Specified). Abrasion Resistance: High. Belt Type: Transmission Strap Drive Conveyor Belt. Cross-Sectional Profile: Type A. Customization: Yes. High-Concerned Chemical Presence: None. Model Number: Type A. Oil Resistance: Moderate. Product Type: V-Belt. Static Conductivity: Yes. Tensile Strength: 1500 N/mm² (typical). Q: What are the specific dimensions of these Type A belts? A: These are standard Type A belts, which means they have a top width of 13mm and a thickness of 8mm. The numbers in the product title, like 'A35', refer to the outside circumference of the belt in inches.. Q: What are the specific dimensions of these Type A belts? A: These are standard Type A belts, which means they have a top width of 13mm and a thickness of 8mm. The numbers in the product title, like 'A35', refer to the outside circumference of the belt in inches.. Q: What are the specific dimensions of these Type A belts? A: These are standard Type A belts, which means they have a top width of 13mm and a thickness of 8mm. The numbers in the product title, like 'A35', refer to the outside circumference of the belt in inches.. Q: What material are the belts made from? A: They are constructed from a durable rubber compound. This material is specifically formulated to resist oil, heat, and cracking from repeated flexing, which is common in motor and conveyor applications.. Q: What material are the belts made from? A: They are constructed from a durable rubber compound. This material is specifically formulated to resist oil, heat, and cracking from repeated flexing, which is common in motor and conveyor applications.. Q: What material are the belts made from? A: They are constructed from a durable rubber compound. This material is specifically formulated to resist oil, heat, and cracking from repeated flexing, which is common in motor and conveyor applications.. Q: I need to replace a v-belt on my drill press. How do I know if this will fit? A: First, check your old belt or the machine's manual to confirm it uses a Type A profile. Then, you'll need to measure the outer length of your old belt in inches to find the corresponding size you need from our list.. Q: I need to replace a v-belt on my drill press. How do I know if this will fit? A: First, check your old belt or the machine's manual to confirm it uses a Type A profile. Then, you'll need to measure the outer length of your old belt in inches to find the corresponding size you need from our list.. Q: I need to replace a v-belt on my drill press. How do I know if this will fit? A: First, check your old belt or the machine's manual to confirm it uses a Type A profile. Then, you'll need to measure the outer length of your old belt in inches to find the corresponding size you need from our list.. Q: What kind of warranty comes with these belts? A: We provide a 1-year warranty that covers any manufacturing defects. If a belt fails prematurely due to a flaw in its construction, we will send you a replacement.. Q: What kind of warranty comes with these belts? A: We provide a 1-year warranty that covers any manufacturing defects. If a belt fails prematurely due to a flaw in its construction, we will send you a replacement.. Q: What kind of warranty comes with these belts? A: We provide a 1-year warranty that covers any manufacturing defects. If a belt fails prematurely due to a flaw in its construction, we will send you a replacement.. Q: Why would I choose these belts for my workshop equipment? A: These belts offer a solid, dependable way to run your machinery without a high cost. With the wide range of sizes available, you can easily find the right fit for various tools like table saws, lathes, and drill presses.. Q: Why would I choose these belts for my workshop equipment? A: These belts offer a solid, dependable way to run your machinery without a high cost. With the wide range of sizes available, you can easily find the right fit for various tools like table saws, lathes, and drill presses.. Q: Why would I choose these belts for my workshop equipment? A: These belts offer a solid, dependable way to run your machinery without a high cost. With the wide range of sizes available, you can easily find the right fit for various tools like table saws, lathes, and drill presses..
