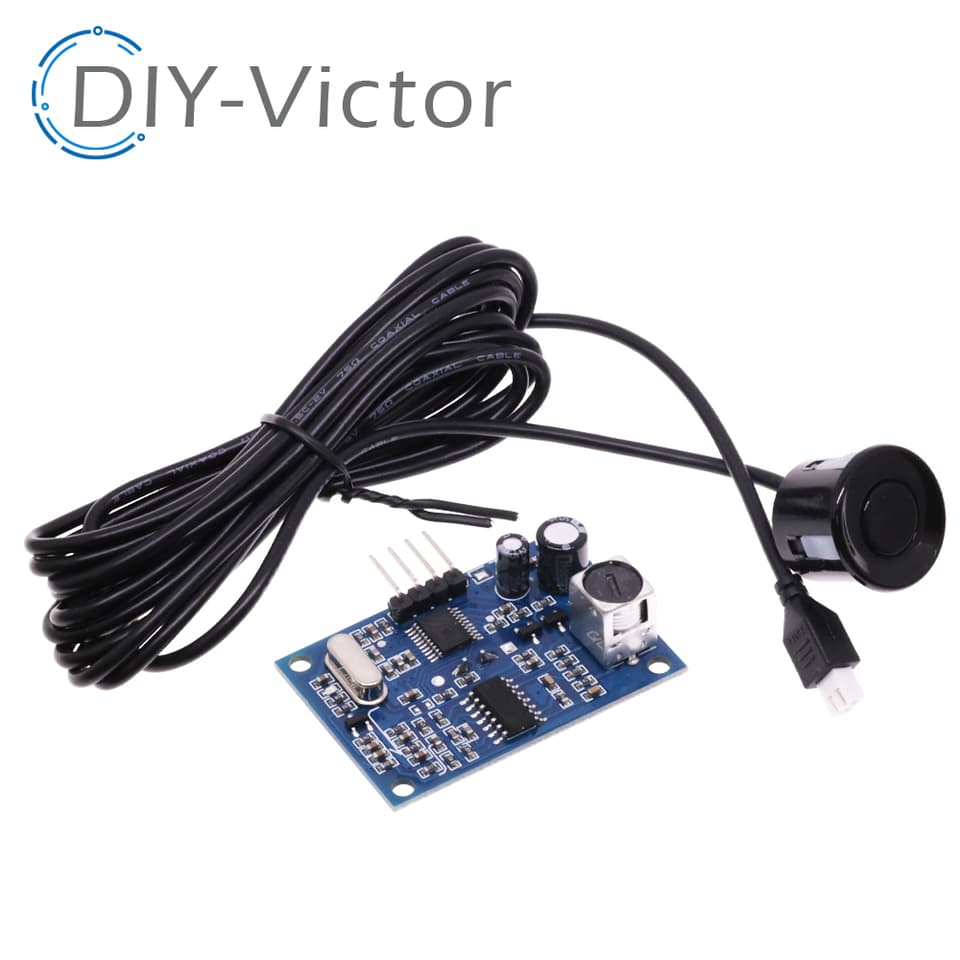

Ultrasonic Sensor | AJ-SR04M Integrated Transducer | Outdoor Use

This AJ-SR04M waterproof ultrasonic module measures distances in wet or outdoor spots. It sends a sound pulse and uses the echo to figure out how far away something is. You get readings from 20cm to 600cm for your Arduino projects. Features and Benefits - Built-in transducer with a sealed probe - You can use this sensor outdoors or for checking water levels without worrying about damage. - Measures distances from 20cm to 600cm - This range works for both close-up and longer-distance sensing jobs. - Uses little power (3.3V-5V DC) - It connects to common microcontrollers like Arduino and ESP32 without needing extra power parts. - Several operating modes with simple I/O - It's easy to add this sensor to your existing code, making it simple to use the AJ-SR04M ultrasonic sensor. Applications - Checking water levels in tanks, cisterns, or wells. - Helping outdoor robots and vehicles avoid obstacles. - Sensing if a car is in a parking spot or garage. How It Works An ultrasonic sensor like the AJ-SR04M Integrated Transducer operates by emitting sound waves and measuring the time it takes for these waves to return after hitting an object. This particular model uses an integrated transducer, meaning the same component both sends and receives the ultrasonic pulses. The sensor emits sound waves, typically at a frequency above human hearing, which then travel through the air. When these waves encounter a surface, they reflect back to the sensor. The time difference between the emission and reception of these sound waves is then used to calculate the distance to the object. The Formula The fundamental principle behind an ultrasonic sensor's distance measurement relies on the speed of sound. The formula used is Distance = (Time × Speed of Sound) / 2. The '2' is crucial because the sound wave travels to the object and then back to the sensor, effectively covering the distance twice. For the AJ-SR04M, with a detection range of 20 cm to 600 cm, the sensor precisely measures the 'Time' taken for the sound to travel. Given a known speed of sound in air (approximately 343 metres per second at 20°C), this formula allows the sensor to accurately determine the distance to an obstacle. Key Components The AJ-SR04M Integrated Transducer, a waterproof ultrasonic distance sensor, incorporates several essential components to function effectively. At its core is the piezoelectric transducer, which is responsible for both emitting the high-frequency ultrasonic sound waves and detecting their echoes. This integrated design simplifies the sensor's structure. The sensor also includes control circuitry to manage the timing of the emitted pulses and the measurement of the returning echoes. Given its 5V DC operating voltage, it is designed for direct integration with compatible systems like Arduino, making it suitable for a variety of projects requiring distance measurement. Common Applications This ultrasonic sensor, with its waterproof design and detection range of 20 cm to 600 cm, is suitable for various outdoor applications. Its compatibility with Arduino makes it a versatile choice for hobbyists and professionals alike. Common uses include obstacle detection in robotics, such as autonomous vehicles or drones, where knowing the distance to objects is critical. It can also be employed in automated systems for liquid level sensing in tanks or for monitoring parking spaces. Its waterproof nature ensures reliability in environments exposed to moisture. Advantages & Limitations A primary advantage of the AJ-SR04M is its waterproof design, making it suitable for outdoor use where other sensors might fail. Its 5V DC operating voltage and Arduino compatibility offer ease of integration into existing projects. The wide detection range of 20 cm to 600 cm allows for flexibility in various applications requiring both close-range and longer-range measurements. However, ultrasonic sensors can be affected by soft, sound-absorbing materials, which may reduce their effective range or accuracy. They can also struggle with very narrow objects or objects that are angled away from the sensor, as the sound waves may not reflect effectively.
