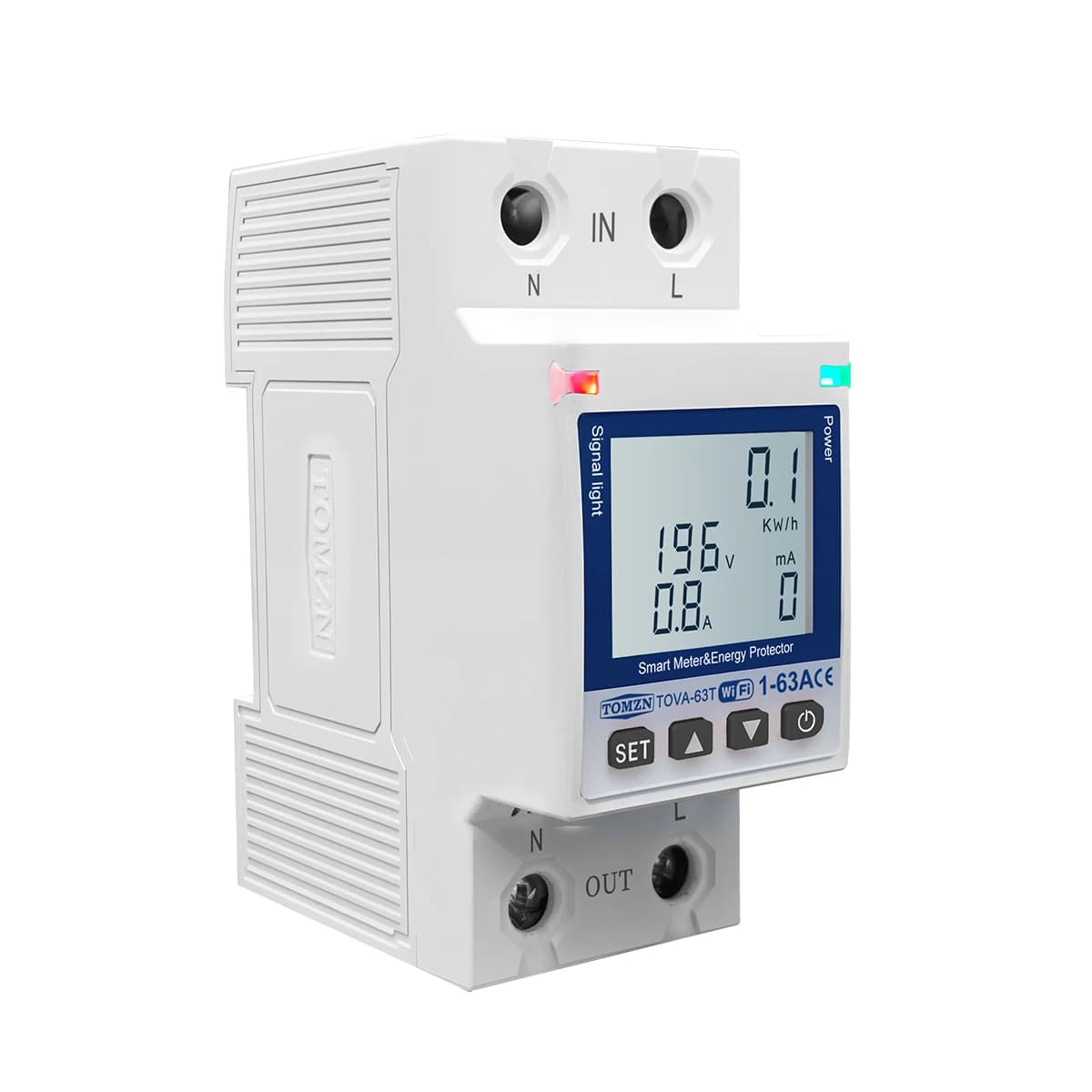

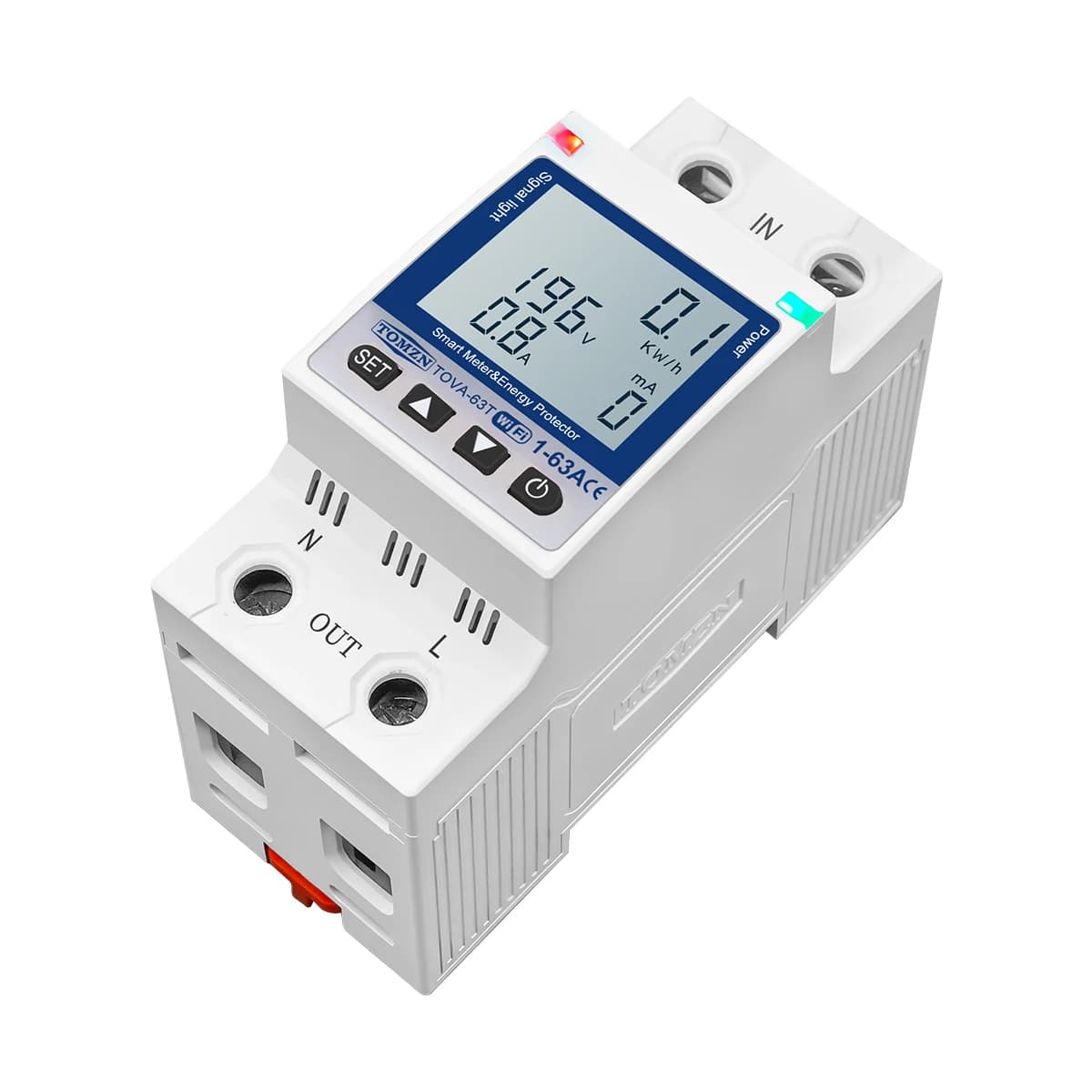

Take full control of your electrical system with the Reclosable Smartlife TUYA WIFI Circuit Breaker. This 63A device integrates remote control, energy monitoring, and robust protection into a single unit, allowing you to manage 110V or 220V circuits, track real-time power consumption, and receive alerts for faults—all from your smartphone. Features and Benefits
- 63A Rated Current with Recloser Function - Provides reliable overload and short-circuit protection, with the ability to automatically attempt to restore power after a temporary fault, reducing downtime.

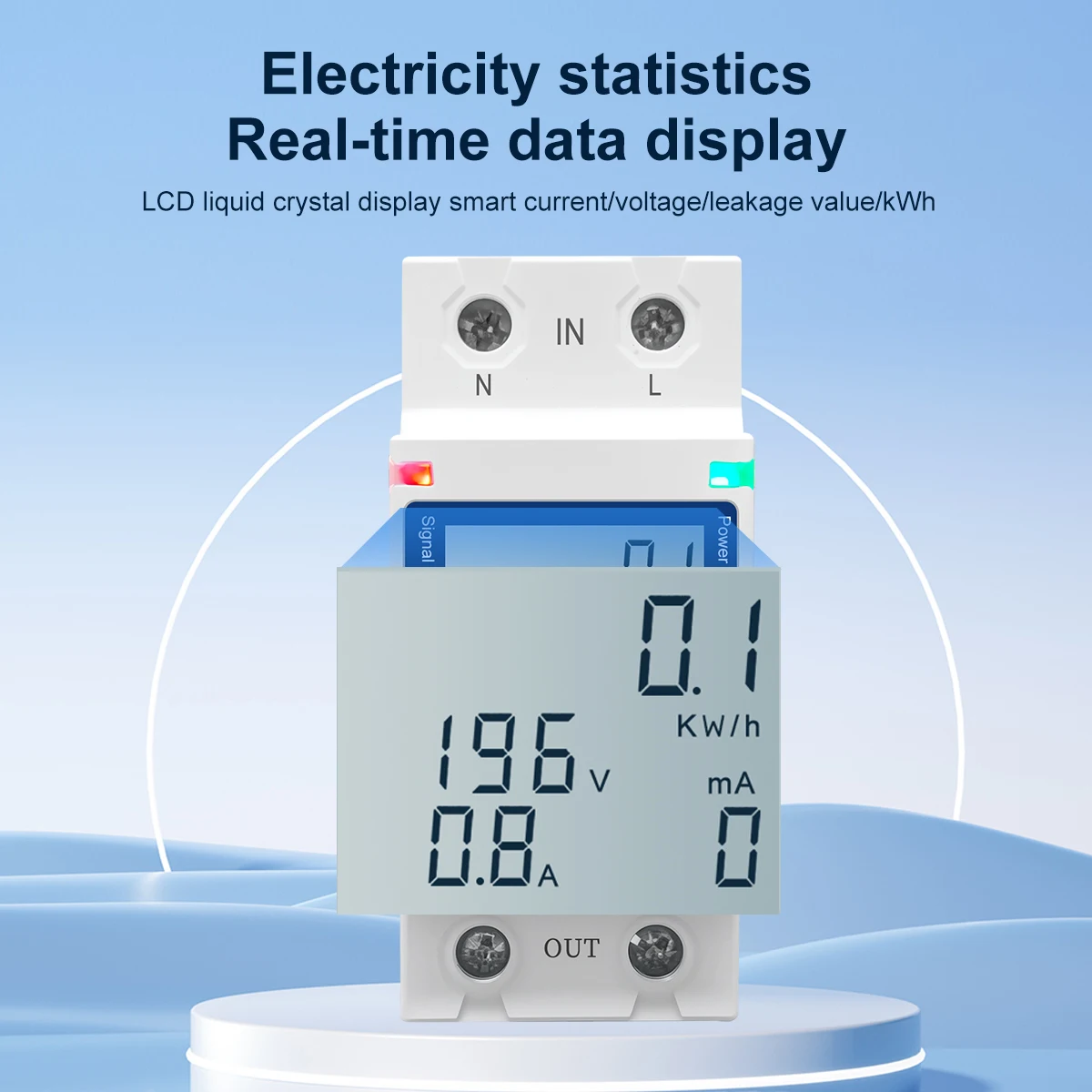

- Integrated Energy Metering - Monitor real-time voltage, current, power, and total energy consumption directly via the app for precise cost tracking and load management.

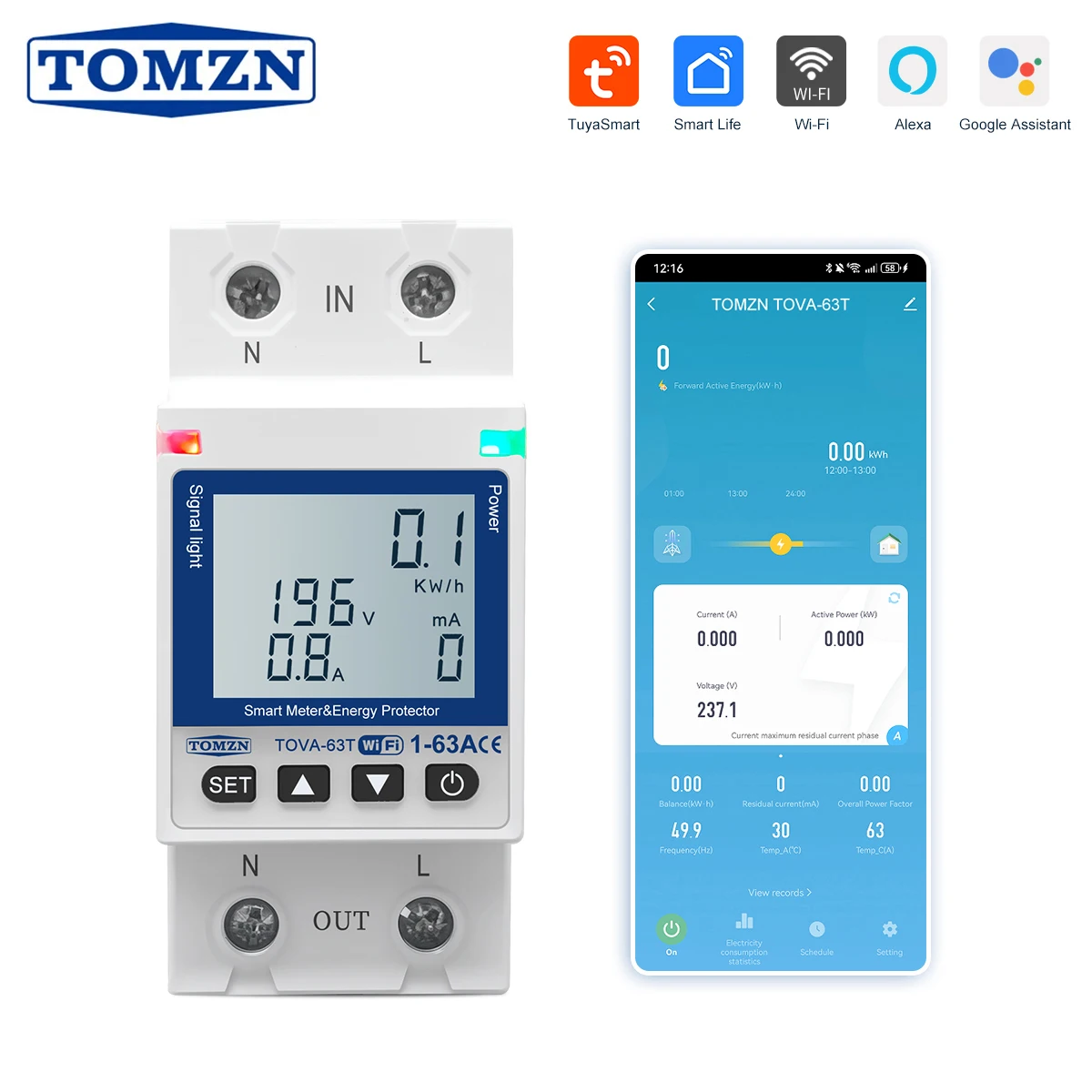

- TUYA WIFI Smart Integration - Remotely turn the breaker on/off, set schedules, and create automation rules through the Smartlife app, compatible with Alexa and Google Assistant for voice control.
- Leakage and Voltage Protection - Safeguards against earth leakage faults and abnormal voltage conditions, enhancing safety for both equipment and users.

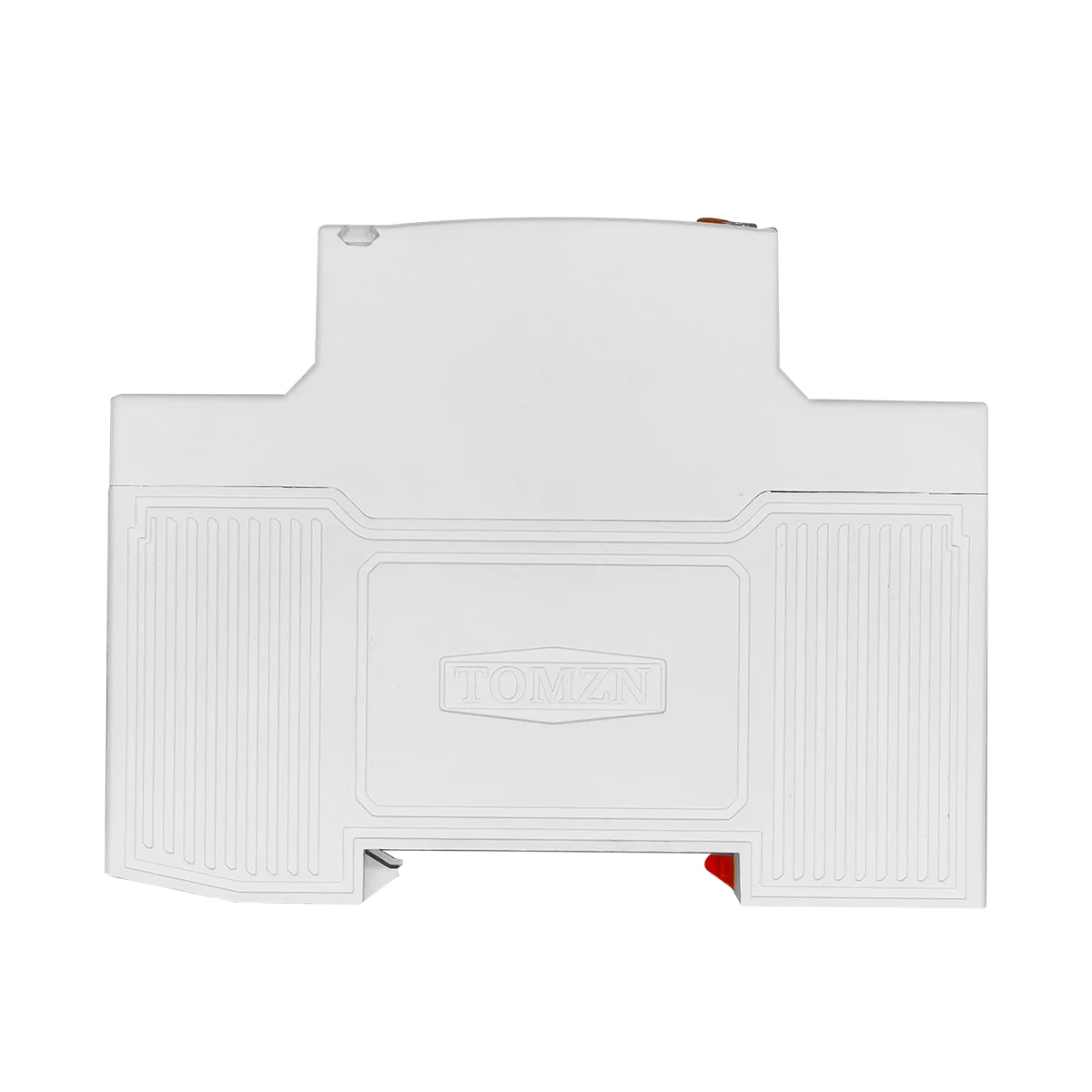

- DIN Rail Mountable Design - Easy installation in standard electrical panels, making it suitable for upgrading existing residential or light commercial distribution boards. Applications
- Home Energy Management - Ideal for monitoring and controlling high-consumption appliances like water heaters, HVAC systems, or workshop equipment to optimize electricity usage.
- Remote Property Management - Perfect for vacation homes, rental units, or sheds, allowing you to power cycle devices or shut off power entirely from anywhere.
- DIY and Professional Workshops - Provides detailed energy usage data for tools and machinery, helping to identify inefficient equipment and manage operational costs.
- Enhanced Safety for Older Installations - Adds a layer of modern smart protection and monitoring to electrical panels that may lack advanced fault detection. Note: Professional installation by a qualified electrician is required to ensure safe and correct operation. This device is designed for indoor use in dry locations.
Rated Voltage: 110 V, 220 V. Over-Voltage Protection: Yes. Under-Voltage Protection: Yes. Overvoltage Category: Category III. Storage Temperature: -40°C to +70°C. Circuit Poles: 1P+N. Communication Protocol: Wi-Fi (TUYA). Dielectric Strength: 4000 V AC, 1 min. DIN Rail Type: TH35-7.5. Electrical Life: ≥4000 cycles. Energy Metering: Yes. Installation Method: DIN Rail Mount. Insulation Resistance: ≥10 MΩ. Leakage Protection: Yes. Leakage Protection Trip Current: 30 mA. Mechanical Life: ≥10000 cycles. Operating Temperature: -25°C to +55°C. Over-Current Protection: Yes. Pollution Degree: 2. Rated Current: 63 A. Relative Humidity: ≤95% (non-condensing). Timer Function: Yes. Enclosure Material: Flame-Retardant Thermoplastic (Inferred). Energy Metering Accuracy: Class 1 or 2 (Inferred). Energy Monitoring: Yes (Voltage, Current, Power Consumption). Voltage Compatibility: 110V AC, 220V AC. Operating Temperature Range: -25°C to +55°C (Typical for Electrical Devices). Rated Breaking Capacity: 10kA (Typical for Class, Inferred). Storage Temperature Range: -40°C to +70°C. Protection Functions: Over-current, Short-circuit, Leakage (Earth Fault). Smart Features: Remote Control, Timer/Scheduling. Network Connectivity: Wi-Fi (TUYA Platform Compatible). Relative Humidity: ≤95% (Non-condensing). Operating Frequency: 50Hz/60Hz. Wi-Fi Standard: 802.11 b/g/n (2.4GHz). Communication Protocol: TUYA SmartLife App Integration. Electrical Endurance: ≥4000 cycles. Leakage Protection Sensitivity: 30mA (Standard, Inferred). Mechanical Endurance: ≥10000 cycles. Mounting Type: DIN Rail Mount (Standard 35mm). Pole Configuration: 1P+N (Single Pole + Neutral, Inferred for Metering). Product Type: Reclosable Smart Circuit Breaker with Energy Metering. Rated Current: 63A. Reclosing Function: Automatic/Remote-Controlled Reclosing Capability. Q: What are the key specifications for this Smartlife TUYA WIFI Circuit Breaker? A: This is a 63A reclosable circuit breaker designed for both 110V and 220V systems. It features built-in energy metering, timer functions, and provides voltage, current, and leakage protection for comprehensive electrical safety.. Q: How durable is this WIFI circuit breaker for regular use? A: It is constructed with robust materials and a reclosable mechanism designed for reliable long-term operation. The unit is built to handle the rated 63A load consistently, making it suitable for both residential and light commercial applications.. Q: Can I control this Smartlife circuit breaker with my phone? A: Yes, this breaker is fully compatible with the TUYA and Smart Life smartphone apps via Wi-Fi. This allows you to remotely monitor energy consumption, set timers, and turn the circuit on or off from anywhere.. Q: Does this energy metering circuit breaker come with a warranty? A: Yes, the product includes a standard manufacturer's warranty. For specific warranty duration and coverage details, please refer to the seller's listing or contact them directly, as terms can vary.. Q: Is this Smartlife TUYA WIFI Circuit Breaker a good value for its features? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable performance for regular use, combining smart home control, energy monitoring, and safety protection in one device..
