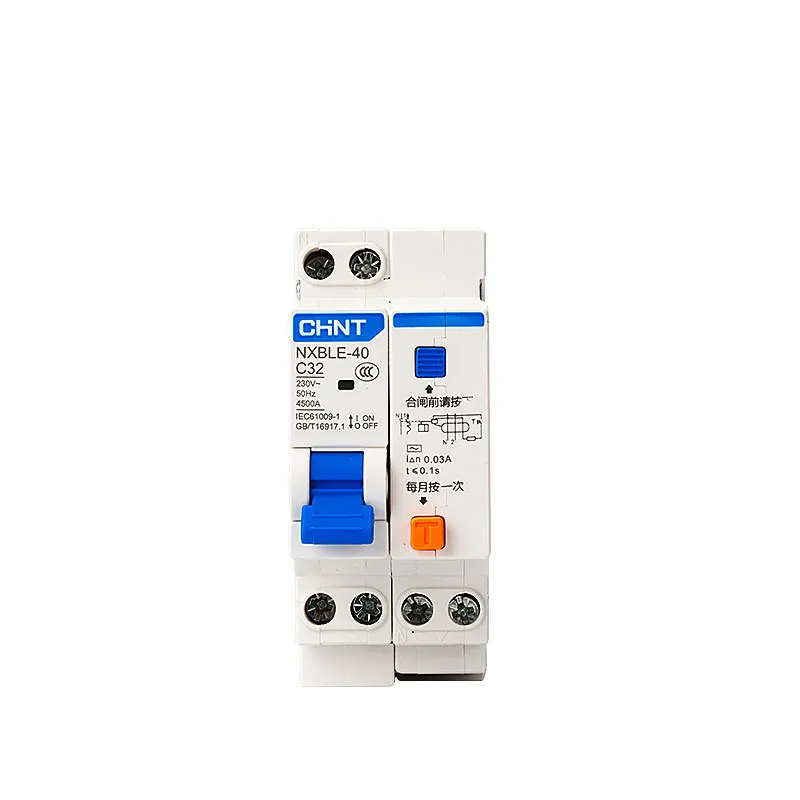

TPNL DPNL 230V 1P+N RCBO MCB Residual Current Circuit Breaker with Over and Short Current Leakage Protection 1P 40A

The TPNL DPNL 230V 1P+N RCBO MCB provides integrated 40A overcurrent and 30mA residual current protection in a single compact module. This dual-function design saves space in your distribution board while ensuring reliable protection against short circuits, overloads, and dangerous earth leakage currents for enhanced electrical safety. Features and Benefits - 1P+N 40A 30mA RCBO - Combines miniature circuit breaker (MCB) and residual current device (RCD) functions into one reliable unit, simplifying installation and saving panel space. - 230V AC Rated Voltage - Engineered for standard single-phase residential and light commercial electrical systems, ensuring compatibility and stable operation. - 6000A Breaking Capacity - Offers a high fault current interruption rating for robust protection against severe short-circuit events. - Compact DIN Rail Design - Features a standard form factor for easy, tool-free mounting on 35mm DIN rails in any consumer unit or enclosure. - Thermal-Magnetic Trip Mechanism - Provides precise and fast-acting protection for both overload (thermal) and short-circuit (magnetic) conditions, safeguarding your wiring. - Clear ON/OFF Indication - Integrated switch lever with visible status allows for manual operation and quick visual confirmation of the device state. Applications - Residential Consumer Unit Upgrades - Ideal for modernizing home electrical panels to provide combined circuit protection for kitchens, workshops, or outdoor circuits. - Light Commercial Installations - A cost-effective solution for protecting dedicated circuits in small offices, retail spaces, or utility rooms. - Workshop and Garage Power Circuits - Provides essential safety for power outlets and equipment where moisture, dust, or tool use increases the risk of insulation faults. - Appliance and Dedicated Circuit Protection - Suitable for installing on circuits feeding high-draw appliances like water heaters or for areas requiring enhanced personal protection. Note This device is designed for installation by a qualified electrician in accordance with local wiring regulations. Always verify system compatibility prior to installation.
