What is the actual safe pulling limit for this winch?

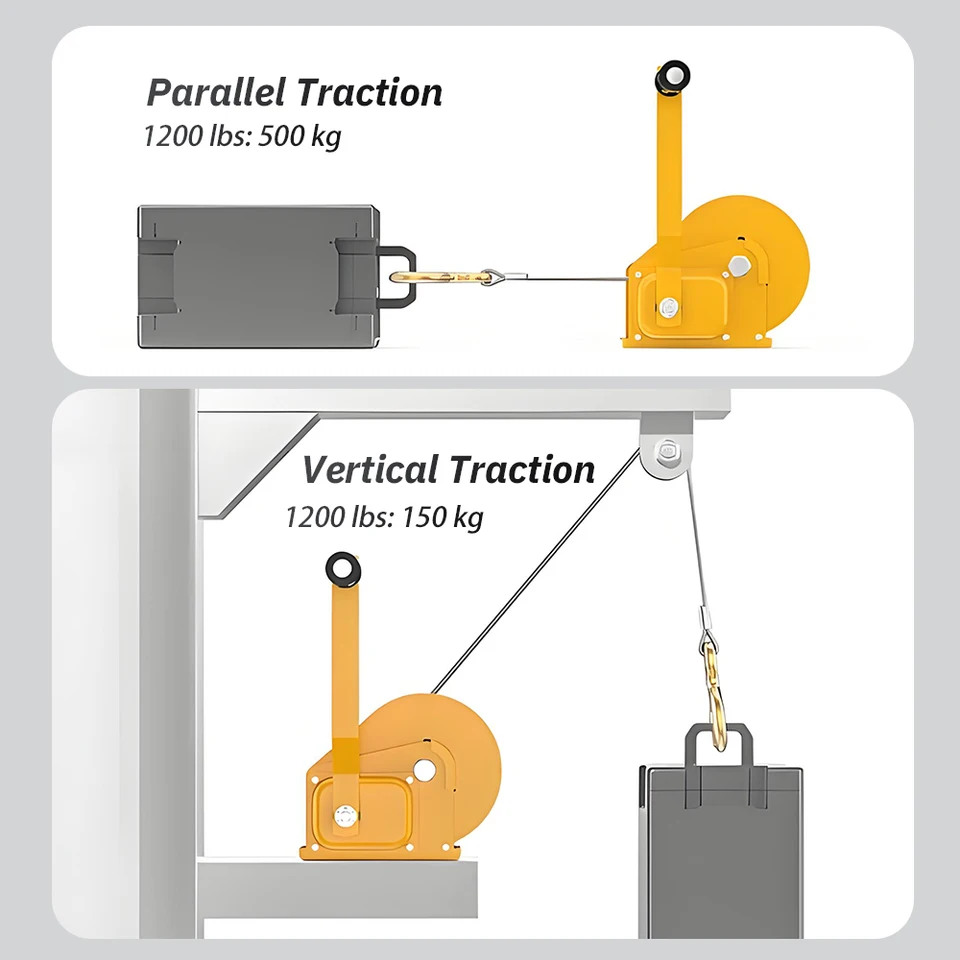

The winch is rated for a horizontal pulling force of 500kg, which is suitable for tasks like pulling a small boat onto a trailer. For vertical lifting, the safe working load is 150kg.

Is the brake automatic or do I have to engage it myself?

This is a self-locking winch with a two-way brake. The mechanism automatically engages when you stop cranking the handle, holding the load securely in place.

What size wire rope does it take and what's the hook rated for?

The drum is designed to be used with a 4mm diameter wire rope. The eye hook that comes with it has a rated capacity of 0.5 tonnes (500kg).

Heavy-Duty Lever Hoist | Two-Way Locking Crank | 1200 lbs for Boat & ATV

Name: Heavy-Duty Lever Hoist | Two-Way Locking Crank | 1200 lbs for Boat & ATV
Brand: Compel
SKU: LEVE-00002
Price: 97.99 USD
Availability: InStock
Rating: 4.3 (17 reviews)

Stock #:CMP-04595

SKU:LEVE-00002

Heavy-Duty Lever Hoist | Two-Way Locking Crank | 1200 lbs for Boat & ATV - Image 1

1 / 6

$97.99

Ships to United States · standard est. 10-20 business days

Free standard shipping on orders over $59 (under 2kg). Express available at checkout.

ColorSelect an option

Quantity

Heavy-Duty Lever Hoist | Two-Way Locking Crank | 1200 lbs for Boat & ATV

$97.99

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

What is the actual safe pulling limit for this winch?: The winch is rated for a horizontal pulling force of 500kg, which is suitable for tasks like pulling a small boat onto a trailer. For vertical lifting, the safe working load is 150kg.
Is the brake automatic or do I have to engage it myself?: This is a self-locking winch with a two-way brake. The mechanism automatically engages when you stop cranking the handle, holding the load securely in place.
What size wire rope does it take and what's the hook rated for?: The drum is designed to be used with a 4mm diameter wire rope. The eye hook that comes with it has a rated capacity of 0.5 tonnes (500kg).

Lever Hoists spec sheet (PDF)

Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.

Not sure which one?

Compare lever hoists

This product

Heavy-duty 1200 lbs small hand winch with a self-locking mechanism, ideal as a lever hoist.

Heavy-Duty Lever Hoist | Two-Way Locking Crank | 1200 lbs for Boat & ATV

Price$97.99

Rating4.3(17)

Sold208+

Stock In stock

You're viewing this

Alternative

A 3M heavy-duty manual chain lever hoist with a hook, designed for easy and smooth lifting without chain jamming.

Heavy-Duty Lever Hoist | 1 Ton Manual Chain Block | 3M Lift for Construction

Price$196.99

Rating4.6(12)

Sold68+

Stock In stock

View

Alternative

Heavy-duty 270° rotatable rope pulley block, a zinc alloy lever hoist for manual lifting tasks.

Pulley Lever Hoist | 270° Swivel Block | Manual Lifting Device

Price$78.99

Rating4.6(96)

Sold500+

Stock In stock

View

Alternative

SucceBuy 0.25/0.5T Manual Lever Chain Hoist with G80 Galvanized Steel and Double-Pawl Brake, a reliable lever hoist for garage use.

Lever Hoist | 0.5 Ton Capacity | 10ft G80 Galvanized Chain

Price$114.99

Rating4.8(39)

Sold200+

Stock In stock

View

Explore the range

Popular in Industrial & Machinery

Browse Industrial & Machinery

-28%

Electric Fabric Cutter | Round-Knife Cloth Slitting Machine | YJ-110C Hand-Push Design

5.0

$189.99$264.96

Push-to-Connect Air & Water Fittings | 4mm-12mm OD | Quick-Release Hose Couplings

4.9

$5.95

Complete the set

Accessories & add-ons

Sensor Protection Sleeve | Stainless Steel Blind Tube | 6mm

5.0(11)

$39.95

Motion Sensor Bracket | Automatic IR Lamp Holder | 110-240V AC

4.8(196)

$16.99

Soil Moisture NPK Sensor | 7-in-1 Agricultural Probe Accessory

4.8(25)

$26.95

Arduino Raspberry Pi Sensor Kit (45pc) | Modules for UNO R3 MEGA2560

4.7(58)

$47.95

Reflector Plate | Photoelectric Sensor Accessory | TD Series

4.7(23)

$12.99

Load Cell ADC Module | 24-Bit HX711 Sensor Accessory

4.4(21)

$1.49

Bending Strain Gauge Amplifier Module | Sensor Accessories UK

$5.95

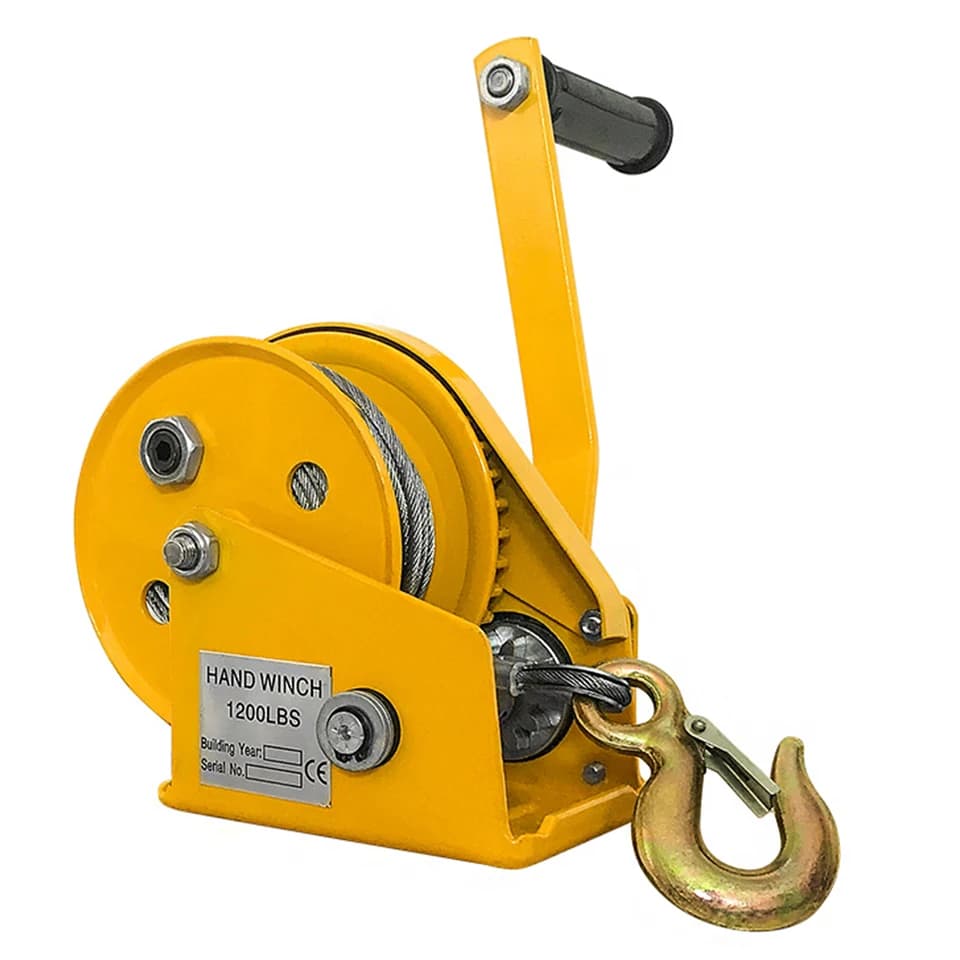

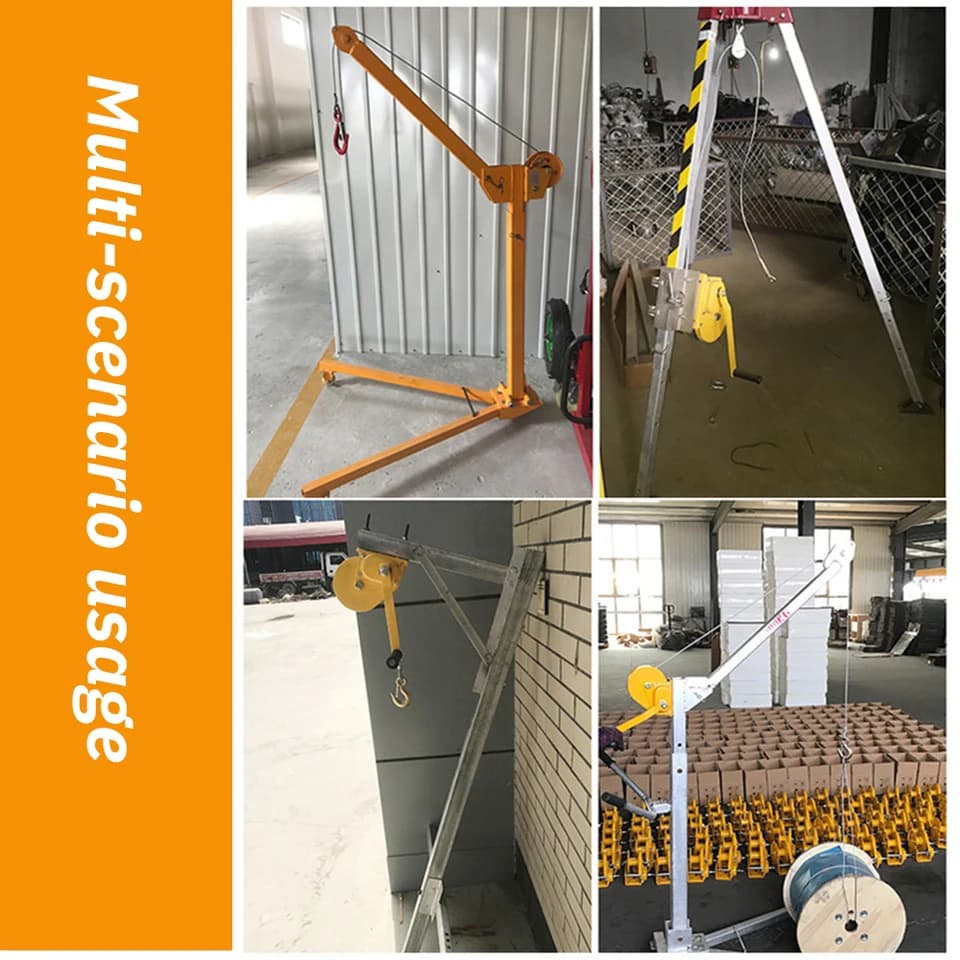

This hand winch offers strong pulling power for trailers, boats, and ATVs. The solid steel gears provide the mechanical advantage to move loads up to 1200 lbs with a hand crank. It's a simple, manual way to recover items and load things. Features and Benefits - Self-Actuating Brake - The two-way ratchet locks by itself when you stop cranking, holding the load firmly. - 1200 LB Capacity - This manual rope winch handles pulling tasks like loading a small boat or recovering an ATV. - Steel Build - A zinc-plated steel frame and gears resist rust from outdoor and marine use. - Comfortable Handle - The crank handle is made for a firm grip, making it easier to use with a load. Applications - Loading and unloading a boat on a trailer at the ramp. - Pulling an ATV or UTV onto a trailer or out of a ditch. - Moving heavy logs, equipment, or other materials around a property.

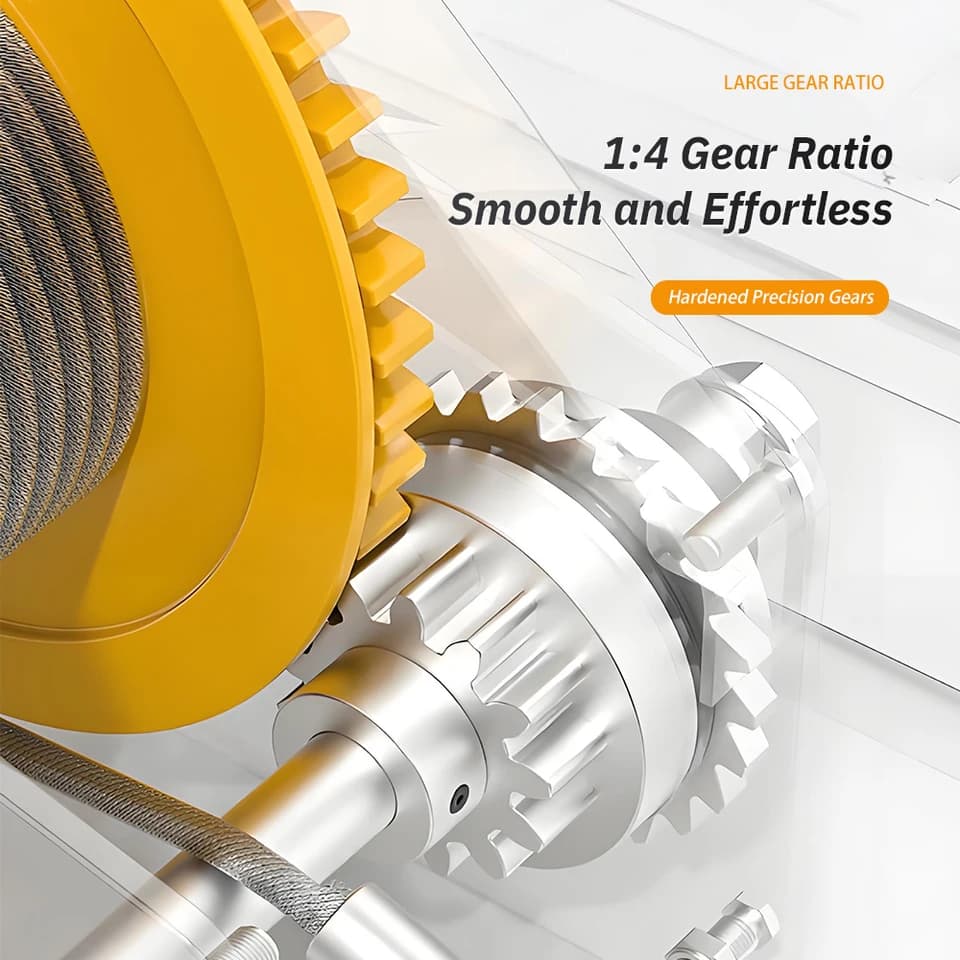

Load Capacity: 1200 lbs. Application: Trailer, Boat, ATV Towing. Locking Mechanism: Self-Locking, Two-Way. Operation: Crank. Winch Type: Hand Winch. Handle Length: 20cm. Weight: Approximately 3.5 kg. Material: Heavy Duty Steel. Drum Capacity (Rope): Approximately 7m of 5mm rope. Rated Capacity: 1200 lbs (544 kg). Compatibility: Trailer, Boat, ATV Towing. Brake Type: Automatic. Finish: Corrosion-resistant coating. Gear Ratio: 4.1:1. Horizontal Pulling Force: 500kg. Locking Mechanism: Self-Locking, Two-Way. Mounting Type: Bolt-on. Movable: Yes. Operation Type: Crank. Product Type: Hand Winch. Q: What is the maximum pulling capacity of this hand winch? A: This winch is rated for a capacity of 1200 pounds. It's designed for pulling loads horizontally, such as getting a boat onto a trailer or an ATV onto a truck bed.. Q: What is the maximum pulling capacity of this hand winch? A: This winch is rated for a capacity of 1200 pounds. It's designed for pulling loads horizontally, such as getting a boat onto a trailer or an ATV onto a truck bed.. Q: What is the maximum pulling capacity of this hand winch? A: This winch is rated for a capacity of 1200 pounds. It's designed for pulling loads horizontally, such as getting a boat onto a trailer or an ATV onto a truck bed.. Q: How does the 'self-locking' feature work? A: The internal gear mechanism automatically locks the drum in place when you stop cranking the handle. This prevents the rope from unspooling and the load from rolling back.. Q: How does the 'self-locking' feature work? A: The internal gear mechanism automatically locks the drum in place when you stop cranking the handle. This prevents the rope from unspooling and the load from rolling back.. Q: How does the 'self-locking' feature work? A: The internal gear mechanism automatically locks the drum in place when you stop cranking the handle. This prevents the rope from unspooling and the load from rolling back.. Q: Can I use a steel cable with this winch instead of a rope? A: This model is specifically designed for use with rope. The drum and guide are shaped for rope, so using a steel cable is not recommended.. Q: Can I use a steel cable with this winch instead of a rope? A: This model is specifically designed for use with rope. The drum and guide are shaped for rope, so using a steel cable is not recommended.. Q: Can I use a steel cable with this winch instead of a rope? A: This model is specifically designed for use with rope. The drum and guide are shaped for rope, so using a steel cable is not recommended.. Q: What kind of warranty comes with this winch? A: It includes a one-year warranty that covers the mechanical components against any manufacturing defects. This includes the gears, crank handle, and the locking mechanism.. Q: What kind of warranty comes with this winch? A: It includes a one-year warranty that covers the mechanical components against any manufacturing defects. This includes the gears, crank handle, and the locking mechanism.. Q: What kind of warranty comes with this winch? A: It includes a one-year warranty that covers the mechanical components against any manufacturing defects. This includes the gears, crank handle, and the locking mechanism.. Q: Is this tool meant for lifting things vertically like a lever hoist? A: No, this is a pulling winch, not a lever hoist for lifting. It should only be used for pulling loads across a horizontal or inclined surface, not for suspending them in the air.. Q: Is this tool meant for lifting things vertically like a lever hoist? A: No, this is a pulling winch, not a lever hoist for lifting. It should only be used for pulling loads across a horizontal or inclined surface, not for suspending them in the air.. Q: Is this tool meant for lifting things vertically like a lever hoist? A: No, this is a pulling winch, not a lever hoist for lifting. It should only be used for pulling loads across a horizontal or inclined surface, not for suspending them in the air..
