This handheld honey refractometer reads sugar concentration on three scales at once: 58 to 90% Brix, 38 to 43' Baume and 12 to 27% water content. It is an optical instrument with no battery, so a few drops of sample on the prism and a look through the eyepiece give the reading. It suits beekeepers, food workshops and anyone checking honey, maple syrup or molasses.
Features and benefits:
- 3 scales in one eyepiece view - read Brix, Baume and water content from the same drop of sample
- Measuring range of 58 to 90% Brix, 38 to 43' Baume and 12 to 27% water - covers the usual span for honey and other thick sugar liquids
- Smallest division of 0.5% Brix, 1' Baume and 1% water, with stated accuracy to match - fine enough to judge harvest or bottling readiness
- Automatic temperature compensation, with the scale set at 20°C - less correcting by hand when the room is not at reference temperature

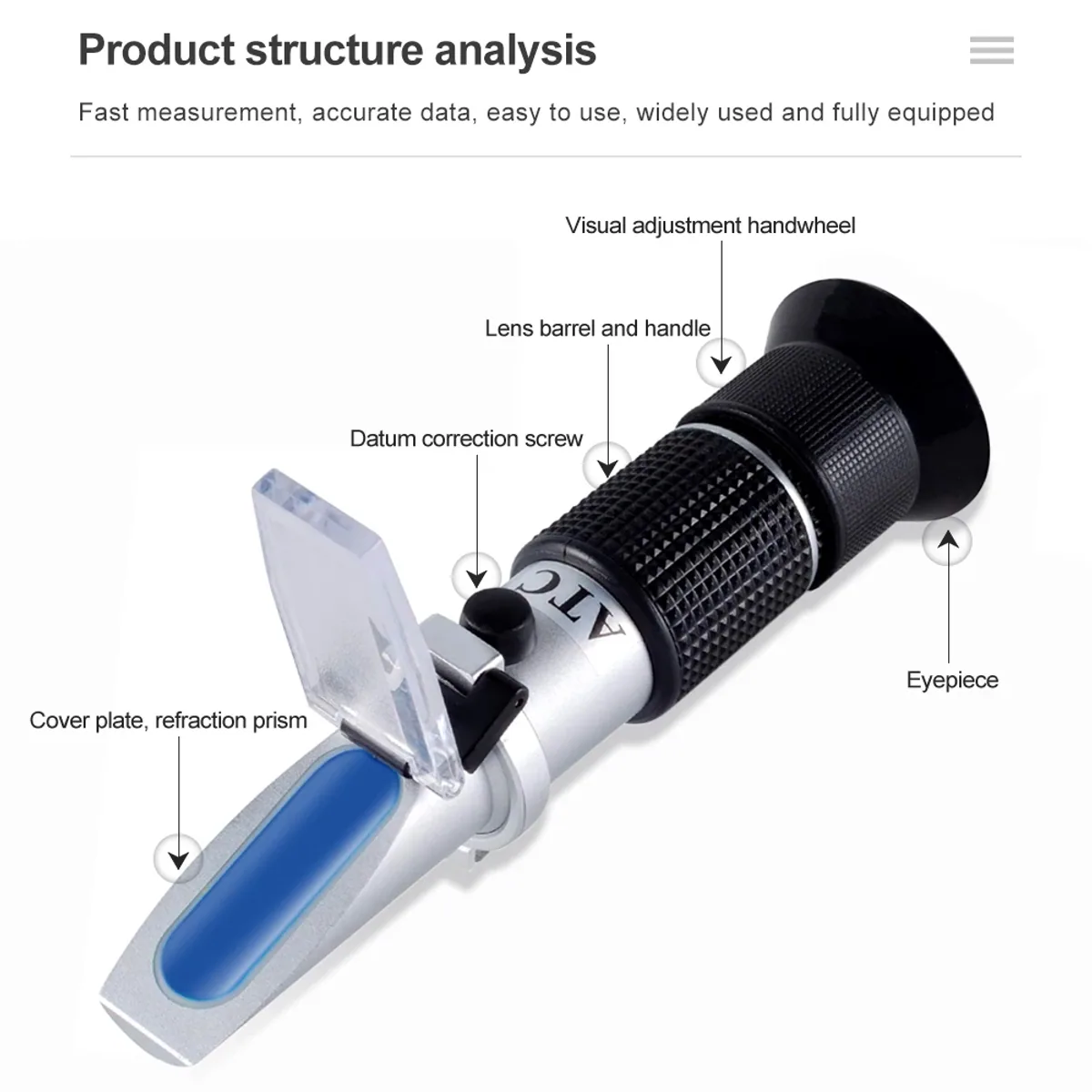

- Diopter eyepiece with a visual adjustment handwheel - focus the scale line to suit your eyesight
- Zero setting with distilled water and a datum correction screw - quick to check and reset before a session
- Cover plate over the prism and a black rubber, anti-slip eyepiece sleeve - protects the optics and gives a secure grip
- Plated housing for hardness, wear resistance and anti-corrosion
Applications:
- Checking the moisture level of honey before jarring or sale
- Judging honey harvest timing for beekeepers
- Testing maple syrup and molasses concentration
- Food workshop and school science demonstrations of refractive index
In the box:

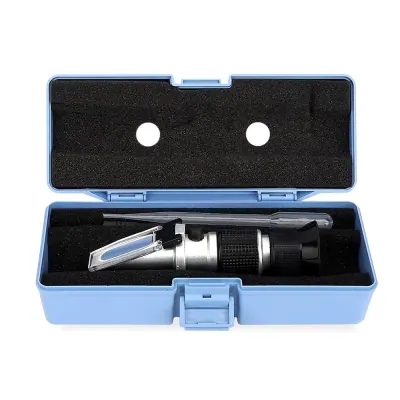

Per unit: 1 x refractometer, 1 x dropper pipette, 1 x instruction manual, 1 x mini screwdriver, 1 x cleaning cloth. A box is included on the With box option only.
Note: Set the zero before use by dropping distilled water on the prism and turning the zero screw until the dividing line sits at 0%. Wipe the prism clean with a soft cloth straight after each reading, especially after corrosive liquids, which are not recommended for long-term measurement.
Type: Handheld optical refractometer, no battery. Brix range: 58 to 90% Brix. Baume range: 38 to 43' Baume. Water content range: 12 to 27%. Smallest division: 0.5% Brix; 1' Baume; 1% water. Measurement accuracy: 0.5% Brix; 1' Baume; 1% water. Scale reference temperature: 20°C. Temperature compensation: Automatic. Prism: HD prism. Eyepiece focus: Diopter eyepiece with visual adjustment handwheel. Zero setting: Datum correction screw, set with distilled water. Intended samples: Honey, maple syrup, molasses and similar high sugar liquids. Model: Honey Refractometer. Option choices: With box or No with box. Weight: 0.1kg (listed figure). Housing: Plated finish for hardness, wear resistance and anti-corrosion. Eyepiece grip: Black rubber anti-slip sleeve. Prism protection: Cover plate over the refraction prism. Power: None, optical instrument. Supplied tools: Dropper pipette, mini screwdriver, cleaning cloth. Documentation: Instruction manual. Carry case: Included with the With box option. Q: What is a refractometer? A: A refractometer measures how much light bends as it passes through a liquid, which changes with dissolved sugar content. This handheld honey model turns that into a Brix, Baume and water content reading on one scale.. Q: How do you use a honey refractometer? A: Open the cover plate, wipe the prism with a soft cloth, put a few drops of honey on it and close the plate. Look through the eyepiece and read where the dividing line meets the scale.. Q: How do you set the zero on a refractometer? A: Drop distilled water on the prism and turn the zero adjustment screw until the dividing line reads 0% on the scale. The supplied mini screwdriver is for this adjustment.. Q: What range does this honey refractometer cover? A: It reads 58 to 90% Brix, 38 to 43' Baume and 12 to 27% water content. These ranges suit honey, maple syrup and molasses.. Q: Does it need a battery? A: No. It is a purely optical instrument, so it works from ordinary light through the eyepiece and has no electronics to power..
