Selecting the Right Electrical Connectors and Terminals

Choosing termination hardware requires matching the connector to your system voltage, current load, and environmental exposure. For standard electrical wiring, quick-connect wire terminals with Polyamide (PA66) housings and tin-plated copper alloy contacts provide secure, vibration-resistant connections up to 250V and 32A. If your application involves board-level integration, look for PCB-mount USB-C terminals supporting up to 60W at 20V or 12V DC panel-mount barrel jacks with secure screw nut mounting.

Always verify wire compatibility for both solid and stranded copper conductors to prevent high-resistance joints. For high-speed data transmission alongside power delivery, select connectors rated for 5 Gbps or 10 Gbps transfer speeds.

Specifying Power Supplies and Adapters

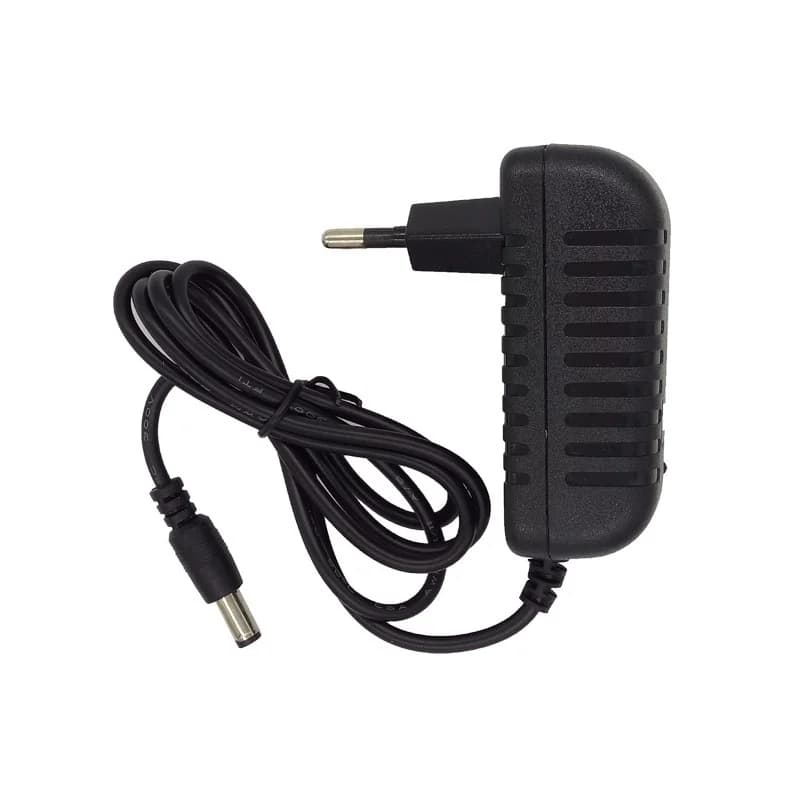

Industrial systems rely on stable DC power. When choosing AC/DC power adapters for LED strips, camera systems, or control circuits, calculate your total peak current draw and select an adapter with at least a 20% safety margin. Ensure the unit accepts universal input voltages of 110-220V AC if your equipment is destined for international markets.

Thermal management is critical for continuous operation. Look for units using convection cooling that operate safely across wide storage temperatures, such as -20 to 85 °C. Select adapters with an efficiency rating of greater than 80% to minimize waste heat inside enclosures.

Choosing Insulation and Environmental Protection

Protecting electrical connections from moisture, dust, and mechanical strain is critical for system longevity. The choice of heat shrink tubing material depends directly on your application. Polyolefin is the industry standard for general wiring insulation due to its excellent flexibility and 2:1 shrink ratio. For battery pack assembly, flat PVC heat shrink wrap is ideal for insulating 18650 cells.

When your wiring is exposed to moisture or outdoor conditions, dual-wall heat shrink tubing with an adhesive lining is necessary. The inner adhesive melts during heating to seal the connection against water ingress. Use a high shrink ratio, such as 4:1, for sealing over irregular shapes, large connectors, or transitions between different wire diameters.
