What types of wires and jacks can I plug this tracer into?

This kit connects directly to telephone lines using the built-in RJ11 plug. You can also use the included alligator clips to connect to bare wires, network cables, or electrical wiring.

What comes in this kit, and do I need to buy batteries?

The kit includes one tone generator and one sensitive receiver probe. You will need to purchase two 9V PP3 batteries separately to power the units. Built-in RJ11 and alligator clip connectors are ready to use right out of the box.

Can I use this tracer outside or on active electrical lines?

This kit is rated strictly for indoor environments between 0°C and 40°C. Do not use it on live, high-voltage circuits. It is designed for de-energized wire tracing and continuity testing under 100 Ohms.

Wire Tracer Kit | Tone Generator & Probe | Circuit Continuity Tester

Name: Wire Tracer Kit | Tone Generator & Probe | Circuit Continuity Tester
Brand: Compel
SKU: TEST-00239
Price: 28.95 USD
Availability: InStock

Stock #:CMP-01610

SKU:TEST-00239

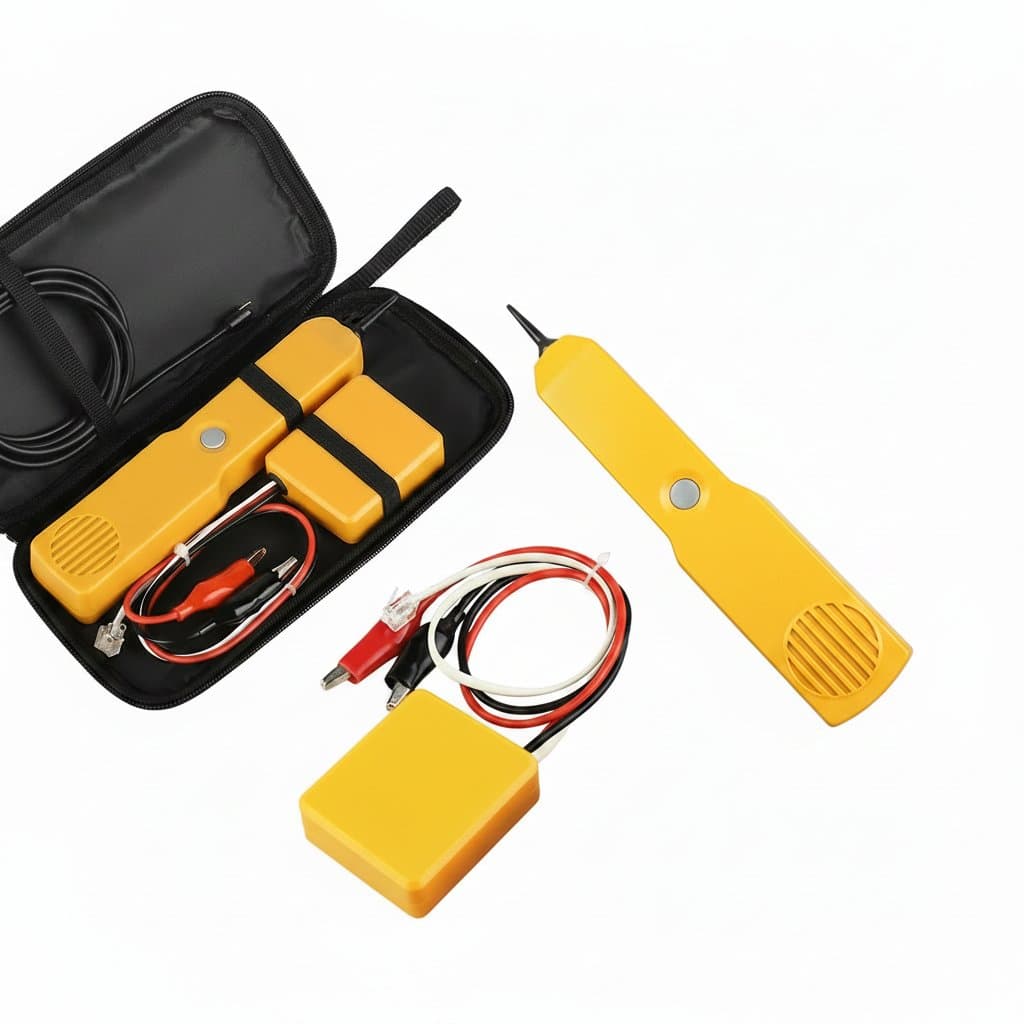

Wire Tracer Kit | Tone Generator & Probe | Circuit Continuity Tester - Image 1

1 / 2

$28.95

Ships to United States · standard est. 10-20 business days

Free standard shipping on orders over $59 (under 2kg). Express available at checkout.

ColorSelect an option

Quantity

Wire Tracer Kit | Tone Generator & Probe | Circuit Continuity Tester

$28.95

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

What types of wires and jacks can I plug this tracer into?: This kit connects directly to telephone lines using the built-in RJ11 plug. You can also use the included alligator clips to connect to bare wires, network cables, or electrical wiring.
What comes in this kit, and do I need to buy batteries?: The kit includes one tone generator and one sensitive receiver probe. You will need to purchase two 9V PP3 batteries separately to power the units. Built-in RJ11 and alligator clip connectors are ready to use right out of the box.
Can I use this tracer outside or on active electrical lines?: This kit is rated strictly for indoor environments between 0°C and 40°C. Do not use it on live, high-voltage circuits. It is designed for de-energized wire tracing and continuity testing under 100 Ohms.

Testing Equipment spec sheet (PDF)

Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.

Compare options

More Testing Equipment

All Testing Equipment

USB Borescope Camera | 5.5mm Inspection Scope for Android | IP67 Waterproof with 6 LEDs

4.9

$12.99

USB-C Endoscope Camera | 7.0mm IP67 Waterproof Inspection Camera | Android & PC Compatible

4.9

$12.99

UNI-T UT363BT Anemometer proving unit | 0-30m/s Wind Speed & Temp Meter

5.0(27)

$48.95

UNIT UT12D Proving Unit | Non-Contact AC Voltage Tester | 24-1000V Alarm LED

5.0(30)

$21.95

Surge Protection Device | 40KA 600V/1000V AC/DC | 1-4 Pole Low Voltage Home & Panel Arrester

5.0

$51.99

Pinless Moisture Meter | Non-Invasive Water Leak Detector | Ball Sensor for Wood, Drywall, Flooring

5.0

$53.99

Digital Tire Pressure Gauge | Quick Clip Air Chuck | Car, Motorcycle, Bicycle, RV

5.0

$17.99

-14%

Digital Multimeter | AC/DC Voltage & Current Tester | Rechargeable & Non-Contact Detection

4.9

$49.99$58.46

Surge Protector Power Strip | 16A Adjustable Voltage Protector | 110V-220V AC | TOSVA-16

4.9

$17.99

Explore the range

Popular in Tools & Hardware

Browse Tools & Hardware

-47%

DeWalt DW089LG Self-Leveling Green Laser Level | 3x360° Lines | 12V Outdoor Construction Grade

5.0

$69.99$131.24

Desoldering Braid | Solder Remover Wick | 2.0mm & 3.5mm x 1.5M

4.9

$5.95

Tool Set 4pc | Tile Grout & Sealant Remover | For Shower, Kitchen & Bathroom Cleaning

4.9

$17.99

Sander Sanding Discs | 125mm 8-Hole Pattern | For Wood & Metal Grinding

4.9(10.2K)

$3.49

-18%

DeWalt DCD805 20V Brushless Impact Driver | Compact & Powerful Cordless Drill for Professionals

4.9

$69.99$85.12

Laser Rangefinder | Slope Compensation & Flagpole Lock | 600m Range, USB-C Rechargeable

4.9

$212.99

PU Coated Work Gloves | 3-Pair Pack with Knit Wrist | Excellent Grip & Dexterity

4.9

$5.95

10pcs M35 Cobalt Drill Bits Set | For Stainless Steel & Metal | 1-3mm High-Speed Steel

4.9

$15.99

Circular Saw Blade Set | 11-Piece Multi-Material Cutting Kit | 22mm, 25mm, 32mm

4.9

$7.95

1-Inch Rotary Tool Sanding Sheets | 100pc Disc Set | For Dremel Tools

4.9(2.7K)

$7.95

Powerful LED Head Torch | Motion Sensor & Rechargeable | COB High Power Fishing

4.9(5.2K)

$11.99

3/5/7.5m Tape Measure | High Precision & Waterproof | Woodworking & Industrial

4.9(2.4K)

$12.99

Complete the set

Accessories & add-ons

Diamond Drill Bit Set | 18-68mm Hole Saw for Tile, Glass & Stone

5.0

$26.95

Woodworking Spade Drill Bit Set | 10-55mm High-Carbon Steel | Durable Flat Wood Boring Tools

5.0

$12.99

Forstner Drill Bit Set | 14-100mm Self-Centering Wood Boring Kit | Carbide-Tipped Precision

5.0

$5.95

Diamond Core Drill Bit | M14 Thread for Granite, Marble & Tile | Dry Vacuum Brazed Masonry Hole Saw

5.0

$35.95

Air Blow Gun | Heavy-Duty Pneumatic Tool for Engine & Workshop Cleaning

5.0

$17.99

-19%

Diamond Drill Bit Set | 8-Piece for Tile, Glass & Stone | 6-45mm Hole Saws

5.0

$80.99$100.15

TCT Trimming Router Bit | 1/2 Shank 3 Flute | For Plywood, MDF & Chipboard

5.0

$28.95

Table Saw Blade Guard | 4-10 Inch Acrylic Protection Cover for Woodworking Safety

5.0

$83.99

Sanding Belts | P60-P3000 Abrasive | 330x10mm, 457x13mm, 492x6mm

5.0(16)

$19.99

30x 9x533mm Sanding Belts | Aluminium Oxide Abrasive | P36-P600 Grit Assortment

5.0(21)

$38.95

-21%

Diamond Drill Bit Set | 6-Piece M14 Thread | For Porcelain, Granite & Marble

5.0

$95.99$121.65

Paint Spray Gun Kit | 1.3mm Nozzle & 600cc Cup | Easy to Use for Cars, Walls & Home Projects

5.0

$299.99

This wire tracer kit helps you find and test cables. It includes a tone generator and a probe. Use it to check circuit continuity and locate wires in various setups. It's a useful tool for electricians and DIYers. Features and Benefits - Generates a clear tone - Helps you quickly identify cables - Sensitive probe included - Pinpoints wire locations accurately - Tests circuit continuity - Confirms electrical path integrity - Operates on standard batteries - Easy to power and use on site Applications - Tracing network cables - Locating electrical wires in walls - Checking telephone lines

Product Type: Wire Tracer Kit. Functionality: Tone Generator, Probe, Continuity Tester. Application: Circuit Tracing, Cable Identification. Signal Type: Audible Tone. Continuity Test: Yes. Power Source: Battery Operated. Indicator Type: Audible, Visual (LED). Operating Environment: Indoor. Tone Generator Output Frequency: 1 kHz. Tone Generator Output Voltage: 10 Vpp. Probe Sensitivity: Adjustable. Continuity Test Threshold: < 100 Ohms. Power Supply (Tone Generator): 9V PP3 Battery. Power Supply (Probe): 9V PP3 Battery. Battery Life (Typical): 50 hours. Tone Generator Dimensions: 145 mm x 60 mm x 30 mm. Probe Dimensions: 220 mm x 45 mm x 25 mm. Tone Generator Weight: 150 g (without battery). Probe Weight: 120 g (without battery). Operating Temperature: 0°C to 40°C. Storage Temperature: -10°C to 50°C. Humidity Range: 10% to 80% RH (non-condensing). Connectivity: RJ11, Alligator Clips. Q: What is the primary function of this wire tracer kit? A: The primary function of this wire tracer kit is to identify and trace wires or cables within a bundle or wall. It utilizes a tone generator to send a signal through the wire and a probe to detect that signal, allowing for accurate identification.. Q: How does the continuity tester feature work? A: The continuity tester feature works by applying a small current through the circuit to determine if a complete path exists. If the circuit is continuous, the device will typically provide an audible or visual indication, confirming the integrity of the wire or cable.. Q: Is this kit suitable for live circuits? A: This kit is generally designed for use on de-energized circuits to prevent damage to the equipment or potential safety hazards. Always ensure that the circuit being tested is not live before connecting the tone generator or performing continuity tests.. Q: Does the probe offer adjustable sensitivity? A: Yes, the probe component of this kit typically offers adjustable sensitivity. This feature allows the user to fine-tune the detection level, which can be beneficial when working in environments with varying levels of electromagnetic interference or when tracing wires over different distances.. Q: Can this kit be used to test network cables? A: Yes, with the appropriate connectors, such as RJ11, this kit can be used to test and trace network cables for continuity and identification. It helps in verifying correct wiring and locating specific cables within an installation..
