What are these belts actually made of?

The main body is a black neoprene rubber, which gives it flexibility and resistance to oil. Inside, it has glass fibre cords running the length of the belt for strength and to stop it from stretching under load. The tooth surfaces are covered with a nylon fabric to help with wear.

Can I cut this belt to a shorter length if it's too long?

No, these are closed-loop belts, manufactured as one continuous piece. Cutting the belt would sever the internal glass fibre tension cords, and it would no longer be able to transmit power. You must order the correct loop length for your machine.

How do I know which width to choose between 6mm, 10mm, and 15mm?

The width you need depends on the torque you're transmitting and the width of your pulleys. A wider belt, like a 15mm, can handle more force than a 6mm belt without skipping teeth. Check your pulleys and your application's power requirements to select the correct width.

Closed-Loop Rubber Timing Belt | HTD 3M Construction | Widths 6-20mm

Name: Closed-Loop Rubber Timing Belt | HTD 3M Construction | Widths 6-20mm
Brand: Compel
SKU: TIMI-00002
Price: 5.95 USD
Availability: InStock
Rating: 4.7 (101 reviews)

Stock #:CMP-04577

SKU:TIMI-00002

Closed-Loop Rubber Timing Belt | HTD 3M Construction | Widths 6-20mm - Image 1

1 / 6

$5.95

Ships to United States · standard est. 10-20 business days

Free standard shipping on orders over $59 (under 2kg). Express available at checkout.

WidthSelect an option

Length51 optionsSelect an option

Quantity

Closed-Loop Rubber Timing Belt | HTD 3M Construction | Widths 6-20mm

$5.95

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

What are these belts actually made of?: The main body is a black neoprene rubber, which gives it flexibility and resistance to oil. Inside, it has glass fibre cords running the length of the belt for strength and to stop it from stretching under load. The tooth surfaces are covered with a nylon fabric to help with wear.
Can I cut this belt to a shorter length if it's too long?: No, these are closed-loop belts, manufactured as one continuous piece. Cutting the belt would sever the internal glass fibre tension cords, and it would no longer be able to transmit power. You must order the correct loop length for your machine.
How do I know which width to choose between 6mm, 10mm, and 15mm?: The width you need depends on the torque you're transmitting and the width of your pulleys. A wider belt, like a 15mm, can handle more force than a 6mm belt without skipping teeth. Check your pulleys and your application's power requirements to select the correct width.

Timing Belts spec sheet (PDF)

Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.

Not sure which one?

Compare timing belts

This product

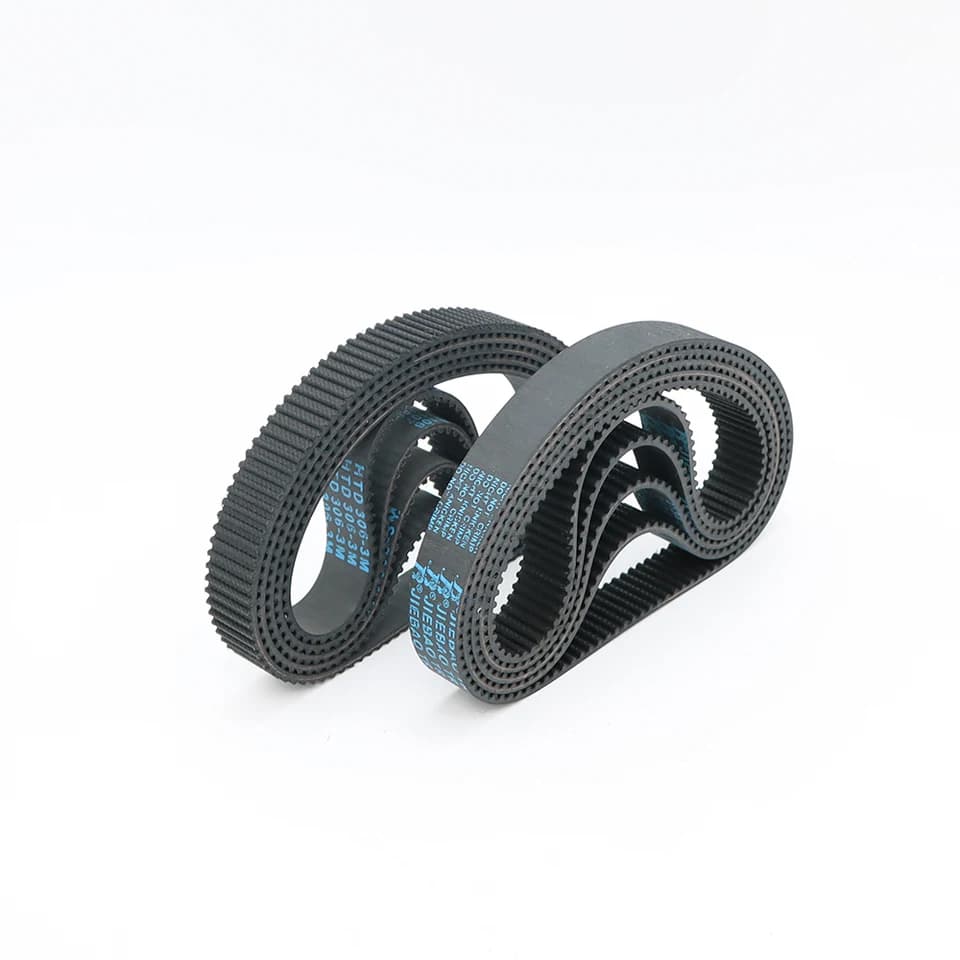

A collection of black HTD3M timing belt loops, ranging from 90mm to 255mm in length, available in 6mm, 10mm, and 15mm widths.

Closed-Loop Rubber Timing Belt | HTD 3M Construction | Widths 6-20mm

Price$5.95

Rating4.7(101)

Sold1,000+

Stock In stock

You're viewing this

Alternative

An array of silver HTD 3M timing pulleys with 20T, 30T, 40T, and 60T options, suitable for 10mm and 15mm wide belts.

Timing Belt Pulley | HTD 3M 20T-60T | 10mm & 15mm Width

Price$6.95

Rating4.9(201)

Sold2,000+

Stock In stock

View

Alternative

HTD 5M Rubber Timing Belt Width 15mm Length 5M 200 225 270 3 - Premium Power Transmission > Timing Belts with professional quality and features

HTD 5M Timing Belt | 15mm Width, Various Lengths | Industrial Grade

Price$5.95

Rating4.7(104)

Sold900+

Stock In stock

View

Explore the range

Popular in Industrial & Machinery

Browse Industrial & Machinery

-28%

Electric Fabric Cutter | Round-Knife Cloth Slitting Machine | YJ-110C Hand-Push Design

5.0

$189.99$264.96

Push-to-Connect Air & Water Fittings | 4mm-12mm OD | Quick-Release Hose Couplings

4.9

$5.95

Complete the set

Accessories & add-ons

Sensor Protection Sleeve | Stainless Steel Blind Tube | 6mm

5.0(11)

$39.95

Motion Sensor Bracket | Automatic IR Lamp Holder | 110-240V AC

4.8(196)

$16.99

Soil Moisture NPK Sensor | 7-in-1 Agricultural Probe Accessory

4.8(25)

$26.95

Arduino Raspberry Pi Sensor Kit (45pc) | Modules for UNO R3 MEGA2560

4.7(58)

$47.95

Reflector Plate | Photoelectric Sensor Accessory | TD Series

4.7(23)

$12.99

Load Cell ADC Module | 24-Bit HX711 Sensor Accessory

4.4(21)

$1.49

Bending Strain Gauge Amplifier Module | Sensor Accessories UK

$5.95

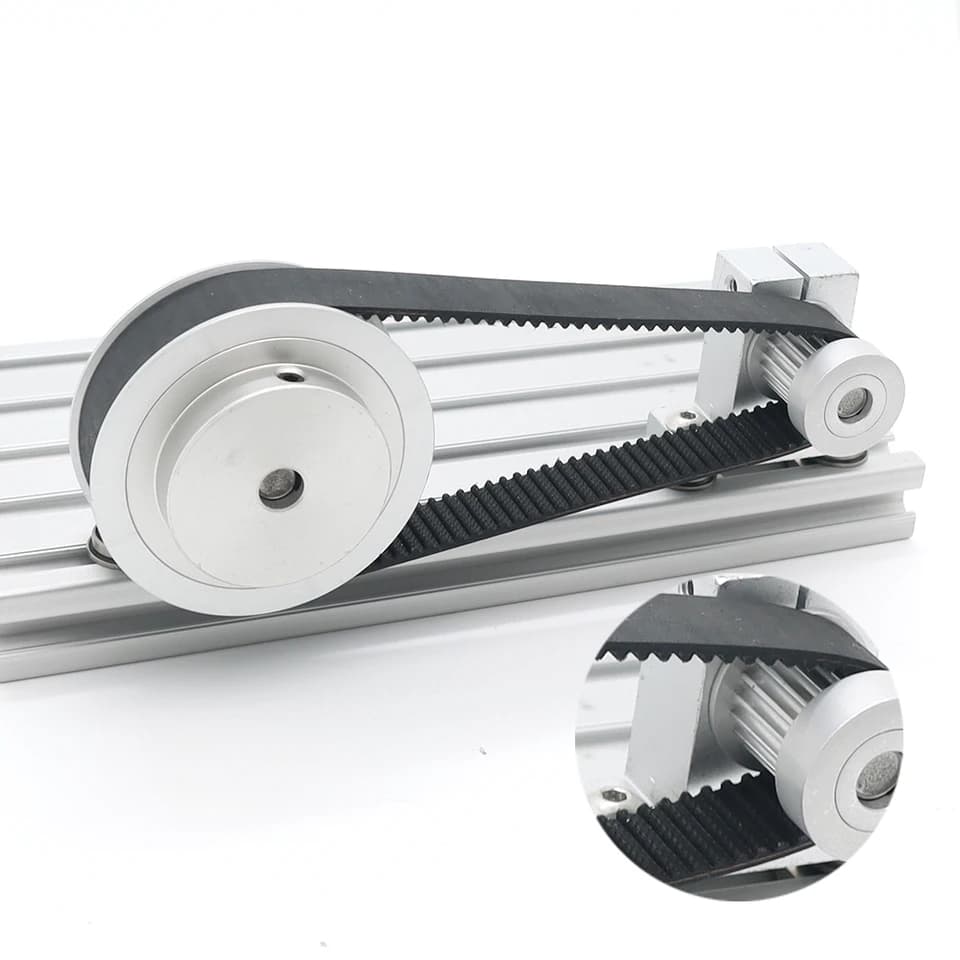

This HTD3M timing belt is a closed-loop rubber belt. It's made for precise motion control in smaller machines. The '3M' means there's a 3mm space between teeth, a common size for desktop equipment. Since it's a continuous loop, this 3M belt is strong and ready to install. Features and Benefits - HTD 3mm tooth design - The High Torque Drive tooth shape connects smoothly and accurately with 3M pulleys. - Closed-loop construction - It's made as one continuous loop. This keeps the belt strong and whole. - Neoprene with fiberglass - This material mix resists stretching, heat, and oil, so it lasts longer. - Different sizes available - You can buy this HTD3M belt from 90mm to 255mm long, and in 6mm, 10mm, 15mm or 20mm widths. Applications - 3D printers - A common HTD3M belt for driving the X and Y axes on many popular printer models. - Desktop laser engravers - It helps the laser head move accurately across the work area for detailed results. - Light-duty CNC machines - Good for small routers or mills that need accurate placement for detailed work.

Material: Rubber. Belt Length: 90mm to 255mm. Belt Profile: HTD 3M. Belt Type: Closed Loop. Belt Width: 6mm, 10mm, 15mm, 20mm. Product Type: Timing Belt. Belt Length Options: 90 mm to 255 mm. Belt Width Options: 6 mm, 10 mm, 15 mm, 20 mm. Material: Rubber. Operating Temperature Range: -30°C to +100°C. Standard Compliance: Standard. Belt Type: Closed Loop. Chemical Resistance: Good against oils, greases, and some chemicals. Customization: Yes. Flexibility: High. High-Concerned Chemical: None. Model Number: HTD 3M. Noise Level: Low. Pitch: 3 mm. Product Type: Timing Belt. Profile Type: HTD 3M. Tensile Member: Fiberglass (Common). Q: What does 'HTD 3M' signify for this timing belt? A: The '3M' specifies the pitch of the belt, which is 3mm from the center of one tooth to the center of the next. 'HTD' stands for High Torque Drive, which refers to the deep, rounded tooth profile that engages with the pulley for positive power transmission.. Q: What does 'HTD 3M' signify for this timing belt? A: The '3M' specifies the pitch of the belt, which is 3mm from the center of one tooth to the center of the next. 'HTD' stands for High Torque Drive, which refers to the deep, rounded tooth profile that engages with the pulley for positive power transmission.. Q: What does 'HTD 3M' signify for this timing belt? A: The '3M' specifies the pitch of the belt, which is 3mm from the center of one tooth to the center of the next. 'HTD' stands for High Torque Drive, which refers to the deep, rounded tooth profile that engages with the pulley for positive power transmission.. Q: How does the belt resist stretching? A: The main body is flexible neoprene rubber, but it contains embedded fiberglass tensile cords that run along the entire length. These cords are what give the belt its strength and make it resistant to stretching when it's under tension.. Q: How does the belt resist stretching? A: The main body is flexible neoprene rubber, but it contains embedded fiberglass tensile cords that run along the entire length. These cords are what give the belt its strength and make it resistant to stretching when it's under tension.. Q: How does the belt resist stretching? A: The main body is flexible neoprene rubber, but it contains embedded fiberglass tensile cords that run along the entire length. These cords are what give the belt its strength and make it resistant to stretching when it's under tension.. Q: I have a 15mm wide pulley. Can I use a 10mm wide belt on it? A: While it would physically fit, it's not a good practice because the belt could 'walk' from side to side on the wider pulley. For best performance and alignment, you should always match the belt width to the pulley width.. Q: I have a 15mm wide pulley. Can I use a 10mm wide belt on it? A: While it would physically fit, it's not a good practice because the belt could 'walk' from side to side on the wider pulley. For best performance and alignment, you should always match the belt width to the pulley width.. Q: I have a 15mm wide pulley. Can I use a 10mm wide belt on it? A: While it would physically fit, it's not a good practice because the belt could 'walk' from side to side on the wider pulley. For best performance and alignment, you should always match the belt width to the pulley width.. Q: Why are there so many different lengths listed? A: These are closed-loop belts, so their length is fixed and cannot be adjusted. We offer a wide range of lengths from 90mm to 255mm so you can find the precise size needed for your project's specific pulley spacing.. Q: Why are there so many different lengths listed? A: These are closed-loop belts, so their length is fixed and cannot be adjusted. We offer a wide range of lengths from 90mm to 255mm so you can find the precise size needed for your project's specific pulley spacing.. Q: Why are there so many different lengths listed? A: These are closed-loop belts, so their length is fixed and cannot be adjusted. We offer a wide range of lengths from 90mm to 255mm so you can find the precise size needed for your project's specific pulley spacing.. Q: What is the return policy if I choose the wrong size belt? A: You can return any belt within 30 days, as long as it hasn't been used. Please make sure the belt is in new condition and hasn't been mounted on pulleys before you send it back.. Q: What is the return policy if I choose the wrong size belt? A: You can return any belt within 30 days, as long as it hasn't been used. Please make sure the belt is in new condition and hasn't been mounted on pulleys before you send it back.. Q: What is the return policy if I choose the wrong size belt? A: You can return any belt within 30 days, as long as it hasn't been used. Please make sure the belt is in new condition and hasn't been mounted on pulleys before you send it back..
