How do I choose the right pulley for my timing belt and motor shaft?

First, check your belt is an HTD 5M profile with a 5mm tooth pitch. Next, pick a pulley with a slot width that's slightly wider than your belt (e.g., the 16mm slot for a 15mm belt). Finally, select the inner bore diameter that matches your motor shaft size exactly.

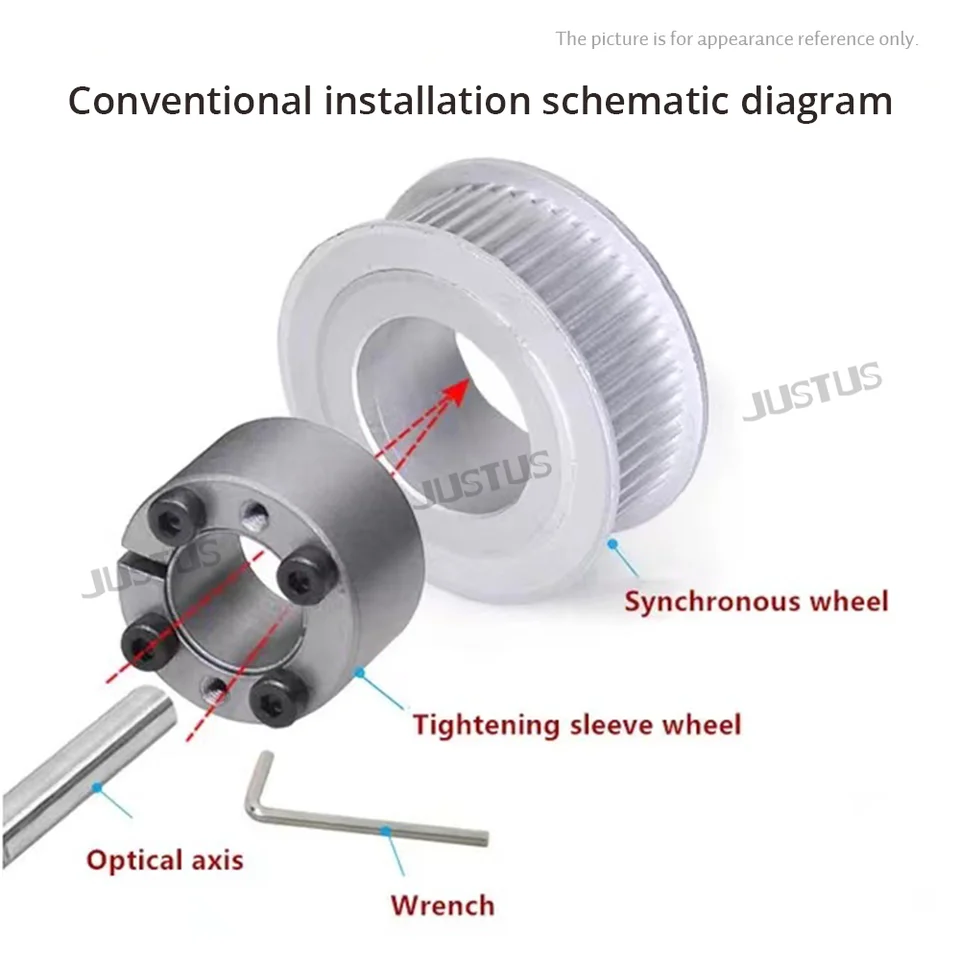

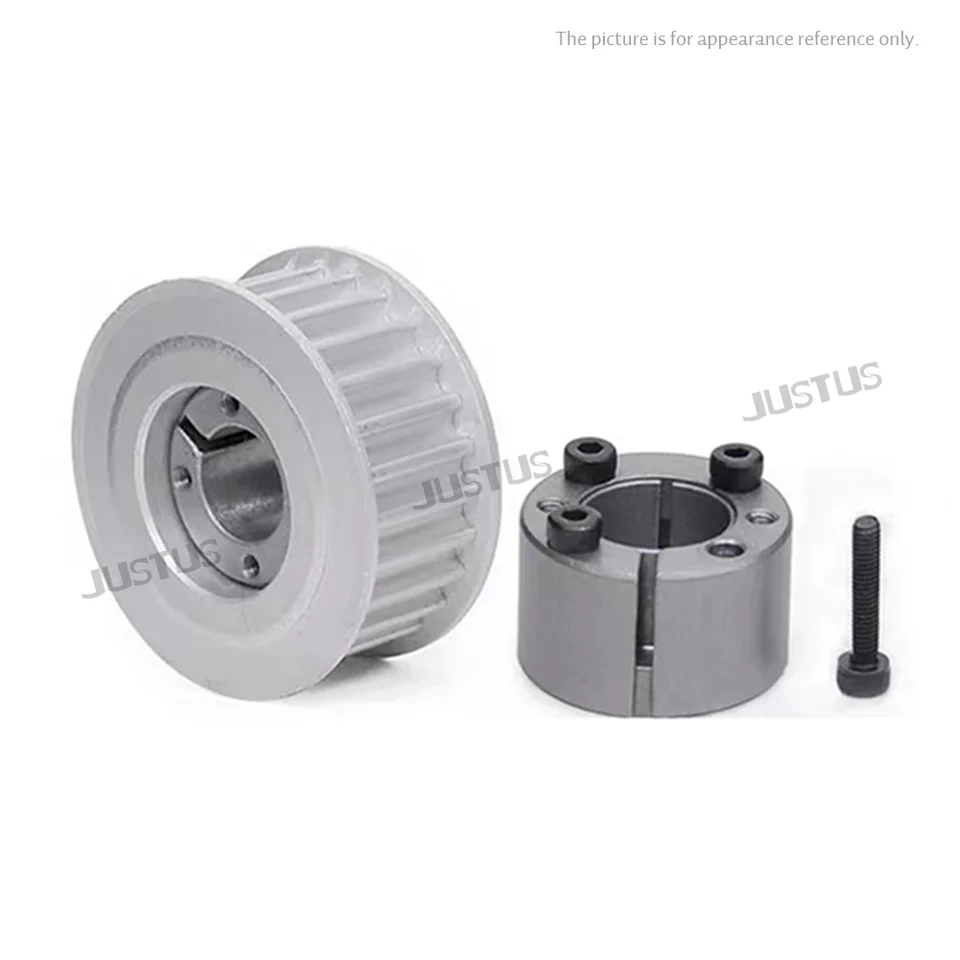

How does this 'keyless' bushing attach to a shaft without a keyway?

This is a keyless locking pulley that grips the shaft using friction. When you tighten the built-in screws, they force an internal tapered sleeve to contract, clamping down firmly and evenly around the shaft. This gives you a secure connection without needing a keyway or grub screws.

What material are these timing pulleys made from?

The main body of the pulley is machined from aluminium alloy, which is lightweight and helps with heat dissipation. The flanges on the sides that guide the belt are made of galvanised iron for rigidity.

5M Keyless Taper Bushing Pulley | 18T-22T | For 15/20mm Belts

Name: 5M Keyless Taper Bushing Pulley | 18T-22T | For 15/20mm Belts
Brand: Compel
SKU: TAPE-00001
Price: 30.95 USD
Availability: InStock
Rating: 5 (8 reviews)

Stock #:CMP-04473

SKU:TAPE-00001

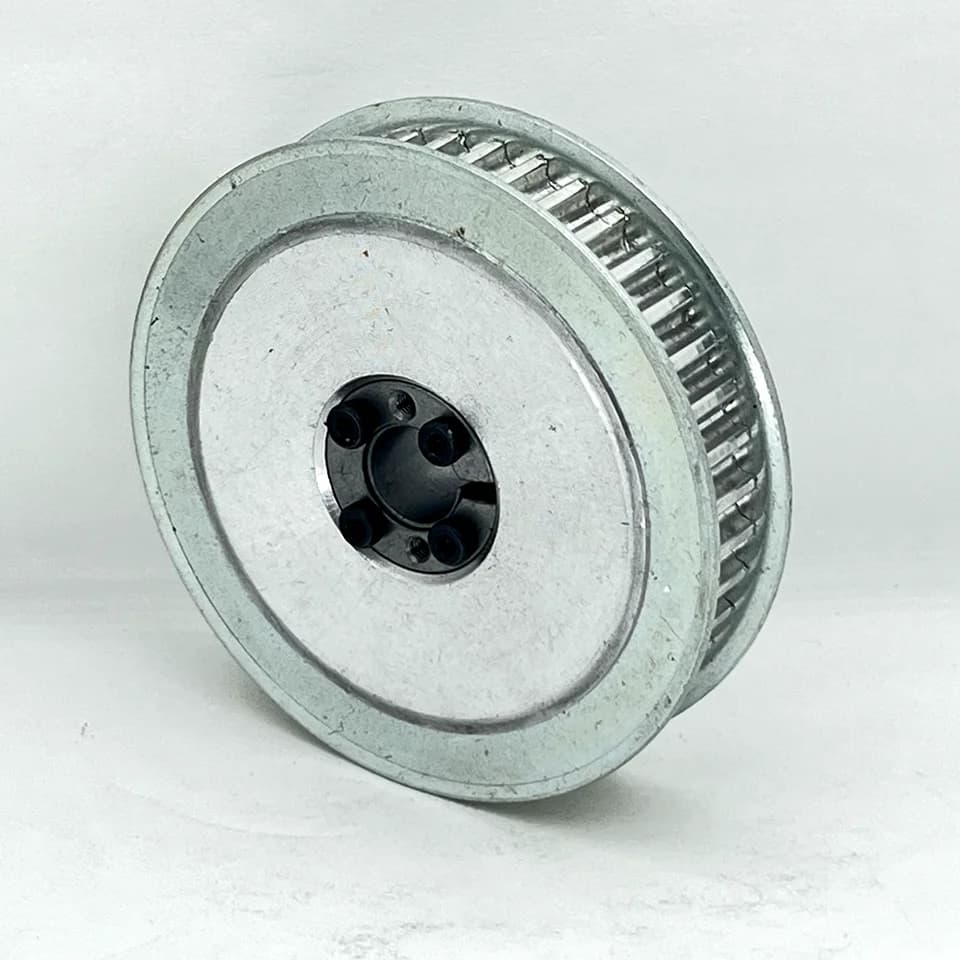

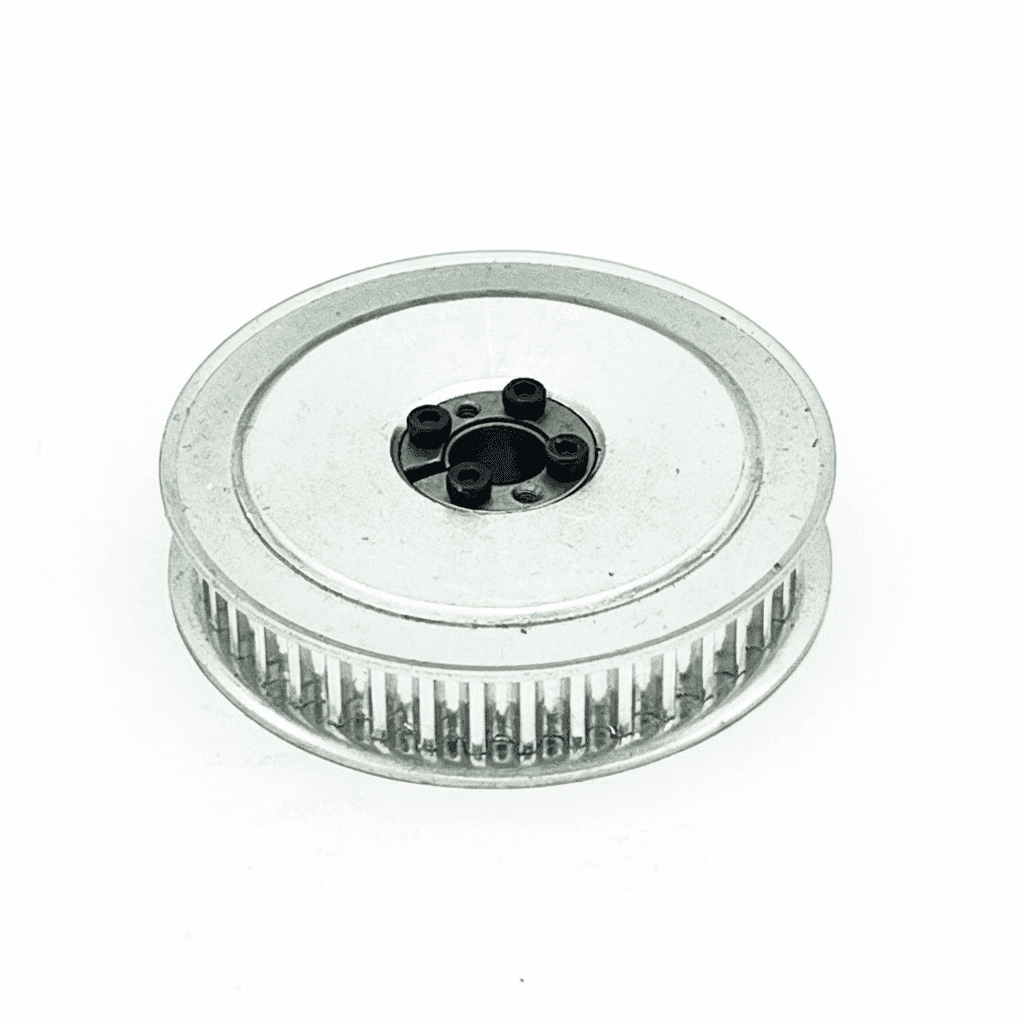

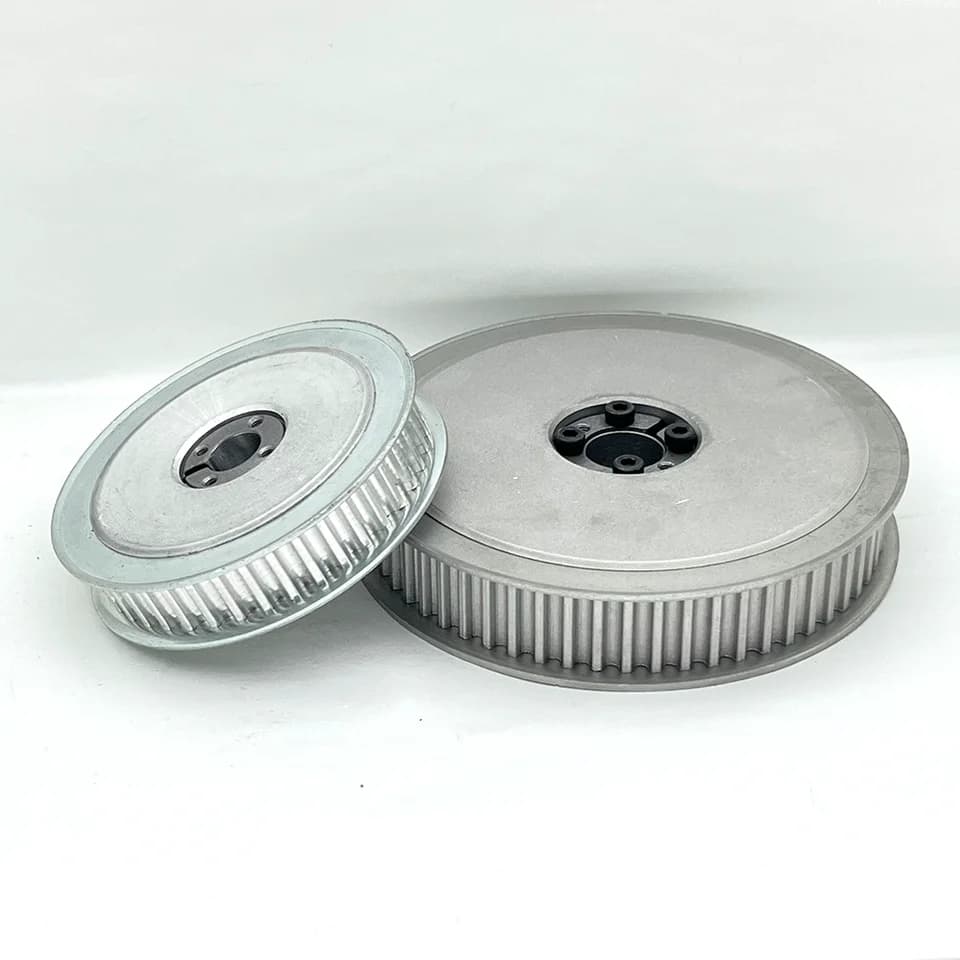

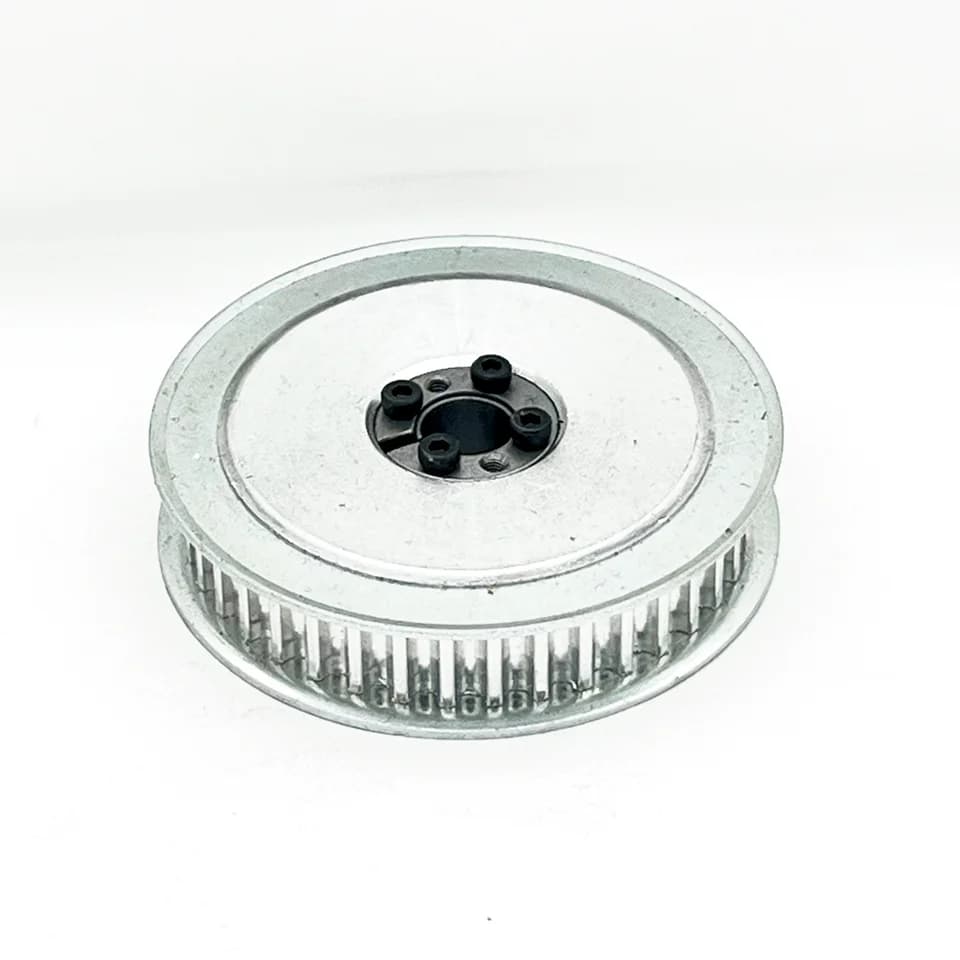

5M Keyless Taper Bushing Pulley | 18T-22T | For 15/20mm Belts - Image 1

1 / 6

$30.95

Ships to United States · standard est. 10-20 business days

Free standard shipping on orders over $59 (under 2kg). Express available at checkout.

Bore Diameter21 optionsSelect an option

Number of PcsSelect an option

WidthSelect an option

Quantity

5M Keyless Taper Bushing Pulley | 18T-22T | For 15/20mm Belts

$30.95

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

How do I choose the right pulley for my timing belt and motor shaft?: First, check your belt is an HTD 5M profile with a 5mm tooth pitch. Next, pick a pulley with a slot width that's slightly wider than your belt (e.g., the 16mm slot for a 15mm belt). Finally, select the inner bore diameter that matches your motor shaft size exactly.
How does this 'keyless' bushing attach to a shaft without a keyway?: This is a keyless locking pulley that grips the shaft using friction. When you tighten the built-in screws, they force an internal tapered sleeve to contract, clamping down firmly and evenly around the shaft. This gives you a secure connection without needing a keyway or grub screws.
What material are these timing pulleys made from?: The main body of the pulley is machined from aluminium alloy, which is lightweight and helps with heat dissipation. The flanges on the sides that guide the belt are made of galvanised iron for rigidity.

Taper Bushings spec sheet (PDF)

Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.

Explore the range

Popular in Industrial & Machinery

Browse Industrial & Machinery

-28%

Electric Fabric Cutter | Round-Knife Cloth Slitting Machine | YJ-110C Hand-Push Design

5.0

$189.99$264.96

Push-to-Connect Air & Water Fittings | 4mm-12mm OD | Quick-Release Hose Couplings

4.9

$5.95

Complete the set

Accessories & add-ons

Sensor Protection Sleeve | Stainless Steel Blind Tube | 6mm

5.0(11)

$39.95

Motion Sensor Bracket | Automatic IR Lamp Holder | 110-240V AC

4.8(196)

$16.99

Soil Moisture NPK Sensor | 7-in-1 Agricultural Probe Accessory

4.8(25)

$26.95

Arduino Raspberry Pi Sensor Kit (45pc) | Modules for UNO R3 MEGA2560

4.7(58)

$47.95

Reflector Plate | Photoelectric Sensor Accessory | TD Series

4.7(23)

$12.99

Load Cell ADC Module | 24-Bit HX711 Sensor Accessory

4.4(21)

$1.49

Bending Strain Gauge Amplifier Module | Sensor Accessories UK

$5.95

This HTD 5M timing pulley has a keyless taper bushing for a tight, centered fit on a motor shaft. This design provides accurate power transfer without any play for motion control systems. It installs fast and stays secure without needing a separate keyway. Features and Benefits - Keyless taper bushing design - Clamps onto the shaft with even pressure, stopping slips for accurate motion. - Made from aluminum alloy - Gives it strength while keeping its turning weight low for quick starts. - Fits many belt widths - Available in sizes for 10 mm, 15 mm, 20 mm, and 25 mm wide HTD 5M timing belts. - Many bore sizes - Comes in common bore diameters from 5 mm to 14 mm to fit many stepper motor shafts. Applications - Building or upgrading the belt drive system on a 3D printer or laser engraver. - For use in custom robots where exact positioning and torque transfer are important. - Driving the axes on a DIY CNC router that needs a dependable connection between the motor and belt.

Material: Aluminum Alloy. Belt Width Compatibility: 10mm, 15mm, 20mm, 25mm. Belt Profile: HTD 5M. Bore Diameter: 5mm, 6mm, 8mm, 9mm, 10mm, 11mm, 12mm, 14mm. Bushing Type: Keyless Bushing. Number of Teeth: 18T, 20T, 22T. Product Type: Timing Pulley. Belt Width Compatibility: 10mm, 15mm, 20mm, 25mm. Bore Diameter Compatibility: 5mm, 6mm, 8mm, 9mm, 10mm, 11mm, 12mm, 14mm. Material: Aluminum Alloy. Operating Temperature Range: -30°C to 100°C. Application: Power Transmission Systems. Bushing Type: Keyless Bushing. Chemical Concerns: None. Customization: Yes. Flange: Double Flange. Number of Teeth: 18T, 20T, 22T. Pitch: 5 mm. Precision Grade: High Precision. Product Type: Timing Pulley. Pulley Type: HTD 5M. Surface Treatment: Anodized. Q: What are the exact bore sizes available for this timing pulley? A: You can order this pulley with a shaft bore of 5mm, 6mm, 8mm, 9mm, 10mm, 11mm, 12mm, or 14mm. You just need to select the specific size you need from the options.. Q: What are the exact bore sizes available for this timing pulley? A: You can order this pulley with a shaft bore of 5mm, 6mm, 8mm, 9mm, 10mm, 11mm, 12mm, or 14mm. You just need to select the specific size you need from the options.. Q: What are the exact bore sizes available for this timing pulley? A: You can order this pulley with a shaft bore of 5mm, 6mm, 8mm, 9mm, 10mm, 11mm, 12mm, or 14mm. You just need to select the specific size you need from the options.. Q: What material is the pulley made of? A: The pulley is machined from an aluminum alloy, which provides good strength while keeping the part lightweight. The surface has a finish that helps it resist corrosion.. Q: What material is the pulley made of? A: The pulley is machined from an aluminum alloy, which provides good strength while keeping the part lightweight. The surface has a finish that helps it resist corrosion.. Q: What material is the pulley made of? A: The pulley is machined from an aluminum alloy, which provides good strength while keeping the part lightweight. The surface has a finish that helps it resist corrosion.. Q: How does the keyless taper bushing secure the pulley to a motor shaft? A: The taper bushing is a split-sleeve design that tightens around the shaft as you turn the locking screws. This creates a very strong, 360-degree grip without needing a keyway, which is helpful for high-speed or reversing applications.. Q: How does the keyless taper bushing secure the pulley to a motor shaft? A: The taper bushing is a split-sleeve design that tightens around the shaft as you turn the locking screws. This creates a very strong, 360-degree grip without needing a keyway, which is helpful for high-speed or reversing applications.. Q: How does the keyless taper bushing secure the pulley to a motor shaft? A: The taper bushing is a split-sleeve design that tightens around the shaft as you turn the locking screws. This creates a very strong, 360-degree grip without needing a keyway, which is helpful for high-speed or reversing applications.. Q: What's your policy if I accidentally order the wrong size pulley? A: We have a 30-day return policy for any unused pulleys that are still in their original packaging. You can send it back for an exchange or a refund, but please note that shipping costs aren't refundable.. Q: What's your policy if I accidentally order the wrong size pulley? A: We have a 30-day return policy for any unused pulleys that are still in their original packaging. You can send it back for an exchange or a refund, but please note that shipping costs aren't refundable.. Q: What's your policy if I accidentally order the wrong size pulley? A: We have a 30-day return policy for any unused pulleys that are still in their original packaging. You can send it back for an exchange or a refund, but please note that shipping costs aren't refundable.. Q: I need a 20-tooth pulley for a 15mm wide HTD 5M belt. Is that a combination you offer? A: Yes, that's a standard configuration for this product. When you order, you can select the 20-tooth count and specify that it's for a 15mm belt width.. Q: I need a 20-tooth pulley for a 15mm wide HTD 5M belt. Is that a combination you offer? A: Yes, that's a standard configuration for this product. When you order, you can select the 20-tooth count and specify that it's for a 15mm belt width.. Q: I need a 20-tooth pulley for a 15mm wide HTD 5M belt. Is that a combination you offer? A: Yes, that's a standard configuration for this product. When you order, you can select the 20-tooth count and specify that it's for a 15mm belt width..
