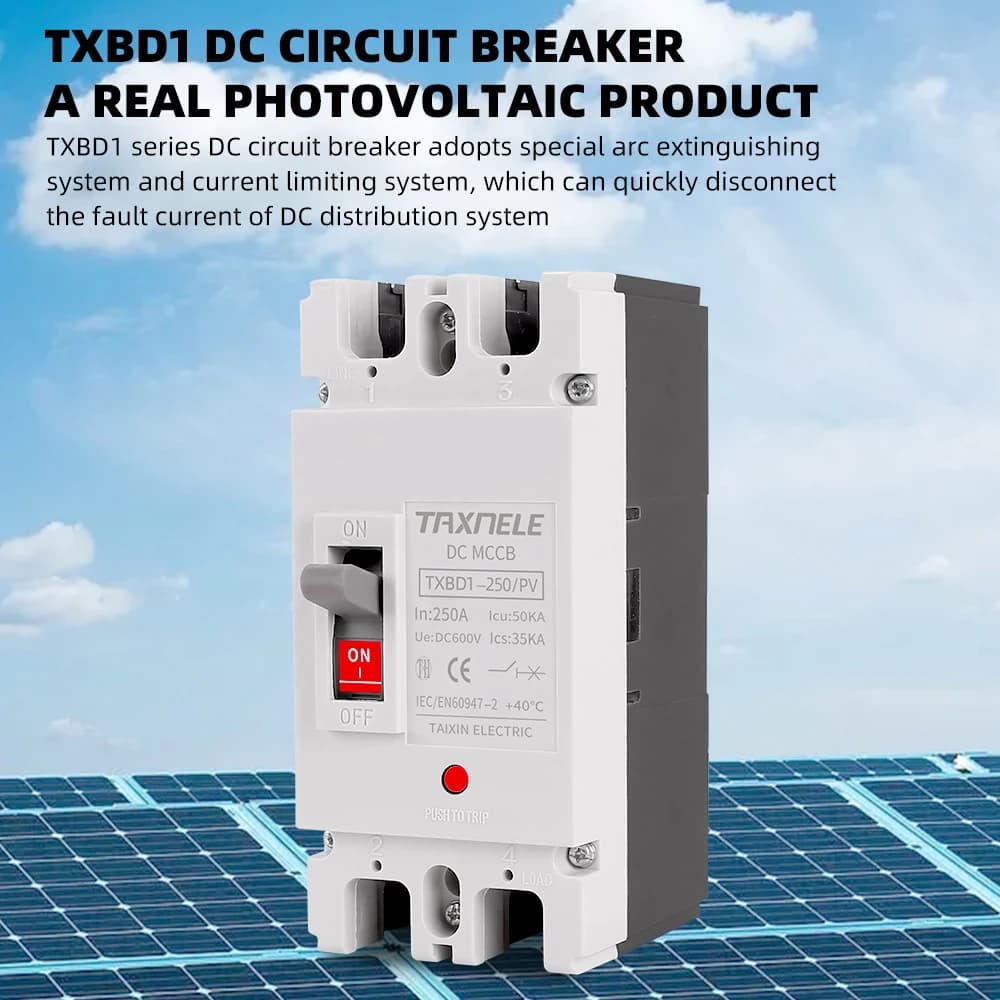

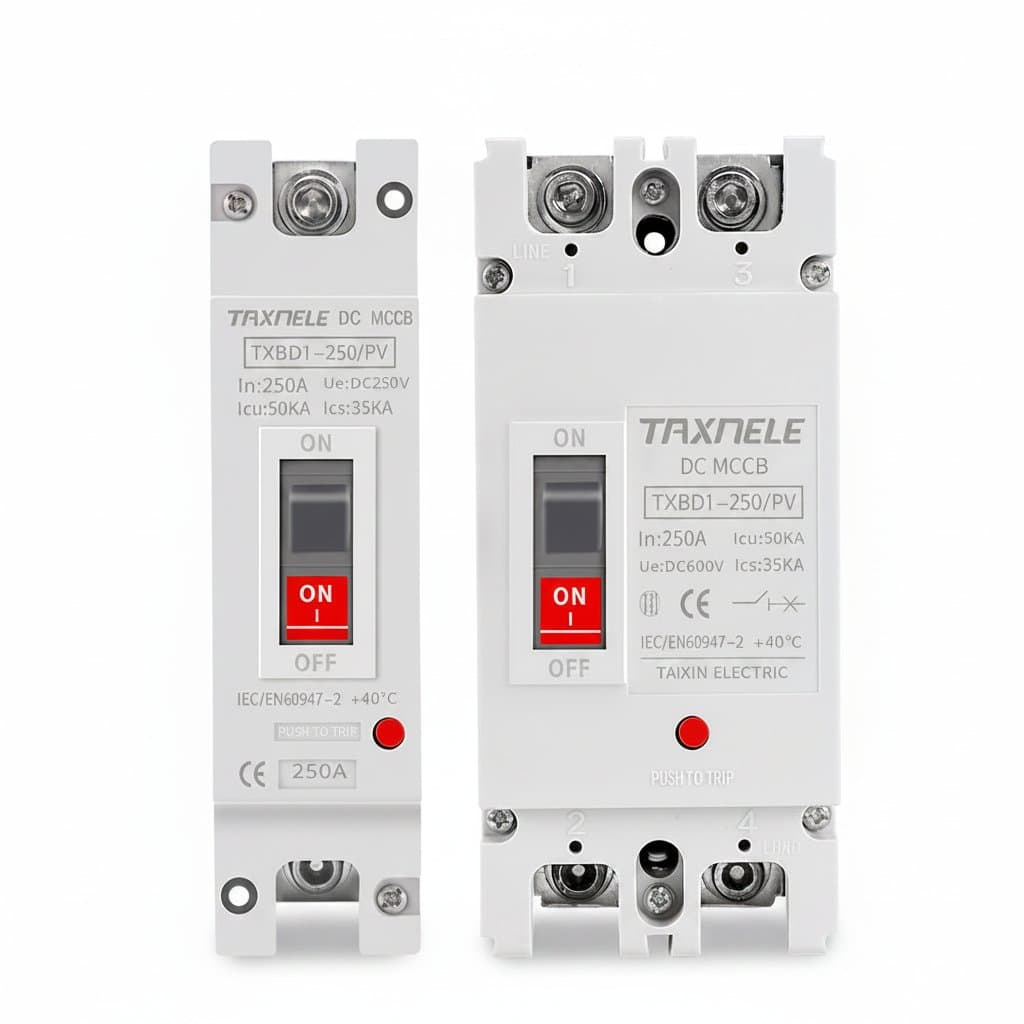

Solar DC Circuit Breaker | 150A-250A MCCB for Photovoltaic & Battery Protection
Stock #:TBS-03510
SKU:ACCS-00331
1 / 6
$72.99
Ships to United States · standard est. 10-20 business days
Free standard shipping on orders over $59 (under 2kg). Express available at checkout.
10-24 units-10%
Save $72.99 on 10 units
$65.69
per unit
25-49 units-15%
Save $273.71 on 25 units
$62.04
per unit
50-99 units-18%
Save $656.91 on 50 units
$59.85
per unit
100+ units-20%
Save $1,459.80 on 100 units
$58.39
per unit
Click a tier to set quantity • Discount applies automatically at checkout

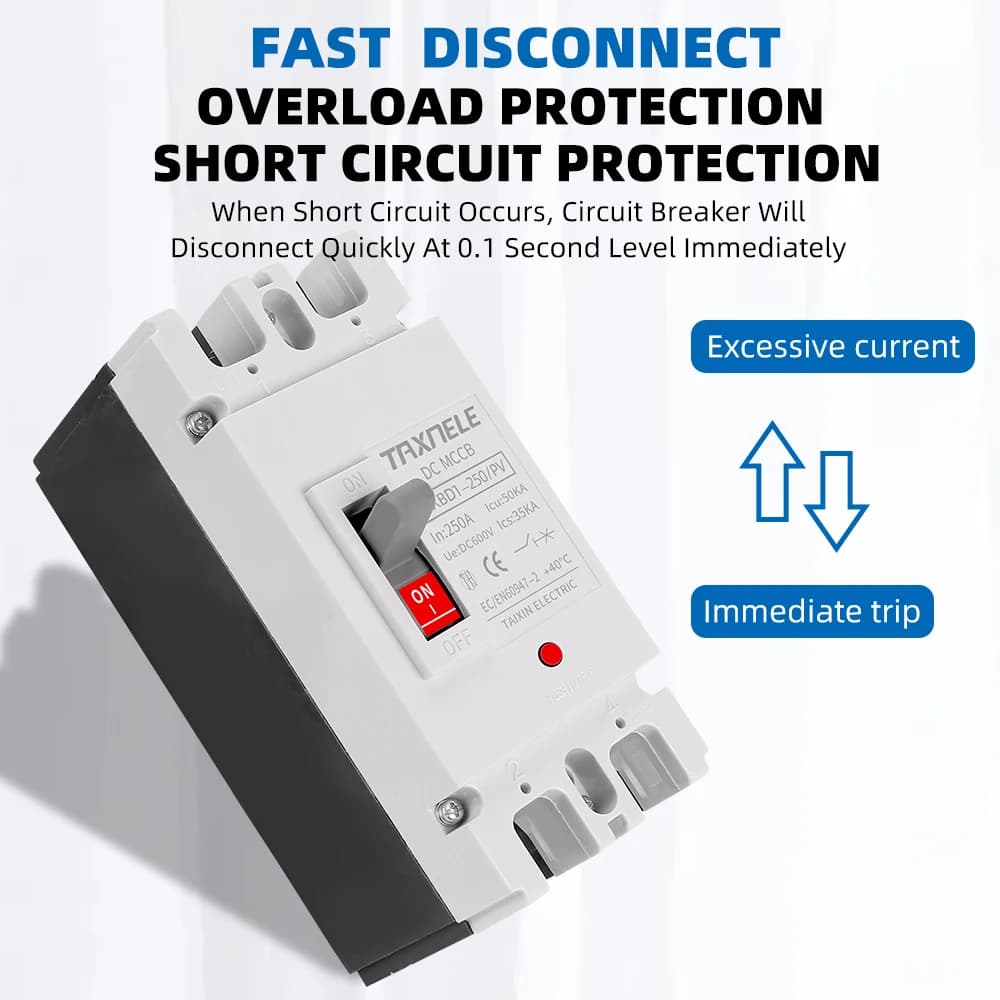

Engineered for high-performance DC systems, this Solar Molded Case Circuit Breaker (MCCB) provides reliable 150A or 250A overload and short-circuit protection for photovoltaic arrays and battery banks...
Select an option
1
$72.99
1
Fast Shipping
Secure Payment
Easy Returns
Good to know
Questions about this product
- What are the main applications for this molded case circuit breaker?

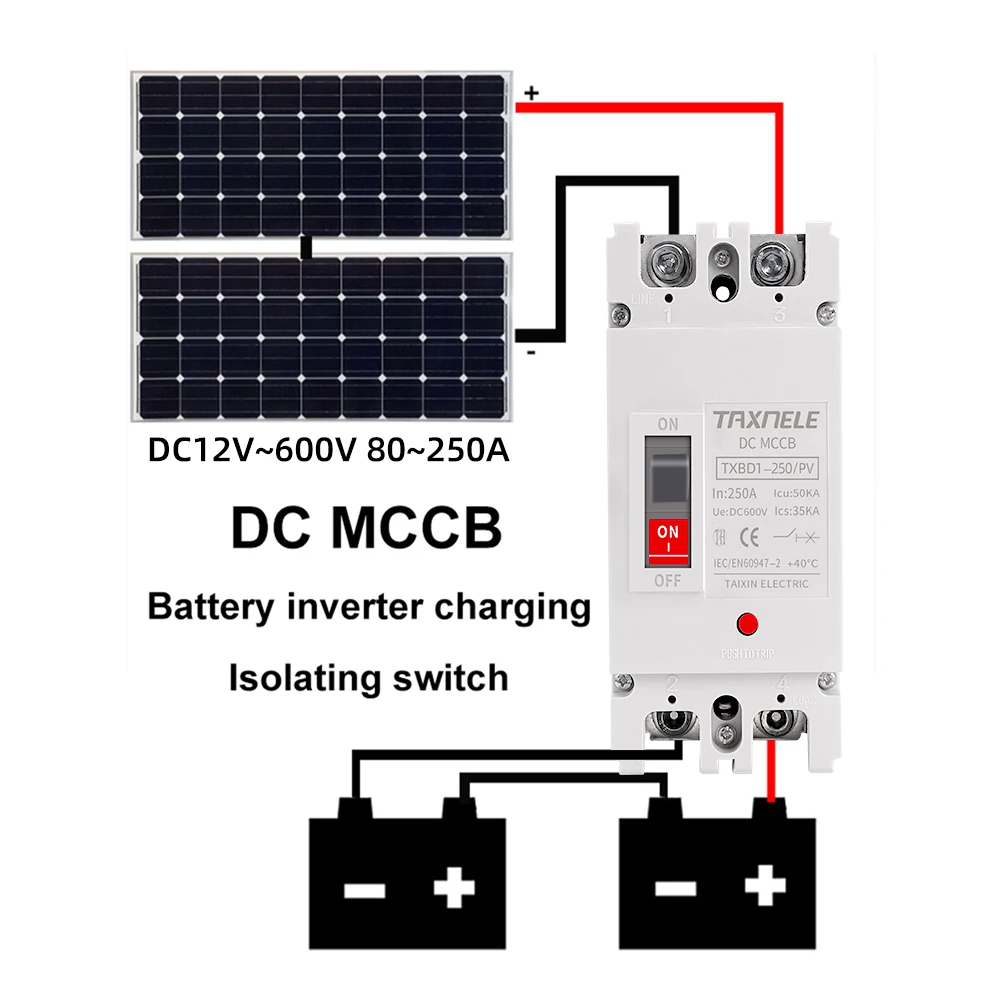

- It's specifically built to protect solar PV string combiner boxes and large battery banks. The breaker safely isolates individual panel strings or acts as a main safety switch for high-current DC storage. This prevents costly damage by isolating electrical faults before they spread.
- How do I choose between the 150A and 250A options for my system?
- Select the rating based on your system's continuous load and the maximum current your wiring can safely handle. The 150A model works well for medium-sized solar arrays or battery setups. Choose the 250A version if you are running larger commercial strings or high-capacity battery banks.
- What are the maximum voltage and interrupting ratings for this DC breaker?
- This single-pole breaker safely handles an operational voltage up to 1000V DC and an insulation voltage of 1200V DC. It features a typical ultimate breaking capacity of 25 kA to stop severe short circuits. Do not exceed these limits or try to use this specialized DC unit on AC systems.
