Can I use this circuit breaker in a standard AC household panel?

No, this breaker is specifically rated for high-voltage DC systems up to 1000V. Standard AC breakers cannot safely extinguish DC arcs, which can cause fires. Use this model only for solar arrays, battery banks, or other DC applications.

Does it matter how I connect the wires to the positive and negative terminals?

Yes, polarity matters. The breaker housing has clear positive (+) and negative (-) markings that you must follow during installation. Incorrect wiring can prevent the breaker from safely quenching arcs during a fault. Mount it on a standard 35mm DIN rail inside your combiner box or inverter enclosure.

How do I choose the right amperage rating for my solar setup?

We offer models ranging from 6A to 63A to match your specific panel configuration. Check your solar panel's short-circuit current rating and multiply it by 1.56 to find the target size. Just ensure your system voltage doesn't exceed the 1000V DC limit.

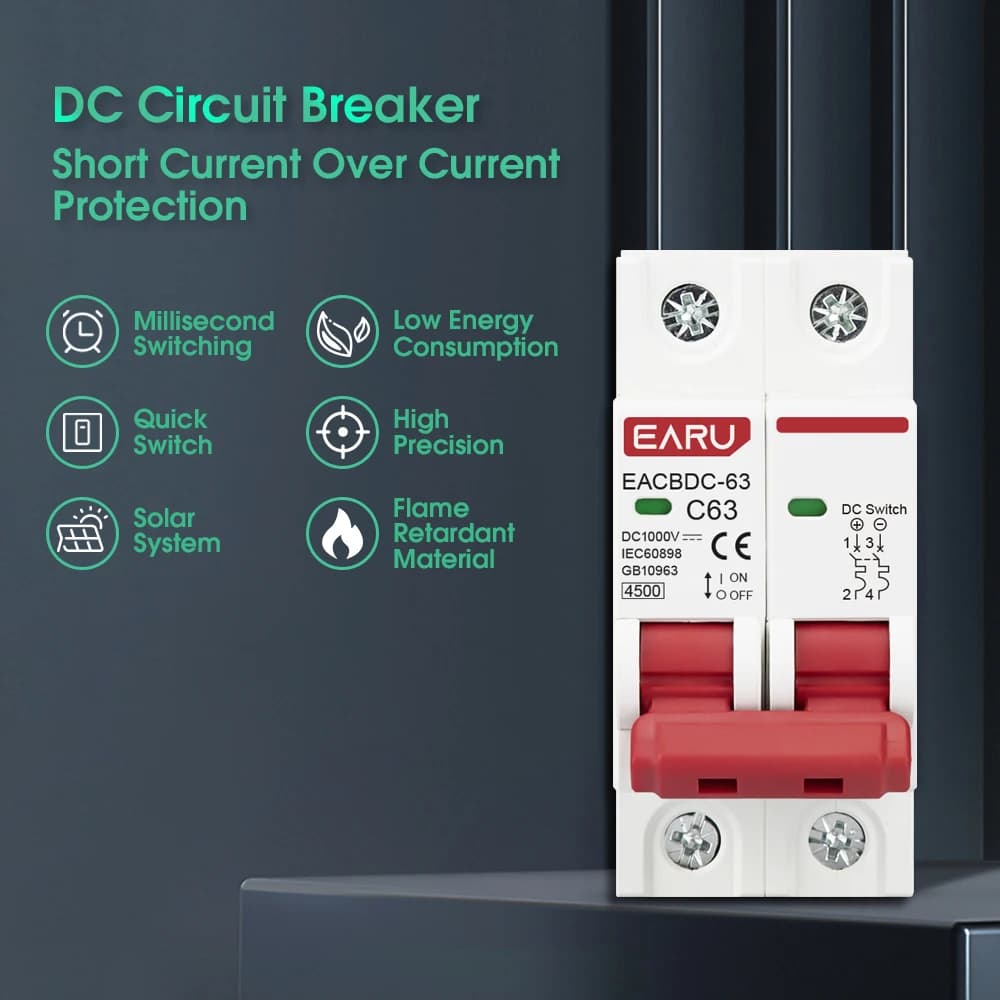

2-Pole DC Solar Circuit Breaker | 1000V Photovoltaic MCB | 6A-63A Overload Protection

Name: 2-Pole DC Solar Circuit Breaker | 1000V Photovoltaic MCB | 6A-63A Overload Protection
Brand: Compel
SKU: REMO-00033
Price: 6.95 USD
Availability: InStock

Stock #:TBS-03562

SKU:REMO-00033

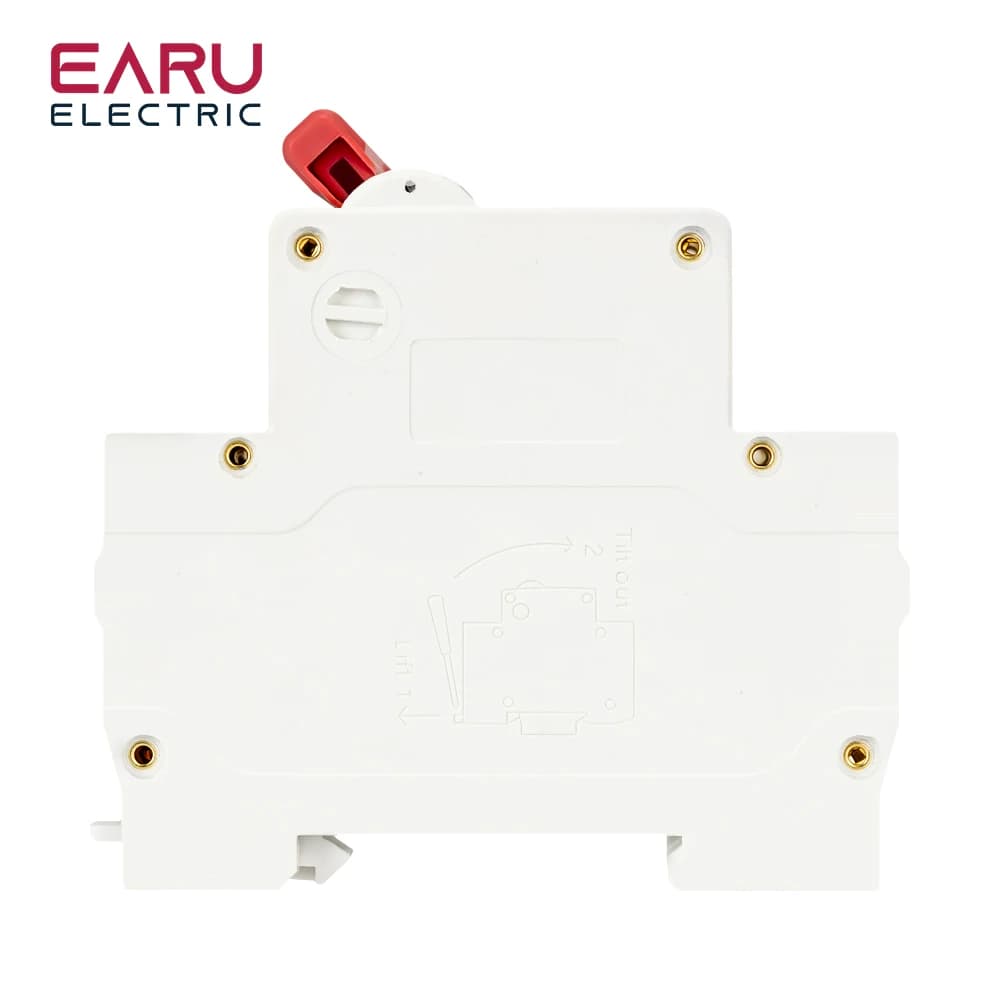

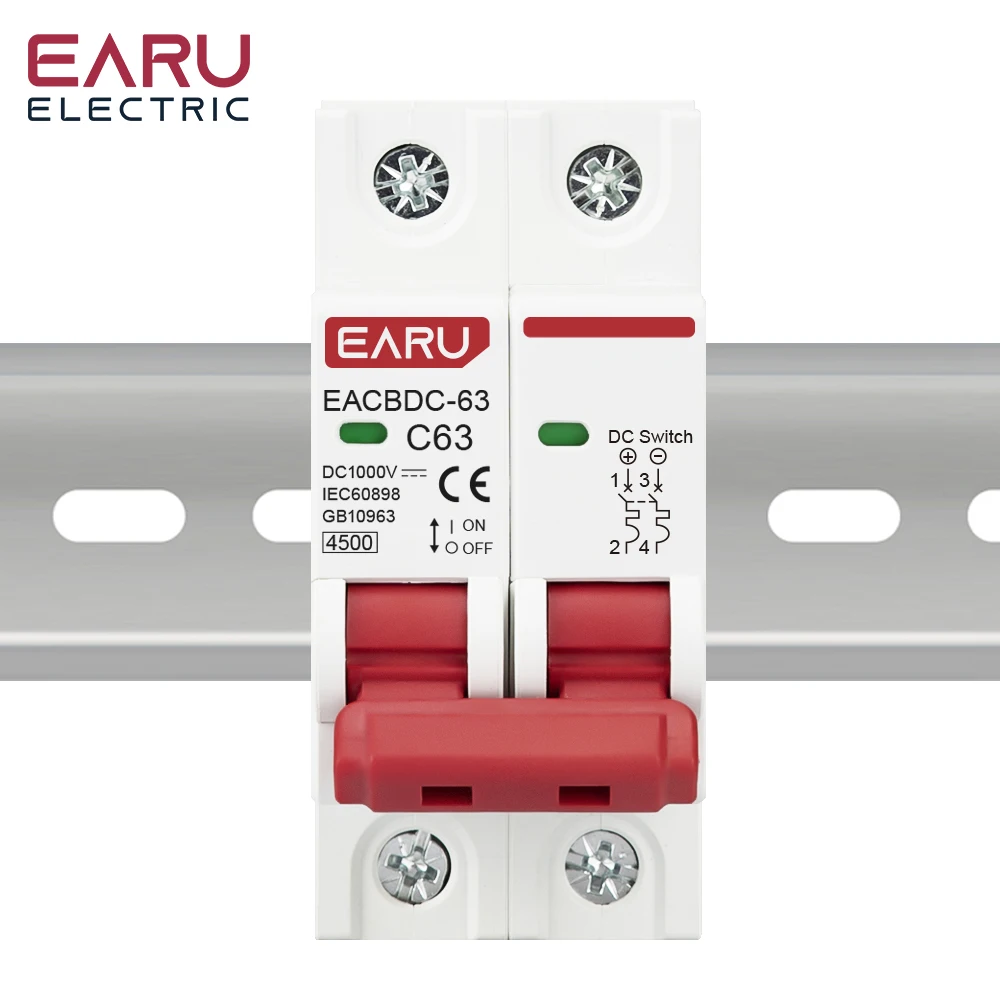

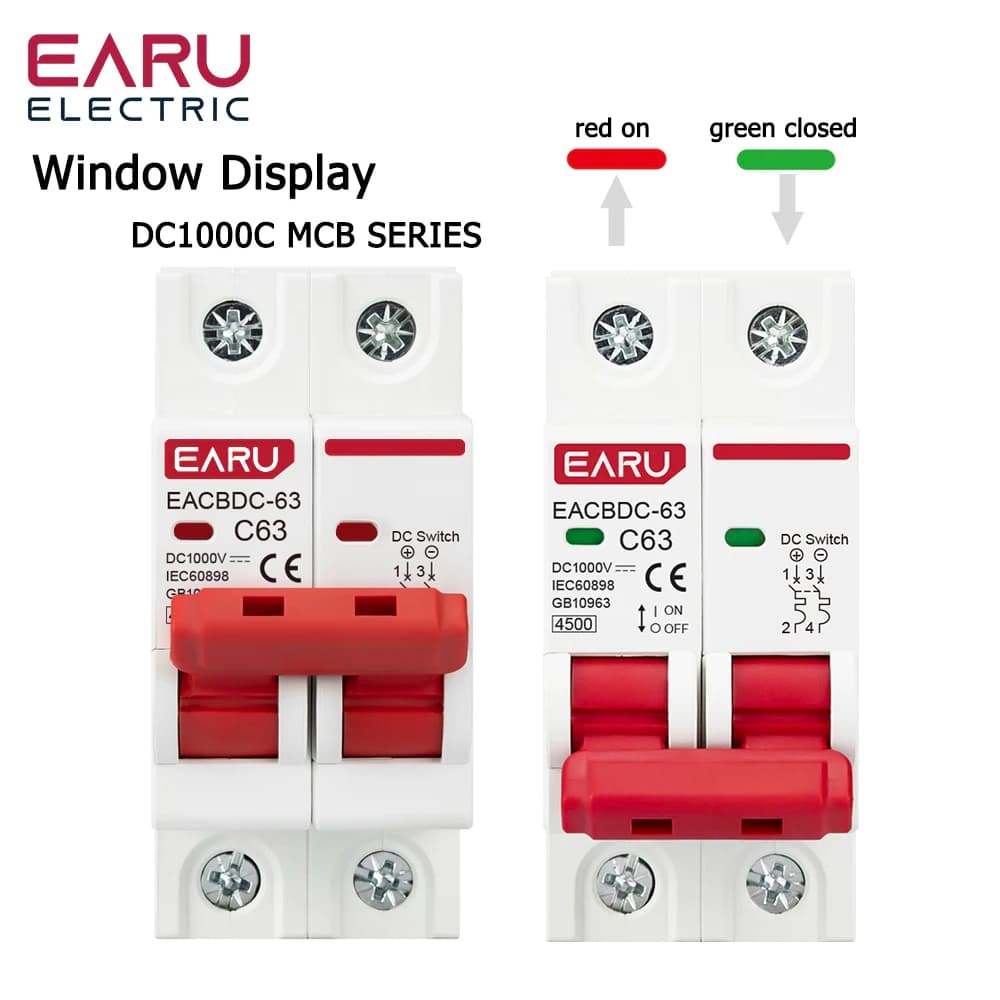

2-Pole DC Solar Circuit Breaker | 1000V Photovoltaic MCB | 6A-63A Overload Protection - Image 1

-11%

1 / 6

$6.95$7.81-11% OFF

Ships to United States · standard est. 10-20 business days

Free standard shipping on orders over $59 (under 2kg). Express available at checkout.

Quantity

2-Pole DC Solar Circuit Breaker | 1000V Photovoltaic MCB | 6A-63A Overload Protection

$6.95$7.81

$6.95

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

Can I use this circuit breaker in a standard AC household panel?: No, this breaker is specifically rated for high-voltage DC systems up to 1000V. Standard AC breakers cannot safely extinguish DC arcs, which can cause fires. Use this model only for solar arrays, battery banks, or other DC applications.
Does it matter how I connect the wires to the positive and negative terminals?: Yes, polarity matters. The breaker housing has clear positive (+) and negative (-) markings that you must follow during installation. Incorrect wiring can prevent the breaker from safely quenching arcs during a fault. Mount it on a standard 35mm DIN rail inside your combiner box or inverter enclosure.
How do I choose the right amperage rating for my solar setup?: We offer models ranging from 6A to 63A to match your specific panel configuration. Check your solar panel's short-circuit current rating and multiply it by 1.56 to find the target size. Just ensure your system voltage doesn't exceed the 1000V DC limit.

Remote Control spec sheet (PDF)

Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.

Not sure which one?

Compare remote control

This product

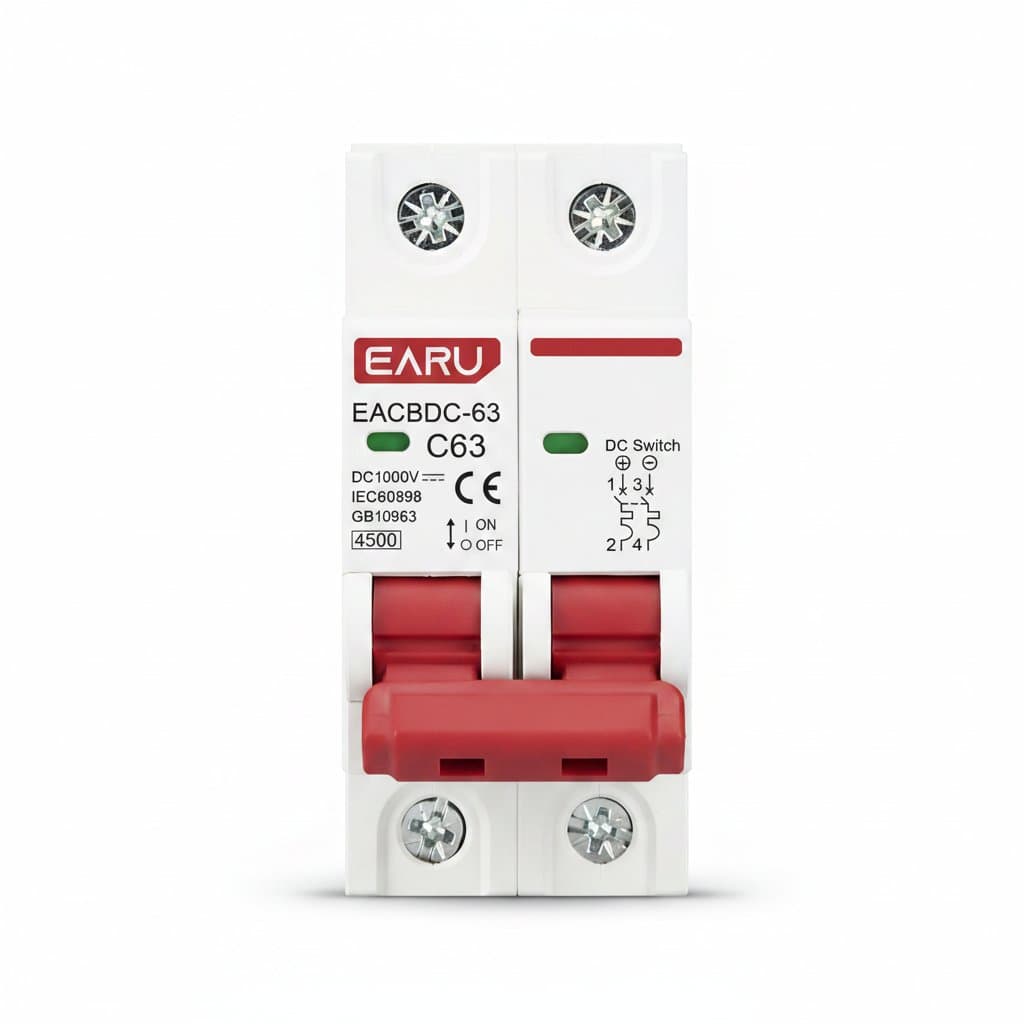

DC 1000V Solar Mini Circuit Breaker for photovoltaic systems, featuring overload protection in amperages from 6A to 63A with a 2-pole design.

2-Pole DC Solar Circuit Breaker | 1000V Photovoltaic MCB | 6A-63A Overload Protection

Price$7.81$6.95

Rating4.9

Sold10,000+

Stock In stock

You're viewing this

Alternative

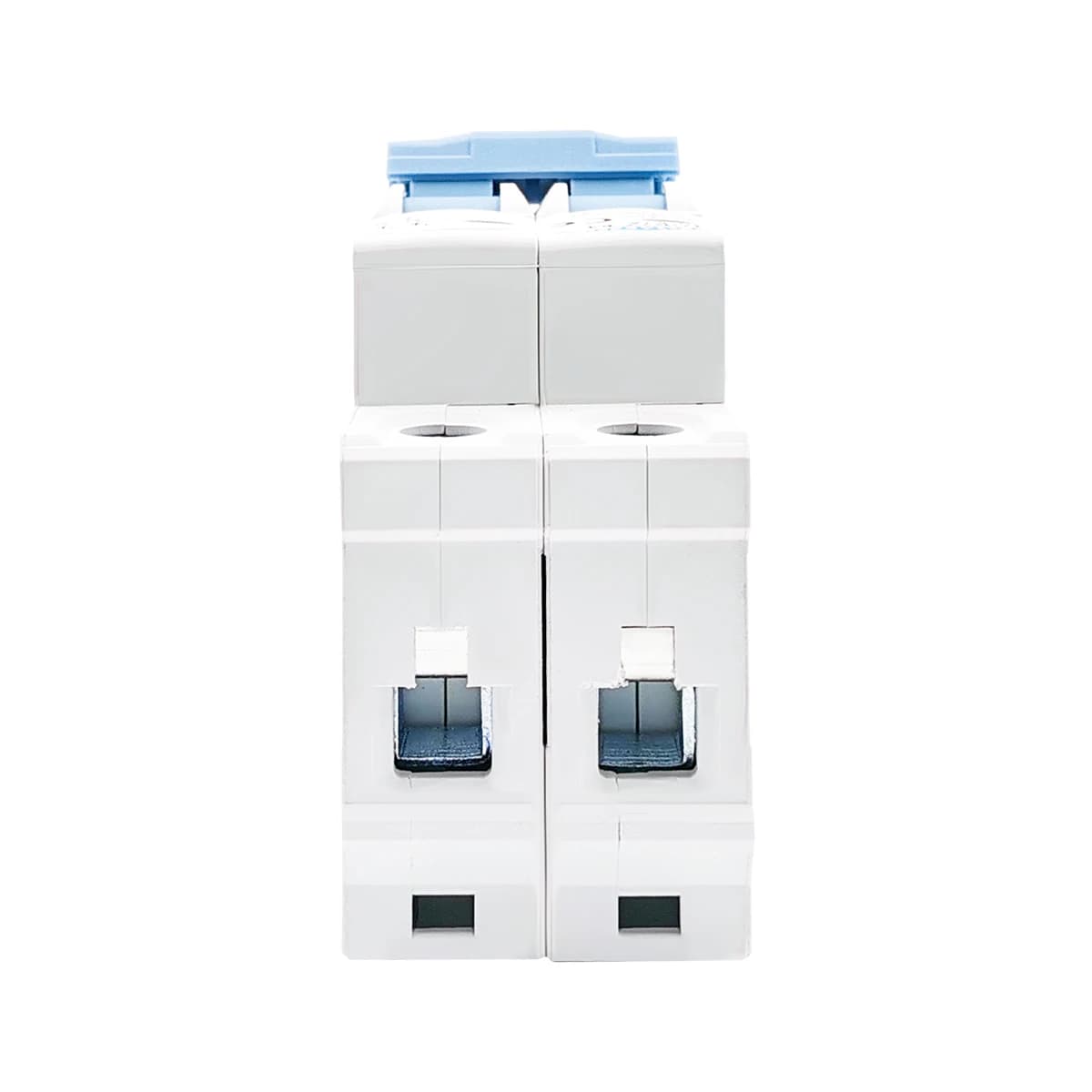

TOMZN TOB7Z 2-pole DC solar circuit breaker for PV systems, rated 1000V with amperage options from 3A to 63A on a 35mm din rail.

Solar DC Circuit Breaker | 1000V PV System Protection | 3A-63A Range | 35mm DIN Rail MCB

Price$11.99

Rating5.0

Sold116+

Stock In stock

View

Alternative

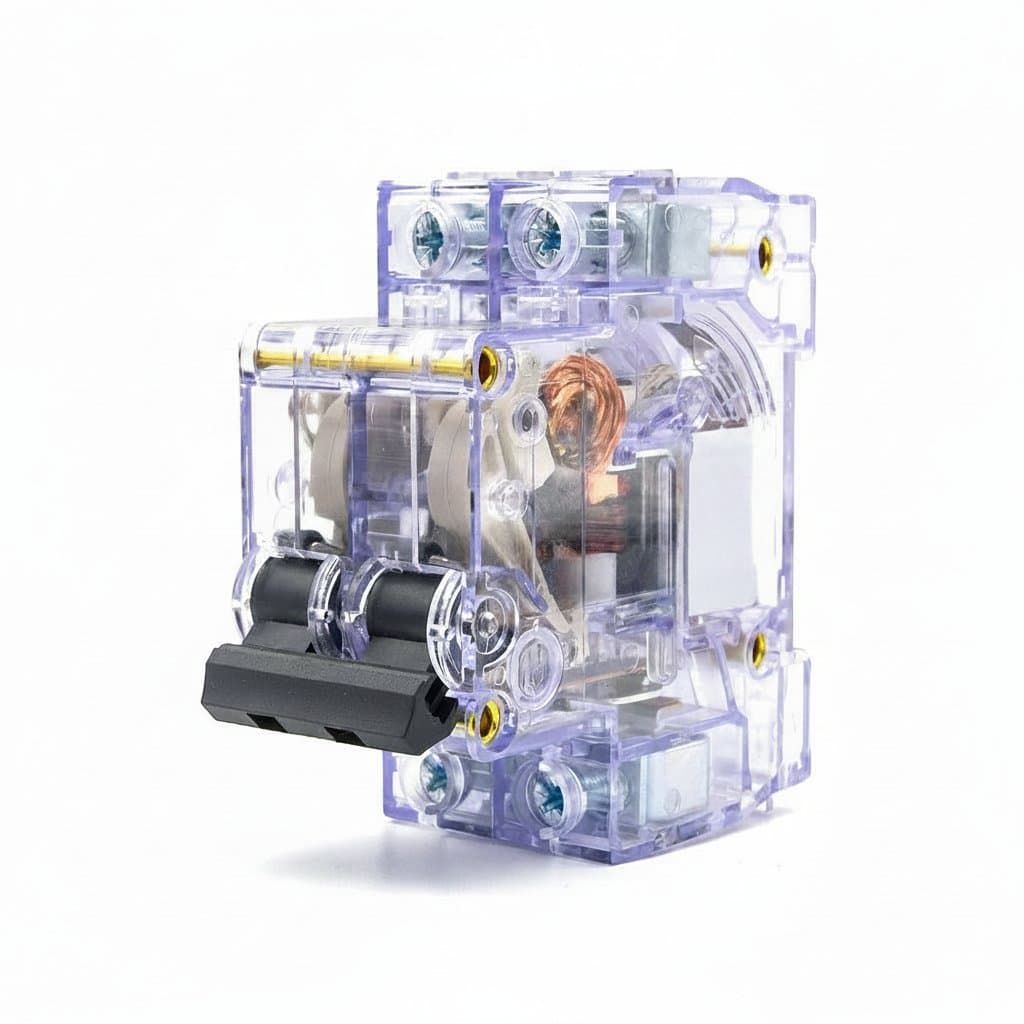

DZ47 2P transparent circuit breaker with visible internal mechanism, rated 16A-63A for overload protection on DIN rail.

2-Pole Circuit Breaker | 16A-63A DIN Rail Mount | 230V/400V Overload Protection

Price$5.95

Rating4.9

Sold66+

Stock In stock

View

Alternative

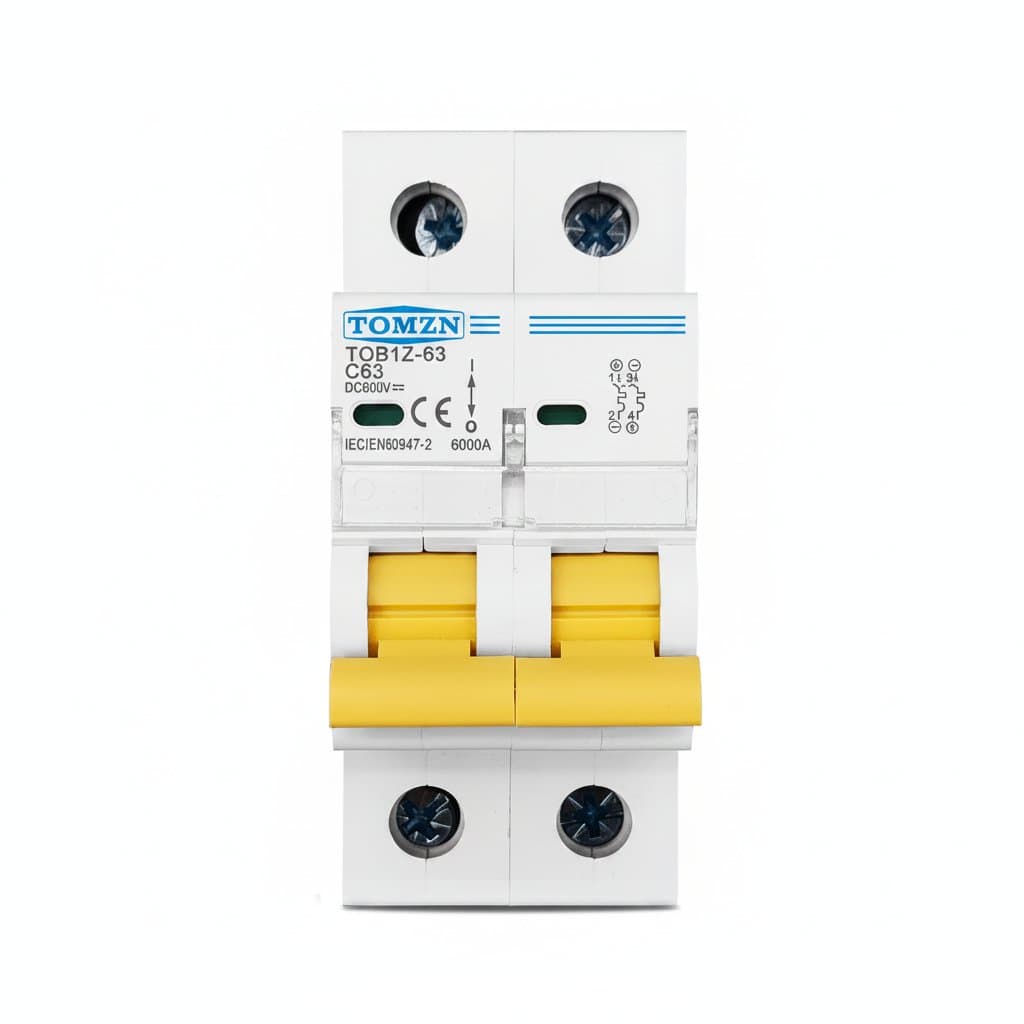

2P DC 600V Circuit Breaker MCB with C curve, a single-pole direct-current fuse for PV solar panel systems and energy storage.

2P DC 600V Circuit breaker MCB C curve single pole direct-current fuse for PV

Price$6.95

Rating4.9

Sold500+

Stock In stock

View

Compare options

More Remote Control

All Remote Control

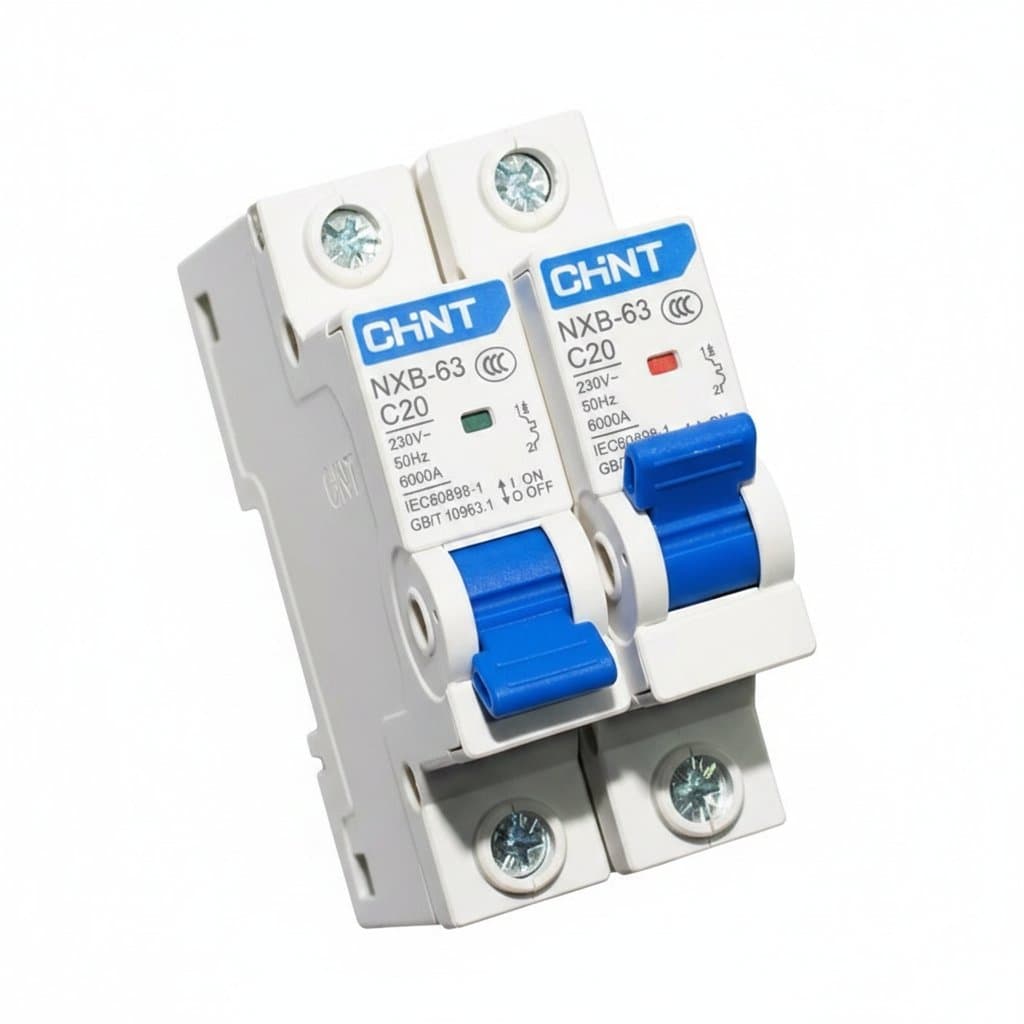

DIN Rail Miniature Circuit Breaker | 1-63A Capacity | 230V AC Household Protection

5.0

$7.95

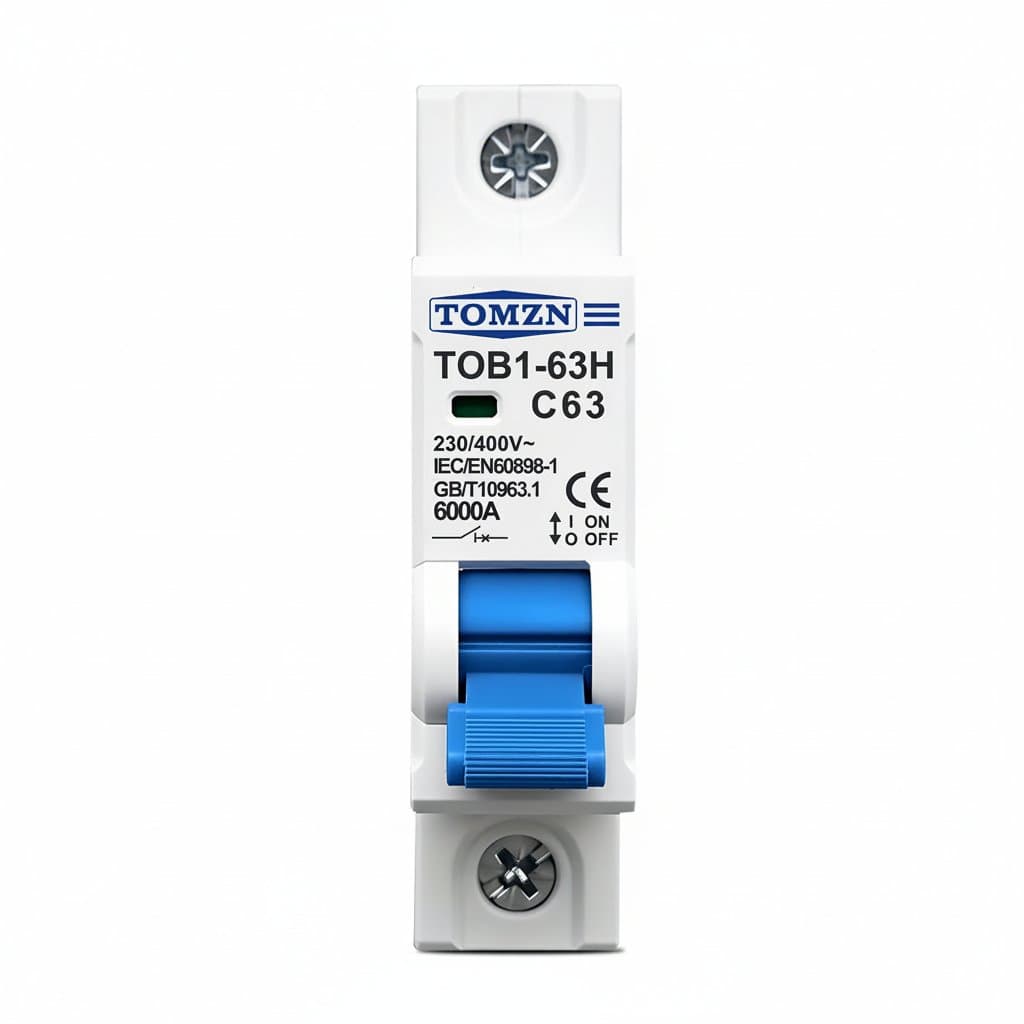

Miniature Circuit Breaker | TOB1-63H C-Type | 3A-63A Capacity | 230/400V AC Protection

4.9

$5.95

C-Type Mini Circuit Breaker | 10A-63A DC 1000V MCB | DIN Rail Mount Overload & Short Circuit Protection

5.0

$13.99

Manual Transfer Switch | 2P 40A/63A DIN Rail Mount | 400V AC Power Isolator

4.9

$16.99

Series DIN Rail Circuit Breaker | 10A-63A DC Disconnect Switch for Solar PV Systems | 500V/1000V

4.9

$15.99

Miniature Circuit Breaker | 1P 230/400V | C-Curve 6A-125A | Overload & Short-Circuit Protection

4.9

$13.99

63A-125A Main Isolating Switch | 400V Circuit Breaker for Home & Industrial Electrical Panels

4.8

$13.99

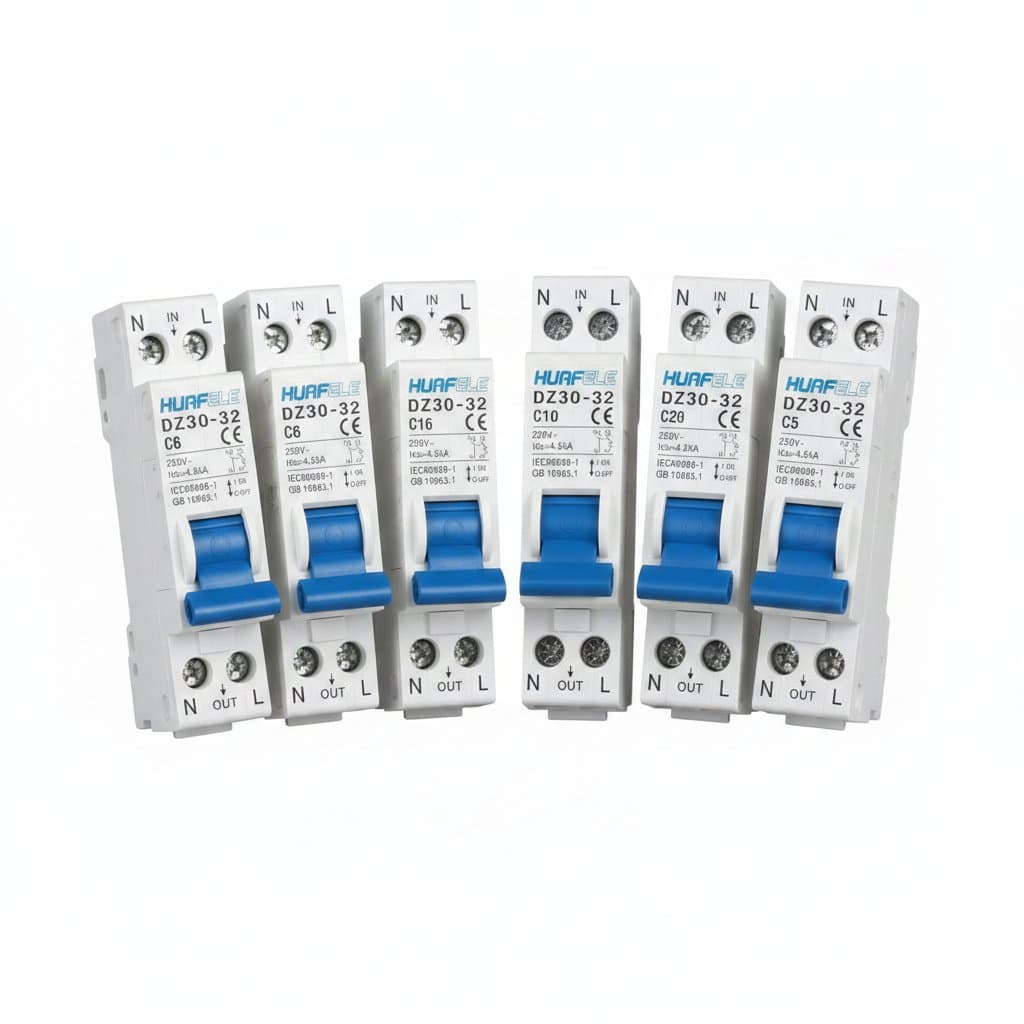

DZ30-32 DIN Rail Miniature Circuit Breaker | 6A-32A MCB for Home Electrical Panel & DIY Projects

4.8

$5.95

-86%

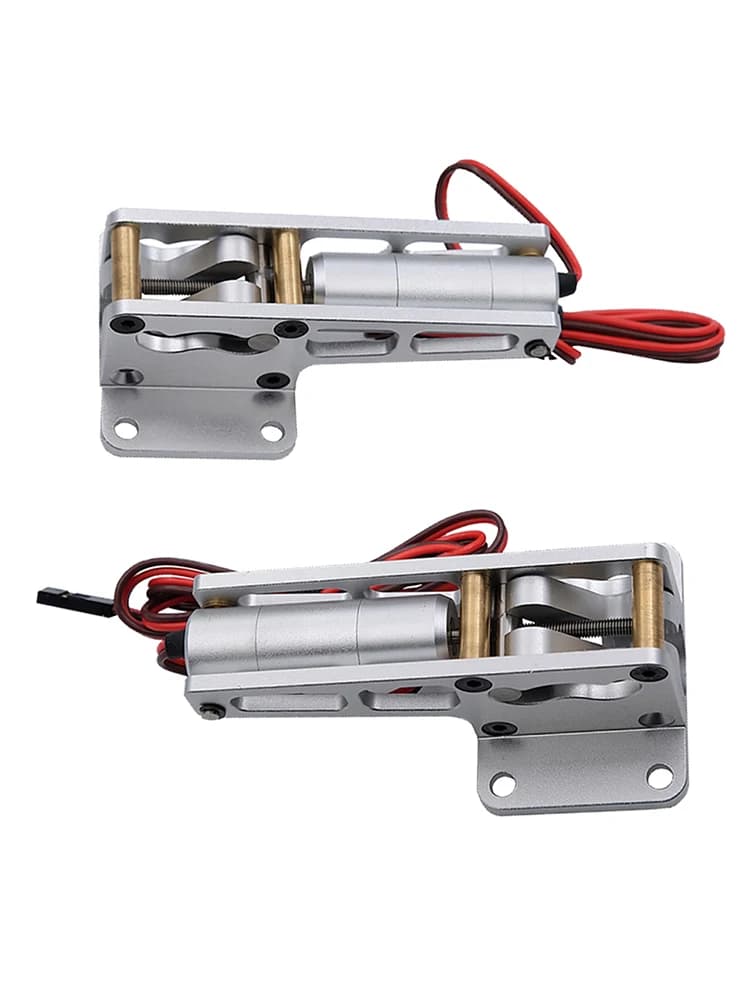

CNC Electric Retracts | 7-8KG, 90-120mm Stroke | For 90-120mm RC Plane Jets & Models

4.8

$11.99$83.11

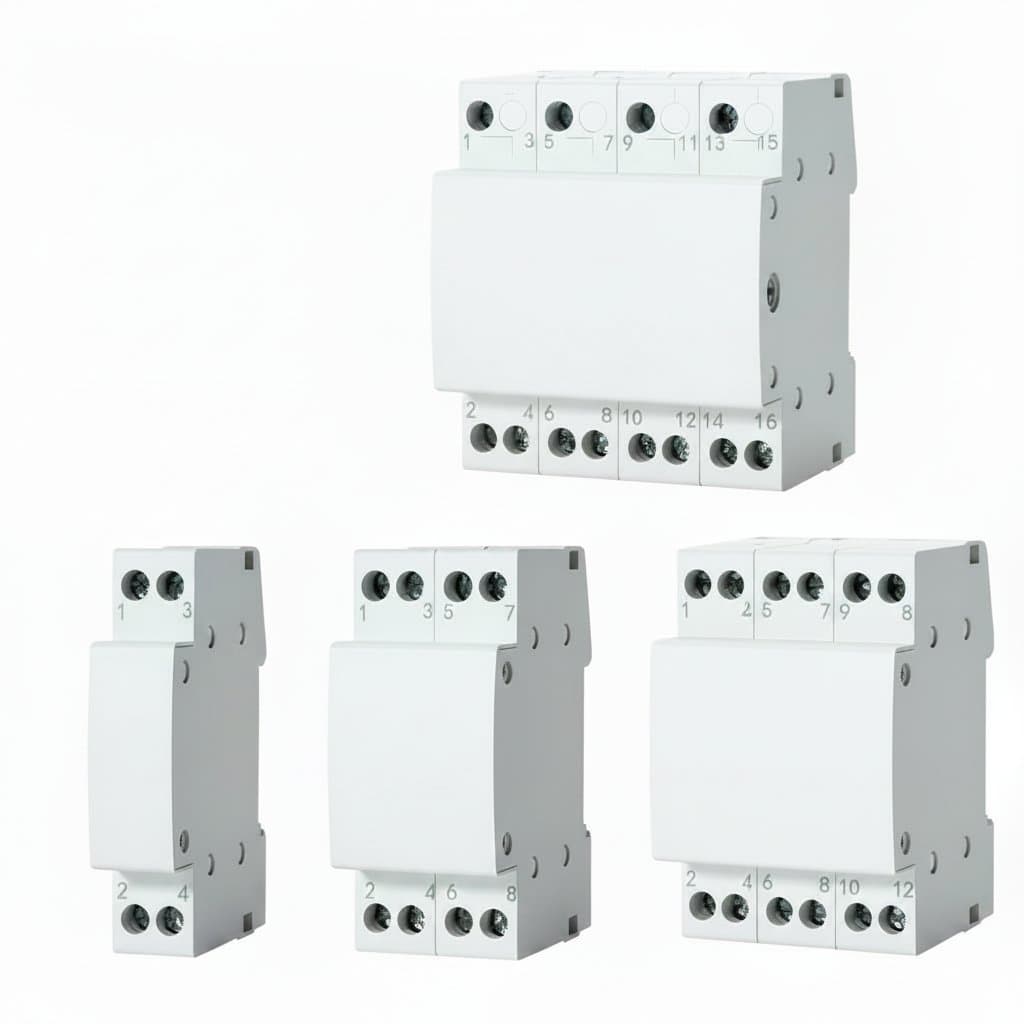

Manual Transfer Switch | 40A-63A DIN Rail Mount | Modular MTS for Dual Power Systems

4.7

$14.99

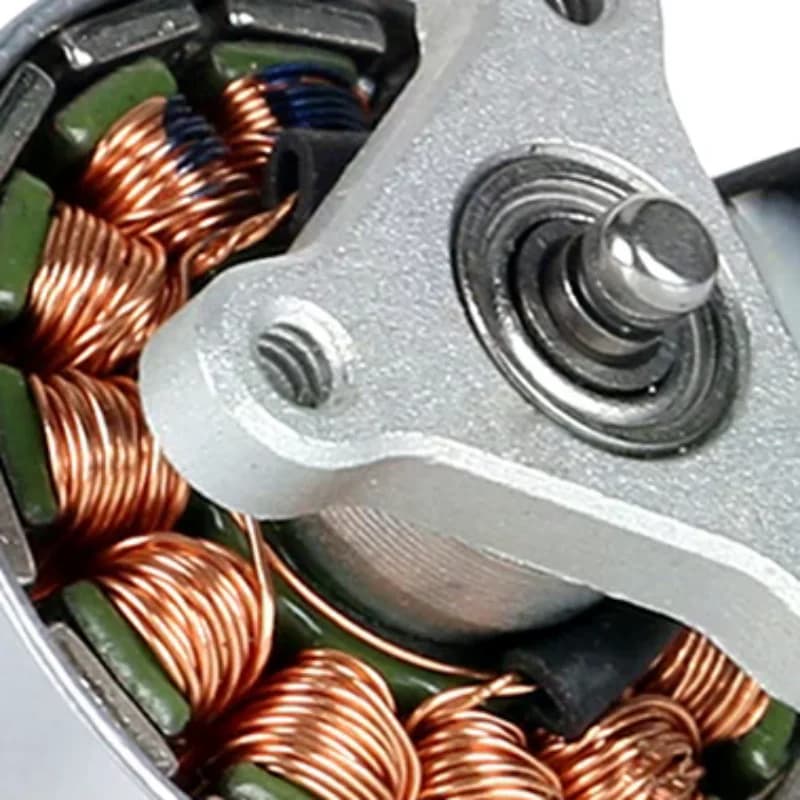

Airplane Brushless Motor | 1503 High-Performance | For 4-Axis Remote Control Planes

$5.95

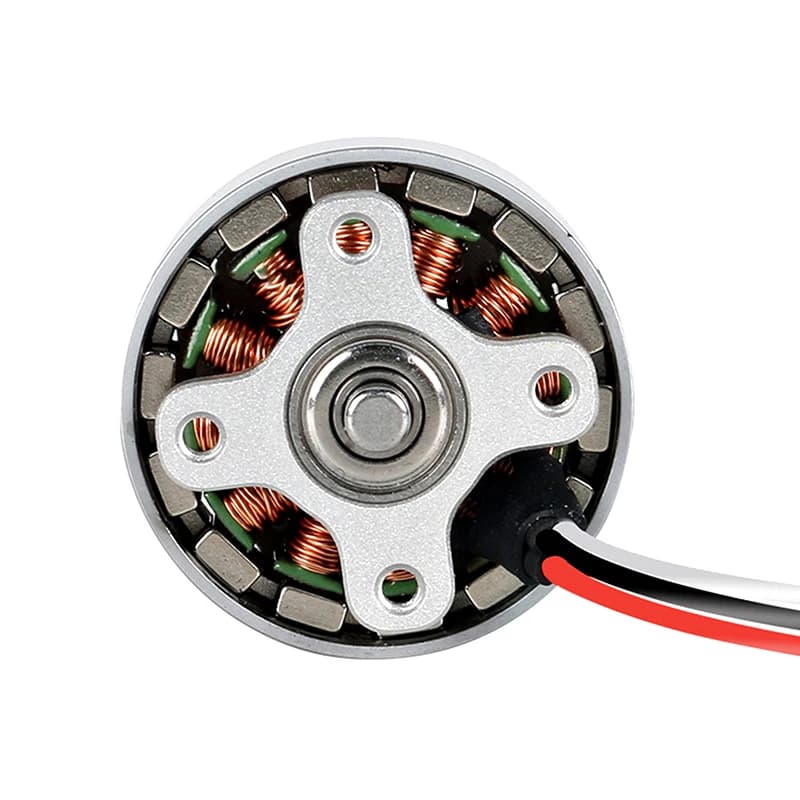

1503 Brushless Motor for RC Airplanes | High-Performance Electric Motor | 4-Axis Aircraft

$15.95

Explore the range

Popular right now

Digital Vernier Caliper | 0-150mm Measuring Tool | Plastic Body

4.9

$6.95

Heat Shrink Tubing Kit | 2:1 Shrink Ratio | 164-328 Pieces, 5 Colors, 8 Sizes

4.9

$7.95

-21%

Damage-Free Picture Hanging Strips | Assorted Sizes | Removable Wall Mounting for Frames & Posters

4.9

$14.99$18.89

Digital Tire Pressure Gauge | Backlit LCD Display | Car & Truck Auto Monitoring

4.9

$14.99

Door & Window Magnetic Sensor | Zigbee Wireless | App Alert Security Alarm

4.9(496)

$12.99

Clutch Alignment Tool | Plastic Dismantle & Correction Kit | Car Repair Accessories

4.9

$29.99

Power Adapter AC 100-240V Input DC Output Supply Charger EU/US 12V Universal Adapter Converter Plug for Camera DVR LED Robot LED

4.9

$15.99

Desoldering Braid | Solder Remover Wick | 2.0mm & 3.5mm x 1.5M

4.9

$5.95

USB-C Endoscope Camera | 5.5mm Lens for Android & PC | Flexible Inspection Borescope with 6 LEDs

4.9

$10.99

Quick-Connect Wire Terminals | 10-75 Pc Assortment | 250V/32A Electrical Connectors

4.9

$8.95

Tool Set 4pc | Tile Grout & Sealant Remover | For Shower, Kitchen & Bathroom Cleaning

4.9

$17.99

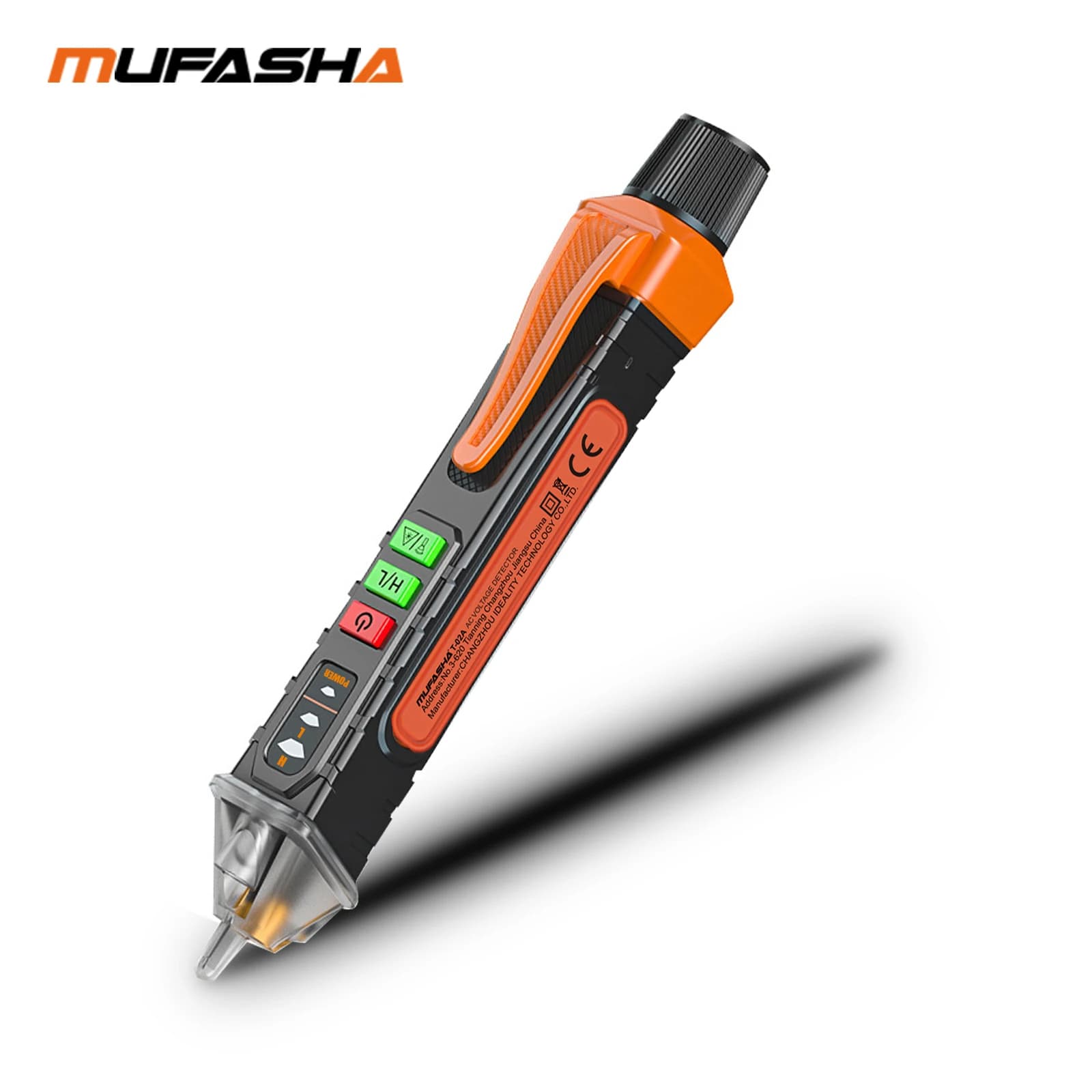

Non-Contact Voltage Tester Pen | AC Voltage Detector | 12-1000V Breakpoint Finder

4.9

$6.95

Engineered for high-voltage DC systems, this 2P DC1000V photovoltaic MCB provides reliable overload and short-circuit protection for solar arrays. With a robust interrupting capacity and current ratings from 6A to 63A, it ensures the safety and longevity of your photovoltaic investment by isolating faults before they cause costly damage. Features and Benefits - 1000V DC Rated Voltage - Specifically designed for high-voltage solar strings, offering superior protection compared to standard AC breakers in demanding PV applications. - Wide Current Range (6A-63A) - Precise amperage selection allows for optimal matching to your specific panel configuration and inverter input requirements. - 2-Pole (2P) Design - Simultaneously breaks both the positive and negative DC conductors, ensuring complete circuit isolation and enhanced user safety during maintenance. - High-Performance Contacts - Constructed with durable materials for reliable arc quenching and long service life under frequent switching and high DC load conditions. - Compact DIN Rail Mount - Easy, standardized installation in PV combiner boxes, inverters, or distribution boards, saving valuable space in enclosures. Applications - Residential & Commercial Solar Arrays - Essential protection for series-connected PV strings, safeguarding panels and wiring from reverse currents and overloads. - Off-Grid Power Systems - A critical safety component in battery-based solar installations, protecting charge controllers and battery banks from fault conditions. - Solar Water Pumping & Agricultural Systems - Provides reliable circuit protection for DC-powered pumps and equipment in remote field applications. - EV Charging Stations & DC Microgrids - Suitable for protecting dedicated DC circuits in emerging renewable energy infrastructure projects. Note: Ensure correct amperage selection based on your system's maximum short-circuit current (Isc) and consult local electrical codes for proper installation.

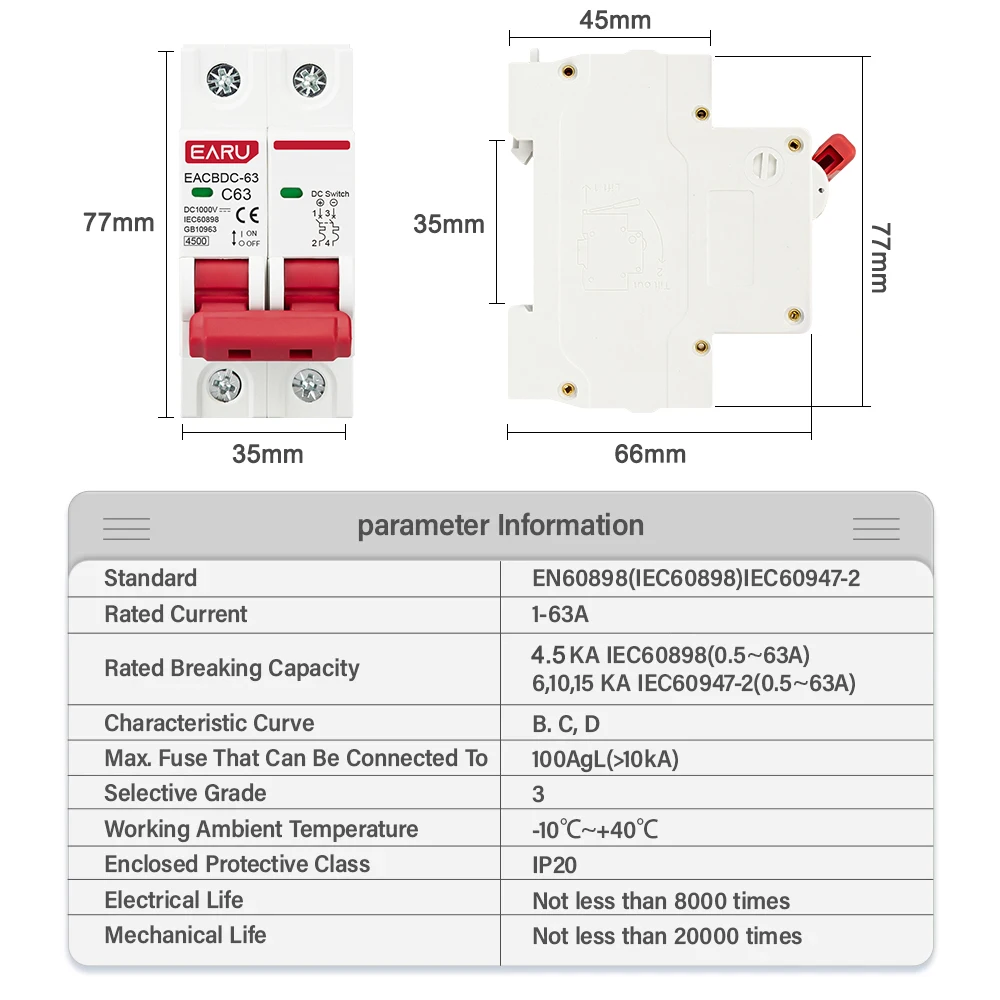

Poles: 2-Pole. Rated Current: 6 A, 10 A, 16 A, 20 A, 25 A, 32 A, 40 A, 50 A, 63 A. Rated Voltage: 1000 V DC. Mounting Type: DIN Rail. Product Type: Miniature Circuit Breaker (MCB). Housing Material: Thermoplastic, UL94 V-0 rated (Inferred). Rated Impulse Withstand Voltage (Uimp): 8 kV. Rated Insulation Voltage (Ui): 1000 V DC. Rated Operational Voltage (Ue): 1000 V DC. Breaking Capacity (Icn): 10 kA (Inferred for DC PV application). Connection Capacity: 25 mm² (Inferred for PV cable sizes). Operating Temperature Range: -25°C to +70°C. Storage Temperature Range: -40°C to +85°C. Standards Compliance: IEC/EN 60898-2, IEC/EN 60947-2 (DC applications). DC Polarity Marking: Clearly marked Positive (+) and Negative (-) poles. Electrical Endurance: ≥ 10,000 mechanical operations. Maximum Torque: 2.5 Nm (Inferred for terminal screws). Mechanical Endurance: ≥ 20,000 mechanical operations. Mounting Style: DIN Rail Mount (35mm). Pole Configuration: 2-Pole (2P). Product Type: Photovoltaic Miniature Circuit Breaker (PV MCB). Protection Degree (Enclosure): IP20. Rated Current (In): 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A (Selectable). Terminal Type: Screw clamp, suitable for copper conductors. Trip Characteristic: DC-specific, likely Type B or PV-specific curve. Q: What are the specifications and dimensions of this DC 1000V Solar Mini Circuit Breaker? A: This PV MCB is rated for a maximum voltage of 1000V DC and is available in current ratings from 6A to 63A. The specific physical dimensions are not provided, but it is a compact 2-pole (2P) design suitable for standard DIN rail mounting in electrical enclosures.. Q: How durable is this 2P DC1000V Photovoltaic MCB for outdoor solar use? A: This circuit breaker is engineered for the demanding conditions of photovoltaic systems. It features robust construction with high-quality internal components designed to handle DC arcing and provide reliable overload protection over an extended lifespan.. Q: Can this DC solar circuit breaker be used for a 48V battery bank or other DC applications? A: Yes, this 2P DC MCB is highly versatile. While optimized for high-voltage solar arrays up to 1000V, its DC-rated design makes it compatible with various DC systems, including battery banks, RV/van electrical systems, and other off-grid power setups.. Q: Does this photovoltaic overload protection switch come with a warranty? A: Warranty information for this specific product is not provided. We recommend contacting the seller directly to inquire about any manufacturer's warranty or guarantee that may apply to your purchase.. Q: Is this DC1000V PV MCB a good value compared to premium brand circuit breakers? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable performance for regular use in solar and DC applications, providing essential protection at a competitive cost..
