Circuit Protection

Selecting the Voltage Type: AC vs. DC Systems

Choosing between AC and DC circuit protection is critical for system safety. DC arcs are much harder to extinguish than AC arcs because DC lacks a natural zero-crossing point. For photovoltaic installations and battery banks, you must specify dedicated DC units. Our range includes options from low-voltage 12V to 72V DC battery isolators up to high-voltage 1000V DC overload protection models designed for solar arrays. For standard industrial control panels and mains distribution, select AC units rated for 230V to 400V.

• Solar PV and Battery Storage: Use dedicated DC miniature circuit breaker models rated for 300V, 600V, or 1000V.

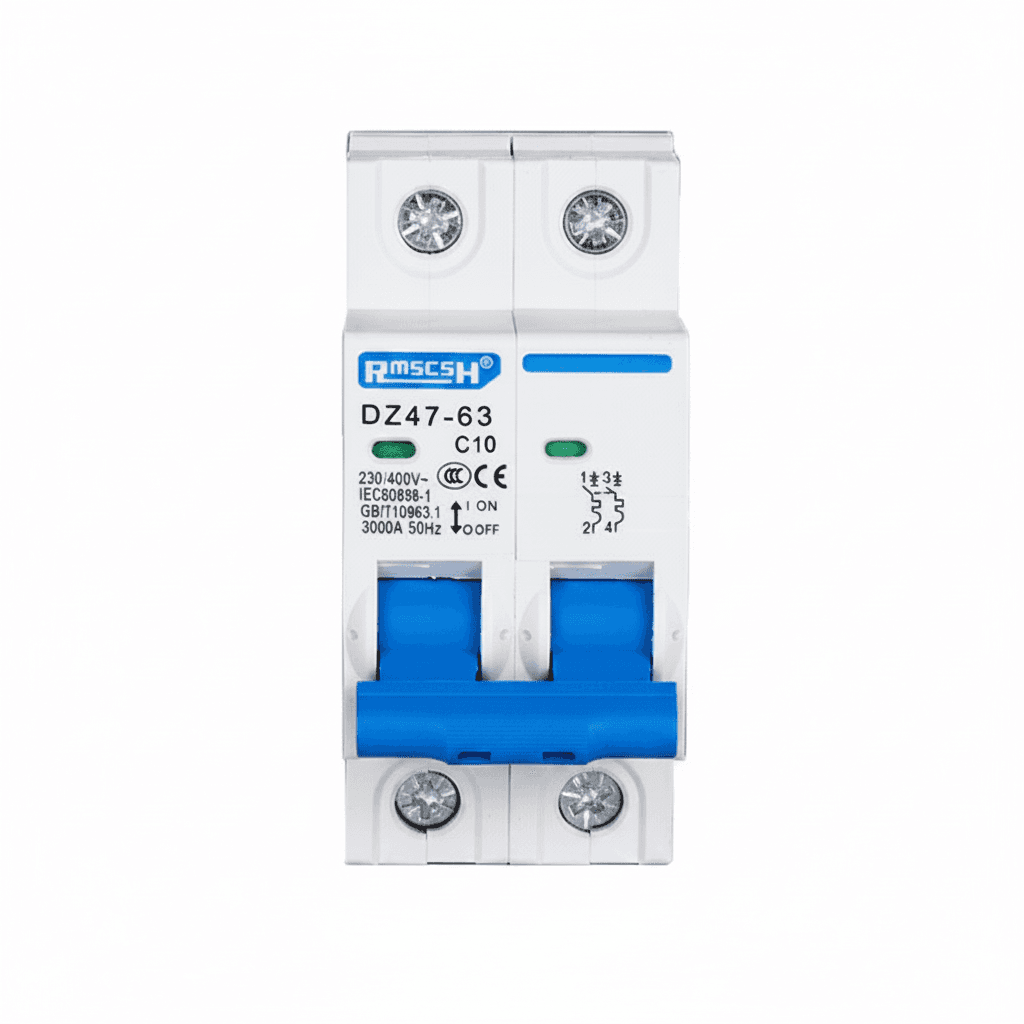

• Standard Industrial Control: Opt for AC DIN rail units like the CHINT NXB-63 series, featuring Type C electromagnetic release curves.

Evaluating Breaking Capacity and Amperage Ratings

You must match the breaker's continuous current rating and short-circuit breaking capacity to your system's calculated fault levels. We supply miniature circuit breakers from low-current 3A control circuit protection up to heavy-duty 150A and 250A frame sizes. For high-energy industrial main lines, look for molded case options with high breaking capacities, such as our solar MCCB units rated up to 50kA breaking capacity.

• Low-Current Controls: Sized from 3A to 63A for branch circuits and local control panels.
• High-Current Feeders: Heavy-duty 80A to 250A ratings for main battery switches and distribution feeders.
• Short-Circuit Capacity: Ensure the short-circuit making and breaking capacity, such as 4.5kV or 50kA, exceeds the potential fault current at the installation point.

Integrating Smart Monitoring vs. Traditional Mechanical Protection

Modern industrial facilities increasingly require real-time telemetry alongside overcurrent protection. A smart circuit breaker combines traditional thermal-magnetic trip mechanisms with wireless connectivity to measure energy consumption and provide remote leakage protection. If your application demands remote power scheduling or automated restarts, look for smart units with integrated kWh metering and over/under voltage protection. For safety-critical isolation or emergency backup power systems, a manual dual-power changeover switch or a standard mechanical breaker remains the industry baseline.
