What does this 2-pole circuit breaker actually protect against?

It guards your circuit from overload and short-circuit faults. The 2-pole design breaks both live conductors at once, so it suits 230V single-phase or 400V two-phase loads. Think water heaters, AC units, or industrial equipment that needs both lines cut on a fault.

How do I pick the right amp rating between 16A and 63A?

Match the breaker to your wire size and the load it feeds. The terminals take solid wire from 1mm² up to 25mm², so heavier circuits can use higher ratings. As a rule, the breaker amps should sit below the cable's safe current limit, not above it.

Will this fit my electrical panel?

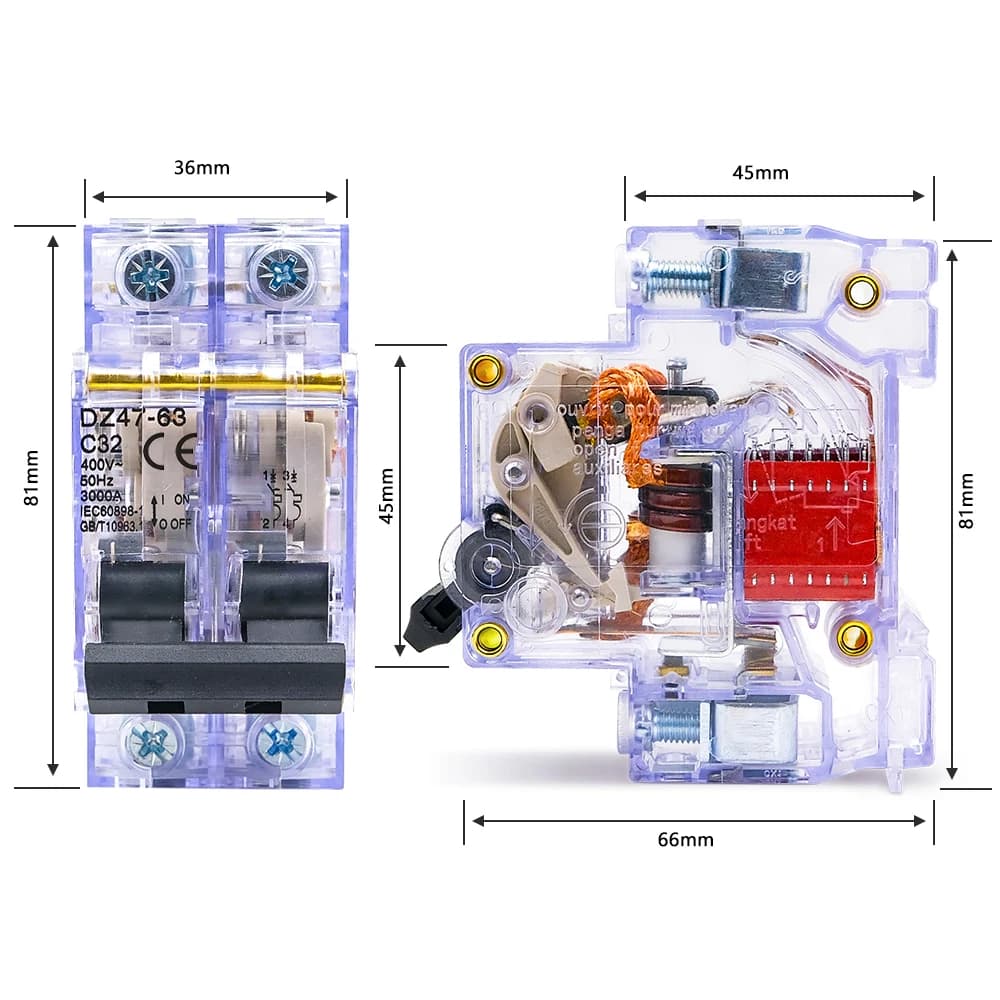

Yes, it clips onto standard 35mm DIN rail found in most consumer units and distribution boards. It takes up 2 modules, about 36mm wide, with 18mm per pole. A licensed electrician should wire and seat it for you.

2-Pole Circuit Breaker | 16A-63A DIN Rail Mount | 230V/400V Overload Protection

Name: 2-Pole Circuit Breaker | 16A-63A DIN Rail Mount | 230V/400V Overload Protection
Brand: Compel
SKU: REMO-00014
Price: 5.95 USD
Availability: InStock

Stock #:TBS-03511

SKU:REMO-00014

2-Pole Circuit Breaker | 16A-63A DIN Rail Mount | 230V/400V Overload Protection - Image 1

1 / 5

$5.95

Ships to United States · standard est. 10-20 business days

Free standard shipping on orders over $59 (under 2kg). Express available at checkout.

Premium DZ47 2P Transparent Circuit Breaker 16A-63A, Overload Protection, DIN Rail, 230V/400V, for Home & Industrial Use. Quality construction with reliable performance for professional and home use....

Poles NumberSelect an option

Quantity

2-Pole Circuit Breaker | 16A-63A DIN Rail Mount | 230V/400V Overload Protection

$5.95

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

What does this 2-pole circuit breaker actually protect against?: It guards your circuit from overload and short-circuit faults. The 2-pole design breaks both live conductors at once, so it suits 230V single-phase or 400V two-phase loads. Think water heaters, AC units, or industrial equipment that needs both lines cut on a fault.
How do I pick the right amp rating between 16A and 63A?: Match the breaker to your wire size and the load it feeds. The terminals take solid wire from 1mm² up to 25mm², so heavier circuits can use higher ratings. As a rule, the breaker amps should sit below the cable's safe current limit, not above it.
Will this fit my electrical panel?: Yes, it clips onto standard 35mm DIN rail found in most consumer units and distribution boards. It takes up 2 modules, about 36mm wide, with 18mm per pole. A licensed electrician should wire and seat it for you.

Remote Control spec sheet (PDF)

Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.

Not sure which one?

Compare remote control

This product

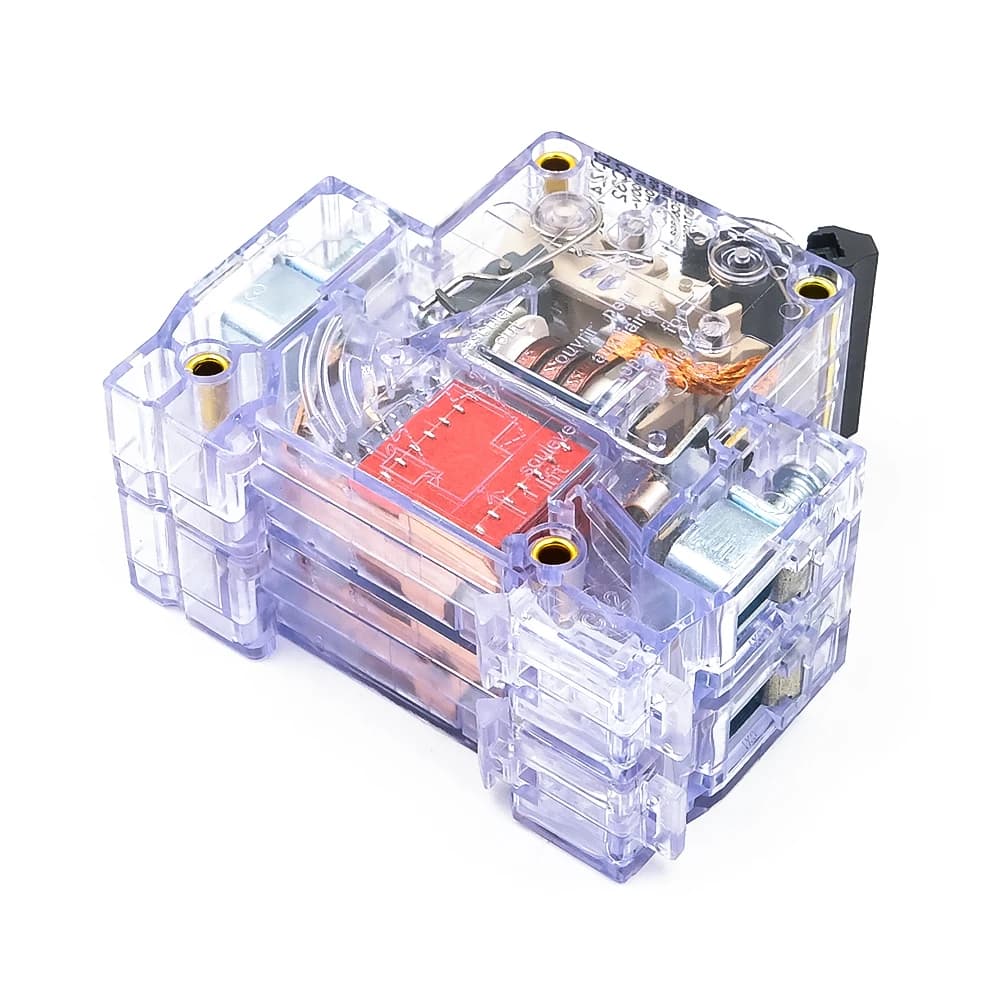

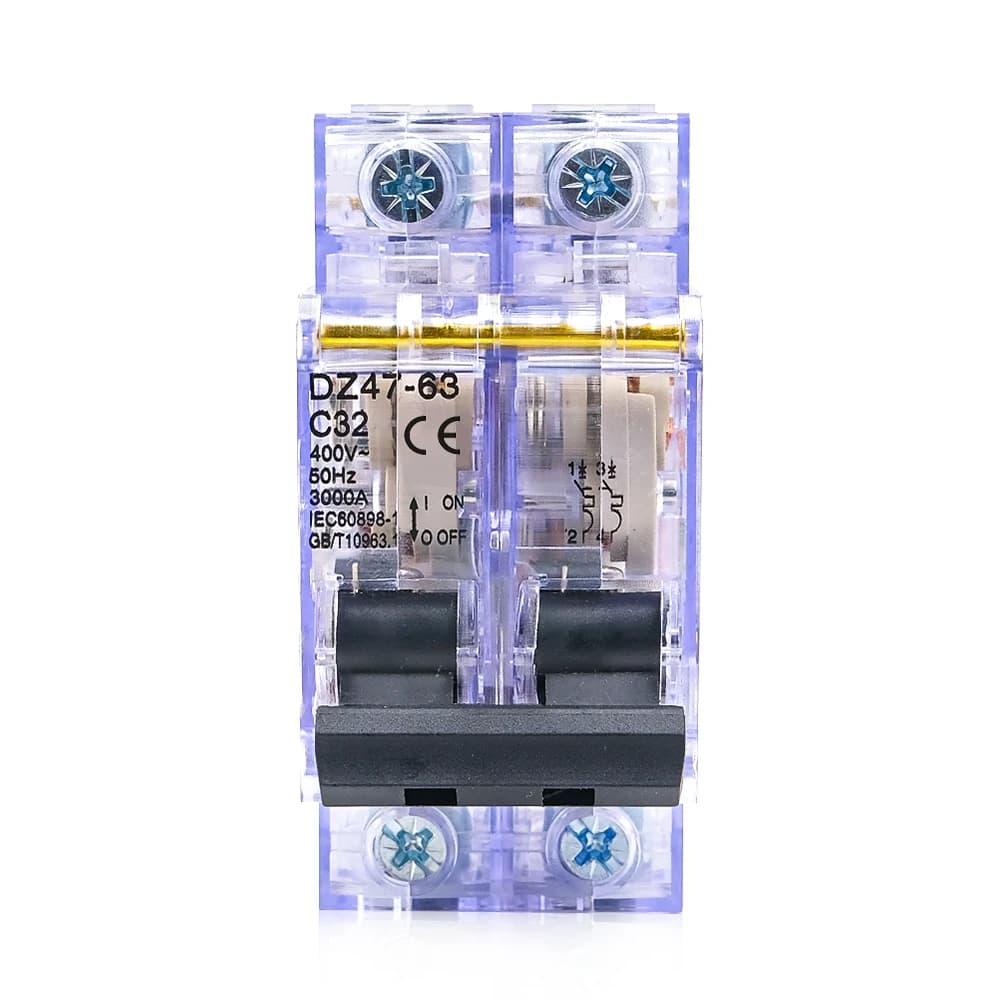

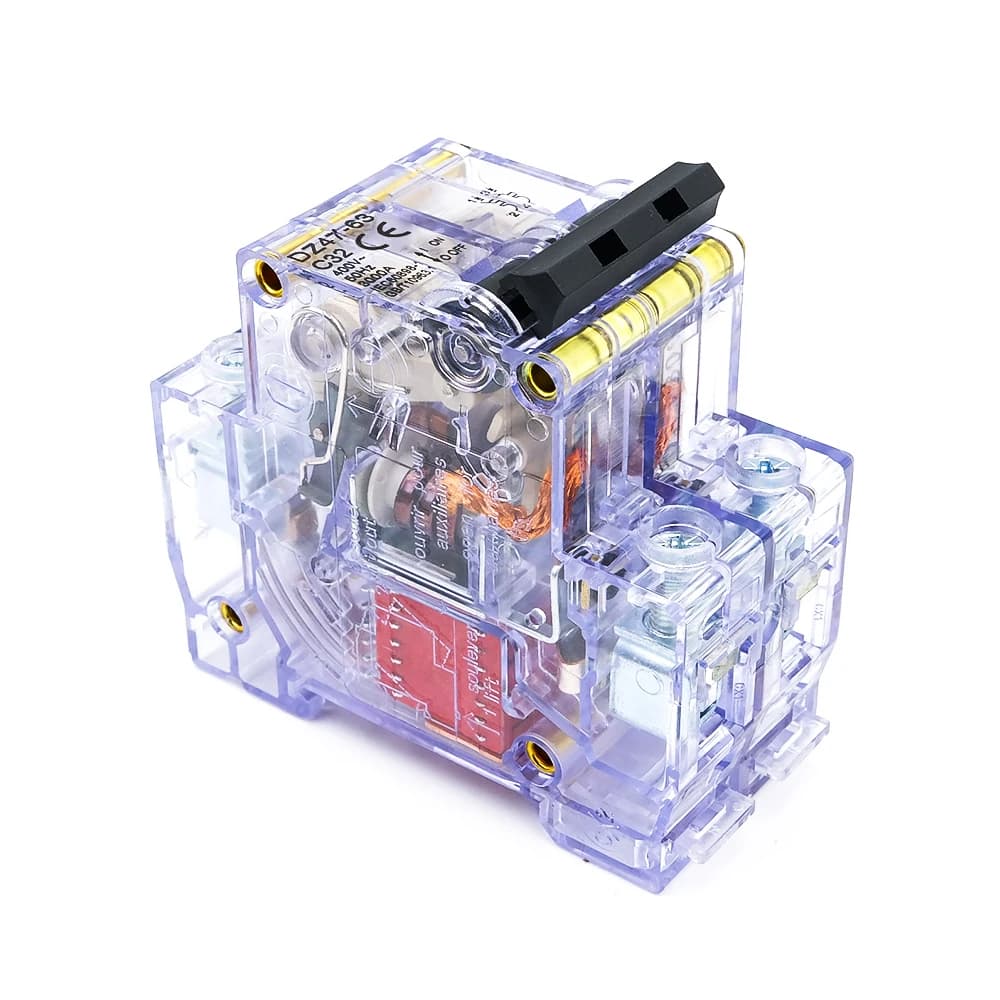

DZ47 2P transparent circuit breaker with visible internal mechanism, rated 16A-63A for overload protection on DIN rail.

2-Pole Circuit Breaker | 16A-63A DIN Rail Mount | 230V/400V Overload Protection

Price$5.95

Rating4.9

Sold66+

Stock In stock

You're viewing this

Alternative

DC 1000V Solar Mini Circuit Breaker for photovoltaic systems, featuring overload protection in amperages from 6A to 63A with a 2-pole design.

2-Pole DC Solar Circuit Breaker | 1000V Photovoltaic MCB | 6A-63A Overload Protection

Price$7.81$6.95

Rating4.9

Sold10,000+

Stock In stock

View

Alternative

2P DC 600V Circuit Breaker MCB with C curve, a single-pole direct-current fuse for PV solar panel systems and energy storage.

2P DC 600V Circuit breaker MCB C curve single pole direct-current fuse for PV

Price$6.95

Rating4.9

Sold500+

Stock In stock

View

Alternative

CHINT NXB-63 miniature circuit breaker for household electrical protection, 1A to 63A rating, mounted on a DIN rail.

DIN Rail Miniature Circuit Breaker | 1-63A Capacity | 230V AC Household Protection

Price$7.95

Rating5.0

Sold80+

Stock In stock

View

Alternative

CILIA miniature circuit breaker MCB for DIN rail mounting, showing 1P+N and 2P models with amperage ratings from 10A to 32A.

DIN Rail Miniature Circuit Breaker | 1P+N & 2P | 10-32A | 120/240V AC | CE Certified

Price$13.95$12.99

RatingNot rated

Sold-

Stock In stock

View

Alternative

TNCE C Type Mini Circuit Breaker for DC systems, a 2-pole 10A to 63A overload protector mounted on a gray din rail.

C-Type Mini Circuit Breaker | 10A-63A DC 1000V MCB | DIN Rail Mount Overload & Short Circuit Protection

Price$13.99

Rating5.0

Sold11+

Stock In stock

View

Alternative

TOMZN 1P AC MCB Mini Circuit Breaker in C type curve, showing compact design with amperage ratings from 3A to 63A for electrical protection.

Miniature Circuit Breaker | TOB1-63H C-Type | 3A-63A Capacity | 230/400V AC Protection

Price$5.95

Rating4.9

Sold2,000+

Stock In stock

View

Alternative

CNC MCB DPN 6000A miniature circuit breaker mounted on a silver DIN rail, showing its 18mm width and 230V 50Hz rating for household electrical panels.

18mm DIN Rail Miniature Circuit Breaker | 6000A 230V 50Hz | DPN MCB for Home Electrical Protection

Price$5.95

RatingNot rated

Sold-

Stock In stock

View

Alternative

DZ30-32 DPN Mini Circuit Breaker MCB for household electrical panels, showing 1P+N design and amperage ratings on a white background.

DZ30-32 DIN Rail Miniature Circuit Breaker | 6A-32A MCB for Home Electrical Panel & DIY Projects

Price$5.95

Rating4.8

Sold70+

Stock In stock

View

Compare options

More Remote Control

All Remote Control

Solar DC Circuit Breaker | 1000V PV System Protection | 3A-63A Range | 35mm DIN Rail MCB

5.0

$11.99

Miniature Circuit Breaker | 1P 230/400V | C-Curve 6A-125A | Overload & Short-Circuit Protection

4.9

$13.99

63A-125A Main Isolating Switch | 400V Circuit Breaker for Home & Industrial Electrical Panels

4.8

$13.99

-86%

CNC Electric Retracts | 7-8KG, 90-120mm Stroke | For 90-120mm RC Plane Jets & Models

4.8

$11.99$83.11

Airplane Brushless Motor | 1503 High-Performance | For 4-Axis Remote Control Planes

$5.95

Explore the range

Popular right now

Digital Vernier Caliper | 0-150mm Measuring Tool | Plastic Body

4.9

$6.95

Heat Shrink Tubing Kit | 2:1 Shrink Ratio | 164-328 Pieces, 5 Colors, 8 Sizes

4.9

$7.95

-21%

Damage-Free Picture Hanging Strips | Assorted Sizes | Removable Wall Mounting for Frames & Posters

4.9

$14.99$18.89

Digital Tire Pressure Gauge | Backlit LCD Display | Car & Truck Auto Monitoring

4.9

$14.99

Door & Window Magnetic Sensor | Zigbee Wireless | App Alert Security Alarm

4.9(496)

$12.99

Clutch Alignment Tool | Plastic Dismantle & Correction Kit | Car Repair Accessories

4.9

$29.99

Power Adapter AC 100-240V Input DC Output Supply Charger EU/US 12V Universal Adapter Converter Plug for Camera DVR LED Robot LED

4.9

$15.99

Desoldering Braid | Solder Remover Wick | 2.0mm & 3.5mm x 1.5M

4.9

$5.95

USB-C Endoscope Camera | 5.5mm Lens for Android & PC | Flexible Inspection Borescope with 6 LEDs

4.9

$10.99

Quick-Connect Wire Terminals | 10-75 Pc Assortment | 250V/32A Electrical Connectors

4.9

$8.95

Tool Set 4pc | Tile Grout & Sealant Remover | For Shower, Kitchen & Bathroom Cleaning

4.9

$17.99

Non-Contact Voltage Tester Pen | AC Voltage Detector | 12-1000V Breakpoint Finder

4.9

$6.95

Premium DZ47 2P Transparent Circuit Breaker 16A-63A, Overload Protection, DIN Rail, 230V/400V, for Home & Industrial Use. Quality construction with reliable performance for professional and home use.

Wire Size (Solid): 1 mm² - 25 mm². Wire Size (Stranded with Ferrule): 1 mm² - 25 mm². Housing Material: Thermoplastic (Transparent Cover). Breaking Capacity (Icn): 6 kA. Rated Operational Voltage (Ue): 230V/400V AC. Rated Insulation Voltage (Ui): 500V AC. Rated Impulse Withstand Voltage (Uimp): 6 kV. Storage Temperature: -40°C to +70°C. Electrical Life: 10,000 cycles. Mechanical Life: 20,000 cycles. Model: DZ47-63 2P. Mounting: DIN Rail (35 mm). Operating Temperature: -25°C to +55°C. Poles: 2. Protection Degree: IP20. Rated Current (In): 16A, 20A, 25A, 32A, 40A, 50A, 63A. Standards Compliance: IEC/EN 60898-1. Terminal Torque: 2.0 N·m. Terminal Type: Screw. Tripping Characteristic: C. Width (Modular): 36mm (2 modules, 18mm per pole). Wire Size (Flexible with ferrule): 1.0 - 16 mm². Wire Size (Rigid): 1.0 - 25 mm². Housing Material: Thermoplastic (Polycarbonate/PA66 blend), Transparent Cover. Rated Impulse Withstand Voltage (Uimp): 4kV. Rated Insulation Voltage (Ui): 500V AC. Rated Operational Voltage (Ue): 230V AC / 400V AC. Breaking Capacity (Icn): 6000A (6kA) at 230/400V AC. Operating Temperature Range: -25°C to +55°C. Storage Temperature Range: -40°C to +70°C. Protection Functions: Overload and Short-Circuit. Standards Compliance: IEC/EN 60898-1, GB/T 10963.1. Electrical Life: ≥ 10,000 operations at rated current. Installation Category: III. Mechanical Life: ≥ 20,000 operations. Model Number: DZ47-63 2P. Mounting Style: DIN Rail (EN 60715, 35mm symmetrical rail). Pole Configuration: 2-Pole (Double Pole). Pollution Degree: 2. Protection Degree (Enclosure): IP20. Rated Current (In): 16A, 20A, 25A, 32A, 40A, 50A, 63A (Selectable). Terminal Torque: 2.0 - 2.5 Nm. Terminal Type: Screw Clamp. Tripping Characteristic: C Curve (Standard for general use, 5-10x In magnetic trip). Q: What are the specifications and dimensions of this DZ47 2P circuit breaker? A: This DZ47 circuit breaker is a 2-pole (2P) model rated for 230V/400V systems. It is available in a range of current ratings from 16A to 63A and is designed for standard DIN rail mounting, making it suitable for both home and industrial electrical panels.. Q: What are the exact dimensions of this DZ47 2P circuit breaker for DIN rail mounting? A: The DZ47-63 2P circuit breaker is designed for standard DIN rail installation. Its compact design fits common electrical panels, but for precise fitting, you should verify the specific rail cutout dimensions in your panel against the product's technical drawing.. Q: How durable is this transparent DZ47 circuit breaker for regular use? A: This circuit breaker is built for reliable performance and long-term durability. The transparent cover allows for easy visual inspection of the internal components, and its robust construction is designed to withstand the demands of both residential and light industrial environments.. Q: How durable is the transparent casing on this 16A-63A circuit breaker for industrial use? A: The transparent casing is made from high-quality, flame-retardant polycarbonate material, offering excellent impact resistance and long-term durability. It allows for easy visual inspection of the internal contacts and trip status, even in demanding environments.. Q: Can this 16A-63A circuit breaker be used for protecting remote control toy charging stations? A: Yes, this circuit breaker is ideal for protecting dedicated circuits like remote control toy charging stations. Its overload protection feature helps safeguard your valuable equipment and home wiring from potential electrical faults caused by chargers or power supplies.. Q: Can this 230V/400V DZ47 breaker be used to protect a remote control toy charging station? A: Yes, this circuit breaker is an excellent choice for protecting dedicated circuits like a toy charging station. Its overload protection from 16A to 63A can safeguard against electrical faults, ensuring safe operation for your home workshop or play area setup.. Q: Does this DIN rail circuit breaker come with a warranty or guarantee? A: Yes, this product is backed by a standard manufacturer's warranty against defects in materials and workmanship. For specific warranty duration and claim details, please refer to the seller's product page or contact them directly.. Q: Does this customizable DZ47-63 2P model come with any warranty or guarantee? A: As a customizable product focused on reliable performance, it is backed by a standard manufacturer's guarantee against defects in materials and workmanship. For specific warranty duration and terms, please refer to the seller's detailed policy at the point of purchase.. Q: Is this DZ47 2P circuit breaker a good value compared to other options? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable overload protection and transparent design for monitoring, making it a cost-effective choice for home workshops and industrial use.. Q: Is this DZ47 2P transparent circuit breaker a good value compared to other options? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable performance for regular use, featuring transparent casing for inspection and robust overload protection up to 63A..
