Can I use this circuit breaker for standard AC home electrical panels?

No, this breaker is designed specifically for high-voltage DC solar systems up to 1000V. It uses a magnetic blow-out and de-ion chamber to safely extinguish dangerous DC electrical arcs. Standard AC breakers cannot handle these arcs and will fail if you use them here.

What current and pole options can I choose from to match my solar array?

We offer this breaker in current ratings ranging from 6A all the way up to 125A. You can select single, double, triple, or four-pole configurations to match your system design. This range makes it easy to find the exact match for your specific solar array.

How does this breaker mount, and what size wires can I connect to it?

This miniature circuit breaker mounts directly onto a standard DIN rail to save space. Each pole has a width of 18 millimeters, allowing for clean layouts in your combiner box. The connection terminals can accommodate heavy-duty PV wiring up to 25 square millimeters.

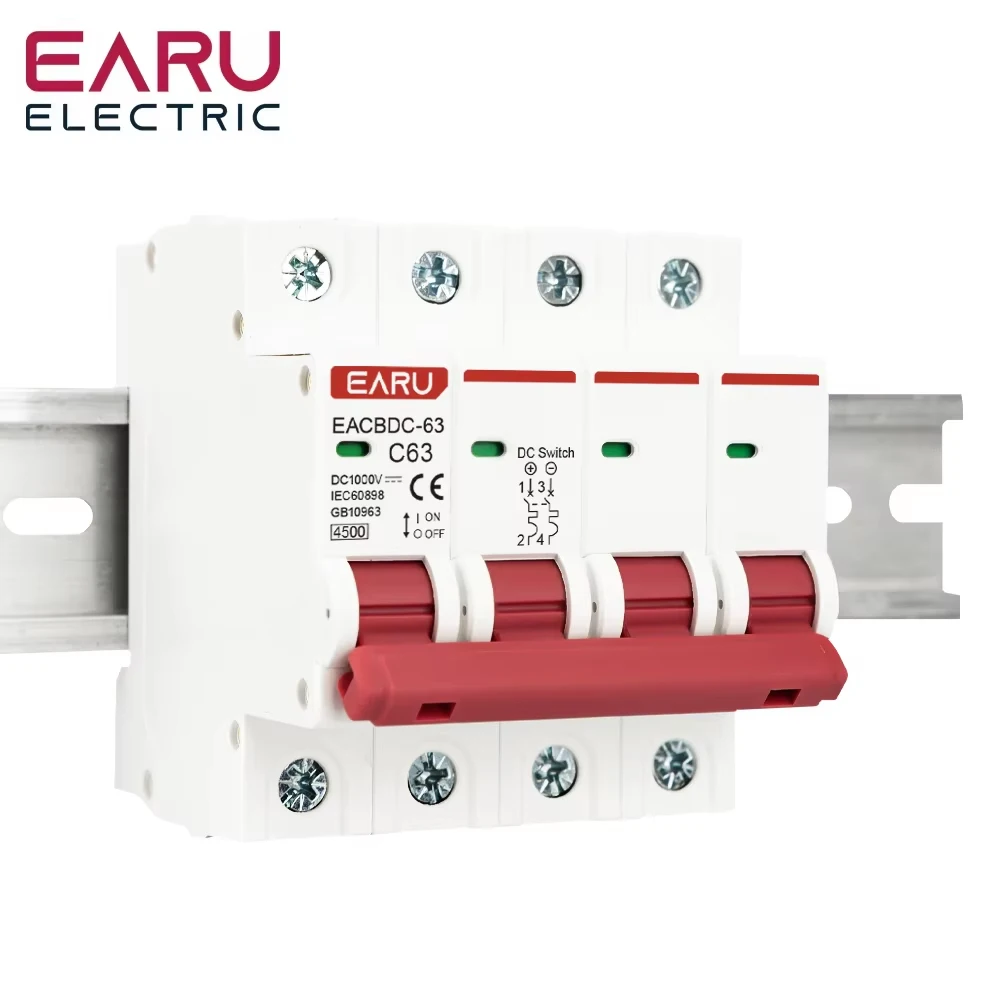

Solar PV DC Circuit Breaker | 1000V Overload Protection | 1P-4P | 6A-125A MCB

Name: Solar PV DC Circuit Breaker | 1000V Overload Protection | 1P-4P | 6A-125A MCB
Brand: Compel
SKU: REMO-00032
Price: 32.95 USD
Availability: InStock

Stock #:TBS-03558

SKU:REMO-00032

Solar PV DC Circuit Breaker | 1000V Overload Protection | 1P-4P | 6A-125A MCB - Image 1

1 / 5

$32.95

Ships to United States · standard est. 10-20 business days

Free standard shipping on orders over $59 (under 2kg). Express available at checkout.

Poles NumberSelect an option

Quantity

Solar PV DC Circuit Breaker | 1000V Overload Protection | 1P-4P | 6A-125A MCB

$32.95

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

Can I use this circuit breaker for standard AC home electrical panels?: No, this breaker is designed specifically for high-voltage DC solar systems up to 1000V. It uses a magnetic blow-out and de-ion chamber to safely extinguish dangerous DC electrical arcs. Standard AC breakers cannot handle these arcs and will fail if you use them here.
What current and pole options can I choose from to match my solar array?: We offer this breaker in current ratings ranging from 6A all the way up to 125A. You can select single, double, triple, or four-pole configurations to match your system design. This range makes it easy to find the exact match for your specific solar array.
How does this breaker mount, and what size wires can I connect to it?: This miniature circuit breaker mounts directly onto a standard DIN rail to save space. Each pole has a width of 18 millimeters, allowing for clean layouts in your combiner box. The connection terminals can accommodate heavy-duty PV wiring up to 25 square millimeters.

Remote Control spec sheet (PDF)

Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.

Not sure which one?

Compare remote control

This product

DC 1000V Solar Mini Circuit Breaker for photovoltaic PV systems, available in 1P to 4P configurations with 6A to 125A overload protection.

Solar PV DC Circuit Breaker | 1000V Overload Protection | 1P-4P | 6A-125A MCB

Price$32.95

Rating4.9

Sold2,000+

Stock In stock

You're viewing this

Alternative

Premium photovoltaic DC and AC circuit breaker switch for solar panel systems, offering overload and short circuit protection.

Solar PV Circuit Breaker | 1-4 Pole | 1000V DC / 400V AC | Overload & Short Circuit Protection

Price$33.95

Rating5.0

Sold11+

Stock In stock

View

Alternative

DC 1000V Solar Mini Circuit Breaker for PV systems, offering 6A to 125A overload protection in 1P, 2P, 3P, and 4P configurations.

DC 1000V 1P 2P 3P 4P Solar Mini Circuit Breaker Overload Protection Switch6A~63A/80A 100A 125A MCB for Photovoltaic PV System

Price$25.95

Rating4.9

Sold365+

Stock In stock

View

Alternative

TOMZN 2P 1000V DC Solar Molded Case Circuit Breaker for photovoltaic PV system overload and short circuit protection.

2-Pole DC Solar Circuit Breaker | 1000V MCCB for Photovoltaic Systems | Overload Protection

Price$75.41$53.99

Rating4.9

Sold800+

Stock In stock

View

Alternative

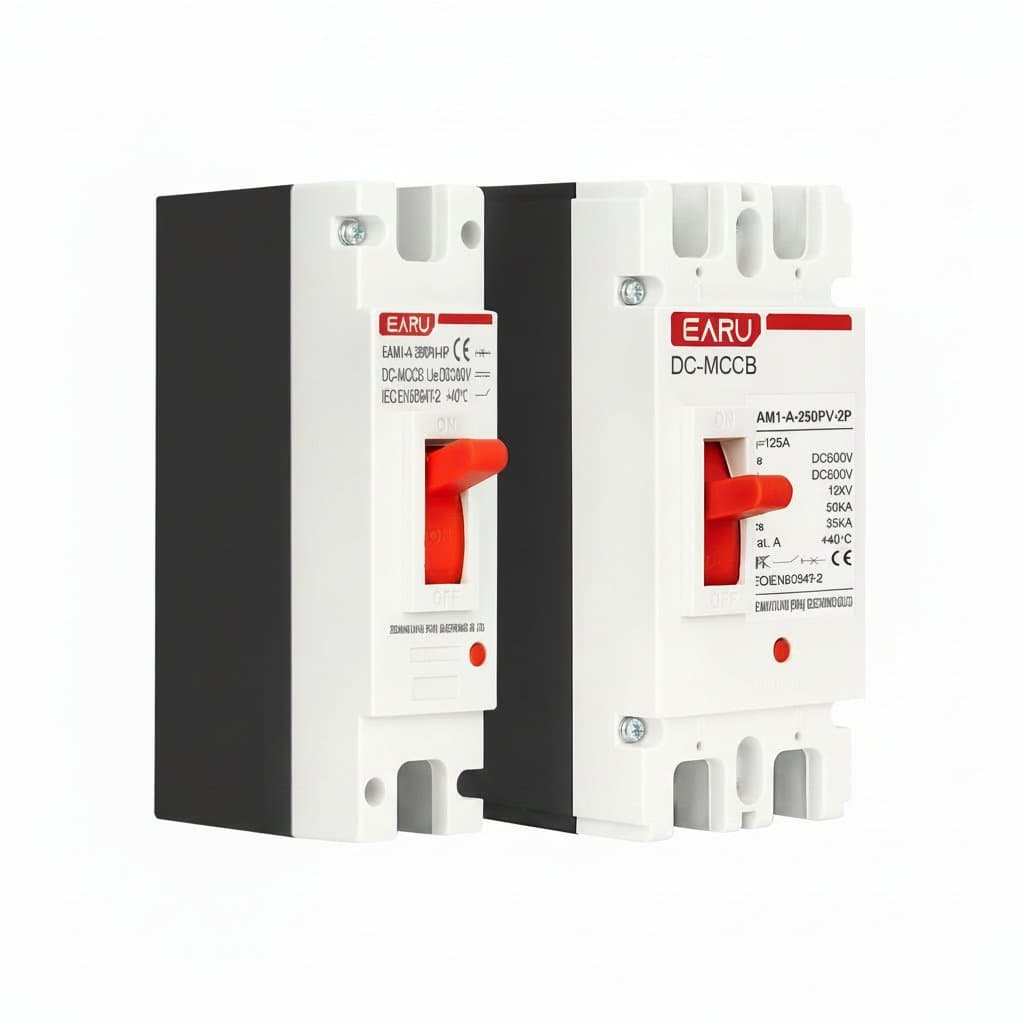

DC Solar Molded Case Circuit Breaker MCCB, 125A to 250A rating for 300V-600V photovoltaic PV system overload protection switch.

Solar PV Molded Case Circuit Breaker | 125A-250A | 300V-600V DC Overload Protection

Price$41.95

Rating4.7

Sold500+

Stock In stock

View

Alternative

DZ47Z 500V/1000V Din Rail Mount Circuit Breaker for Solar PV Systems, showing 10A to 63A amperage ratings on a white MCB.

Series DIN Rail Circuit Breaker | 10A-63A DC Disconnect Switch for Solar PV Systems | 500V/1000V

Price$15.99

Rating4.9

Sold700+

Stock In stock

View

Alternative

DELIXI Mini Circuit Breaker MCB with DZ47 model, showing 1P 2P 3P 4P variants for 10-63A electrical protection on a din rail.

DELIXI Mini Circuit Breaker MCB 1P 2P 3P 4P DZ47 10-63A AC 230V 400V Over Short Current Leakage Protection Din Rail Mounting

Price$25.95

Rating5.0

Sold61+

Stock In stock

View

Alternative

DELIXI Mini Circuit Breaker MCB with DZ47 model, showing 1P 2P 3P 4P variants for 10-63A electrical protection, mounted on a din rail.

DELIXI Mini Circuit Breaker MCB 1P 2P 3P 4P DZ47 10-63A AC 230V 400V Over Short Current Leakage Protection Din Rail Mounting

Price$25.95

Rating5.0

Sold52+

Stock In stock

View

Alternative

Schneider IC65N circuit breaker air switch in various amperages, featuring a durable white housing for reliable electrical protection.

Schneider Circuit breaker Air switch IC65N C25 1P+N C20A 2P 3P C25A 3P C63A 4P 1A 2A 4A 6A 10A 16A 20A 25A 32A 40A 50A 63A

Price$19.99

Rating5.0

Sold51+

Stock In stock

View

Compare options

4.8

$13.99

Explore the range

Popular right now

Digital Vernier Caliper | 0-150mm Measuring Tool | Plastic Body

4.9

$6.95

Heat Shrink Tubing Kit | 2:1 Shrink Ratio | 164-328 Pieces, 5 Colors, 8 Sizes

4.9

$7.95

Engineered for high-voltage DC solar arrays, this 1000V DC Mini Circuit Breaker provides reliable overload and short-circuit protection for photovoltaic systems. With a wide current range from 6A to 125A and 1P to 4P configurations, it offers precise circuit isolation to safeguard your valuable PV components and maximize system uptime. Features and Benefits - 1000V DC Rated Voltage - Specifically designed for the high DC voltages common in modern solar strings, ensuring safe and stable operation in demanding PV environments. - Wide Current Range (6A-125A) - Offers precise protection matching for various system sizes, from small residential setups to larger commercial arrays. - 1P, 2P, 3P, and 4P Pole Configurations - Provides flexible solutions for isolating positive, negative, or both conductors in different system grounding configurations. - Compact DIN Rail Design - Saves valuable space in combiner boxes and distribution boards, allowing for clean and organized panel layouts. - Thermal-Magnetic Trip Mechanism - Delivers reliable protection against both overloads and short-circuits, responding quickly to fault conditions to prevent damage. Applications - PV String Combiner Box Protection - Acts as the main disconnect and overcurrent device for individual solar panel strings before they parallel at the combiner. - Inverter Input Circuit Protection - Safeguards the DC input side of grid-tie or off-grid inverters from reverse current and fault conditions. - Battery Bank Circuit Protection - Provides essential overcurrent protection for DC-coupled battery systems in solar-plus-storage installations. - Sub-Array or System Disconnect - Serves as an isolator switch for maintenance or emergency shutdown of specific sections within a larger PV array.

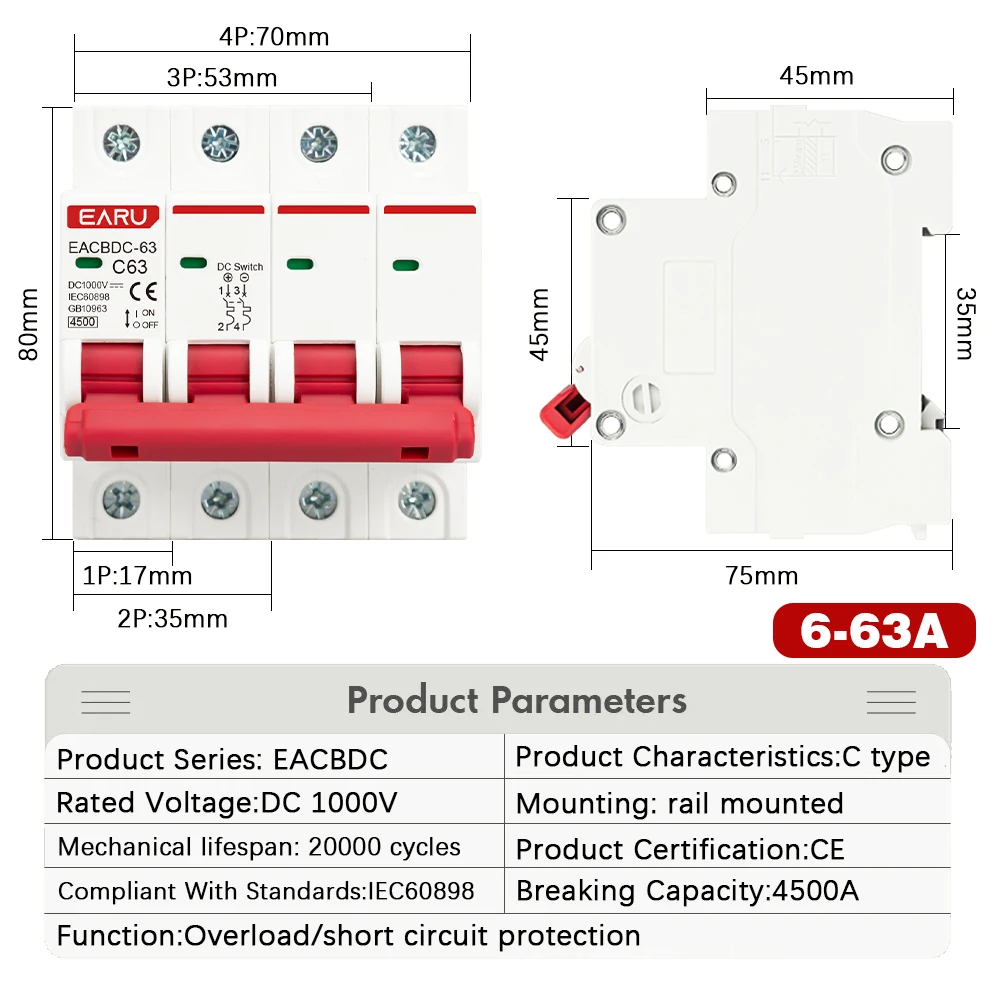

Housing Material: Not Specified. Breaking Capacity: Not Specified. Connection Capacity: Not Specified. Rated Voltage (DC): 1000 V. Application: Photovoltaic (PV) DC Systems. Electrical Endurance: Not Specified. Mechanical Endurance: Not Specified. Mounting Type: DIN Rail Mount. Mounting Width (per Pole): 18 mm. Number of Poles: 1P, 2P, 3P, 4P. Operating Temperature Range: Not Specified. Product Type: Miniature Circuit Breaker (MCB). Rated Current Range: 6 A, 10 A, 16 A, 20 A, 25 A, 32 A, 40 A, 50 A, 63 A, 80 A, 100 A, 125 A. Standards Compliance: Not Specified. Terminal Type: Not Specified. Tripping Characteristic: Not Specified. Contact Material: Silver alloy (AgSnO2 or similar). Housing Material: Thermoplastic, UL94 V-0 rated (inferred for flame retardancy). DC Voltage Category: PV DC Category II (inferred for solar applications). Rated Voltage (DC): 1000 V. Breaking Capacity: Typically 10kA (inferred for PV DC applications). Connection Capacity: 25 mm² (inferred for PV cable sizes). Operating Temperature Range: -25°C to +70°C (inferred for outdoor PV use). Rated Current Range: 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A, 80A, 100A, 125A. Storage Temperature Range: -40°C to +85°C (inferred for component storage). Protection Degree (IP Rating): IP20 (inferred for enclosure). Standards Compliance: IEC/EN 60898-2, IEC/EN 60947-2 (DC applications). Arc Quenching: Magnetic blow-out and de-ion chamber for DC arc interruption. Dielectric Strength: 2500 V AC, 1 minute (inferred for 1000V DC rating). Electrical Endurance: ≥ 10,000 mechanical operations. Mechanical Life: ≥ 20,000 operations. Mounting: DIN rail mountable (35mm standard). Number of Poles: 1P, 2P, 3P, 4P. Overload Protection: Yes. Pollution Degree: 3 (inferred for industrial environments). Product Type: Photovoltaic (PV) DC Miniature Circuit Breaker (MCB). Short-Circuit Protection: Yes. Terminal Type: Screw clamp for busbar/cable connection. Trip Characteristic: Type B or Type C (inferred for general circuit protection). Q: What are the exact specifications and dimensions of this DC solar circuit breaker? A: This is a customizable DC Mini Circuit Breaker (MCB) rated for 1000V and available in 1P, 2P, 3P, and 4P configurations. It offers a wide amperage range from 6A up to 125A to suit various PV system needs.. Q: What are the exact specifications and dimensions of this DC solar circuit breaker? A: This is a 1000V DC rated Mini Circuit Breaker (MCB) available in 1P, 2P, 3P, and 4P configurations. It offers a wide current range from 6A up to 125A, making it suitable for various PV system sizes.. Q: How durable is this 1000V DC MCB for long-term use in a solar power system? A: This circuit breaker is designed for reliable overload protection in photovoltaic systems. It is built to handle the specific demands of DC current and offers robust performance for consistent, long-term operation.. Q: How durable is this 1000V DC MCB for long-term use in a solar system? A: This circuit breaker is designed for reliable overload protection in photovoltaic systems. It is built with robust materials to handle the continuous DC current and environmental conditions typical of solar installations.. Q: Can this DC circuit breaker be used for a standard home solar panel setup? A: Yes, this MCB is specifically designed for photovoltaic (PV) systems. Its 1000V DC rating and wide amperage selection make it compatible with most residential and small commercial solar panel arrays for safe circuit protection.. Q: Can this DC circuit breaker be used for a 48V off-grid solar power system? A: Yes, this MCB is specifically designed for DC applications like PV systems. Its 1000V DC rating makes it fully compatible and safe for use in 48V, as well as higher voltage, off-grid and grid-tied solar arrays.. Q: Does this solar DC breaker come with any warranty or guarantee? A: As a customizable product, warranty details may vary. We recommend confirming the specific guarantee terms at the point of purchase to understand the coverage for your unit.. Q: Does this solar PV protection switch come with any warranty or guarantee? A: Yes, this product is customizable and typically includes a standard manufacturer's warranty. For specific warranty duration and terms, please check the product listing details or contact the seller directly.. Q: Is this DC solar circuit breaker a good value compared to other options? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable performance for regular use in PV systems with its high voltage rating and flexible configurations.. Q: Is this DC MCB a good value compared to other solar circuit breakers? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable performance for regular use with a wide range of current ratings and pole configurations for PV systems..
