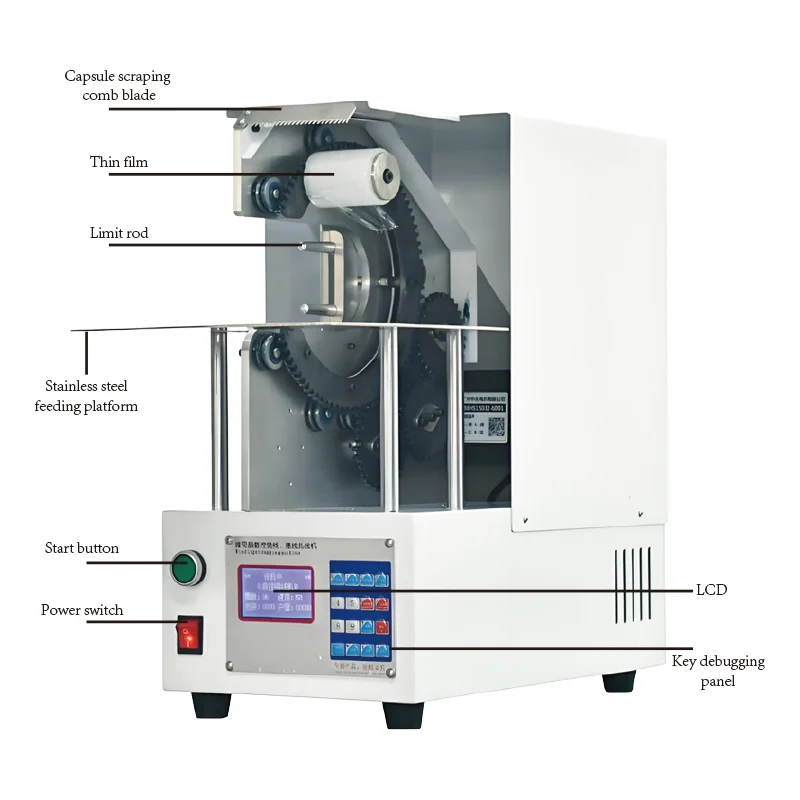

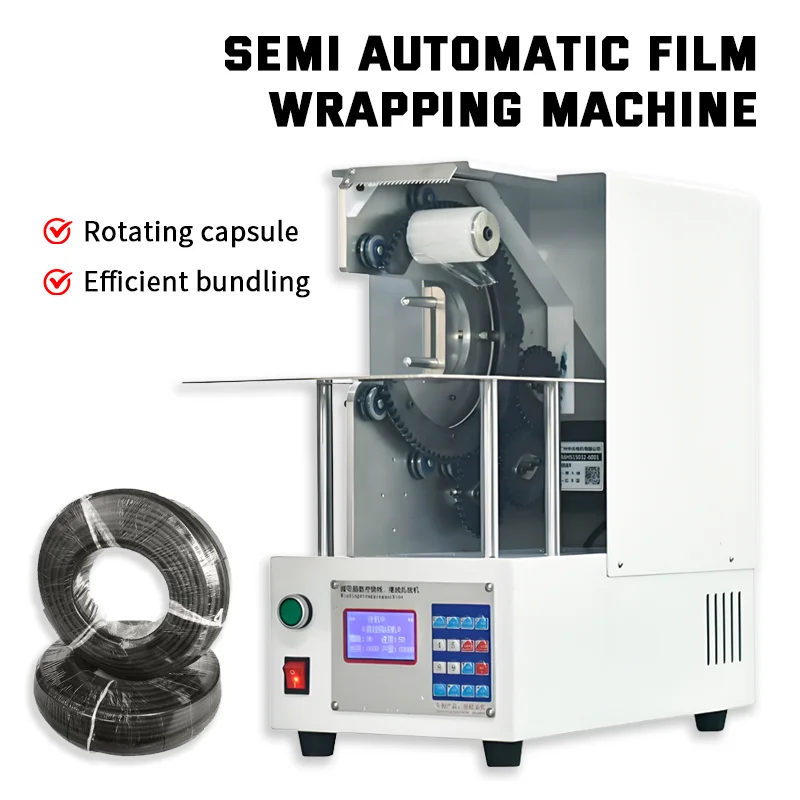

The ZSKJ semi-automatic film wrapping machine delivers reliable, high-speed bundling for wire and cable packaging. This customized system efficiently applies PE film with integrated gluing, creating secure, tamper-evident bundles that protect products during storage and transit. It offers a robust, cost-effective solution for streamlining production line packaging. Features and Benefits
- Semi-automatic operation with manual feed - Allows for precise control over bundle placement and film tension, ensuring consistent results with minimal operator training.
- Customizable film wrapping and gluing system - Can be tailored to specific bundle diameters and film types, providing a perfect fit for your unique product dimensions.
- Durable PE film application - Creates a strong, waterproof, and dust-resistant barrier that protects wire and cable coils from environmental damage and handling.

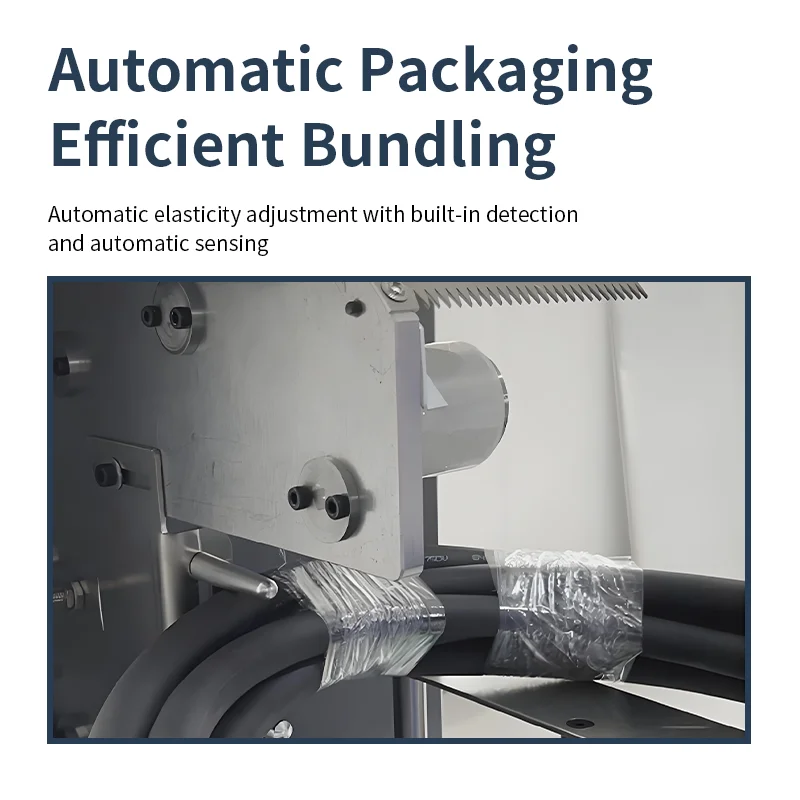

- Efficient bundling process - Significantly increases packaging throughput compared to manual methods, reducing labor costs and improving workflow consistency.
- Compact and sturdy construction - Built for reliable performance in industrial environments, offering great value and longevity for regular operational use. Applications

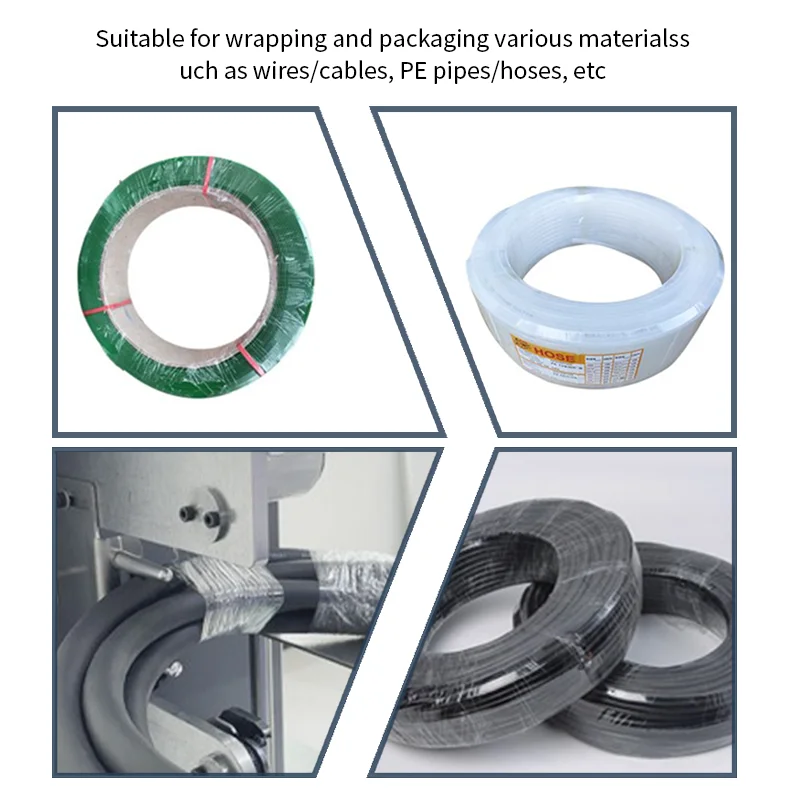

- Wire and cable manufacturing facilities - For creating uniform, professional retail-ready bundles or secure palletized units for wholesale distribution.
- Electrical component distributors - To organize and protect inventory of various cable lengths and types within warehouses, preventing tangles and damage.
- Custom packaging operations - Ideal for businesses requiring adaptable equipment to handle non-standard product sizes or specific bundling requirements.
- Maintenance and repair organizations - For repackaging and securing spare cable reels and wiring harnesses, keeping parts organized and identifiable. Note: Contact us to discuss customization options for film width, bundle size, and gluing patterns to match your specific production needs.
Machine Dimensions (LxWxH): 1200 x 800 x 1600 mm (Estimated). Machine Weight: 150 kg (Estimated). Wrapping Material: Polyethylene (PE) Film. Frame Material: Powder-coated Steel. Power Supply: 220V / 50Hz (Standard Industrial). Power Consumption: 1.5 kW (Estimated). Additional Process: Film Gluing. Application: Bundling and Packing of Wire and Cable. Control System: PLC with HMI. Customization: Available. Film Roll Core Diameter: 76 mm. Film Width Range: 200-500 mm. Max Bundle Diameter: 300 mm (Estimated). Max Bundle Length: 2000 mm (Estimated). Max Film Roll Diameter: 300 mm. Operation Mode: Semi-automatic. Product Type: Semi-automatic Film Wrapping Machine. Wrapping Speed: 10-20 bundles/hour (Estimated). Film Roll Core Diameter: 76 mm (3 inches). Maximum Bundle Diameter: 300 mm. Maximum Bundle Length: 1200 mm. Maximum Film Roll Diameter: 300 mm. Maximum Film Roll Width: 500 mm. Net Weight: Approx. 250 kg. Bundling Wire/Tie Material: Polypropylene (PP) or Steel. Machine Frame Construction: Powder-coated Carbon Steel. Wrapping Material: Polyethylene (PE) Stretch Film. Power Supply: 220V/380V AC, 50/60Hz (Dual Voltage). Safety Features: Emergency Stop, Safety Guards. User Interface: Touchscreen HMI with Pre-set Programs. Air Pressure Requirement: 0.6-0.8 MPa (if pneumatic components present). Bundling Method: Automatic Wire Tying/Banding. Bundling Tension: Adjustable, 20-150 N. Control System: Programmable Logic Controller (PLC) based. Cycle Time: Approximately 15-30 seconds per bundle. Film Application: Customized Gluing System. Footprint (LxWxH): Approx. 1800 x 800 x 1600 mm. Motor Type: Servo Motor for Film Carriage Drive. Operation Mode: Semi-automatic (Manual Load, Automatic Cycle). Primary Application: Wire and Cable Packing. Product Type: Semi-automatic Film Wrapping and Bundling Machine. Q: What are the key specifications and dimensions of the ZSKJ semi-automatic film wrapping machine? A: As a semi-automatic machine, it is designed for bundling wire and cable reels with PE film. Specific dimensions and technical specifications, such as maximum bundle size and film width capacity, are not provided and should be confirmed with the supplier for your specific application.. Q: How durable is this semi-automatic film wrapping machine for daily industrial use? A: This machine is built with a robust steel frame to withstand the demands of a packaging environment. It offers reliable performance for regular bundling tasks, providing excellent value for workshops and small to medium-scale operations.. Q: Can this machine handle different sizes of wire and cable reels? A: Yes, the ZSKJ semi-automatic film wrapper is designed to be customized. This means it can be configured to accommodate various reel diameters and widths, making it versatile for bundling different product lines within your facility.. Q: Does this automatic bundling machine come with a warranty or guarantee? A: Warranty terms are not specified for this product. It is standard practice for industrial machinery to have a warranty period, so we recommend inquiring directly with the seller to confirm the specific coverage for parts and labor.. Q: Is the ZSKJ film wrapping machine a good value compared to fully automatic systems? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable performance for regular use, providing an efficient semi-automatic solution at a fraction of the cost of a fully automated line..
