How do I make sure I'm buying the right sprocket for my 08B chain?

You need to match the chain standard to the sprocket. This 08B sprocket has a tooth pitch of 12.7mm, which is the correct size for any standard 08B roller chain. Just select the '08B' option from the menu and then choose the number of teeth you need.

What does the number of teeth affect? Should I get a 12-tooth or a 20-tooth sprocket?

The number of teeth determines your drive ratio. A smaller sprocket with fewer teeth increases torque but reduces speed, while a larger sprocket with more teeth increases speed but reduces torque. You choose the tooth count based on the final speed or power you need for your machine.

What does 'flat sprocket' mean? Does it come ready to fit on a shaft?

A 'flat sprocket' is a plate sprocket, meaning it has no hub or boss on the side. It does not come with a pre-drilled centre bore, so you will need to machine your own bore, keyway, and grub screw holes to suit your specific shaft diameter.

Roller Chain Sprocket | 10-25 Teeth | Carbon Steel Drive Gear

Name: Roller Chain Sprocket | 10-25 Teeth | Carbon Steel Drive Gear
Brand: Compel
SKU: ROLL-00001
Price: 3.49 USD
Availability: InStock
Rating: 4.9 (12 reviews)

Stock #:CMP-04558

SKU:ROLL-00001

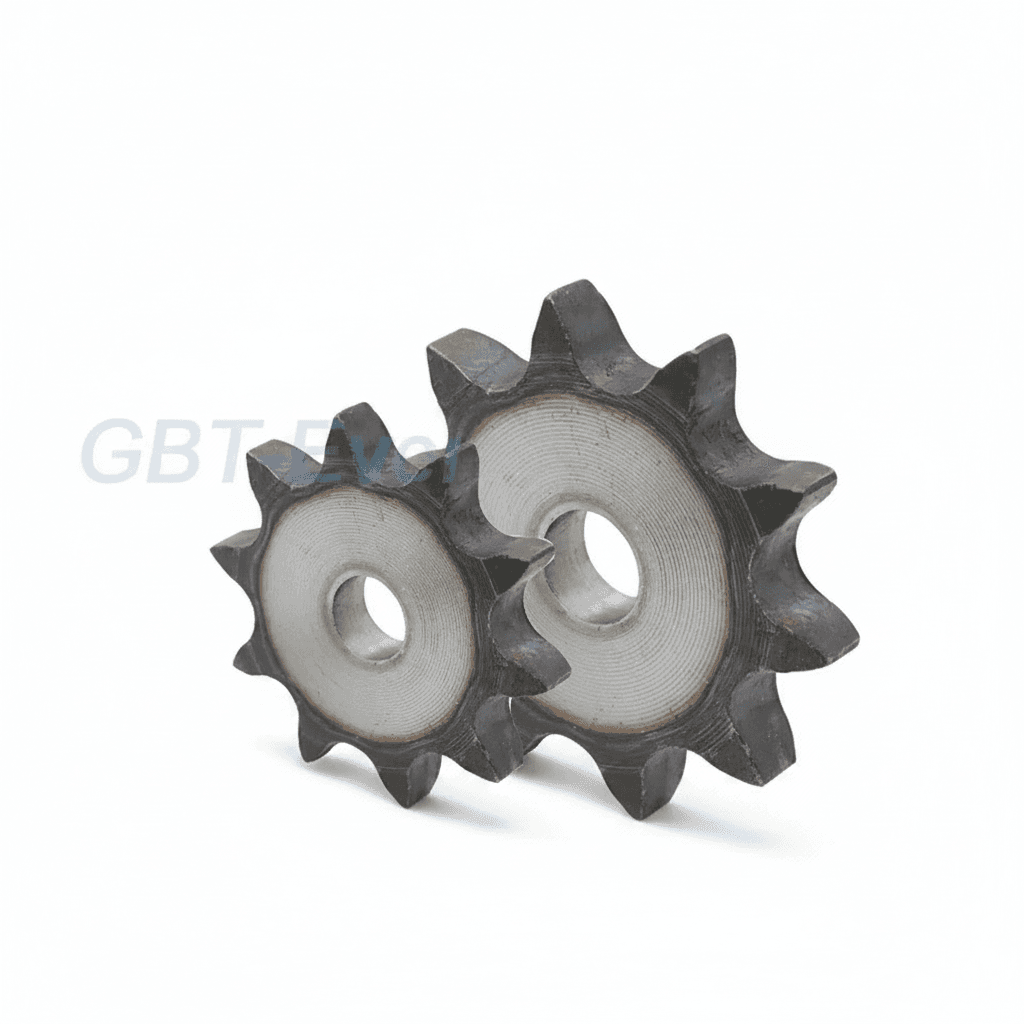

Roller Chain Sprocket | 10-25 Teeth | Carbon Steel Drive Gear - Image 1

1 / 6

$3.49

Ships to United States · standard est. 10-20 business days

Free standard shipping on orders over $59 (under 2kg). Express available at checkout.

Number of Teeth16 optionsSelect an option

Hole DiameterSelect an option

Quantity

Roller Chain Sprocket | 10-25 Teeth | Carbon Steel Drive Gear

$3.49

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

How do I make sure I'm buying the right sprocket for my 08B chain?: You need to match the chain standard to the sprocket. This 08B sprocket has a tooth pitch of 12.7mm, which is the correct size for any standard 08B roller chain. Just select the '08B' option from the menu and then choose the number of teeth you need.
What does the number of teeth affect? Should I get a 12-tooth or a 20-tooth sprocket?: The number of teeth determines your drive ratio. A smaller sprocket with fewer teeth increases torque but reduces speed, while a larger sprocket with more teeth increases speed but reduces torque. You choose the tooth count based on the final speed or power you need for your machine.
What does 'flat sprocket' mean? Does it come ready to fit on a shaft?: A 'flat sprocket' is a plate sprocket, meaning it has no hub or boss on the side. It does not come with a pre-drilled centre bore, so you will need to machine your own bore, keyway, and grub screw holes to suit your specific shaft diameter.

Roller Chain spec sheet (PDF)

Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.

Explore the range

Popular in Industrial & Machinery

Browse Industrial & Machinery

-28%

Electric Fabric Cutter | Round-Knife Cloth Slitting Machine | YJ-110C Hand-Push Design

5.0

$189.99$264.96

Push-to-Connect Air & Water Fittings | 4mm-12mm OD | Quick-Release Hose Couplings

4.9

$5.95

Complete the set

Accessories & add-ons

Sensor Protection Sleeve | Stainless Steel Blind Tube | 6mm

5.0(11)

$39.95

Motion Sensor Bracket | Automatic IR Lamp Holder | 110-240V AC

4.8(196)

$16.99

Soil Moisture NPK Sensor | 7-in-1 Agricultural Probe Accessory

4.8(25)

$26.95

Arduino Raspberry Pi Sensor Kit (45pc) | Modules for UNO R3 MEGA2560

4.7(58)

$47.95

Reflector Plate | Photoelectric Sensor Accessory | TD Series

4.7(23)

$12.99

Load Cell ADC Module | 24-Bit HX711 Sensor Accessory

4.4(21)

$1.49

Bending Strain Gauge Amplifier Module | Sensor Accessories UK

$5.95

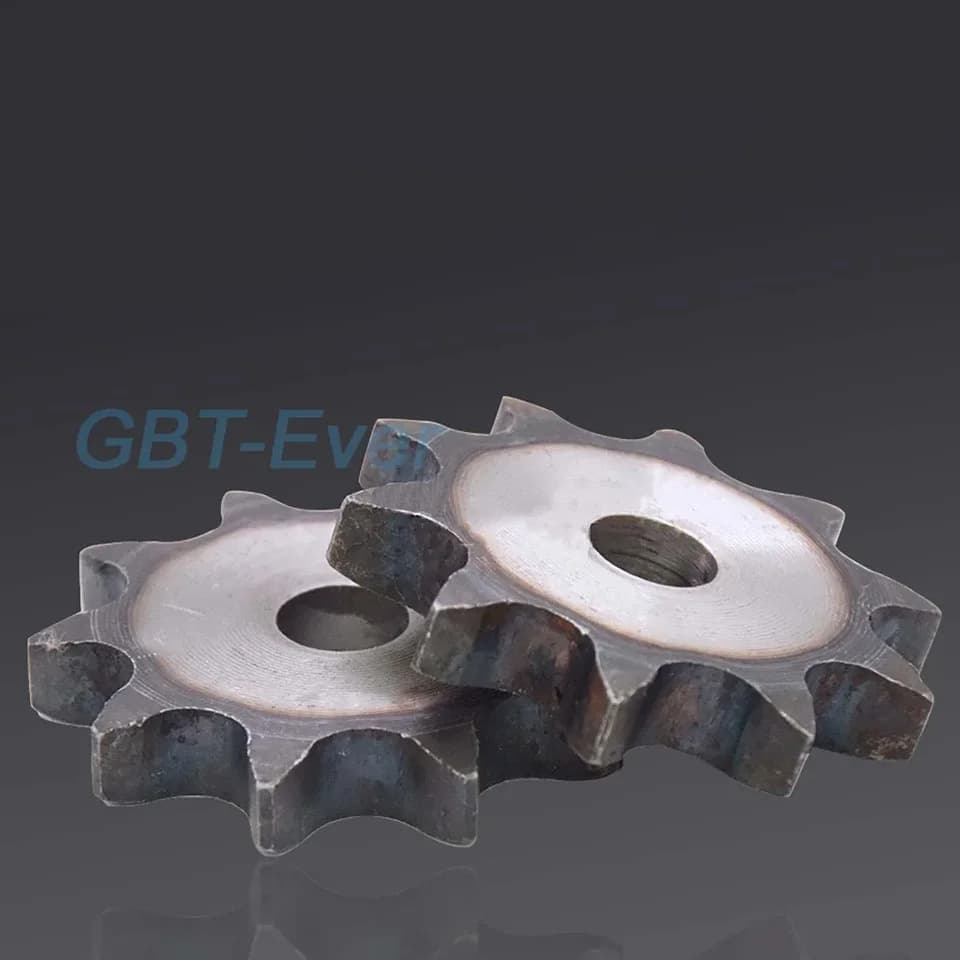

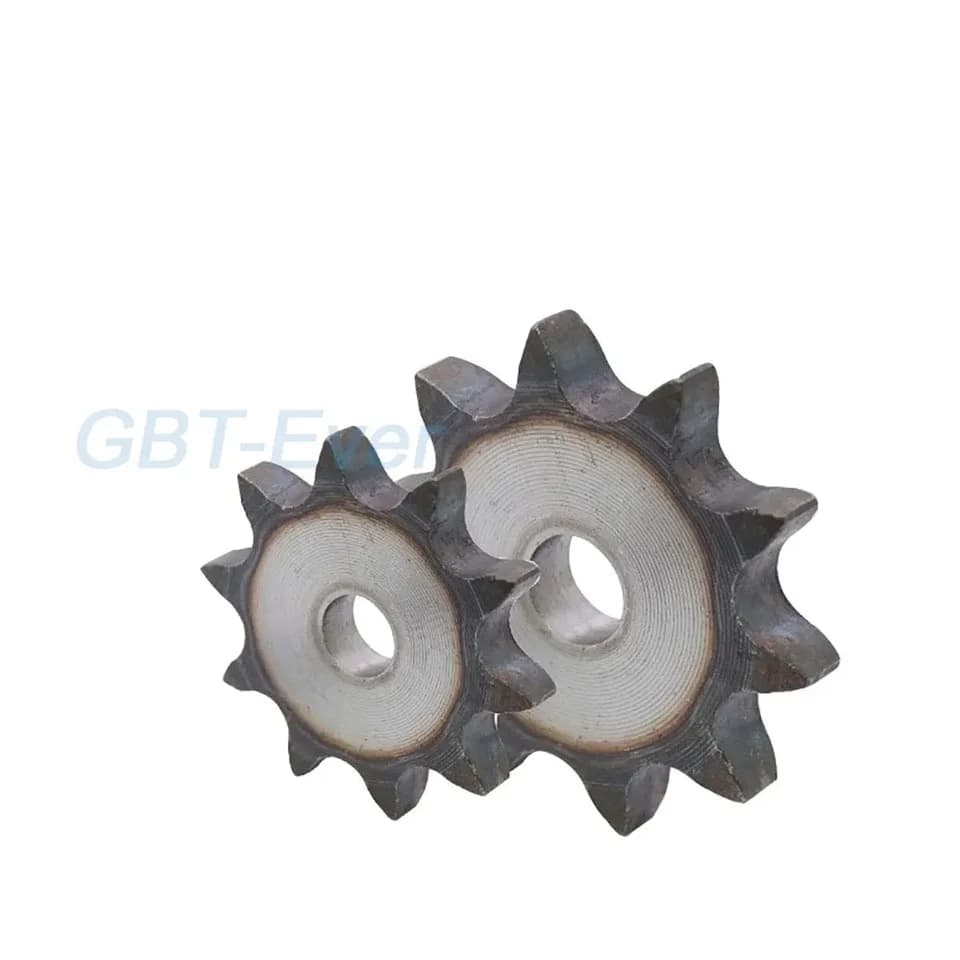

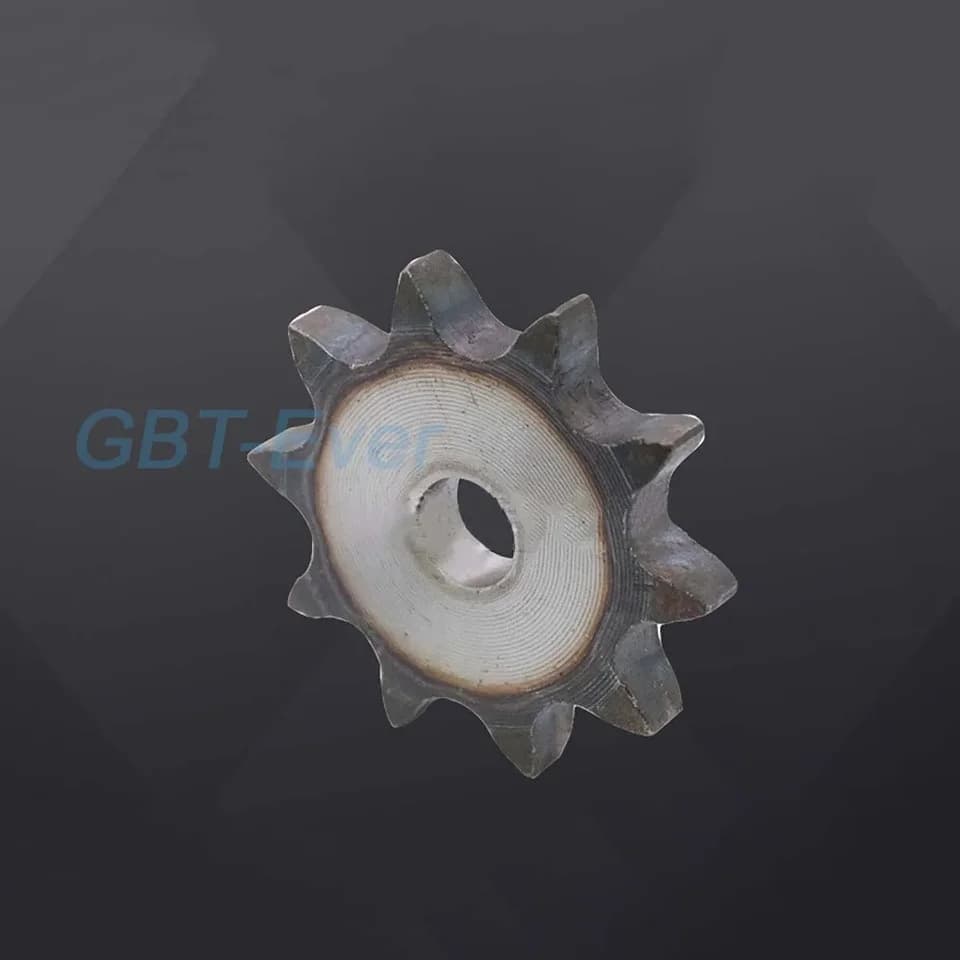

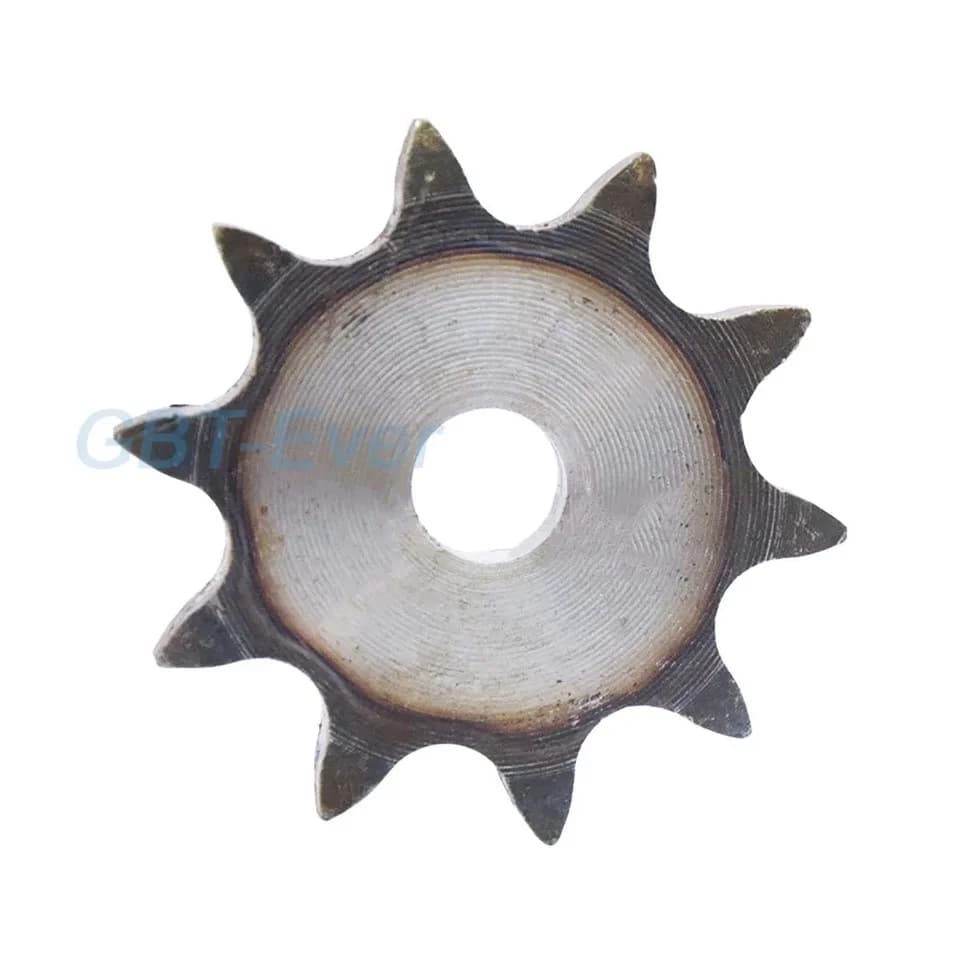

This flat roller chain sprocket is a gear. It engages with your roller chain to move power in a drive system. It's made from carbon steel with hardened teeth. It's a solid choice for industrial machinery and conveyors. The plain bore lets you machine it to fit your specific shaft size. Features and Benefits - C45 Carbon Steel - This is a strong material. It resists wear well for general industrial uses. - Hardened teeth - The teeth are heat-treated. This makes them much harder and extends the sprocket's working life. - Broad tooth count range - It's available from 10 to 25 teeth. You can pick the right ratio to control your system's speed and torque. - Standardized ISO 606 sizes - It's sized for common 06B, 08B, and 10A metric roller chain. This ensures a proper fit and smooth operation. Applications - Conveyor systems - It drives the roller chain on production lines in factories and distribution centers. - Power transmission - It's used in farm machinery, printing presses, and other equipment that uses a chain drive. - Custom fabrication - It helps build drive mechanisms for prototypes, go-karts, or other personal projects. These need a reliable sprocket.

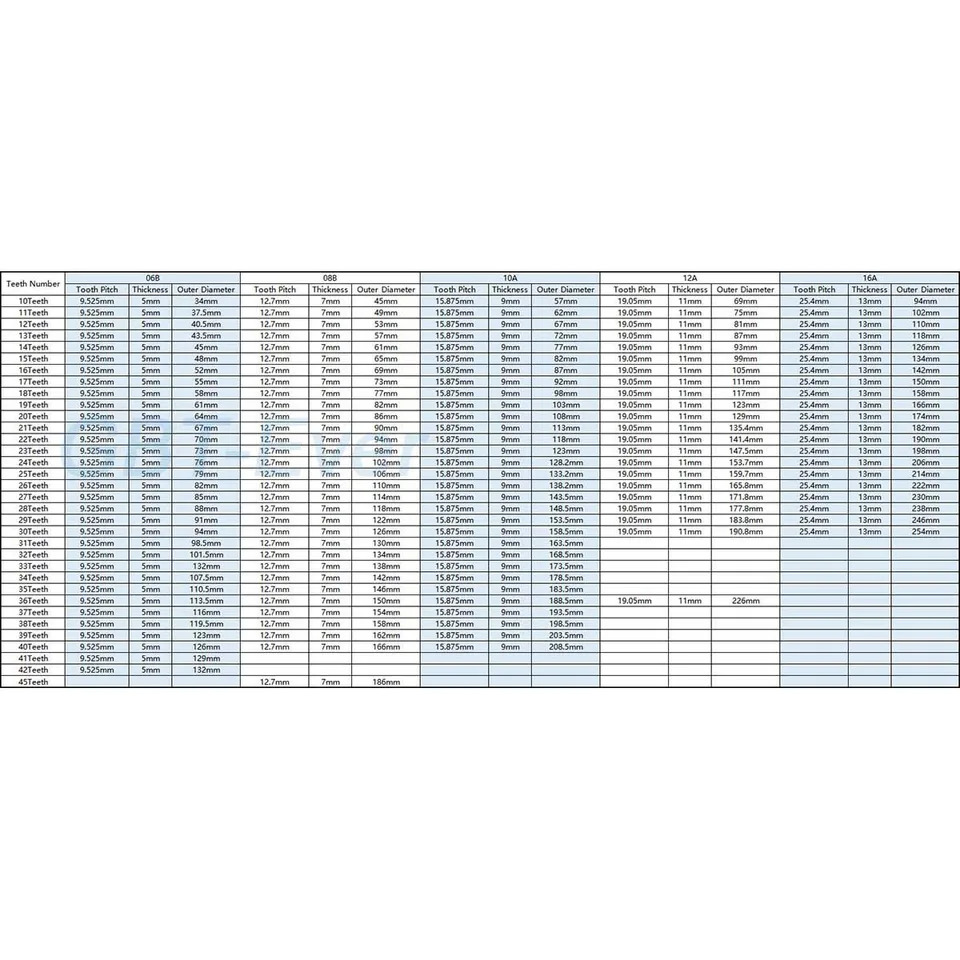

Chain Size Compatibility: 06B, 08B, 10A, 12A, 16A. Material: Carbon Steel. Number of Teeth: 10-25. Sprocket Type: Flat Sprocket. Standard or Nonstandard: Standard. Bore Diameter: Typically pilot bore, requiring machining to specific shaft size. Outer Diameter (OD): Varies based on pitch and number of teeth. Pitch Diameter (PD): Varies based on pitch and number of teeth. Material: Carbon Steel. Chain Standard Compatibility: 06B, 08B, 10A, 12A, 16A. Standard Compliance: ISO, ANSI, or DIN (depending on specific chain series). Application: Power transmission in industrial machinery, conveyors, and drive systems. Hardness: Typically unhardened, but can be induction hardened for increased wear resistance. Number of Teeth: 10 to 25 teeth. Pitch (P): Varies by chain standard (e.g., 06B: 9.525mm, 08B: 12.7mm, 10A: 15.875mm, 12A: 19.05mm, 16A: 25.4mm). Product Type: Chain Drive Flat Sprocket. Sprocket Type: Flat (Type A). Surface Finish: Plain, sometimes black oxide coated for corrosion resistance. Tensile Strength: High (characteristic of carbon steel). Tooth Profile: Designed for roller chain engagement. Q: What does it mean that this is a 'flat sprocket'? Does it have a keyway? A: A flat sprocket, or plate sprocket, does not have a protruding hub on either side. These are supplied with a plain pilot bore and do not include a keyway or set screws, so you can machine them to your exact specifications.. Q: What does it mean that this is a 'flat sprocket'? Does it have a keyway? A: A flat sprocket, or plate sprocket, does not have a protruding hub on either side. These are supplied with a plain pilot bore and do not include a keyway or set screws, so you can machine them to your exact specifications.. Q: What does it mean that this is a 'flat sprocket'? Does it have a keyway? A: A flat sprocket, or plate sprocket, does not have a protruding hub on either side. These are supplied with a plain pilot bore and do not include a keyway or set screws, so you can machine them to your exact specifications.. Q: Are the teeth on these sprockets hardened? A: These sprockets are machined from C45 carbon steel, but the teeth do not come pre-hardened. This makes it easier for you to weld the sprocket or further machine the bore for a custom fit.. Q: Are the teeth on these sprockets hardened? A: These sprockets are machined from C45 carbon steel, but the teeth do not come pre-hardened. This makes it easier for you to weld the sprocket or further machine the bore for a custom fit.. Q: Are the teeth on these sprockets hardened? A: These sprockets are machined from C45 carbon steel, but the teeth do not come pre-hardened. This makes it easier for you to weld the sprocket or further machine the bore for a custom fit.. Q: How do I know if a 12A sprocket will fit my roller chain? A: The number and letter combination tells you what roller chain to use. A '12A' sprocket is designed specifically for a 12A American Standard chain, ensuring the pitch and roller diameter match up correctly for smooth operation.. Q: How do I know if a 12A sprocket will fit my roller chain? A: The number and letter combination tells you what roller chain to use. A '12A' sprocket is designed specifically for a 12A American Standard chain, ensuring the pitch and roller diameter match up correctly for smooth operation.. Q: How do I know if a 12A sprocket will fit my roller chain? A: The number and letter combination tells you what roller chain to use. A '12A' sprocket is designed specifically for a 12A American Standard chain, ensuring the pitch and roller diameter match up correctly for smooth operation.. Q: Why would I buy a sprocket with a plain bore instead of a finished one? A: These sprockets are a cost-effective option when you need a custom bore size, keyway, or plan to weld the sprocket directly onto another part. You aren't paying for machining that you don't need, giving you a blank canvas for your project.. Q: Why would I buy a sprocket with a plain bore instead of a finished one? A: These sprockets are a cost-effective option when you need a custom bore size, keyway, or plan to weld the sprocket directly onto another part. You aren't paying for machining that you don't need, giving you a blank canvas for your project.. Q: Why would I buy a sprocket with a plain bore instead of a finished one? A: These sprockets are a cost-effective option when you need a custom bore size, keyway, or plan to weld the sprocket directly onto another part. You aren't paying for machining that you don't need, giving you a blank canvas for your project.. Q: Since these are carbon steel, do they have any rust protection? A: They typically ship with a black oxide finish or a light oil coating to protect against surface rust during storage. For long-term use, especially in damp areas, you'll probably want to paint it or apply another protective coating.. Q: Since these are carbon steel, do they have any rust protection? A: They typically ship with a black oxide finish or a light oil coating to protect against surface rust during storage. For long-term use, especially in damp areas, you'll probably want to paint it or apply another protective coating.. Q: Since these are carbon steel, do they have any rust protection? A: They typically ship with a black oxide finish or a light oil coating to protect against surface rust during storage. For long-term use, especially in damp areas, you'll probably want to paint it or apply another protective coating..
