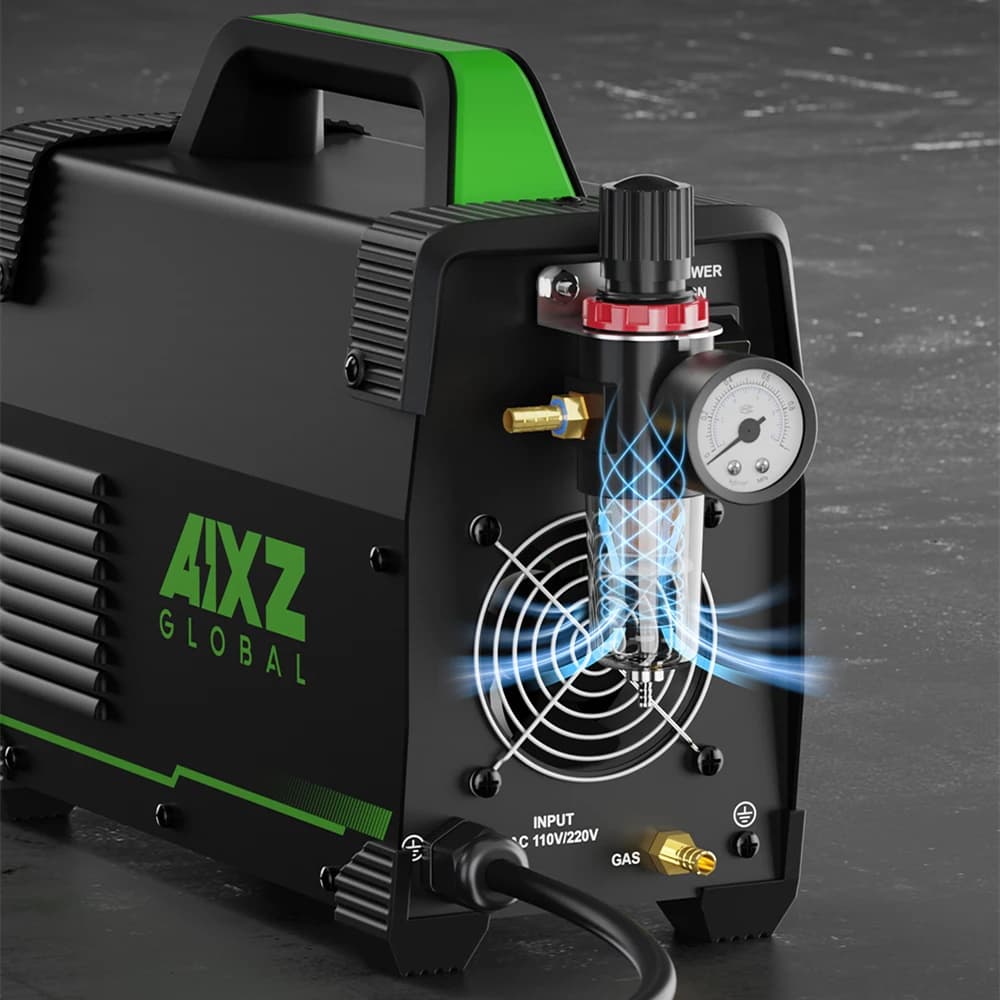

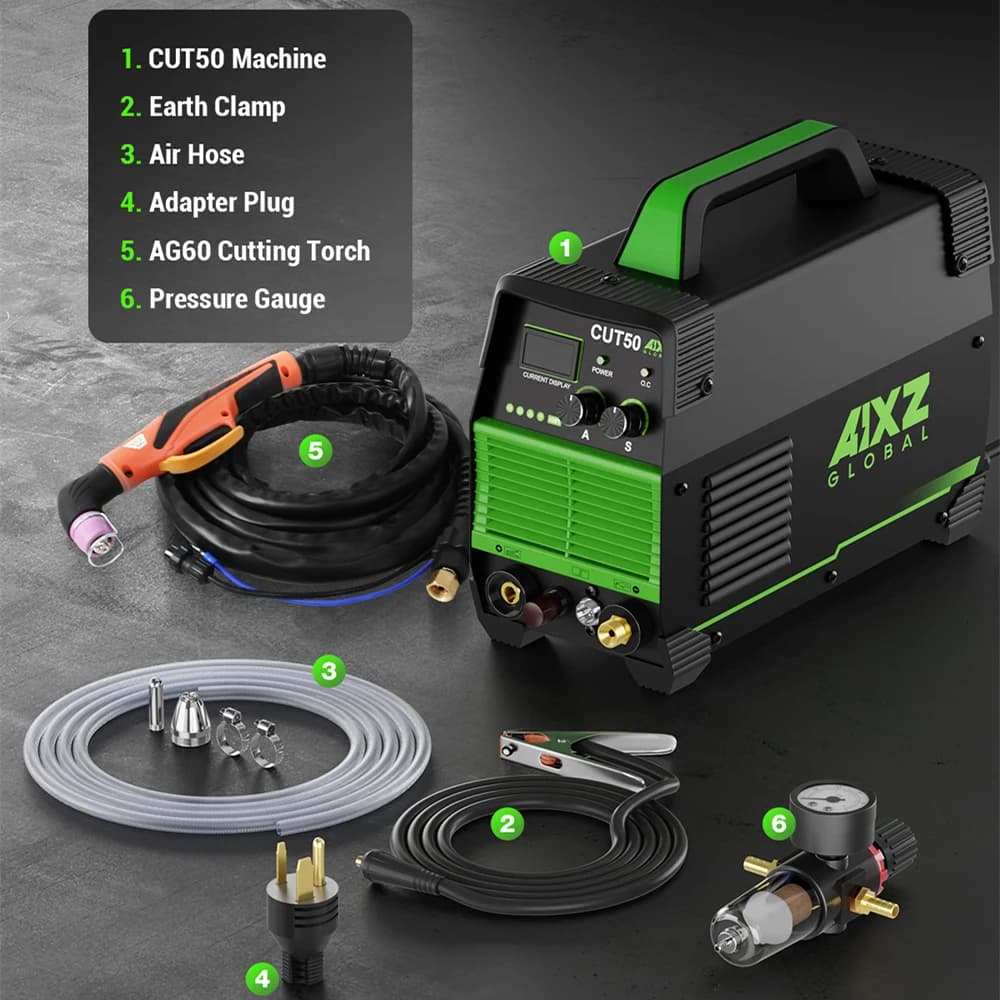

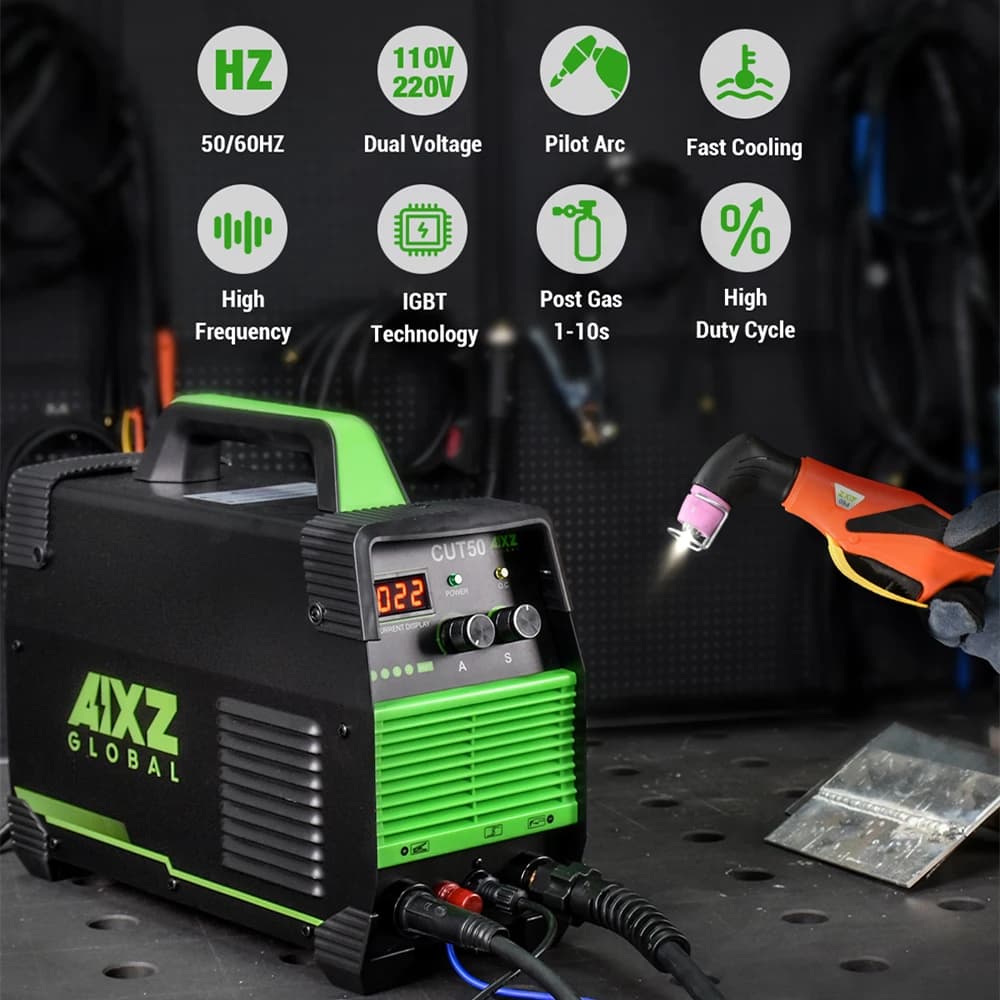

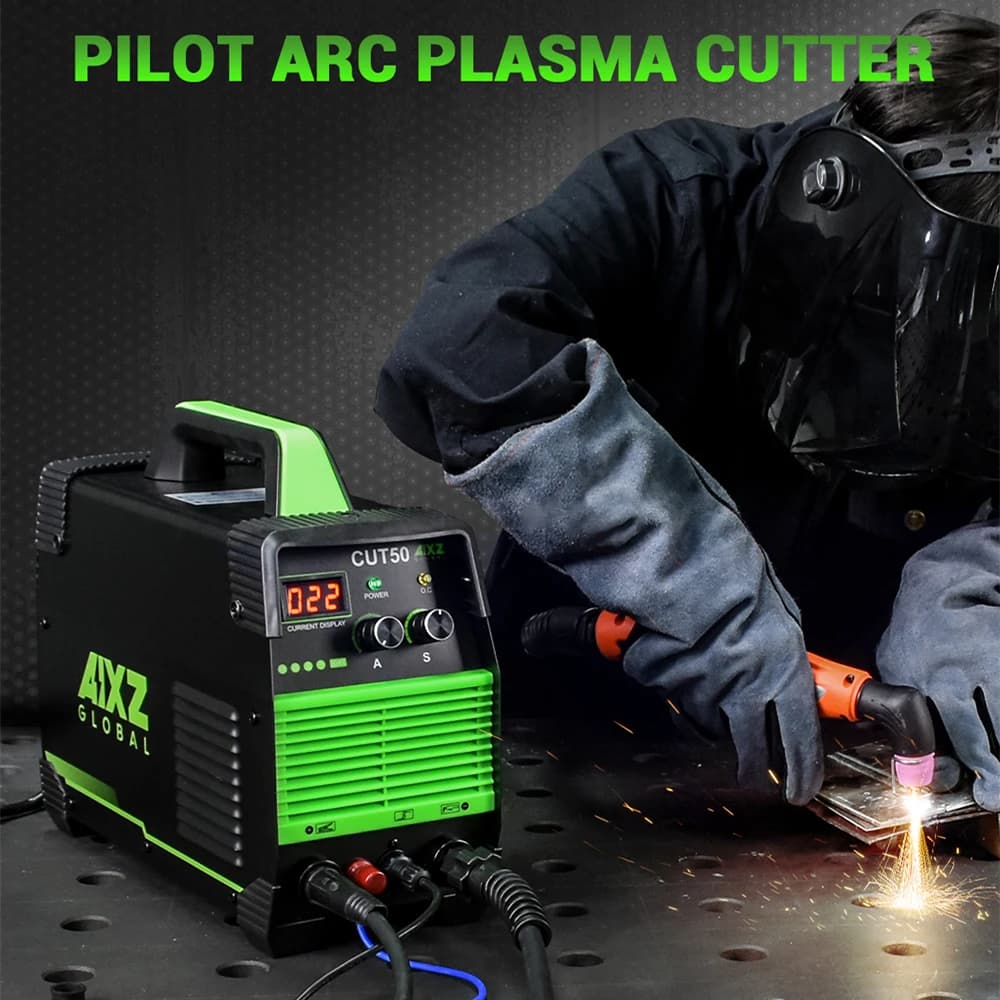

The AIXZ CUT-50 Amps Plasma Cutter delivers professional-grade cutting power with a versatile 110/220V dual voltage IGBT inverter. It provides a powerful 50-amp output capable of cleanly slicing through 14mm (9/16") steel, while the HF non-touch pilot arc technology ensures reliable starts on painted, rusty, or uneven surfaces. Features and Benefits
- 50-Amp IGBT Inverter Power Source - Delivers a stable, high-frequency arc for fast, clean cuts on materials up to 14mm thick with minimal slag.
- 110V/220V Dual Voltage Input - Offers ultimate flexibility, allowing you to run the machine on standard household 110V outlets or high-power 220V circuits for maximum cutting performance.
- HF Non-Touch Pilot Arc System - Enables arc ignition without direct contact with the workpiece, perfect for cutting through painted, corroded, or perforated materials.
- Industrial-Grade Torch and Consumables - Designed for durability and consistent performance, reducing downtime and maintenance costs during extended use.

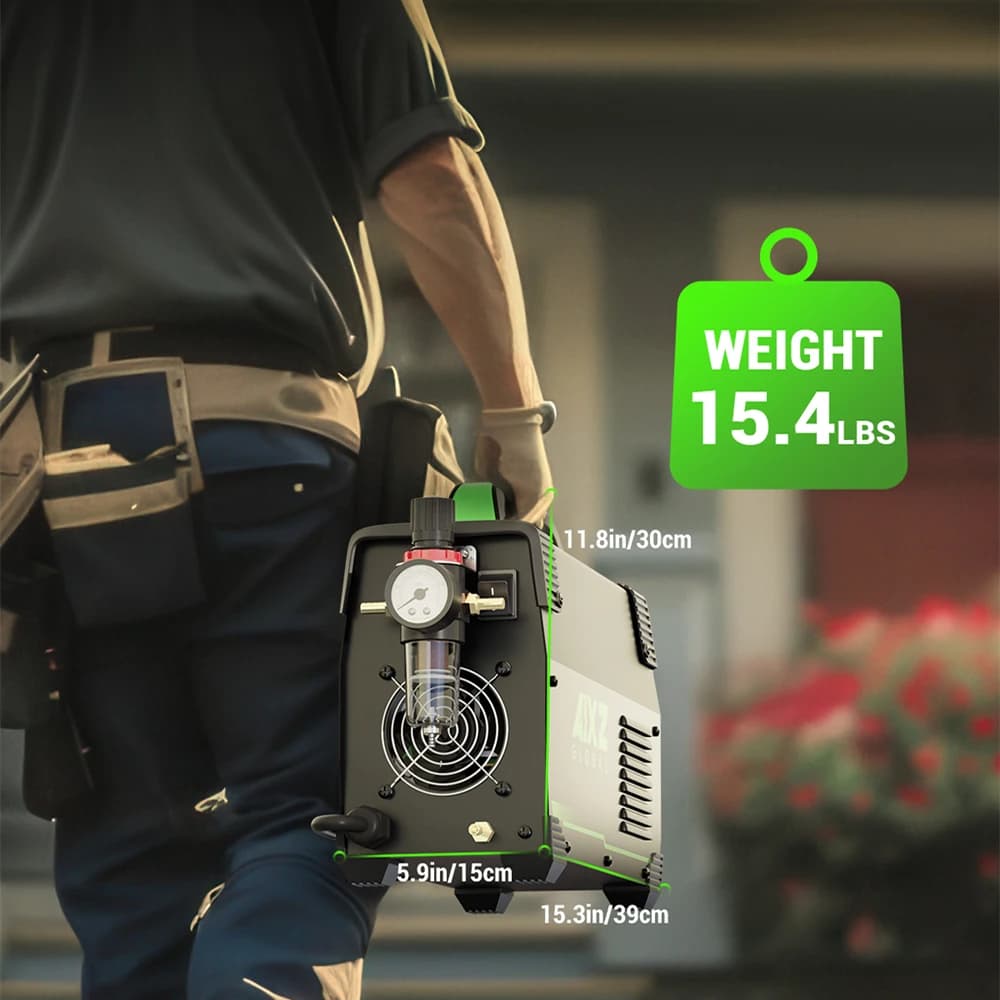

- Lightweight, Portable Design - The compact inverter construction makes this plasma cutter easy to transport between job sites or move around your workshop. Applications
- Metal Fabrication and Repair - Ideal for automotive bodywork, farm equipment repair, and custom metal art projects requiring precise cuts.
- Construction and Site Work - Perfect for contractors needing to cut rebar, steel studs, sheet metal, or ductwork on location.
- DIY and Home Workshop Projects - An excellent choice for enthusiasts tackling metal gates, furniture, sculptures, or general maintenance tasks. Note
Always use appropriate personal protective equipment (PPE) including a welding helmet, gloves, and flame-resistant clothing. Ensure proper ventilation when operating the plasma cutter.
Dimensions: 430 x 180 x 300 mm (Approx.). Weight: 11 kg (Approx.). Cutting Capacity (Mild Steel): 14 mm (Severance), 1 mm (Minimum). Input Voltage: 110/220V AC, Dual Voltage. Rated Output Voltage: 110V. Open Circuit Voltage: 240V. Storage Temperature: -20°C to 60°C. Air Flow Requirement: 140 L/min. Air Pressure Requirement: 4.5-5.5 bar. Arc Start Method: HF Non-Touch Pilot Arc. Cooling Method: Forced Air. Duty Cycle: 60% at 50A. Model: CUT-50. Operating Temperature: -10°C to 40°C. Output Current Range: 10-50A. Rated Input Current: 110V: 30A, 220V: 15A. Relative Humidity: ≤90%. Technology: IGBT Inverter. Type: Plasma Cutter. Dimensions (Approx.): 400 x 180 x 300 mm (L x W x H). Weight (Approx.): 10 - 12 kg. Case Material: Powder-coated steel chassis. Input Voltage: Dual Voltage 110V / 220V AC. Open Circuit Voltage: ~240V - 300V (Typical for HF start systems). Power Factor: >0.93 (Typical for modern IGBT inverters). Cutting Capacity (Mild Steel): 14 mm (Clean Cut), 1 mm (Minimum). Efficiency: >85% (Typical for modern IGBT inverters). Maximum Output Current: 50 Amps. Operating Temperature Range: -10°C to 40°C. Storage Temperature Range: -20°C to 60°C. Protection Features: Over-current, Over-temperature, Under-voltage. Relative Humidity: <90% (non-condensing). Ingress Protection (IP) Rating: IP21S (Typical for workshop equipment). Air Flow Requirement: ~140 L/min (5 CFM) minimum. Air Pressure Requirement: 4.5 - 6.5 bar (65 - 95 PSI). Cooling System: Temperature-controlled fan. Duty Cycle @ 40A: ~100% (Estimated based on industry standard for class). Duty Cycle @ 50A: ~60% (Estimated based on industry standard for class). IGBT Technology: Full-bridge IGBT inverter for efficiency and stability. Model: CUT-50. Pilot Arc System: High Frequency (HF) Non-Touch. Rated Input Current (110V): ~45 Amps. Rated Input Current (220V): ~23 Amps. Recommended Air Compressor: 2 HP minimum, 8+ gallon tank. Torch Connection: Standard PILOT ARC plug (compatible with common consumables). Type: IGBT Inverter Plasma Cutter. Q: What are the specifications and cutting capacity of the AIXZ CUT-50 plasma cutter? A: The AIXZ CUT-50 is a 50 Amp plasma cutter with a maximum cutting capacity of 14mm (about 9/16") on mild steel. It features a dual voltage IGBT inverter, allowing it to operate on both 110V and 220V power sources for flexibility in different workshop settings.. Q: How durable is the AIXZ CUT-50 plasma cutting machine for regular use? A: This plasma cutter is built with a robust IGBT inverter design known for reliability and efficiency. It is constructed to withstand the demands of regular use in both DIY and professional environments, offering consistent performance over time.. Q: Can the AIXZ CUT-50 plasma cutter be used for automotive repair or metal fabrication? A: Yes, the AIXZ CUT-50 is well-suited for automotive repair, metal fabrication, and general workshop tasks. Its ability to cleanly cut up to 14mm thick metal and the pilot arc feature for cutting painted or rusty surfaces make it versatile for these common applications.. Q: Does the AIXZ CUT-50 plasma cutter come with a warranty? A: Warranty details are typically provided by the seller at the point of purchase. We recommend checking the specific warranty terms listed on the product page or contacting the seller directly for accurate and current warranty information for this model.. Q: Is the AIXZ CUT-50 a good value plasma cutting machine? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable performance for regular use, combining features like dual voltage operation and a 14mm cutting capacity at a competitive price point..
