What sort of jobs are these UCP pillow block bearings good for?

These UCP pillow block bearings are used to support a rotating shaft where the mounting surface is parallel to the shaft axis. The 'P' stands for 'Pillow' block, and they are commonly found in conveyor systems, agricultural machinery, and industrial fans. The thickened base provides a solid footing.

What's the difference between a UCP and a UCF bearing?

The main difference is the housing and how it mounts. A UCP bearing like this one has a two-bolt base designed to be bolted onto a flat surface. A UCF bearing has a square, four-bolt flange for mounting to a surface that's perpendicular to the shaft.

How do I maintain this type of bearing?

These bearings are designed for straightforward maintenance and feature a grease nipple for lubrication. You should periodically apply a suitable lithium-based grease to keep them running smoothly and check for any excess noise or vibration, which can indicate wear.

Pillow Block Bearing | Heavy-Duty Vertical Base | High-Speed Operation

Name: Pillow Block Bearing | Heavy-Duty Vertical Base | High-Speed Operation
Brand: Compel
SKU: MOUN-00001
Price: 47.95 USD
Availability: InStock
Rating: 5 (14 reviews)

Stock #:CMP-04566

SKU:MOUN-00001

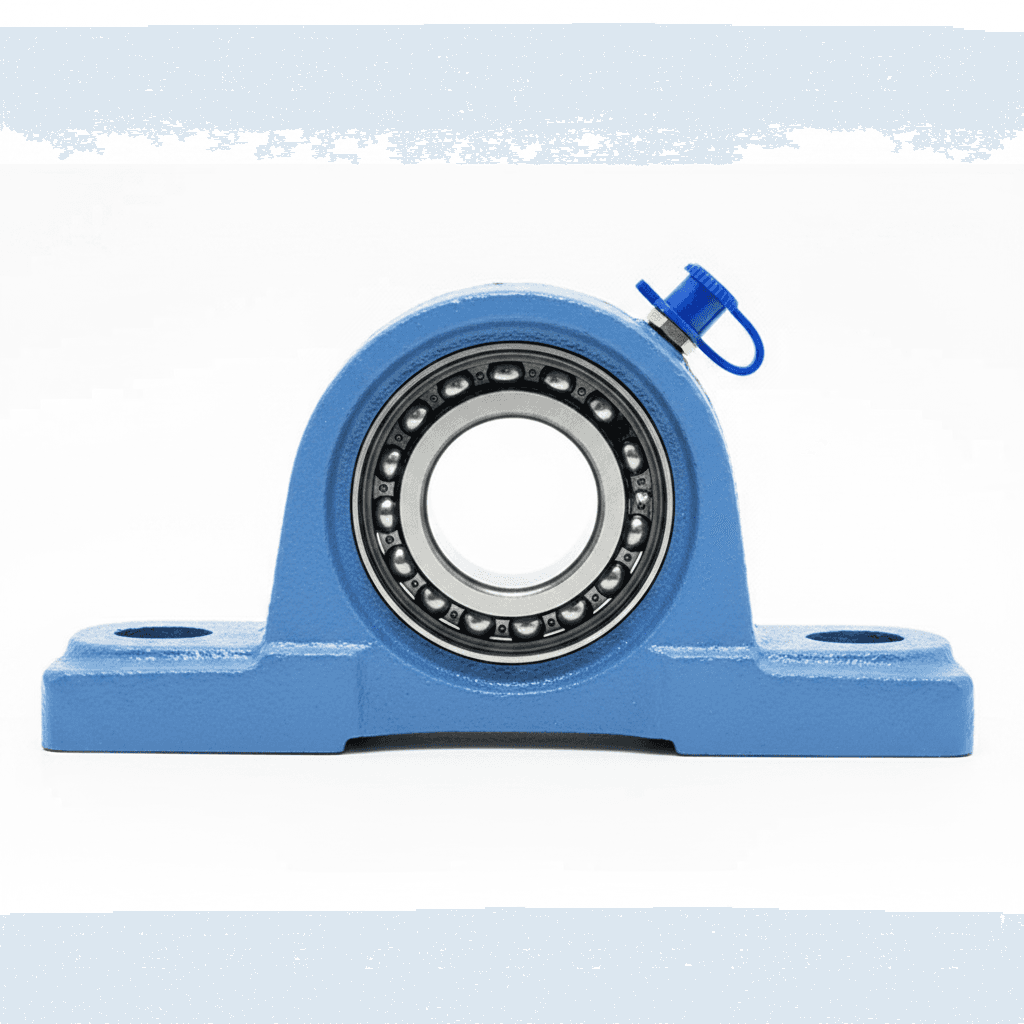

Pillow Block Bearing | Heavy-Duty Vertical Base | High-Speed Operation - Image 1

1 / 5

$47.95

Ships to United States · standard est. 10-20 business days

Free standard shipping on orders over $59 (under 2kg). Express available at checkout.

Color9 optionsSelect an option

Quantity

Pillow Block Bearing | Heavy-Duty Vertical Base | High-Speed Operation

$47.95

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

What sort of jobs are these UCP pillow block bearings good for?: These UCP pillow block bearings are used to support a rotating shaft where the mounting surface is parallel to the shaft axis. The 'P' stands for 'Pillow' block, and they are commonly found in conveyor systems, agricultural machinery, and industrial fans. The thickened base provides a solid footing.
What's the difference between a UCP and a UCF bearing?: The main difference is the housing and how it mounts. A UCP bearing like this one has a two-bolt base designed to be bolted onto a flat surface. A UCF bearing has a square, four-bolt flange for mounting to a surface that's perpendicular to the shaft.
How do I maintain this type of bearing?: These bearings are designed for straightforward maintenance and feature a grease nipple for lubrication. You should periodically apply a suitable lithium-based grease to keep them running smoothly and check for any excess noise or vibration, which can indicate wear.

Mounted Bearings spec sheet (PDF)

Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.

Explore the range

Popular in Industrial & Machinery

Browse Industrial & Machinery

-28%

Electric Fabric Cutter | Round-Knife Cloth Slitting Machine | YJ-110C Hand-Push Design

5.0

$189.99$264.96

Push-to-Connect Air & Water Fittings | 4mm-12mm OD | Quick-Release Hose Couplings

4.9

$5.95

Complete the set

Accessories & add-ons

Sensor Protection Sleeve | Stainless Steel Blind Tube | 6mm

5.0(11)

$39.95

Motion Sensor Bracket | Automatic IR Lamp Holder | 110-240V AC

4.8(196)

$16.99

Soil Moisture NPK Sensor | 7-in-1 Agricultural Probe Accessory

4.8(25)

$26.95

Arduino Raspberry Pi Sensor Kit (45pc) | Modules for UNO R3 MEGA2560

4.7(58)

$47.95

Reflector Plate | Photoelectric Sensor Accessory | TD Series

4.7(23)

$12.99

Load Cell ADC Module | 24-Bit HX711 Sensor Accessory

4.4(21)

$1.49

Bending Strain Gauge Amplifier Module | Sensor Accessories UK

$5.95

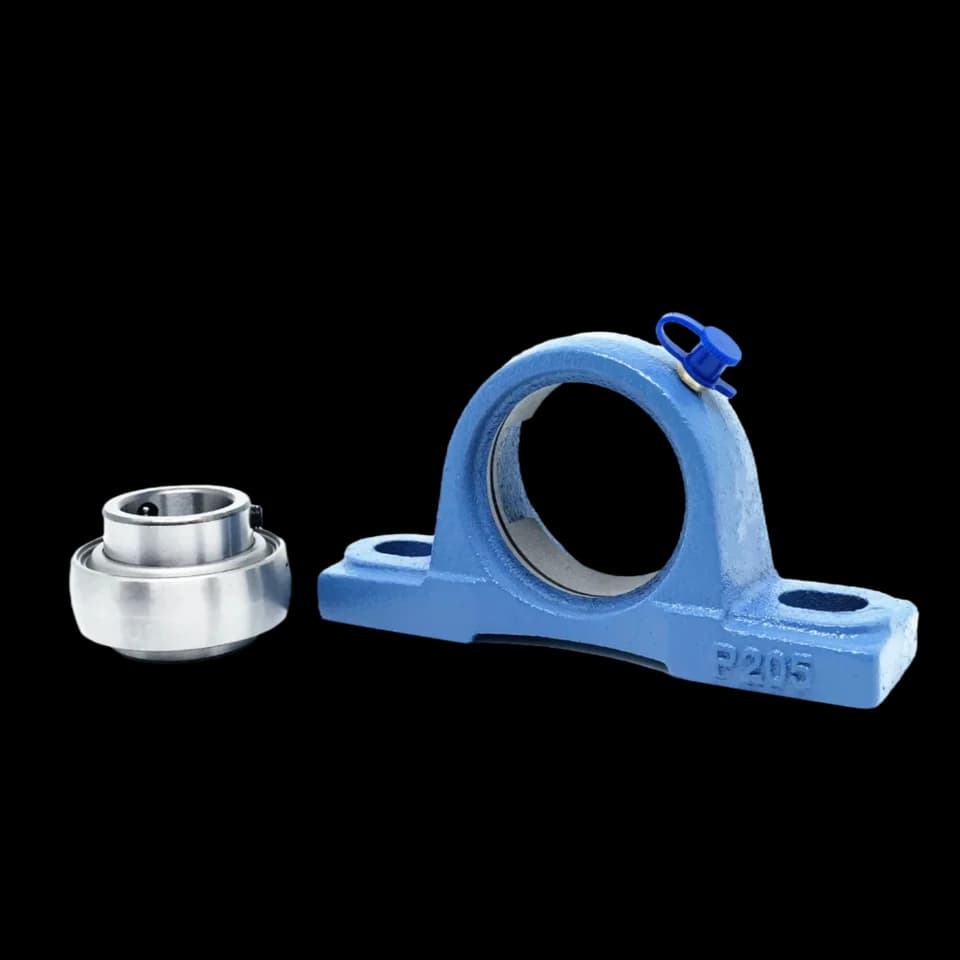

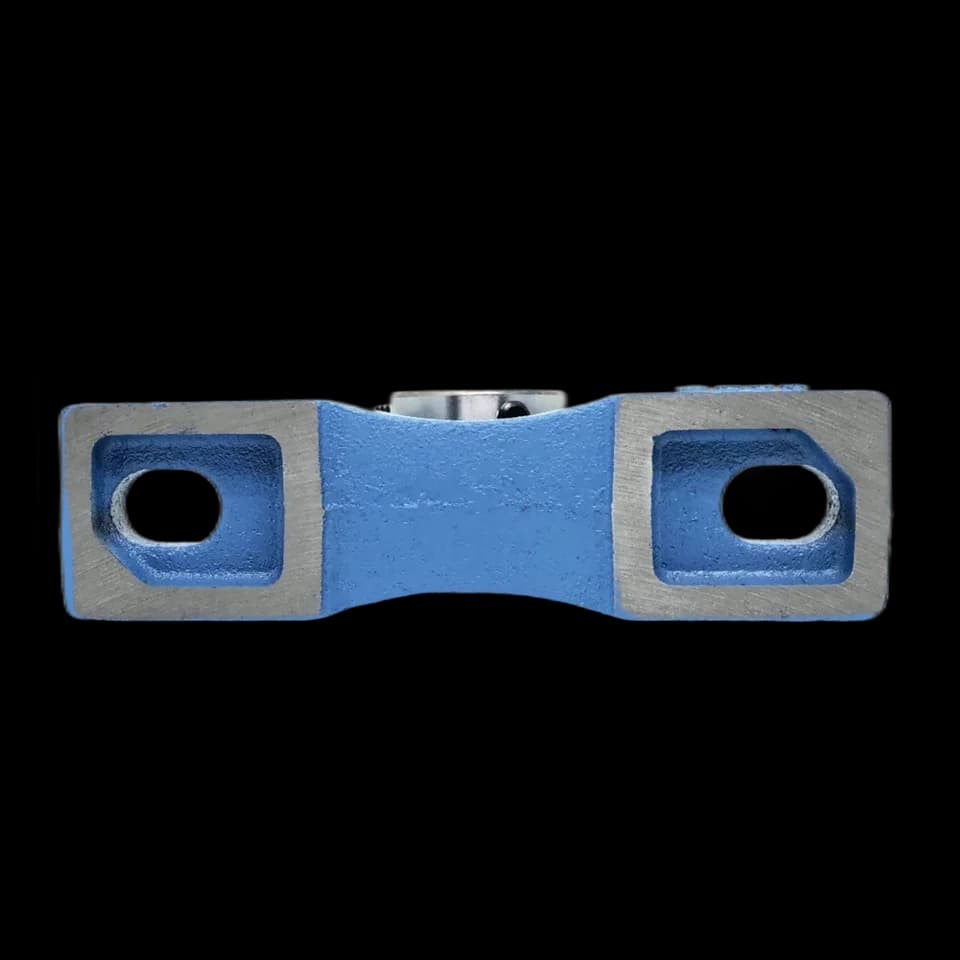

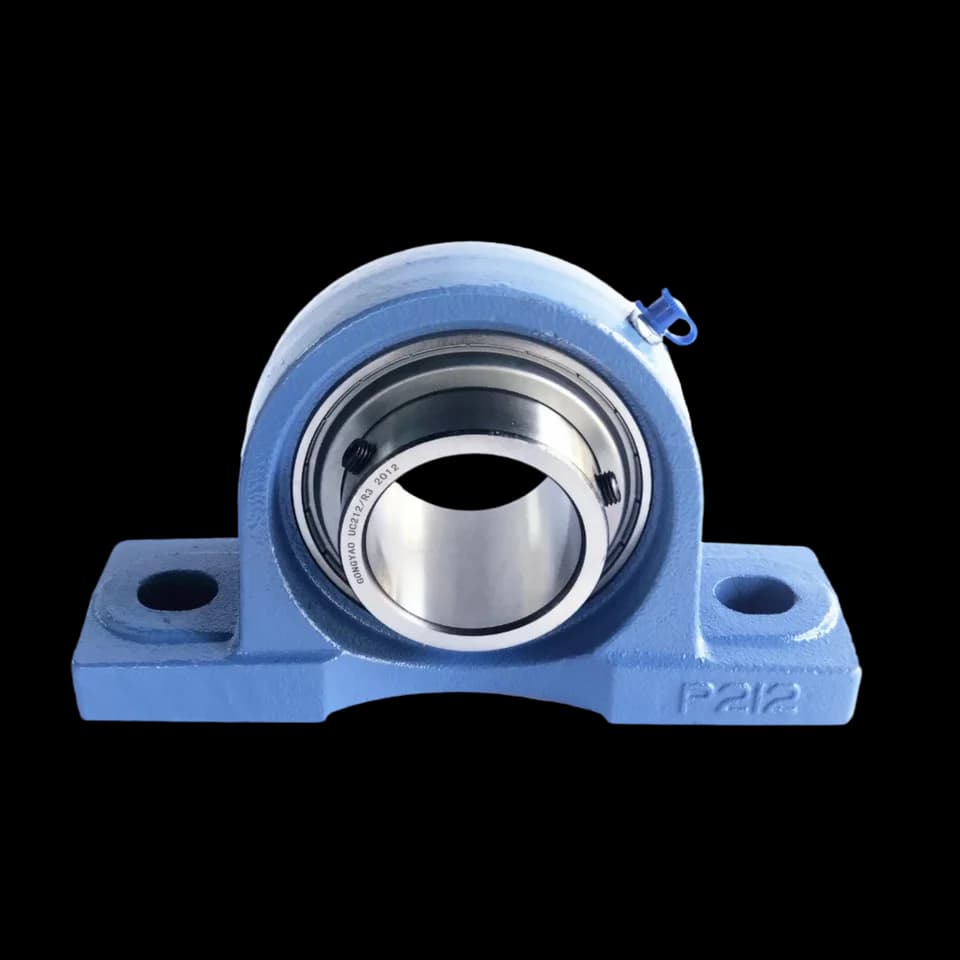

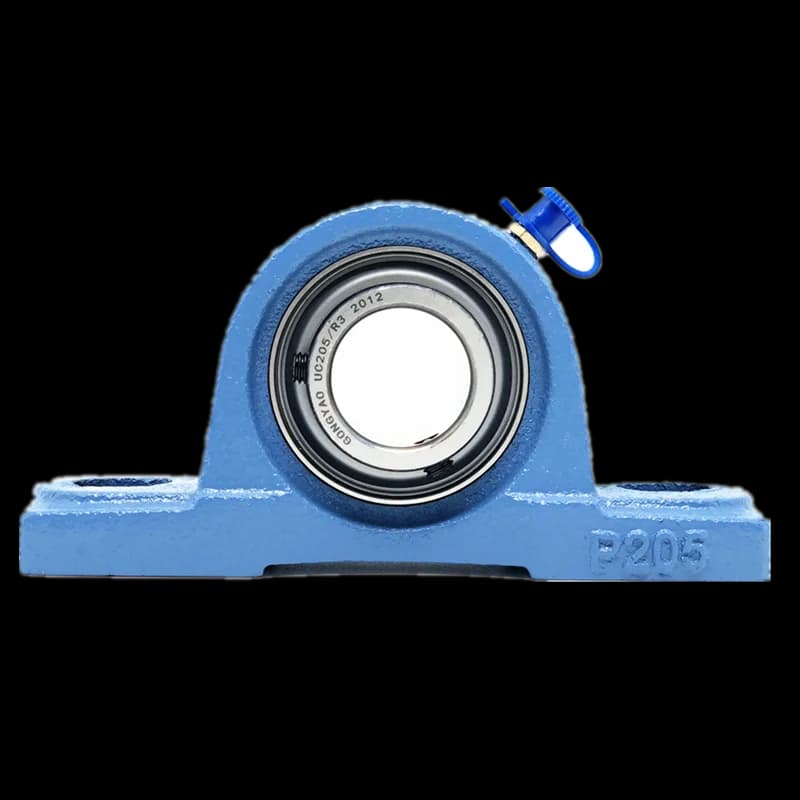

This UCP type pillow block bearing holds rotating shafts steady in industrial machines. Its cast iron housing and thick vertical base give it a firm footing for fast-moving parts. It helps cut down on vibration and supports weight along the shaft's center line. Features and Benefits - Self-aligning bearing insert - This part adjusts itself for small shaft misalignments. This makes it easier to install and helps the bearing last longer. - Cast iron housing - The housing keeps dirt out of the inner bearing. It also gives a solid place to mount the bearing for steady use. - Two-bolt mounting - You can bolt this UCP type bearing securely to any flat surface. This is a common way to set up conveyor systems and fans. - Pre-lubricated with grease fitting - The bearing arrives ready to use. It has a zerk fitting for easy re-greasing, which saves time on upkeep. Applications - Holding up drive shafts and rollers in conveyor belt systems. - Mounting fan and blower shafts in heating, ventilation, and air conditioning units. - Used in many kinds of farm and factory machines that have spinning shafts.

Base Construction: Heavy-Duty Thickened. Base Type: Vertical Base. Bearing Type: Pillow Block Bearing. Brand: GONGYAO. Model Number: UCP. Operation Speed: High-Speed. Mounting Bolt Size: Varies by size, e.g., M10 for UCP204. Shaft Diameter Compatibility: 20mm - 60mm (variable by specific UCP model). Base Construction: Heavy-Duty Thickened. Bearing Material: Chrome Steel (GCR15). Housing Material: Cast Iron. Operating Temperature Range: -20°C to 120°C. Operation Speed: High-Speed. Dynamic Load Rating (Cr): Varies by size, e.g., 12.8 kN for UCP204. Static Load Rating (Cor): Varies by size, e.g., 6.65 kN for UCP204. Base Type: Vertical Base. Bearing Type: UCP Type. Brand Name: GONGYAO. Lubrication Type: Grease (pre-lubricated). Model Number: UCP. Product Type: Pillow Block Bearing. Q: What are the main dimensions I should check before buying this pillow block bearing? A: You'll want to confirm the bore diameter to match your shaft size. Also, check the distance between the mounting bolt holes on the base to ensure it aligns with your machine's frame.. Q: What are the main dimensions I should check before buying this pillow block bearing? A: You'll want to confirm the bore diameter to match your shaft size. Also, check the distance between the mounting bolt holes on the base to ensure it aligns with your machine's frame.. Q: What are the main dimensions I should check before buying this pillow block bearing? A: You'll want to confirm the bore diameter to match your shaft size. Also, check the distance between the mounting bolt holes on the base to ensure it aligns with your machine's frame.. Q: What makes this bearing suitable for high-speed use? A: It's designed with specific internal clearances and uses grease that performs well at higher RPMs. This construction helps it run cooler and reduces friction when your equipment is operating at top speed.. Q: What makes this bearing suitable for high-speed use? A: It's designed with specific internal clearances and uses grease that performs well at higher RPMs. This construction helps it run cooler and reduces friction when your equipment is operating at top speed.. Q: What makes this bearing suitable for high-speed use? A: It's designed with specific internal clearances and uses grease that performs well at higher RPMs. This construction helps it run cooler and reduces friction when your equipment is operating at top speed.. Q: How does the bearing lock onto the shaft? A: This unit uses two set screws located on the inner ring of the bearing. Once you slide the bearing onto the shaft, you simply tighten these screws to secure it in place.. Q: How does the bearing lock onto the shaft? A: This unit uses two set screws located on the inner ring of the bearing. Once you slide the bearing onto the shaft, you simply tighten these screws to secure it in place.. Q: How does the bearing lock onto the shaft? A: This unit uses two set screws located on the inner ring of the bearing. Once you slide the bearing onto the shaft, you simply tighten these screws to secure it in place.. Q: What kind of support do you offer if the bearing fails prematurely? A: We provide a 12-month warranty that covers manufacturing defects. If you experience a problem that isn't from normal wear or improper installation, contact us for support.. Q: What kind of support do you offer if the bearing fails prematurely? A: We provide a 12-month warranty that covers manufacturing defects. If you experience a problem that isn't from normal wear or improper installation, contact us for support.. Q: What kind of support do you offer if the bearing fails prematurely? A: We provide a 12-month warranty that covers manufacturing defects. If you experience a problem that isn't from normal wear or improper installation, contact us for support.. Q: Why would I choose this model with the thickened base? A: The thicker, heavier base provides more stability and helps absorb vibration. This can improve the lifespan of both the bearing and the machinery it's installed in, especially under heavy loads.. Q: Why would I choose this model with the thickened base? A: The thicker, heavier base provides more stability and helps absorb vibration. This can improve the lifespan of both the bearing and the machinery it's installed in, especially under heavy loads.. Q: Why would I choose this model with the thickened base? A: The thicker, heavier base provides more stability and helps absorb vibration. This can improve the lifespan of both the bearing and the machinery it's installed in, especially under heavy loads..
