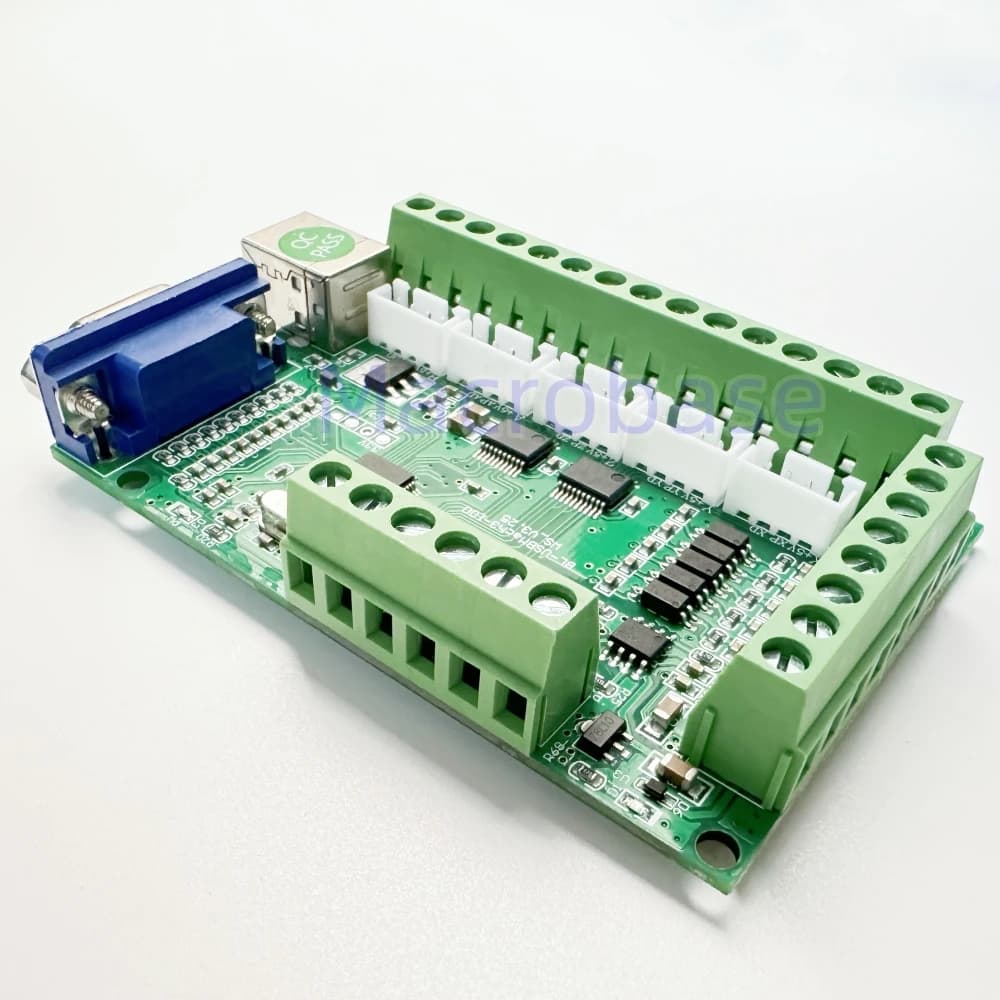

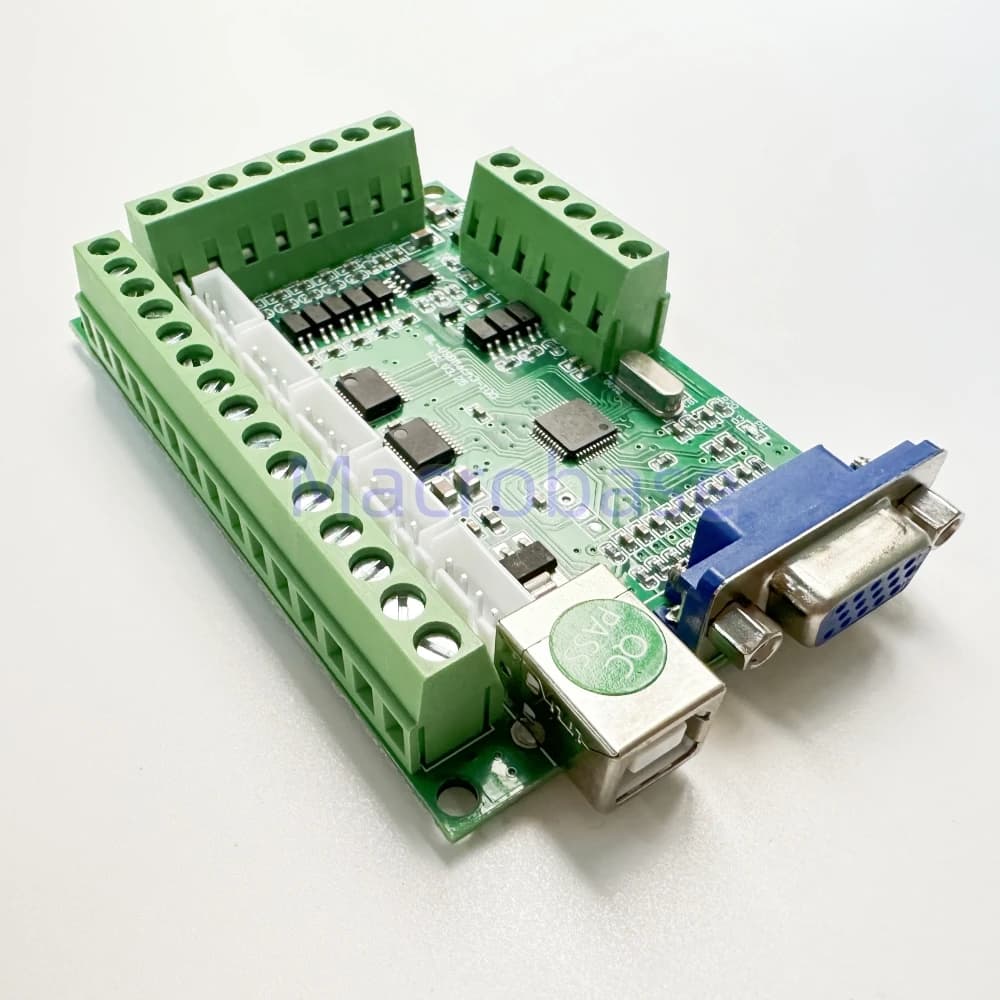

5-Axis CNC Breakout Board Controller | Mach3 Interface with Z-Probe Setter for Precision Milling & Engraving

The Mach3 interface board is a 5-axis CNC breakout card and control plate engineered for reliable, high-speed signal processing. This complete kit includes a Z-probe setter for automated tool height measurement, delivering professional-grade control for precision milling, carving, and engraving applications with enhanced accuracy and workflow efficiency. Features and Benefits - 5-Axis Breakout Card with Opto-Isolation - Protects your computer and drivers from electrical noise and voltage spikes, ensuring stable operation and component longevity. - Integrated Z-Probe/Setter Input - Enables automatic tool height measurement for faster setup, improved material surface consistency, and reduced manual errors. - Mach3-Compatible Control Plate - Provides dedicated, clearly labeled ports for spindle control, limit switches, emergency stop, and coolant, simplifying wiring and troubleshooting. - Robust Signal Processing Circuitry - Delivers clean, precise step and direction pulses to your stepper or servo drivers for smooth axis movement and reduced motor chatter. - Multi-Function Control Interface - Supports spindle speed control, manual pulse generation, and feed hold for comprehensive machine operation directly from the panel. Applications - CNC Router and Mill Control Upgrade - Replace unreliable or basic breakout boards with a dedicated, fully-featured control solution for wood, plastic, and soft metal machining. - DIY CNC Machine Building - The core control component for constructing a reliable 3, 4, or 5-axis milling or engraving machine from the ground up. - Precision Engraving and Carving - Leverage the Z-probe for consistent depth control across uneven material surfaces in sign-making, artistic carving, or PCB milling. - Workshop Automation Integration - Interface with auxiliary equipment like dust collection, coolant pumps, and safety lighting via the programmable output ports.
