What does it mean that these are 'double acting' cylinders?

A double-acting cylinder uses compressed air to power the piston in both directions – extending and retracting. This gives you powered control over both movements. It's different from a single-acting cylinder, which typically uses air for one direction and a spring to return.

How do I figure out which bore and stroke length I need?

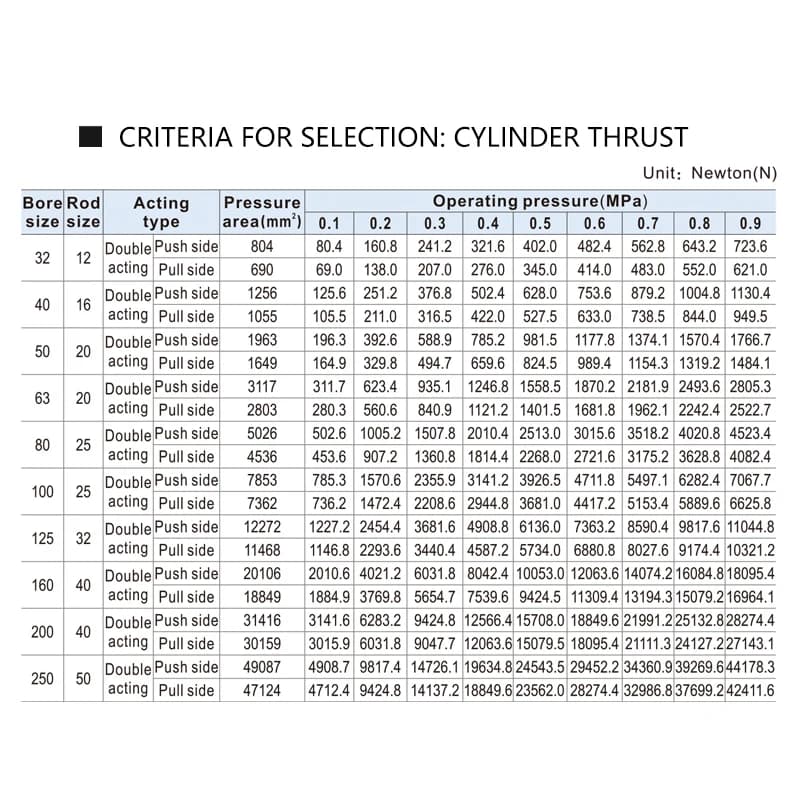

The bore size, like 50mm or 63mm, determines the force the cylinder can produce at a given air pressure. The stroke length, such as 100mm or 250mm, is simply how far the piston rod moves. You'll need to choose a bore that provides enough force for your task and a stroke that matches the travel distance you need.

What kind of air supply do these need and what temperatures can they handle?

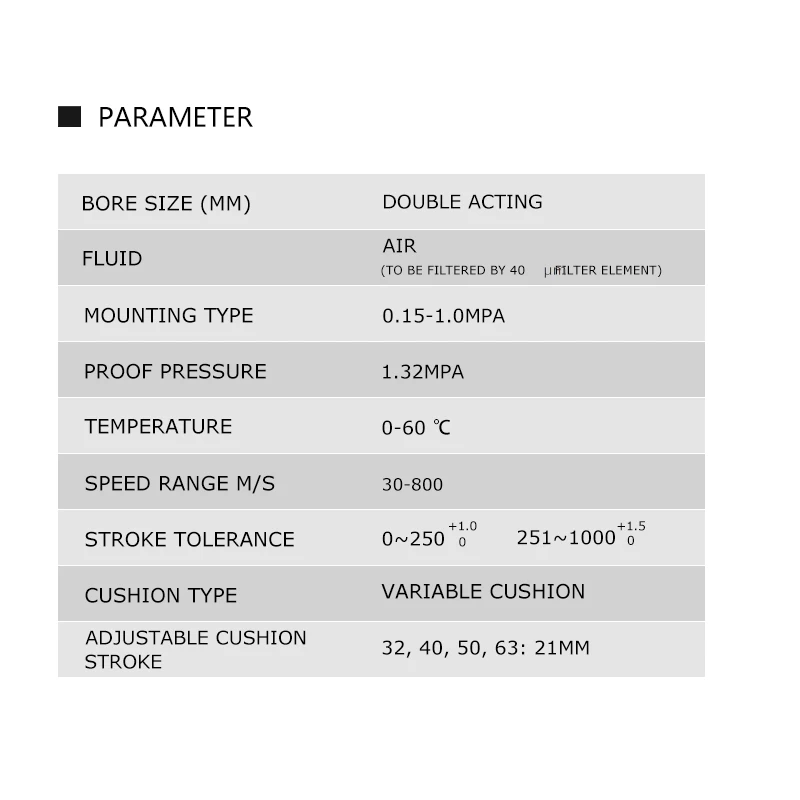

These cylinders run on an operating pressure between 0.15 and 1.0 Mpa (megapascals). The air supply must be filtered by a 40μm filter element to prevent internal damage. They are designed to work in temperatures from 0°C up to 60°C.

Acting Hydraulic Cylinder | 50mm Bore x 200mm Stroke | SC Standard Type

Name: Acting Hydraulic Cylinder | 50mm Bore x 200mm Stroke | SC Standard Type
Brand: Compel
SKU: HYDR-00357
Price: 20.95 USD
Availability: InStock
Rating: 5 (7 reviews)

Stock #:CMP-04557

SKU:HYDR-00357

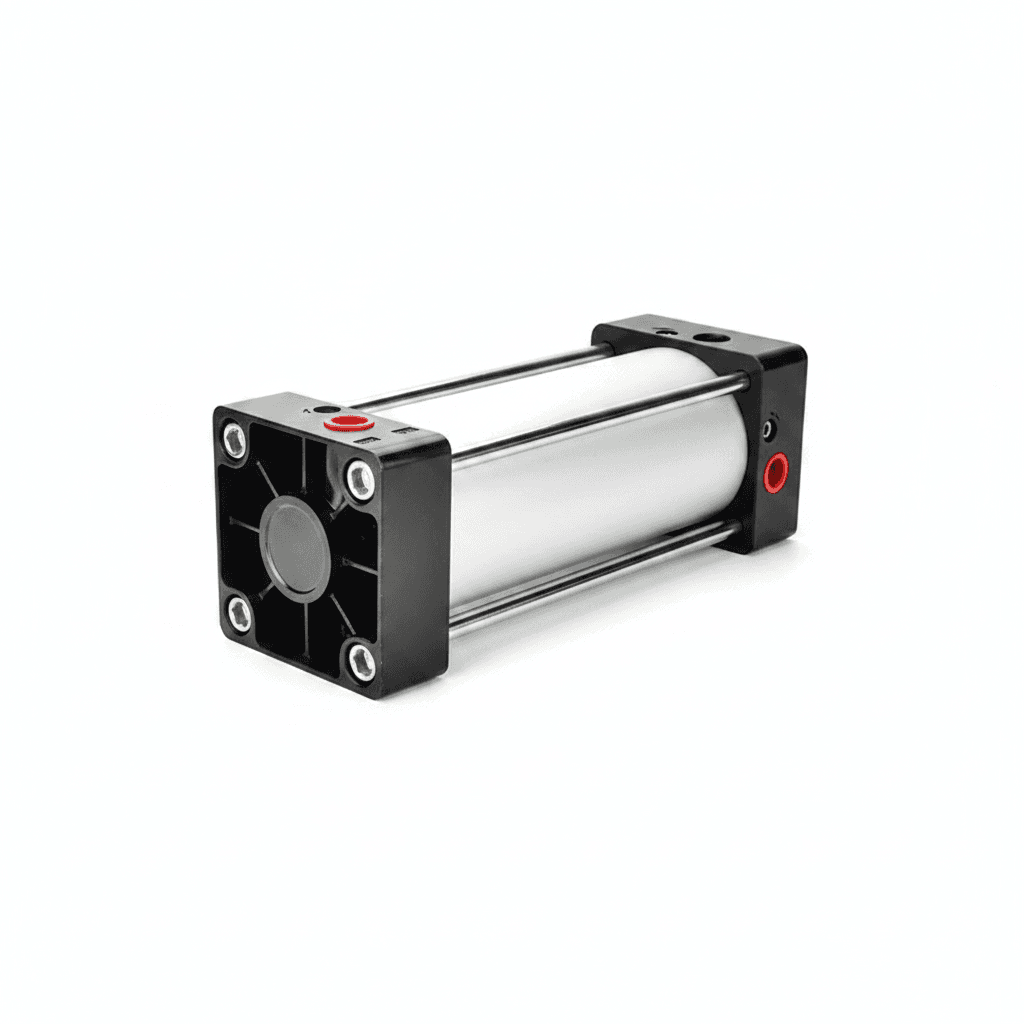

Acting Hydraulic Cylinder | 50mm Bore x 200mm Stroke | SC Standard Type - Image 1

1 / 6

$20.95

Ships to United States · standard est. 10-20 business days

Free standard shipping on orders over $59 (under 2kg). Express available at checkout.

SpecificationSelect an option

Color19 optionsSelect an option

Quantity

Acting Hydraulic Cylinder | 50mm Bore x 200mm Stroke | SC Standard Type

$20.95

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

What does it mean that these are 'double acting' cylinders?: A double-acting cylinder uses compressed air to power the piston in both directions – extending and retracting. This gives you powered control over both movements. It's different from a single-acting cylinder, which typically uses air for one direction and a spring to return.
How do I figure out which bore and stroke length I need?: The bore size, like 50mm or 63mm, determines the force the cylinder can produce at a given air pressure. The stroke length, such as 100mm or 250mm, is simply how far the piston rod moves. You'll need to choose a bore that provides enough force for your task and a stroke that matches the travel distance you need.
What kind of air supply do these need and what temperatures can they handle?: These cylinders run on an operating pressure between 0.15 and 1.0 Mpa (megapascals). The air supply must be filtered by a 40μm filter element to prevent internal damage. They are designed to work in temperatures from 0°C up to 60°C.

Hydraulic Cylinders spec sheet (PDF)

Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.

Explore the range

Popular in Industrial & Machinery

Browse Industrial & Machinery

-28%

Electric Fabric Cutter | Round-Knife Cloth Slitting Machine | YJ-110C Hand-Push Design

5.0

$189.99$264.96

Push-to-Connect Air & Water Fittings | 4mm-12mm OD | Quick-Release Hose Couplings

4.9

$5.95

Complete the set

Accessories & add-ons

Sensor Protection Sleeve | Stainless Steel Blind Tube | 6mm

5.0(11)

$39.95

Motion Sensor Bracket | Automatic IR Lamp Holder | 110-240V AC

4.8(196)

$16.99

Soil Moisture NPK Sensor | 7-in-1 Agricultural Probe Accessory

4.8(25)

$26.95

Arduino Raspberry Pi Sensor Kit (45pc) | Modules for UNO R3 MEGA2560

4.7(58)

$47.95

Reflector Plate | Photoelectric Sensor Accessory | TD Series

4.7(23)

$12.99

Load Cell ADC Module | 24-Bit HX711 Sensor Accessory

4.4(21)

$1.49

Bending Strain Gauge Amplifier Module | Sensor Accessories UK

$5.95

This double-acting pneumatic cylinder provides linear force using compressed air. It works much like a hydraulic cylinder but is cleaner and often faster for automated tasks. With many bore and stroke sizes, you can find the right pneumatic actuator for your project. Features and Benefits - Double-Acting Operation - Uses air pressure to push and pull the piston, giving you full control over movement in both directions. - Adjustable End-of-Stroke Cushioning - Built-in cushions absorb impact at the end of each movement, which reduces noise and wear. - Anodized Aluminum Body - The SC pneumatic cylinder body resists corrosion. Its hard-anodized finish helps the piston move smoothly. - Multiple Configurations - Available in sizes like a 50mm bore with a 100mm stroke to match your specific force and distance needs. Applications - Factory Automation - Good for tasks like pushing, clamping, sorting, and positioning on assembly lines. - Workshop Machinery - Powers custom presses, robotic arms, or material handling equipment in a manufacturing setting. - Food & Beverage - A stainless steel pneumatic cylinder option is available for processing and packaging where cleanliness is important.

Action: Double Acting. Bore Diameter: 32mm, 40mm, 50mm, 63mm. Stroke Length: 50mm, 75mm, 100mm, 125mm, 150mm, 175mm, 200mm, 250mm, 300mm, 350mm, 400mm, 500mm, 1000mm. Type: Pneumatic Cylinder. Bore Diameter: 32mm, 40mm, 50mm, 63mm. Port Size: G1/8, G1/4, G3/8. Stroke Length: 50mm, 75mm, 100mm, 125mm, 150mm, 175mm, 200mm, 250mm, 300mm, 350mm, 400mm, 500mm, 1000mm. Cylinder Barrel Material: Aluminum Alloy. Piston Rod Material: Chrome Plated Steel. Operating Pressure Range: 0.1 MPa to 1.0 MPa. Operating Temperature Range: -20°C to 70°C. Action Type: Double Acting. Cushioning: Adjustable Air Cushion. Fluid: Filtered Air (non-lubricated or lubricated). Magnetic Switch Capability: Yes. Motivity Type: Pneumatic. Mounting Type: Basic, Foot, Flange, Clevis. Product Type: Pneumatic Cylinder. Series: SC Standard Air Cylinder. Q: What does 'double acting' mean for these pneumatic cylinders? A: A double-acting cylinder means that compressed air powers the piston in both directions—out and back in. This provides powered force for both extension and retraction, giving you more control than a spring-return cylinder.. Q: What does 'double acting' mean for these pneumatic cylinders? A: A double-acting cylinder means that compressed air powers the piston in both directions—out and back in. This provides powered force for both extension and retraction, giving you more control than a spring-return cylinder.. Q: What does 'double acting' mean for these pneumatic cylinders? A: A double-acting cylinder means that compressed air powers the piston in both directions—out and back in. This provides powered force for both extension and retraction, giving you more control than a spring-return cylinder.. Q: What are the cylinder barrel and piston rod made from? A: The cylinder barrel is an aluminum alloy that has been hard anodized for a smooth, durable internal surface. The piston rod is made of carbon steel and is plated with chrome to resist wear and corrosion.. Q: What are the cylinder barrel and piston rod made from? A: The cylinder barrel is an aluminum alloy that has been hard anodized for a smooth, durable internal surface. The piston rod is made of carbon steel and is plated with chrome to resist wear and corrosion.. Q: What are the cylinder barrel and piston rod made from? A: The cylinder barrel is an aluminum alloy that has been hard anodized for a smooth, durable internal surface. The piston rod is made of carbon steel and is plated with chrome to resist wear and corrosion.. Q: I actually need a hydraulic cylinder. Can I use this with oil? A: No, this is a pneumatic cylinder designed only for compressed air. The seals and construction are not rated for the high pressures of a hydraulic system, and using oil would cause it to fail.. Q: I actually need a hydraulic cylinder. Can I use this with oil? A: No, this is a pneumatic cylinder designed only for compressed air. The seals and construction are not rated for the high pressures of a hydraulic system, and using oil would cause it to fail.. Q: I actually need a hydraulic cylinder. Can I use this with oil? A: No, this is a pneumatic cylinder designed only for compressed air. The seals and construction are not rated for the high pressures of a hydraulic system, and using oil would cause it to fail.. Q: What are the operating pressure and temperature ranges? A: These cylinders are designed to operate with an air pressure between 0.1 and 1.0 MPa (about 15 to 145 PSI). The recommended operating temperature range is from -20°C to 80°C (-4°F to 176°F).. Q: What are the operating pressure and temperature ranges? A: These cylinders are designed to operate with an air pressure between 0.1 and 1.0 MPa (about 15 to 145 PSI). The recommended operating temperature range is from -20°C to 80°C (-4°F to 176°F).. Q: What are the operating pressure and temperature ranges? A: These cylinders are designed to operate with an air pressure between 0.1 and 1.0 MPa (about 15 to 145 PSI). The recommended operating temperature range is from -20°C to 80°C (-4°F to 176°F).. Q: Is there a warranty included with these cylinders? A: Yes, they are covered by a 12-month manufacturer's warranty. This protects you against any defects in materials or workmanship from the date of purchase.. Q: Is there a warranty included with these cylinders? A: Yes, they are covered by a 12-month manufacturer's warranty. This protects you against any defects in materials or workmanship from the date of purchase.. Q: Is there a warranty included with these cylinders? A: Yes, they are covered by a 12-month manufacturer's warranty. This protects you against any defects in materials or workmanship from the date of purchase..
