This professional-grade black heat shrink tube kit provides reliable 2:1 shrink ratio insulation with a thermoresistant construction rated up to 125°C. The high-quality polyolefin tubing ensures a permanent, waterproof seal that protects electrical connections from abrasion, moisture, and corrosion for long-term reliability. Features and Benefits

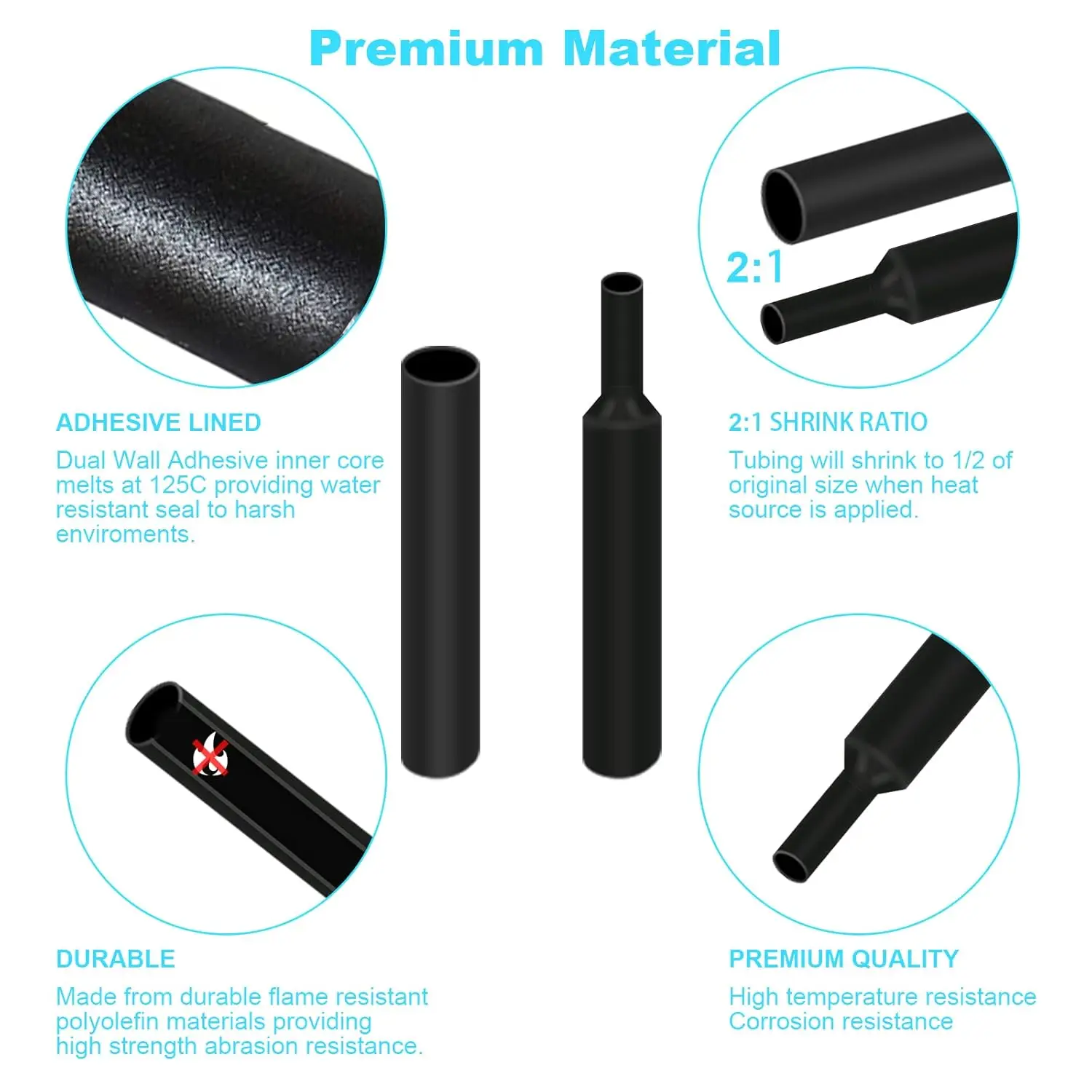

- 2:1 Shrink Ratio - Provides a tight, conformal fit around wires and terminals for a secure, strain-relief seal.
- 125°C Temperature Rating - Withstands high-heat environments in engine bays, electronics enclosures, and industrial applications.
- Flame-Retardant Polyolefin Material - Offers superior protection against short circuits and enhances overall electrical safety.

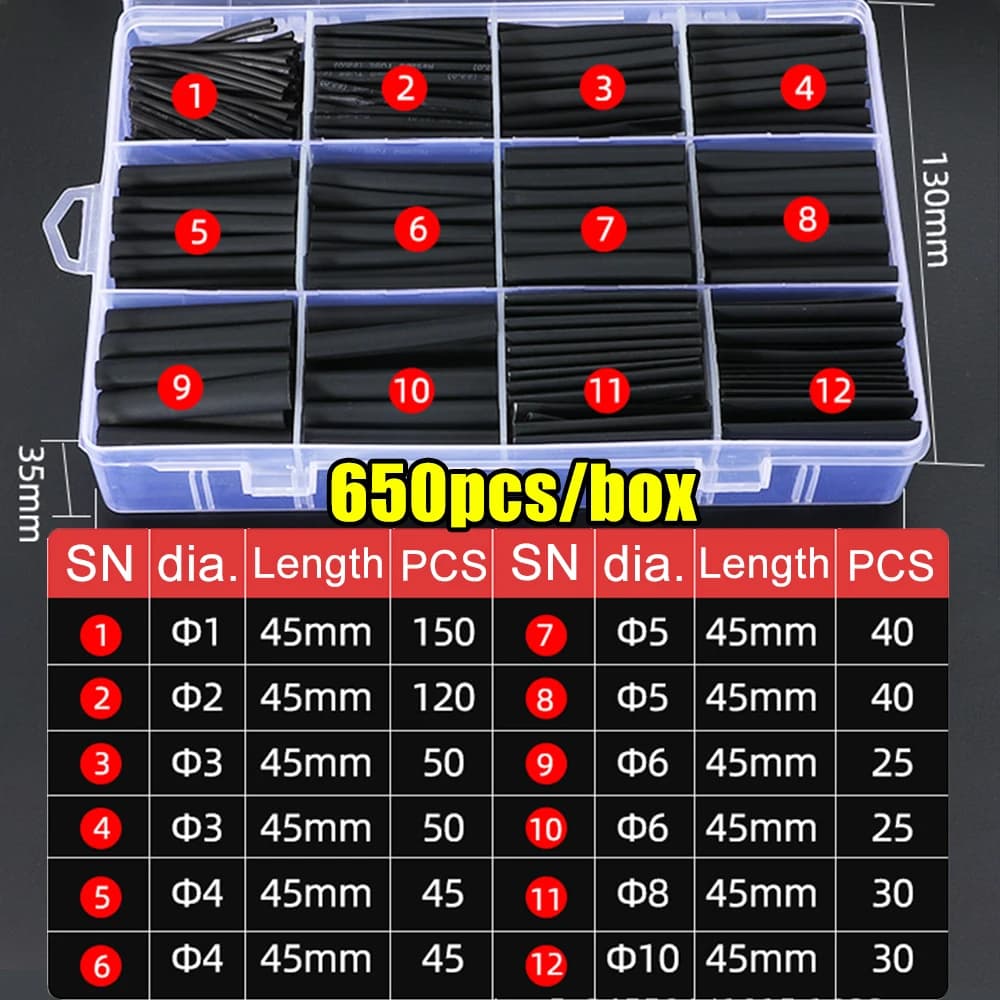

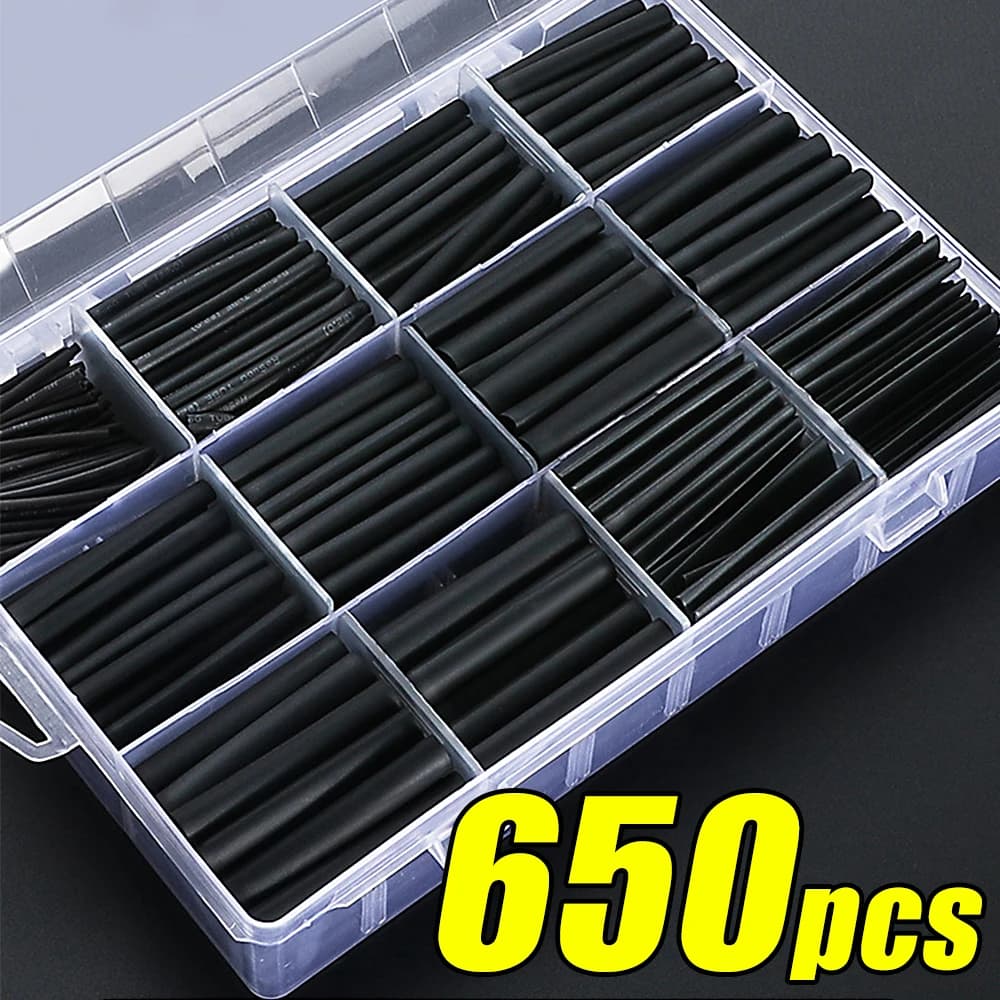

- Assorted Size Kit - Multiple diameters from 1mm to 12mm accommodate a wide range of wire gauges and connection types in one package.
- Black, Matte Finish - Delivers a clean, professional appearance that blends seamlessly with most wiring harnesses. Applications
- Automotive Wiring Repair - Insulate and protect splices, terminals, and harnesses from vibration, fluids, and underhood heat.
- DIY Electronics Projects - Create durable, insulated connections for custom circuits, RC models, and home automation systems.
- Professional Electrical Maintenance - Bundle cables, reinforce strain relief, and repair damaged insulation on machinery and equipment.
- Marine and Outdoor Electronics - Provide a waterproof seal for lighting, battery, and sensor connections exposed to the elements. Note: For optimal results, use a quality heat gun and apply heat evenly around the tubing until it is fully contracted.
Material: Polyolefin. Color: Black. Application: Electrical Insulation, Wire Connection Protection. Diameter Range (Expanded): 1.5 mm to 12 mm. Diameter Range (Shrunk): 0.75 mm to 6 mm. Dielectric Strength: ≥ 600 V. Elongation at Break: ≥ 200%. Flammability Rating: UL224 VW-1. Full Shrink Temperature: 135°C. Heat Shrink Ratio: 2:1. Kit Contents: Assorted Sizes. Length per Piece: 100 mm. Minimum Shrink Temperature: 70°C. Operating Temperature Range: -55°C to 125°C. Quantity per Kit: 200 pieces. Tensile Strength: ≥ 10.4 MPa. Type: Heat Shrink Tubing. Kit Type: Assorted Sizes. Diameter Range (Expanded): 1.5mm to 25mm (Inferred from Kit). Diameter Range (Recovered): 0.75mm to 12.5mm (Calculated for 2:1 Ratio). Wall Thickness: Standard Wall (Inferred). Material: Polyolefin (Inferred Standard). Operating Temperature Range: -55°C to 125°C (Inferred for Standard Polyolefin). Recovery Temperature: 110°C - 135°C (Inferred for Polyolefin). Flame Rating: UL224 VW-1 (Inferred Standard). Application: Wire Splices, Connectors, Component Protection. Chemical Resistance: Resistant to common solvents, oils, and acids (Inferred Standard). Color: Black. Dielectric Strength: ≥15 kV/mm (Inferred for Standard Grade). Elongation at Break: ≥200% (Inferred for Standard Grade). Longitudinal Shrinkage: ≤10% (Inferred Standard). Primary Function: Electrical Insulation and Mechanical Protection. Product Type: Heat Shrink Tubing Kit. Shrink Ratio: 2:1 (Inferred Standard). Tensile Strength: ≥10.4 MPa (Inferred for Standard Grade). Q: What are the dimensions included in this Black Heat Shrink Tube Kit? A: This comprehensive kit includes a variety of sizes to handle different projects. You'll find multiple lengths and diameters, typically ranging from small 2:1 shrink ratio tubes for delicate wires to larger sleeves for thicker cable insulation.. Q: How durable and heat resistant are these electrical insulation sleeves? A: These heat shrink tubes are made from thermoresistant material, designed to withstand high temperatures from a heat gun without melting or degrading. They provide a durable, protective seal that is resistant to abrasion, moisture, and many chemicals for long-lasting electrical connection protection.. Q: Can I use this heat shrink tubing for automotive wiring repairs? A: Yes, this heat shrink tube kit is perfectly suited for automotive applications. The black tubing provides excellent insulation and protection for wire splices, battery terminals, and other electrical connections against vibration, fluids, and heat under the hood.. Q: Does this product come with any warranty or guarantee? A: This product is backed by a satisfaction guarantee from the seller. If you have any issues with the quality or performance of the heat shrink tubing, you can contact customer support for a resolution.. Q: Is this Black Heat Shrink Tube Kit a good value compared to buying individual sizes? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. The kit format provides a wide range of sizes for various tasks, delivering reliable performance for regular use at a fraction of the cost of purchasing tubes separately..
