Firewall Appliance Mini PC | Intel Celeron | 4x LAN pfSense Router

Name: Firewall Appliance Mini PC | Intel Celeron | 4x LAN pfSense Router
Brand: Compel Group
SKU: SING-00335
Price: 264.99 GBP
Availability: InStock
Rating: 4.8 (66 reviews)

Stock Nr:

SKU:

Firewall Appliance Mini PC | Intel Celeron | 4x LAN pfSense Router - Image 1

1 / 4

£264.99inc VAT

ColorSelect an option

BundleSelect an option

Quantity

Firewall Appliance Mini PC | Intel Celeron | 4x LAN pfSense Router

£264.99

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

Can I install pfSense or OPNsense directly onto this unit?: Yes, the system boots standard BSD and Linux distributions via USB installation media. The four Intel i226-V network cards work straight out of the box with modern builds of pfSense and OPNsense without extra drivers.
What internal storage can I fit inside this chassis?: The motherboard has one mSATA slot fitted with a 128GB solid-state drive as standard. It also includes mounting space and internal header connections for an additional 2.5-inch SATA hard drive or SSD.

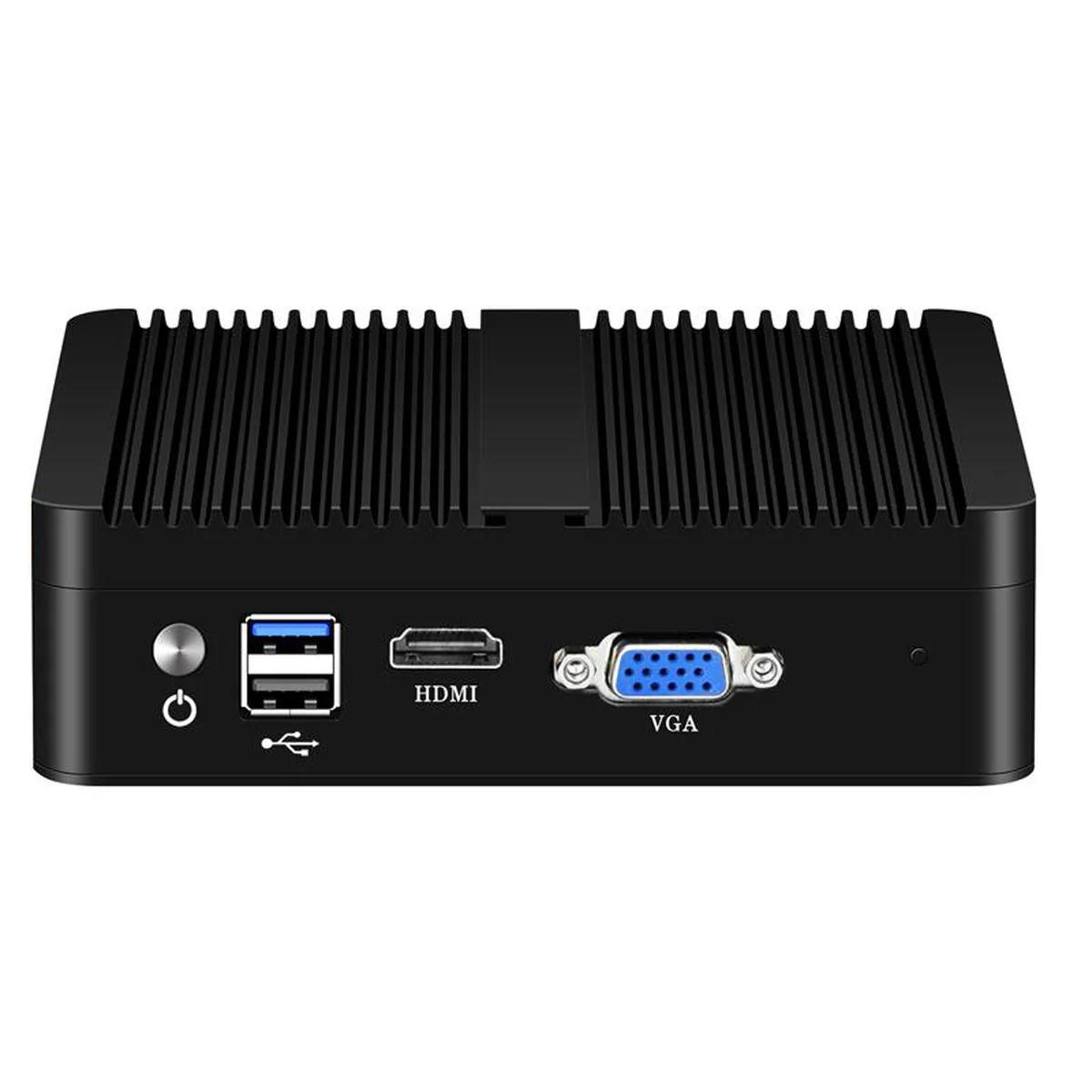

How do I connect a monitor and keyboard for initial setup?: Plug your display directly into either the HDMI port or the VGA port on the rear panel. You get one USB 3.0 port and one USB 2.0 port for connecting a wired keyboard and a boot drive.

Computers & Tablets spec sheet (PDF)

Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.

Not sure which one?

Compare with similar products

The same kind of product, in stock, in a similar price range.

This product: £264.99 · 4.8

This product

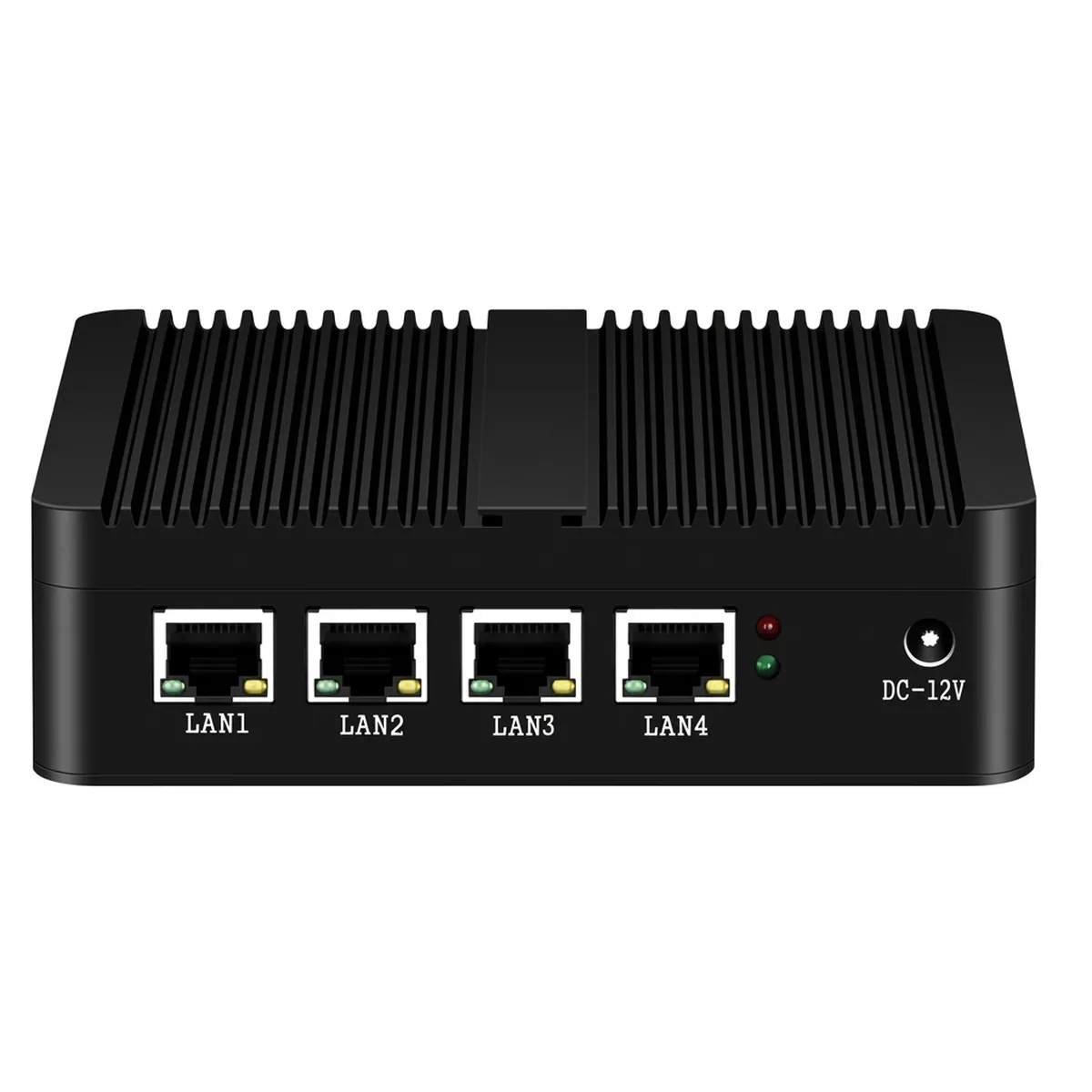

Firewall Appliance Mini PC showing four LAN ports and DC power input on black metal chassis.

Firewall Appliance Mini PC | Intel Celeron | 4x LAN pfSense Router

Price: £264.99
Rating: 4.8(66)
Sold: 600+
Stock: In stock

You're viewing this

Alternative

Firewall Appliance Mini PC displaying front USB, HDMI, DP, SIM slot, and antenna ports.

Firewall Appliance Mini PC | 4x 2.5GbE LAN | Fanless OPNsense Router

Price: £392.99
Rating: 4.7(12)
Sold: 110+
Stock: In stock

View

Alternative

Firewall Appliance Mini PC | Fanless 2.5G & 10G | pfSense OpenWrt

Price: £597.99
Rating: Not rated
Sold: -
Stock: In stock

View

Alternative

Firewall Appliance | Fanless i3-N300 6x 2.5G i226 LAN | DDR4 Mini PC

Price: £348.99
Rating: Not rated
Sold: -
Stock: In stock

View

Alternative

Firewall Appliance Mini PC showing four Ethernet ports, power jack, and top heatsink fins.

Firewall Appliance Mini PC | 4 LAN Soft Router | Fanless PC

Price: £297.99
Rating: Not rated
Sold: 14+
Stock: In stock

View

Alternative

Firewall Appliance with four Ethernet ports, DC input, COM port, and finned heatsink top.

Firewall Appliance | 4x 2.5GbE Intel I226-V Ports | 8GB RAM NVMe SSD

Price: £604.99
Rating: Not rated
Sold: -
Stock: In stock

View

Alternative

Firewall Appliance Mini PC showing side panel with VGA, SIM slot, USB-C, and SFF8087 port under heatsink fins.

Firewall Appliance Mini PC | 4x SFP+ 5x 2.5GbE | Intel Denverton

Price: £348.99
Rating: 5.0(1)
Sold: 11+
Stock: In stock

View

Alternative

Firewall Appliance Mini PC | Dual 2.5G LAN 2 COM | Fanless Intel N100/N150

Price: £496.99
Rating: 5.0(2)
Sold: 45+
Stock: In stock

View

Alternative

Firewall Appliance Mini PC | 6x 2.5GbE LAN | Fanless pfSense OPNsense

Price: £511.99
Rating: 4.9(14)
Sold: 76+
Stock: In stock

View

Compare options

More Computers & Tablets

All Computers & Tablets

Explore the range

Popular in Electronics & Components

Browse Electronics & Components

Heat Shrink Tubing Kit | 2:1 Shrink Ratio | 164-328 Pieces, 5 Colors, 8 Sizes

4.9

£25.99

Double-Sided Prototype PCB | 5x7cm Universal Board | DIY Electronics

4.9

£31.99

Hard Drive for PS4 & Xbox | 1TB USB 3.0 Storage | 2.5-Inch HDD

4.9(4.2K)

£89.99

Cat8 Ethernet Cable | SFTP 40Gbps 2000MHz | Router Modem Patch Lead

4.9(2.0K)

£31.99

Heat Shrink Tubing | PVC Flat Battery Wrap for 18650 Cells | 100-Piece Assortment

4.9

£27.99

RCBO Circuit Breaker | 230V 1P+N | Overcurrent & Leakage Protection

4.9

£52.99

M.2 NVMe SSD to PCIe Adapter | 16Gbps PCIe 4.0 x1 Expansion Card

4.9(2.1K)

£36.99

Flash Drive | 64GB Wooden Bamboo Memory Stick | Custom Logo Wedding Gift

4.9(353)

£38.99

SATA III Cable | 50cm SATA 3.0 6Gbps | SSD & HDD Desktop PC Build

4.9(1.3K)

£30.99

12V 5A AC/DC Power Adapter | Universal Regulated Switching Power Supply for LED & CCTV Systems

4.9

£47.99

Micro SD Card 256GB | UHS-1 Class 10 Speed | For Smartphone & PC

4.8(9.9K)

£91.99

2.5-inch USB 3.0 HDD/SSD Enclosure | 5Gbps SATA Drive Case

4.8(6.4K)

£52.99

Complete the set

Accessories & add-ons

SATA Cable 8-Pack | 6Gbps Right-Angle | 0.5M for RAID & Bitcoin Rigs

5.0(81)

£35.99

Professional-Grade Cable Management Kit | 500-Piece Nylon Zip Ties | Heavy-Duty Self-Locking Straps

5.0

£37.99

Push-In Wire Connectors | 5-Pack | Fast, Secure Electrical Splicing Terminal Blocks

4.9

£24.99

M.2 SSD Hard Drive Caddy Heatsink | NVMe 2280 Aluminum Cooler | For PS5 & PC

4.9(1.6K)

£33.99

90-Degree SATA Cable | Locking Latch Connectors | SATA III 6.0 Gbps 12-Pack

4.9(555)

£45.99

Drive Caddy | 2.5 to 3.5 inch SSD Mounting Bracket | For Desktop PC Bay

4.9(292)

£30.99

Professional-Grade Solder Wire | 40g Rosin Core | 183°C Melting Point for Precision Electronics Work

4.9

£25.99

Drive Caddy | 2.5 to 3.5 Inch Bay Adapter | For SSD & HDD Mounting

4.9(311)

£41.99

JST SM 2-Pin Connector Kit | 10-Pair Set for LED Strip & Tape Lighting

4.9

£30.99

2.8mm Electrical Connector Kit | 2-9 Pin Automotive Terminals | Waterproof Wire Harness Plug Set

4.9

£25.99

Dell Hard Drive Caddy | 2.5-inch SAS/SATA Tray | For PowerEdge R730 R630

4.9(63)

£43.99

SATA Cable with Locking Latch | 6Gbps SATA III Data | For Secure HDD SSD Builds

4.9(239)

£52.99

This firewall appliance mini pc runs an Intel Celeron processor with four network ports. It serves as a dedicated hardware gateway for pfSense and OPNsense, routing network traffic across your local network while drawing minimal wall power during continuous 24/7 use. Features and Benefits - Four Intel LAN ports - Deliver high-throughput wired connections without the packet drop issues common in consumer network chips. - Intel Celeron processor - Routes standard home broadband traffic smoothly without generating excessive heat. - Solid finned aluminum chassis - Pulls heat away from the board silently without moving parts or dust buildup. - Direct support for pfSense and OPNsense - Lets you install open-source router software via USB flash drive in minutes. Applications - Dedicated home router to manage separate local subnets, guest Wi-Fi networks, and IoT equipment. - Small office security edge appliance running stateful packet inspection and basic intrusion detection. - Benchtop testing lab for experimenting with software routing rules and custom network topologies.

Processor: Intel Celeron J1900. Processor Base Frequency: 2.0 GHz. Processor Core Count: 4. Application: Commercial Network Appliance. Cooling System: Fanless Passive Cooling. Device Type: Firewall Appliance Mini PC. Ethernet Ports: 4 x 2.5 Gbps (Intel I225-V / I226-V). Supported Operating Systems: pfSense, OPNsense, Linux, Windows. Dimensions: 134 x 126 x 38 mm. Weight: 0.85 kg. Chassis Material: Full Aluminum Alloy. Power Input: DC 12V / 3A-5A External Power Adapter. Thermal Design Power (TDP): 10 W. I/O Interfaces: 1x USB 3.0, 1x USB 2.0, 1x VGA, 1x HDMI, 1x RJ45 COM. Software Compatibility: pfSense, OPNsense, OpenWrt, Linux, RouterOS, Windows 10. Operating Temperature: -10°C to 60°C. Cooling System: Fanless Passive Aluminum Heat Sink. Device Type: Firewall Appliance Mini PC. Ethernet Controller: 4x Intel I225-V / I226-V 2.5GbE RJ45 ports. Memory Support: 1x DDR3L SO-DIMM Slot, 1333/1600 MHz, up to 8GB. Processor: Intel Celeron J1900 (Quad-Core, 4 Threads, 2.0 GHz Base, up to 2.42 GHz Burst). Processor Main Frequency: 2.0 GHz. Storage Options: 1x mSATA SSD slot, 1x 2.5-inch SATA HDD/SSD bay. Q: What network ports come on this firewall appliance mini pc? A: This unit carries four 2.5GbE RJ45 ports running on Intel I225-V or I226-V controllers. It runs on a 2.0 GHz quad-core Intel Celeron J1900 processor with 10W thermal power.. Q: What is the chassis made of and how does it stay cool? A: The casing is solid extruded aluminium with cooling fins across the top. The fanless build pulls heat straight off the board without moving parts to trap dust.. Q: Which router platforms and operating systems work on this hardware? A: You can install pfSense, OPNsense, OpenWrt, and standard Linux distributions like Debian or Ubuntu. It boots from standard UEFI or legacy BIOS media.. Q: What kind of warranty coverage comes with this unit? A: The box includes a one-year hardware replacement warranty for internal board components and ports. Defective units get repaired or swapped directly through customer support.. Q: Why buy this over a basic off-the-shelf consumer router? A: You get four dedicated 2.5G network cards and full control over your firewall software. It handles gigabit line-speed routing and local network filtering for around $150 to $200..
