Industrial Mini PC | 2x GbE LAN | 2x COM RS232/RS485

Name: Industrial Mini PC | 2x GbE LAN | 2x COM RS232/RS485
Brand: Compel Group
SKU: SING-00352
Price: 244.99 GBP
Availability: InStock
Rating: 4.4 (7 reviews)

Stock Nr:

SKU:

Industrial Mini PC | 2x GbE LAN | 2x COM RS232/RS485 - Image 1

1 / 6

£244.99inc VAT

ColorSelect an option

BundleSelect an option

Quantity

Industrial Mini PC | 2x GbE LAN | 2x COM RS232/RS485

£244.99

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

Can the Intel Celeron J6412 processor run Windows 11?: Yes, the Celeron J6412 runs at up to 2.60GHz across 4 cores and handles 64-bit Windows 10, Windows 11, and Linux distributions. The included 8GB DDR4 memory meets the system requirements for standard desktop navigation and local control software.
What internal memory and storage come fitted in this system?: This model comes configured with 8GB of DDR4 system RAM and a fast M.2 NVMe solid-state drive. Depending on the chosen configuration, it mounts an internal NVMe SSD between 256GB and 512GB capacity.
What can I connect to the two COM ports?: The two dedicated serial ports support RS232 and RS485 communication protocols. They connect directly to industrial equipment such as programmable logic controllers, barcode scanners, lab instruments, and digital weight scales.

Computers & Tablets spec sheet (PDF)

Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.

Not sure which one?

Compare with similar products

The same kind of product, in stock, in a similar price range.

This product: £244.99 · 4.4

This product

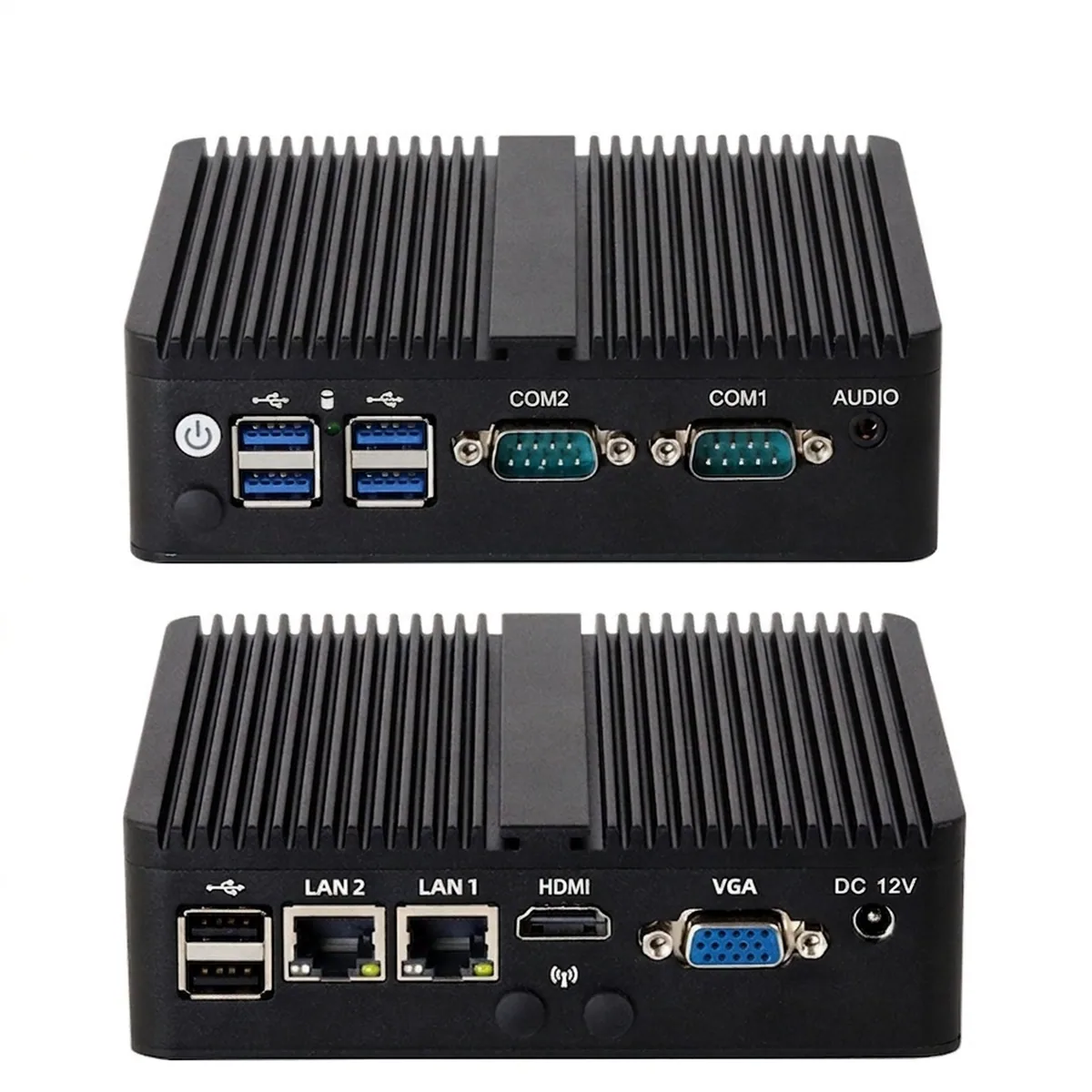

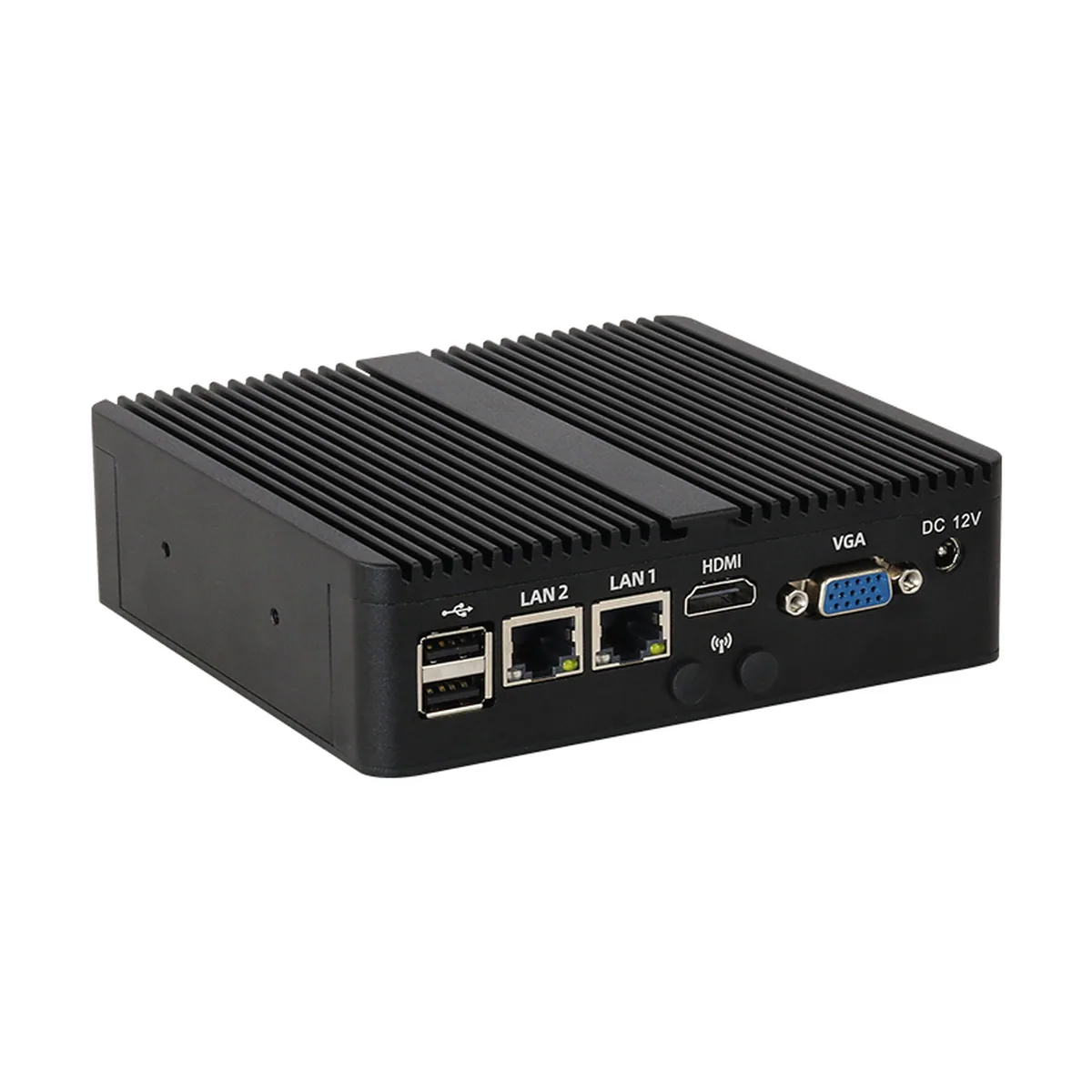

Rear panel of a black Industrial Mini PC showing dual LAN, HDMI, VGA, and USB ports.

Industrial Mini PC | 2x GbE LAN | 2x COM RS232/RS485

Price: £244.99
Rating: 4.4(7)
Sold: 45+
Stock: In stock

You're viewing this

Alternative

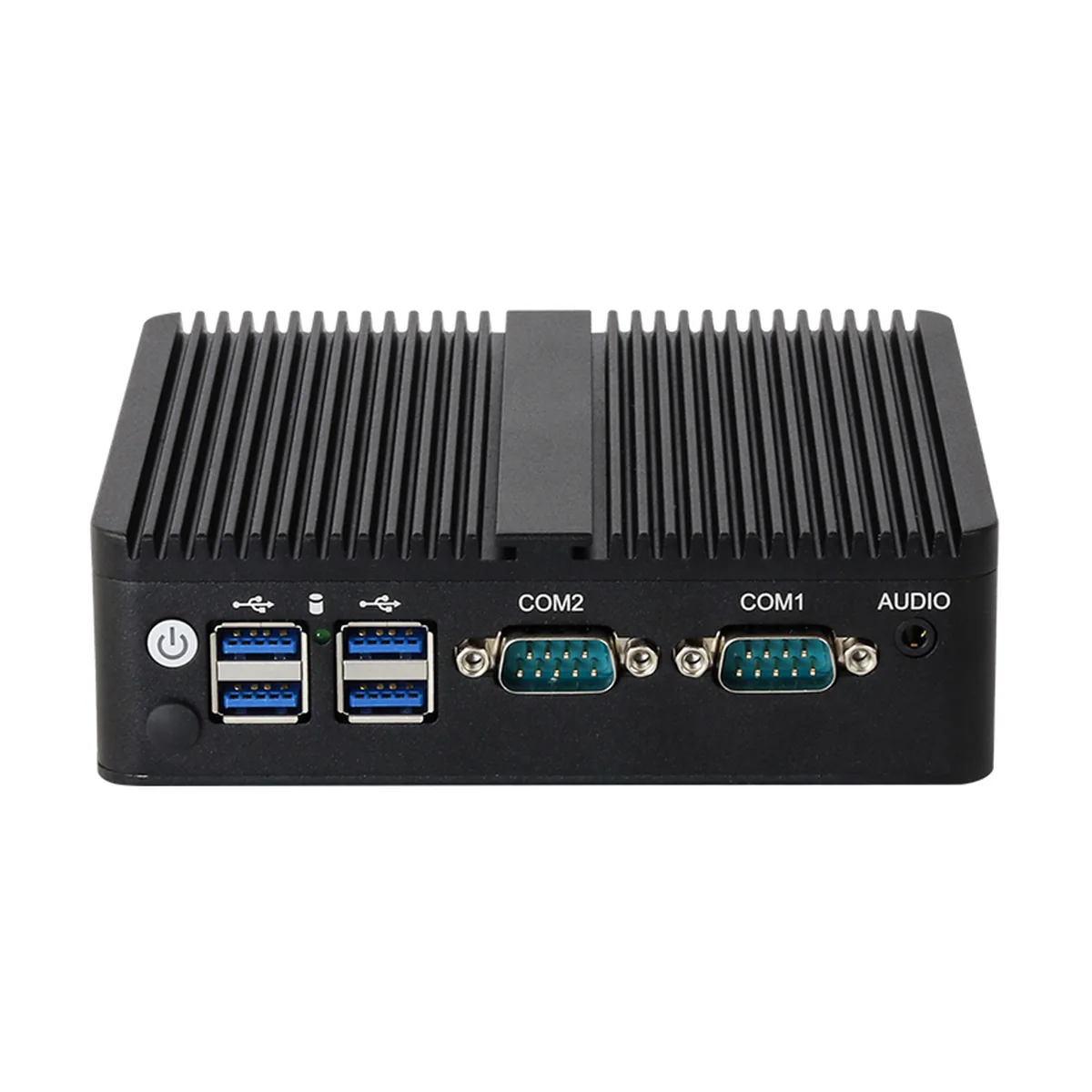

Industrial Mini PC showing front panel with USB ports, dual COM serial ports, and audio jack.

Industrial Mini PC | Dual RS232 RS485 COM | Dual GbE LAN

Price: £244.99
Rating: 5.0(1)
Sold: 11+
Stock: In stock

View

Alternative

Industrial Mini PC | Gigabit LAN HDMI VGA | Compact IoT Embedded Box

Price: £216.99
Rating: 4.2(5)
Sold: 37+
Stock: In stock

View

Alternative

Industrial Mini PC showing front panel with power button, USB ports, serial COM ports, and audio jack.

Industrial Mini PC | Machine Vision System | J6412 Dual LAN RS485

Price: £238.99
Rating: Not rated
Sold: 1+
Stock: In stock

View

Alternative

Industrial Mini PC | Dual Gigabit LAN | Fanless Passive Cooling

Price: £212.99
Rating: Not rated
Sold: 3+
Stock: In stock

View

Alternative

Industrial Mini PC with finned heatsink top, two COM ports, four USB ports, and an audio jack.

Industrial Mini PC | Aluminum Alloy Chassis | Fanless Passive Cooling

Price: £227.99
Rating: Not rated
Sold: 11+
Stock: In stock

View

Alternative

Industrial Mini PC showing front panel with four USB ports, two serial ports, and power switch.

Industrial Mini PC | Dual Gigabit LAN | Dual RS232 RS485 IPC

Price: £232.99
Rating: 5.0(6)
Sold: 40+
Stock: In stock

View

Alternative

Industrial Mini PC showing rear I/O ports including LAN, USB, HDMI, and VGA connectors.

Industrial Mini PC | Fanless Passive Cooling | IoT Data Collection

Price: £534.99
Rating: Not rated
Sold: -
Stock: In stock

View

Alternative

Industrial Mini PC | Intel N5095 | Fanless Passive Cooling

Price: £333.99
Rating: Not rated
Sold: -
Stock: In stock

View

Compare options

More Computers & Tablets

All Computers & Tablets

Dell OptiPlex 9010 7010 MT Motherboard | Model 09PR9H | 100% Tested & Fully Functional

5.0

£112.99

Explore the range

Popular in Electronics & Components

Browse Electronics & Components

Heat Shrink Tubing Kit | 2:1 Shrink Ratio | 164-328 Pieces, 5 Colors, 8 Sizes

4.9

£25.99

Double-Sided Prototype PCB | 5x7cm Universal Board | DIY Electronics

4.9

£31.99

Hard Drive for PS4 & Xbox | 1TB USB 3.0 Storage | 2.5-Inch HDD

4.9(4.2K)

£89.99

Cat8 Ethernet Cable | SFTP 40Gbps 2000MHz | Router Modem Patch Lead

4.9(2.0K)

£31.99

Heat Shrink Tubing | PVC Flat Battery Wrap for 18650 Cells | 100-Piece Assortment

4.9

£27.99

RCBO Circuit Breaker | 230V 1P+N | Overcurrent & Leakage Protection

4.9

£52.99

M.2 NVMe SSD to PCIe Adapter | 16Gbps PCIe 4.0 x1 Expansion Card

4.9(2.1K)

£36.99

Flash Drive | 64GB Wooden Bamboo Memory Stick | Custom Logo Wedding Gift

4.9(353)

£38.99

SATA III Cable | 50cm SATA 3.0 6Gbps | SSD & HDD Desktop PC Build

4.9(1.3K)

£30.99

12V 5A AC/DC Power Adapter | Universal Regulated Switching Power Supply for LED & CCTV Systems

4.9

£47.99

Micro SD Card 256GB | UHS-1 Class 10 Speed | For Smartphone & PC

4.8(9.9K)

£91.99

2.5-inch USB 3.0 HDD/SSD Enclosure | 5Gbps SATA Drive Case

4.8(6.4K)

£52.99

Complete the set

Accessories & add-ons

SATA Cable 8-Pack | 6Gbps Right-Angle | 0.5M for RAID & Bitcoin Rigs

5.0(81)

£35.99

Professional-Grade Cable Management Kit | 500-Piece Nylon Zip Ties | Heavy-Duty Self-Locking Straps

5.0

£37.99

Push-In Wire Connectors | 5-Pack | Fast, Secure Electrical Splicing Terminal Blocks

4.9

£24.99

M.2 SSD Hard Drive Caddy Heatsink | NVMe 2280 Aluminum Cooler | For PS5 & PC

4.9(1.6K)

£33.99

90-Degree SATA Cable | Locking Latch Connectors | SATA III 6.0 Gbps 12-Pack

4.9(555)

£45.99

Drive Caddy | 2.5 to 3.5 inch SSD Mounting Bracket | For Desktop PC Bay

4.9(292)

£30.99

Professional-Grade Solder Wire | 40g Rosin Core | 183°C Melting Point for Precision Electronics Work

4.9

£25.99

Drive Caddy | 2.5 to 3.5 Inch Bay Adapter | For SSD & HDD Mounting

4.9(311)

£41.99

JST SM 2-Pin Connector Kit | 10-Pair Set for LED Strip & Tape Lighting

4.9

£30.99

2.8mm Electrical Connector Kit | 2-9 Pin Automotive Terminals | Waterproof Wire Harness Plug Set

4.9

£25.99

Dell Hard Drive Caddy | 2.5-inch SAS/SATA Tray | For PowerEdge R730 R630

4.9(63)

£43.99

SATA Cable with Locking Latch | 6Gbps SATA III Data | For Secure HDD SSD Builds

4.9(239)

£52.99

Powered by an Intel Celeron or Pentium processor, this fanless box collects sensor metrics and runs basic plant automation. Available with selectable RAM and SSD storage options, it runs Windows 11 or Linux without overheating. Two network ports and dedicated COM headers plug right into existing shop wiring. Features and Benefits - Intel Celeron or Pentium processor with configurable RAM - Keeps field service software and Linux daemons running smoothly. - Configurable SSD storage - Boots up in seconds and writes high-frequency sensor logs without bottlenecks. - Native RS485 and RS232 ports - Links directly to legacy machinery without flaky USB-to-serial dongles. - Cast aluminum heatsink case - Sheds component heat through outer fins so internal temperatures stay stable. Applications - Shop-floor monitoring hubs pushing sensor readings up to local SCADA servers. - Information displays and menu boards running continuously inside dusty enclosures. - Electrical cabinet computers directing HVAC relays, lighting circuits, and motorized valves.

Processor: Intel Celeron J6412 (up to 2.6 GHz, Quad-Core). RAM: 8GB DDR4. Storage: 512GB M.2 NVMe SSD. Cooling System: Fanless Passive Cooling. Ethernet Ports: 2x Gigabit Ethernet (RJ45). Form Factor: Fanless Industrial Mini PC. Serial Ports: 2x COM (RS232/RS485). Supported Operating Systems: Windows 10, Windows 11, Linux. USB Ports: 6x USB. Dimensions: 150 x 120 x 45 mm. Chassis Construction: Extruded Aluminum Alloy. Power Input: DC 9V-24V Wide Voltage. Thermal Design Power (TDP): 10W. Network Ports: 2x RJ45 Gigabit Ethernet (10/100/1000 Mbps). Serial Ports: 2x COM (RS232/RS485 Selectable). USB Ports: 6x USB (2x USB 3.0, 4x USB 2.0). Operating Temperature: -10°C to 60°C. Operating System Support: Windows 10, Windows 11, Linux (Ubuntu, Debian). Cooling Design: Passive Fanless Aluminum Fin Heat Sink. Form Factor: Fanless Industrial Mini PC. Internal Storage: 512GB M.2 2280 NVMe SSD. Processor: Intel Celeron J6412 (Quad-Core, 2.0 GHz up to 2.6 GHz). System Memory: 8GB DDR4 SO-DIMM. Q: What are the core technical specifications of this J6412 computer? A: This model packs an Intel Celeron J6412 quad-core chip, 8GB of DDR4 memory, and a 512GB M.2 NVMe SSD. It features two Gigabit LAN ports, six USB connections, and two COM ports that support RS232 and RS485 communication.. Q: What makes this fanless industrial mini pc suitable for harsh workplaces? A: A sealed aluminum enclosure protects the components against metal shavings, airborne debris, and minor vibration. The fanless industrial mini pc transfers heat directly through the metal outer shell, allowing reliable operation without internal air vents.. Q: Can I connect serial PLCs and run modern operating systems on this box? A: Yes, it supports both Windows 10/11 64-bit and standard Linux kernels right out of the box. The two hardware COM ports connect directly to sensors, scales, or PLCs without needing extra USB-to-serial dongles.. Q: What does the warranty cover on this setup? A: It comes with a full one-year warranty on the RAM, NVMe drive, motherboard, and included external power adapter. Defective parts will be serviced or swapped out if they fail under normal operating specs.. Q: What makes this complete package a good value for control cabinets? A: It arrives with 8GB RAM and a 512GB NVMe SSD already installed, saving you the expense of sourcing storage and memory separately. You pull it from the box, hook up power, and deploy it straight to work..
