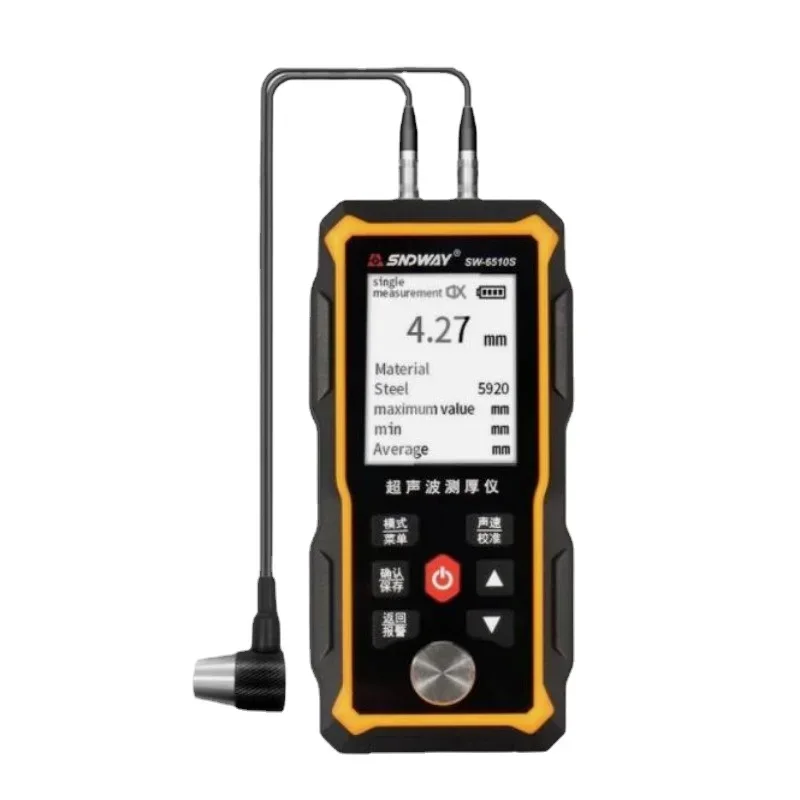

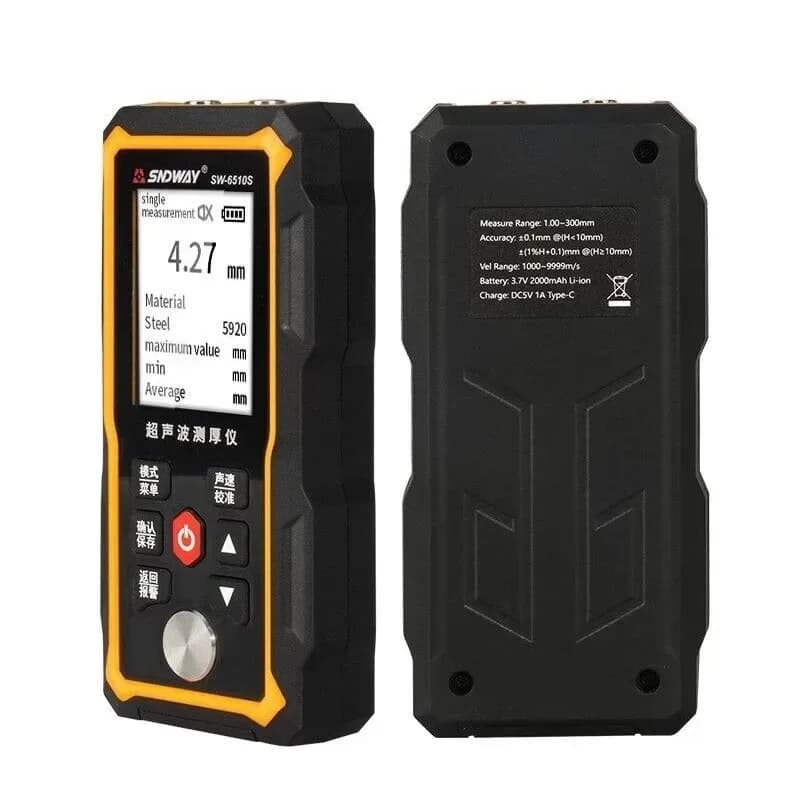

The SW-6510S Digital Ultrasonic Meter is a versatile and portable thickness gauge for non-destructive testing. It offers a broad measurement range from 1.0 to 300mm on metals, plastics, and other materials, featuring a clear digital display and high accuracy for reliable on-site inspections and quality assurance. Features and Benefits
- Wide 1.0-300mm measurement range - Handles an extensive variety of material thicknesses in a single, capable device.
- High-precision digital readout - Provides clear, accurate measurements for reliable data recording and analysis.
- Durable, portable design - Ideal for fieldwork with a rugged casing that is easy to transport and use in various locations.
- Automatic probe zero and velocity calibration - Simplifies setup and ensures measurement accuracy across different materials. Applications
- Thickness testing of metal plates, pipes, and structural components
- Quality inspection of plastic tanks, molded parts, and fiberglass
- Maintenance surveys for corrosion and erosion in industrial plant assets

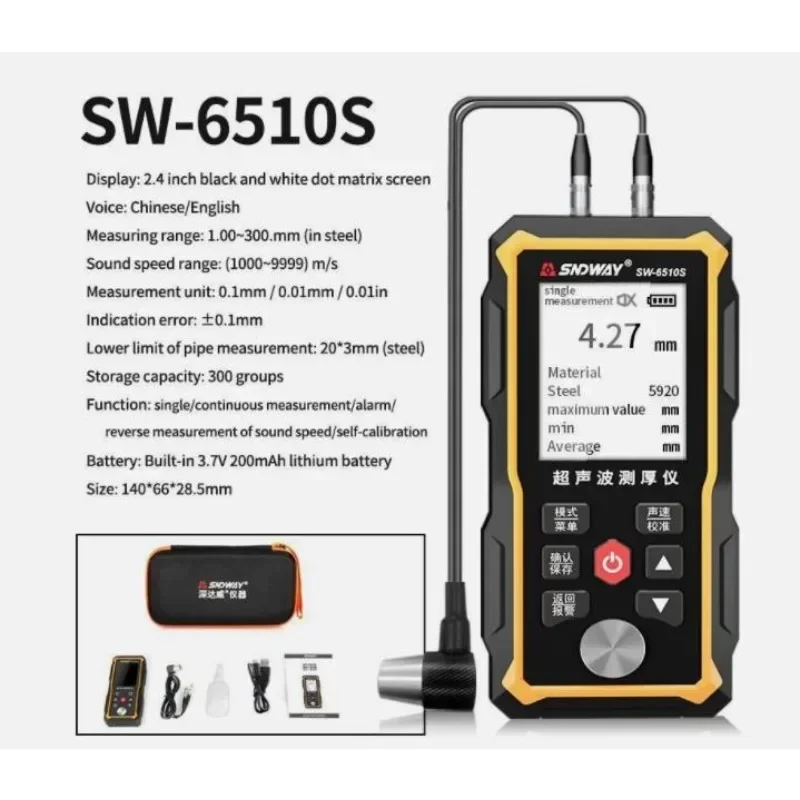

Material Compatibility: Plastic, Metal. Display Type: Digital. Measurement Range: 1.0-300 mm. Product Type: Digital Ultrasonic Thickness Gauge. Dimensions (HxWxD): 158 mm x 68 mm x 27 mm. Weight: Approx. 230 g (without batteries). Case Material: ABS plastic with rubber overmold. Material Velocity Range: 1000 m/s to 9999 m/s. Battery Life: Approx. 200 hours (alkaline). Power Supply: 2 x AA batteries (1.5V). Measurement Range: 1.0 mm to 300.0 mm. Operating Temperature: 0°C to 40°C. Storage Temperature: -20°C to 60°C. Accuracy: ±(0.5% of reading + 0.1 mm). Calibration: Two-point calibration with known thickness standards. Display: Backlit LCD, 4-digit, 13.5 mm character height. Probe Frequency: 5 MHz (dual-element, standard). Product Type: Digital Ultrasonic Thickness Gauge. Resolution: 0.1 mm (for range 1.0-99.9 mm), 1 mm (for range 100-300 mm). Q: What are the measurement specifications of the SW-6510S Digital Ultrasonic Meter? A: The SW-6510S measures thickness from 1.0mm to 300mm on various materials including plastics and metals. It features a digital display, multiple measurement modes, and is designed for portable use with standard power requirements.. Q: How accurate and reliable is the SW-6510S thickness gauge? A: This gauge provides consistent readings within its specified accuracy range when calibrated and used properly. The build quality includes impact-resistant housing and reliable electronic components suitable for workshop or field applications.. Q: What materials and applications is the SW-6510S compatible with? A: The meter is compatible with common engineering materials including steel, aluminum, plastic, and other homogeneous materials. It's suitable for measuring plates, pipes, tanks, and manufactured components where non-destructive testing is required.. Q: What warranty coverage comes with the SW-6510S thickness tester? A: Manufacturers typically provide a warranty covering electronic components and workmanship for a standard period. Buyers should confirm the exact warranty details including duration and claim procedures with their supplier.. Q: Is the SW-6510S a good value for its measurement capabilities? A: Given its wide measurement range and dual material capability, this ultrasonic meter offers substantial functionality at an accessible price point. It represents practical value for technicians needing versatile thickness measurement without premium equipment costs..
