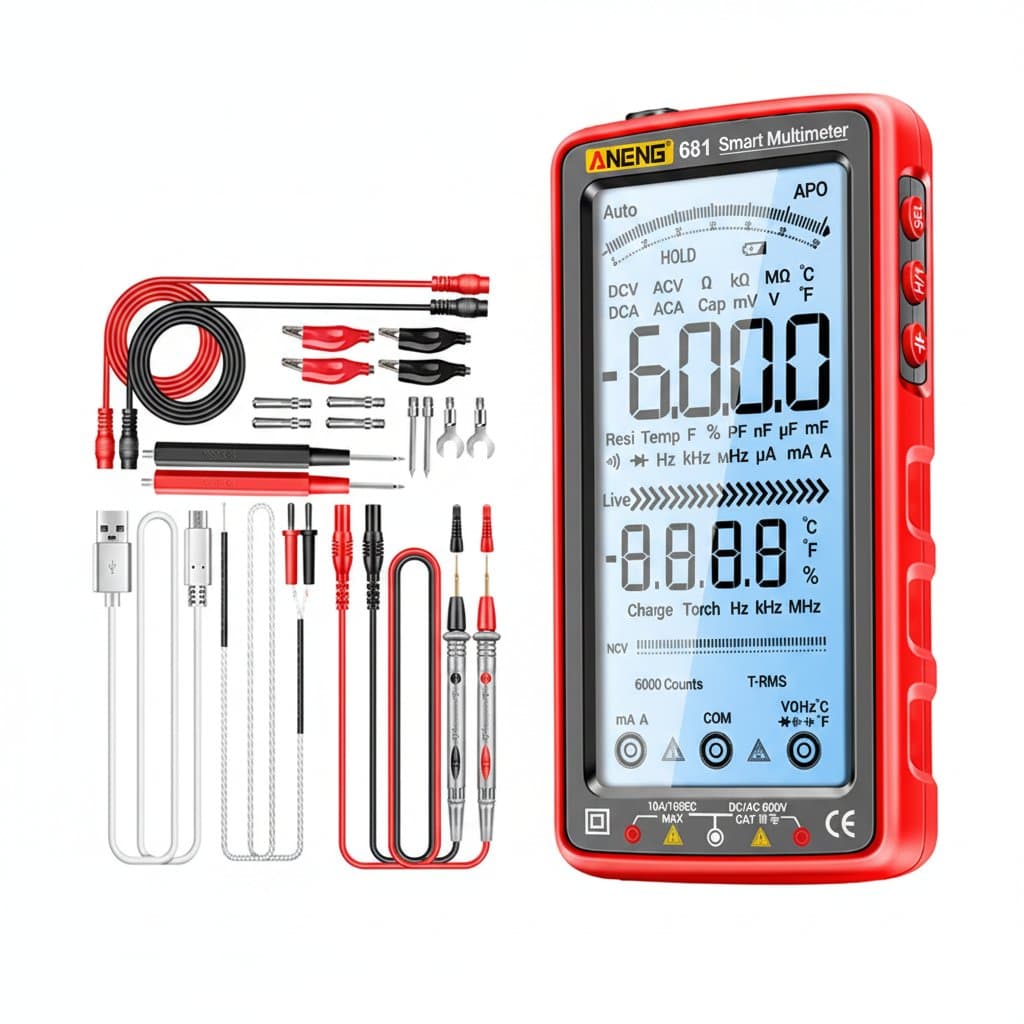

The ANENG 681 Digital Multimeter delivers professional-grade diagnostics with a 6000-count LCD, True RMS for accurate AC/DC voltage and current readings, and a built-in rechargeable battery for cordless convenience. This versatile tool combines a non-contact voltage tester with a full-featured multimeter, offering reliable performance for demanding electrical work. Features and Benefits

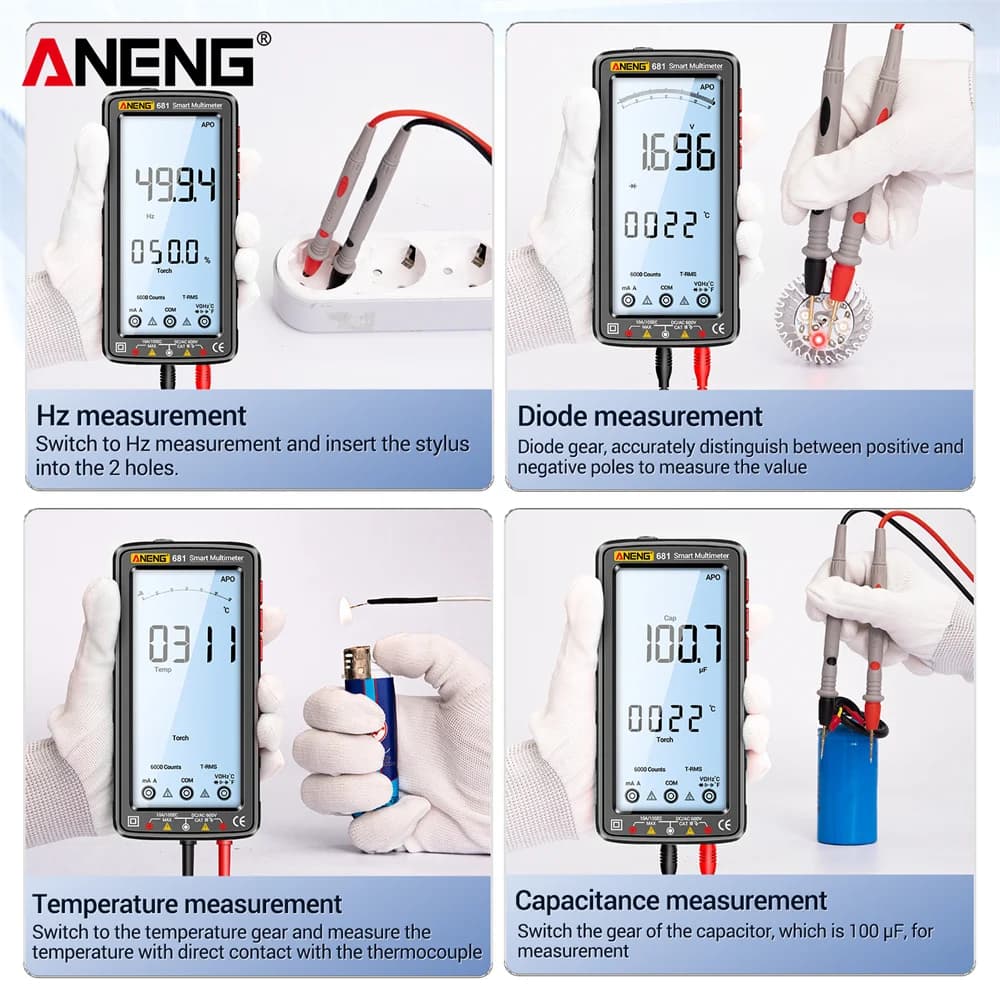

- 6000-Count True RMS Multimeter - Provides highly accurate measurements of AC/DC voltage, current, resistance, capacitance, and frequency for precise diagnostics.

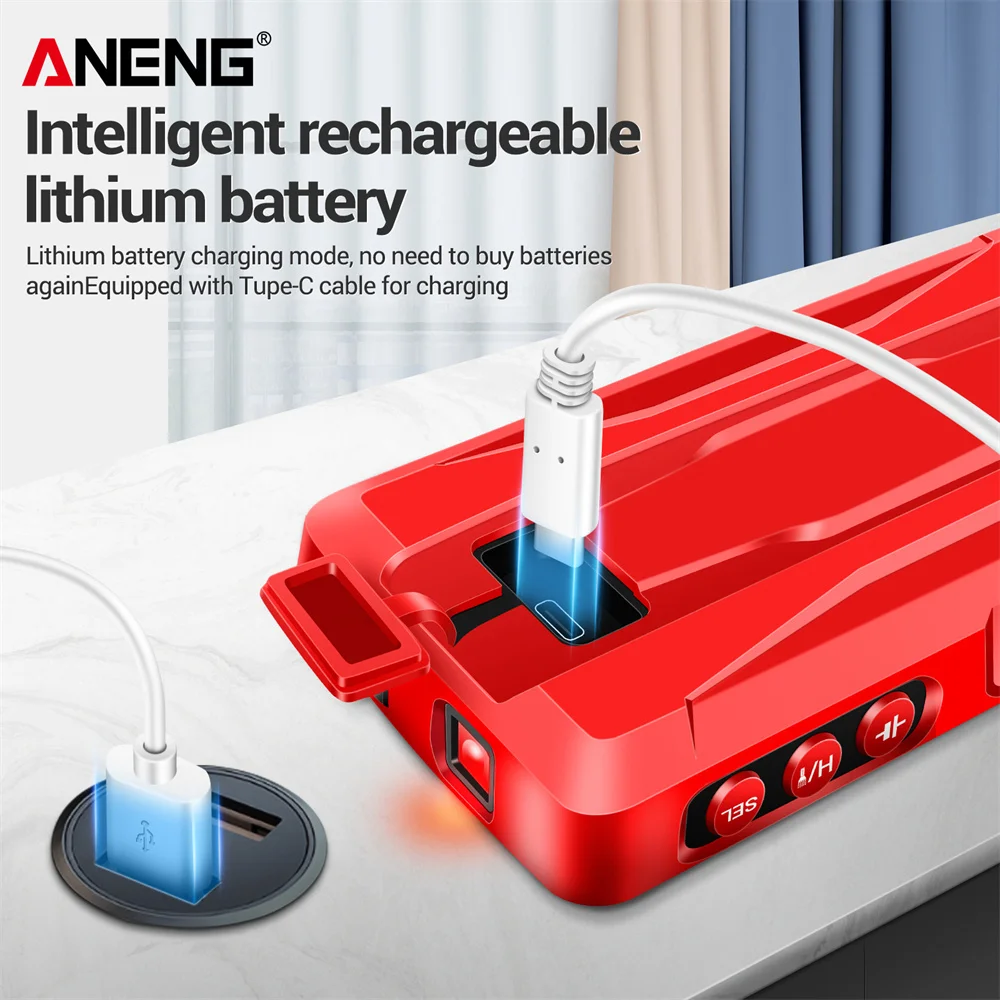

- Built-in Rechargeable Battery with USB-C Charging - Eliminates the cost and hassle of disposable batteries, ensuring your tool is always ready for use.

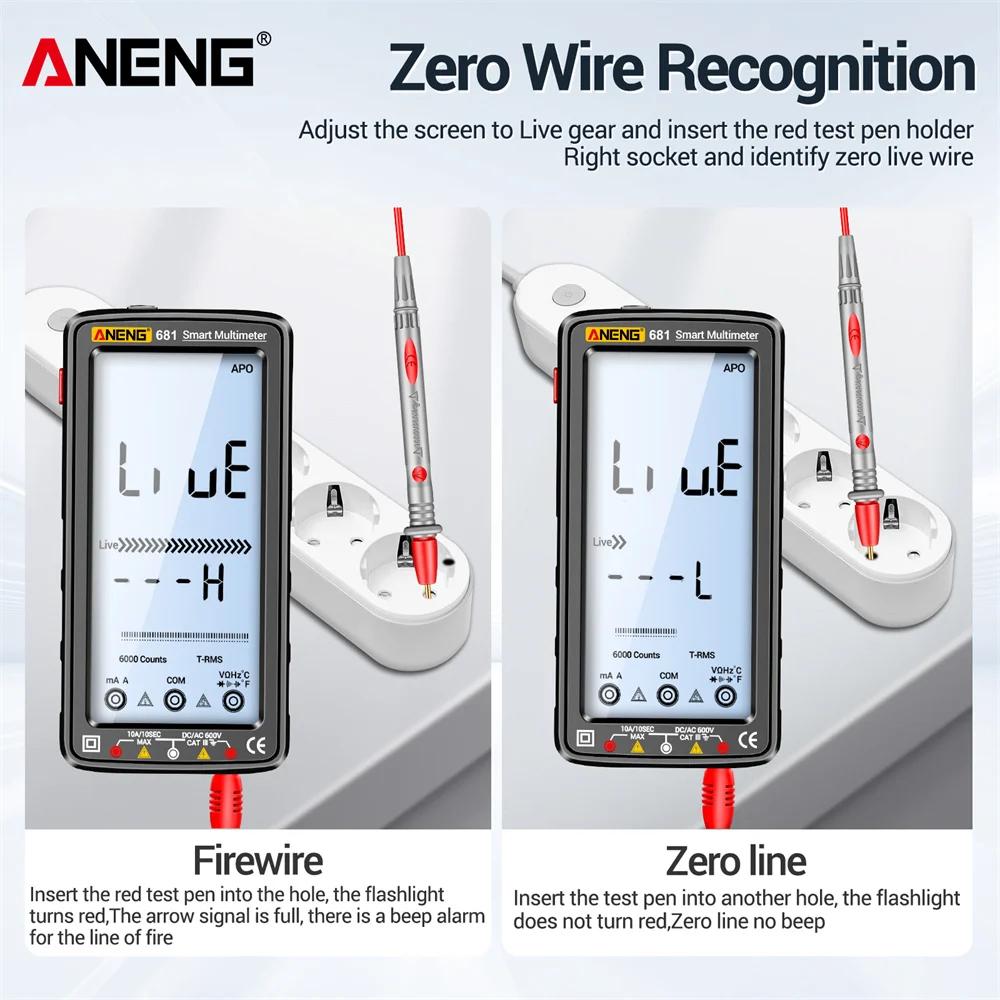

- Non-Contact Voltage Detection (NCV) - Safely identify live wires and AC voltage through insulation without direct contact, enhancing user safety.

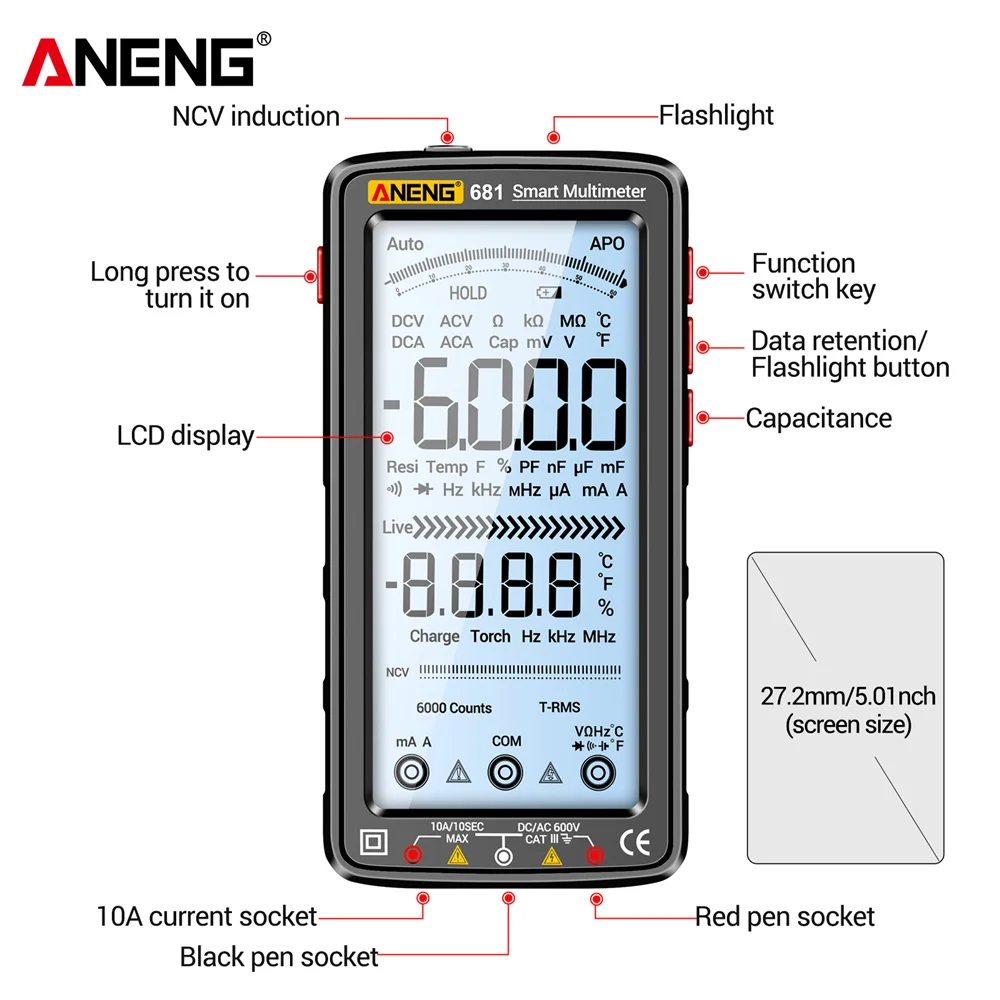

- Large Backlit LCD Display - Offers clear visibility of readings in low-light conditions like electrical panels or dimly lit workspaces.
- Auto-Ranging and Data Hold Function - Simplifies operation for users of all levels and allows you to freeze readings for easy recording. Applications
- Professional Electrical Troubleshooting - Diagnose complex issues in industrial control panels, HVAC systems, and machinery with accurate True RMS readings.
- Home DIY and Appliance Repair - Safely test outlets, check battery voltage, verify continuity in wiring, and troubleshoot household appliances.
- Automotive Electrical Systems - Test car batteries, alternator output, sensors, and circuit continuity for reliable vehicle maintenance.
- Field Service and Installation Work - The compact, rechargeable design is ideal for electricians and technicians working on-site without easy access to power. Note: This is a great value professional tool, offering reliable performance and essential features for DIY enthusiasts and professionals seeking quality without premium pricing.

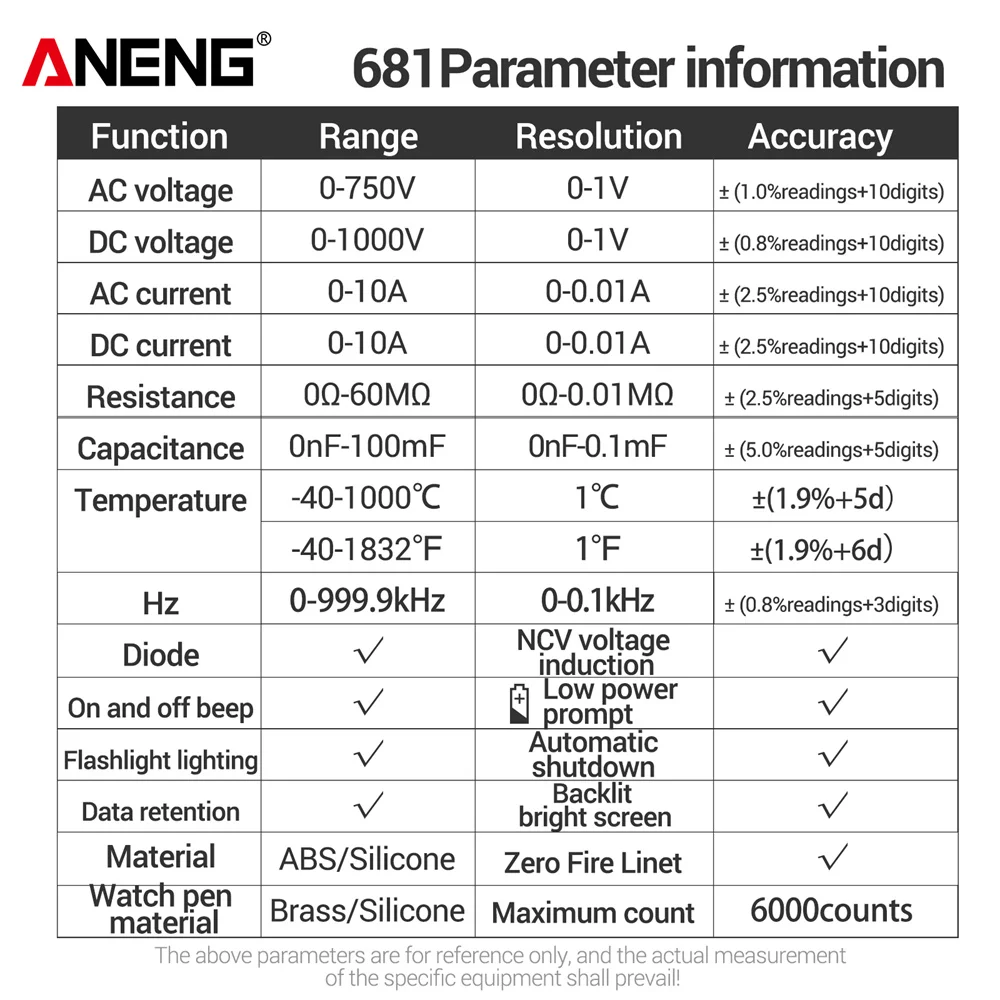

Dimensions: 192 x 92 x 55 mm. Weight: 400 g. Power Source: Rechargeable Battery. Voltage Type: AC/DC. Voltage Detection Method: Non-contact. DC Voltage Range: 0.1 mV - 1000 V. AC Voltage Range: 0.1 mV - 750 V. Non-contact Voltage Detection: Yes. Display Type: LCD. Display Count: 6000. Storage Temperature: -10°C to 50°C. AC Current Range: 0.1 µA - 10 A. Capacitance Range: 0.01 nF - 100 mF. Continuity Test: Yes. DC Current Range: 0.1 µA - 10 A. Diode Test: Yes. Duty Cycle Range: 0.1% - 99.9%. Frequency Range: 0.01 Hz - 10 MHz. Measurement Functions: Voltage, Current. Model: ANENG 681. Operating Temperature: 0°C to 40°C. Relative Humidity: <80%. Resistance Range: 0.1 Ω - 60 MΩ. Safety Rating: CAT III 1000V, CAT IV 600V. Type: Digital Multimeter. Case Material: ABS Plastic with Rubberized Overmold (inferred for durability). Probe Material: Silicone-insulated copper leads with shrouded connectors. AC Voltage Range: 0.1mV to 750V (inferred standard range). Auto Power Off: Yes (standard energy-saving feature). Battery Type: Built-in Lithium-ion rechargeable. DC Voltage Range: 0.1mV to 1000V (inferred standard range). Low Battery Indication: Yes (standard feature). Power Source: Rechargeable Battery. Voltage Measurement Type: AC Voltage, DC Voltage. AC Current Range: 0.1µA to 10A (inferred standard range). Capacitance Range: 0.1nF to 100µF (inferred standard range). DC Current Range: 0.1µA to 10A (inferred standard range). Frequency Range: 0.1Hz to 10MHz (inferred standard range). Resistance Range: 0.1Ω to 40MΩ (inferred standard range). Operating Temperature: 0°C to 40°C (standard commercial range). Relative Humidity: <80% RH (standard operating condition). Storage Temperature: -10°C to 50°C (standard commercial range). Safety Rating: CAT III 600V (minimum inferred safety standard). Additional Function: Non-Contact Voltage Tester (NCV). Backlight: Yes (inferred from professional use and LCD screen). Charging Port: USB Type-C or Micro-USB (inferred modern standard). Continuity Test: Yes (with audible buzzer, inferred standard function). Current Measurement Type: AC Current, DC Current. Data Hold: Yes (standard feature for professional meters). Diode Test: Yes (inferred standard function). Display Digits: 3.5 to 4 digits (inferred from model number 681). Display Type: LCD Screen. Input Impedance: 10MΩ (standard for digital multimeters). Product Type: Digital Multimeter (DMM) with Non-Contact Voltage Detection. Q: What are the key specifications and dimensions of the ANENG 681 digital multimeter? A: The ANENG 681 is a professional-grade multimeter featuring a large LCD screen and a built-in rechargeable battery. It measures AC/DC voltage, current, and includes a non-contact voltage tester for added safety and convenience.. Q: How durable is the ANENG 681 multimeter for professional or regular DIY use? A: The ANENG 681 is designed for reliability with a robust construction suitable for regular use. Its quality components and clear LCD screen ensure it can withstand the demands of both DIY projects and professional troubleshooting environments.. Q: Can the ANENG 681 multimeter be used to test automotive electrical systems? A: Yes, the ANENG 681 is well-suited for automotive diagnostics. Its ability to measure DC voltage and current makes it ideal for checking car batteries, alternators, and various 12V/24V circuits commonly found in vehicles.. Q: Does the ANENG 681 digital multimeter come with a warranty or guarantee? A: Yes, the ANENG 681 typically includes a manufacturer's warranty. For specific warranty duration and coverage details, please refer to the seller's product listing or contact customer support directly.. Q: Is the ANENG 681 a good value compared to other multimeters with similar features? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable performance for regular use, combining a rechargeable battery, non-contact voltage detection, and a clear LCD screen at a competitive price point..
