Engineered for precision and protection, this large view auto darkening welding helmet features a wide shade range of 4-9/9-13 for versatile arc control. The expansive viewing area provides superior visibility, while the fast 1/25,000 second auto-darkening reaction time ensures immediate eye protection from harmful flashes for TIG, MIG, and ARC welding. Features and Benefits
- Wide Shade Range 4-9/9-13 - Offers optimal lens darkness for low-amperage TIG work up to high-intensity cutting and grinding, eliminating the need for multiple fixed-shade lenses.

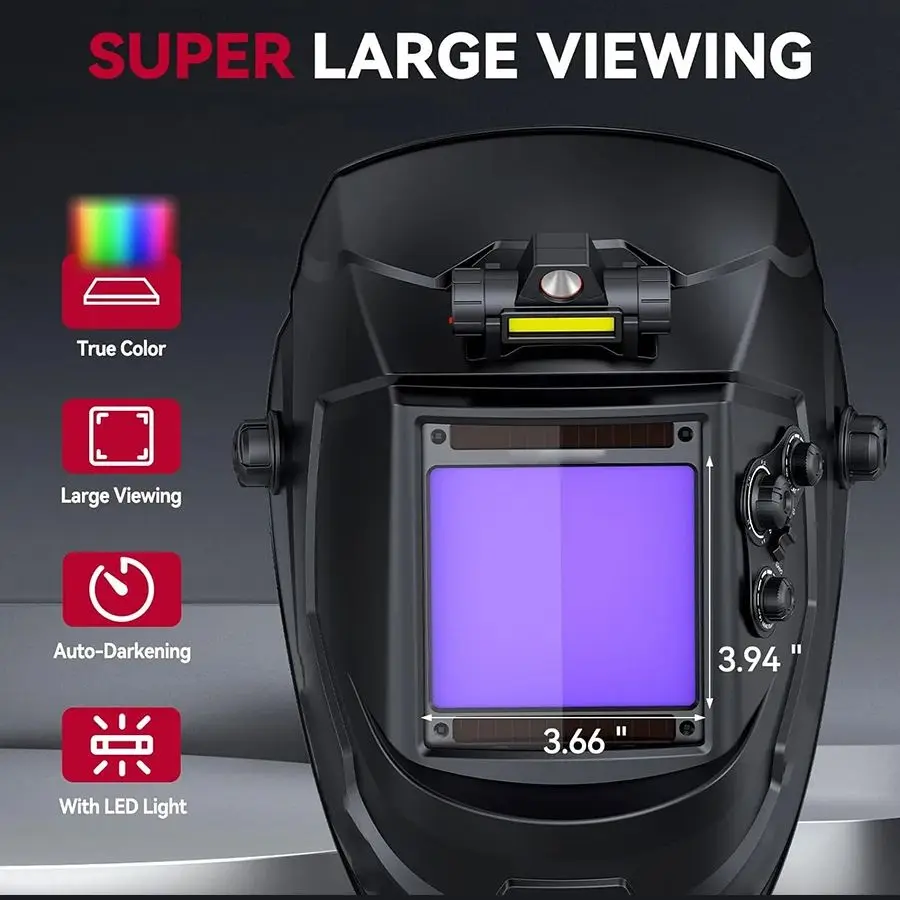

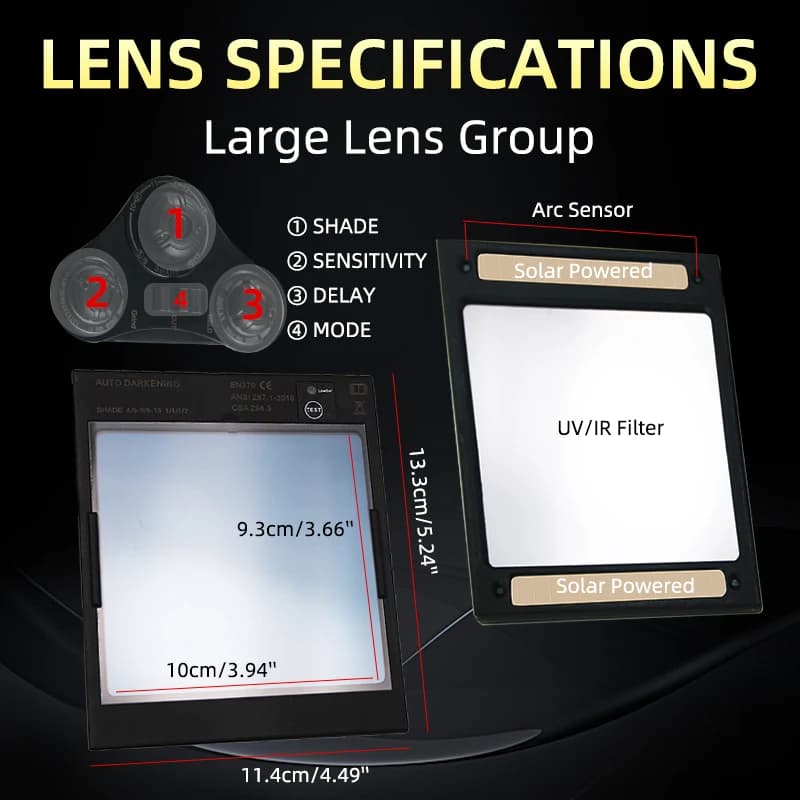

- Large 3.86" x 3.35" Viewing Area - Provides an expansive field of vision for improved weld pool tracking, bead placement, and overall situational awareness.
- 1/25,000 Second Reaction Time - The ultra-fast auto-darkening lens instantly adjusts to protect your eyes from dangerous UV/IR radiation the moment an arc is struck.
- Four Independent Arc Sensors - Ensures reliable and consistent lens darkening from any angle, reducing the risk of failing to trigger in awkward welding positions.
- Adjustable Sensitivity & Delay Controls - Allows fine-tuning of the auto-darkening response to match specific materials, amperage, and personal preference for flawless results.
- Lightweight & Balanced Design - Reduces neck strain and fatigue during extended welding sessions, promoting comfort and productivity. Applications
- Professional Fabrication & Repair - Ideal for shop environments requiring rapid switching between welding processes and materials throughout the workday.
- DIY & Home Workshop Projects - A versatile, all-in-one helmet solution for enthusiasts tackling automotive repair, metal art, or home improvements.
- Industrial Maintenance & Construction - Provides reliable protection for on-site MIG and stick welding, as well as safe grinding and cutting tasks with the grind mode.
- Precision TIG Welding - The wide shade range and clear large view are perfectly suited for detailed TIG work on thin gauge metals and critical joints. Note
Helmet includes replaceable batteries and is backed by a standard manufacturer warranty. Always test settings on a safe surface before beginning your weld.
Power Source: Solar with Lithium Battery Backup. Storage Temperature: -10°C to 60°C. Auto Darkening Filter Type: Liquid Crystal. Compatible Operations: Welding, Cutting, Grinding. Delay Adjustment: Yes. Grind Mode: Yes. Operating Temperature: -5°C to 55°C. Optical Class: 1/1/1/1. Reaction Time: ≤ 0.0001 s. Sensitivity Adjustment: Yes. Shade Range: 4-9 / 9-13. Ultraviolet/Infrared Protection: DIN 16+. Viewing Area: Large (≥ 100 x 50 mm). Welding Processes: TIG, MIG, ARC. Viewing Area Size: Large (Inferred as 3.78" x 3.34" / 96mm x 85mm or larger). Helmet Weight: Approximately 1.1 - 1.4 kg (Inferred for large shell). Headgear Material: Nylon with padded sweatband. Shell Material: High-impact resistant nylon or polyamide. Viewing Lens Material: Polyurethane-coated glass. Battery Type: CR2032 or equivalent replaceable coin cell. Power Source: Solar powered with lithium battery backup. Auto-Darkening Shade Range: 4-9 (Welding/Cutting) and 9-13 (Grinding). Standards Compliance: ANSI Z87.1, CSA Z94.3, EN 379, AS/NZS 1338.1. Dark State Shade Adjustment: Variable within 9-13 range for grinding mode. Delay Adjustment: Variable control for return to light state. Grind Mode: Dedicated switch or setting. Headgear Type: Ratchet-style adjustable with multiple pivot points. Light State Shade: DIN 4 (Fixed). Number of Optical Sensors: 4 (Inferred standard for wide view). Optical Class: 1/1/1/1 (Clarity, Luminance, Uniformity, Angle Dependence). Primary Application: TIG, MIG, ARC welding, cutting, grinding. Product Type: Auto-Darkening Welding Helmet. Reaction Time: ≤ 1/25,000 second (Industry standard for auto-darkening). Sensitivity Adjustment: Variable control for arc detection. UV/IR Protection: Permanent, DIN 16 (Meets ANSI Z87.1, EN379 standards). Q: What are the viewing area dimensions and weight of this large view auto-darkening welding helmet? A: This helmet features a large viewing area, typically measuring 3.86" x 2.36" (98mm x 60mm), which provides excellent visibility. It is designed to be lightweight for comfort during extended welding sessions.. Q: How durable is the shell and lens on this welding helmet for cut and grind work? A: The helmet is constructed with a durable nylon shell that resists impact and high temperatures. The auto-darkening lens is robust and protected against sparks and spatter from welding, cutting, and grinding tasks.. Q: Is this auto-darkening welding helmet compatible with TIG welding at low amperage? A: Yes, this helmet is fully compatible with TIG, MIG, and ARC welding. The wide shade range of 4-9/9-13, including a sensitive adjustment, allows it to perform reliably even for low-amperage TIG welding.. Q: Does this welding helmet come with a warranty or guarantee? A: Yes, this product is backed by a standard manufacturer's warranty that covers defects in materials and workmanship. Please refer to the product documentation or seller for the specific warranty period and terms.. Q: Is this large view auto-darkening helmet a good value compared to premium brands? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable performance for regular use with its large view, dual shade ranges, and multi-process compatibility..
