The AFC2000 G1/4 Air Compressor Oil Water Separator and Filter delivers clean, dry air by removing moisture, oil, and particulates down to 5 microns. Paired with the AL2000 pressure regulator, it provides precise pressure control from 0-150 PSI, protecting your pneumatic tools and ensuring consistent, professional results. Features and Benefits

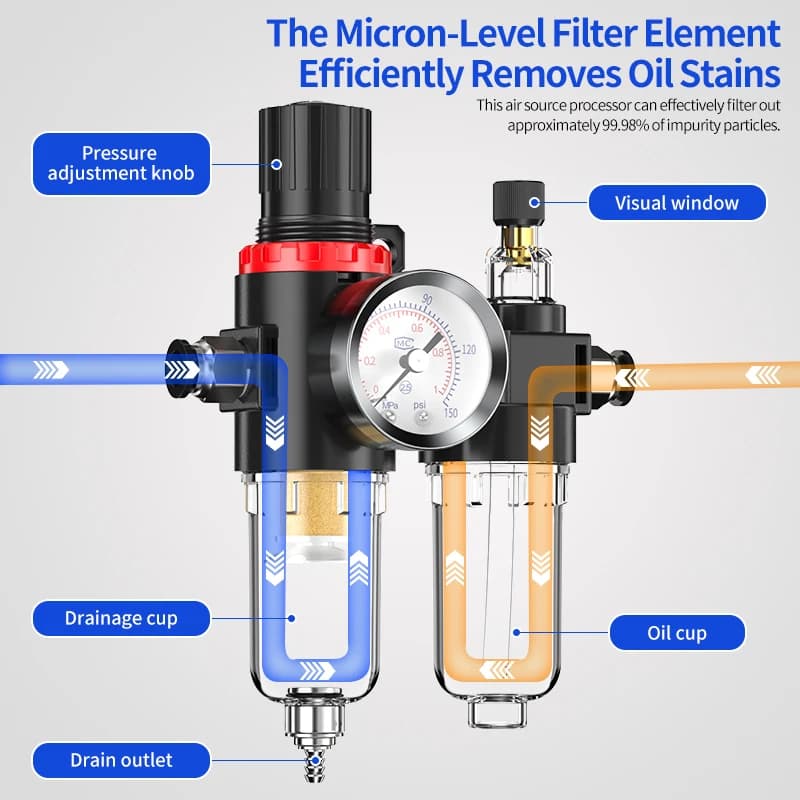

- Three-Stage Filtration System - The AFC2000 combines a centrifugal water separator, coalescing filter, and 5-micron particulate filter to remove virtually all oil, water, and debris from your air line.

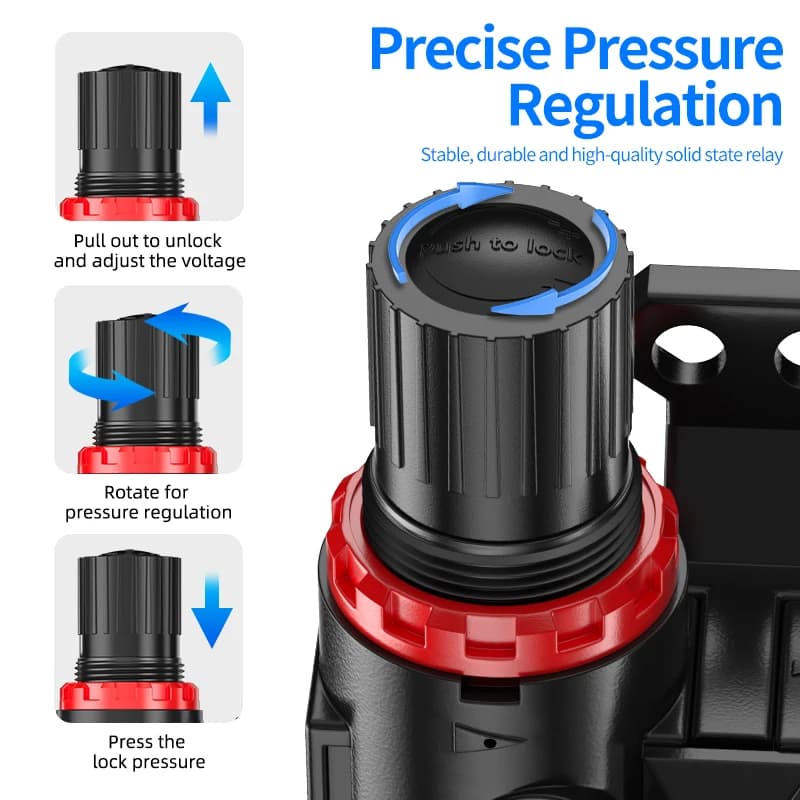

- Integrated Pressure Regulator (AL2000) - Features a precise 0-150 PSI adjustable regulator with a large, easy-read gauge for accurate pressure control at the point of use.
- G1/4 Industrial Ports - Standard 1/4-inch NPT female ports ensure universal compatibility with most workshop air hoses and tool connections.
- Durable Bowl with Safety Guard - The transparent polycarbonate bowl allows for easy visual inspection of collected contaminants and is protected by a metal guard.
- Automatic Drain Valve - The built-in float-type drain automatically expels accumulated water, reducing maintenance and preventing overflow. Applications
- Professional Automotive Shops - Essential for paint spraying, air tools, and tire inflation to prevent water spots, tool corrosion, and inconsistent performance.
- Woodworking and Cabinet Shops - Protects sensitive pneumatic nailers, sanders, and spray finishing equipment from oil and moisture damage.
- Home Garage and DIY Workshops - An excellent value setup for enthusiasts running air tools, impact wrenches, or airbrushes who demand clean, regulated air.
- Industrial Maintenance - Provides reliable point-of-use air conditioning for machinery, control systems, and assembly line tools in manufacturing environments.
Port Size: G1/4 (Female). Body Material: Aluminum Alloy. Flow Capacity: 2000 L/min. Adjustable Outlet Pressure Range: 0.05 - 0.85 MPa (0.5 - 8.5 bar). Condensate Drain: Manual. Filter Element Type: Sintered Bronze. Function: Air Compressor Oil-Water Separator, Air Filter, Pressure Regulator. Maximum Inlet Pressure: 1.6 MPa (16 bar). Model: AFC2000 G1/4. Mounting: Bracket. Operating Temperature Range: 5°C - 60°C. Pressure Gauge: Included. Inlet/Outlet Port Size: G1/4 (1/4 inch BSPP). Body Material: Die-cast Aluminum. Flow Capacity (Cv): Approximately 0.8 Cv. Lubricator Bowl Capacity: Approximately 200 cc. Operating Temperature Range: 5°C to 60°C. Regulated Pressure Range: 0 - 120 PSI (0 - 8.3 Bar). Fluid Compatibility: Compressed Air, Inert Gases. Condensate Drain: Manual drain valve. Filter Bowl Type: Transparent Polycarbonate. Filter Element Type: Coalescing Filter with Oil-Water Separation. Filter Filtration Grade: 5 Micron (typical for coalescing). Lubricant Type: ISO VG32 or equivalent air tool oil. Lubricator Type: Oil-fog type with adjustable drip rate. Maximum Inlet Pressure: 150 PSI (10.3 Bar). Mounting Option: Panel mountable with bracket. Pressure Gauge: Integrated, 63mm dial, 0-150 PSI range. Primary Function: Air Filtration, Pressure Regulation, and Lubrication. Product Type: Combination Air Preparation Unit (Filter-Regulator-Lubricator). Regulator Adjustment: Locking knob with tamper-resistant feature. Q: What are the specifications and dimensions of the AFC2000 G1/4 Air Compressor Oil Water Separator Filter? A: This unit is designed for a G1/4 port connection. While exact dimensions are not provided, it is a compact, integrated unit combining the AFC2000 filter, AFR2000 regulator, and AL2000 gauge, built for standard workshop air lines.. Q: How durable is the AFC2000 air filter and regulator combo for daily workshop use? A: The AFC2000 is constructed from robust materials like anodized aluminum and polycarbonate for the bowl, designed to withstand typical shop pressures and environmental conditions. It offers reliable, long-term performance for both professional and serious DIY applications.. Q: Can the AFC2000 G1/4 filter regulator be used with any air compressor? A: Yes, the AFC2000 is compatible with any air compressor system that uses a standard G1/4 port thread. It is designed to filter moisture and particulates while regulating pressure for tools like spray guns, nailers, and air brushes.. Q: Does this air filter and pressure regulator come with a warranty? A: Warranty details for this specific unit are not provided by the seller. We recommend checking the product listing or contacting customer support directly for information on any guarantee or return policy.. Q: Is the AFC2000 a good value compared to buying separate filter and regulator units? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. The integrated AFC2000, AFR2000, and AL2000 combo delivers reliable, all-in-one performance for regular use at a competitive price..
