Photoelectric Sensors

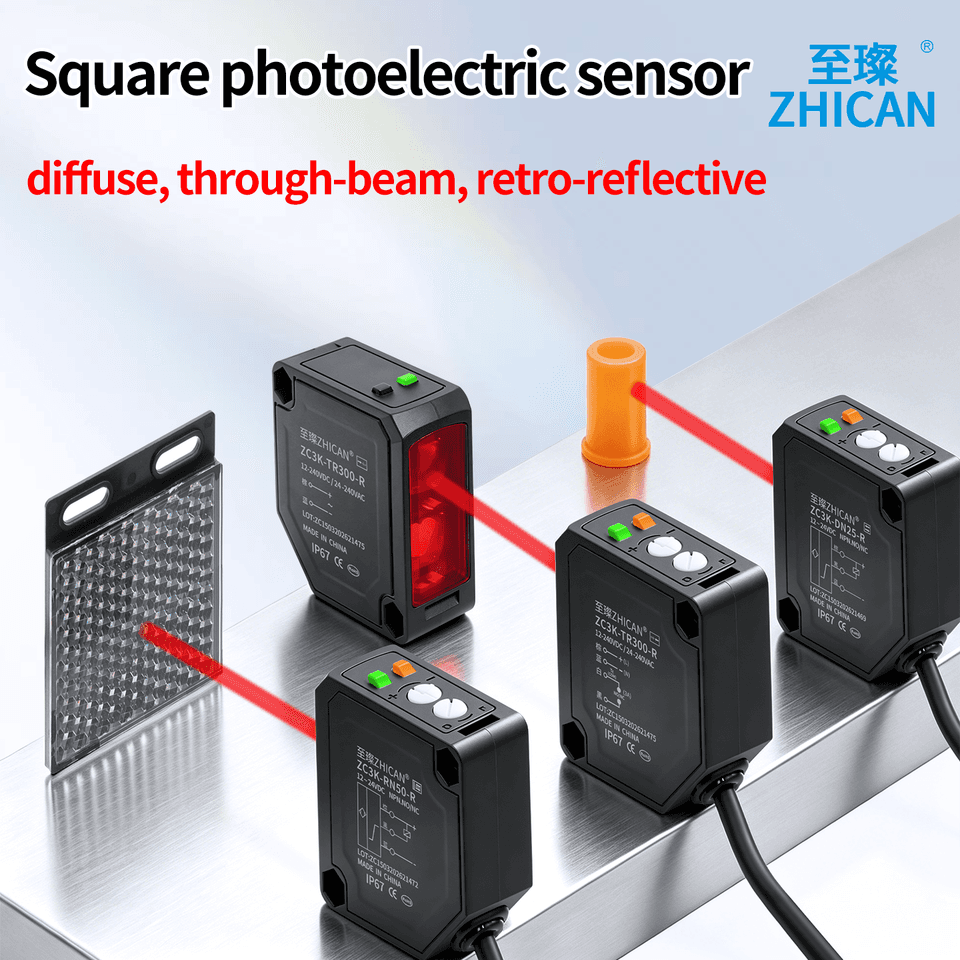

Choosing the Right Sensing Mode (Diffuse vs. Retroreflective)

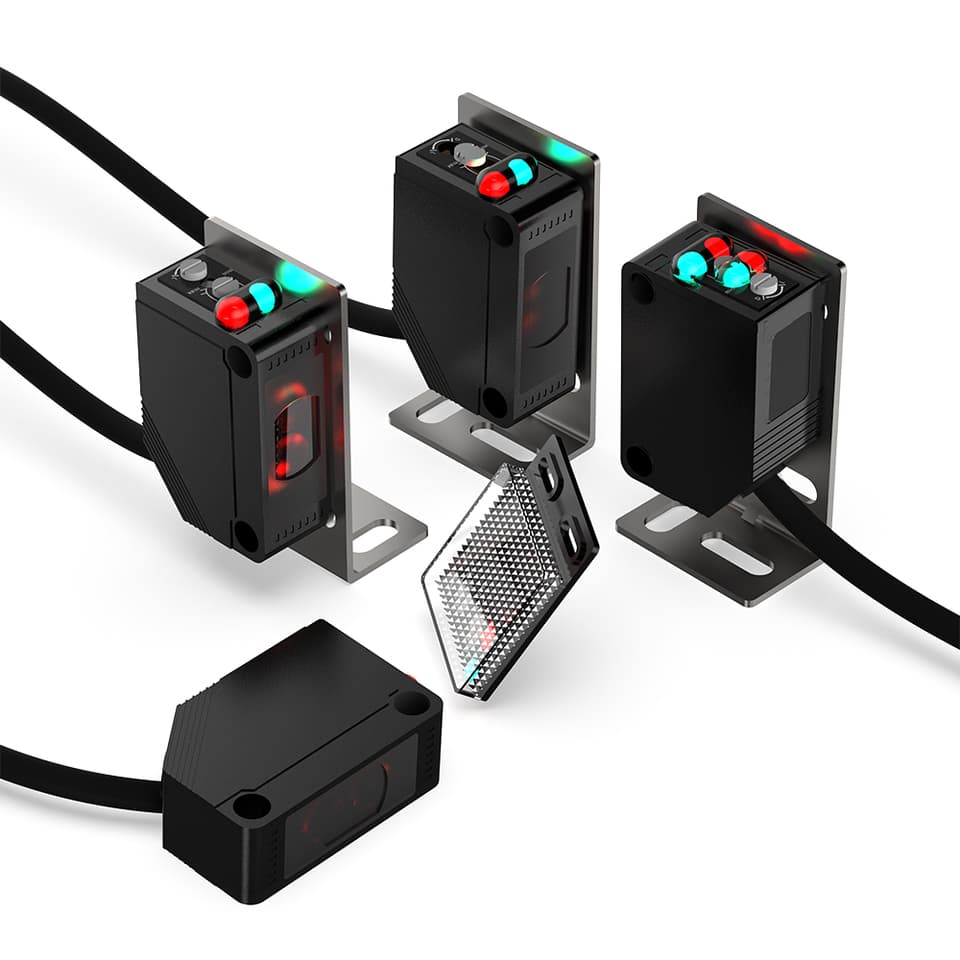

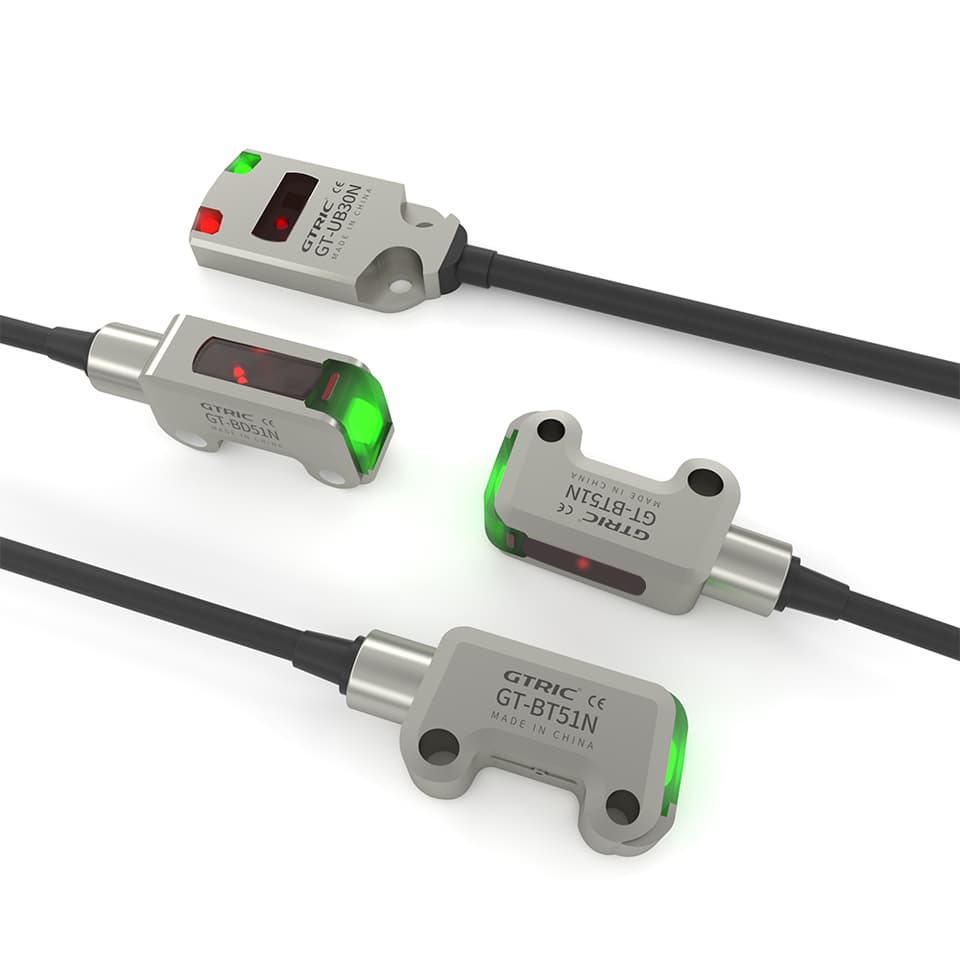

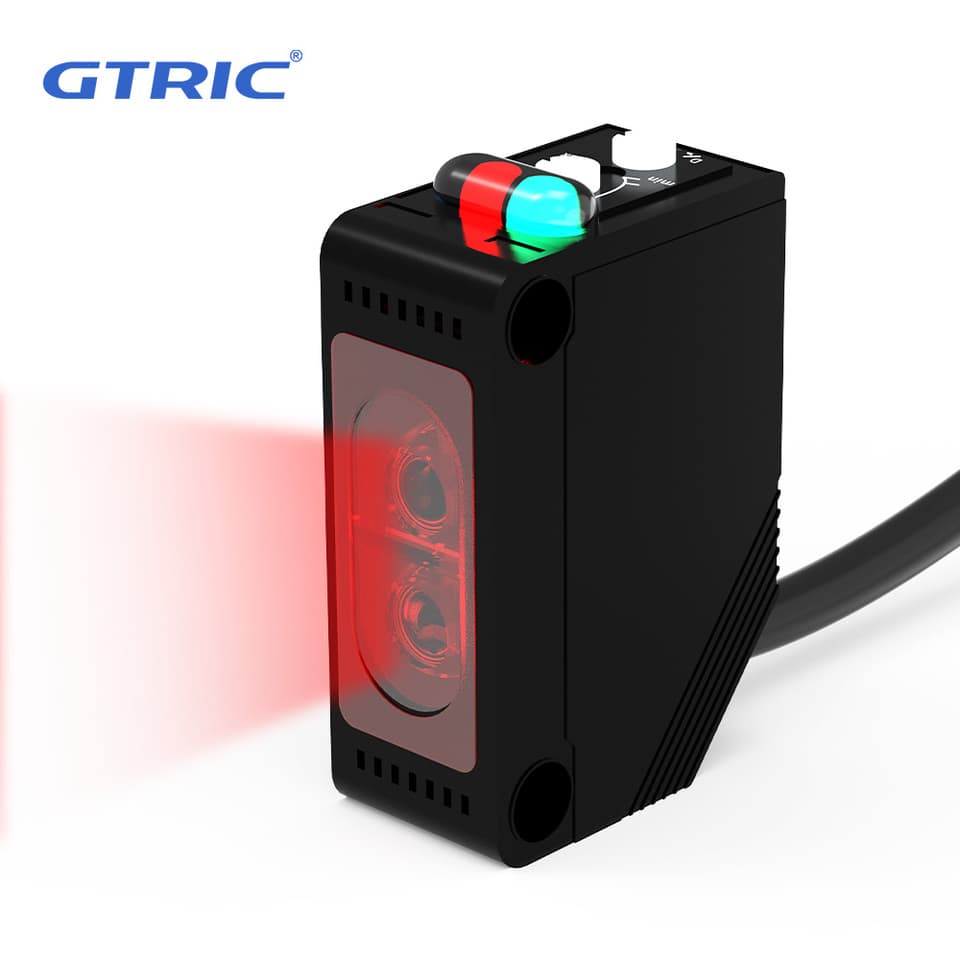

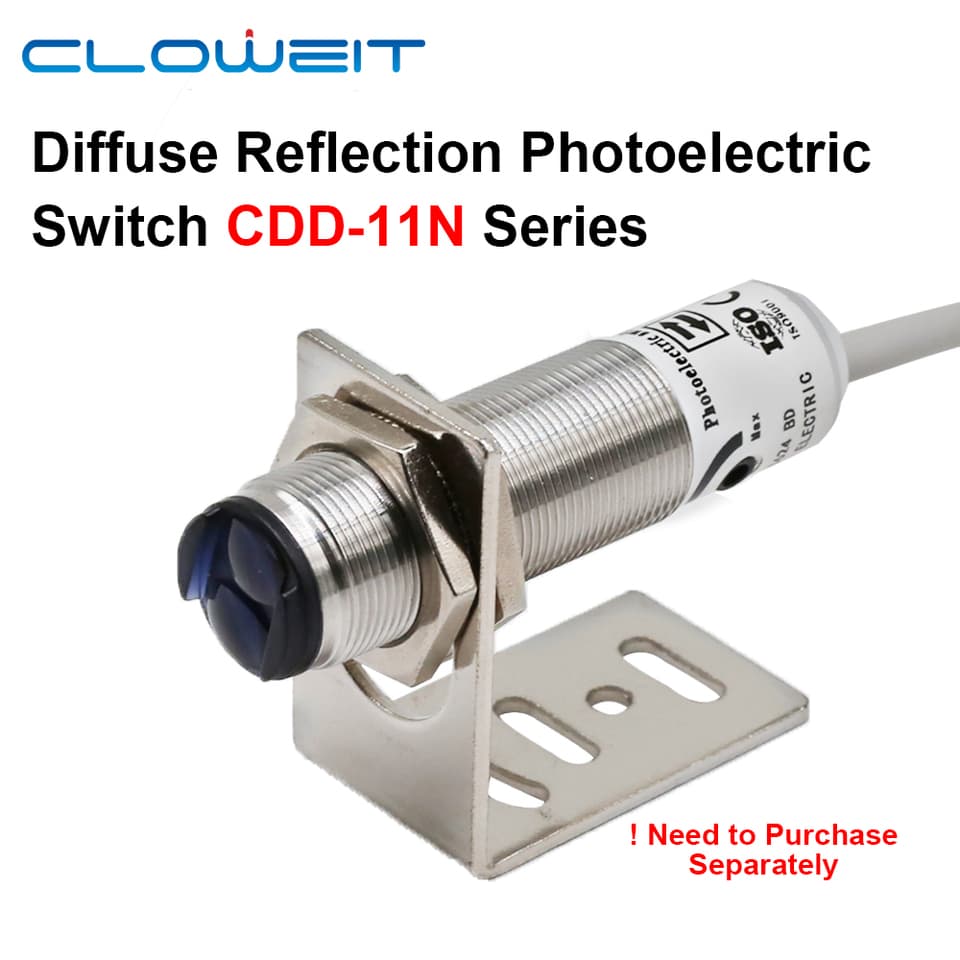

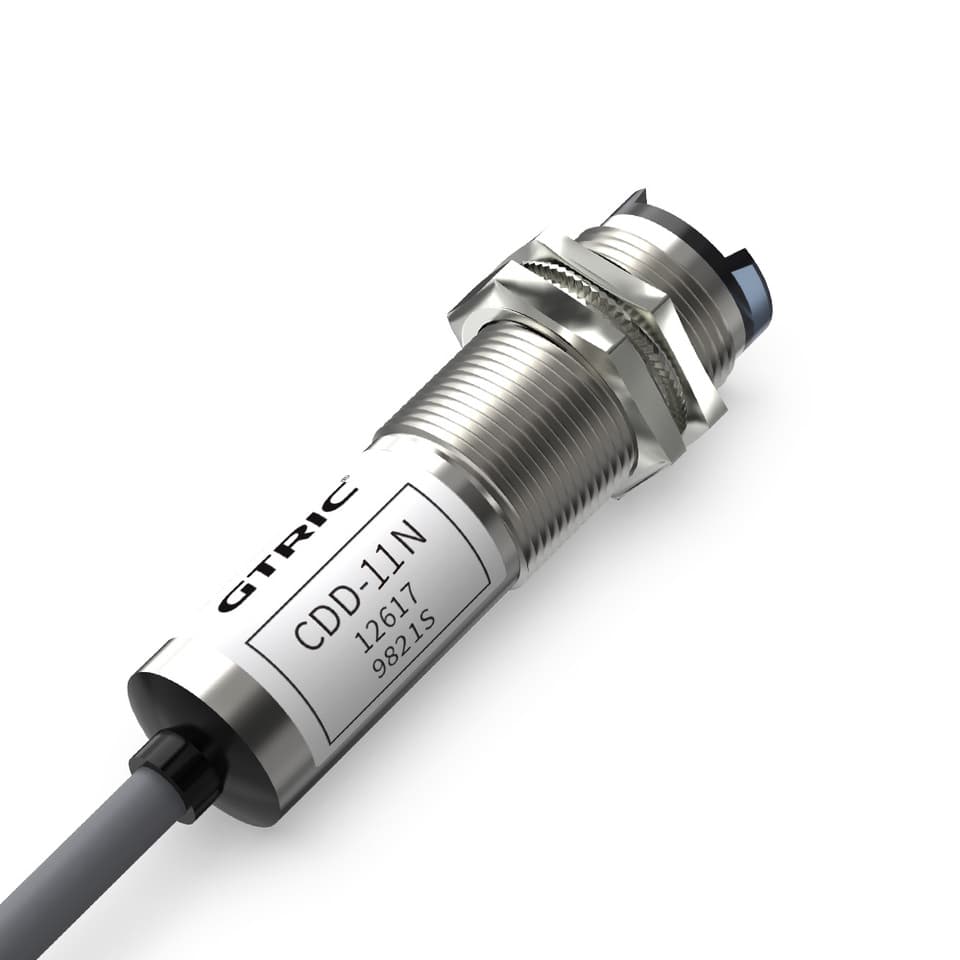

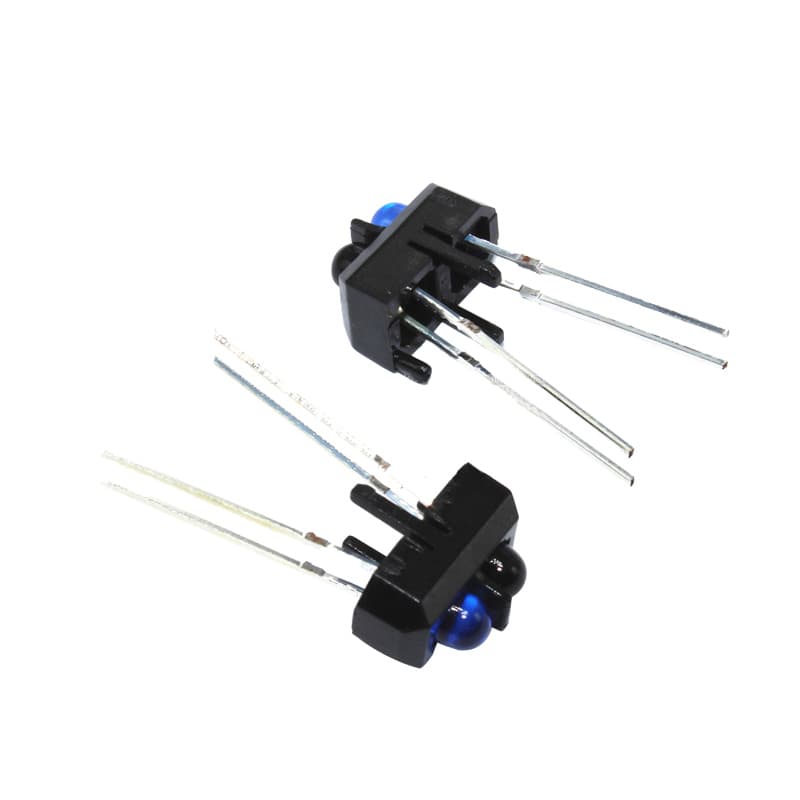

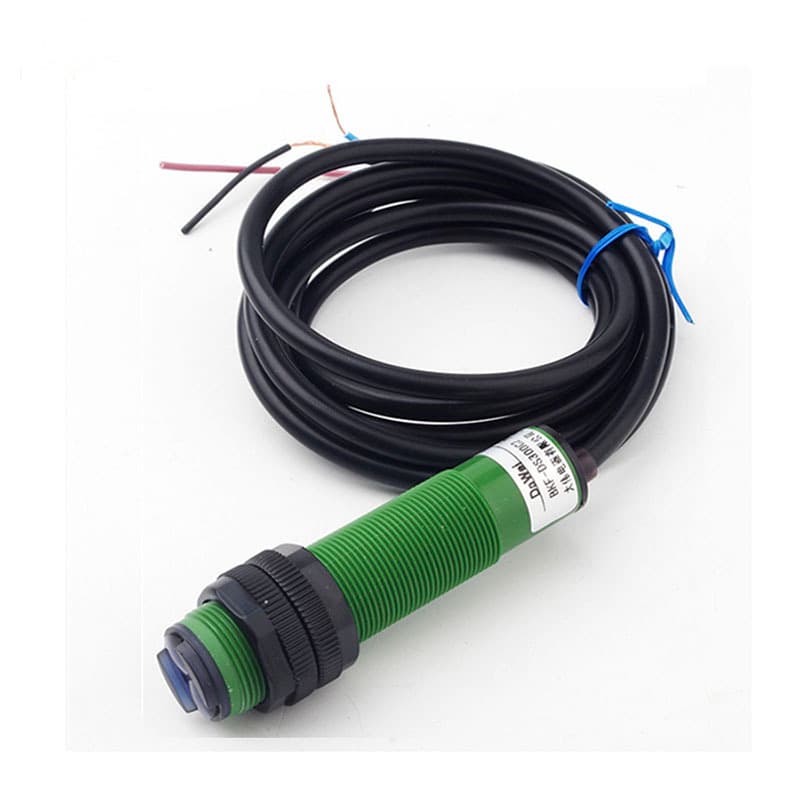

Selecting the correct optical setup depends entirely on your physical layout and target characteristics. Diffuse reflective models, such as the CDD-11N and E3Z-D61, project light and detect the reflection directly off the target object. This design simplifies installation because you only need to wire a single sensor housing on one side of the line.

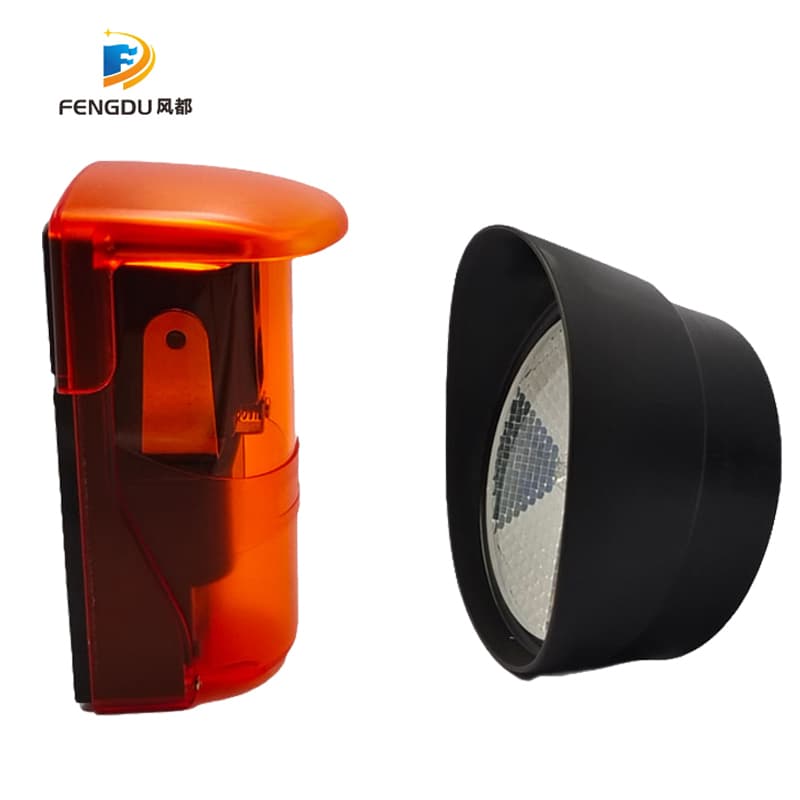

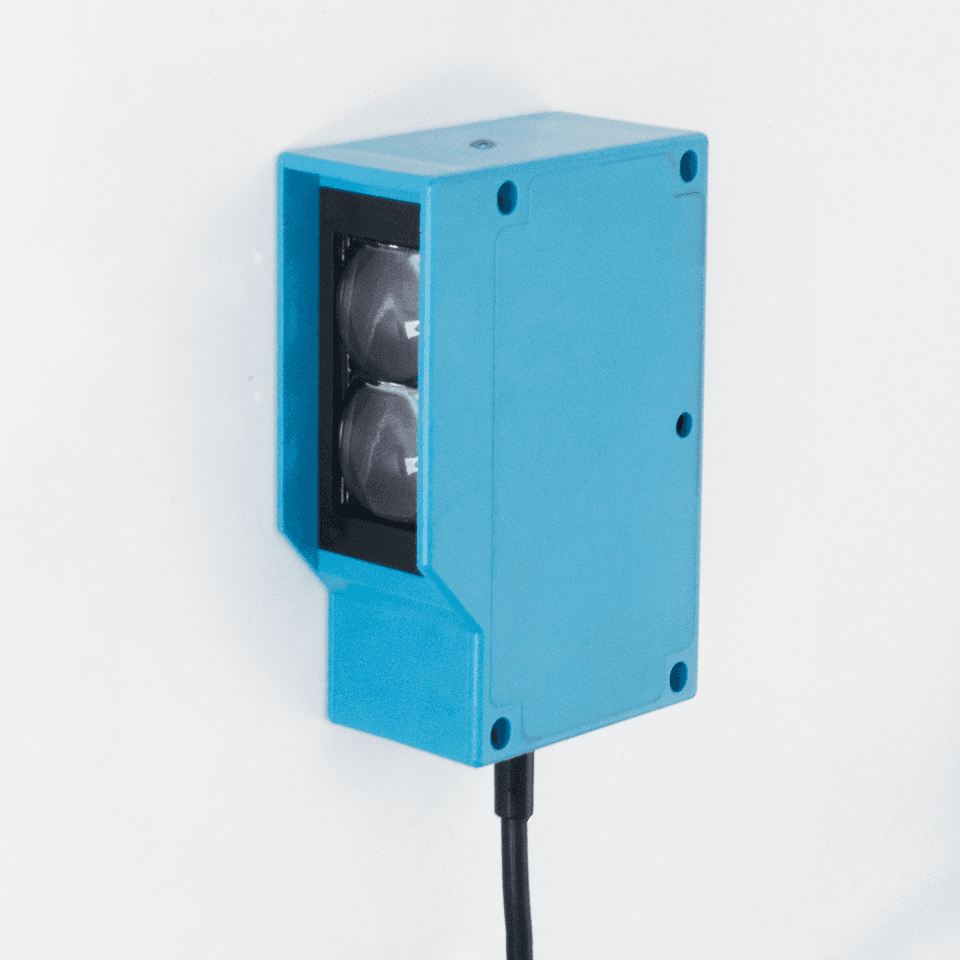

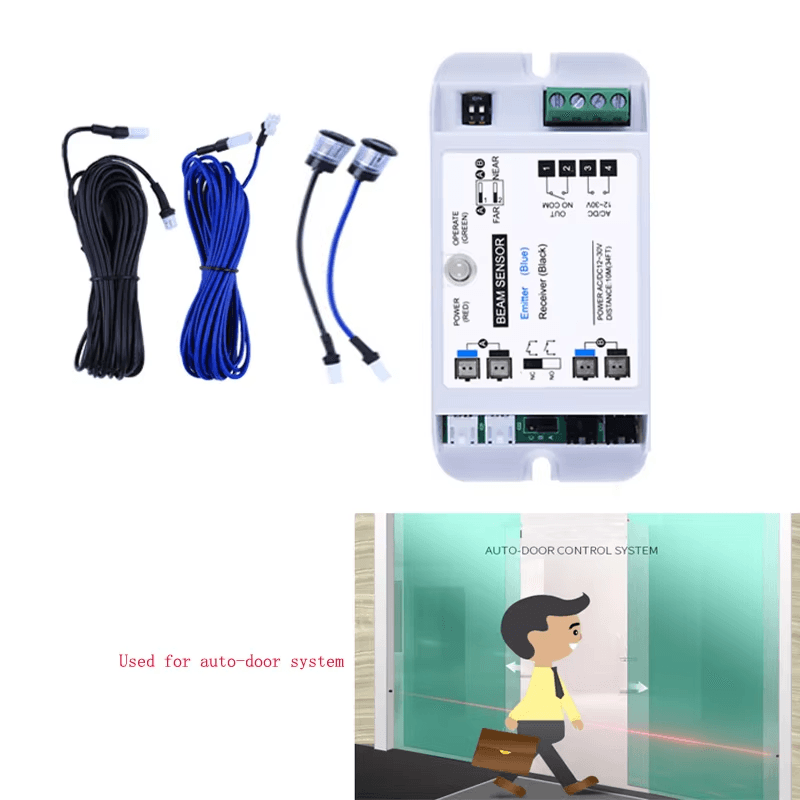

For longer distances or high-contrast environments, retroreflective configurations or through-beam systems are preferred. For instance, our long-range infrared beam models can span up to 15 meters using a dedicated reflector, making them ideal for wider gates, entryways, or heavy machinery clearance zones.

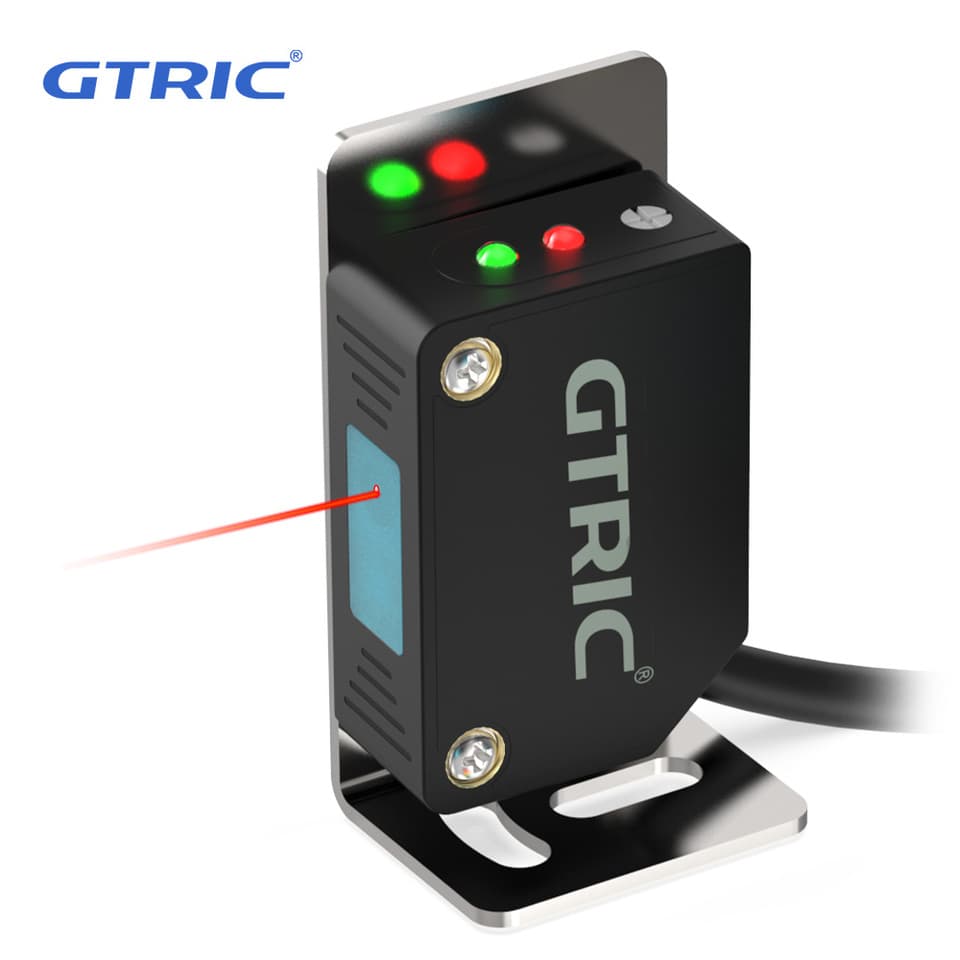

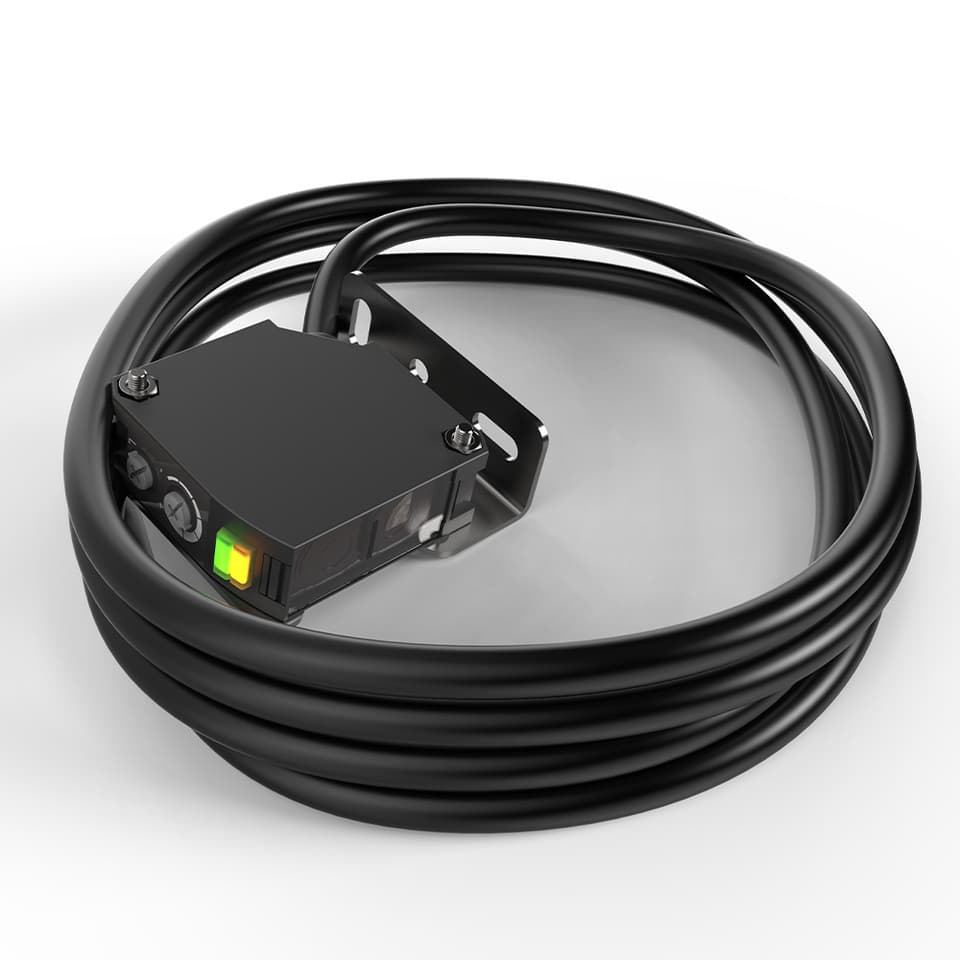

• Diffuse Reflection: Best for short-range detection up to 3 meters where mounting space is restricted.

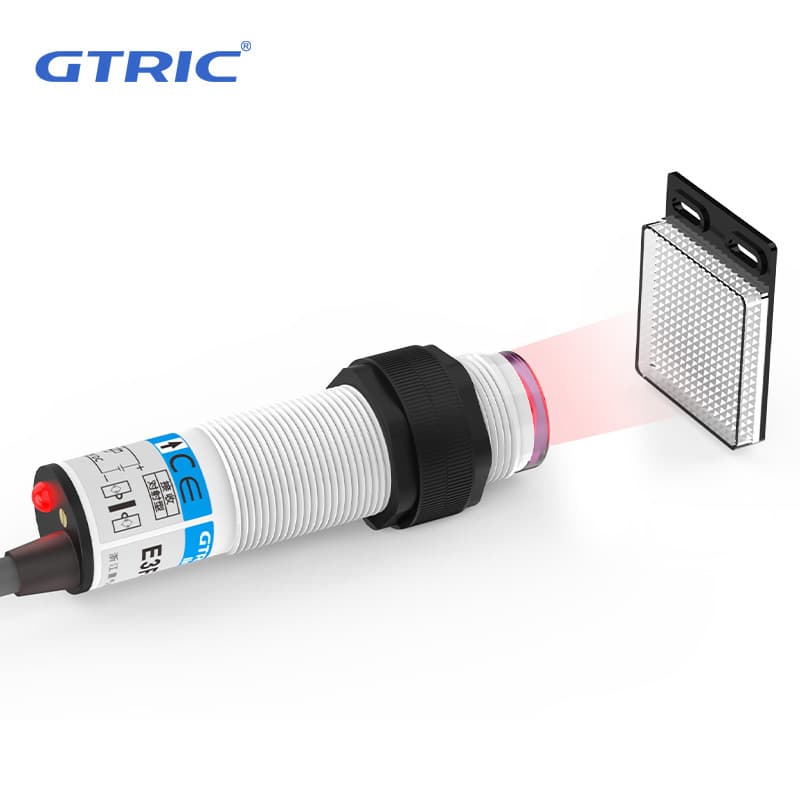

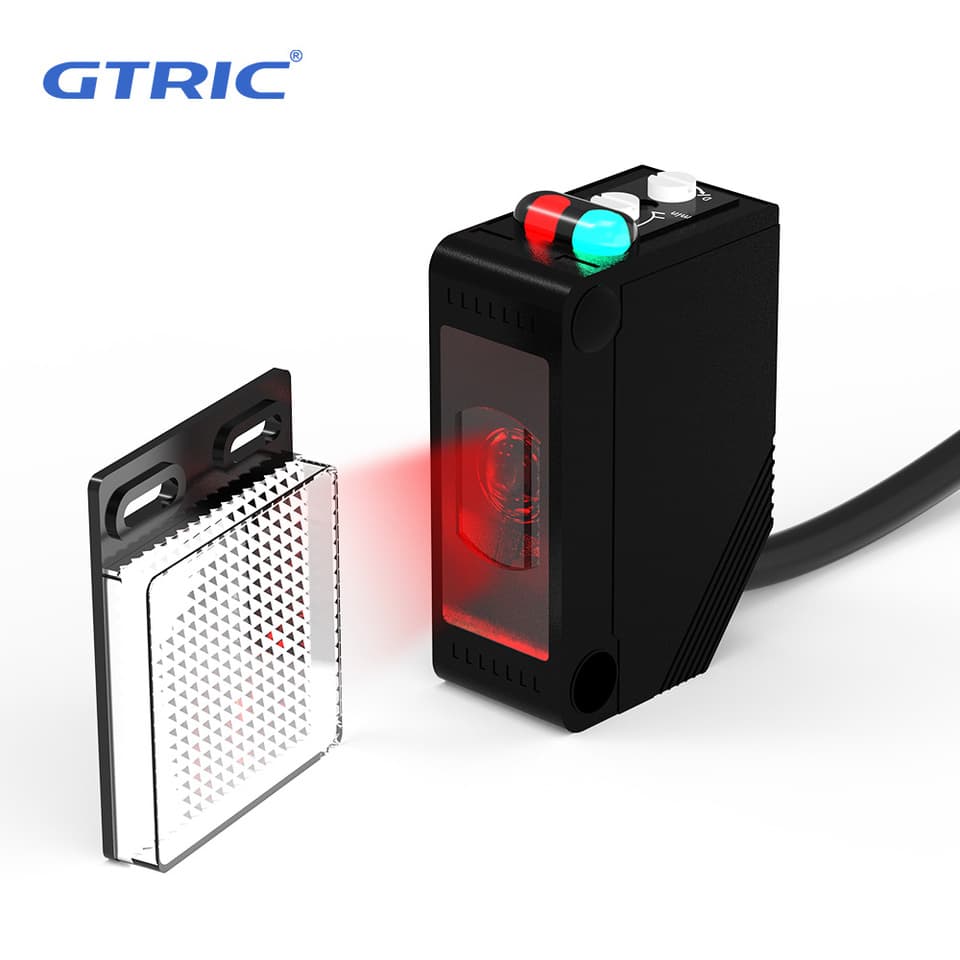

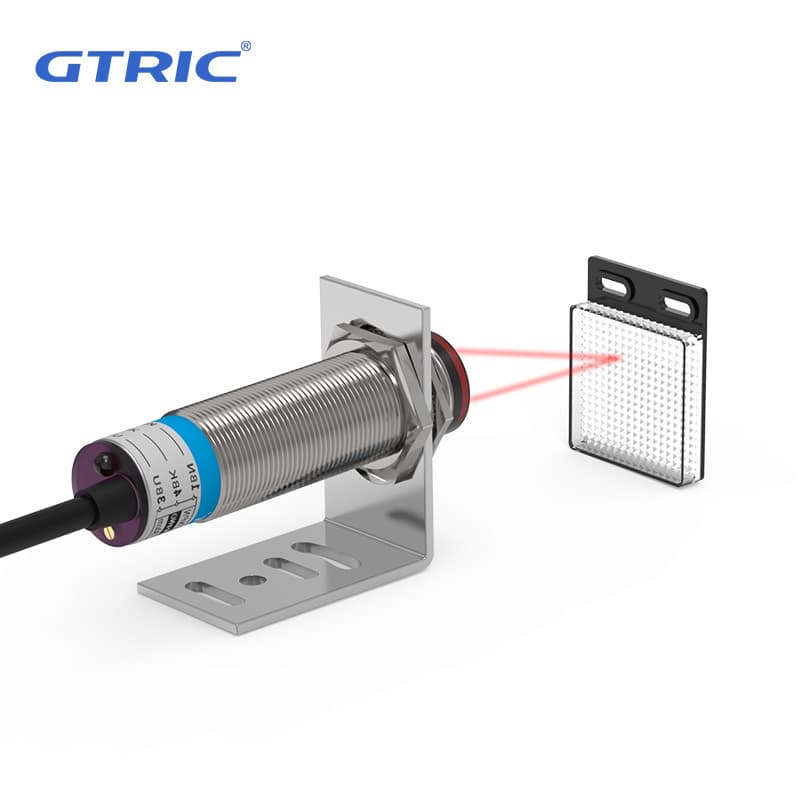

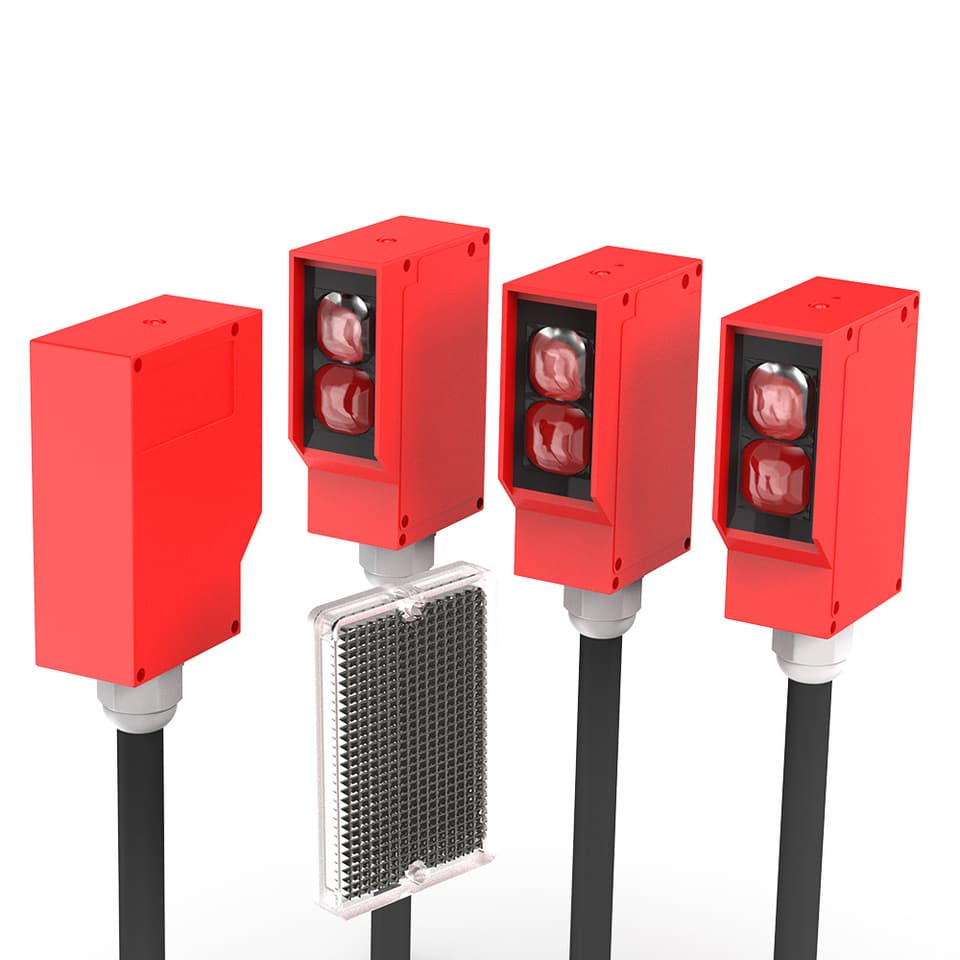

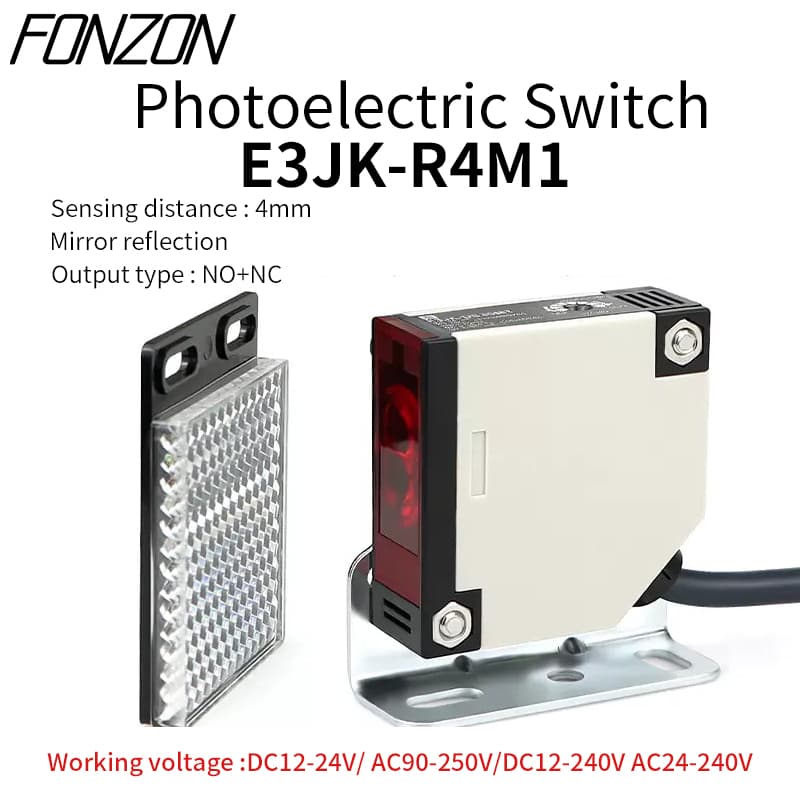

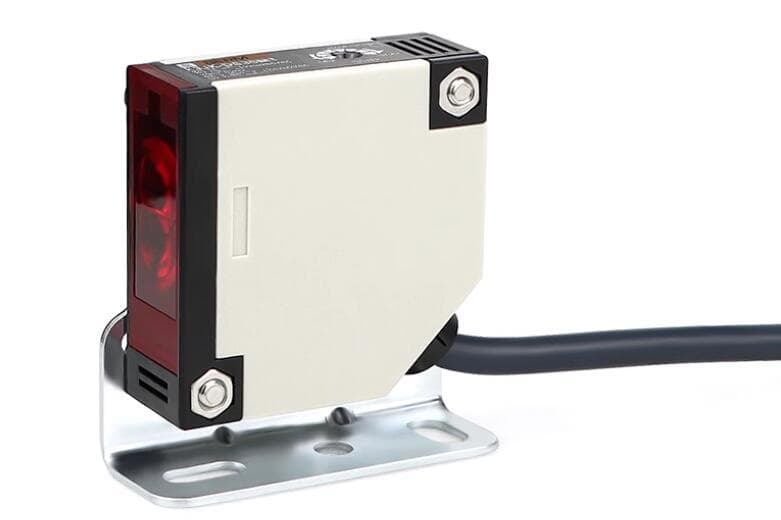

• Retroreflective / Feedback Reflection: Ideal for mid-to-long ranges, utilizing a reflector opposite the sensor.

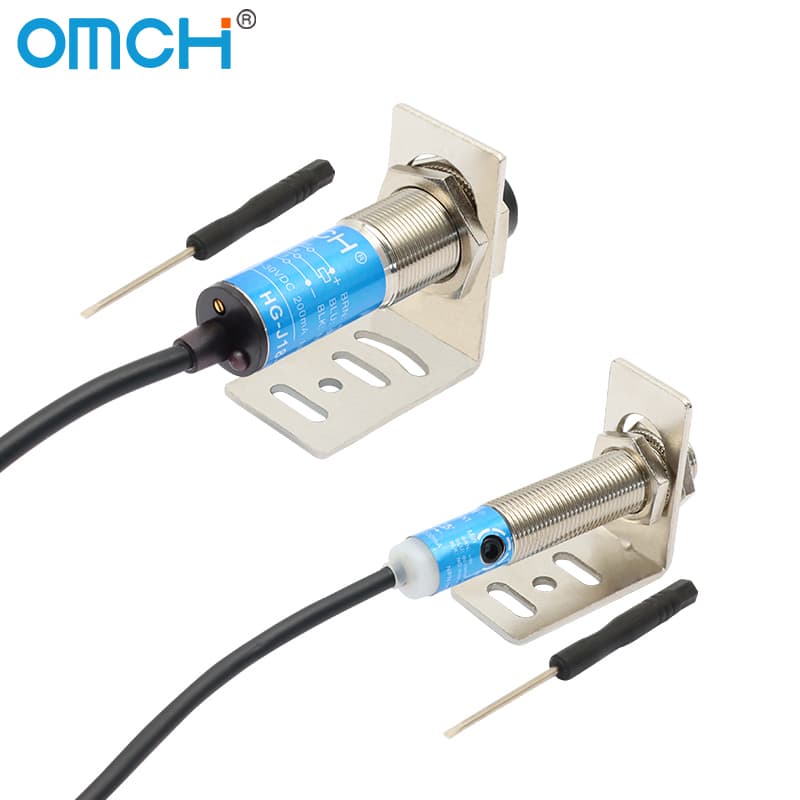

• Through-Beam: Offers the longest range and highest reliability in dirty or dusty environments.

Matching Electrical Output and Operating Voltage

Industrial controllers require specific digital outputs to process signals correctly. You must match the sensor's output style, either NPN (sinking) or PNP (sourcing), with your PLC or control module input requirements. Many of our standard diffuse-reflective models support both configurations or offer dedicated NPN/PNP options to simplify integration.

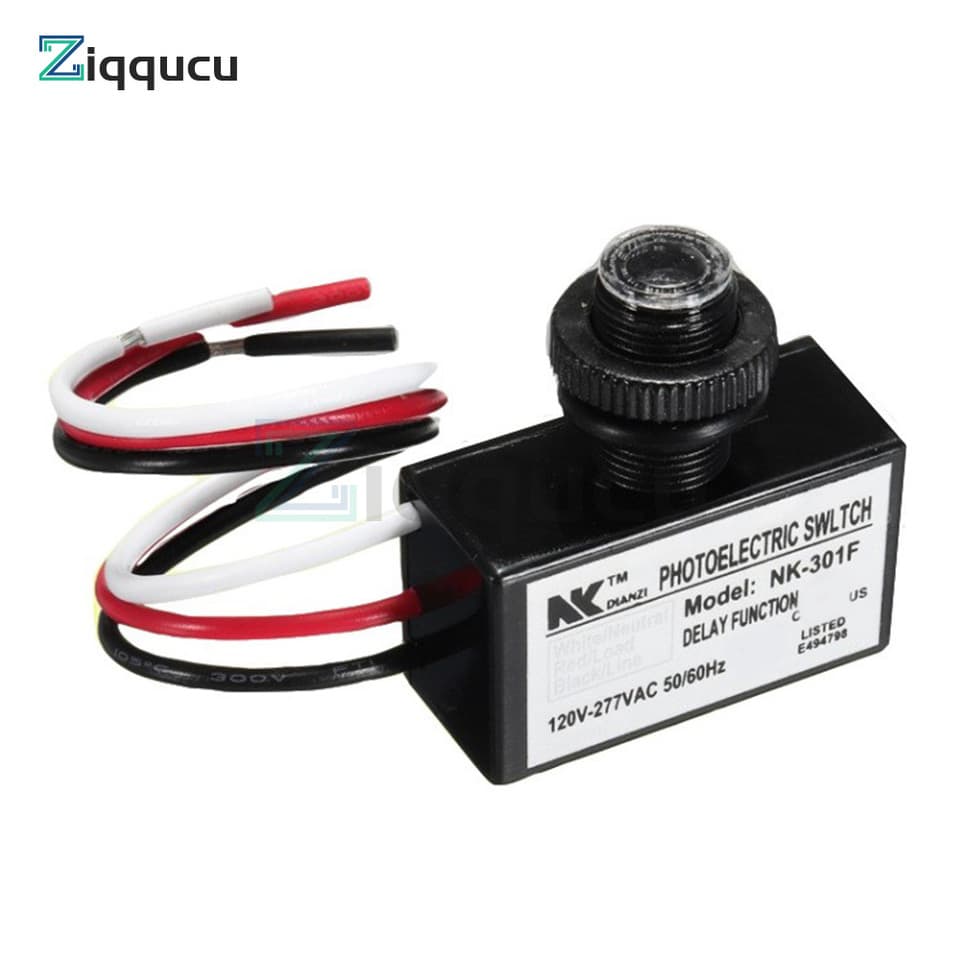

Voltage compatibility is equally critical. Standard factory automation lines usually run on 12-24V DC or 10-30V VDC, while microcontrollers and obstacle-avoidance modules often operate on a 5V DC logic level. Always verify your system's power supply limits before ordering to prevent component damage.

Adjustability and Detection Range Limits

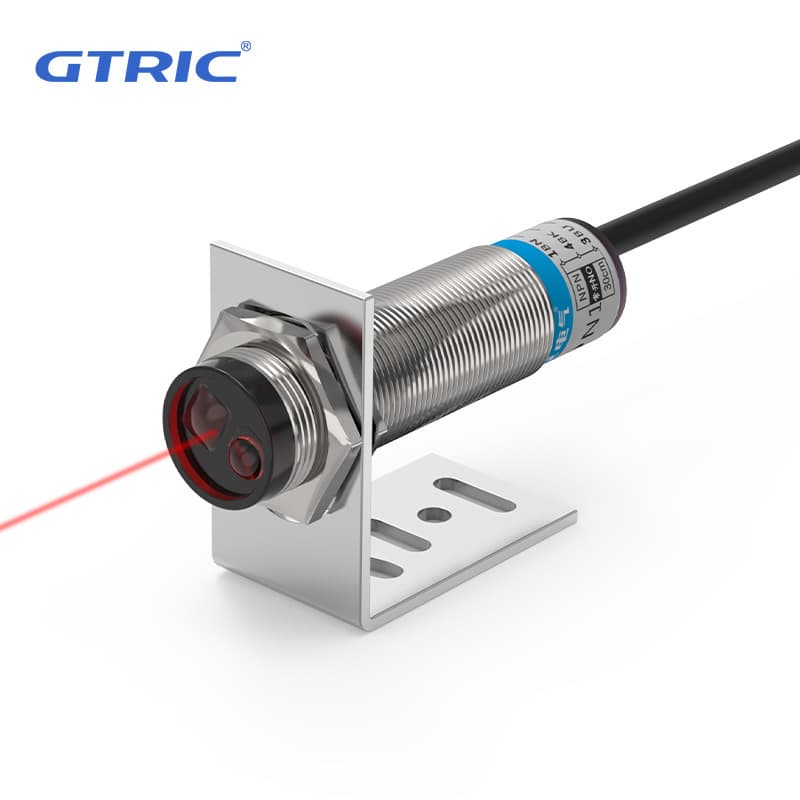

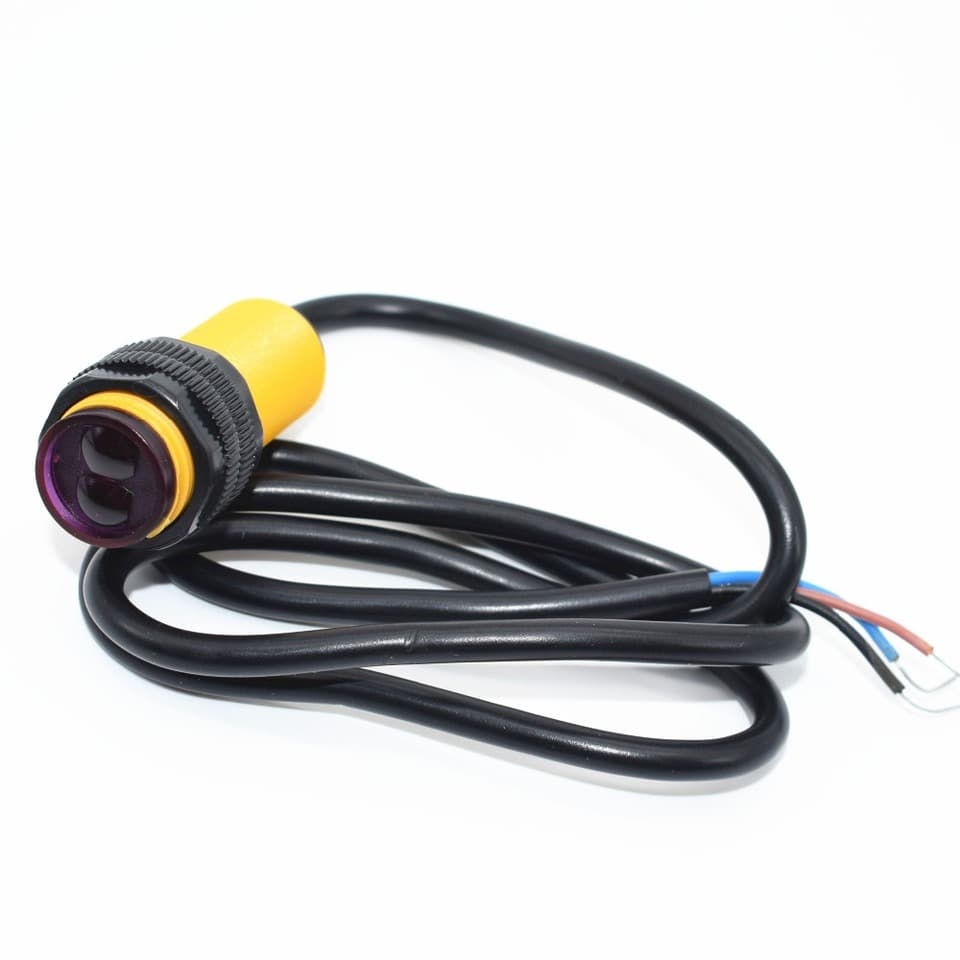

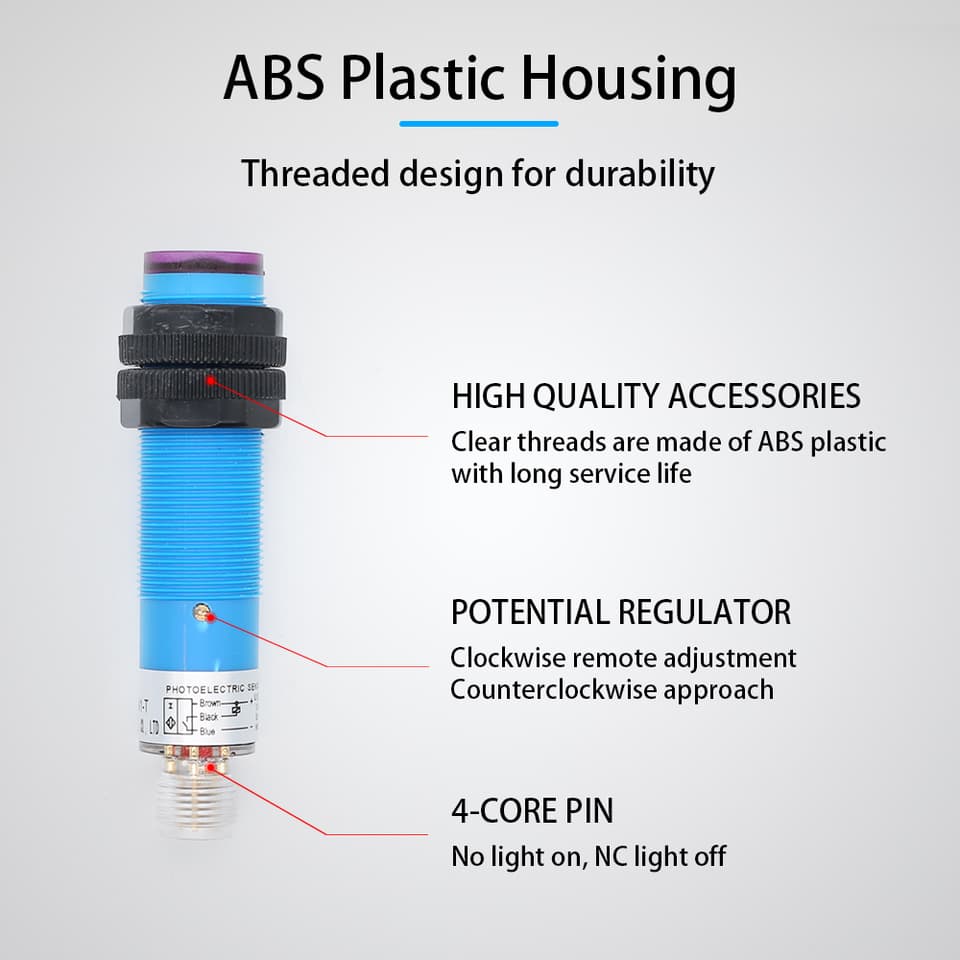

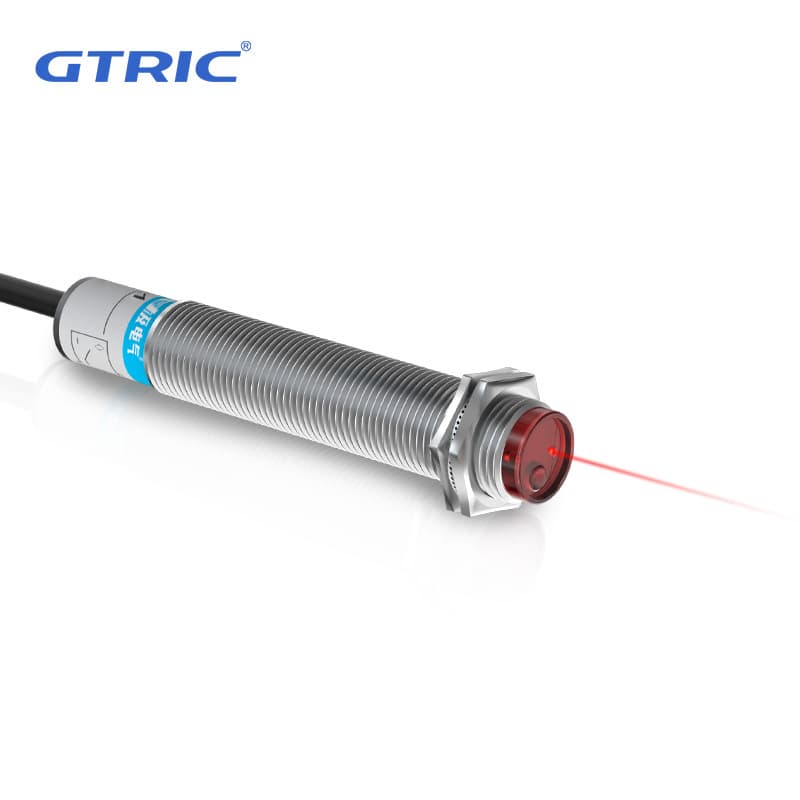

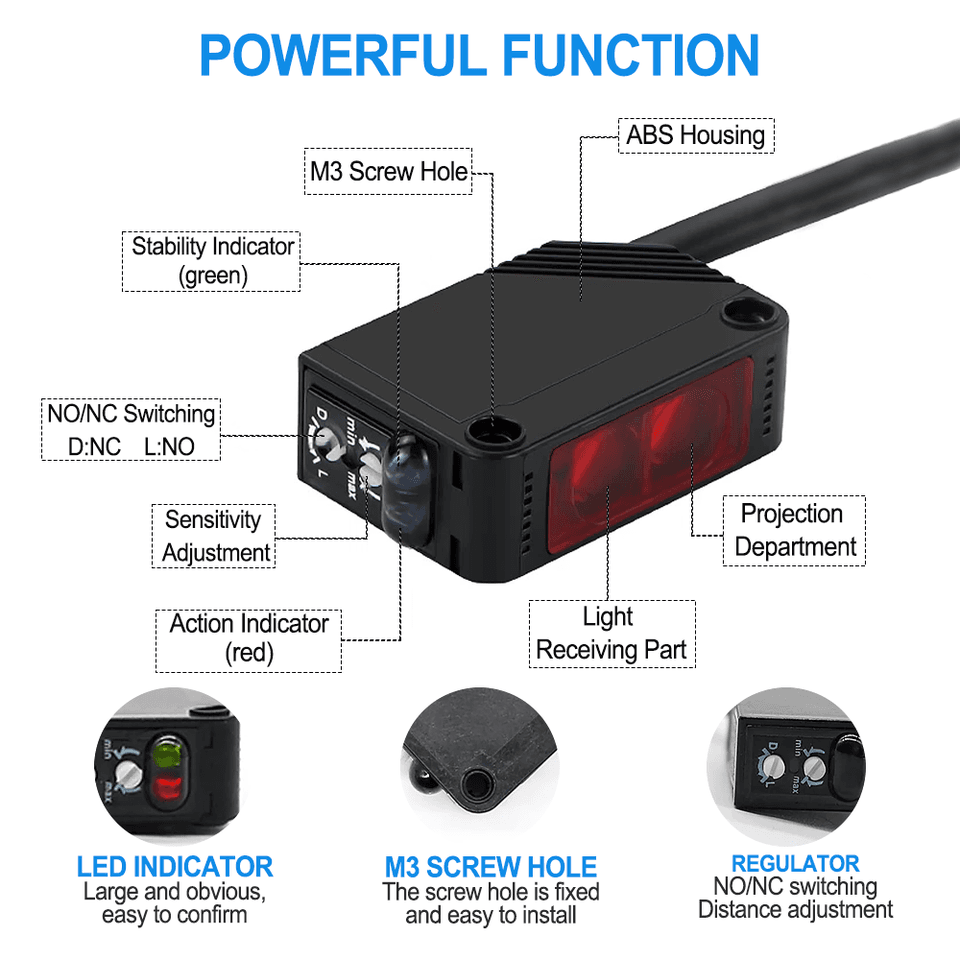

Fixed-range sensors can suffer from background interference if a reflective object passes behind your target. Selecting a sensor with an adjustable range, like our M18 models with 10cm to 2m or 3cm to 80cm limits, allows you to fine-tune the detection threshold.

This adjustment helps ignore background machinery or walls, ensuring the sensor only triggers when the intended object breaks or reflects the infrared beam.
