Laser Distance Sensors

Selecting the Measurement Principle: Time of Flight vs. Optical Ranging

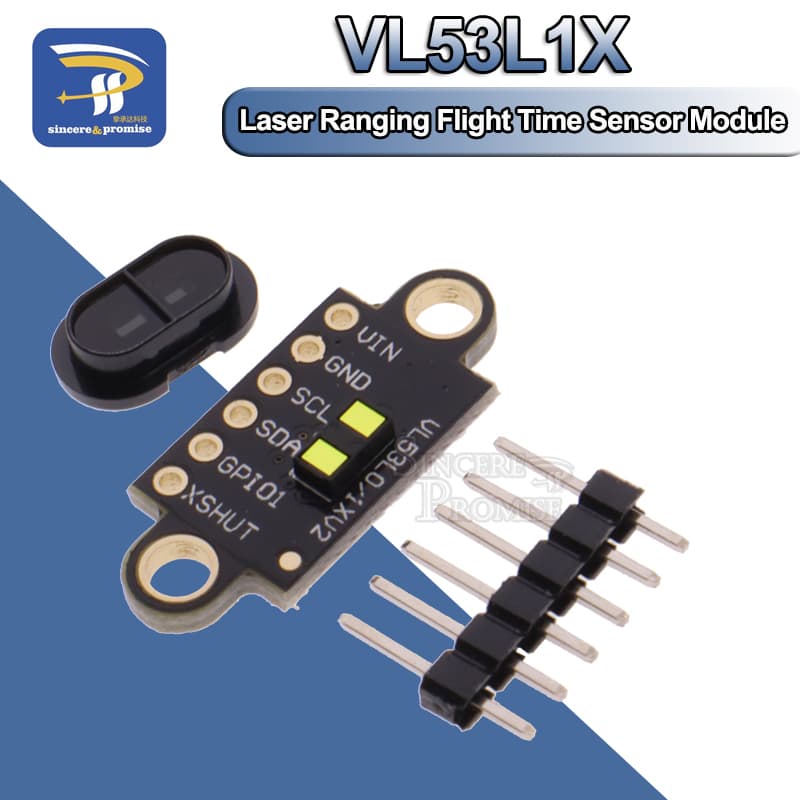

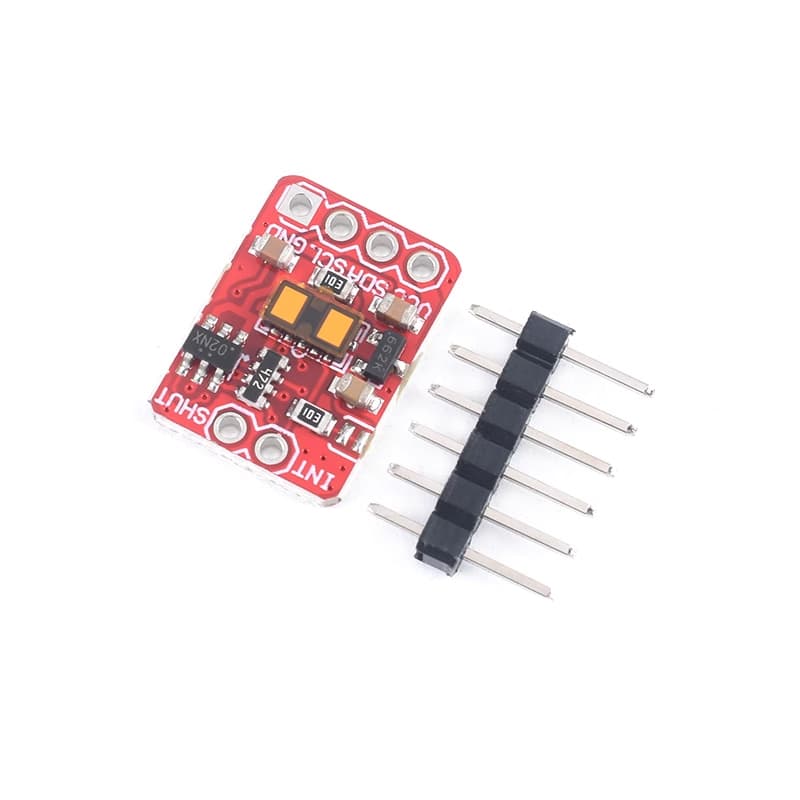

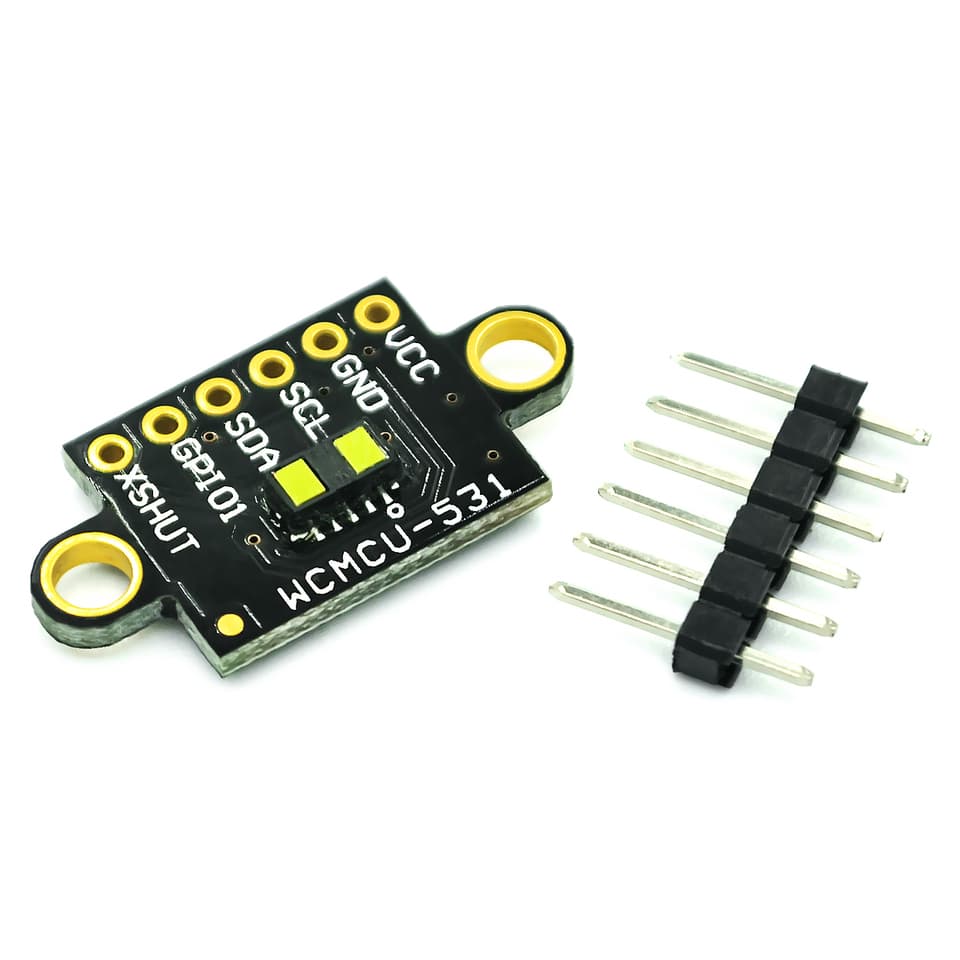

Your application's range and environment determine whether you need a time of flight sensor (ToF) or a standard optical laser ranging module. ToF sensors, like the VL53L0X or VL53L1X, calculate distance by measuring the travel time of light. This makes them highly reliable for short to medium ranges, even with varying target reflectivity.

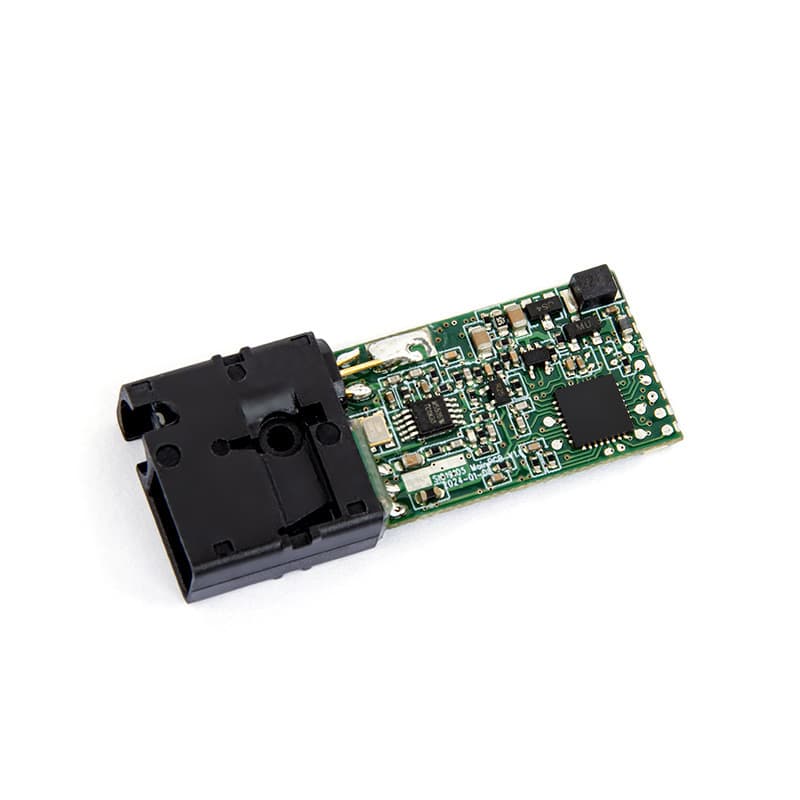

For long-distance machinery positioning, high-precision optical distance measuring modules extend your capabilities up to 60 meters.

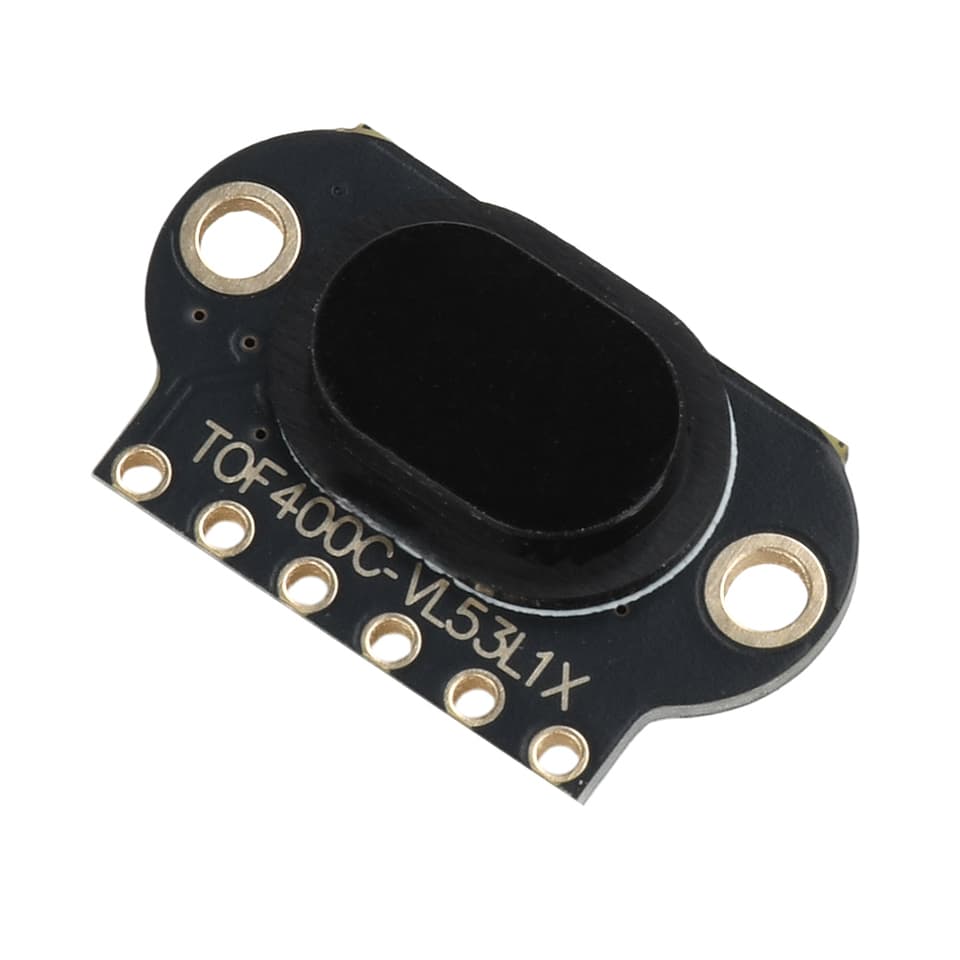

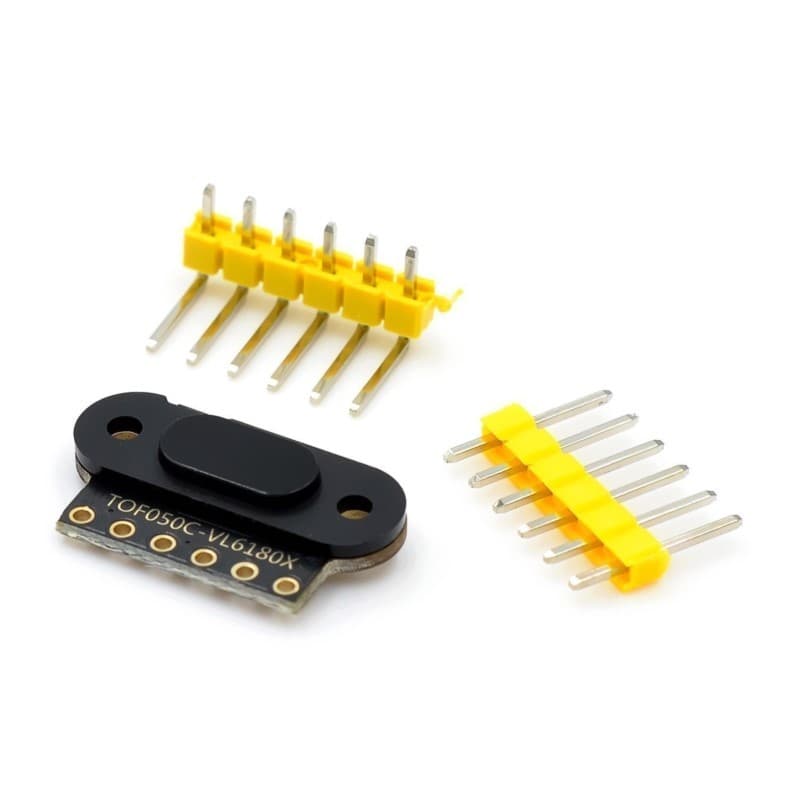

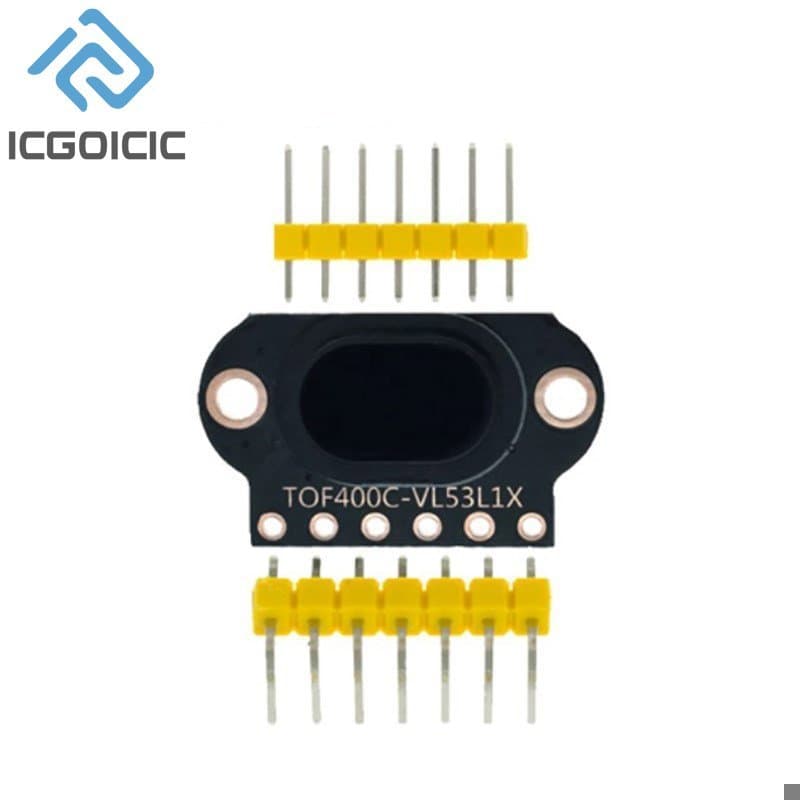

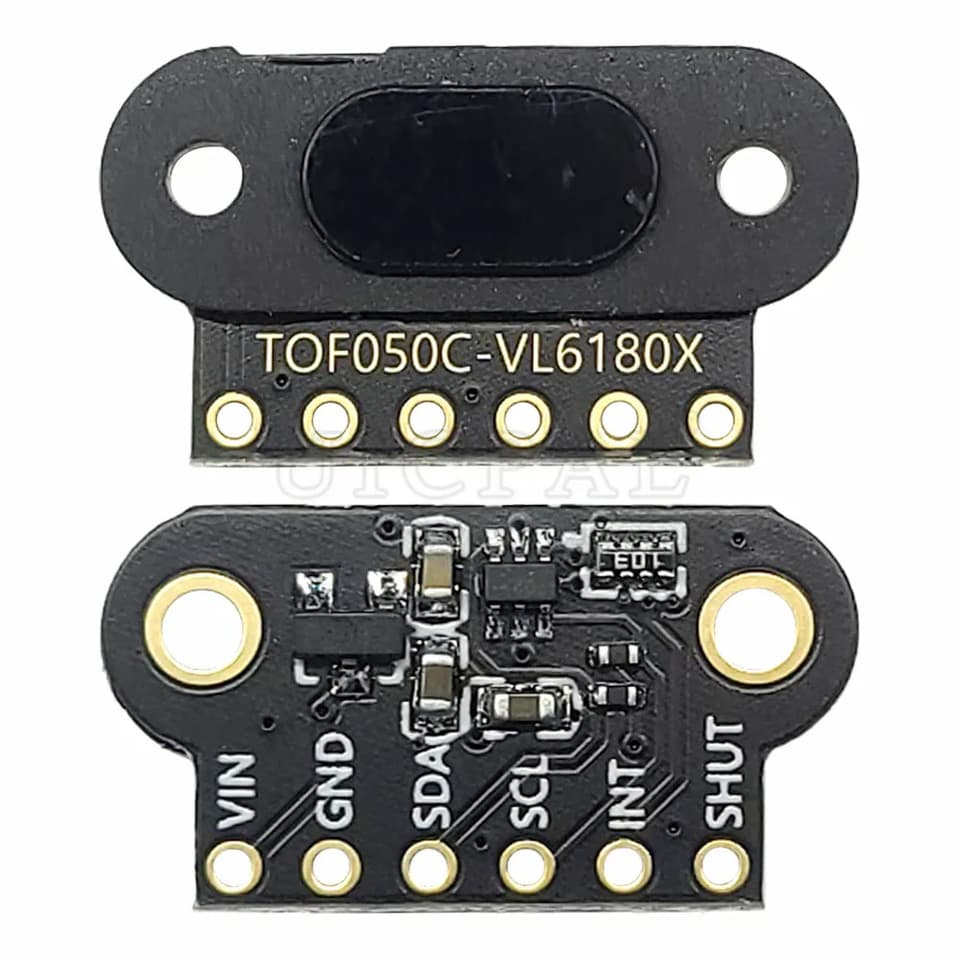

• Short-to-Medium Range (up to 4m): Use ToF modules like the TOF050C (50cm) or TOF400C (400cm) for compact integration.

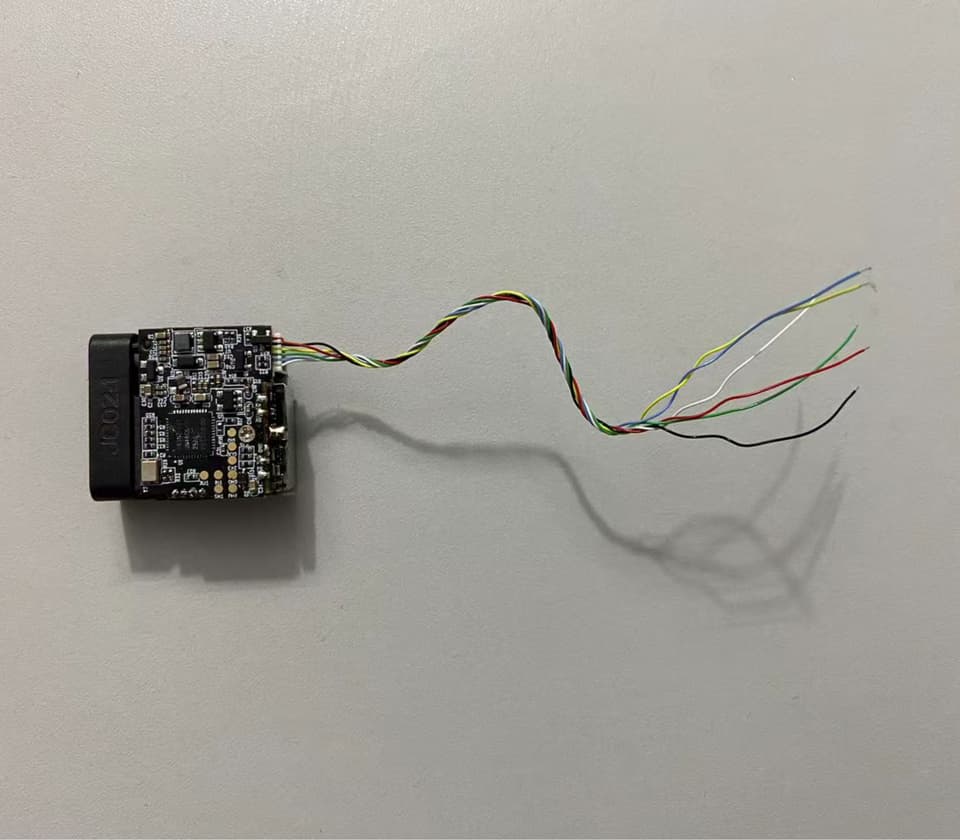

• Long Range (up to 60m): Choose dedicated high-precision optical ranging modules for bulk material or crane positioning.

Matching the Output Interface to Your Control System

Integrating a laser distance sensor requires matching its output interface with your processing hardware. Board-level integration often relies on I2C (or IIC) and UART interfaces, which are standard for microcontrollers and development boards.

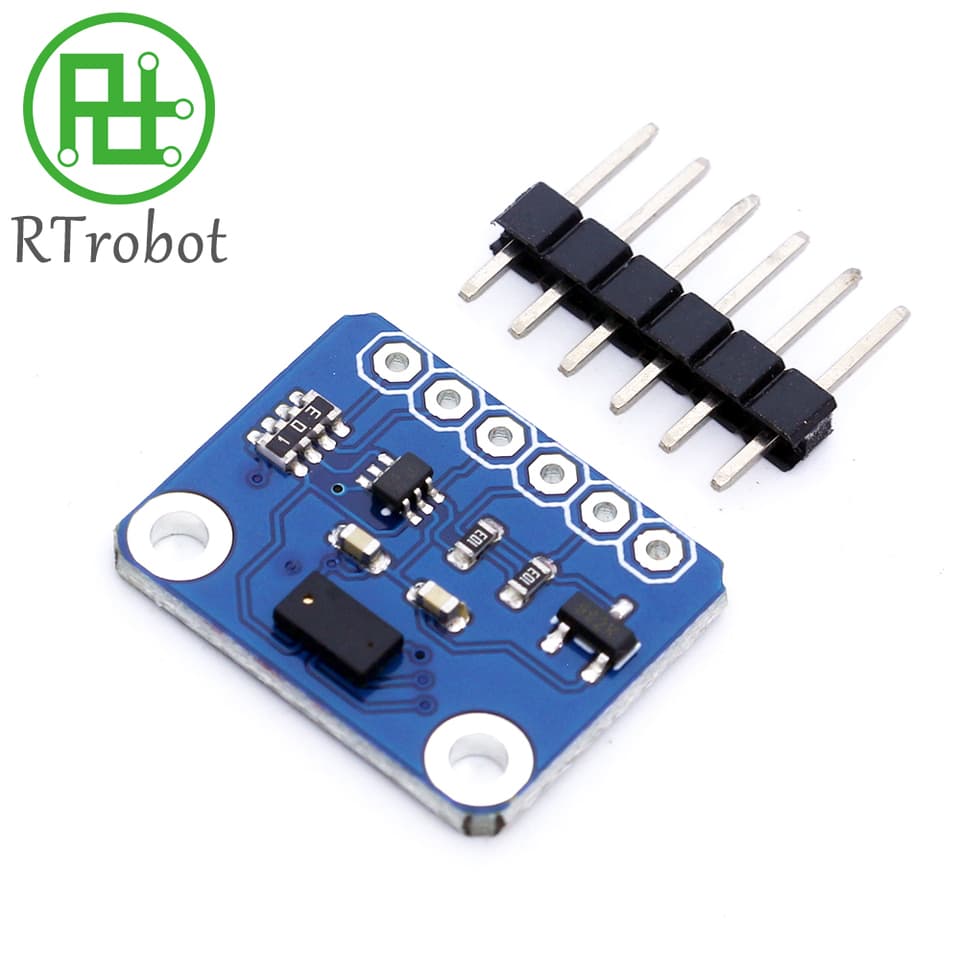

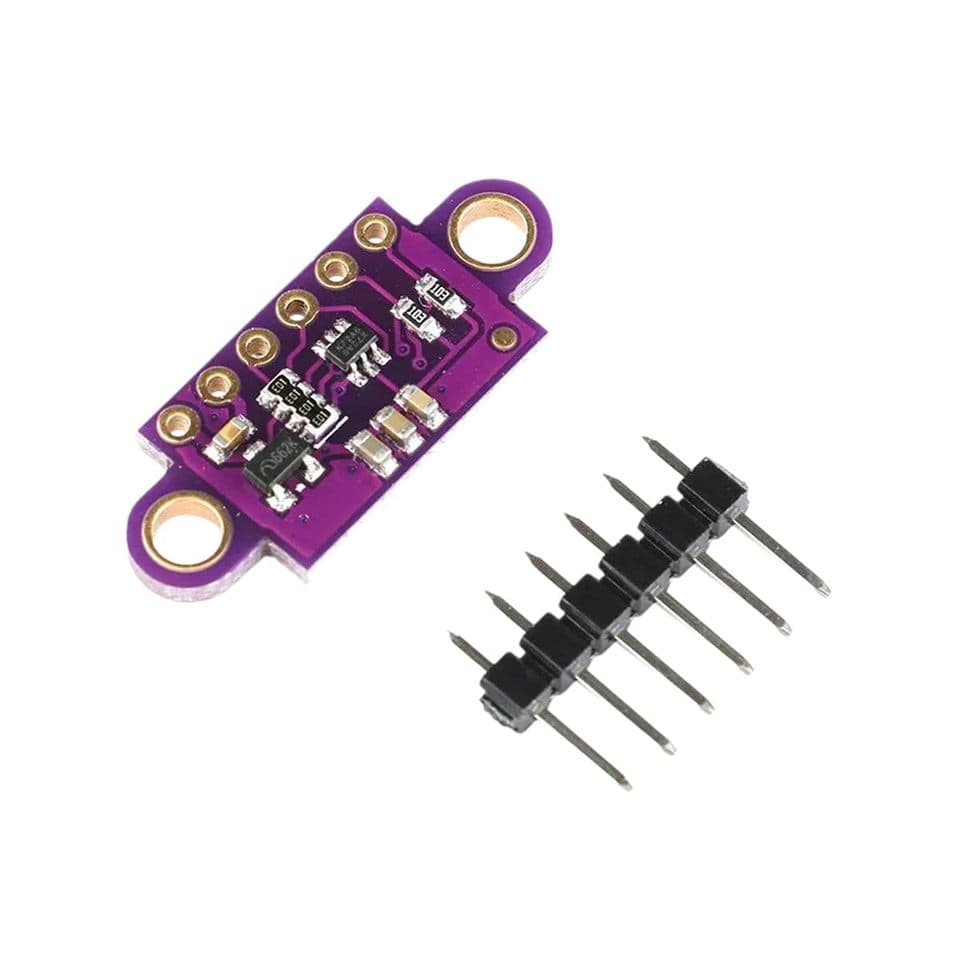

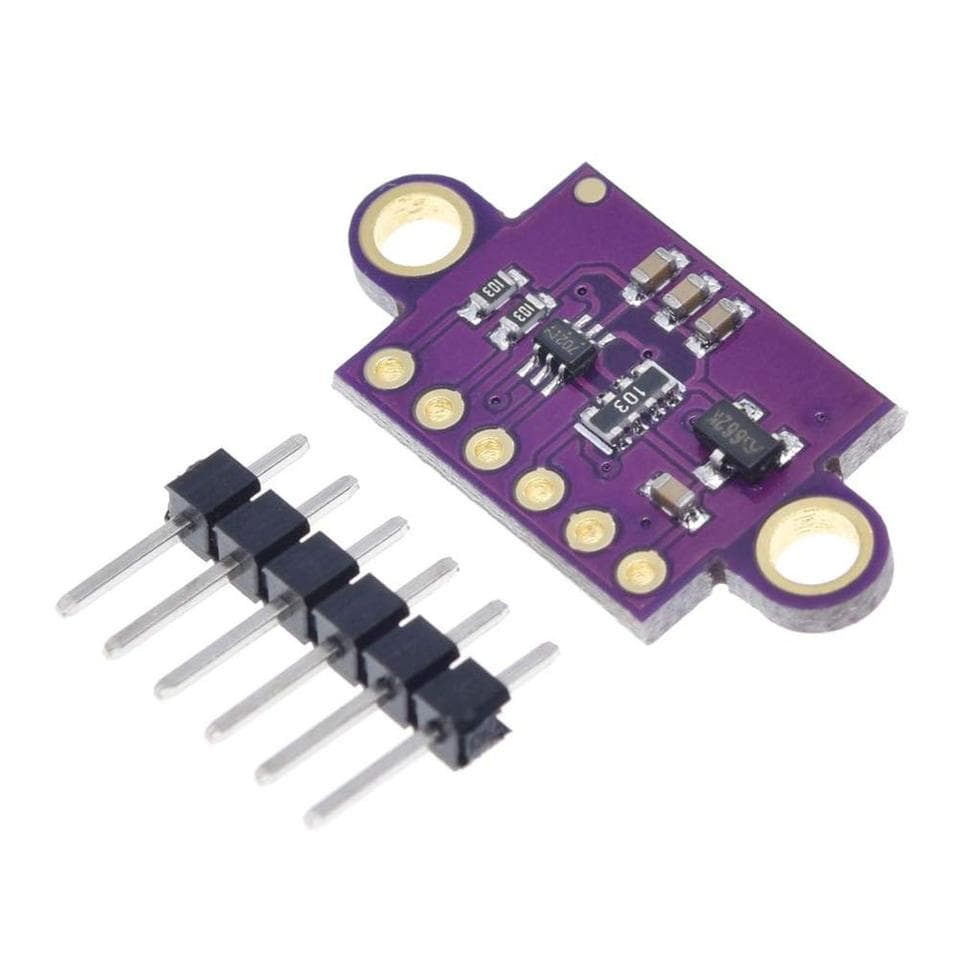

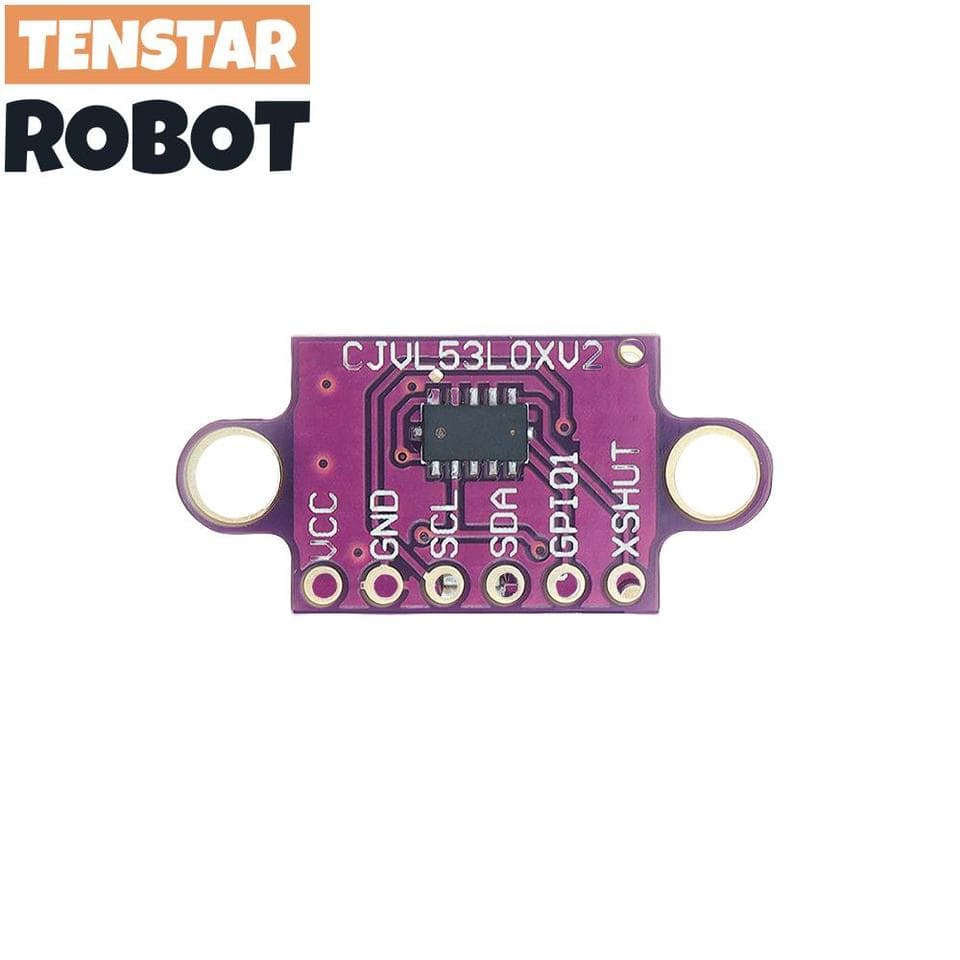

• I2C / IIC Interfaces: Ideal for short-run bus connections to systems like Arduino or STM32 using chips like the VL53L0X.

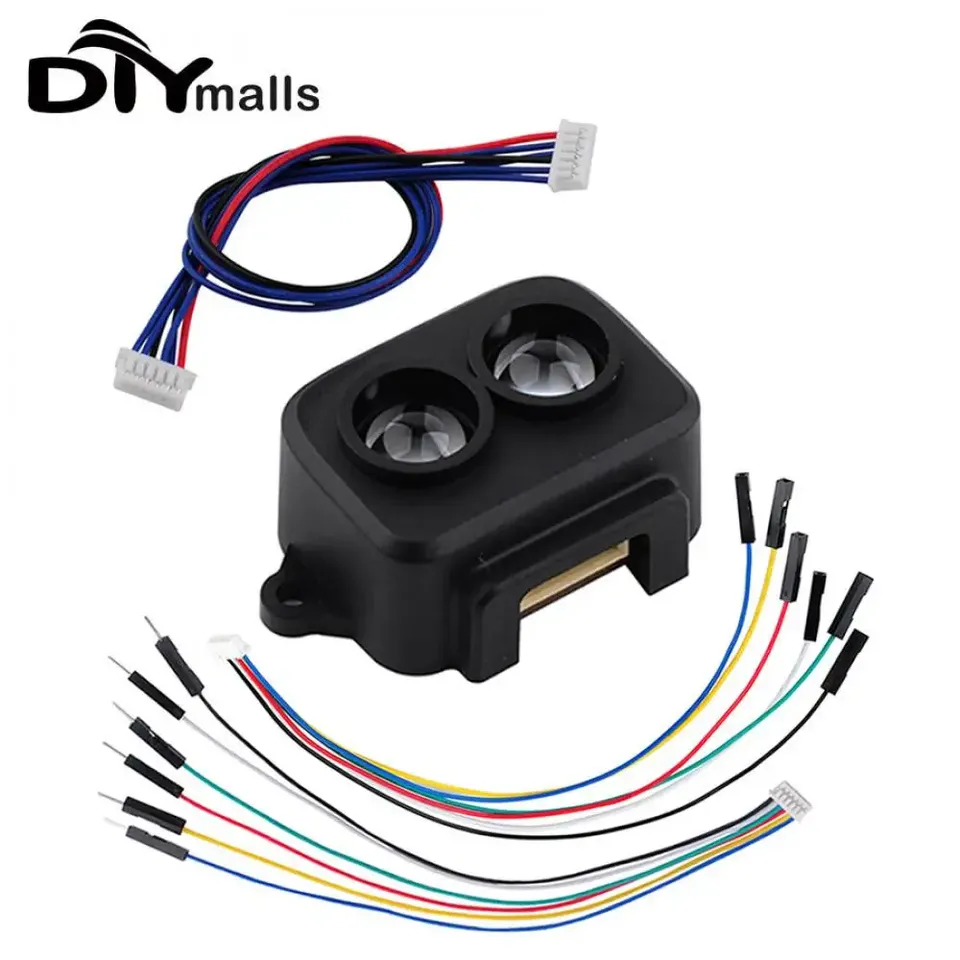

• UART / Serial Interfaces: Best for point-to-point communication, common in single-point lidar modules and Pixhawk flight controllers.
• ROS Compatibility: For advanced robotic navigation, select 360-degree lidar sensors that support ROS1 and ROS2 platforms.

Accounting for Ambient Light and Operating Environments

Industrial environments present challenges like high ambient light and physical obstructions. Standard 940nm infrared ranging breakouts perform exceptionally well indoors but can experience interference under direct sunlight.

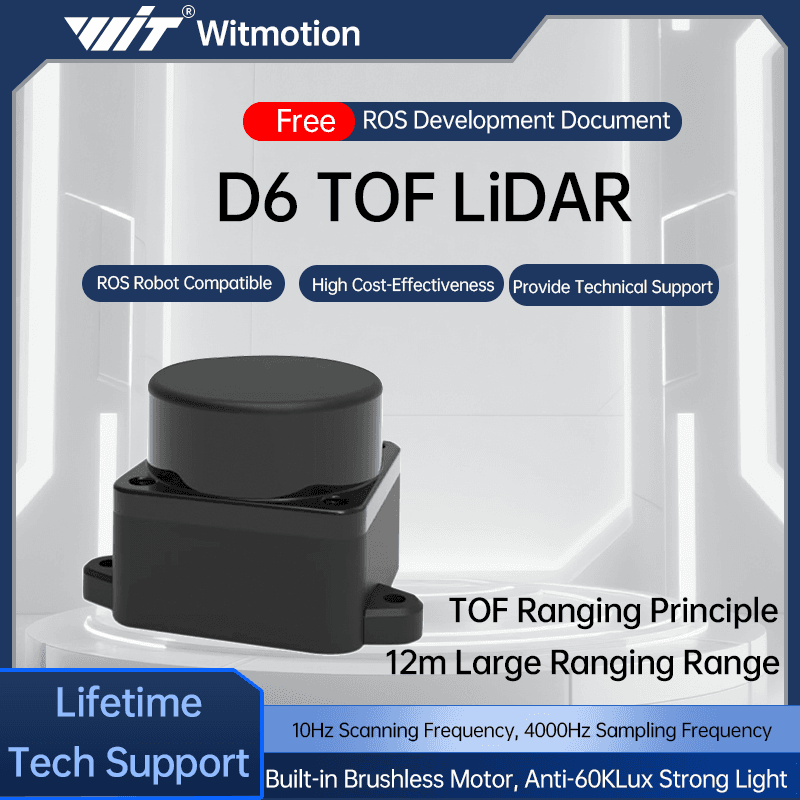

For outdoor applications or bright factory floors, check the light resistance specifications of your laser displacement sensor. For example, high-frequency 360-degree lidar scanners can withstand up to 60 Klx of light resistance, making them suitable for environments with fluctuating light levels. Always verify the specific IP rating on the manufacturer's datasheet if your deployment expects dust or moisture exposure.
