Diode Assortment Kit | Fast-Switching Schottky & Zener Diodes | 1N4007, 1N4148, 1N5819

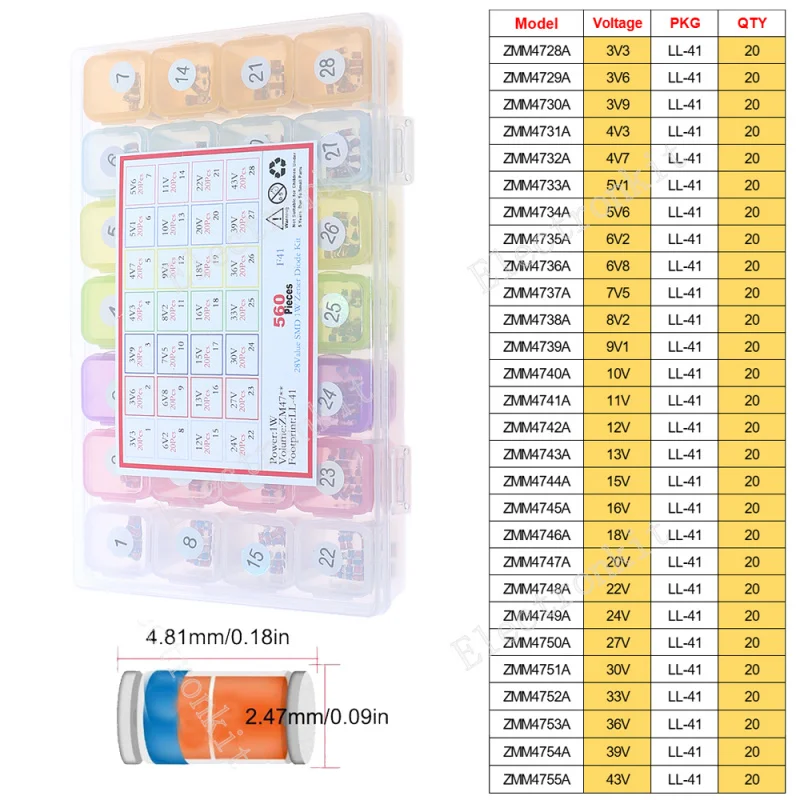

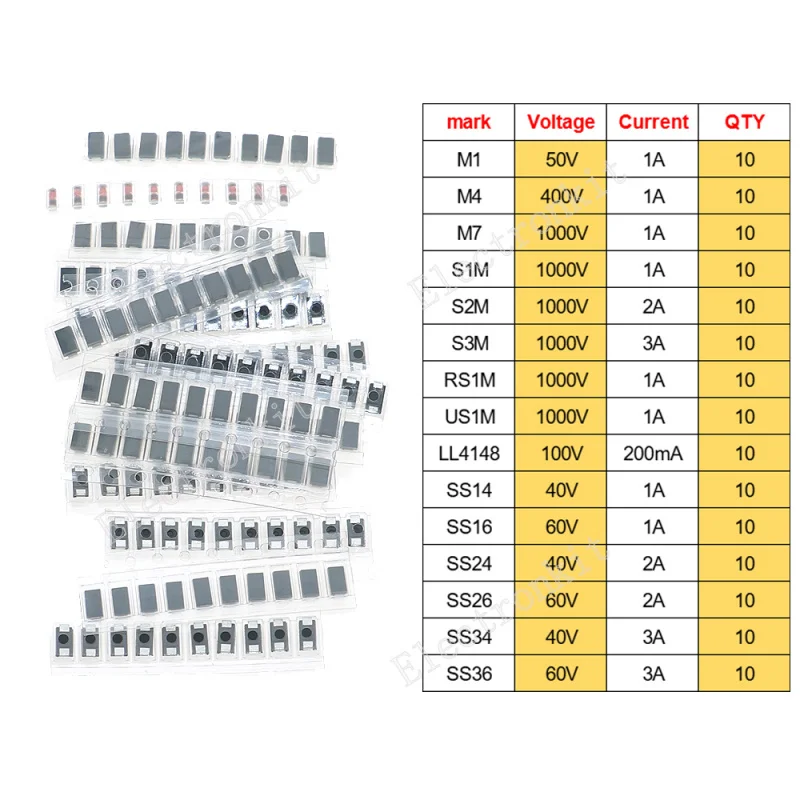

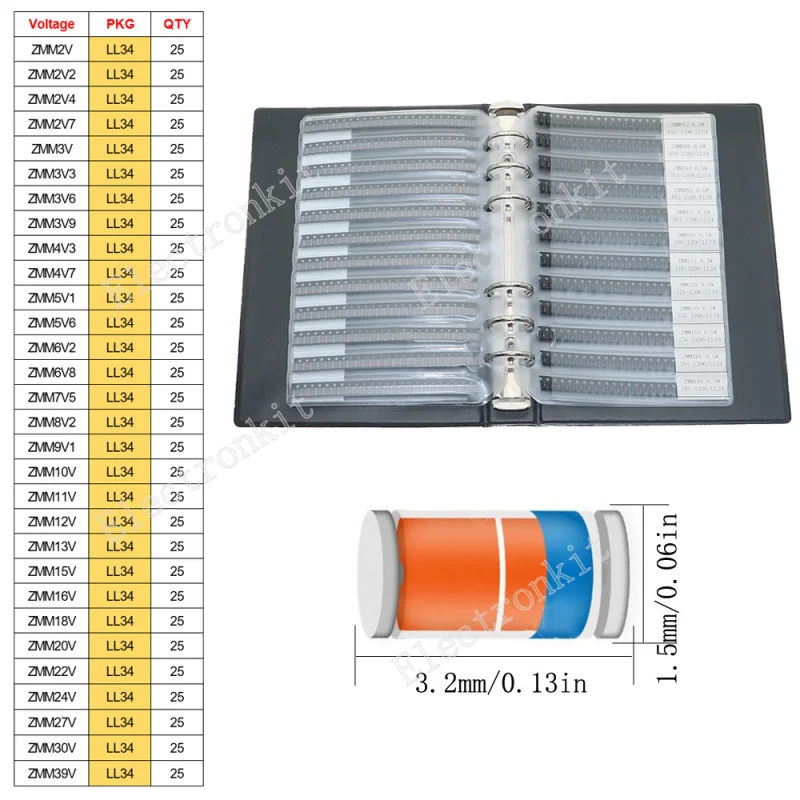

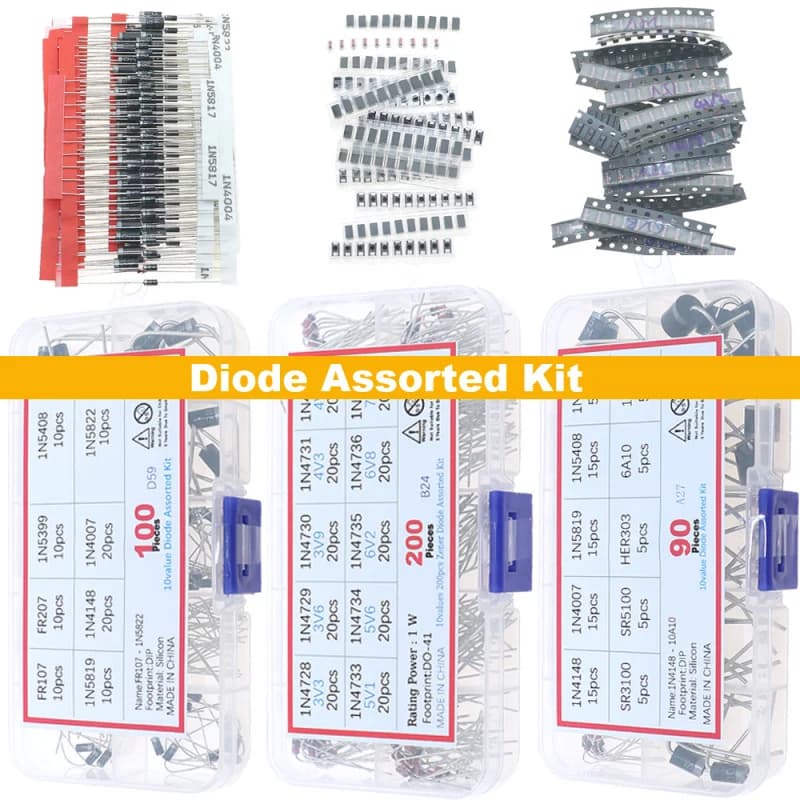

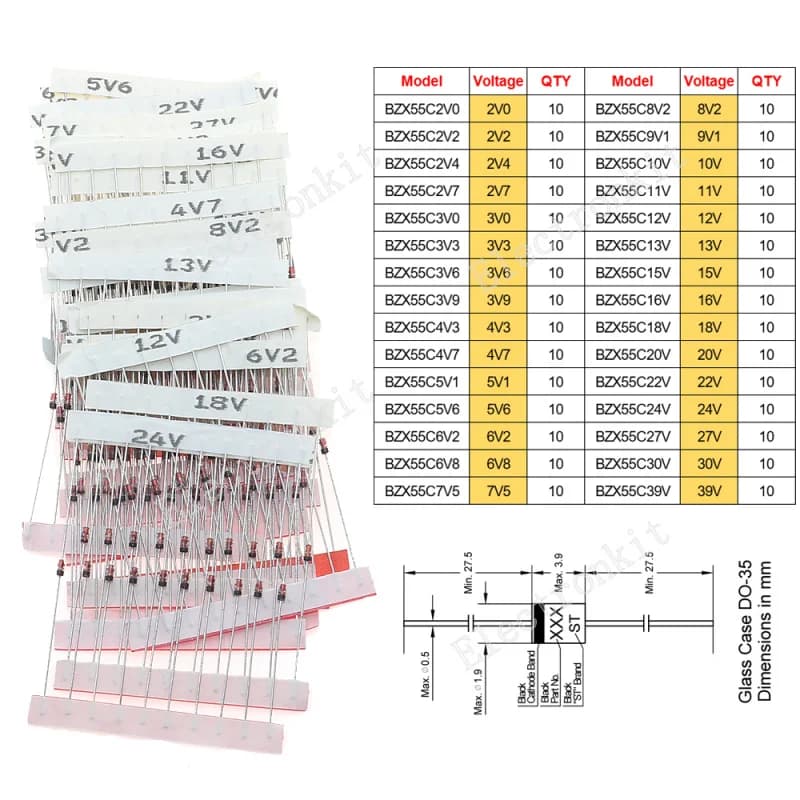

This comprehensive Zener and Schottky diode kit provides essential components for prototyping, repair, and circuit design. It features a wide 2V to 51V Zener diode range for precise voltage regulation and fast-switching Schottky diodes for efficient, low-loss rectification. This collection is an excellent value for professionals and enthusiasts seeking reliable performance without premium pricing. Features and Benefits - Wide Zener Diode Range (2V-51V) - Provides precise voltage regulation and transient protection for a vast array of circuit designs and power supplies. - Fast-Switching Schottky Diodes (1N5819, 1N5822) - Offer very low forward voltage drop and ultra-fast recovery, minimizing heat and power loss in switching power supplies and DC-DC converters. - High-Voltage General Purpose Diodes (1N4007, UF4007, 1N5408) - Deliver robust 1000V to 1500V PIV ratings for reliable rectification in mains-powered applications and inductive load protection. - Assorted Kit in Sample Book - Organized storage protects component leads, prevents mix-ups, and ensures you have the right diode on hand for any project or urgent repair. - Fast Recovery Diodes (UF4007, FR207) - Feature significantly reduced reverse recovery time compared to standard rectifiers, reducing switching noise and improving efficiency in high-frequency circuits. - Universal Signal Diode (1N4148) - A versatile, fast-switching diode ideal for general-purpose clipping, clamping, and logic circuits in both digital and analog designs. Applications - Power Supply Design & Repair - Use Zener diodes for voltage reference and regulation; employ Schottky and fast recovery diodes for efficient output rectification in switch-mode power supplies. - Circuit Prototyping & Hobbyist Projects - The organized assortment allows for rapid testing and implementation of voltage clamping, polarity protection, and signal conditioning in new designs. - Electronics Maintenance - Replace failed rectifier, freewheeling, or clamping diodes in appliances, audio equipment, and industrial controls with exact or superior-specification components. - Automotive & Solar Projects - Utilize the high-current Schottky diodes (1N5822) for low-loss blocking in battery charging circuits, solar panel combiners, and automotive power systems.
