Choosing Between Surface-Mount (SMD) and Through-Hole Packages

Your choice of package style depends directly on your assembly method and thermal requirements. Surface-mount devices like SMA DO-214AC fit compact, high-density boards. They suit automated pick-and-place assembly systems. Through-hole packages like DO-35 or axial R-6 DIP provide high mechanical strength. They withstand manual repairs and high-vibration environments.

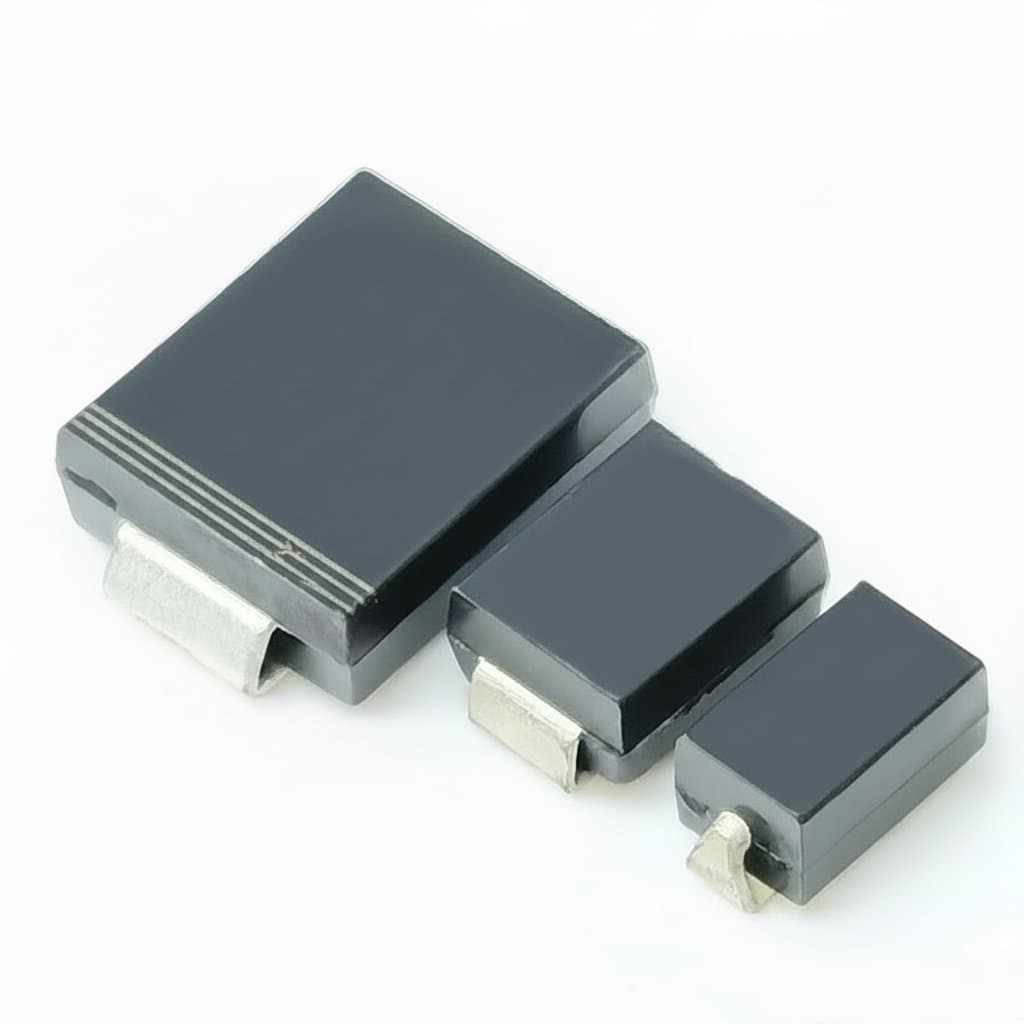

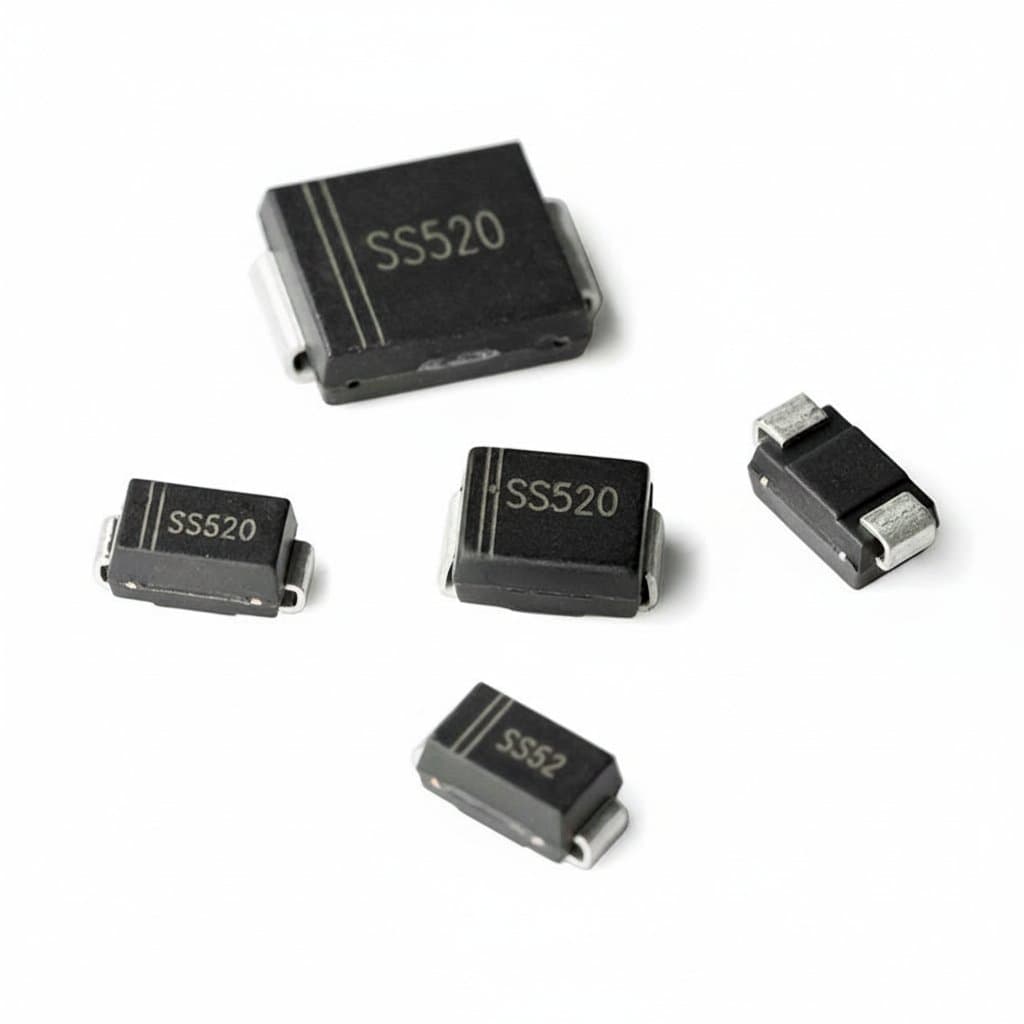

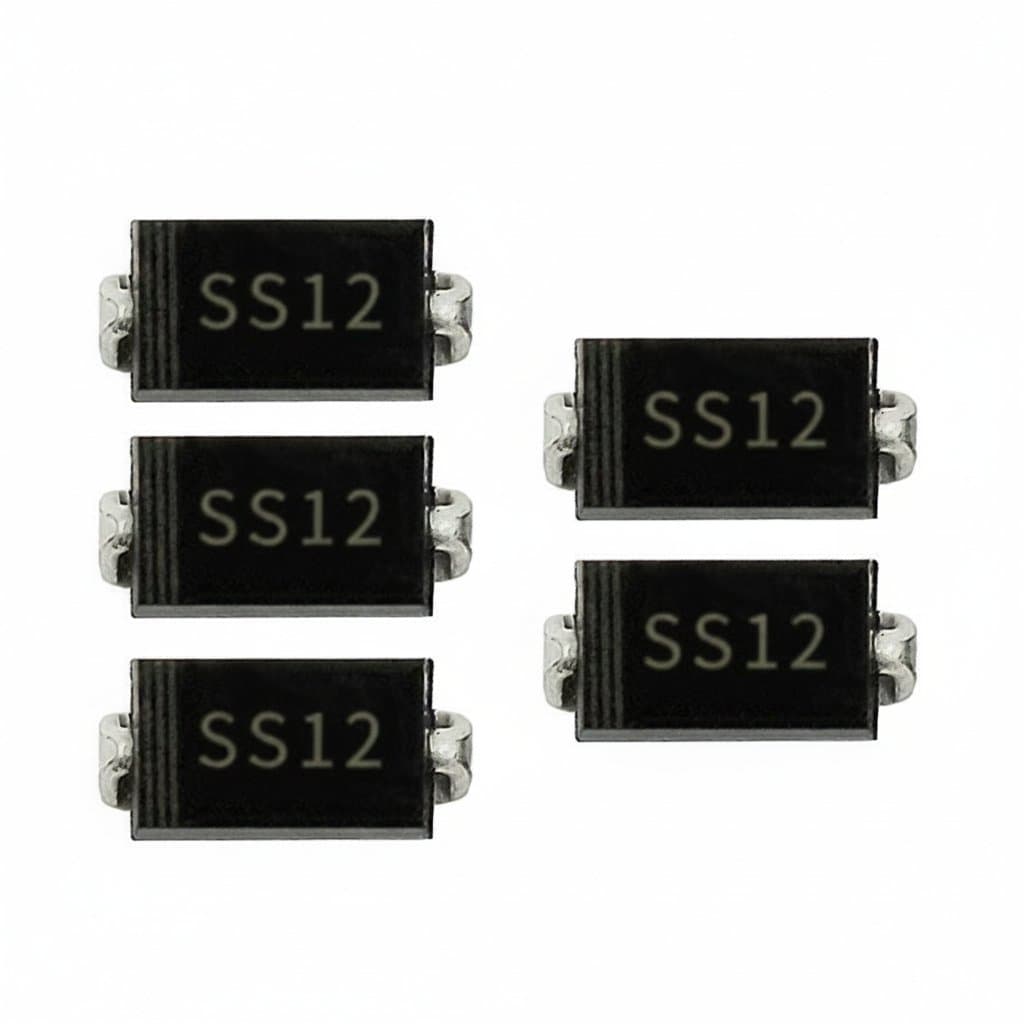

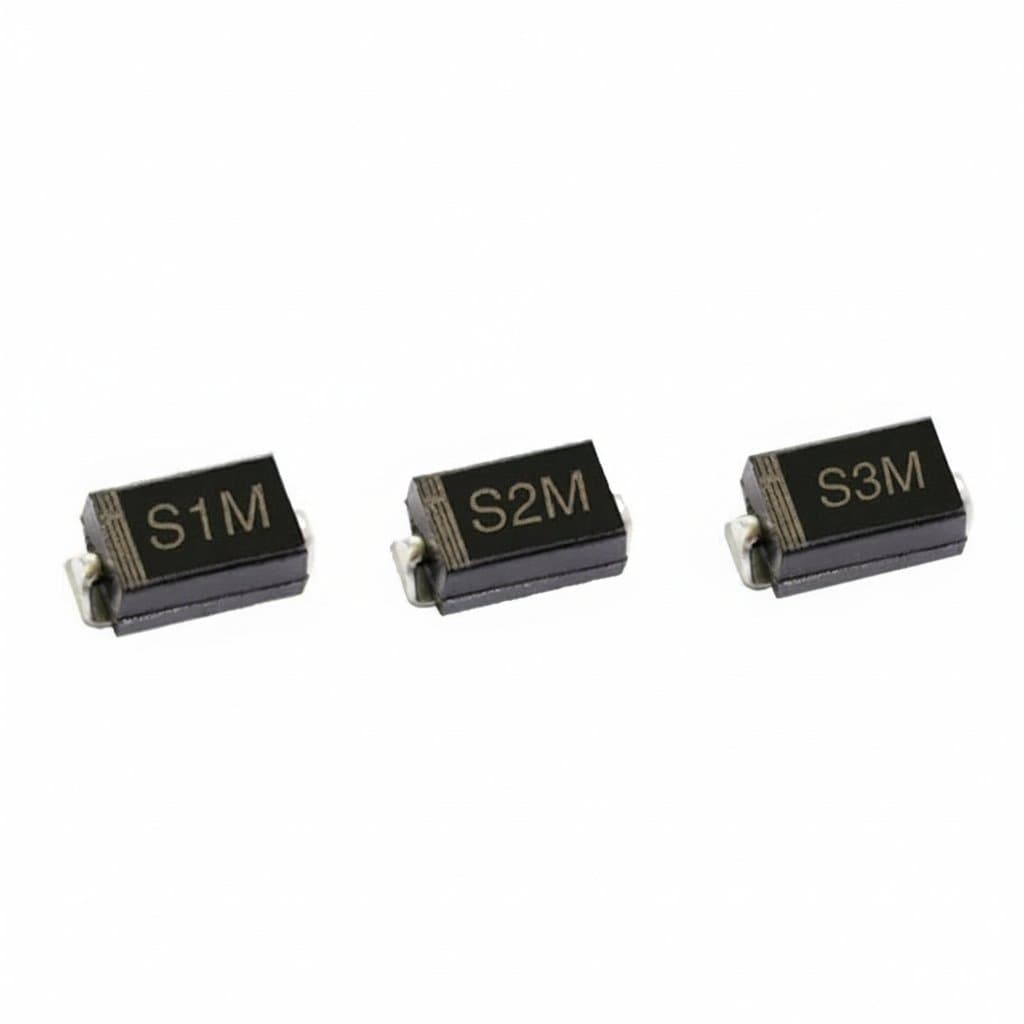

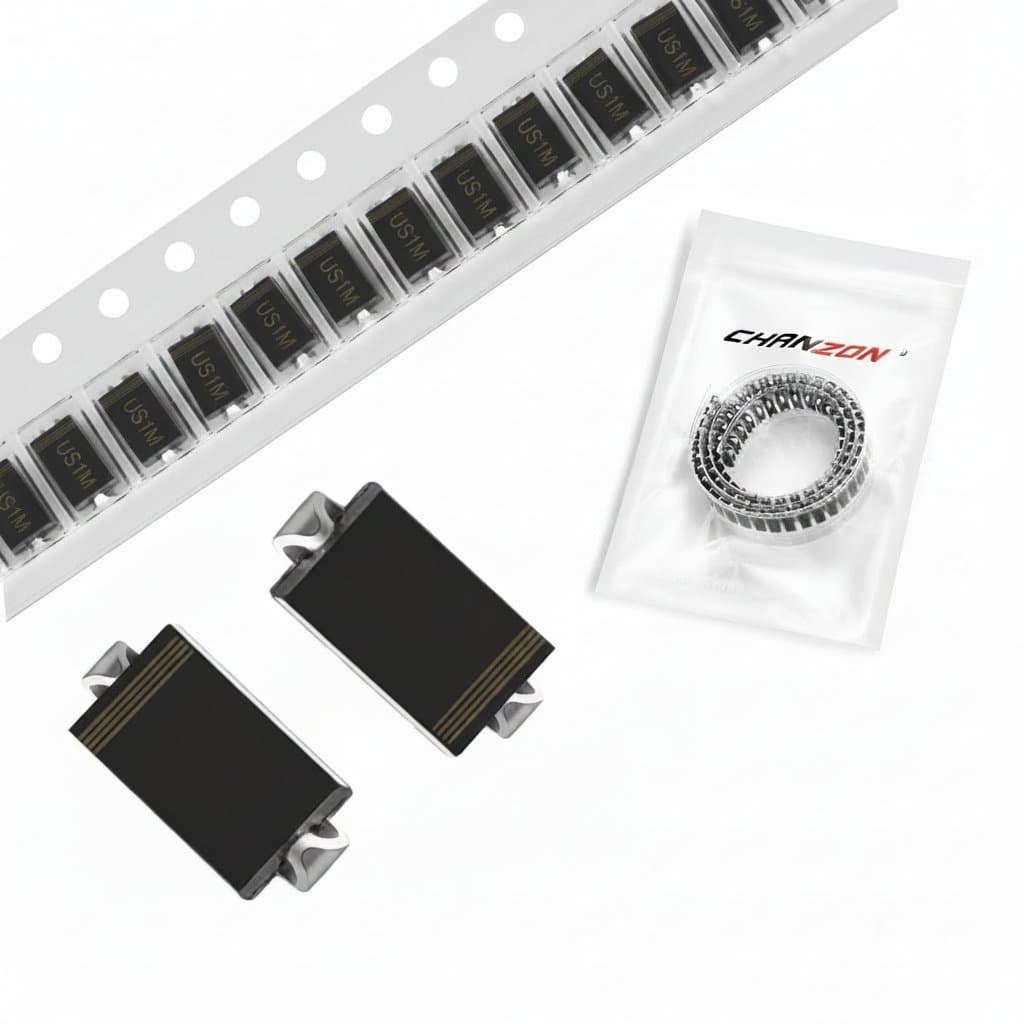

• SMD Packages: Choose SMA DO-214AC or DO-214AA for space-constrained designs and low-profile modern circuitry.

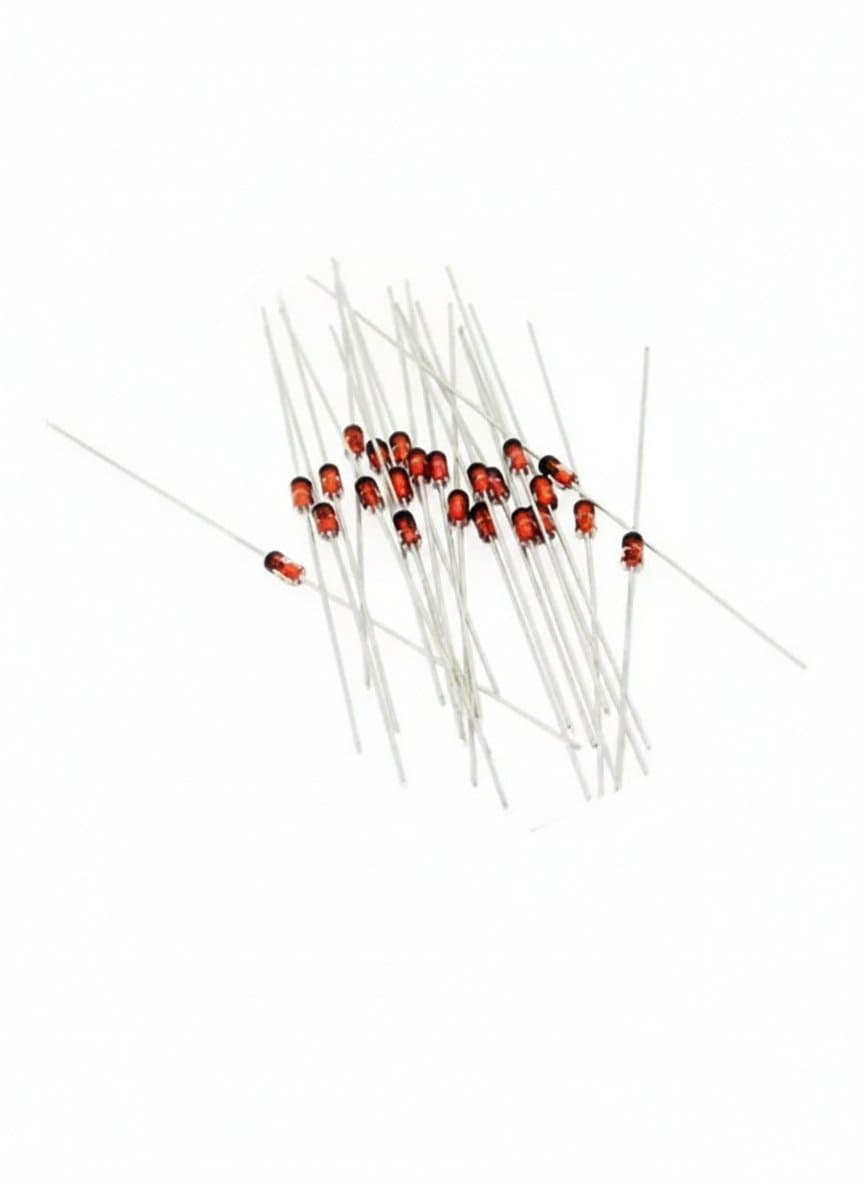

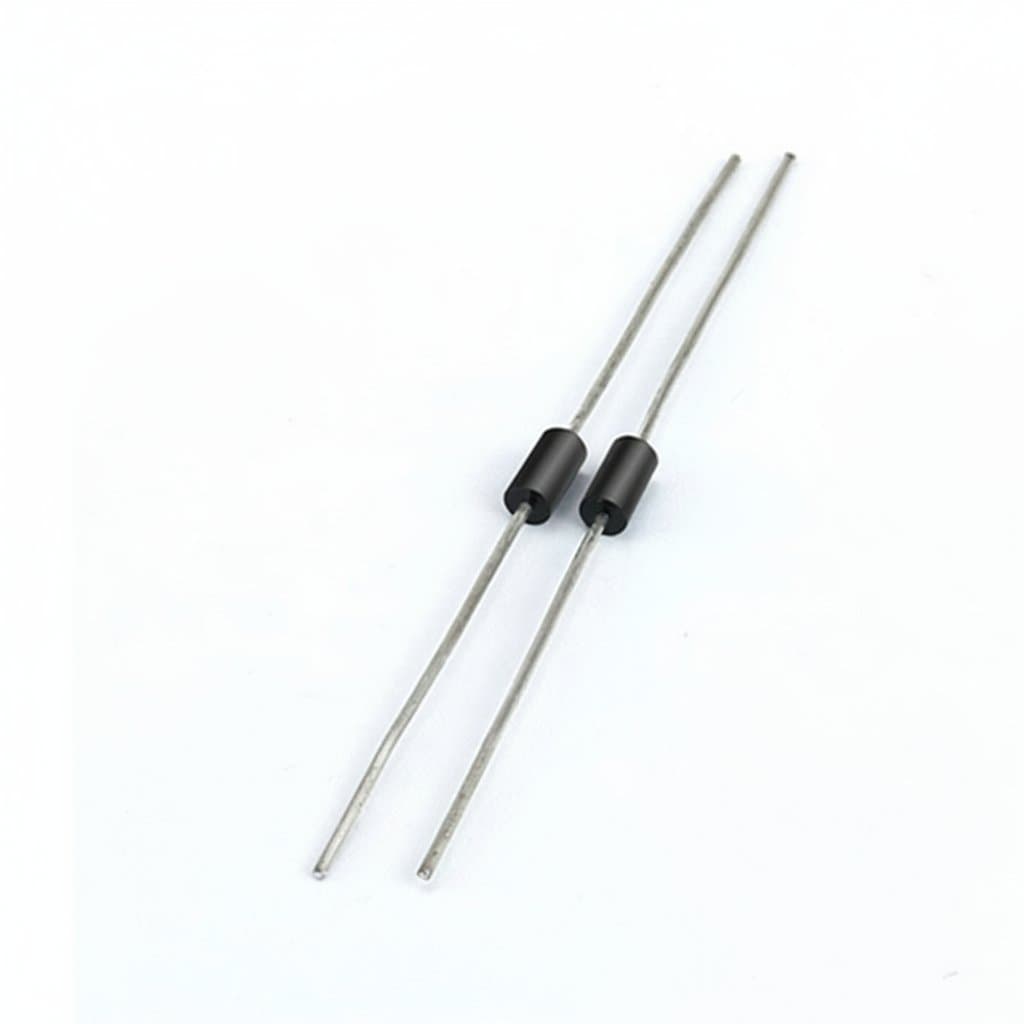

• Through-Hole Packages: Select axial leaded packages like DO-35 or DO-27 for easier manual soldering and strong physical mountings.

Matching Voltage and Current Thresholds for System Protection

Selecting the correct electrical ratings prevents premature component failure and system damage. For rectification and blocking, you must match the maximum repetitive reverse voltage and forward current to your system limits. In solar panel parallel arrays, blocking diodes require high-current connectors rated for 10A to 30A. These connectors use low forward voltage drops of around 0.55V to minimize power loss.

• Rectifier Diodes: Standard options support up to 1000V reverse voltage with forward currents ranging from 1A up to 20A.

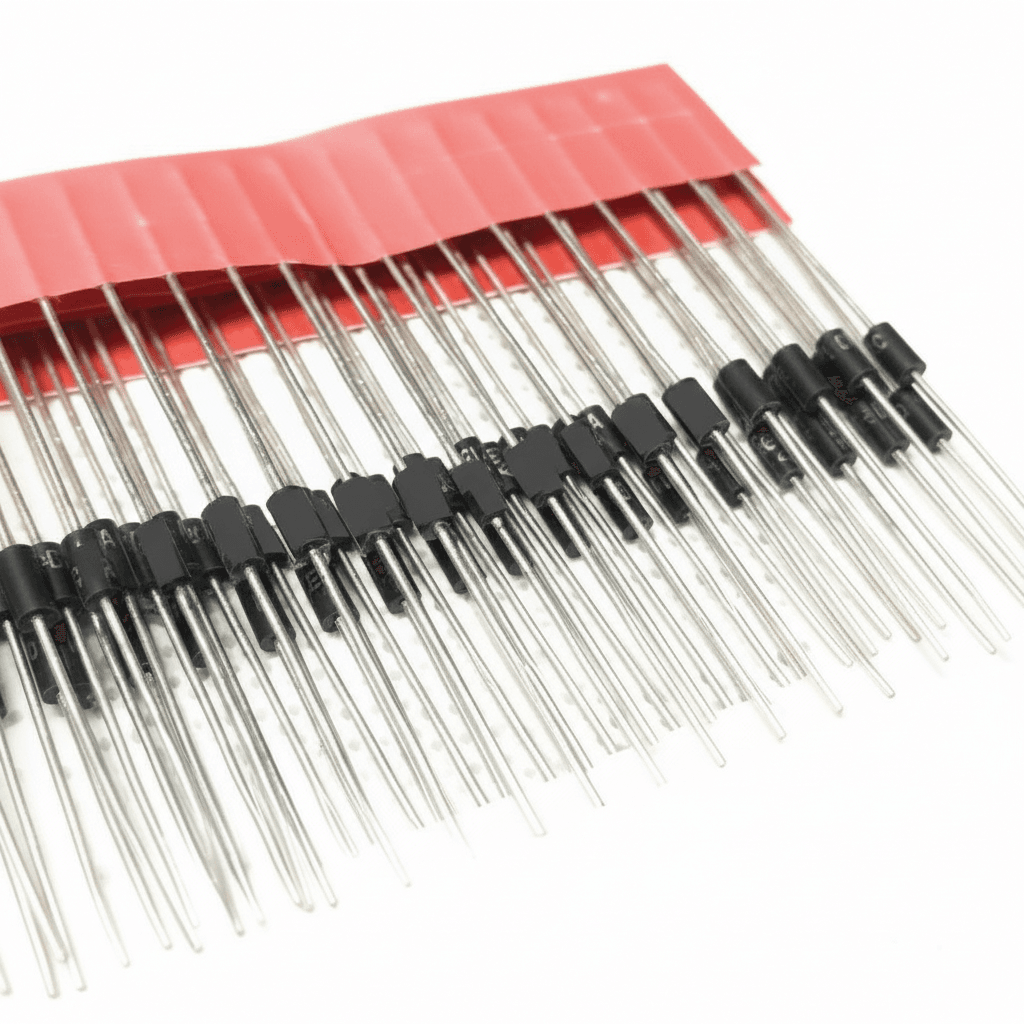

• Transient Voltage Suppressors (TVS): Use 600W or 1500W peak pulse power ratings to clamp surge voltages safely. Standoff voltages must exceed your normal operating voltage.

Selecting Integrated Circuits and Microcontrollers for System Control

When replacing or designing control logic, specify integrated circuits based on their processing speed and input/output (I/O) pin counts. Industrial microcontrollers must operate reliably across wide temperature ranges, often from -40°C up to +100°C. Ensure the logic levels match your existing peripheral sensors and actuators to avoid communication errors or hardware damage.
