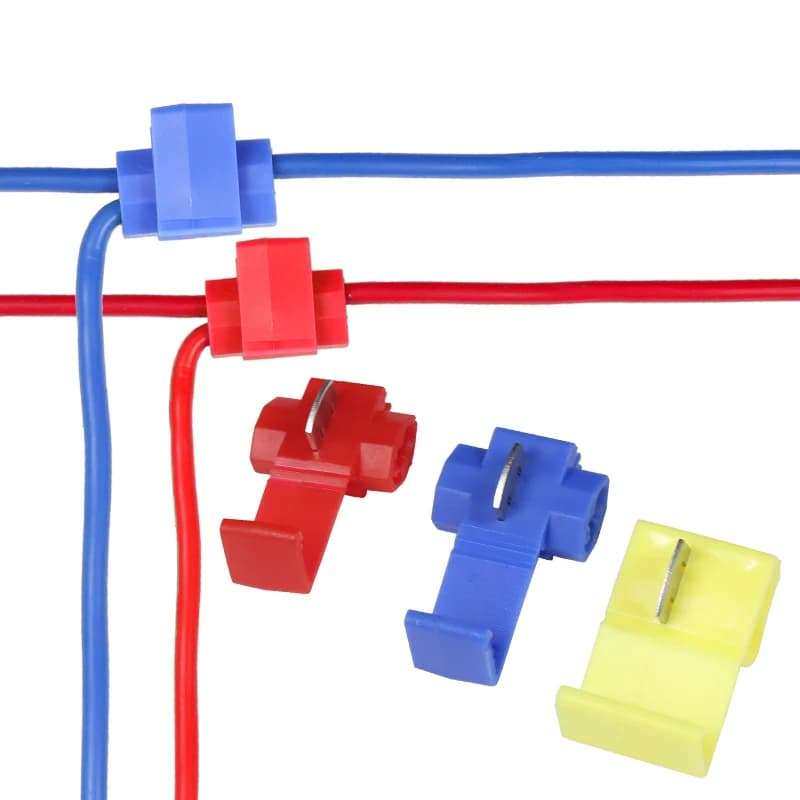

Achieve fast, non-destructive wire splicing with these scotch lock quick splice terminals. Designed for AWG 22-18 gauge wires, these connectors create a secure, insulated electrical joint without cutting the main line, saving significant time and preserving wire integrity for future modifications. Features and Benefits
- Non-Destructive Splicing - Tap into an existing wire without severing it, maintaining the original circuit's continuity and allowing for easy future disconnection or modification.
- Quick Crimp Design - The integrated metal tap and insulation displacement contact pierces wire insulation for a fast, gas-tight connection with just standard pliers, eliminating stripping.
- Durable PVC Housing - Provides excellent electrical insulation and mechanical protection against abrasion, moisture, and short circuits in demanding environments.
- AWG 22-18 Compatibility - Versatile size range handles common low-voltage signal and power wires found in automotive, security, and low-current applications.
- Bulk 10-50pcs Quantity - Ample supply for multiple projects or professional use, ensuring you always have the right connector on hand. Applications
- Automotive Wiring - Perfect for adding aftermarket accessories like lights, stereos, or sensors to your vehicle's existing electrical system without cutting factory harnesses.
- Low-Voltage Systems - Ideal for security system sensors, landscape lighting, network cabling, and other 12V-24V DC installations where a reliable tap is needed.
- DIY Electronics & Repair - Streamline prototyping, appliance repair, or custom wiring projects by creating quick, insulated splices for control circuits and power leads.
Conductor Material: Copper Alloy. Insulation Material: Thermoplastic. Insulation Color: Translucent. Voltage Rating: 300 V AC/DC. Connector Type: Insulation Displacement Connector (IDC). Contact Plating: Tin. Current Rating: 10 A. Installation Method: Crimp. Insulation Displacement Slots: 2. Operating Temperature Range: -40°C to +105°C. Package Type: Bulk. Product Name: Wire Cable Connector, Quick Splice Terminal. Quantity: 10-50 pcs. Wire Entry Type: Dual-sided, inline. Wire Gauge Range: AWG 22-18. Wire Gauge Range (Metric): 0.32 - 0.82 mm². Wire Strip Length: Not required for main line; tap wire typically 8-10mm. Contact Material: Tin-plated copper alloy (inferred). Housing Material: Thermoplastic (inferred - typically Nylon 6/6 or similar). Voltage Rating: Typically ≤ 300V AC/DC (inferred for low-voltage applications). Operating Temperature Range: -40°C to 105°C (inferred for automotive/standard grade). Crimp Tool Compatibility: Standard insulated terminal crimp tool (open barrel type). Wire Compatibility (Main Line): AWG 22-18 (0.33 mm² - 0.82 mm²). Wire Compatibility (Tap/Insertion): AWG 22-18 (0.33 mm² - 0.82 mm²). Current Rating: Typically ≤ 10A (inferred based on wire gauge). Flammability Rating: UL94 V-2 or equivalent (inferred). IP Rating: Not rated for environmental sealing. Application: Wire splicing and tapping. Conductor Contact: Metal blade pierces insulation for electrical contact. Connector Type: Scotch Lock / Quick Splice. Core Function: Parallel tap connection without severing main conductor. Corrosion Resistance: Basic (tin plating provides some protection). Electrical Resistance: Low milliohm range (inferred for quality connector). Installation Force: Hand-crimpable (requires sufficient manual pressure). Installation Method: Crimp application (hand or tool). Insulation Color: Translucent (inferred for visual inspection). Insulation Displacement: Yes. Mechanical Retention: Integral locking tab or barb (inferred). Product Type: Non-Destructive Insulation Displacement Connector (IDC). Quantity per Package: 10 to 50 pieces (variable). Reusability: Typically single-use, non-reversible. Q: What are the exact specifications for these wire cable connectors? A: These scotch lock quick splice terminals are designed for AWG 22-18 gauge wire. The pack contains between 10 to 50 pieces, providing a versatile quantity for various projects.. Q: How durable are these non-destructive wire connectors for long-term use? A: These crimp connectors are built for reliable performance. They create a secure, insulated connection that resists vibration and corrosion, ensuring durability for automotive, home, and low-voltage applications.. Q: Can I use these quick splice terminals for automotive wiring repairs? A: Yes, these are ideal for automotive and other low-voltage DC applications like car stereos, lighting, or sensors. Their non-destructive design allows you to tap into existing AWG 22-18 wires without cutting the main line.. Q: Does this product come with any warranty or guarantee? A: While specific warranty terms depend on the seller, this product is manufactured to meet quality standards for reliable electrical connections. We recommend checking the seller's detailed policy for any specific coverage.. Q: Is this a good value compared to other wire connectors? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. The pack of 10-50 pieces delivers reliable performance for regular use at a competitive price point..
