Upgrade your power connections with this 4-piece XT60 connector set featuring 10cm 14AWG silicone wire. The high-current XT60 plugs ensure a secure, low-resistance connection for demanding applications, while the flexible silicone cable withstands heat and vibration for reliable performance. Features and Benefits

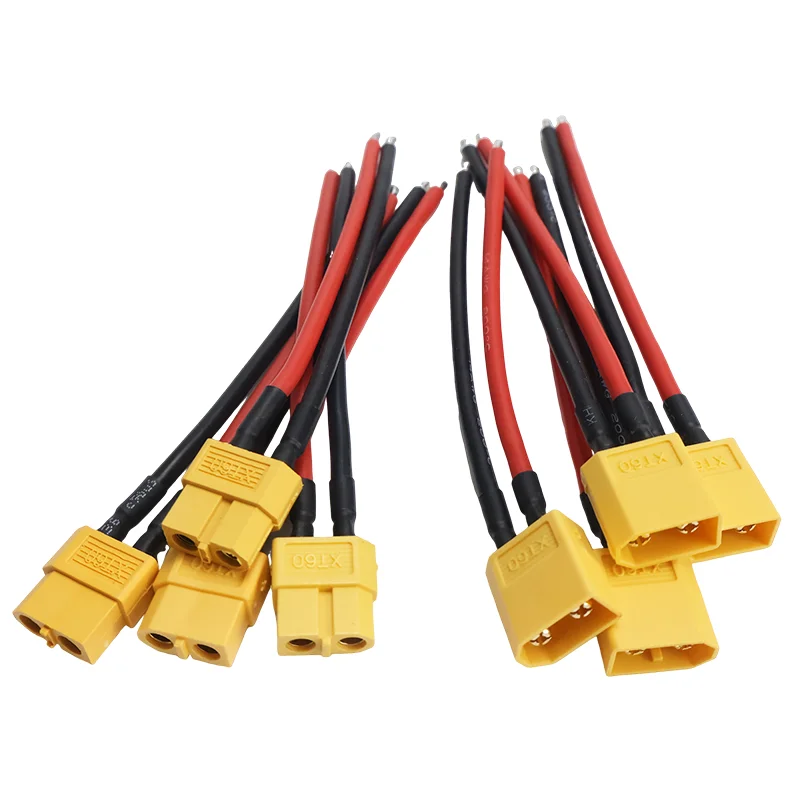

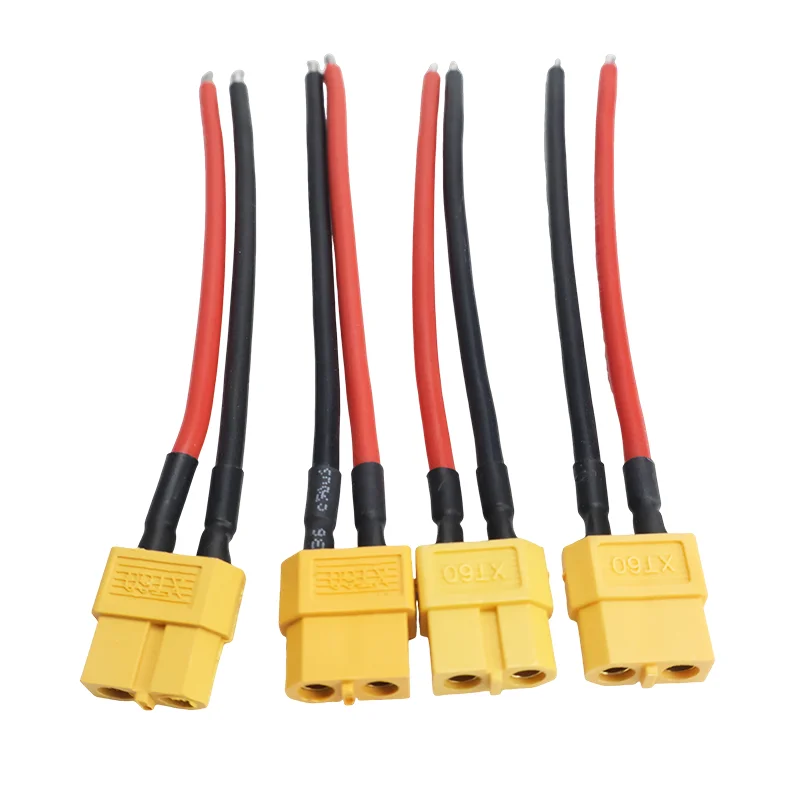

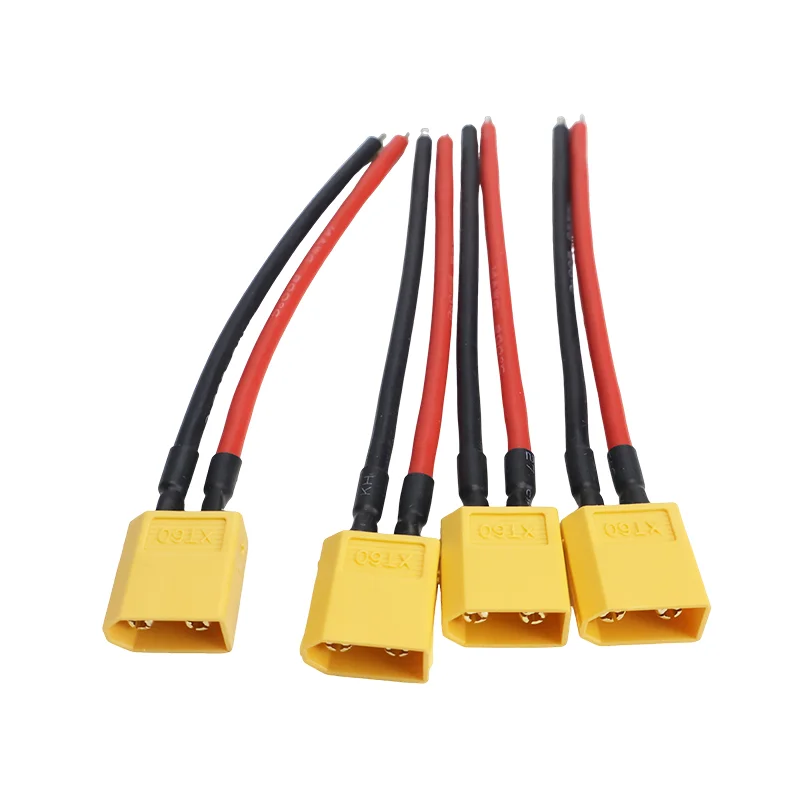

- 4-Piece XT60 Set (2 Male, 2 Female) - Provides a complete solution for creating or repairing battery and ESC connections without needing separate purchases.
- 10cm 14AWG High-Grade Silicone Wire - Offers excellent current capacity and superior flexibility compared to standard PVC wire, making routing and installation easier.
- Gold-Plated Brass Contacts - Ensures minimal voltage drop and consistent power delivery by reducing contact resistance and preventing corrosion.
- High-Temperature Resistant Housing - The durable plastic shell maintains integrity during soldering and under continuous high-load operation.
- Pre-Tinned Wire Ends - Simplifies the soldering process for a quicker, stronger, and more reliable bond between wire and connector. Applications
- RC Airplane & Drone Power Systems - Create secure, high-current links between LiPo batteries and ESCs or PDBs for FPV and racing drones.
- ESC and Battery Harness Assembly - Build custom parallel charging harnesses or extend battery leads with confidence using matched connectors.
- Power Supply Conversions - Adapt ATX or other DC power supplies to XT60 for powering chargers, ground stations, or other 12V equipment.
- General High-Current DC Projects - A reliable connector choice for electric skateboards, custom LED arrays, or any project requiring robust 60A+ connections. Note: Proper soldering technique is required for installation. Ensure correct polarity alignment (female connector typically on battery side) to prevent short circuits.
Wire Conductor Material: Copper. Connector Contact Material: Brass. Connector Housing Material: Nylon. Voltage Rating: 30 V DC. Connector Gender: Male and Female. Connector Mating Cycle Life: >100 cycles. Connector Type: XT60. Current Rating: 60 A. Operating Temperature Range: -40°C to +105°C. Quantity: 4 pieces. Wire Cross-Sectional Area: 2.08 mm². Wire Gauge: 14 AWG. Wire Length: 10 cm. Wire Outer Diameter: 3.5 mm (approx.). Wire Type: Silicone Insulated. Wire Length: 10 cm per cable assembly. Wire Outer Diameter: Approximately 3.5 mm (inferred for 14AWG silicone). Connector Contact Material: Brass, gold-plated (inferred standard). Connector Housing Material: Thermoplastic (inferred standard). Wire Conductor Material: Copper (inferred standard). Wire Insulation Material: Silicone. Operating Voltage: Up to 500V (XT60 standard, typical for RC use). Continuous Current Rating: 60A (XT60 standard). Peak Current Rating: 120A for <10 seconds (XT60 standard). Application: RC LiPo battery, ESC, FPV drone power system connections. Connector Gender: 4x Male, 4x Female (inferred from "Male Female"). Connector Quantity: 8 total connectors (4 pairs). Connector Type: XT60. Crimp/Solder Type: Solder cup terminals (inferred standard for XT60). Insulation Color: Typically black and red (inferred standard). Polarization: Keyed for correct connection. Wire Gauge: 14 AWG. Wire Strand Count: High-strand count (inferred for silicone wire). Q: What are the specifications for these XT60 connectors and wire? A: This set includes 4 pairs (male and female) of XT60 connectors. They are pre-soldered to 10cm lengths of flexible 14AWG silicone wire, which is ideal for handling high currents in RC applications.. Q: How durable are these XT60 connectors and silicone wire cables? A: The connectors are made from a robust plastic housing with gold-plated contacts for low resistance and corrosion resistance. The 14AWG silicone wire is highly flexible, heat-resistant, and durable against abrasion.. Q: Can I use these XT60 battery connectors for my FPV drone ESC and LiPo battery? A: Yes, absolutely. These XT60 connectors are the industry standard for connecting LiPo batteries to ESCs in RC airplanes, drones, and FPV quadcopters. The 10cm length is perfect for creating safe, manageable battery leads.. Q: Does this product come with any warranty or guarantee? A: While specific warranty terms depend on the seller, this product is manufactured to reliable specifications for consistent performance. It's always best to check the seller's policy for details on coverage.. Q: Is this XT60 connector set a good value for the price? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable performance for regular use with four complete pairs ready for installation..
