What kind of drill or grinder does this flexible shaft fit?

This shaft has a 6mm shank, so it will fit any standard power drill or mini grinder with a chuck that can hold a 6mm bit. It's designed to give you more precise control for detailed work.

How do I attach this to my drill?

It's straightforward. You just open the chuck on your drill, insert the 6mm drive shank from the flexible shaft, and tighten the chuck down securely as you would with a normal drill bit.

What's the maximum size bit I can use in the handpiece chuck?

The chuck on the handpiece at the end of the shaft can hold accessories and bits with a shank up to 6mm in diameter. This lets you use a wide variety of small grinding stones, cutters, and polishing bits.

Shaft Coupling System | 6mm Handpiece | For Rotary Tool Engraving

Name: Shaft Coupling System | 6mm Handpiece | For Rotary Tool Engraving
Brand: Compel
SKU: SHAF-00001
Price: 29.95 USD
Availability: InStock
Rating: 4.9 (162 reviews)

Stock #:CMP-04543

SKU:SHAF-00001

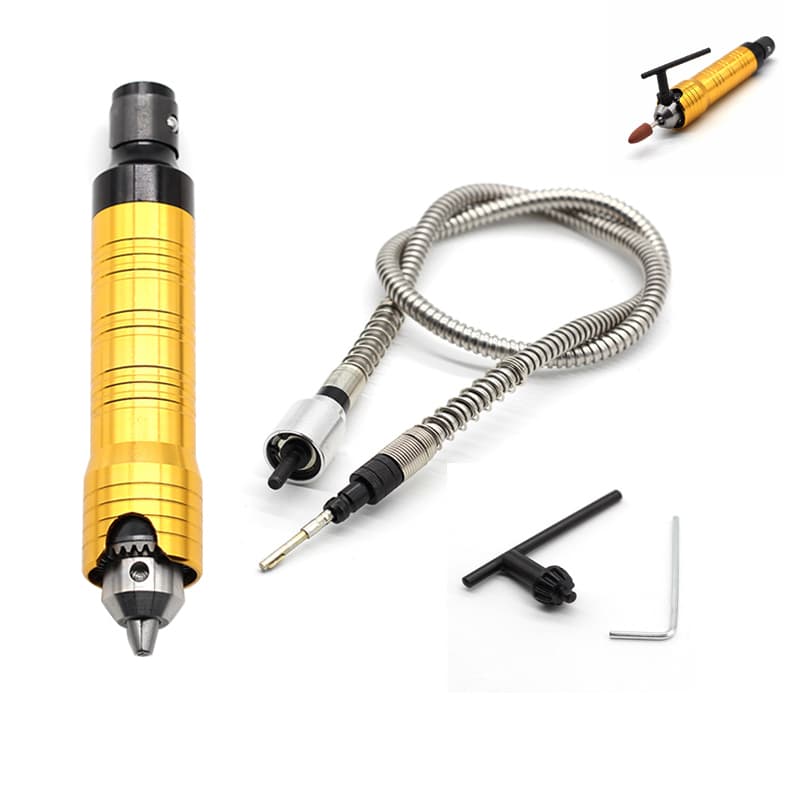

Shaft Coupling System | 6mm Handpiece | For Rotary Tool Engraving - Image 1

1 / 6

$29.95

Ships to United States · standard est. 10-20 business days

Free standard shipping on orders over $59 (under 2kg). Express available at checkout.

ColorSelect an option

Quantity

Shaft Coupling System | 6mm Handpiece | For Rotary Tool Engraving

$29.95

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

What kind of drill or grinder does this flexible shaft fit?: This shaft has a 6mm shank, so it will fit any standard power drill or mini grinder with a chuck that can hold a 6mm bit. It's designed to give you more precise control for detailed work.
How do I attach this to my drill?: It's straightforward. You just open the chuck on your drill, insert the 6mm drive shank from the flexible shaft, and tighten the chuck down securely as you would with a normal drill bit.
What's the maximum size bit I can use in the handpiece chuck?: The chuck on the handpiece at the end of the shaft can hold accessories and bits with a shank up to 6mm in diameter. This lets you use a wide variety of small grinding stones, cutters, and polishing bits.

Shaft Couplings spec sheet (PDF)

Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.

Explore the range

Popular in Industrial & Machinery

Browse Industrial & Machinery

-28%

Electric Fabric Cutter | Round-Knife Cloth Slitting Machine | YJ-110C Hand-Push Design

5.0

$189.99$264.96

Push-to-Connect Air & Water Fittings | 4mm-12mm OD | Quick-Release Hose Couplings

4.9

$5.95

Complete the set

Accessories & add-ons

Sensor Protection Sleeve | Stainless Steel Blind Tube | 6mm

5.0(11)

$39.95

Motion Sensor Bracket | Automatic IR Lamp Holder | 110-240V AC

4.8(196)

$16.99

Soil Moisture NPK Sensor | 7-in-1 Agricultural Probe Accessory

4.8(25)

$26.95

Arduino Raspberry Pi Sensor Kit (45pc) | Modules for UNO R3 MEGA2560

4.7(58)

$47.95

Reflector Plate | Photoelectric Sensor Accessory | TD Series

4.7(23)

$12.99

Load Cell ADC Module | 24-Bit HX711 Sensor Accessory

4.4(21)

$1.49

Bending Strain Gauge Amplifier Module | Sensor Accessories UK

$5.95

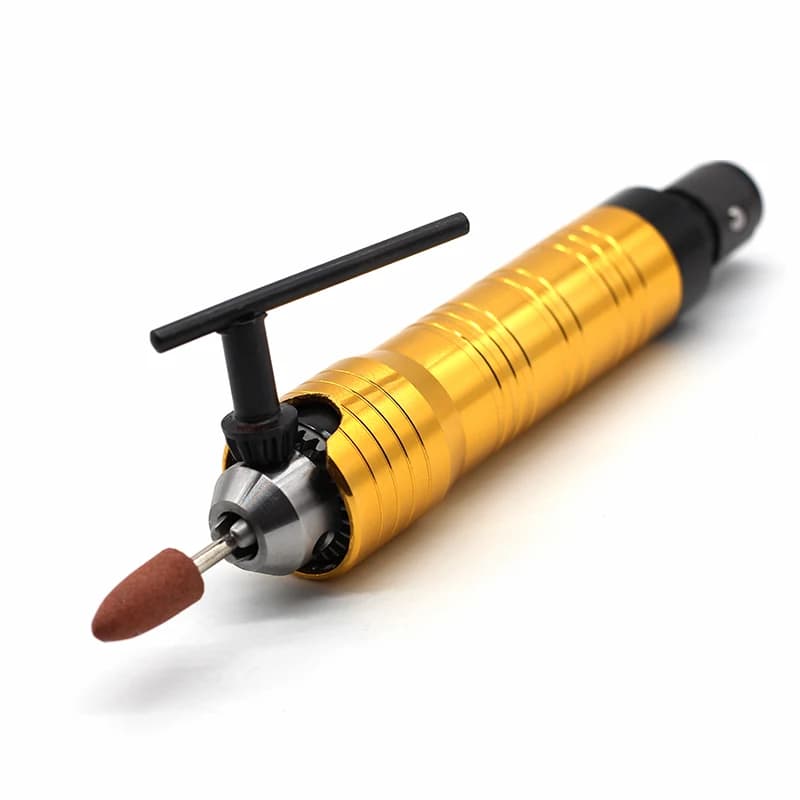

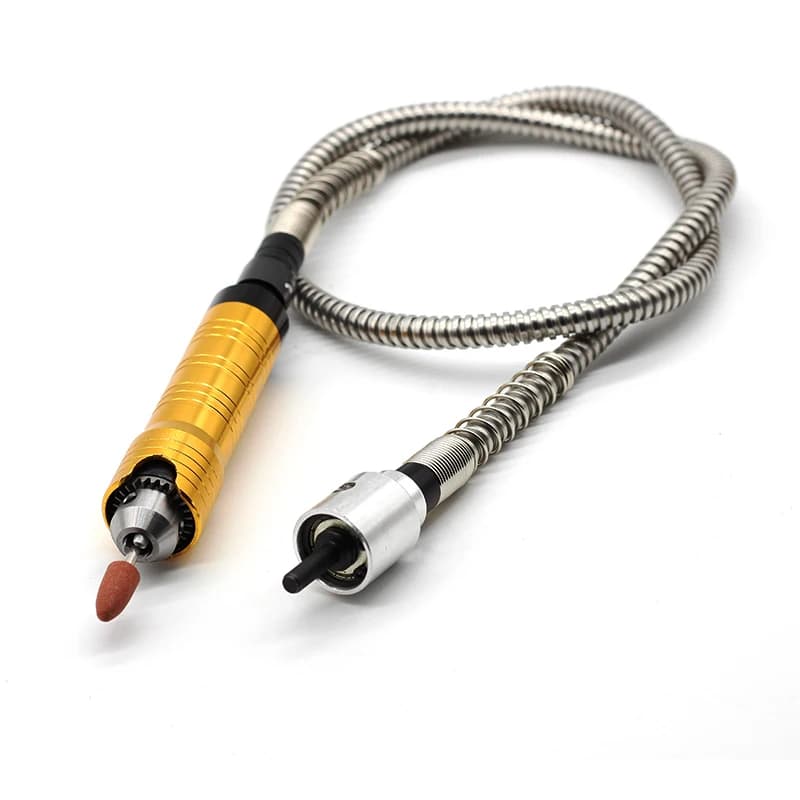

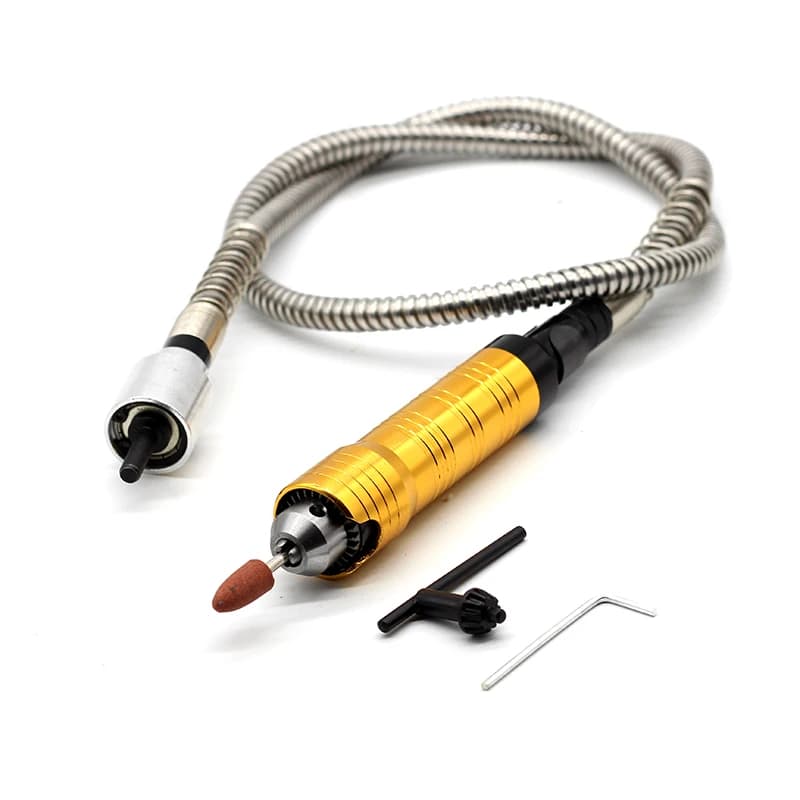

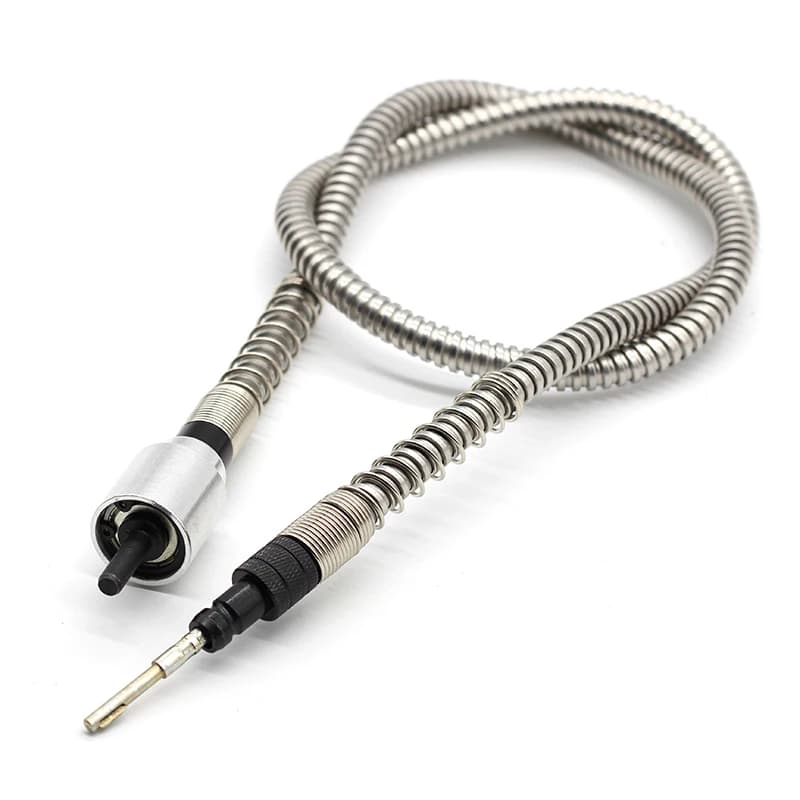

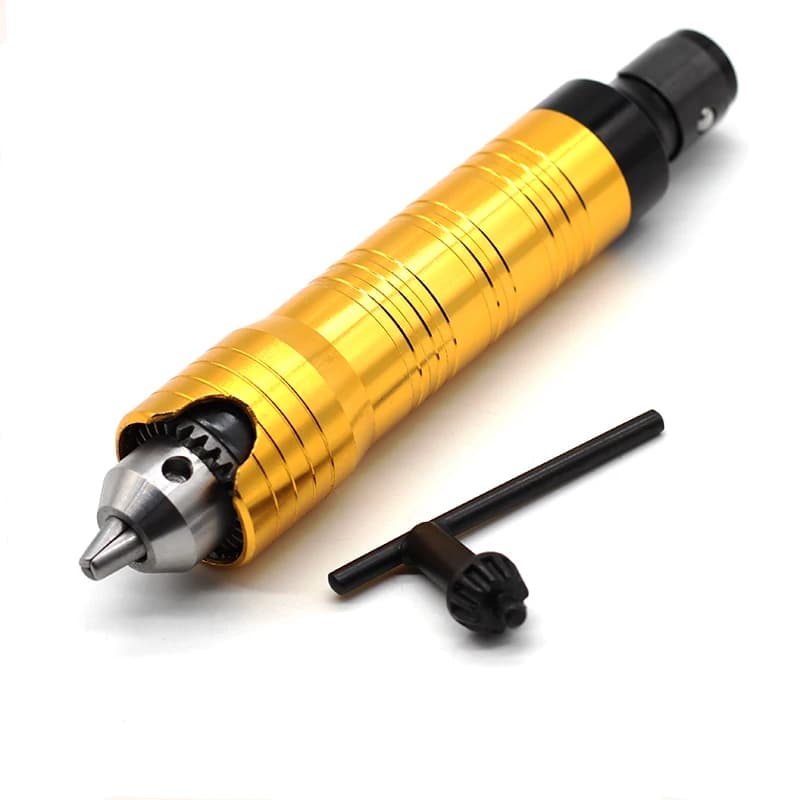

This flexible shaft attaches to your electric drill or grinder. It gives you a light, pen-like handpiece for detailed work. The shaft coupling fits standard rotary tools. This lets you engrave, polish, or sand with better control and less fatigue in tight spots. Features and Benefits - 6 mm three-jaw chuck - Holds a wide range of bits and accessories for different jobs. - 110 cm flexible shaft length - Gives plenty of reach to work on items without moving the main power tool. - Lightweight handpiece - Reduces hand strain. It improves control for intricate carving or polishing. - Simple shaft coupling connection - Attaches quickly to the collet of your existing rotary tool or drill. Applications - Detailed engraving on wood or metal - Polishing jewelry and small metal parts - Sanding or grinding in hard-to-reach areas on models

Compatibility: Electric Drill. Certification: None. Application: Mini Grinder Accessories. Customization: Yes. Model Number: E. Shaft Diameter: 6 mm. Handle Diameter: 25 mm. Shaft Diameter: 6 mm. Shaft Length: 100 cm. Weight (Shaft Only): 250 grams. Material (Inner Shaft): Steel. Material (Outer Casing): Rubber/Plastic. Chuck Capacity: 0.3-6.5 mm. Compatibility: Electric Drills, Mini Grinders, Rotary Tools. Application: Engraving, Polishing, Drilling, Grinding. Chuck Type: 3-Jaw Chuck. Connection Thread: M19x2 (for power tool connection). Customization: Yes. Maximum RPM: 20,000 RPM. Model Number: Engraver Flexible Sha. Product Name: Engraver Flexible Shaft Handpiece Power Tool Electric Drill Handle Chuck. Q: What is the maximum rotational speed for this flexible shaft? A: This flex shaft is designed to operate at speeds up to 35,000 RPM. It's best for fine detail work where you need more control than holding the entire motor.. Q: What is the maximum rotational speed for this flexible shaft? A: This flex shaft is designed to operate at speeds up to 35,000 RPM. It's best for fine detail work where you need more control than holding the entire motor.. Q: What is the maximum rotational speed for this flexible shaft? A: This flex shaft is designed to operate at speeds up to 35,000 RPM. It's best for fine detail work where you need more control than holding the entire motor.. Q: How does the handpiece hold up during long sessions? Does it get hot? A: The handpiece is built with an aluminum alloy body that helps pull heat away from the internal components and your hand. This design keeps it cooler during extended periods of engraving or polishing.. Q: How does the handpiece hold up during long sessions? Does it get hot? A: The handpiece is built with an aluminum alloy body that helps pull heat away from the internal components and your hand. This design keeps it cooler during extended periods of engraving or polishing.. Q: How does the handpiece hold up during long sessions? Does it get hot? A: The handpiece is built with an aluminum alloy body that helps pull heat away from the internal components and your hand. This design keeps it cooler during extended periods of engraving or polishing.. Q: What size tool shanks fit in the chuck, and how does the shaft coupling attach to a rotary tool? A: The three-jaw chuck can hold bits with shanks from 0.3mm up to 6mm in diameter. The shaft coupling screws onto rotary tools that have a standard M18 or M19 thread on the nose, which is common for many brands.. Q: What size tool shanks fit in the chuck, and how does the shaft coupling attach to a rotary tool? A: The three-jaw chuck can hold bits with shanks from 0.3mm up to 6mm in diameter. The shaft coupling screws onto rotary tools that have a standard M18 or M19 thread on the nose, which is common for many brands.. Q: What size tool shanks fit in the chuck, and how does the shaft coupling attach to a rotary tool? A: The three-jaw chuck can hold bits with shanks from 0.3mm up to 6mm in diameter. The shaft coupling screws onto rotary tools that have a standard M18 or M19 thread on the nose, which is common for many brands.. Q: What happens if the shaft arrives damaged or doesn't work correctly? A: We check these before they ship, but if you have any problems, please contact us immediately. We'll help you troubleshoot or arrange for a replacement if there's a manufacturing defect.. Q: What happens if the shaft arrives damaged or doesn't work correctly? A: We check these before they ship, but if you have any problems, please contact us immediately. We'll help you troubleshoot or arrange for a replacement if there's a manufacturing defect.. Q: What happens if the shaft arrives damaged or doesn't work correctly? A: We check these before they ship, but if you have any problems, please contact us immediately. We'll help you troubleshoot or arrange for a replacement if there's a manufacturing defect.. Q: What's included in the box besides the shaft itself? A: The package contains the complete flexible shaft assembly with the attached handpiece and chuck. It also includes a small chuck key so you can easily tighten and loosen your various bits.. Q: What's included in the box besides the shaft itself? A: The package contains the complete flexible shaft assembly with the attached handpiece and chuck. It also includes a small chuck key so you can easily tighten and loosen your various bits.. Q: What's included in the box besides the shaft itself? A: The package contains the complete flexible shaft assembly with the attached handpiece and chuck. It also includes a small chuck key so you can easily tighten and loosen your various bits..
