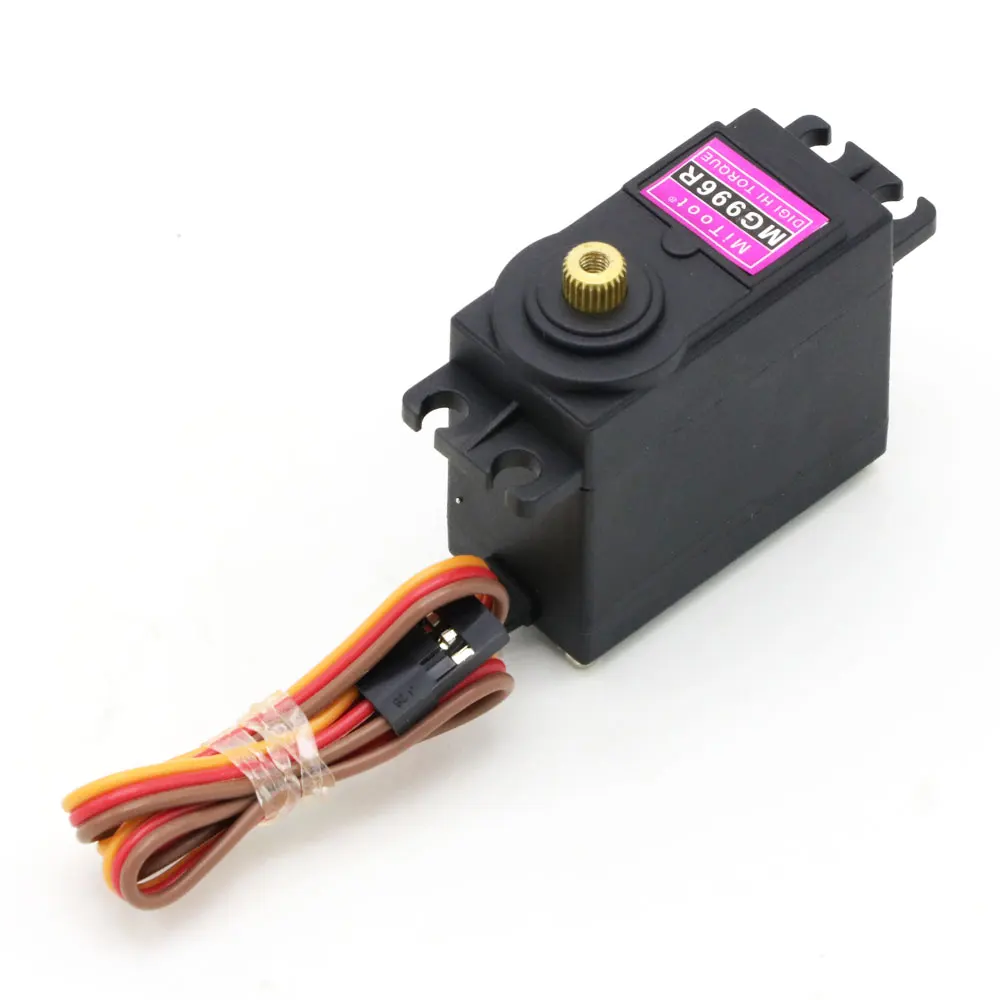

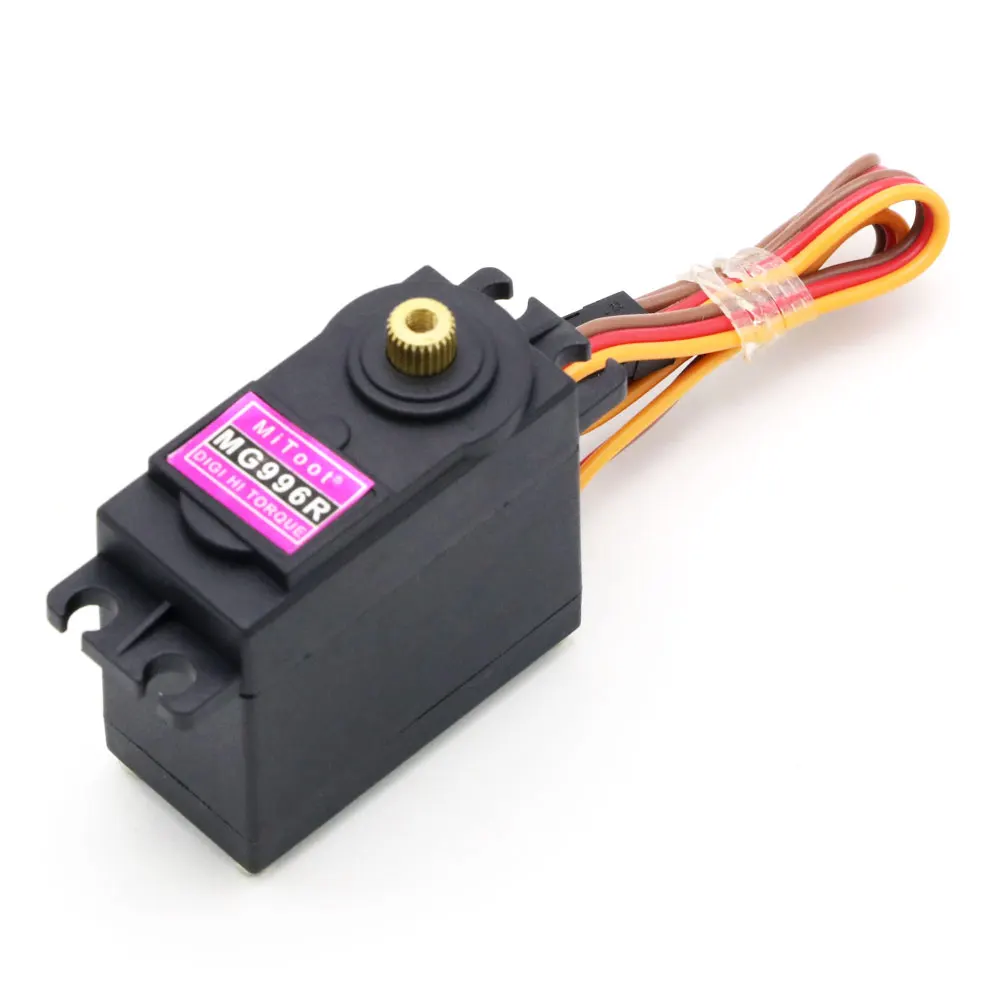

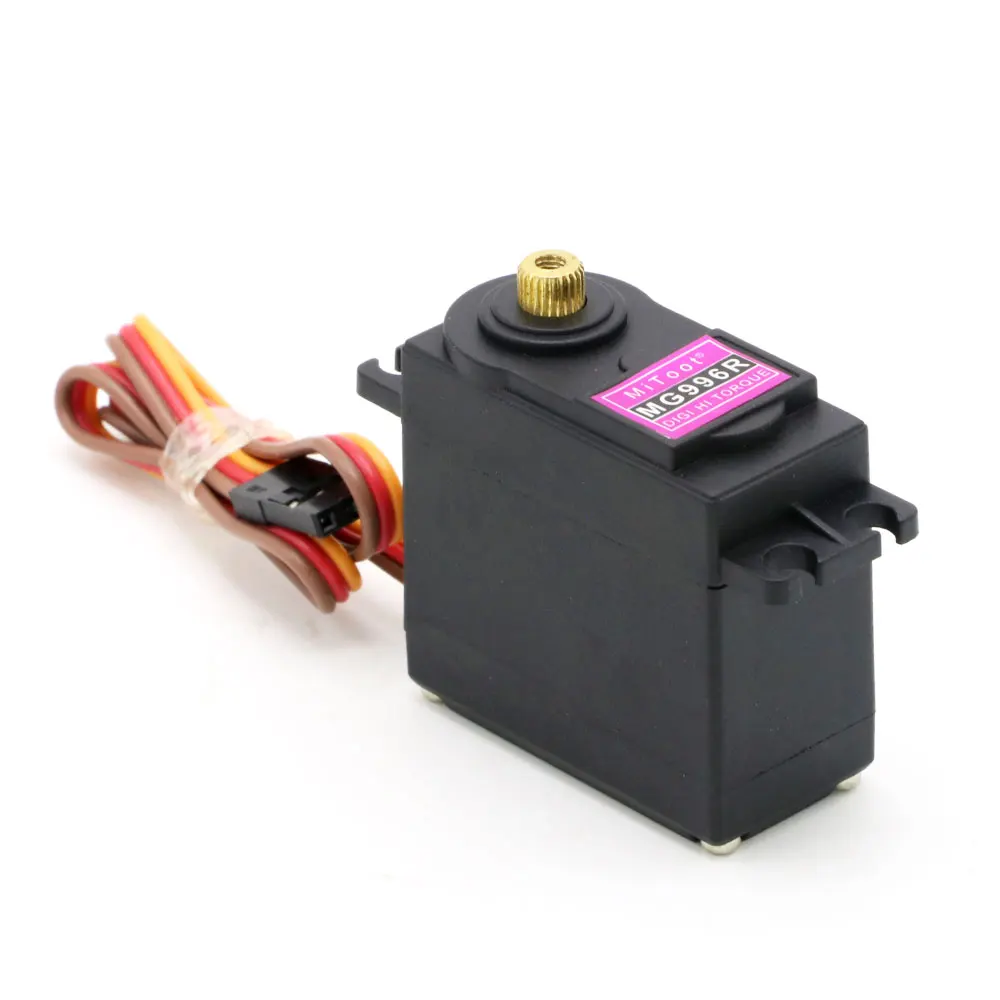

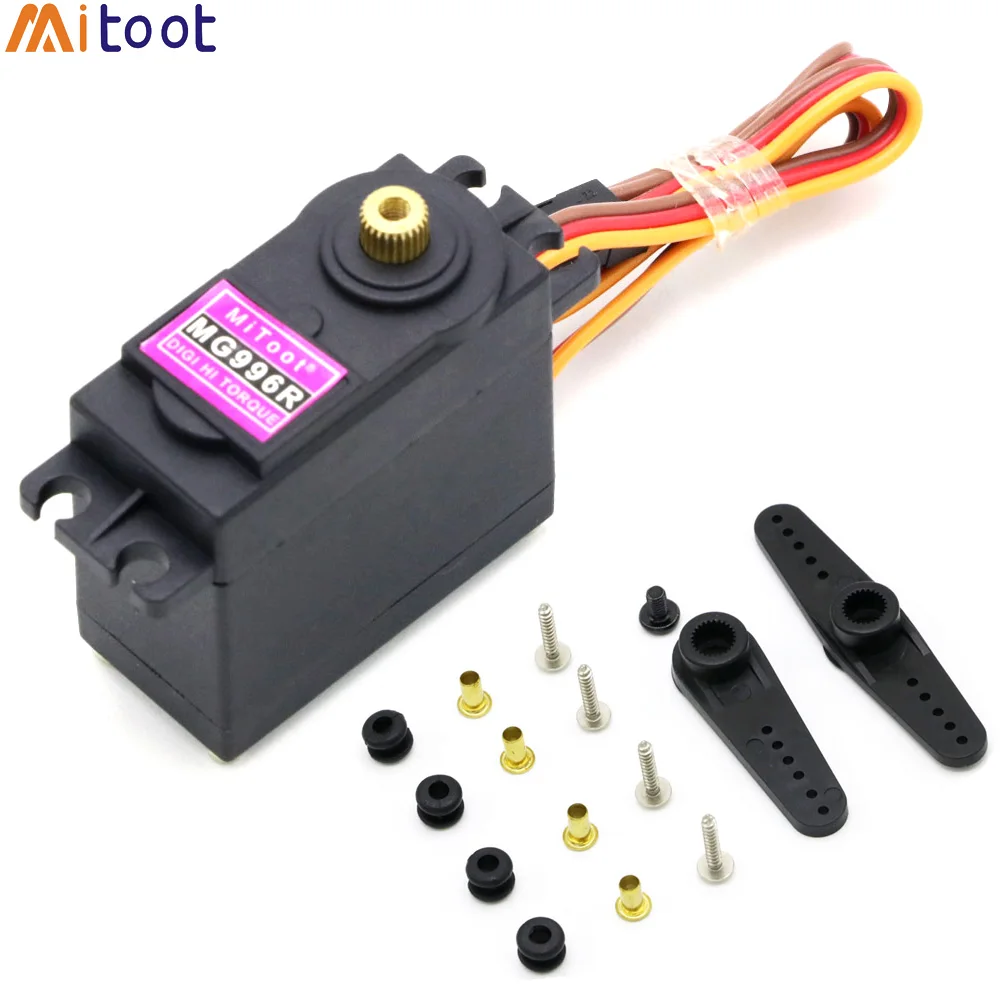

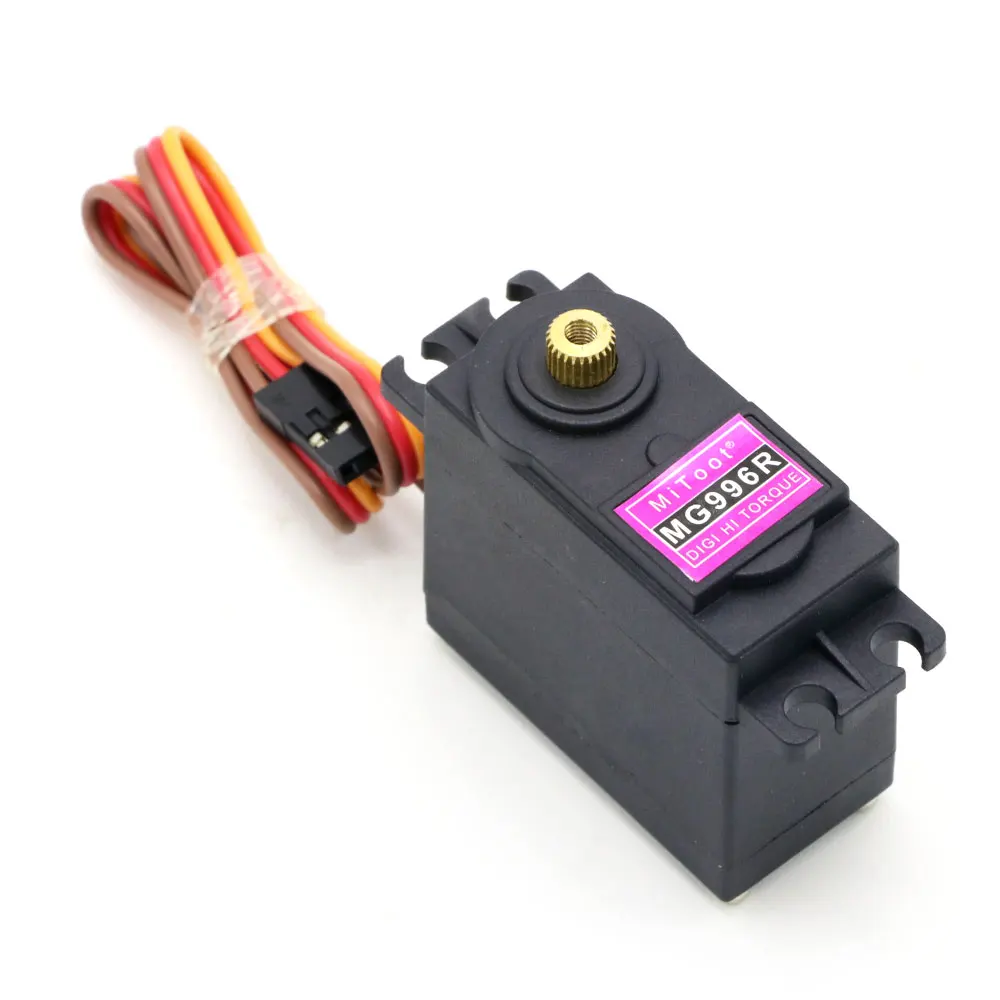

The MG996R digital servo motor combines high torque output with precise digital control for superior performance in RC hobbies. Its metal gears and robust design provide the strength needed for critical control surfaces and heavy-duty applications, ensuring accurate and responsive command execution. Features and Benefits
- Digital signal control - Offers faster response, higher holding power, and more precise positioning than analog servos.
- High-torque metal gear design - Delivers exceptional strength for demanding tasks like steering large vehicles or moving flight controls.
- Ball-bearing output shaft - Reduces friction and wear for smoother operation and extended service life.
- Wide compatibility - Works seamlessly with standard RC receivers, making it an easy upgrade for various platforms. Applications
- Primary flight controls (elevator, aileron) on larger RC airplanes and helicopters.
- Steering systems in heavy-duty RC trucks, crawlers, and competition-grade cars.
- Winch and rudder control in larger model boats and sailboats.
Dimensions: 40.7 x 19.7 x 42.9 mm. Weight: 55 g. Gear Material: Metal. Operating Voltage: 4.8V - 7.2V. Connector Type: JR. Control Signal: PWM. Model: MG996R. Product Type: Digital RC Servo Motor. Quantity: 1 piece. Rotation Angle: 180°. Speed (4.8V): 0.20 sec/60°. Speed (6.0V): 0.16 sec/60°. Stall Torque (4.8V): 9.4 kg·cm. Stall Torque (6.0V): 11 kg·cm. Dead Band Width: 5 μs. Dimensions (LxWxH): 40.7 x 19.7 x 42.9 mm. Weight: 55 g. Gear Material: Metal. Operating Voltage: 4.8V - 7.2V DC. Operating Speed (4.8V): 0.17 sec/60°. Operating Speed (6.0V): 0.14 sec/60°. Operating Speed (7.2V): 0.11 sec/60°. Bearing Type: Dual ball bearings. Connector Type: JR/Futaba compatible 3-pin. Control System: Digital PWM. Model: MG996R. Motor Type: Coreless DC motor. Product Type: Digital Metal Gear Servo Motor. Stall Torque (4.8V): 10 kg·cm. Stall Torque (6.0V): 11 kg·cm. Stall Torque (7.2V): 13 kg·cm. Q: What are the key specs of the Mitoot MG996R digital servo motor? A: The Mitoot MG996R is a digital servo motor with metal gears, offering high torque output. It operates on a standard 4.8V to 6.0V range and provides precise control due to its digital circuitry, making it suitable for RC airplanes, helicopters, cars, and boats.. Q: How does the quality of this digital servo compare to analog versions? A: The digital servo provides improved holding power, faster response, and less deadband than typical analog servos. The metal gear train enhances durability and strength, making it a robust choice for applications requiring precise and powerful movement.. Q: Is the Mitoot MG996R compatible with standard RC and Arduino equipment? A: Yes, it uses standard 3-pin connectors and PWM control signals, making it compatible with most RC transmitters/receivers and microcontroller platforms like Arduino. Ensure your power supply can deliver the required current for optimal performance.. Q: What warranty coverage is offered with this servo motor? A: The specific warranty terms are set by the seller or manufacturer. Review the product documentation or listing details for information on the warranty duration and what types of failures are covered.. Q: Does the Mitoot MG996R represent good value for a digital servo? A: This servo is widely regarded as offering excellent value, providing the benefits of digital control and metal gear durability at a price point accessible to many hobbyists, which contributes to its popularity in various RC and robotics projects..
